Zylinder Set + Kopf 70ccm 47mm (4-eckig) GROß für Piaggio LC NRG NTT Quartz Zip / Gilera Runner (bis 1997) (105987)

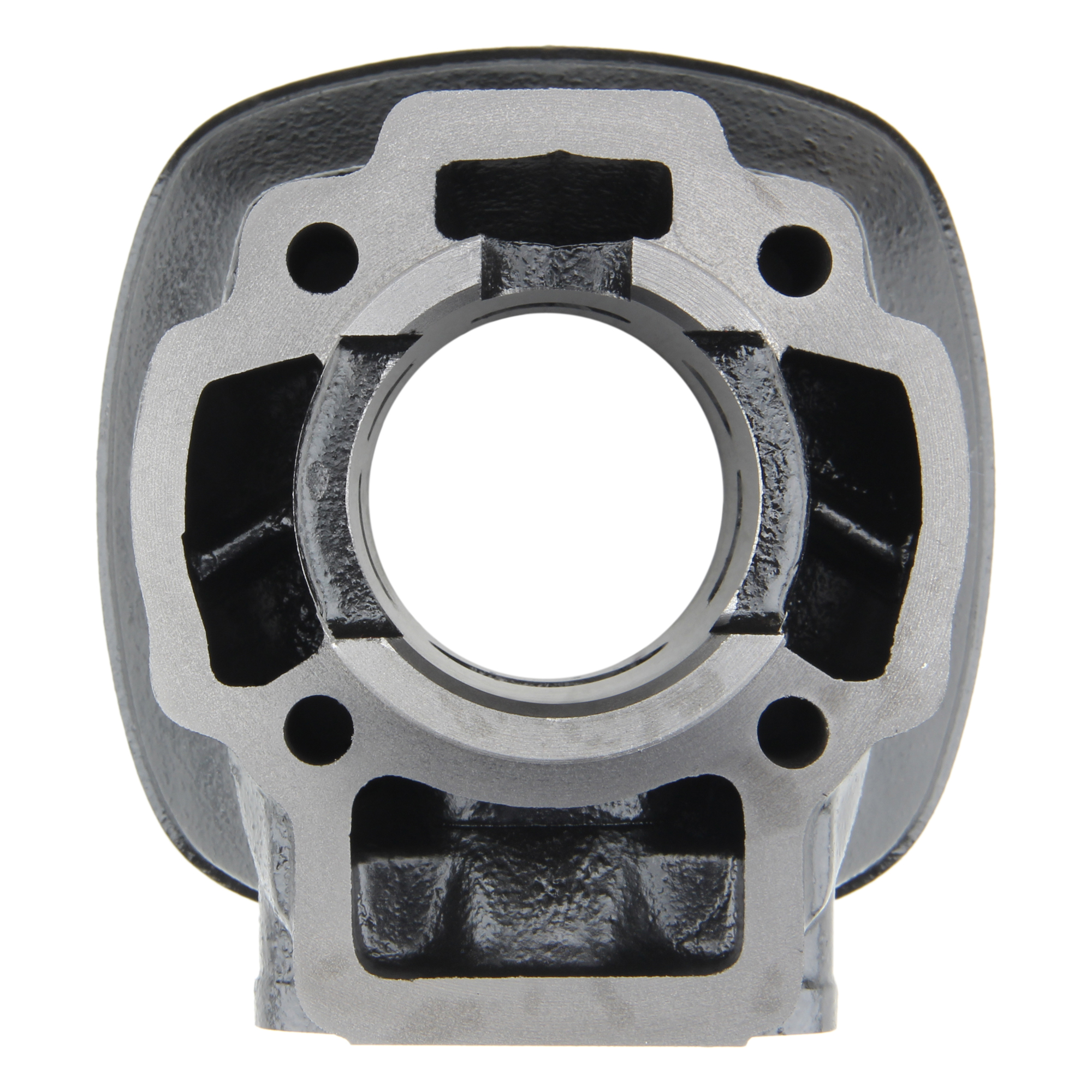

Cylinder set + head 70cc 47mm (4-cornered) LARGE for Piaggio LC NRG NTT Quartz Zip / Gilera Runner (up to 1997)

Rate

£31.87 *

Content: 1 piece

Prices plus VAT plus shipping costs

Unfortunately, this item is already sold out due to high demand.

Further variants / accessories

Zylinder Set 70ccm 47mm (4-eckig) für Piaggio LC NRG NTT Quartz Zip / Gilera Runner (bis 1997)

Zylinder Set + Kopf 70ccm 47mm (4-eckig) für Piaggio LC NRG NTT Quartz Zip / Gilera Runner (bis 1997)

Zylinder Set 70ccm 47mm (4-eckig) KLEIN für Piaggio LC NRG NTT Quartz Zip / Gilera Runner (bis 1997)

Zylinder Set + Kopf 70ccm 47mm (4-eckig) KLEIN für Piaggio LC NRG NTT Quartz Zip / Gilera Runner (bis 1997)

Zylinder Set 70ccm 47mm (4-eckig) GROß für Piaggio LC NRG NTT Quartz Zip / Gilera Runner (bis 1997)

Zylinder Set + Kopf 70ccm 47mm (4-eckig) GROß für Piaggio LC NRG NTT Quartz Zip / Gilera Runner (bis 1997)

Item no: 105987
EAN: 4060861223792
Manufacturer: Citomerx
Manufacturer no.: 105987

Cylinder set + head 70cc 47mm (4-cornered) LARGE for Piaggio LC NRG NTT Quartz Zip / Gilera... more

Close menu

Cylinder set + head 70cc 47mm (4-cornered) LARGE for Piaggio LC NRG NTT Quartz Zip / Gilera Runner (up to 1997)

Customers also searched for this product under:

Further links to "Cylinder set + head 70cc 47mm (4-cornered) LARGE for Piaggio LC NRG NTT Quartz Zip / Gilera Runner (up to 1997)"

Properties more

zurück

GTIN:	4060861223792

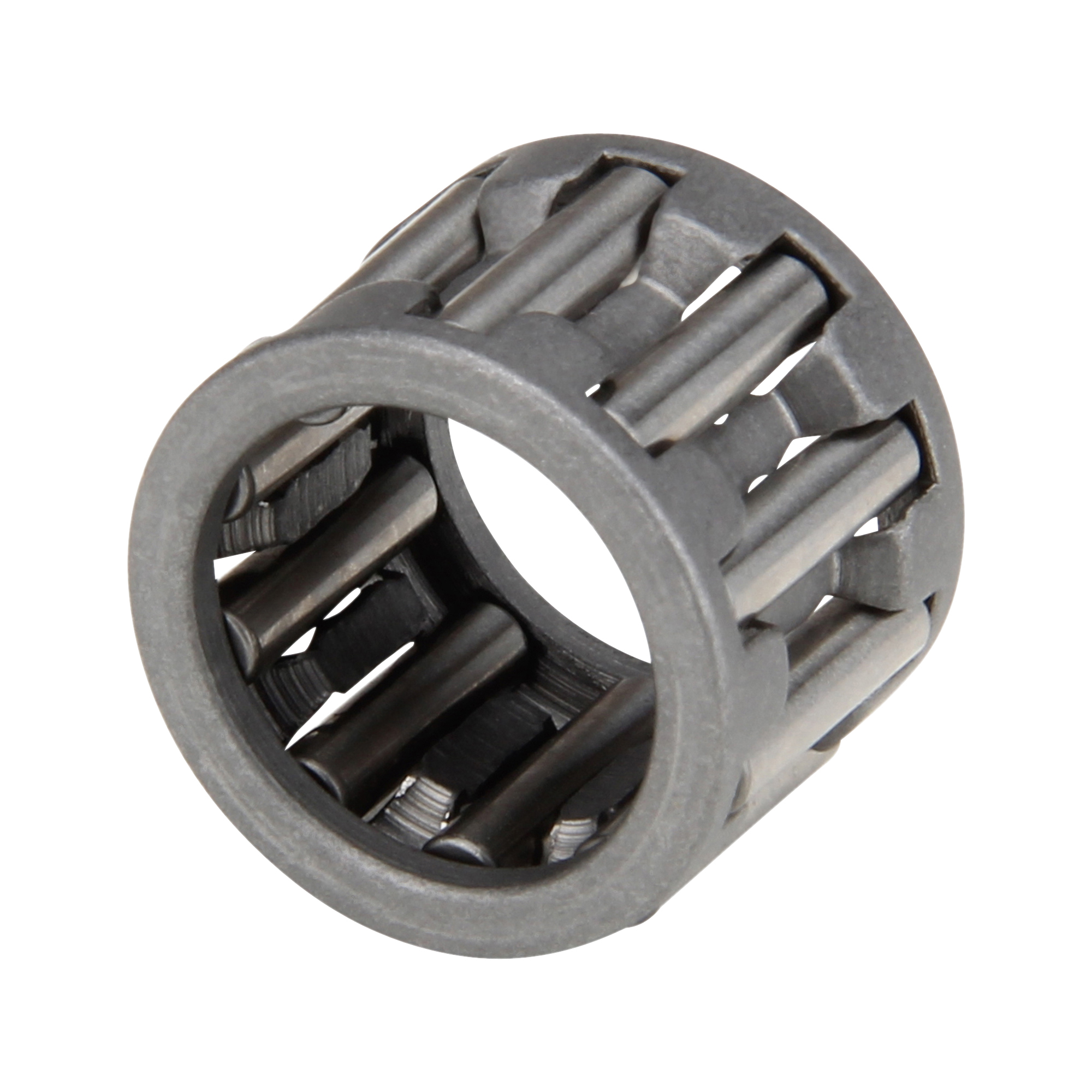

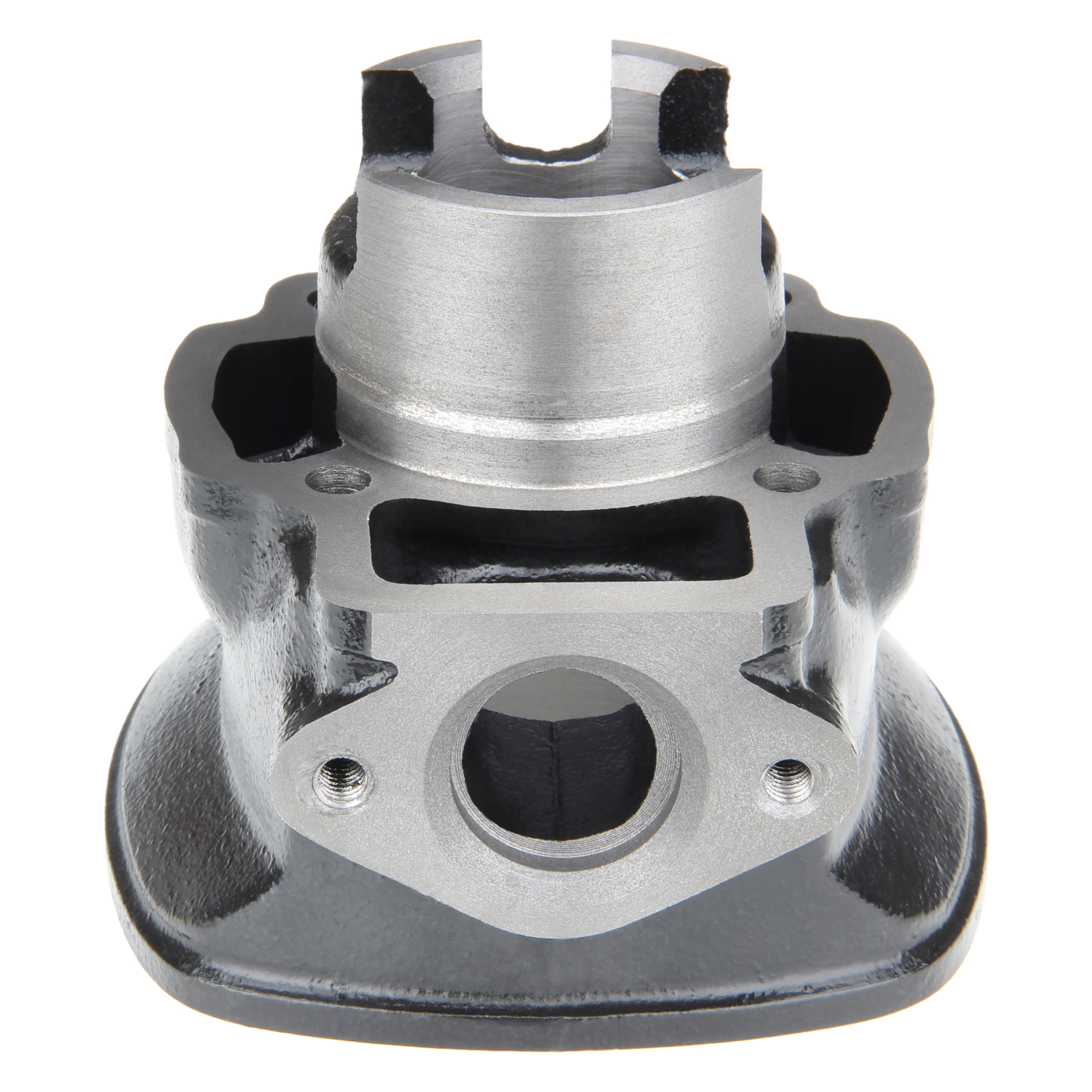

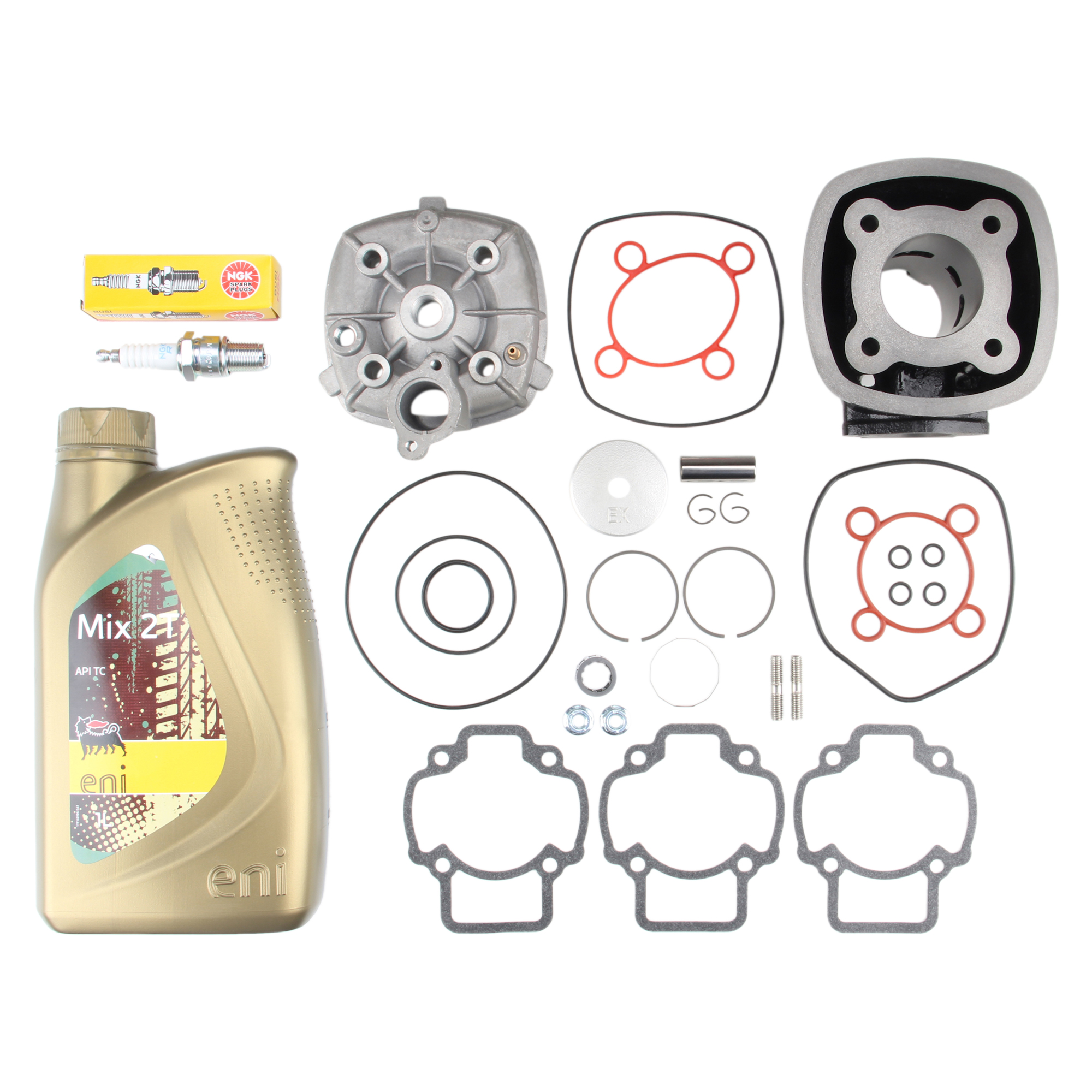

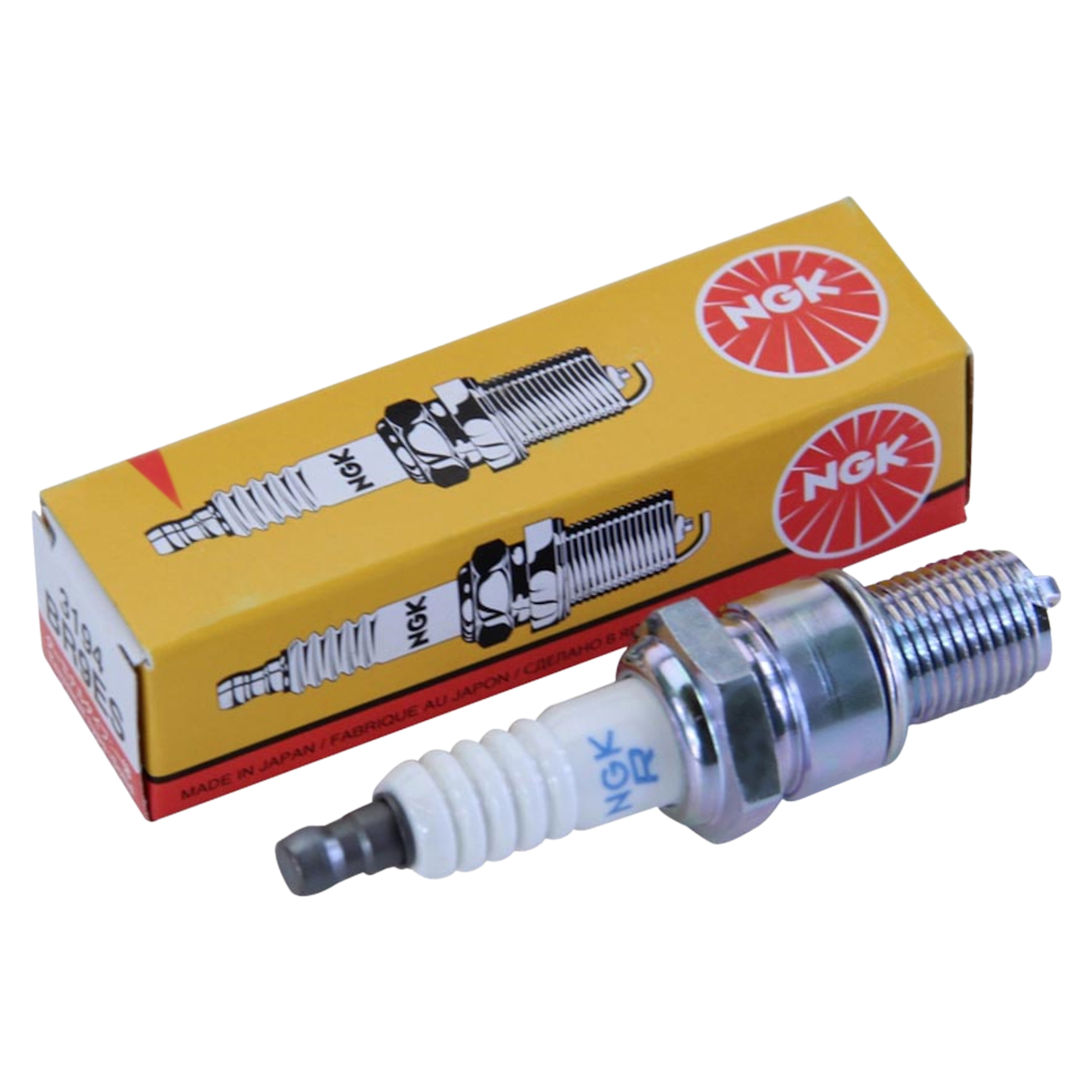

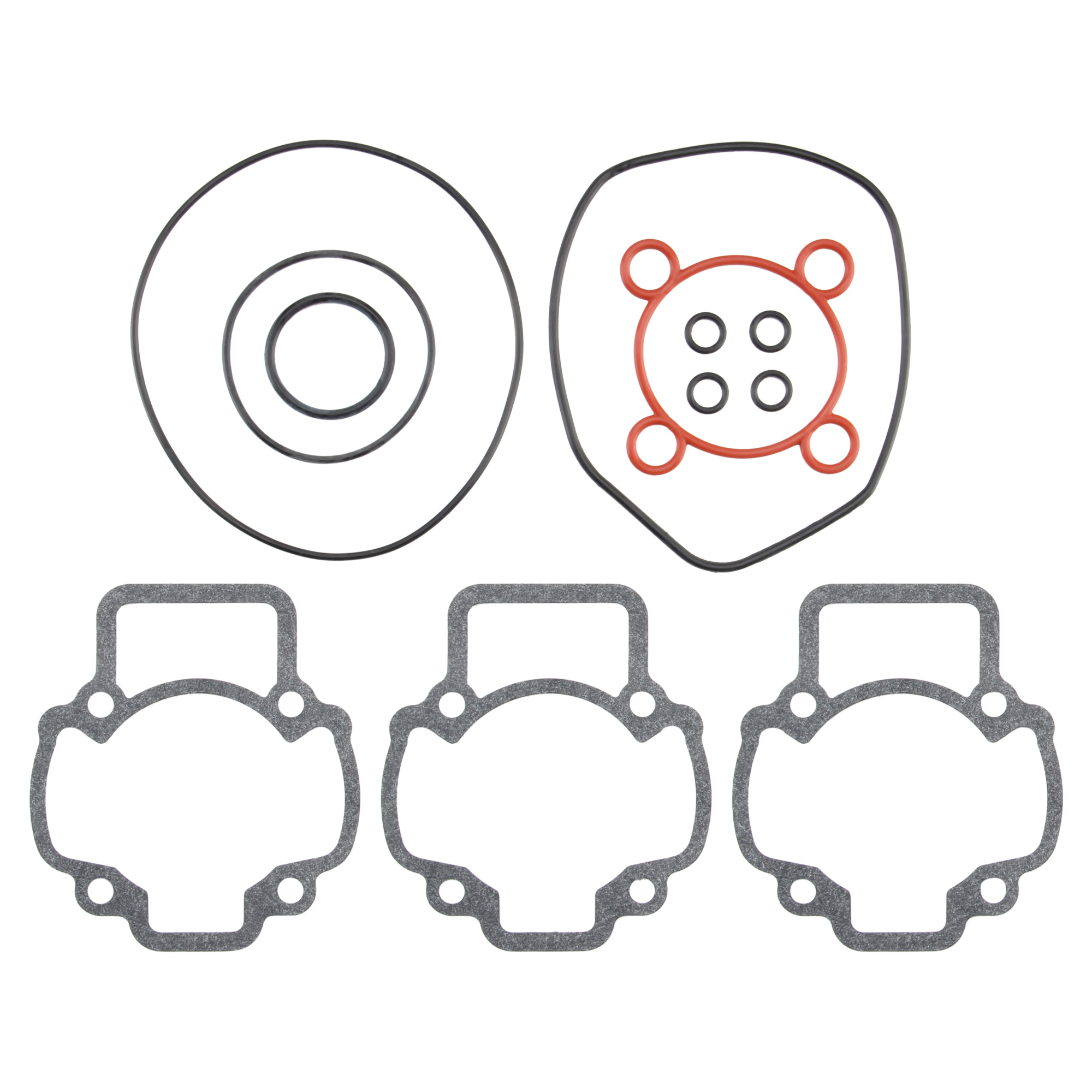

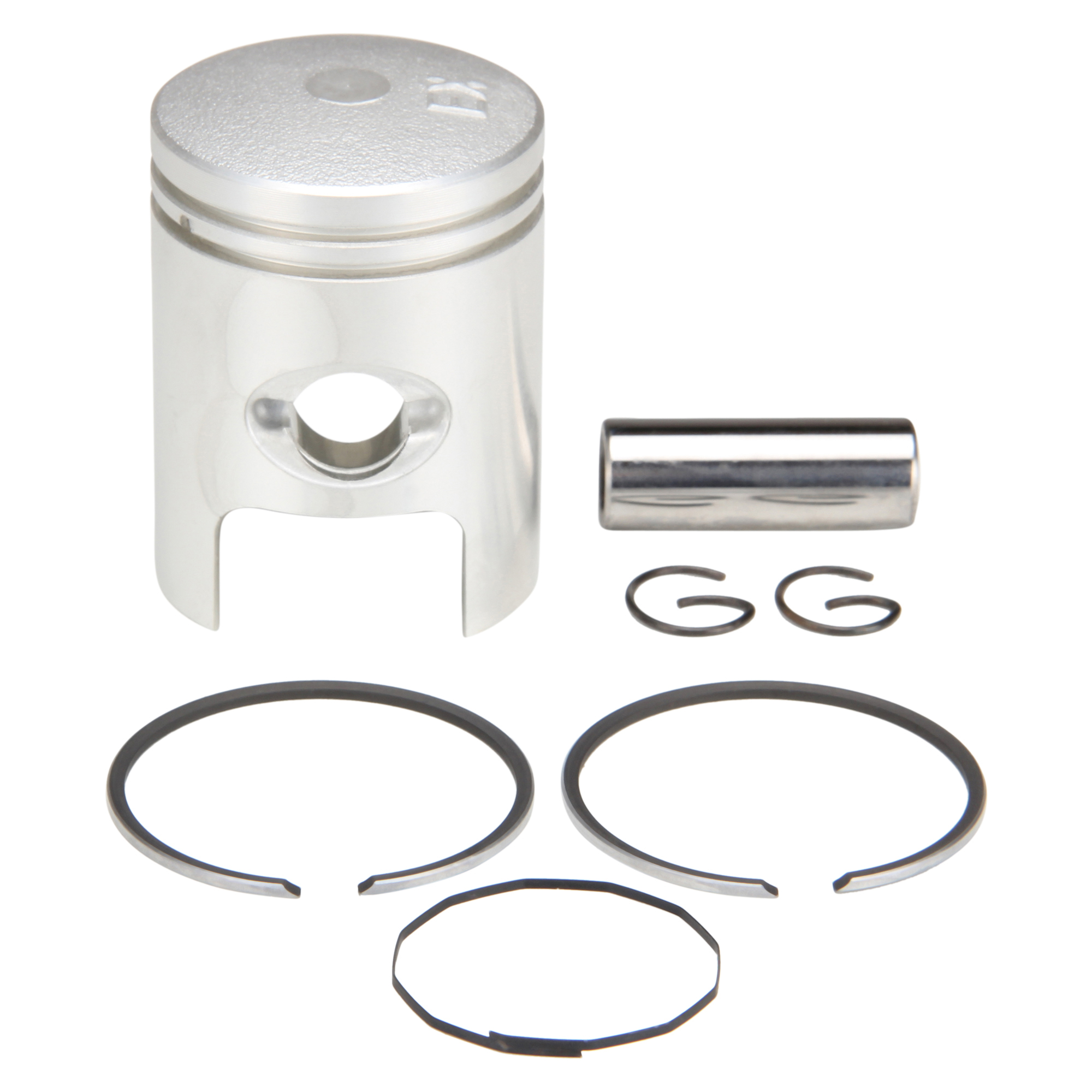

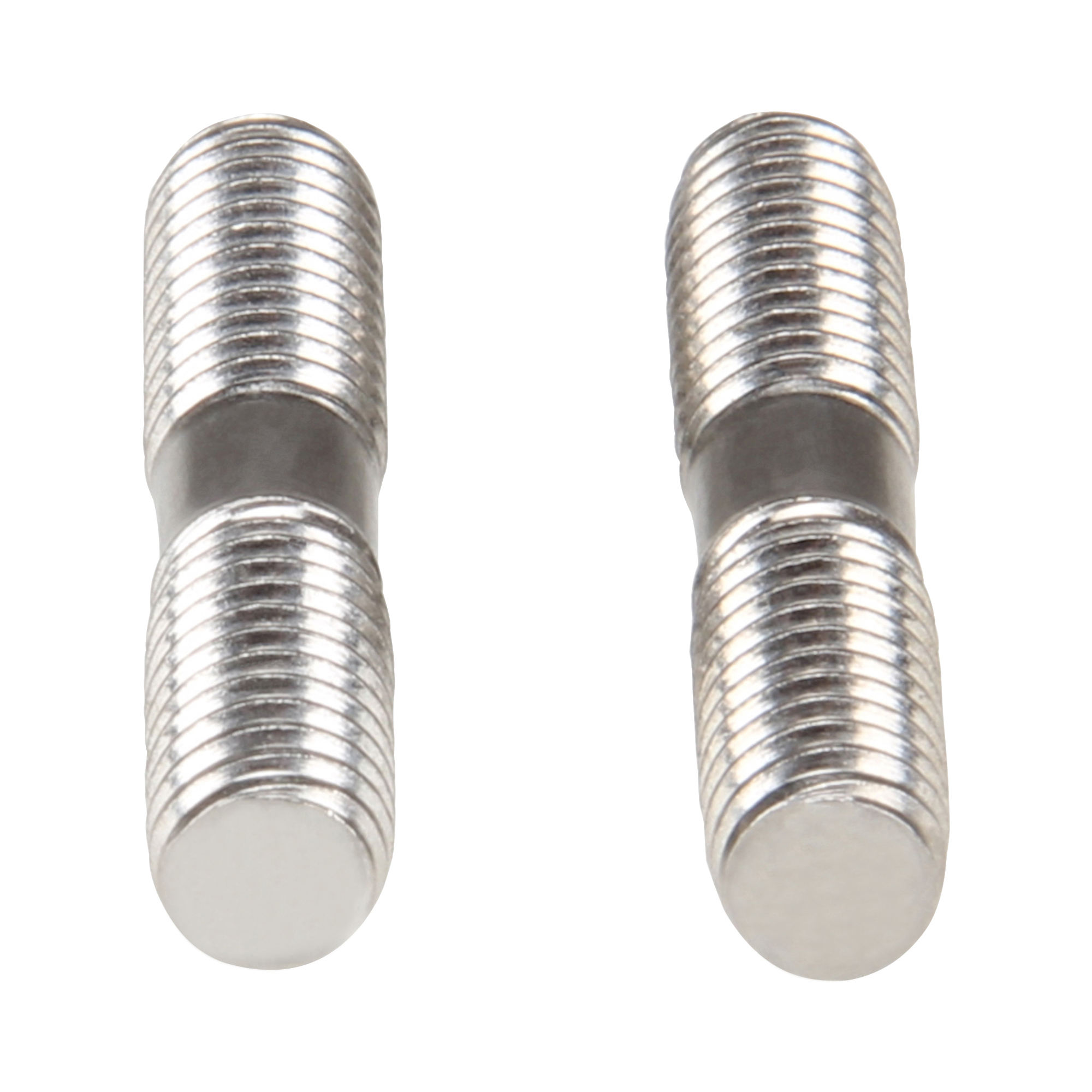

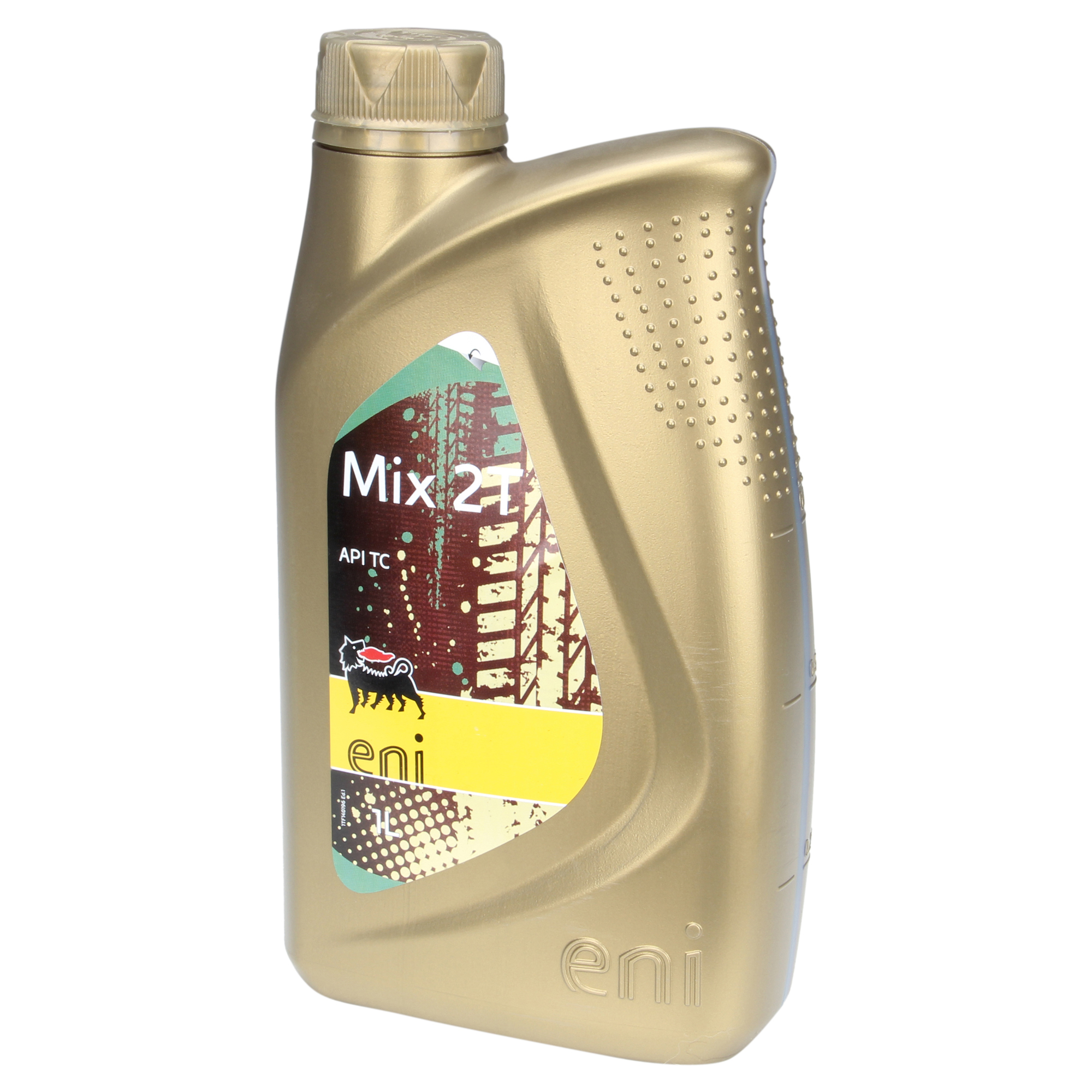

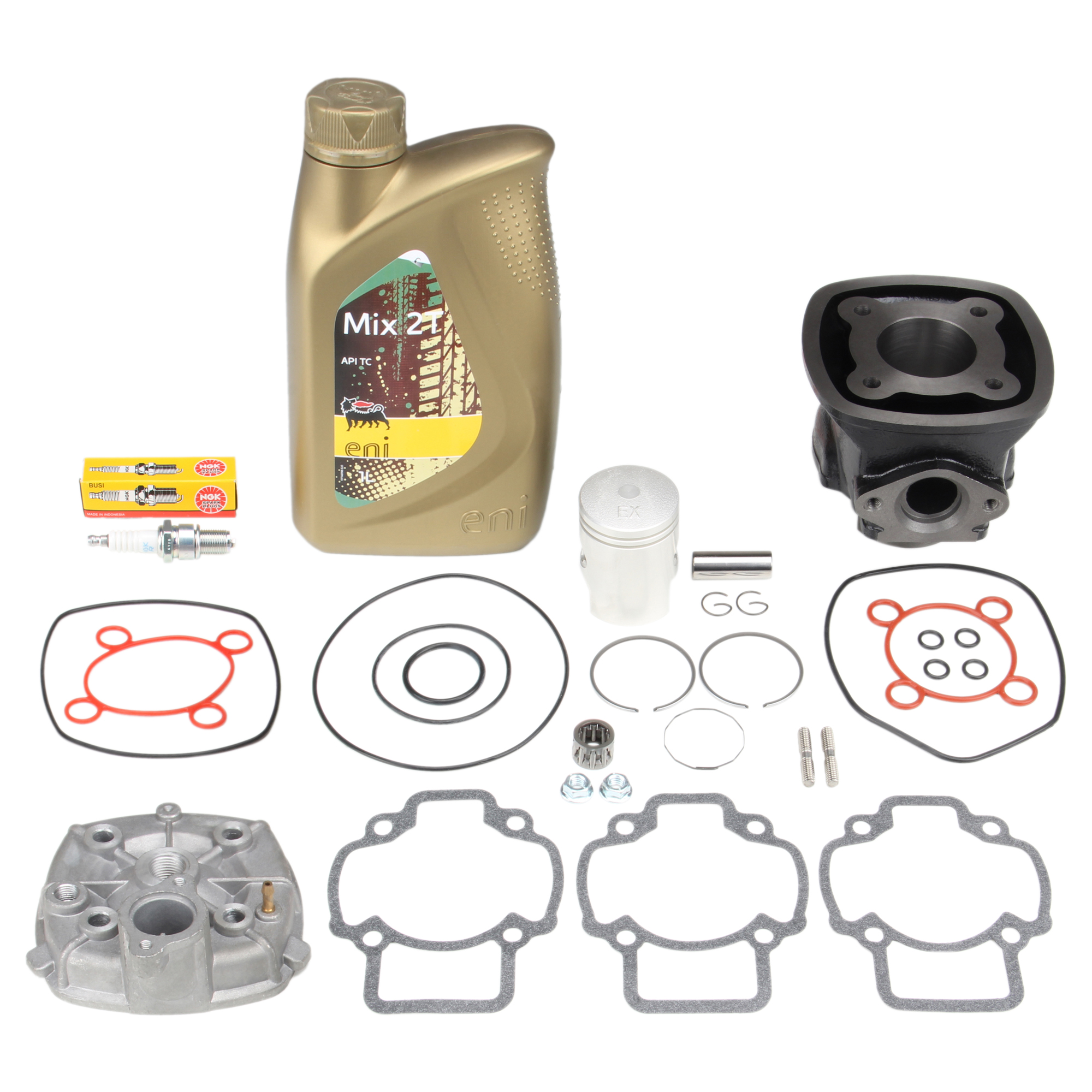

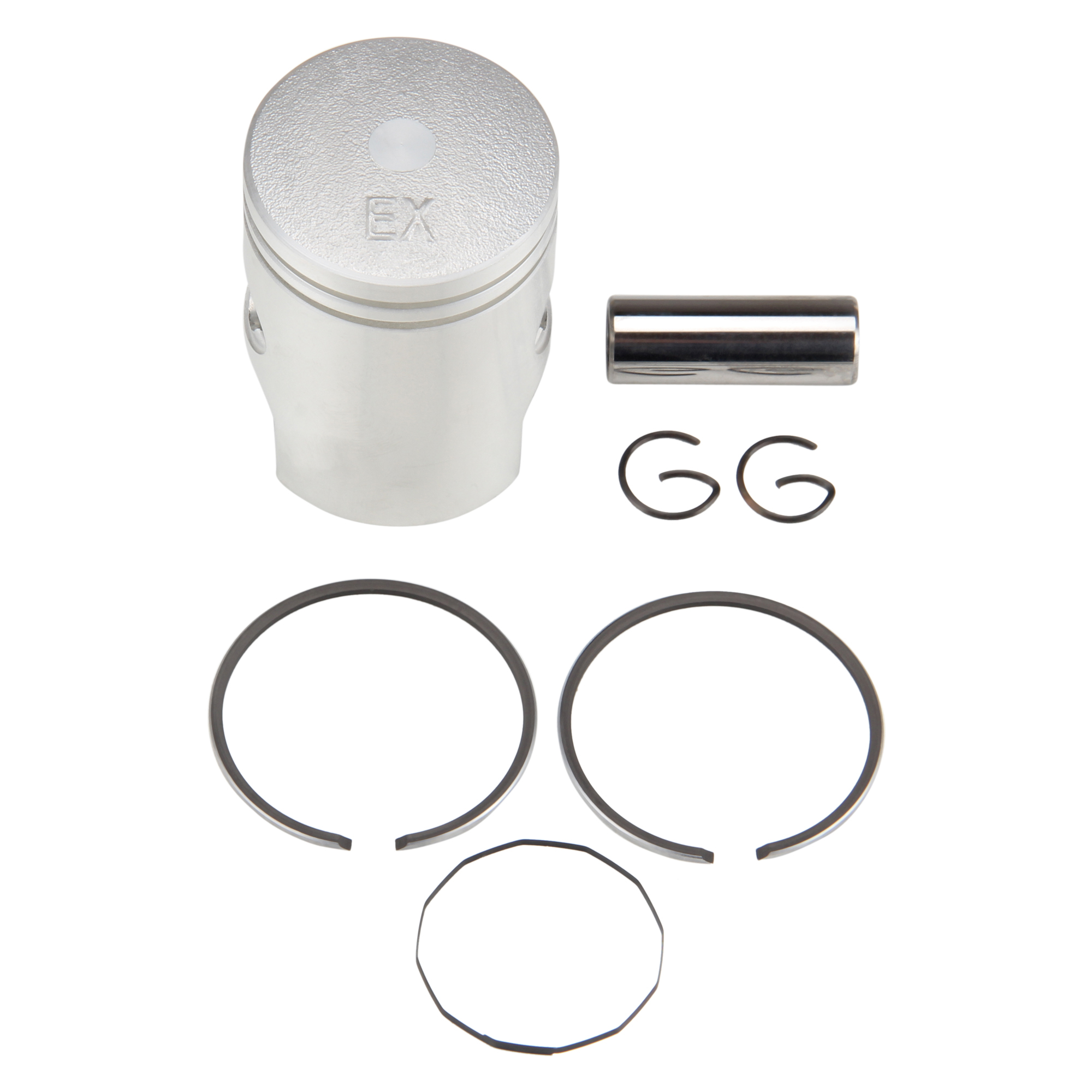

Scope of delivery:	2x Krümmermutter M6, 2x Stehbolzen M6x26, Cylinder, Cylinder head, Gasket set, Kolben Set, Nadellager 12x17x13, Zündkerze NGK BR9ES, Öl Agip Mix 2T
Outlet stud bolt thread:	M6
Diffuser internal dimension:	20 mm
Cylinder stud bore:	7 mm

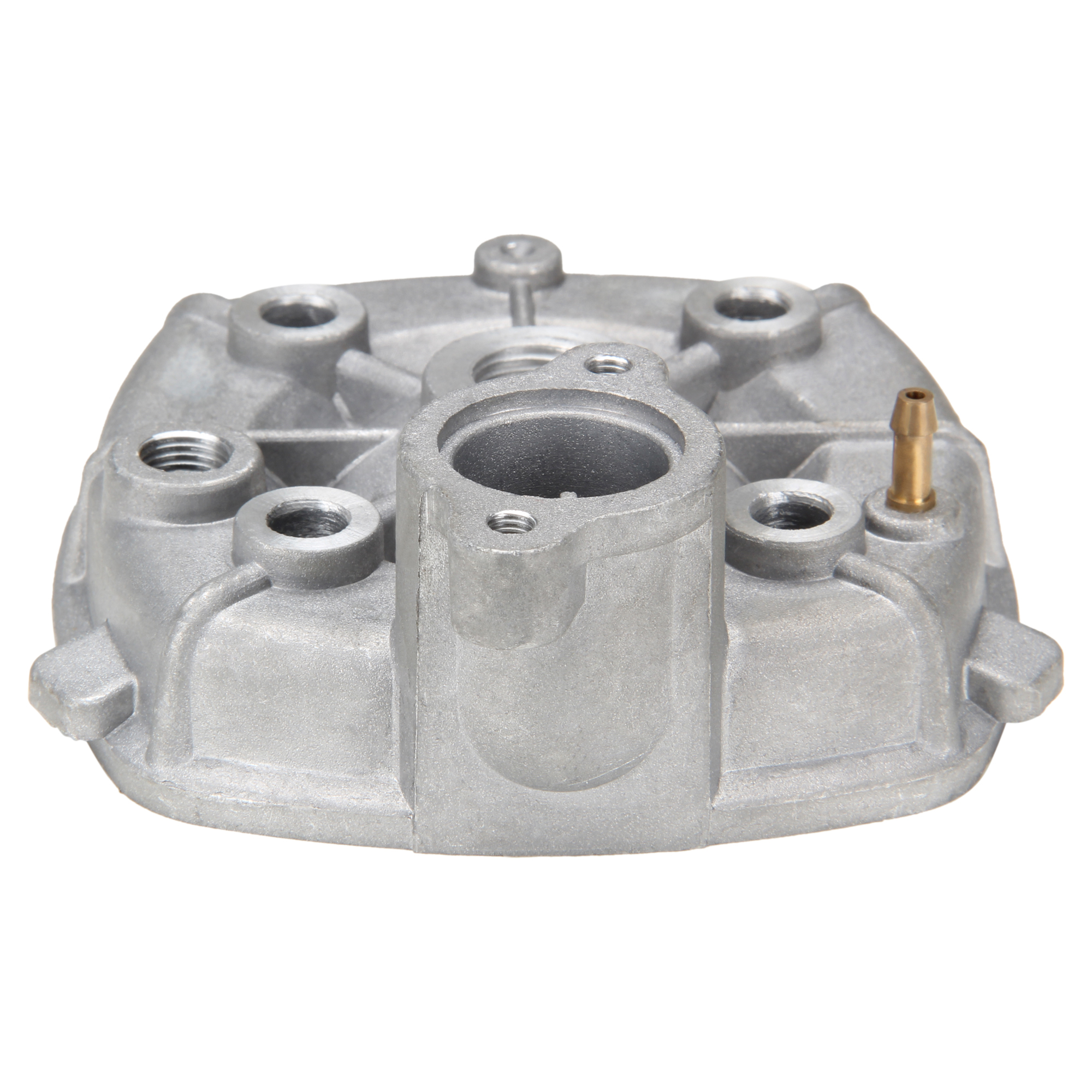

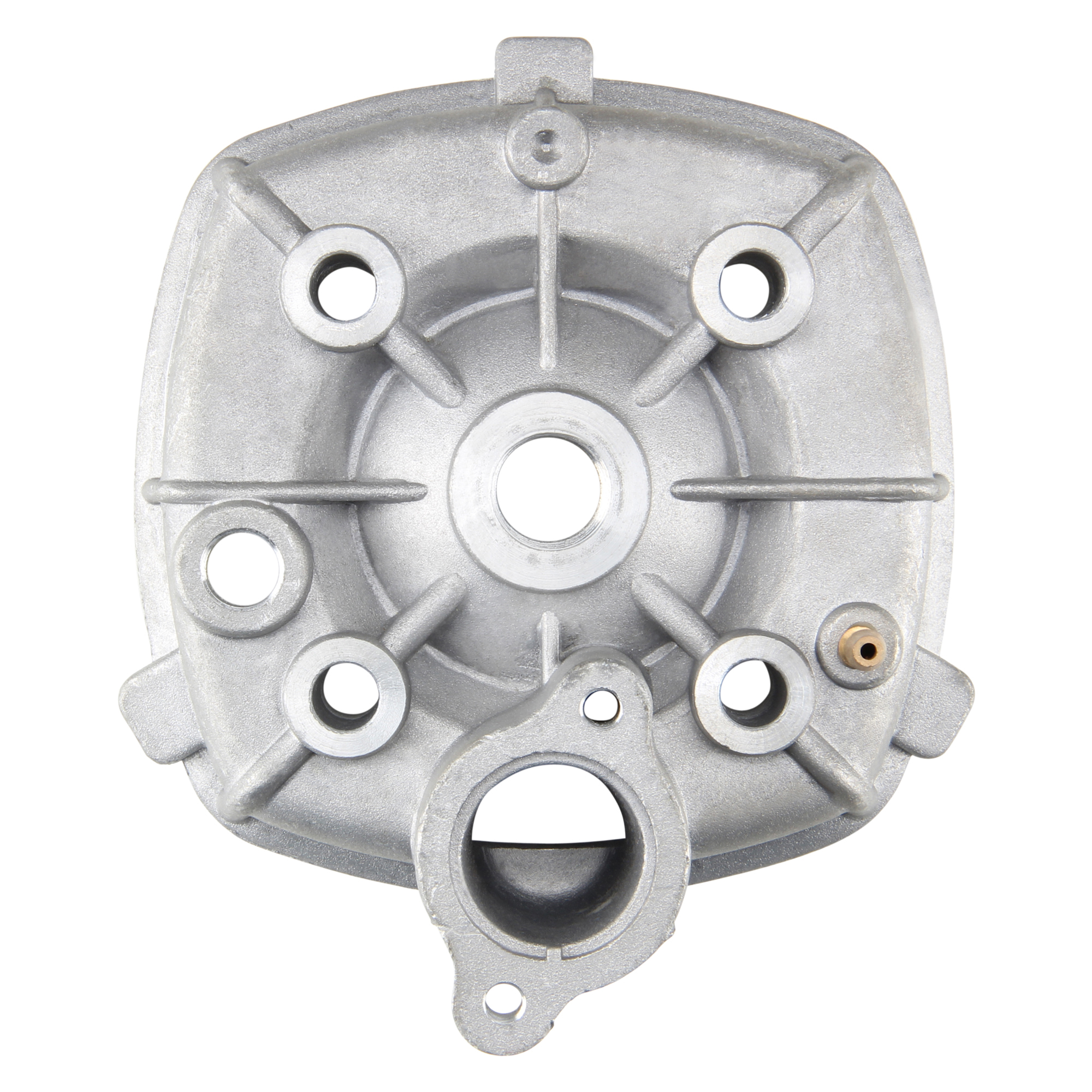

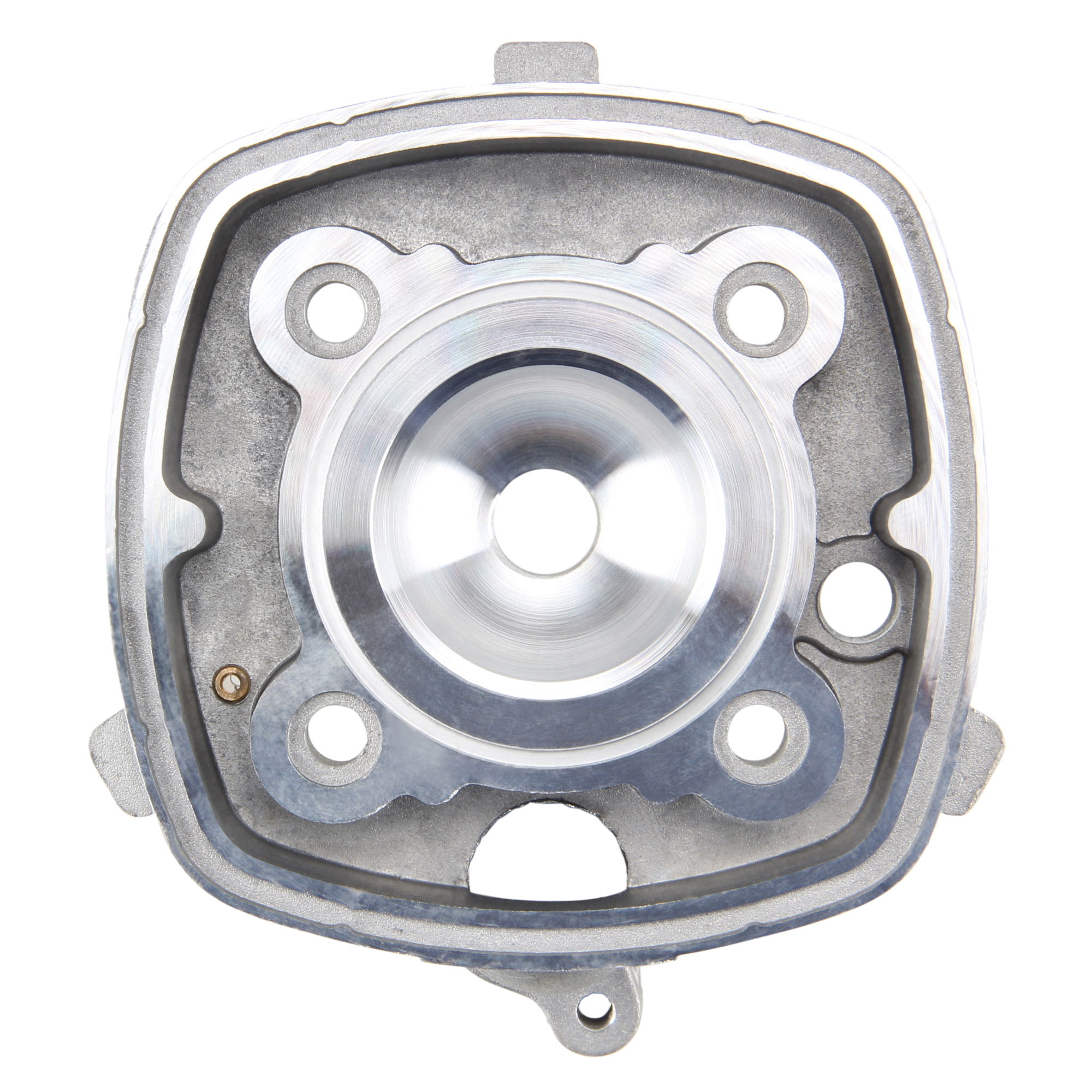

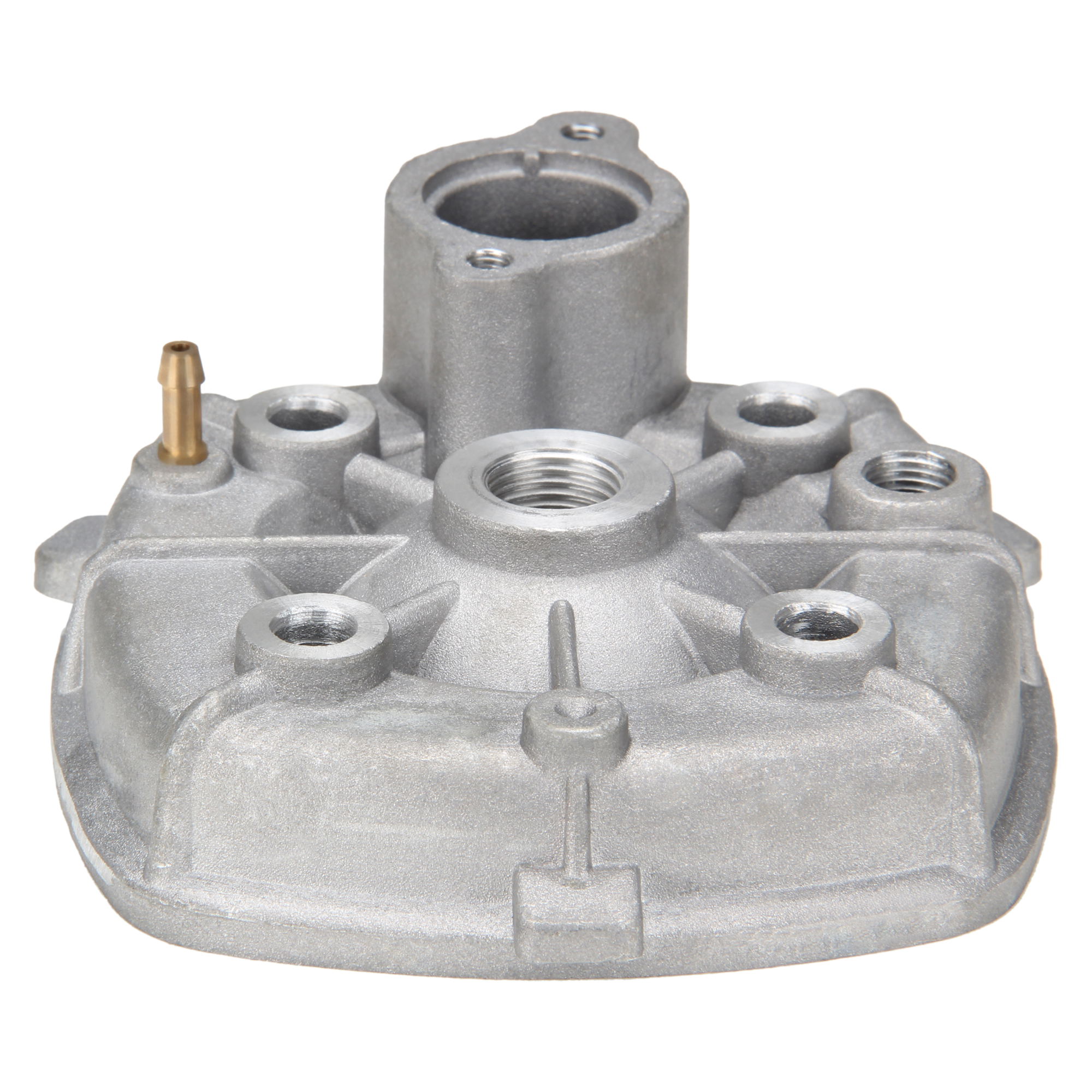

Cylinder head dimensions (LxWxH):	100 x 100 x 40 mm
Cylinder head stud bolt spacing:	48 x 48 mm
Cylinder head stud diameter:	7 mm
Piston ring profile:	Halbtrapez-Ring
Displacement:	70 ccm
Cylinder stud distance:	48 x 48 mm
Outlet Stud distance:	46 mm

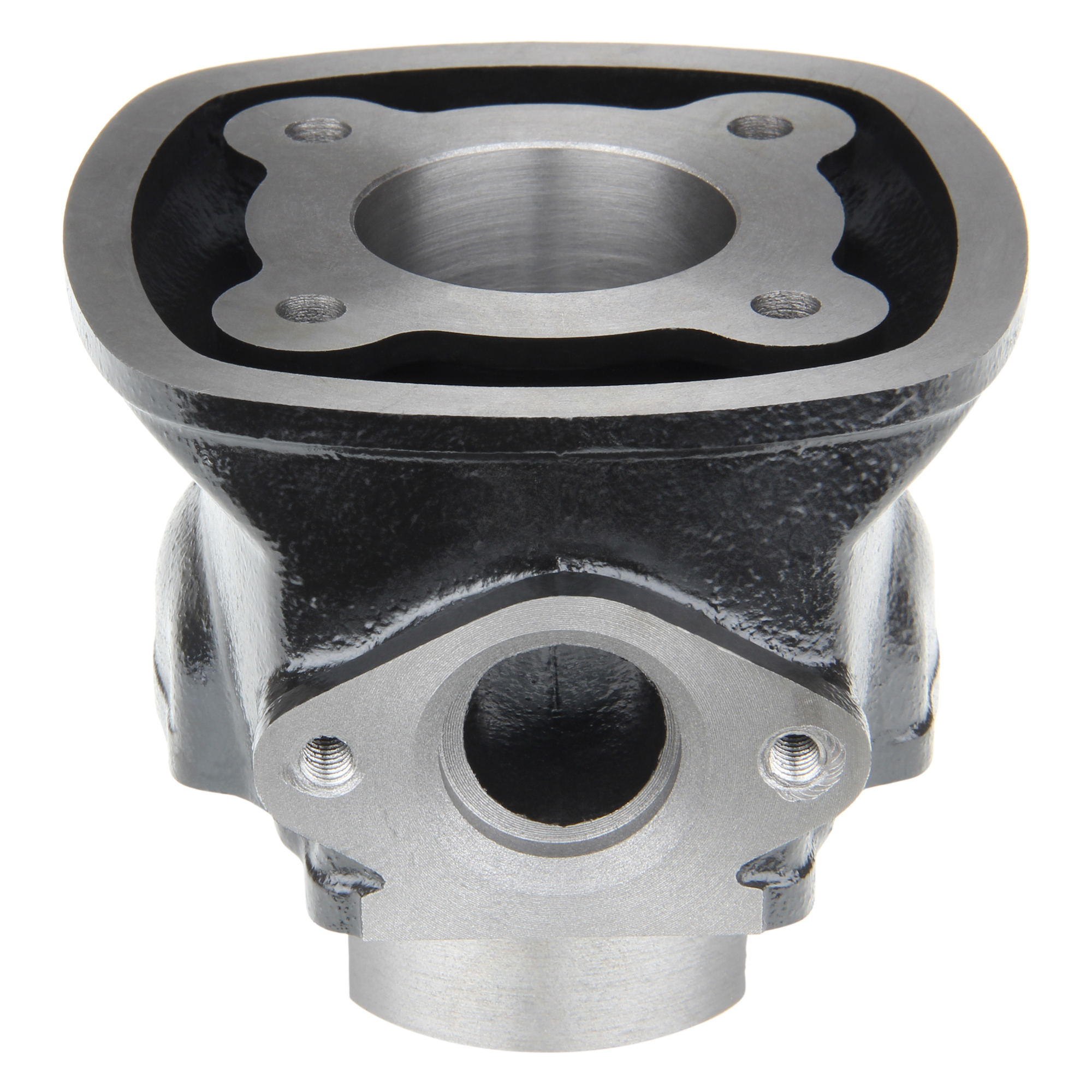

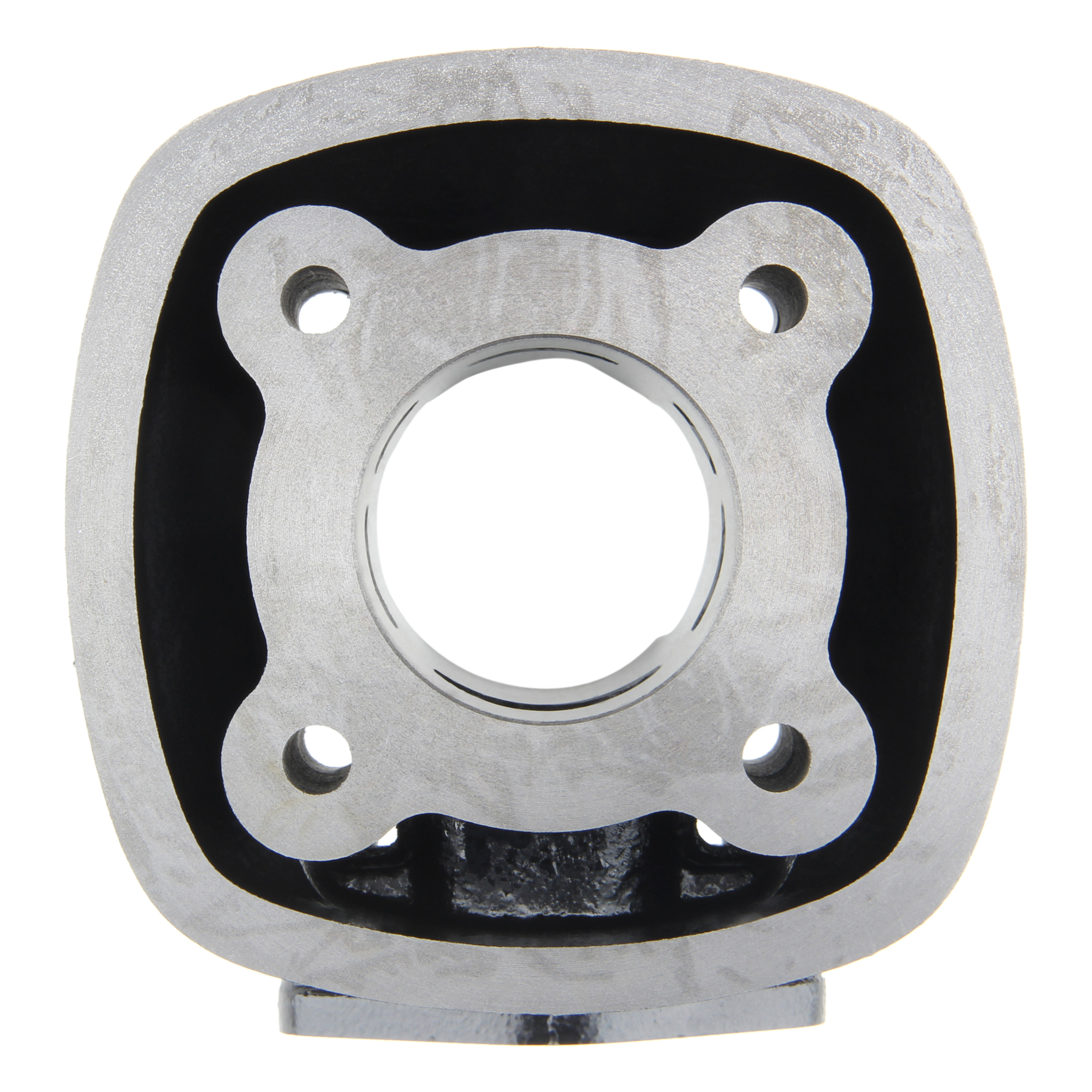

Cylinder dimensions (LxWxH):	100 x 100 x 85 mm
Manifold connection type:	Flange
Number of overflows:	3
Can the original cylinder head be used?:	Yes
ATTENTION!:	TUNING: Not permitted in the area of the StVZO!
Vintage part:	No
Surface finish:	Matt
Tuning & Styling Part:	Yes
Piston pin diameter:	12 mm
Color:	Grey
Spark plug thread:	M14 x 1.25
Number of piston rings:	2
Features:	Corrosion resistant, Durable
Engine type:	2-stroke
Scope of delivery:	1x cylinder set
Manufacturer number:	105987
Country and region of manufacture:	China
Product type:	Cylinder set
Type of motorcycle:	Scooter
Offer package:	Yes
Units quantity:	1
Description of the package content:	Zylinderset Zylinderkopf Nadellager Zündkerze Stehbolzen Öl
Manufacturer warranty:	2 years
Material:	Several materials
Type:	Tuning
suitable for:	Piaggio LC wassergekühlt (4-eckig)
