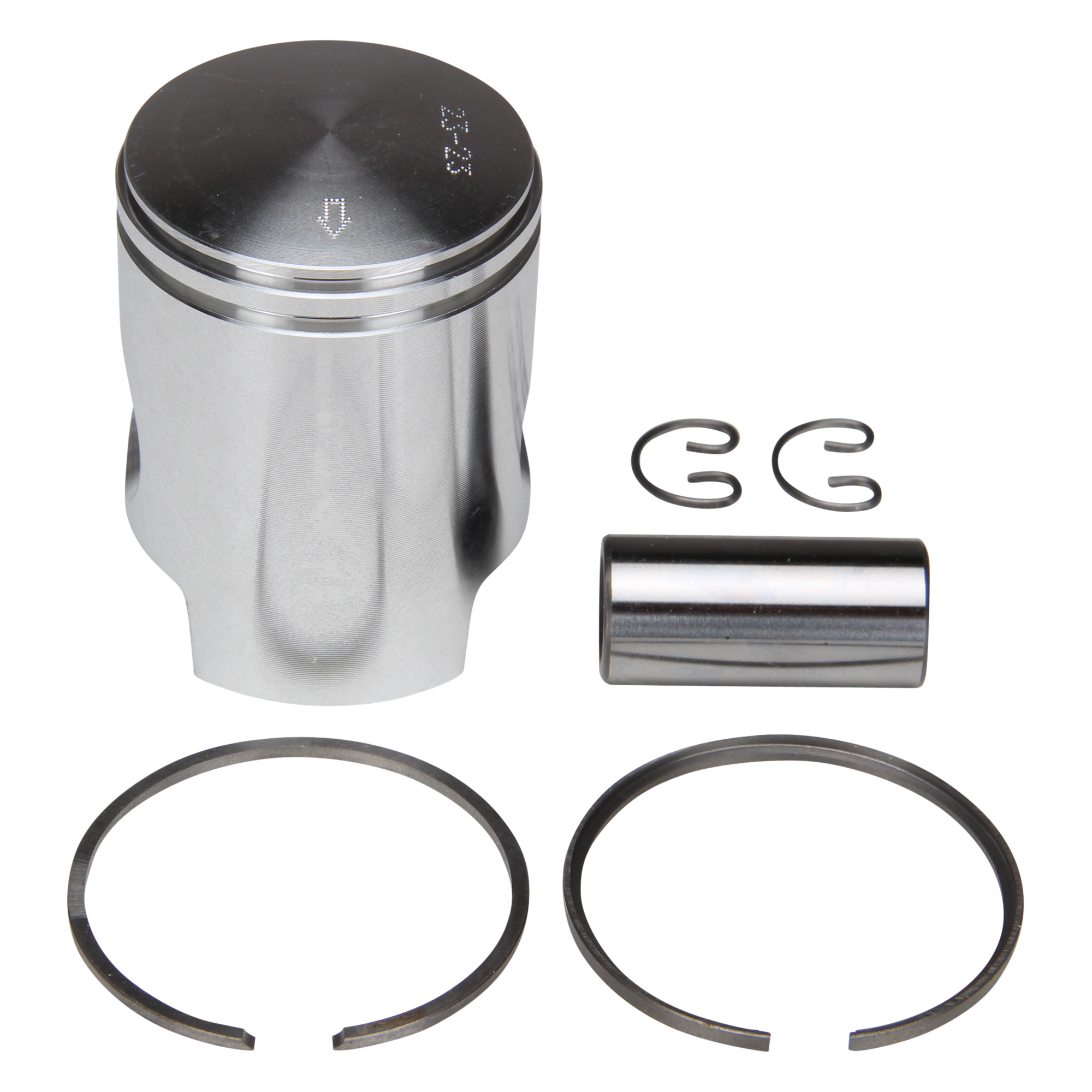

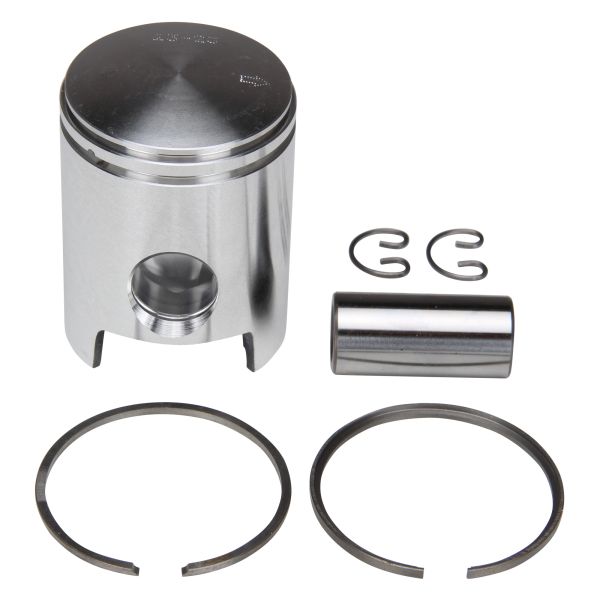

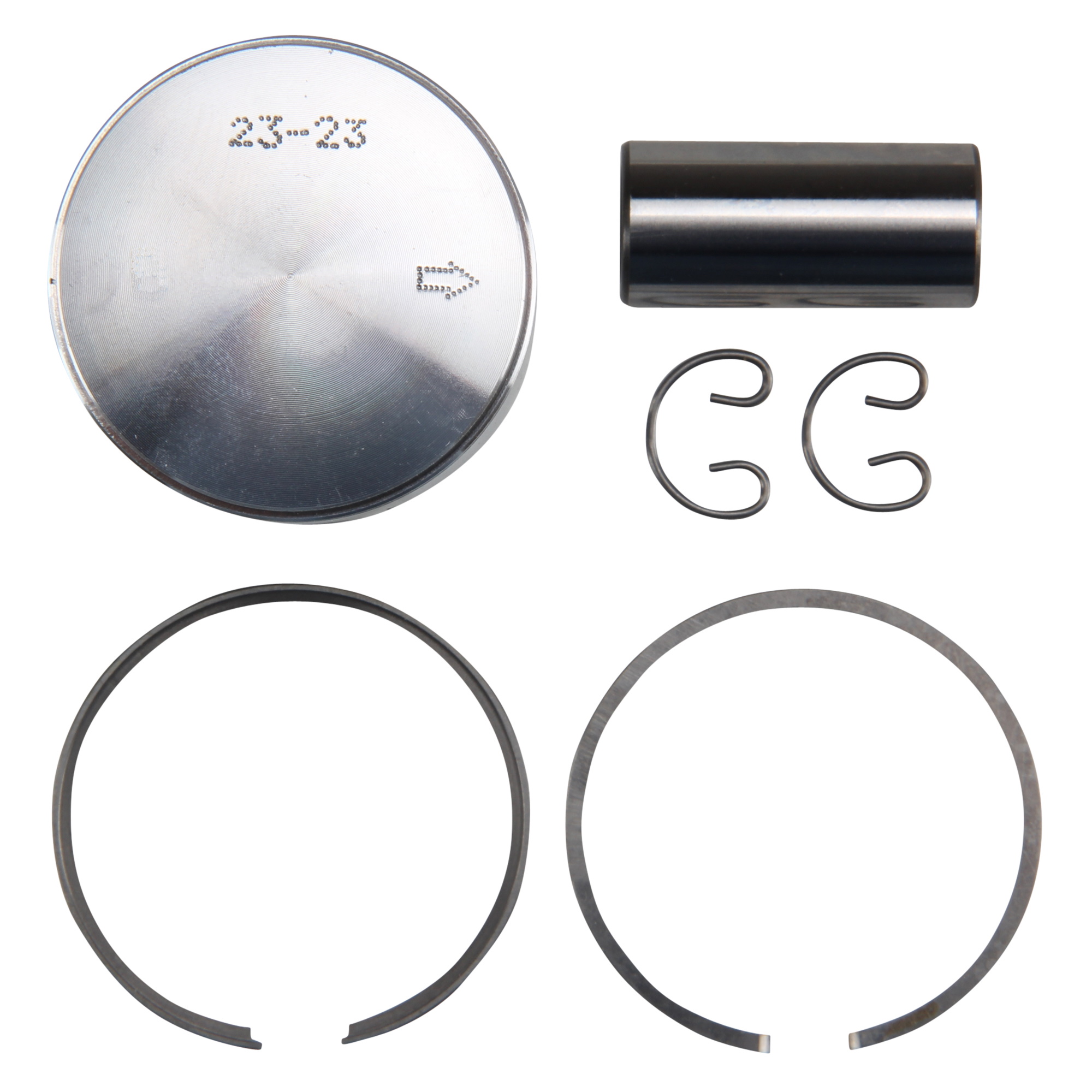

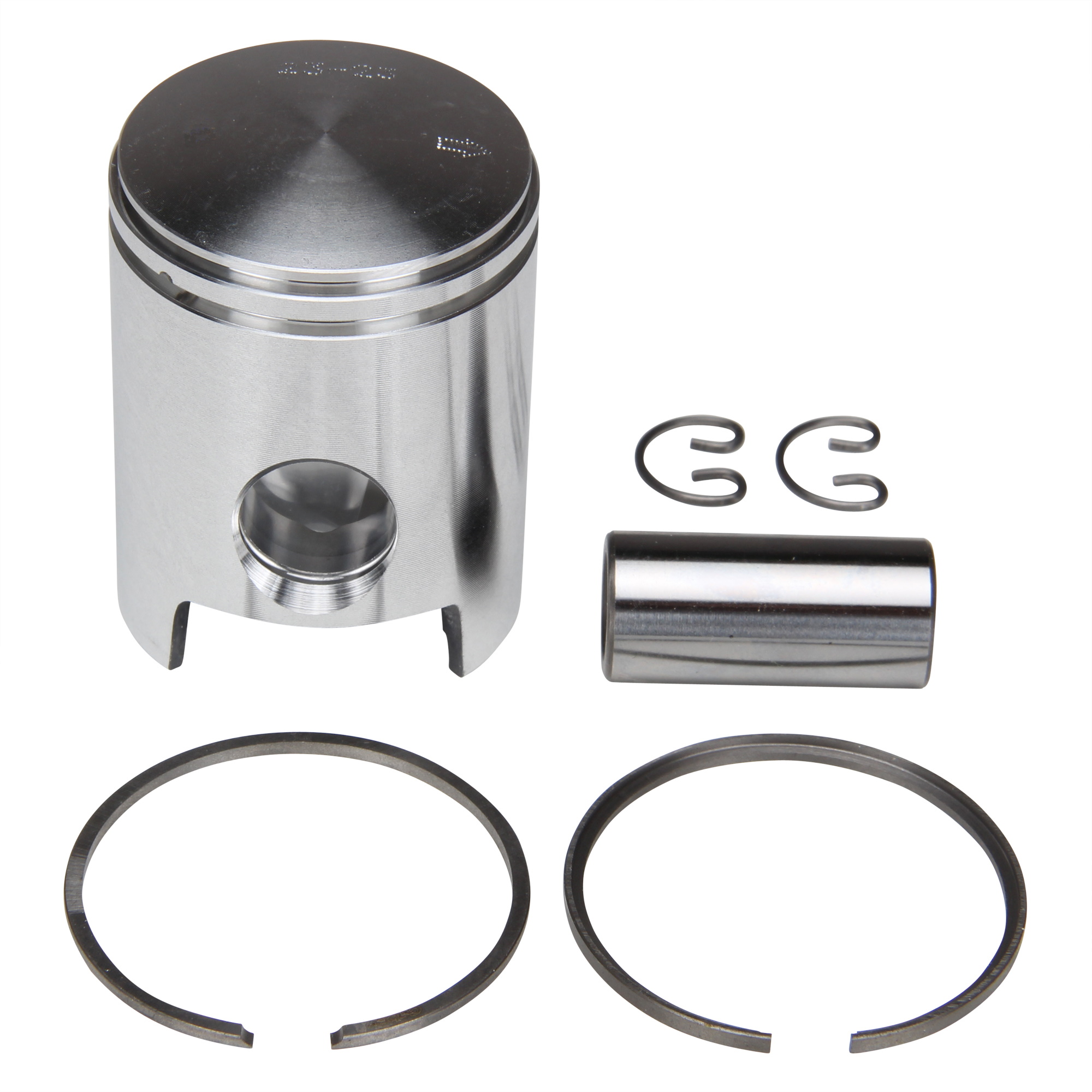

Piston 38mm 50cc Tol. A (37,95mm) for Hercules K50 RS RE RL RX SE SL SX Sprint Ultra SB 1 5 / Sachs 50S aluminum cylinder
£29.72 *
Content:
1 piece
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 160783
- EAN: 4060861810305
- Manufacturer: Meteor Piston
- Manufacturer no.: 160783
- Height: 50 cm
- Width: 50 cm
Piston 38mm 50cc Tol. A (37,95mm) for Hercules K50 RS RE RL RX SE SL SX Sprint Ultra SB 1 5 /... more
Product information about Piston 38mm 50cc Tol. A (37,95mm) for Hercules K50 RS RE RL RX SE SL SX Sprint Ultra SB 1 5 / Sachs 50S aluminum cylinder
Piston 38mm 50cc Tol. A (37,95mm) for Hercules K50 RS RE RL RX SE SL SX Sprint Ultra SB 1 5 / Sachs 50S aluminum cylinder
Customers also searched for this product under:
Further links to "Piston 38mm 50cc Tol. A (37,95mm) for Hercules K50 RS RE RL RX SE SL SX Sprint Ultra SB 1 5 / Sachs 50S aluminum cylinder"
Properties more
| Dimension H (piston skirt width outlet side): | 25.7 mm |
| Dimension A (piston diameter): | 37.95 mm |
| OE/OEM reference number(s): | 0286 344 011, 0286 344 111, 0286344011, 0286344111, Meteor AN1B1410SET (piston clips), Meteor F0380020017531H0I / F0380015016015H0I (piston ring), Meteor PC0857A (piston), Meteor SP140300090HI (piston pin) |
| Bolt length: | 30 mm |
| Dimension C + D (total height): | 51 mm |
| Piston ring (top) Dimension: | 38 x 2.0 mm |
| Dimension D (curvature): | 2 mm |
| Dimension G (piston skirt length inlet side): | 42.8 mm |
| Dimension I (piston skirt length outlet side): | 42.8 mm |
| Tolerance size: | A (37.95mm) |
| Piston ring (top) Width: | 1.75 mm |
| Piston ring (top) Shape: | B (groove for center locking pin) |
| Piston ring (top) Profile: | L-ring |
| Piston ring (bottom) Width: | 1.60 mm |
| Piston ring (bottom) Dimension: | 38 x 1.5 mm |
| Dimension F (piston skirt width inlet side): | 29 mm |
| GTIN: | 4060861810305 |
| Dimension J (max. needle bearing width): | 15 mm |
| Bolt diameter: | 14 mm |
| Dimension B (compression height): | 28 mm |
| Tuning & Styling Part: | No |
| Dimension C (piston height): | 49 mm |
| Dimension E (piston pin diameter): | 14 mm |
| Piston ring (bottom) Profile: | Rectangular ring |
| Piston ring (bottom) Shape: | C (groove for locking pin on the edge) |
| Vintage part: | Yes |
| Scope of delivery: | Piston, Piston clips, Piston pin, Piston rings |
| Cylinder bores: | 38 mm |
| Color: | Silver |
| Piston diameter: | 38 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | PC0857A |
| Country and region of manufacture: | Italy |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston rings + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
Meteor Piston is known for over 60 years for high quality piston sets, pistons and piston rings... more
"Meteor Piston"
Meteor Piston is known for over 60 years for high quality piston sets, pistons and piston rings in OEM quality. In the 50's Kolebn for Vespa scooters and Lambretta scooters were manufactured with aluminum coating. Meanwhile Meteor Piston offers its products not only for scooters but also for Maxi, Quad and ATV. As a special feature, all small parts such as piston rings, circlips or piston pins are included with the piston sets.
