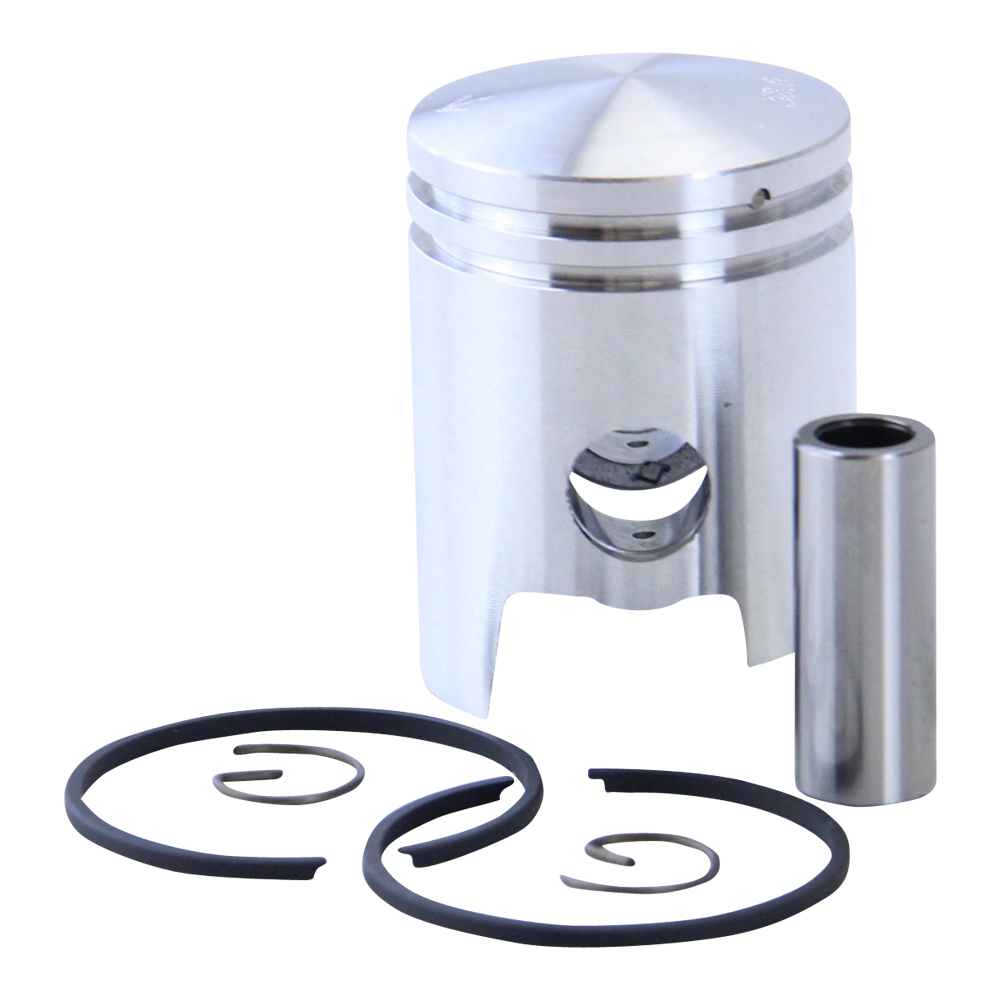

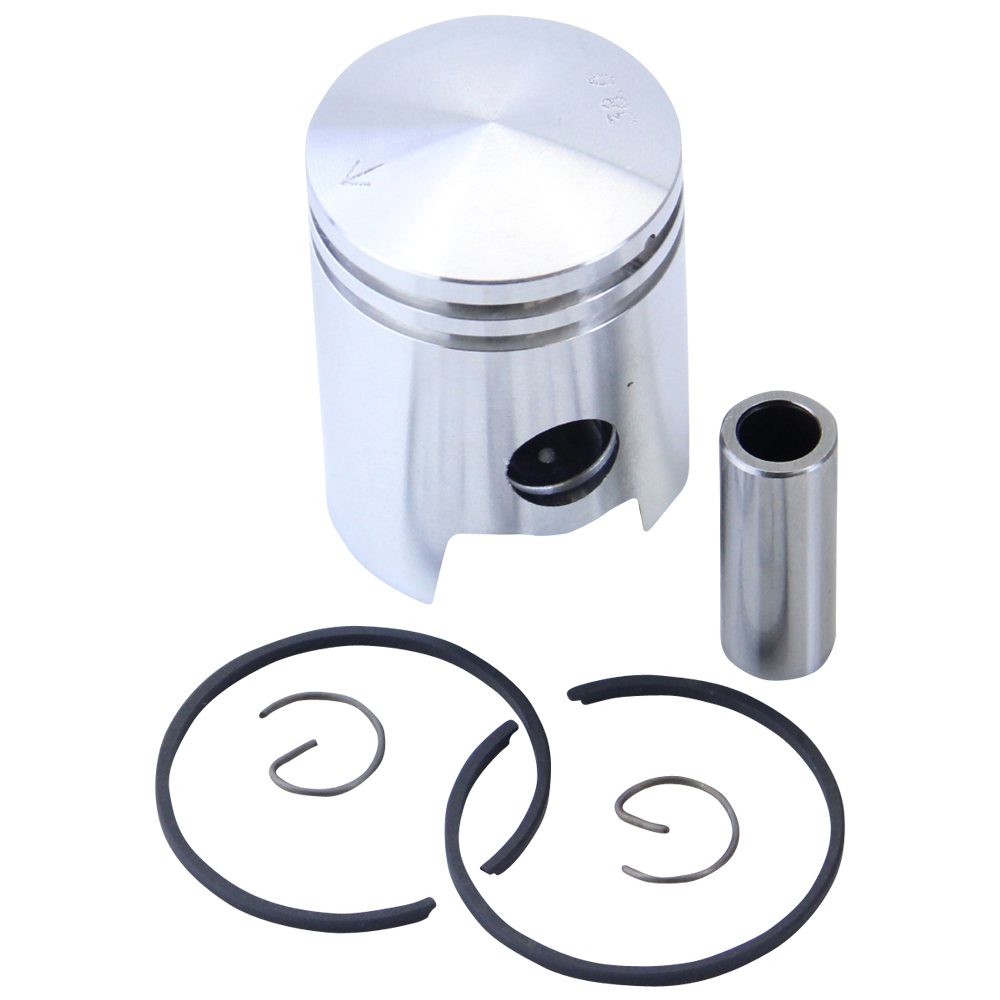

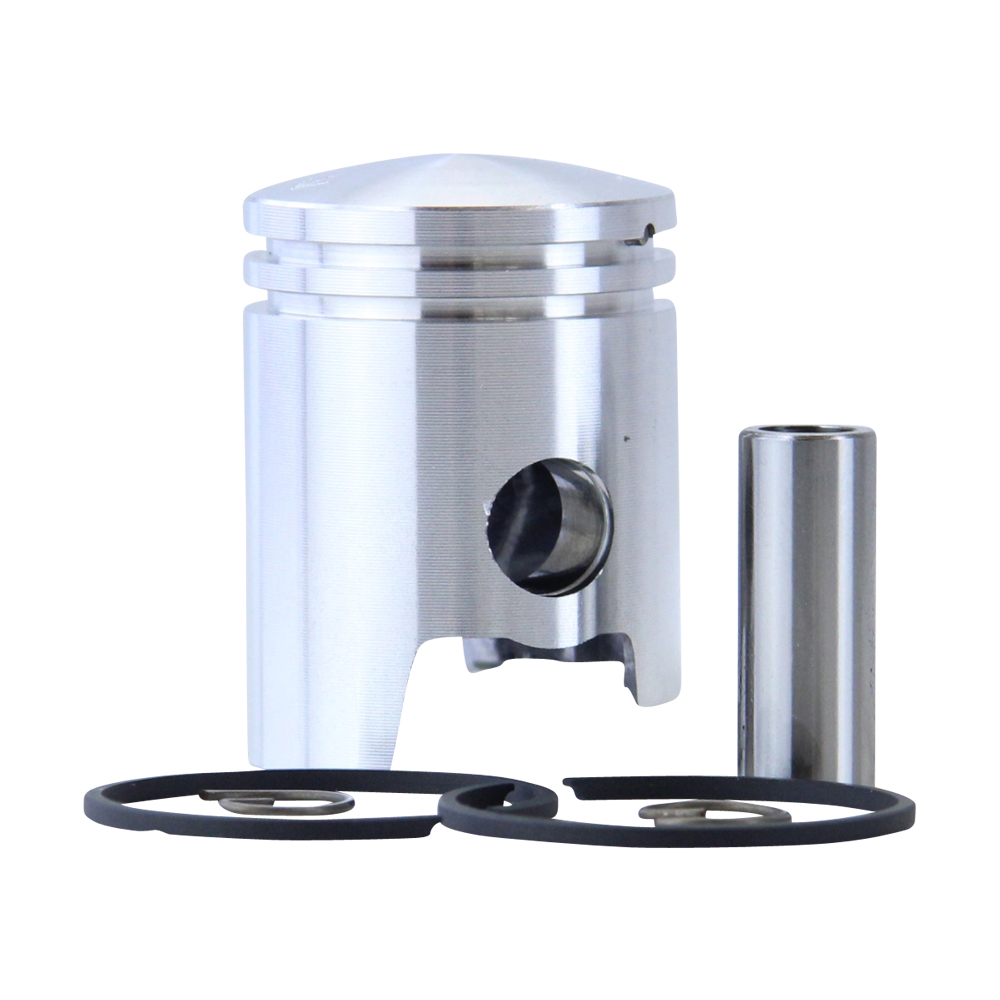

Piston set 38mm 50cc for Hercules R 50 S
£18.26 *
Content:
1 piece
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
- Item no: 191898
- EAN: 4060861081934
- Manufacturer: Citomerx
- Manufacturer no.: 191898
Hercules R 50 S 1961-1974 more
Product information about Piston set 38mm 50cc for Hercules R 50 S
Hercules R 50 S 1961-1974
Customers also searched for this product under:
Further links to "Piston set 38mm 50cc for Hercules R 50 S"
Properties more
| OE/OEM reference number(s): | 0286 160 000, 0286160000 |
| Dimension C + D (total height): | 53 mm |
| Piston ring (bottom) Shape: | C (groove for locking pin on the edge) |
| Piston ring (bottom) Profile: | Rectangular ring |
| Dimension F (piston skirt width inlet side): | 34 mm |
| Dimension A (piston diameter): | 38.00 mm |
| Dimension B (compression height): | 28 mm |
| Dimension D (curvature): | 3 mm |
| Dimension J (max. needle bearing width): | 15 mm |
| Piston ring (top) Dimension: | 38 x 2.0 mm |
| Piston ring (top) Shape: | C (groove for locking pin on the edge) |
| Piston ring (bottom) Dimension: | 38 x 2.0 mm |
| Piston ring (bottom) Width: | 1.60 mm |
| Dimension G (piston skirt length inlet side): | 34 mm |
| Dimension I (piston skirt length outlet side): | 28 mm |
| Piston ring (top) Width: | 1.60 mm |
| Dimension H (piston skirt width outlet side): | 39.7 mm |
| GTIN: | 4060861081934 |
| Piston ring (top) Profile: | Rectangular ring |
| Dimension C (piston height): | 50 mm |
| Scope of delivery: | Piston, Piston clips, Piston pin, Piston rings |
| Dimension E (piston pin diameter): | 12 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Cylinder bores: | 38 mm |
| Bolt diameter: | 12 mm |
| Bolt length: | 31 mm |
| Color: | Silver |
| Piston diameter: | 38 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 191898 |
| Country and region of manufacture: | China |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston rings + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
"Fast goods", is the translation of Citomerx and this is also the motto of the company from... more
"Citomerx"
"Fast goods", is the translation of Citomerx and this is also the motto of the company from Bavaria, which offers numerous spare parts for two- and four-stroke scooters. Speed is the declared goal for both the vehicles and the delivery of the goods, as well as a reasonable price-performance ratio for the standard, racing or high-end products. The range includes almost everything that the scooter rider needs: from exhaust systems and batteries to cylinder kits. An additional plus point is the know-how of the Citomerx crew, acquired over years of experience.
