Piston set 38mm 50cc for Hercules MX1 Prima 2 3 5 GT GX Pronto Presto
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
- Item no: 102050
- EAN: 4060861183416
- Manufacturer: Citomerx
- Manufacturer no.: 102050
Hercules MX 1 (1993-1997)
Hercules Prima 2 (1978-1996)
Hercules Prima 3 (1978-1996)
Hercules Prima 3 S (1978-1996)
Hercules Prima 3 (1978-1996)
Hercules Prima 5 LN (1978-1996)
Hercules Prima 5 S 1978-1996)
Hercules Prima 5 SE (1994-1995)
Hercules Prima 5 (1978-1996)
Hercules Prima GT (1985-1995)
Hercules Prima GX (1982-1985)
Hercules Prima PRESTO (1981-1984)
Hercules Prima PRONTO (1981-1984)
| GTIN: | 4060861183416 |

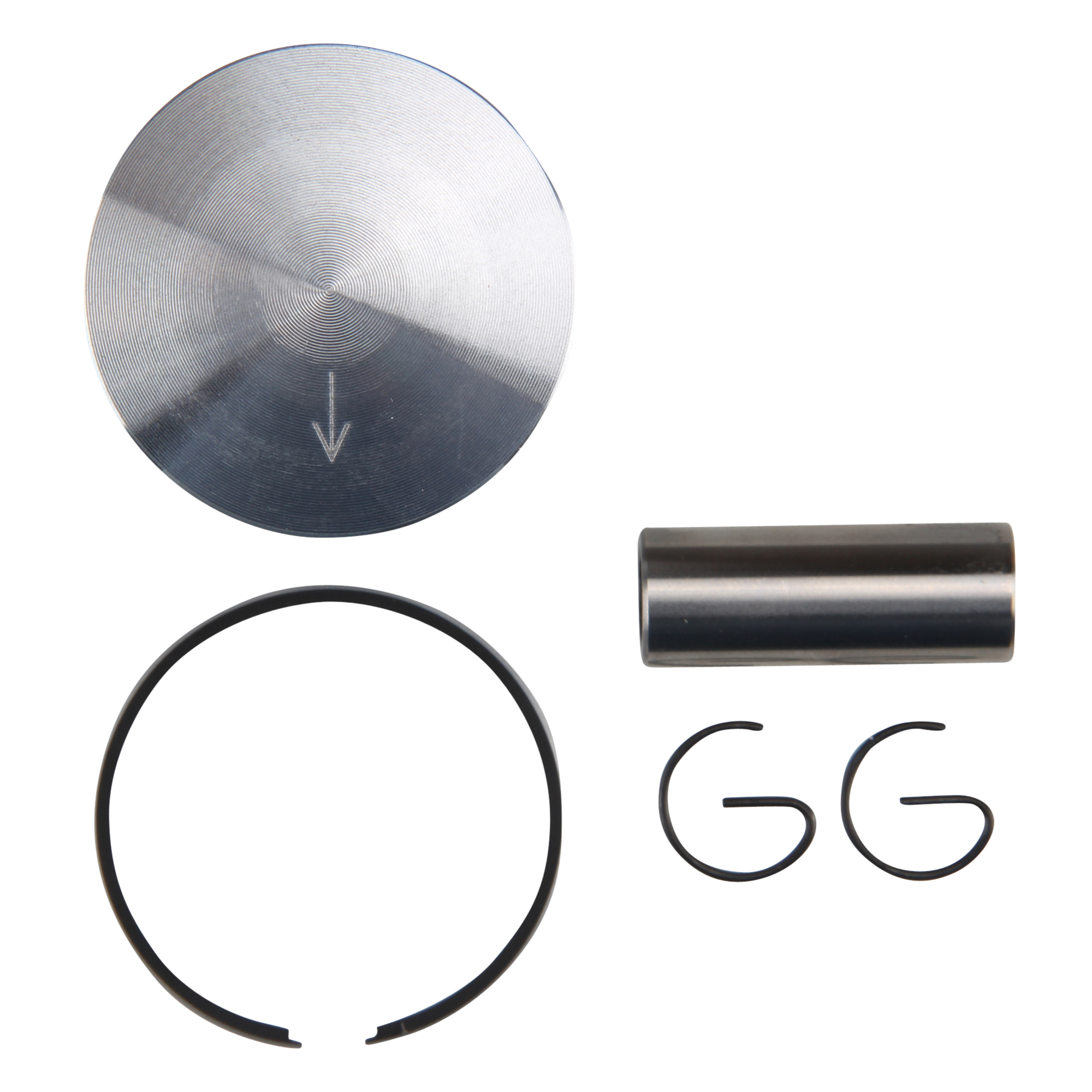

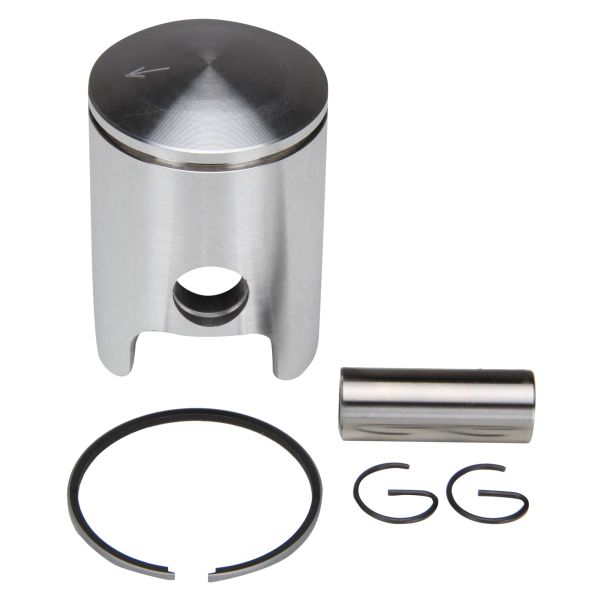

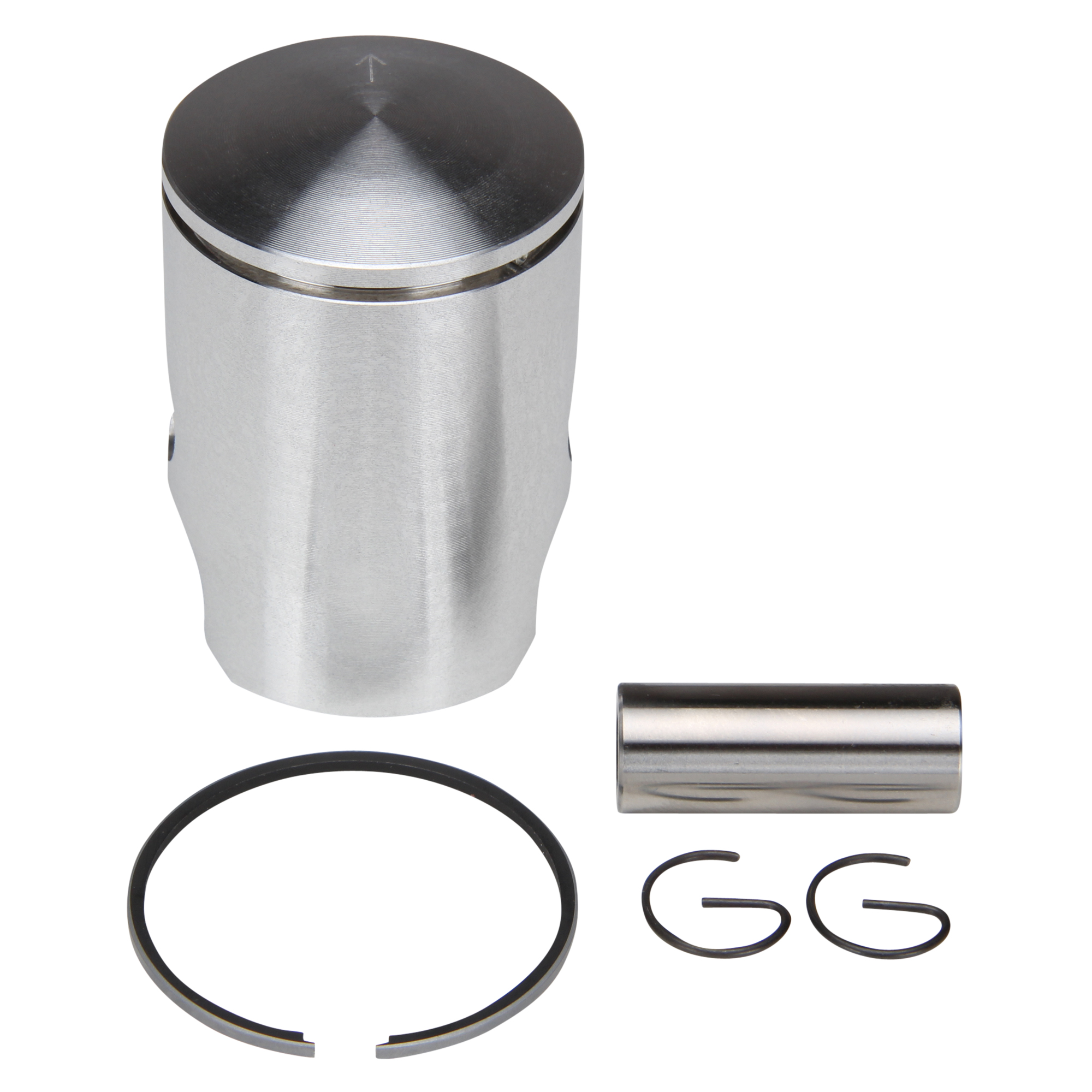

| Scope of delivery: | Piston, Piston clips, Piston pin, Piston ring |
| Dimension A (piston diameter): | 38.00 mm |
| Piston ring dimension: | 38 x 1.5 mm |
| Dimension F (piston skirt width inlet side): | 31 mm |
| Dimension I (piston skirt length outlet side): | 47 mm |
| Dimension G (piston skirt length inlet side): | 47 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Piston ring width: | 1.65 mm |
| Dimension C + D (total height): | 54 mm |
| Dimension D (curvature): | 3 mm |
| Dimension J (max. needle bearing width): | 16 mm |
| Dimension H (piston skirt width outlet side): | 27.6 mm |
| Piston ring shape: | B (groove for center locking pin) |
| Piston ring profile: | Rectangular ring |
| Dimension C (piston height): | 51 mm |
| Cylinder bores: | 38 mm |
| Bolt diameter: | 12 mm |
| Bolt length: | 31 mm |
| OE/OEM reference number(s): | 0286 378 056, 0286 378 126, 0286 382 201, 0286378056, 0286378126, 0286382201 |
| Vintage part: | Yes |
| Tuning & Styling Part: | No |
| Dimension B (compression height): | 28 mm |
| Color: | Silver |
| Piston diameter: | 38 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 102050 |
| Country and region of manufacture: | China |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
