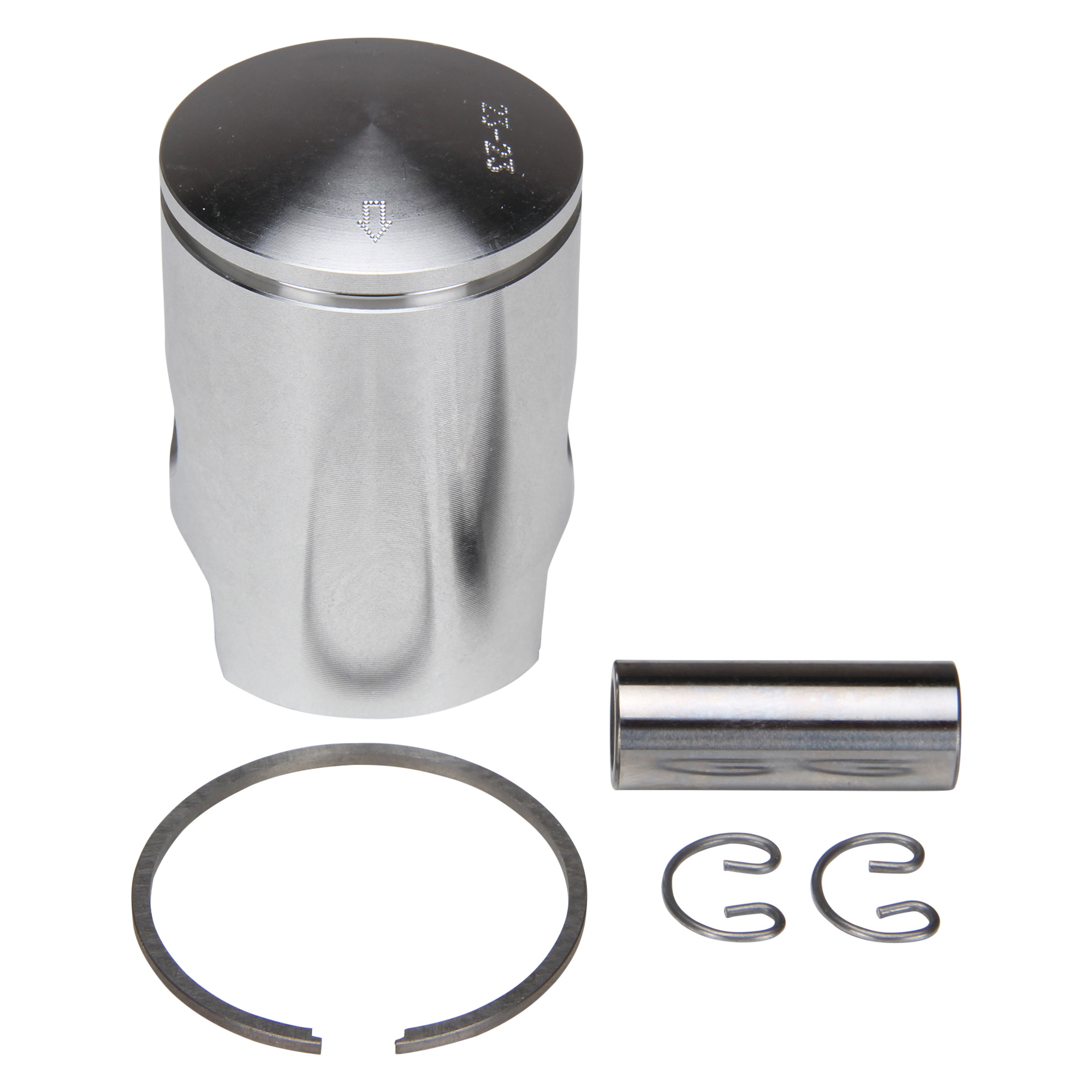

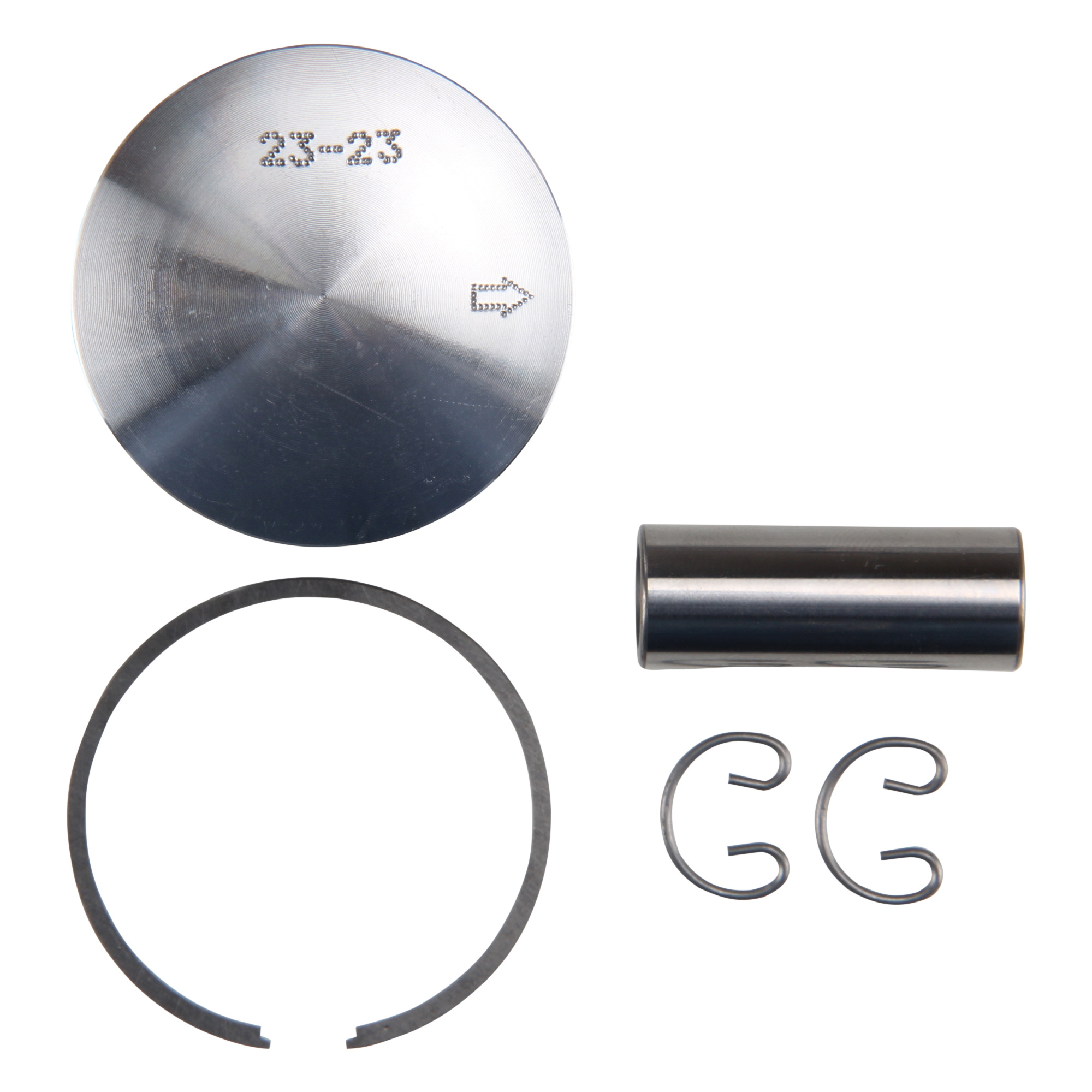

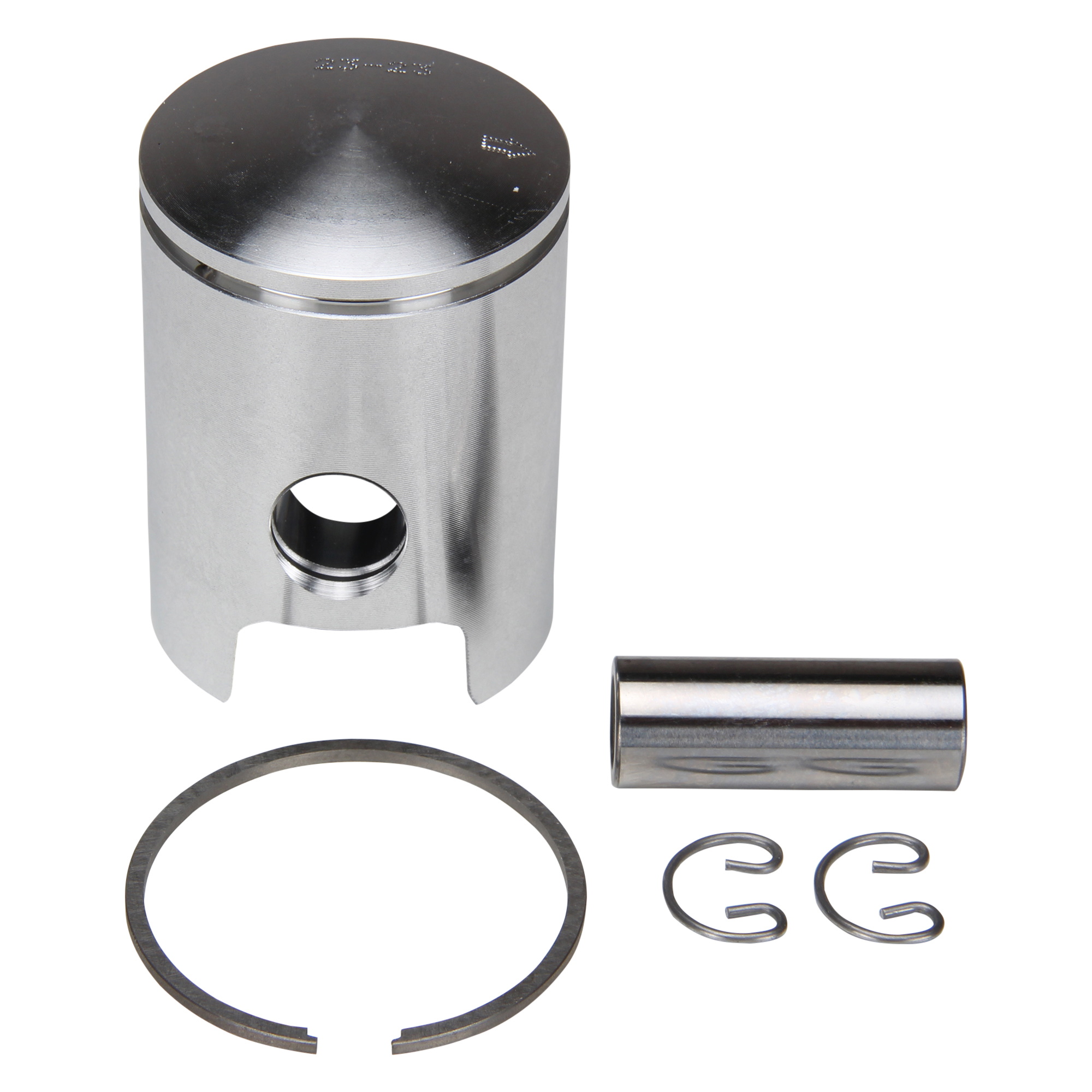

Meteor piston set 38mm Tol. D 50ccm for Hercules Prima 2 3 5 GT GX Pronto Presto / Sachs 505/2 BX BY DY 506/3
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Last article - Buy now
Further variants / accessories
- Item no: PC1271D
- EAN: 4060861190681
- Manufacturer: Meteor Piston
- Manufacturer no.: PC1271D
Hercules MX 1 (1993-1997)
Hercules Prima 2 (1978-1996)
Hercules Prima 3 (1978-1996)
Hercules Prima 3 S (1978-1996)
Hercules Prima 3 (1978-1996)
Hercules Prima 5 LN (1978-1996)
Hercules Prima 5 S 1978-1996)
Hercules Prima 5 SE (1994-1995)
Hercules Prima 5 (1978-1996)
Hercules Prima GT (1985-1995)
Hercules Prima GX (1982-1985)
Hercules Prima PRESTO (1981-1984)
Hercules Prima PRONTO (1981-1984)
Sachs 505/2 BX (from 1989)
Sachs 505/2 BY (from 1989)
Sachs 505/2 DY
Sachs 506/3
| Product type: | Piston set |
| Dimension B (compression height): | 28 mm |
| Dimension F (piston skirt width inlet side): | 32.3 mm |
| Dimension I (piston skirt length outlet side): | 47 mm |
| Piston ring dimension: | 38 x 1.5 mm |
| Tuning & Styling Part: | No |
| Piston ring profile: | Rectangular ring |
| Vintage part: | Yes |
| Cylinder bores: | 38 mm |
| Dimension C (piston height): | 51 mm |
| Dimension J (max. needle bearing width): | 15 mm |
| Dimension C + D (total height): | 54 mm |
| Dimension G (piston skirt length inlet side): | 47 mm |
| OE/OEM reference number(s): | Meteor AN2B1210SET (piston clips), Meteor SP120315080HI (piston pin), 0286378126, 0286 382 201, 0286378056, 0286 378 056, 0286382201, Meteor F0380015016030H01555I (piston ring), 0286 378 126, Meteor PC1271D (piston) |
| GTIN: | 4060861190681 |
| Dimension A (piston diameter): | 37.99 mm |
| Bolt diameter: | 12 mm |
| Dimension D (curvature): | 3 mm |
| Dimension H (piston skirt width outlet side): | 31 mm |
| Scope of delivery: | Piston ring, Piston clips, Piston pin, Piston |
| Bolt length: | 31.5 mm |
| Piston ring width: | 1.60 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Tolerance size: | D (37.99mm) |
| Piston ring shape: | B (groove for center locking pin) |
| Color: | Silver |
| Piston diameter: | 38 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | PC1271D |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
METEOR PISTON S.R.L.
VIA MONTE AMIATA 9-11
20021 BARANZATE ITA
Telephone number: +39 02 356 16 34
Web page http://www.meteorpiston.com
Email: info@meteorpiston.com
Meteor Piston is known for over 60 years for high quality piston sets, pistons and piston rings in OEM quality. In the 50's Kolebn for Vespa scooters and Lambretta scooters were manufactured with aluminum coating. Meanwhile Meteor Piston offers its products not only for scooters but also for Maxi, Quad and ATV. As a special feature, all small parts such as piston rings, circlips or piston pins are included with the piston sets.
