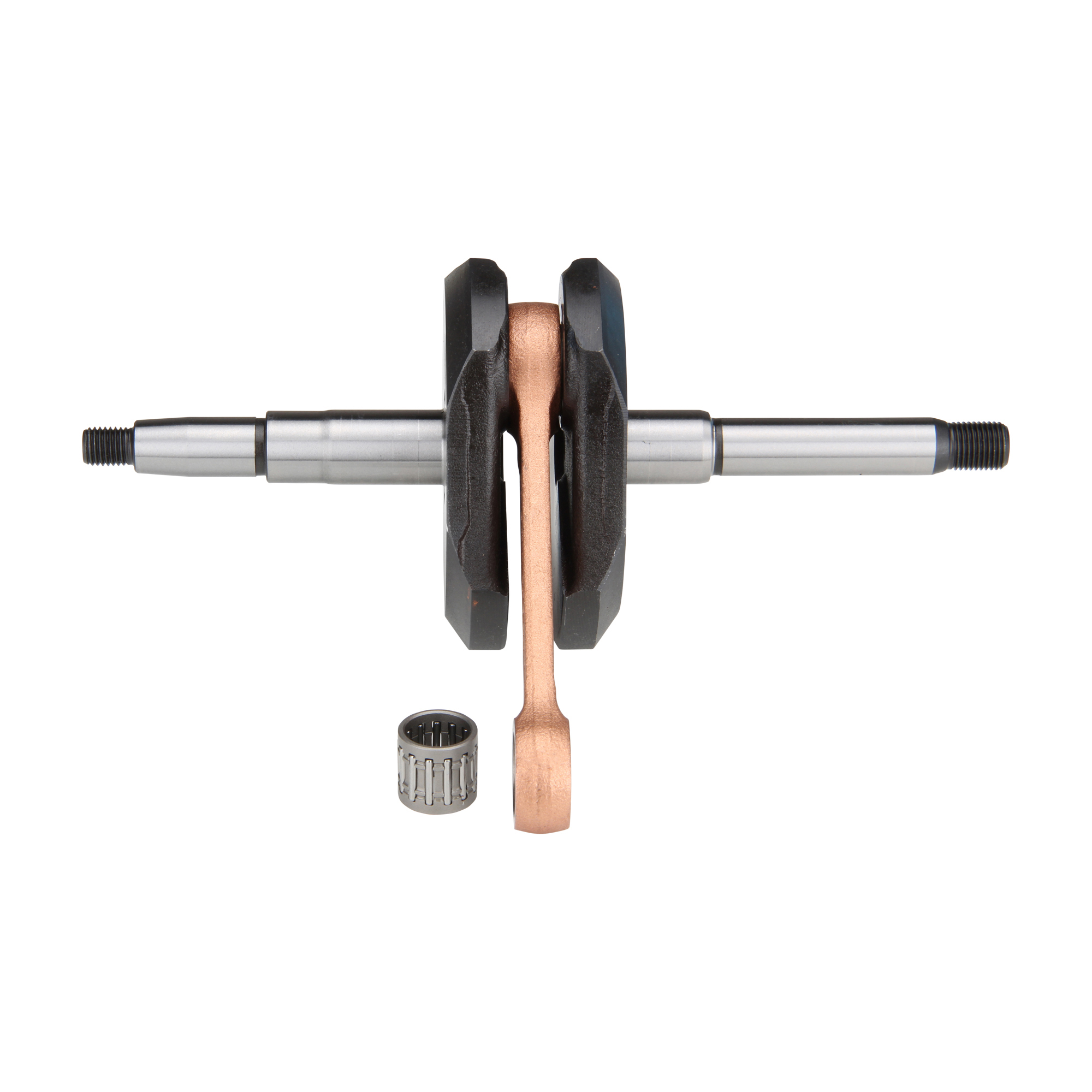

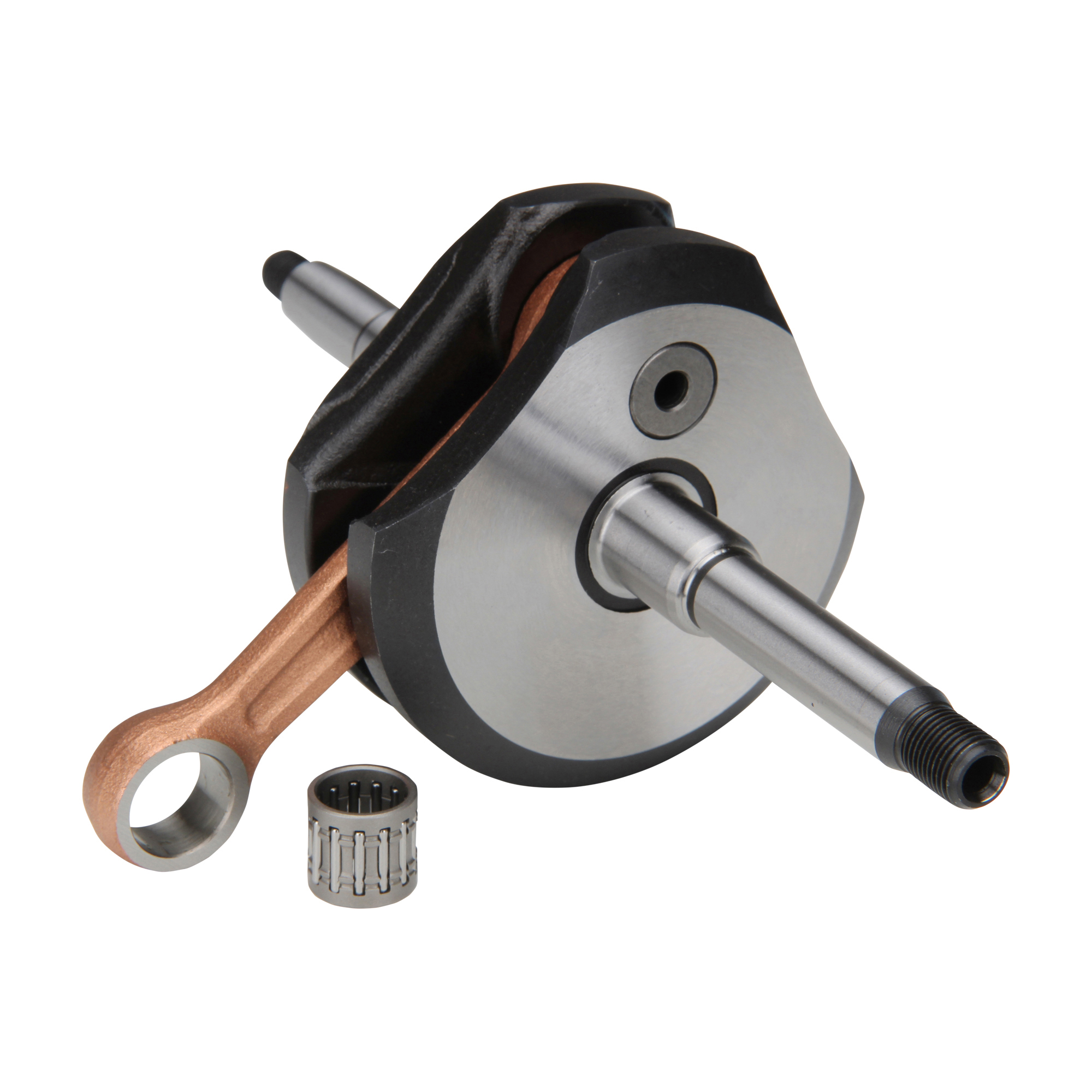

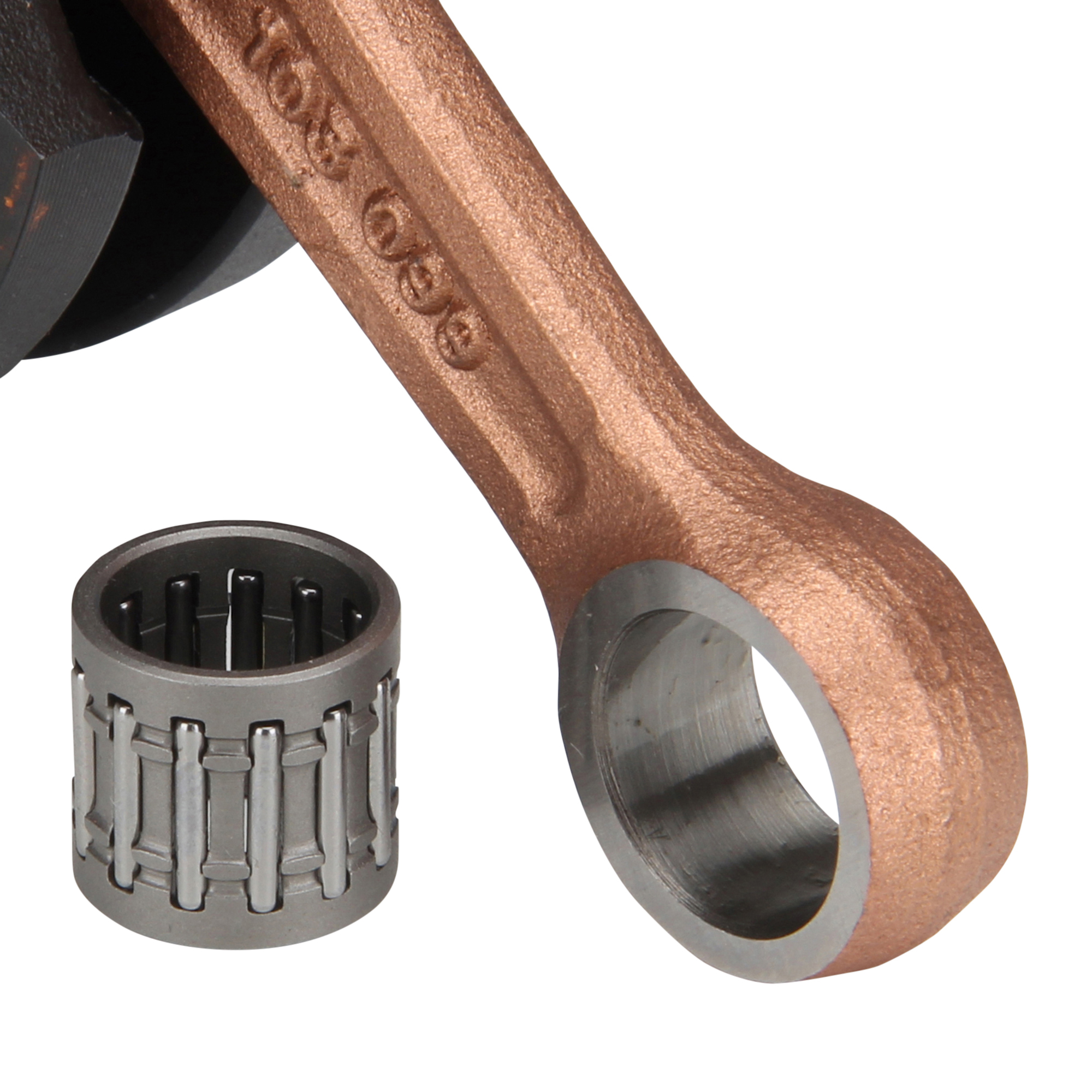

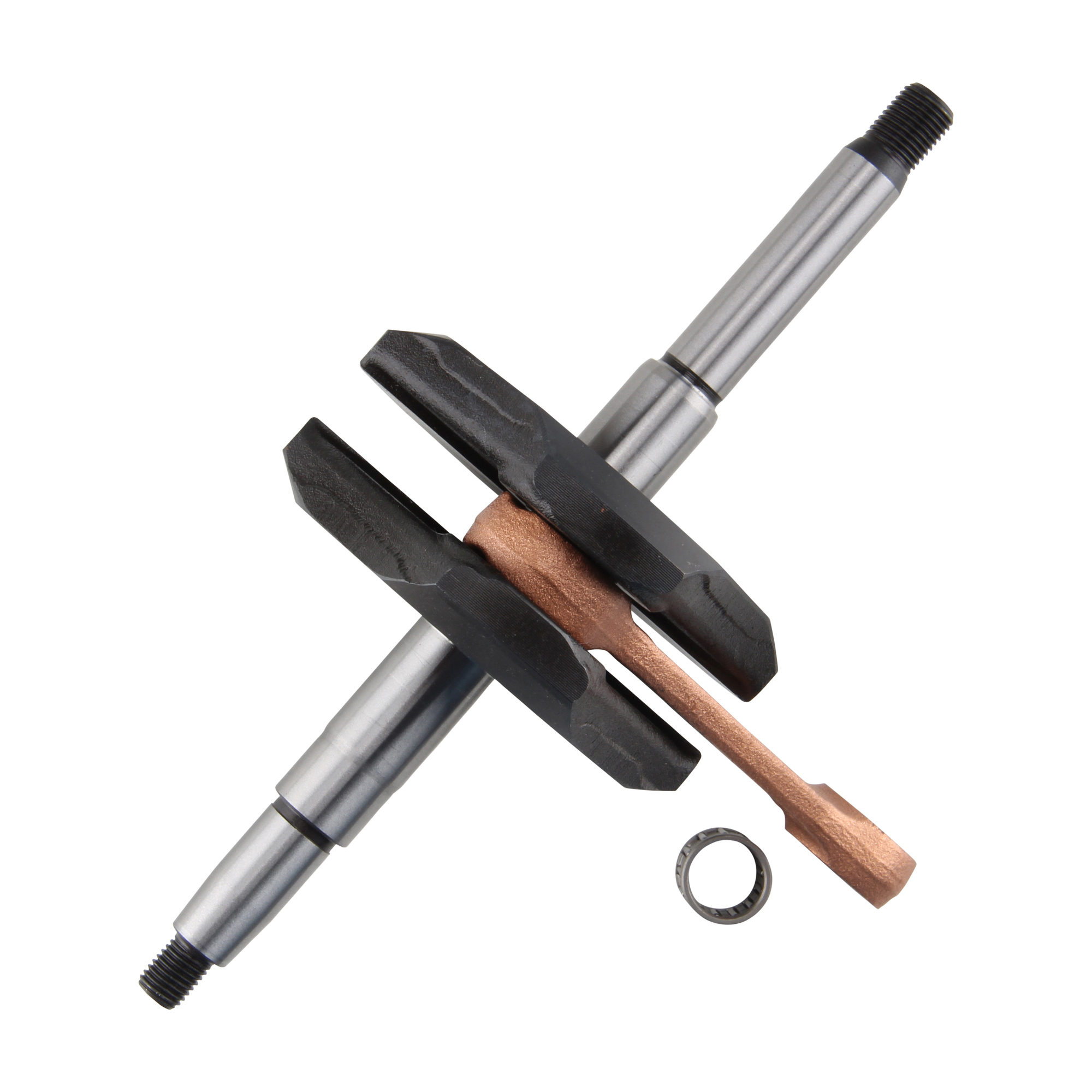

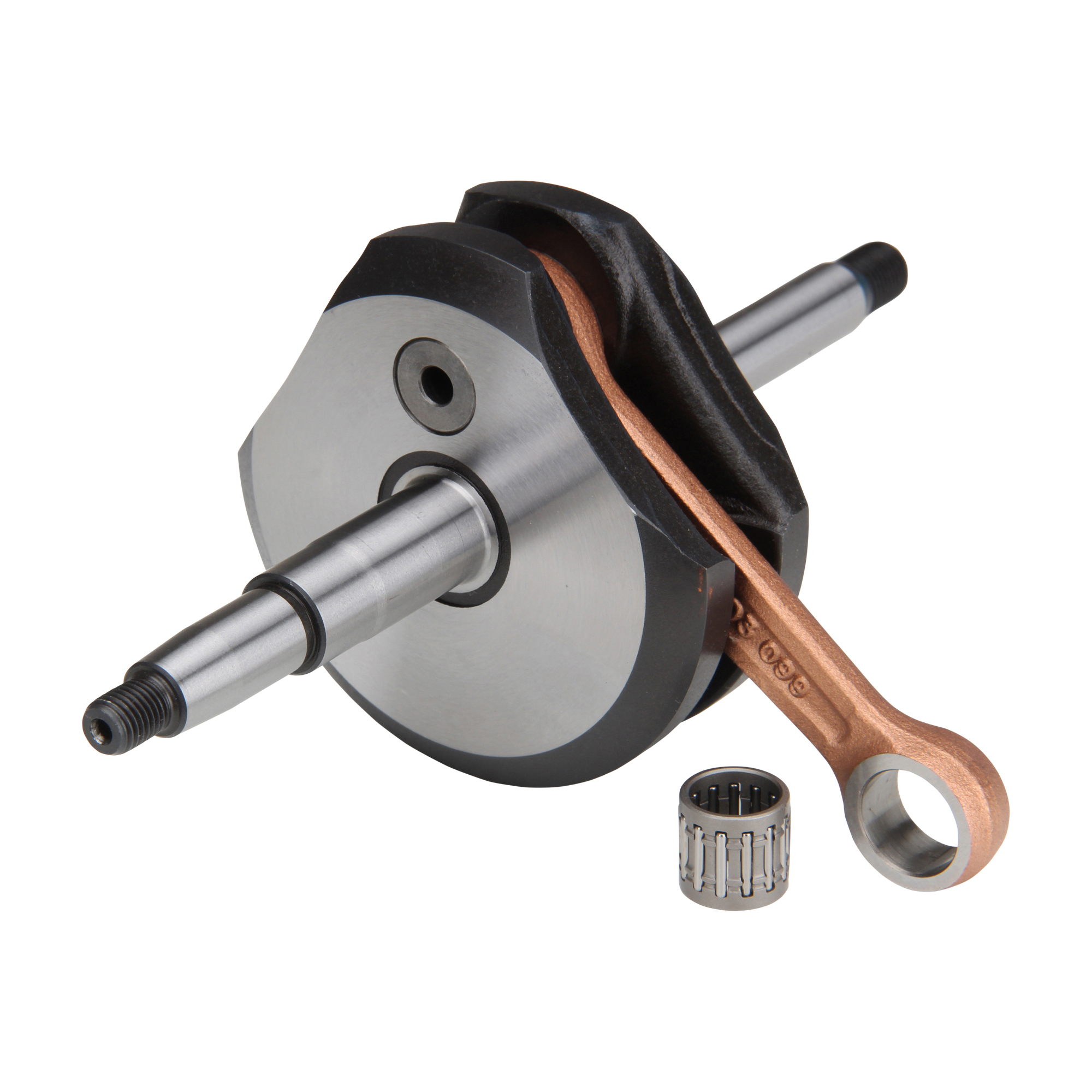

Crankshaft for Hercules M 1 2 3 / C 1 2 3 / P 1
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Last article - Buy now
- Item no: 102153
- EAN: 4060861192845
- Manufacturer: Citomerx
- Manufacturer no.: 102153
Hercules C 1-508 M (1972-1974)
Hercules C 3-508 S (1972-1974)
Hercules M 1 (1972-1978)
Hercules M 1 CH ( 1972-1978)
Hercules M 2 (1972-1978)
Hercules M 3 (1972-1978)
Hercules C 2-509 P (1972-1974)
Hercules P 1 (1972-1977)
Hercules P 1 CH (1972-1977)
Hercules P 1 I (1972-1977)
Hercules P 1 X (1972-1977)
| Product type: | Crankshaft |
| Dimension B (shaft diameter on coupling side): | 15 mm |
| Crankshaft type: | Half cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 63 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Dimensions needle bearing piston pin: | 12x15x15 mm |
| Dimension C (stroke pin offset = half stroke): | 21 mm |
| Dimension J (thread on coupling side): | M10 x 1 right-hand thread |
| Crankshaft stroke: | 42 mm |
| Dimension G (width of crank webs): | 34.3 mm |
| Surface finish: | Matt |
| matching piston pin: | 12 mm |
| OE/OEM reference number(s): | 0288112102, 0288 112 102, 0288112100, 0288 112 100 |
| GTIN: | 4060861192845 |
| Dimension D (connecting rod length): | 85 mm |
| Dimension H (top diameter of connecting rod eye): | 15 mm |
| Dimension A (shaft diameter on alternator side): | 15 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 61 mm |
| Dimension I (thread on alternator side): | M8 x 1 right-hand thread |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 102153 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | not specified |
| Material: | Cast iron |
| Type: | Standard |
