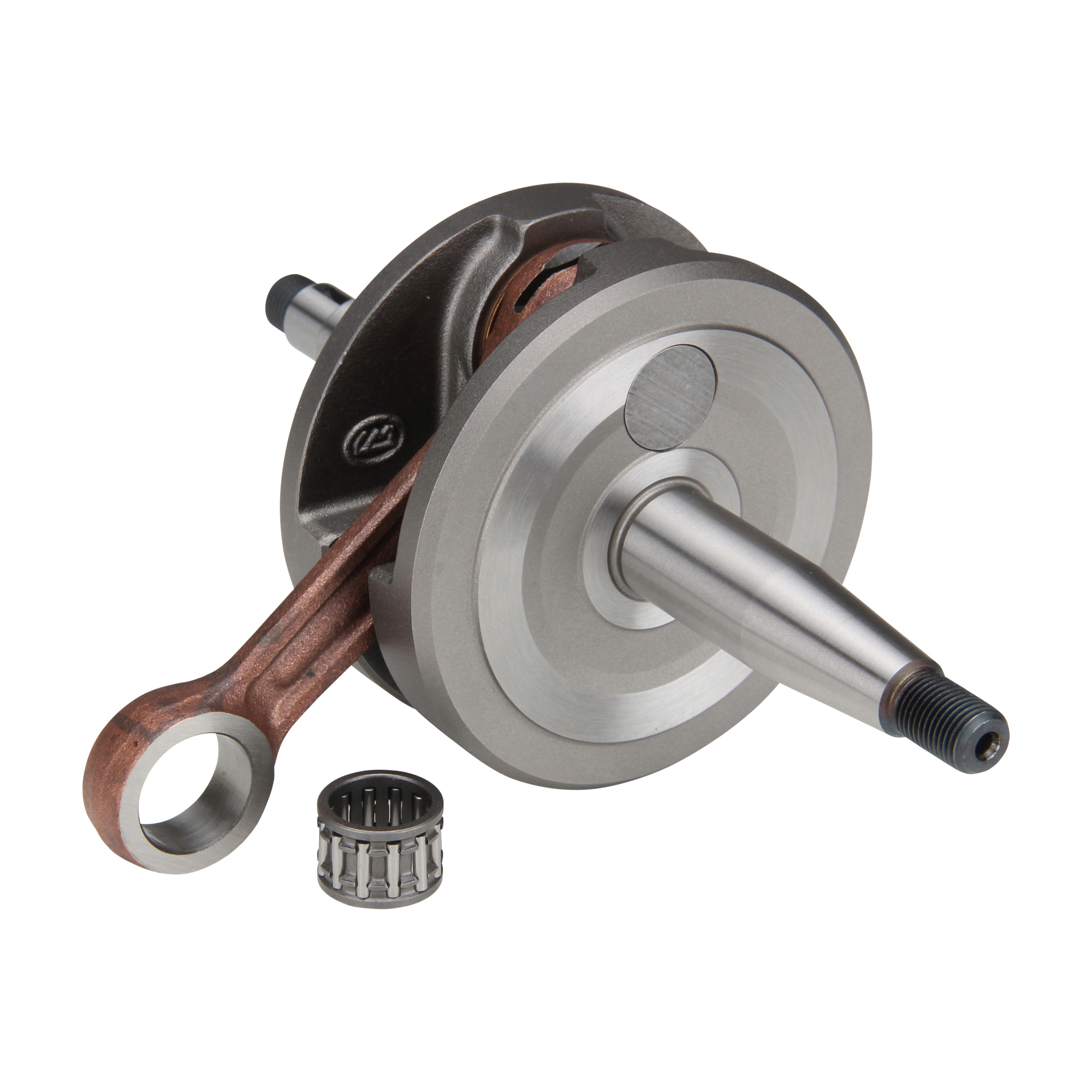

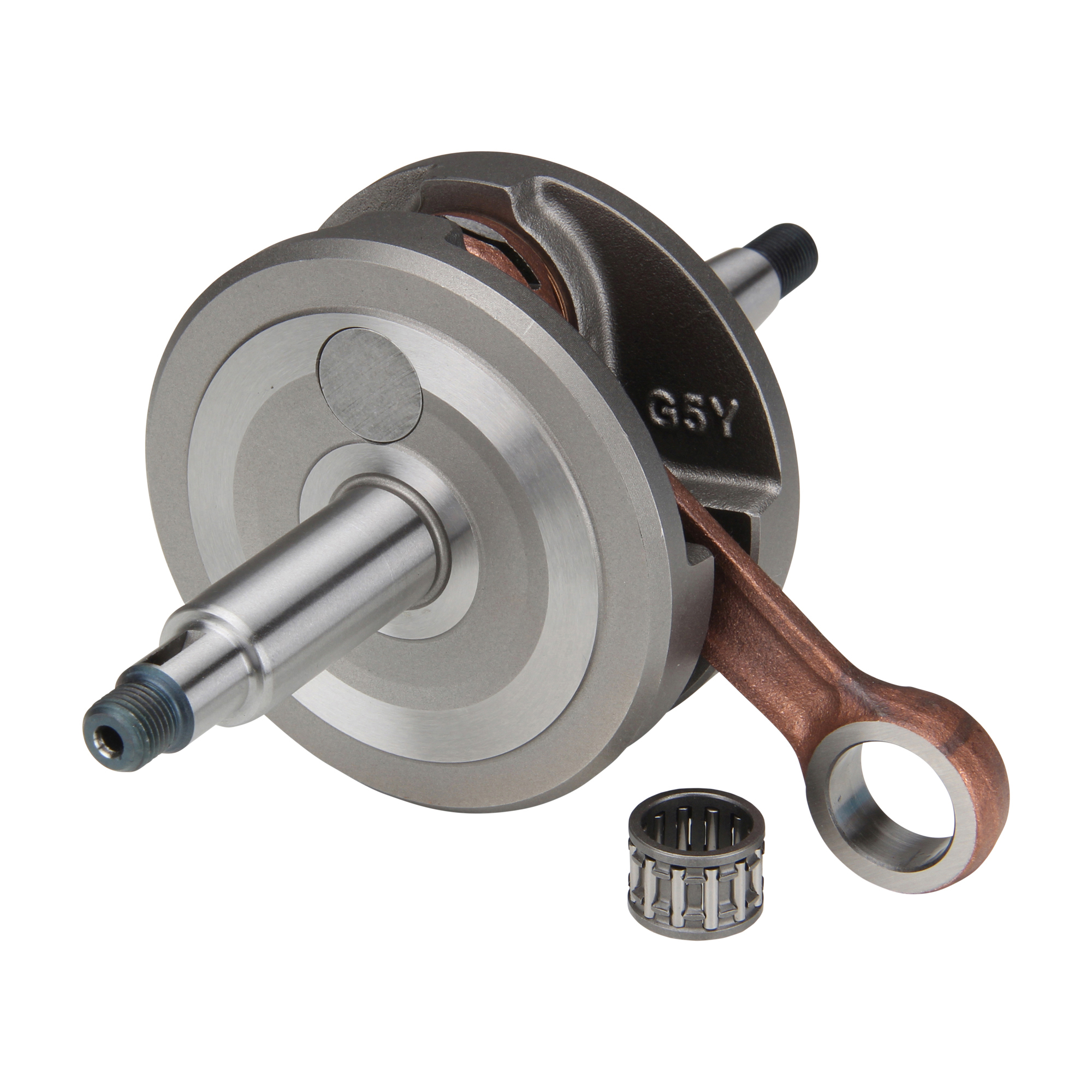

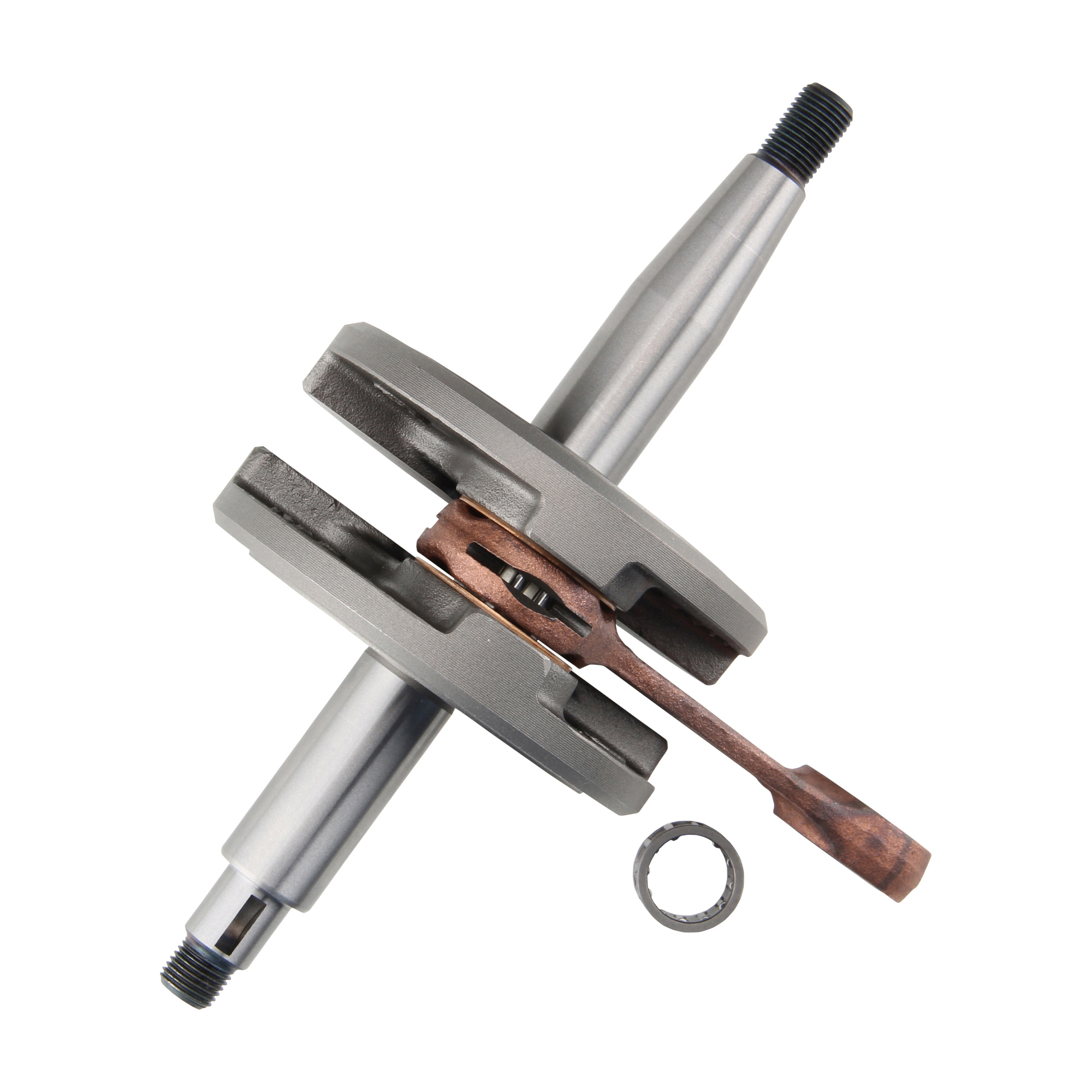

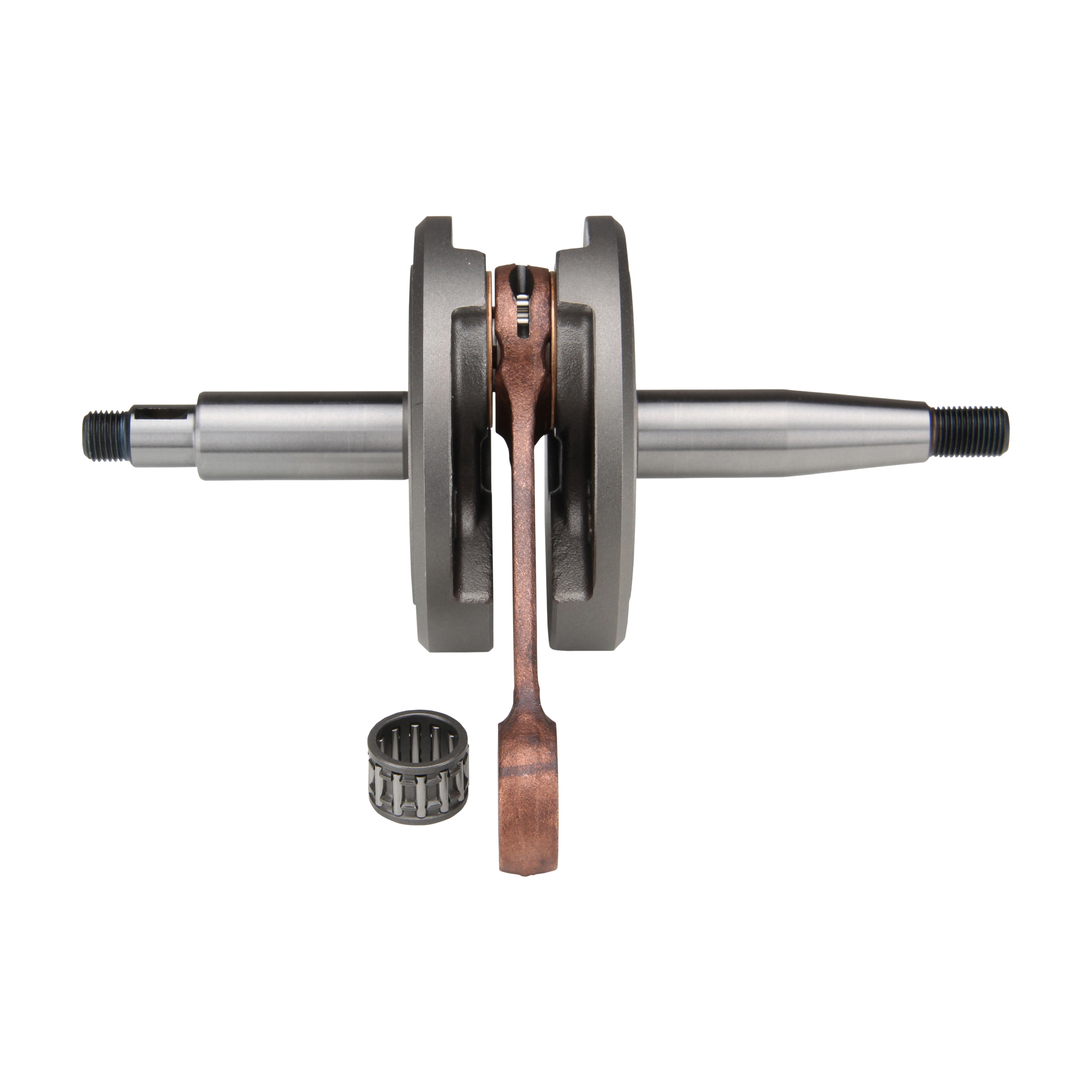

Crankshaft for Hercules MK 1 2 3 4 / SB Sport Bike 2 3
- Item no: 102151
- EAN: 4060861192784
- Manufacturer: Citomerx
- Manufacturer no.: 102151
Hercules MK 1 S (1977-1979)
Hercules MK 1 S (1980-1984)
Hercules MK 1 (1970-1976)
Hercules MK 2 S (09/1976- 1979)
Hercules MK 2 S (1980-1984)
Hercules MK 2 (1970-08/1976)
Hercules MK 3 (1973-1974)
Hercules MK 3 X ( 1970-1972)
Hercules MK 4 M (1973-1974)
Hercules MK 4 X (1970-1972)
Hercules SB 2 Sport Bike (1972-1975)
Hercules SB 3 Sport Bike (1975-1984)
| GTIN: | 4060861192784 |
| Dimension C (stroke pin offset = half stroke): | 22 mm |
| Dimension G (width of crank webs): | 39 mm |
| Dimension F (length of crankshaft stub on clutch side): | 52 mm |
| Dimension E (length of crankshaft stub on alternator side): | 57 mm |
| OE/OEM reference number(s): | 0288 101 001, 0288101001 |

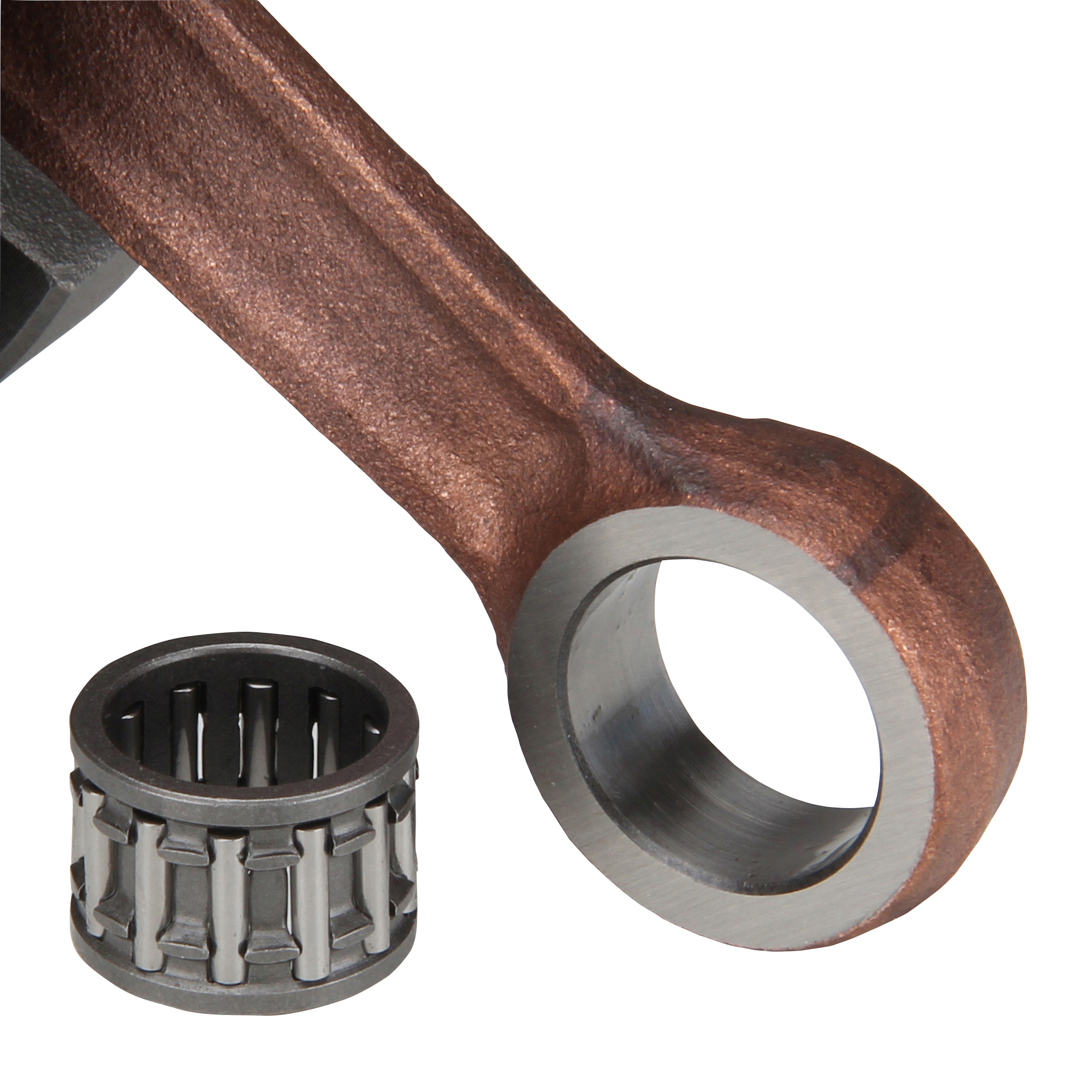

| Dimensions needle bearing piston pin: | 14x18x13 mm |
| Dimension I (thread on alternator side): | M10 x 1 left-hand thread |
| Dimension B (shaft diameter on coupling side): | 17 mm |
| Dimension J (thread on coupling side): | M10 x 1 right-hand thread |
| Dimension D (connecting rod length): | 85 mm |
| matching piston pin: | 14 mm |
| Dimension H (top diameter of connecting rod eye): | 18 mm |
| Dimension A (shaft diameter on alternator side): | 17 mm |
| Crankshaft stroke: | 44 mm |
| Vintage part: | Yes |
| Crankshaft type: | Full cheek crankshaft |
| Scope of delivery: | Crankshaft + needle bearing |
| Tuning & Styling Part: | No |
| Surface finish: | Matt |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 102151 |
| Country and region of manufacture: | China |
| Product type: | Crankshaft |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | not specified |
| Material: | Cast iron |
| Type: | Standard |
