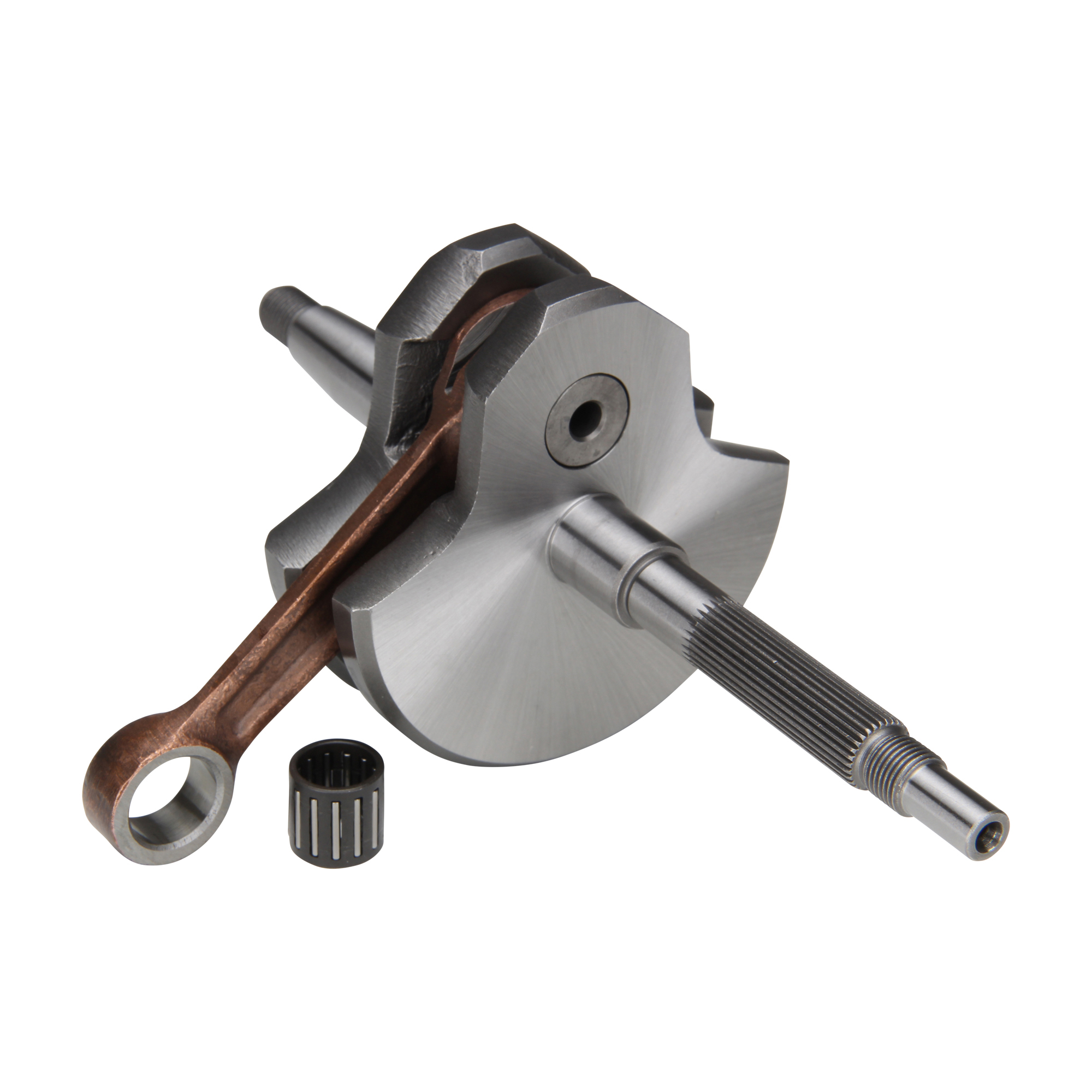

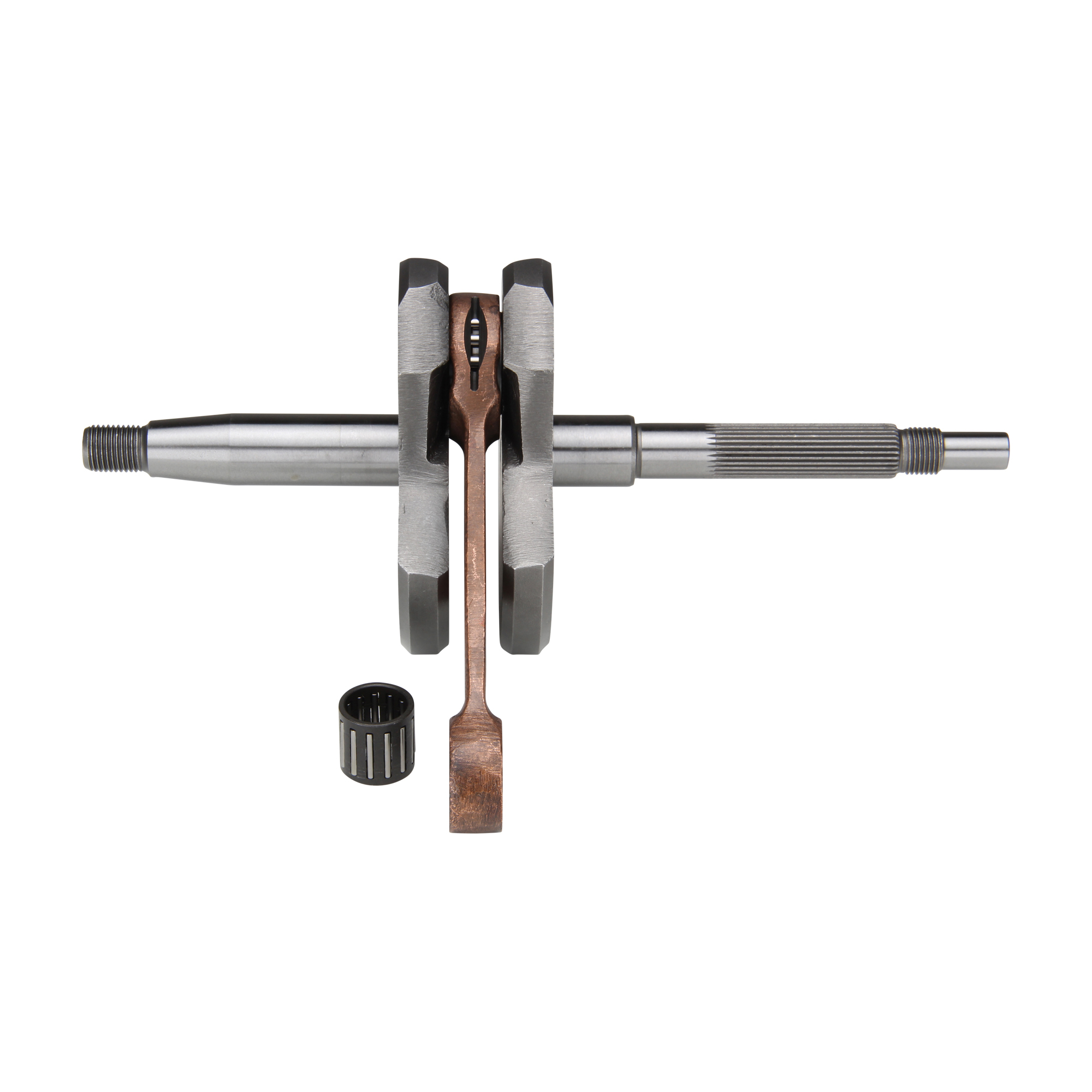

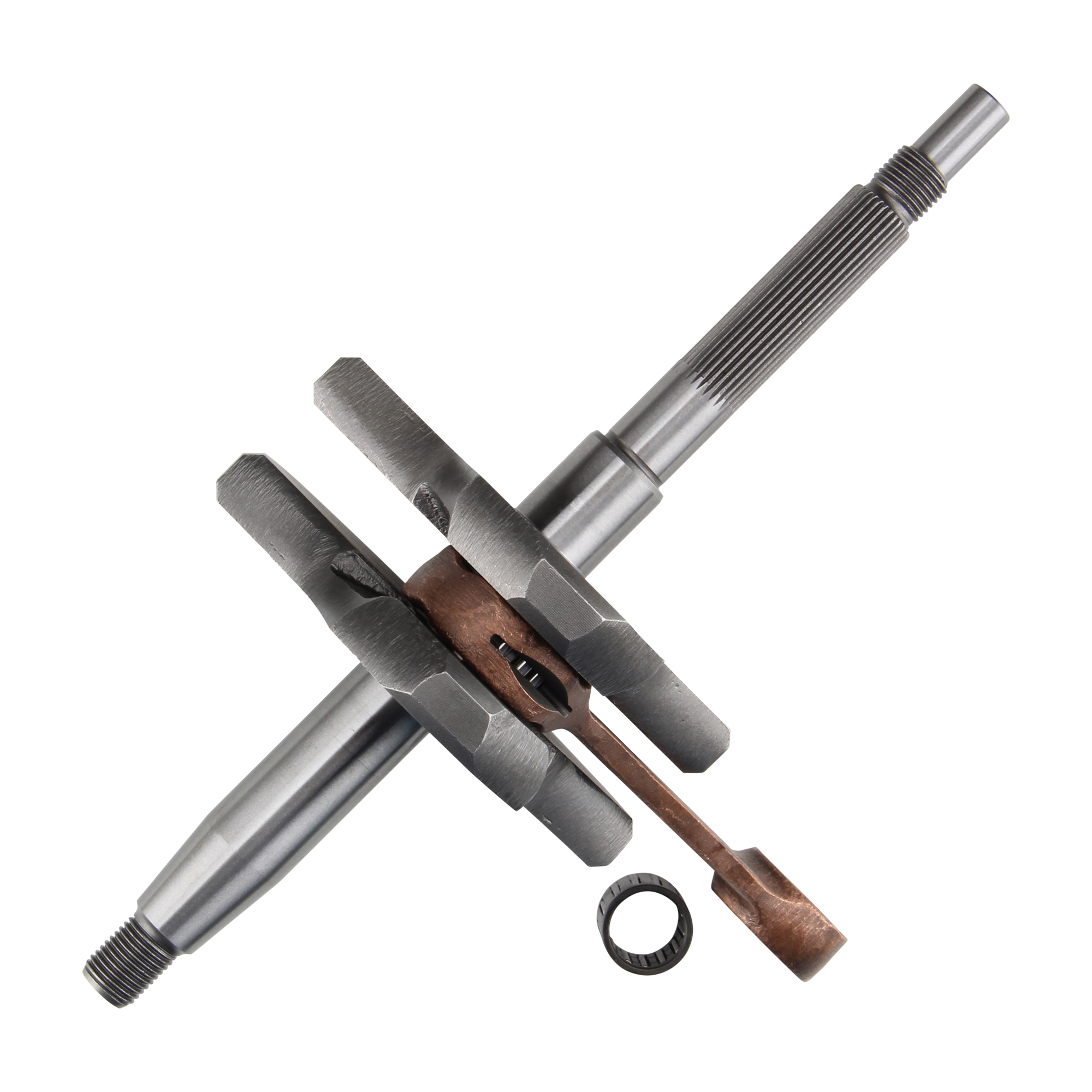

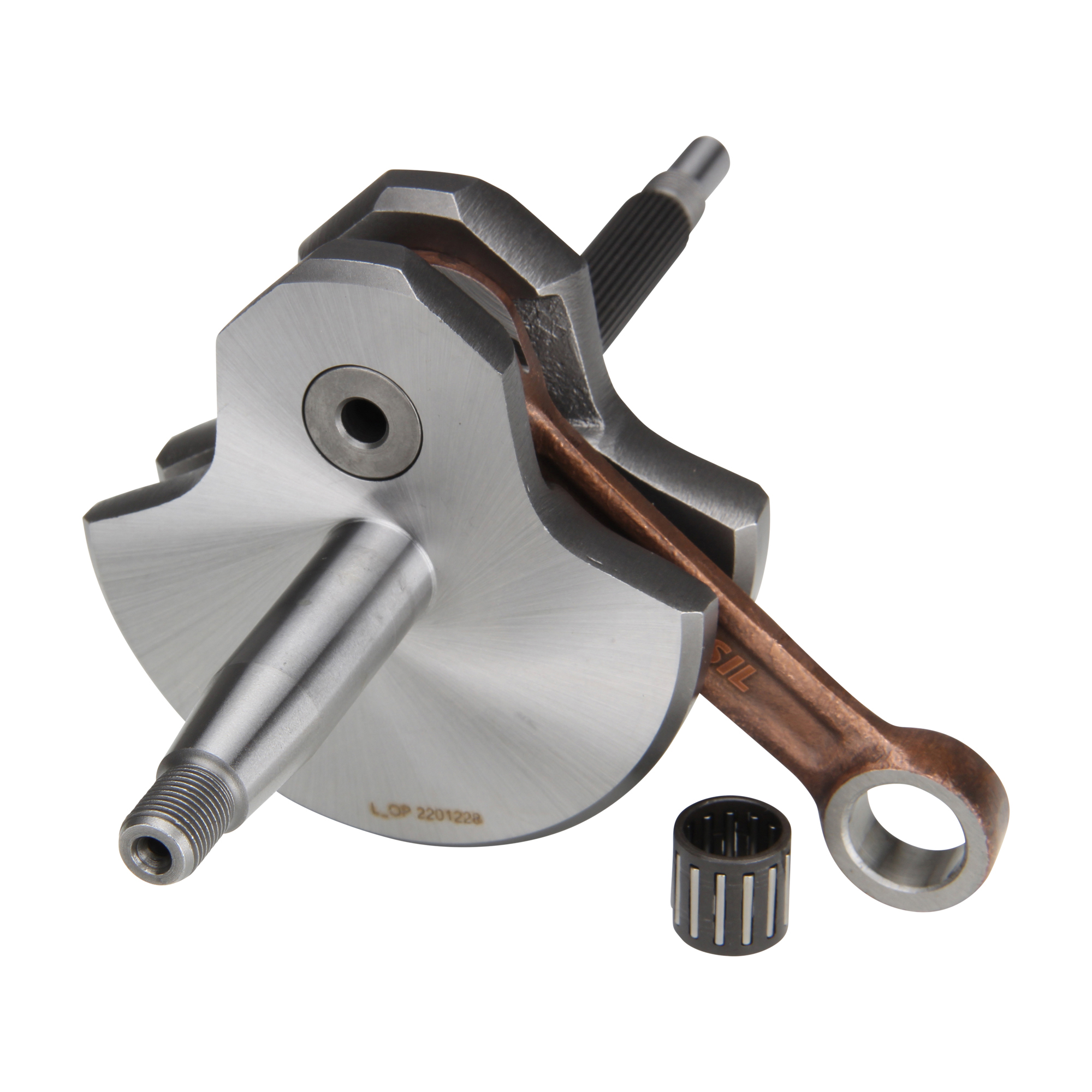

Crankshaft for Hercules 219 221 222 MF4
- Item no: 192176
- EAN: 4060861084713
- Manufacturer: Citomerx
- Manufacturer no.: 192176
Hercules 221 MF (1965-)
Hercules 221 MFH (1966-)
Hercules 222 MF (1966-)
Hercules MF 4 (1972-1975)
Hercules 219 A (1964-)
Hercules 221 S (1961-1962)
Hercules 221 S (1963-1964)
Hercules 221 T (1964-)
Hercules 221 TS (1964- )
| GTIN: | 4060861084713 |
| OE/OEM reference number(s): | 0286 139 412, 0286 346 000, 0288 134 001, 0286139412, 0286346000, 0288134001 |
| Dimension A (shaft diameter on alternator side): | 15 mm |
| Dimension E (length of crankshaft stub on alternator side): | 51 mm |
| Dimension J (thread on coupling side): | M10 x 1 right-hand thread |
| Crankshaft stroke: | 42 mm |
| Dimension C (stroke pin offset = half stroke): | 21 mm |
| Dimension H (top diameter of connecting rod eye): | 15 mm |
| Dimension F (length of crankshaft stub on clutch side): | 80.5 mm |
| Dimension G (width of crank webs): | 30.3 mm |
| Special feature (crankshaft stub on clutch side): | 12 mm toothing (30 teeth) |
| Dimension D (connecting rod length): | 85 mm |
| Crankshaft type: | Half cheek crankshaft |
| Dimensions needle bearing piston pin: | 12x15x15 mm |
| Vintage part: | Yes |
| matching piston pin: | 12 mm |
| Dimension I (thread on alternator side): | M10 x 1 right-hand thread |
| Dimension B (shaft diameter on coupling side): | 15 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Tuning & Styling Part: | No |
| Surface finish: | Matt |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 192176 |
| Country and region of manufacture: | China |
| Product type: | Crankshaft |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | not specified |
| Material: | Cast iron |
| Type: | Standard |
