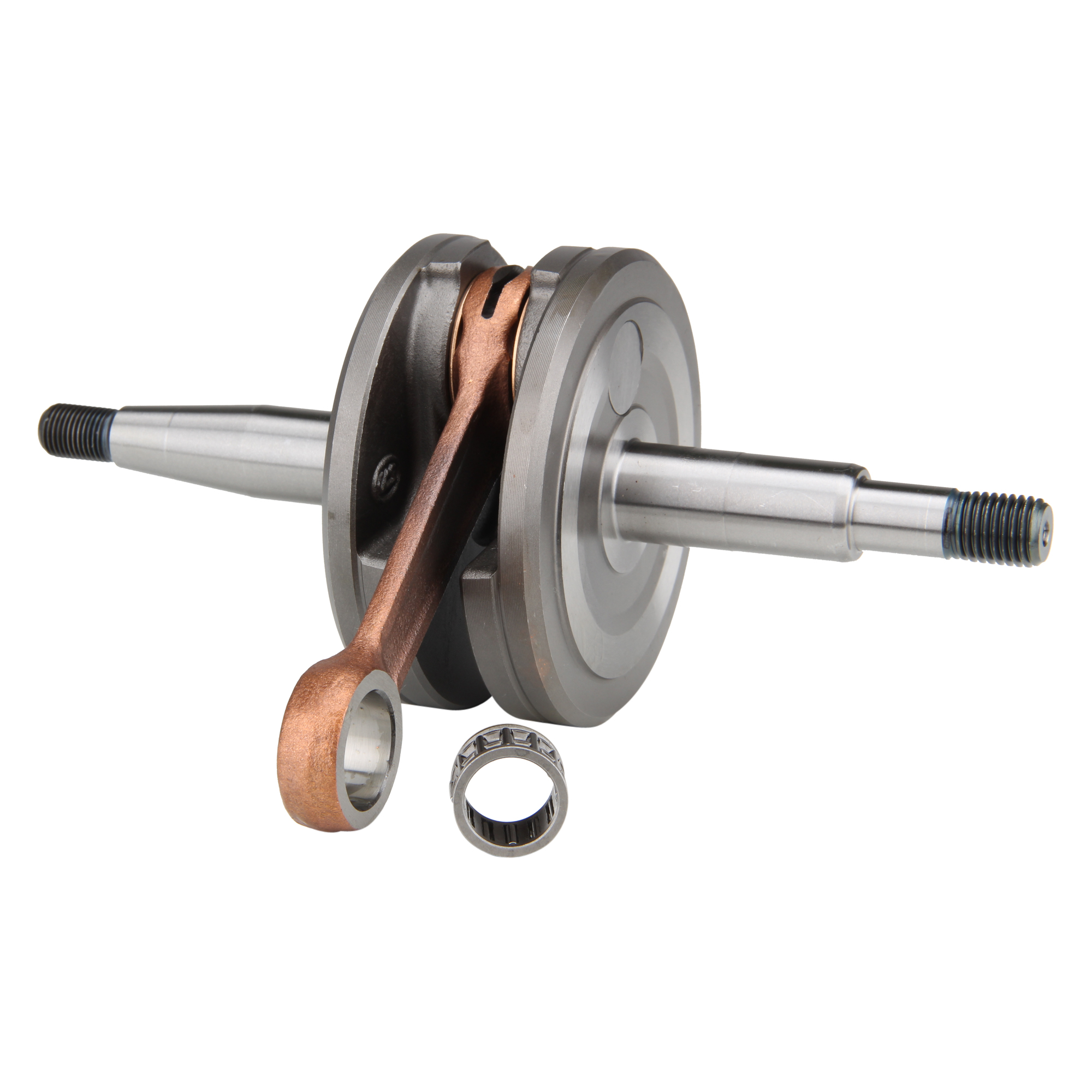

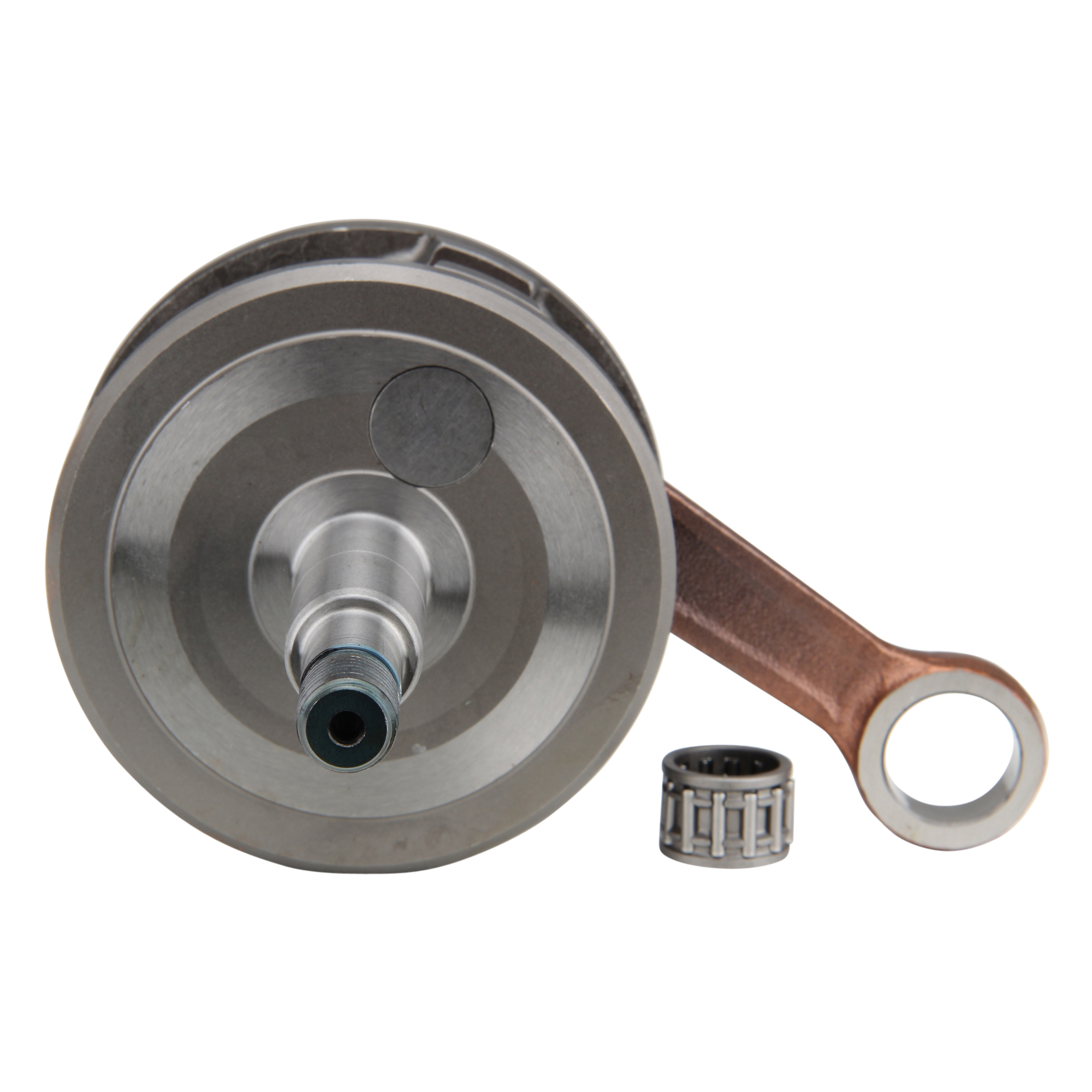

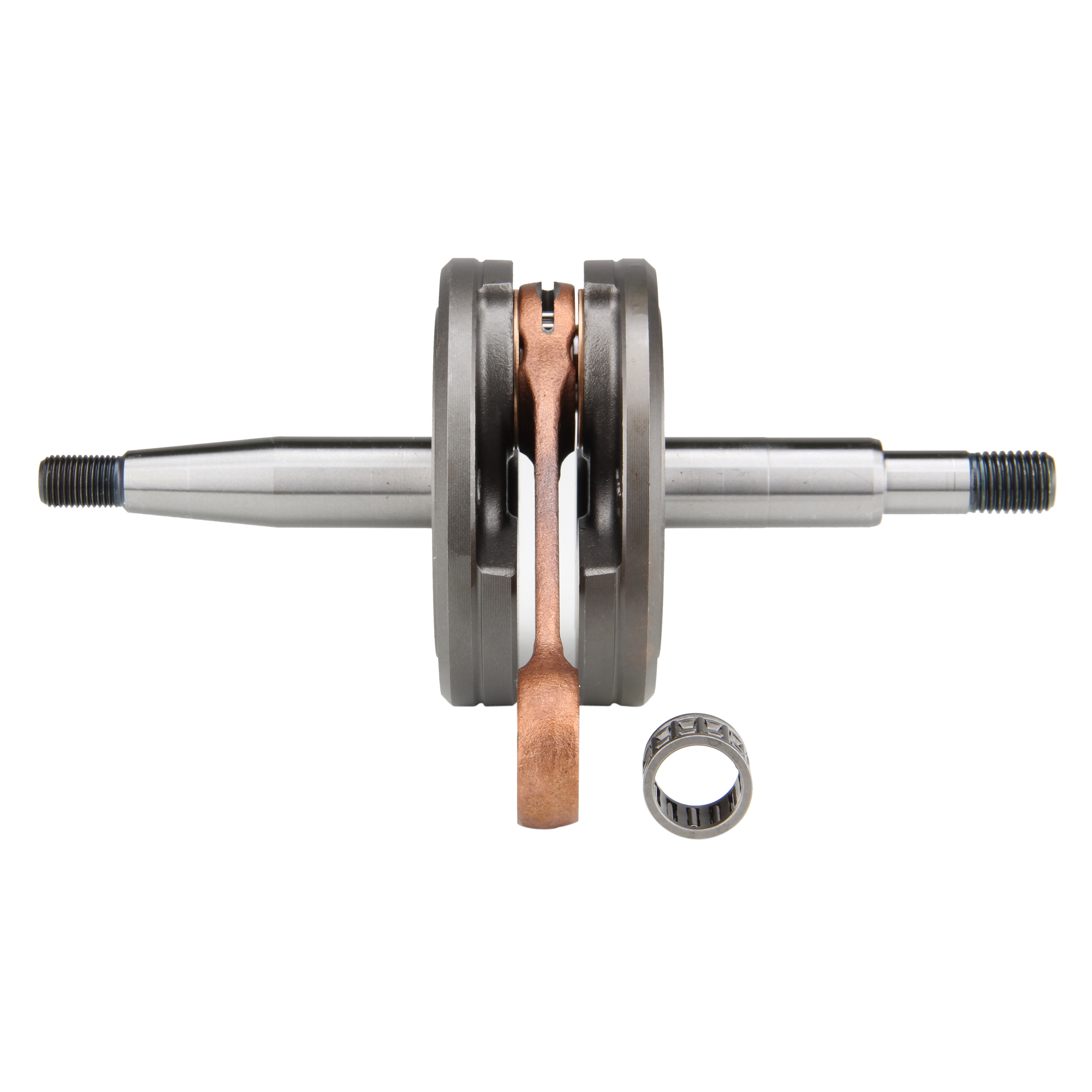

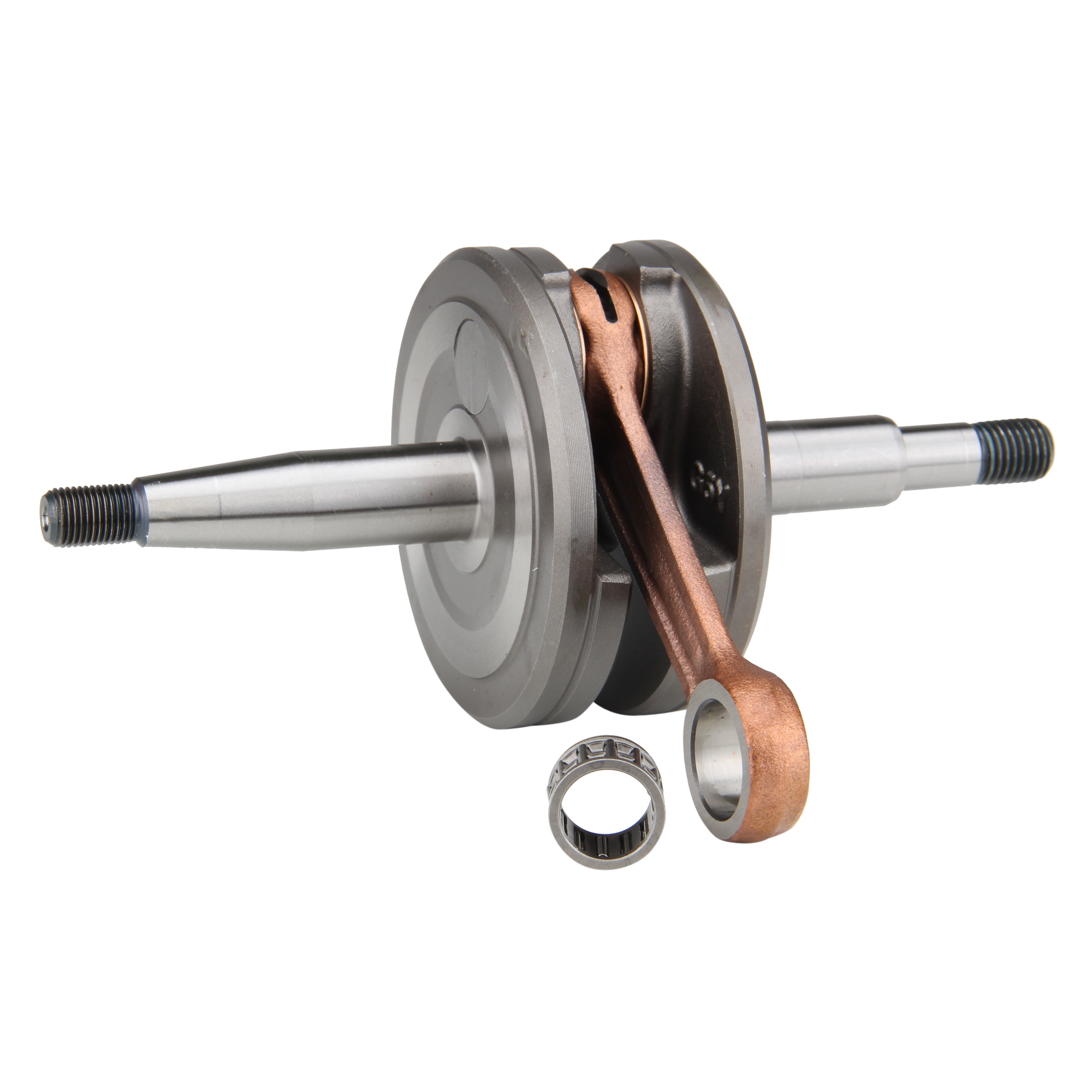

Crankshaft (14mm Kobo) for Sachs 501/4 AKF / 506/4 AKF engine
£83.31 *
Content:
1 piece
Prices plus VAT plus shipping costs
Unfortunately, this item is already sold out due to high demand.
- Item no: 191762
- EAN: 4060861080579
- Manufacturer: Citomerx
- Manufacturer no.: 191762
Sachs 501/4 AKF Sachs 501/4 AKF X Sachs 506/4 AKF more
Product information about Crankshaft (14mm Kobo) for Sachs 501/4 AKF / 506/4 AKF engine
Sachs 501/4 AKF
Sachs 501/4 AKF X
Sachs 506/4 AKF
Properties
| Product type: | Crankshaft |

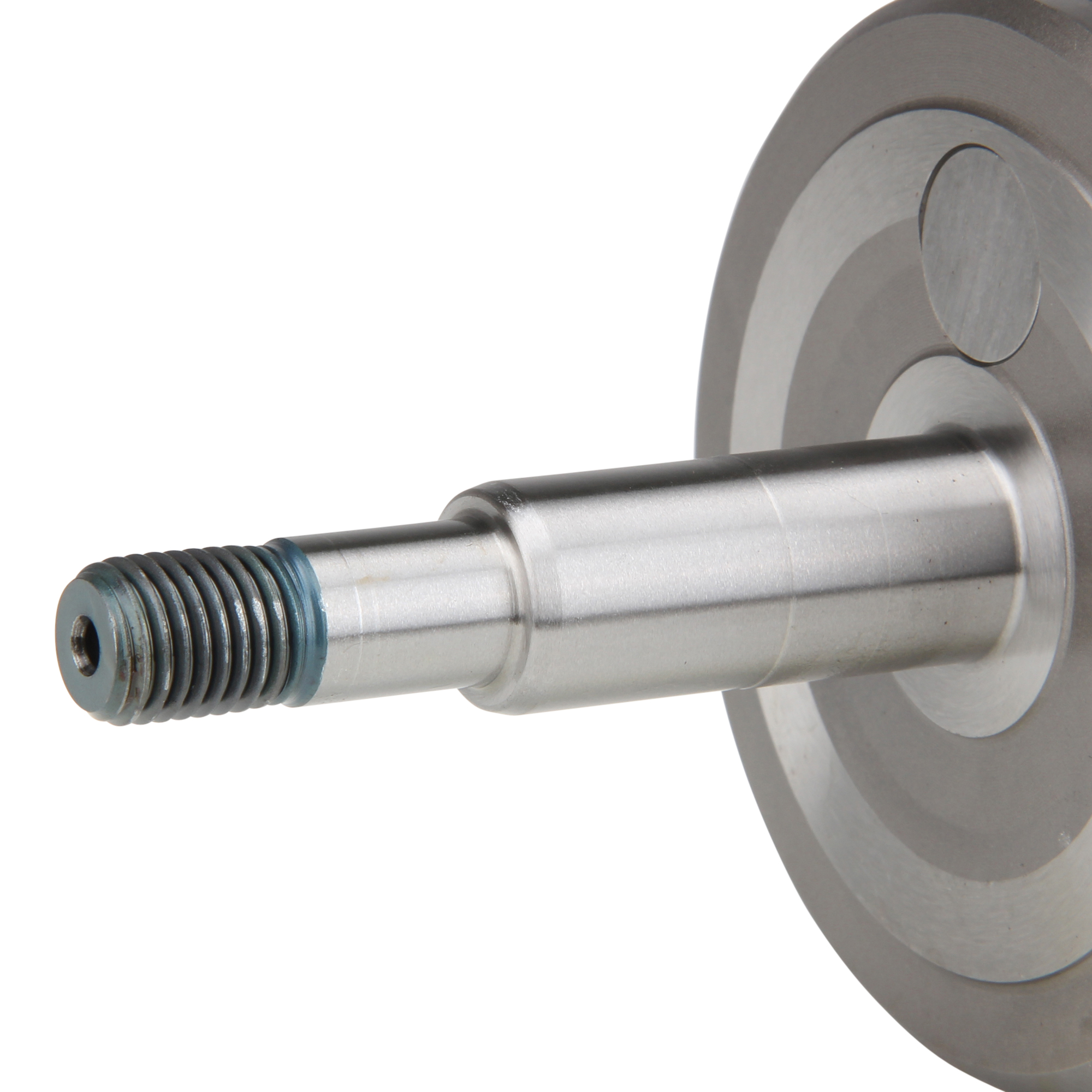

| Dimension B (shaft diameter on coupling side): | 17 mm |
| Crankshaft type: | Full cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 71.5 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Dimensions needle bearing piston pin: | 14x18x13 mm |
| Dimension C (stroke pin offset = half stroke): | 22 mm |
| Dimension J (thread on coupling side): | M12 x 1.5 right-hand thread |
| Crankshaft stroke: | 44 mm |
| Dimension G (width of crank webs): | 40.5 mm |
| Surface finish: | Matt |
| matching piston pin: | 14 mm |
| OE/OEM reference number(s): | 0288101000, 0288 101 302, 0288101302, 0288 101 000 |
| GTIN: | 4060861080579 |
| Dimension D (connecting rod length): | 85 mm |

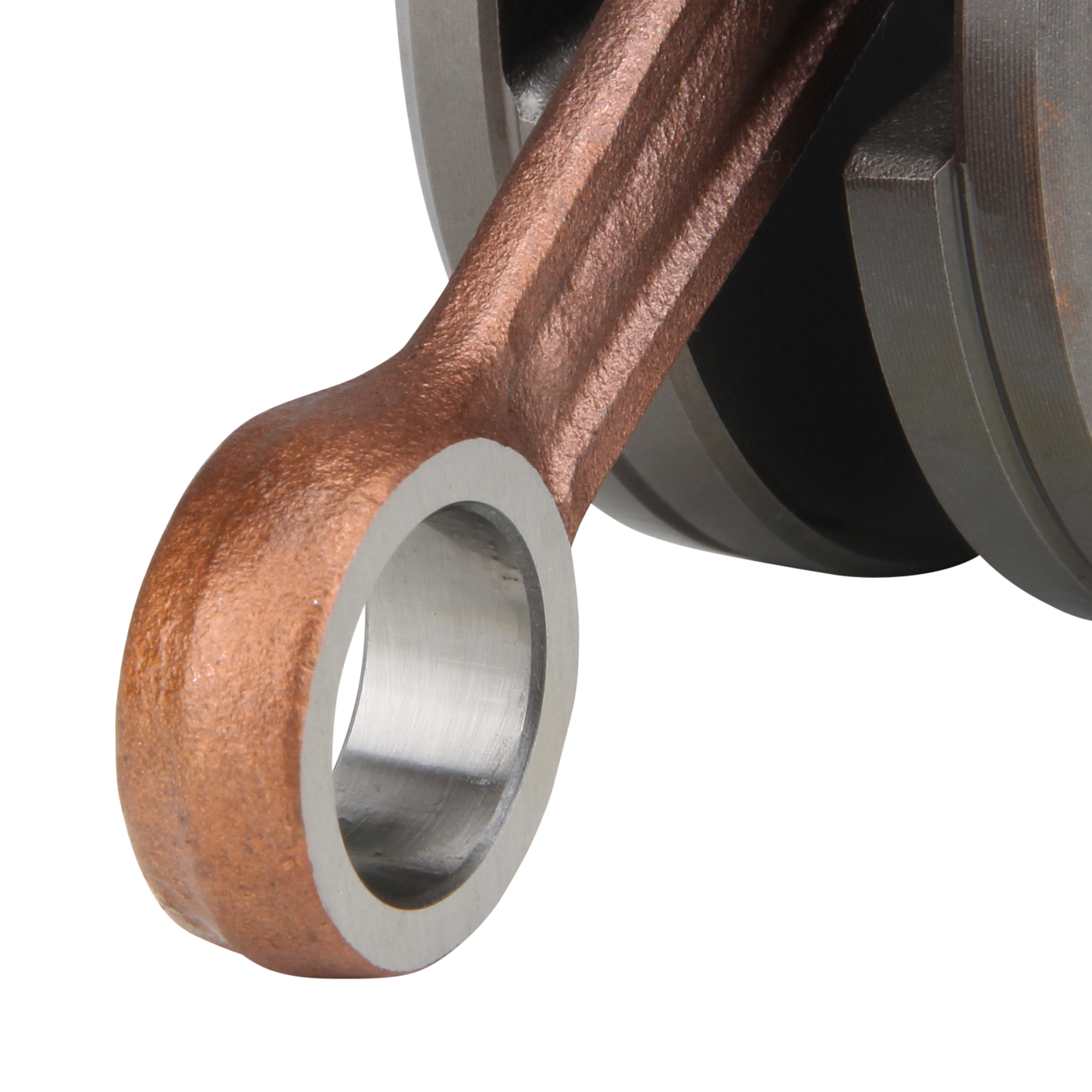

| Dimension H (top diameter of connecting rod eye): | 18 mm |

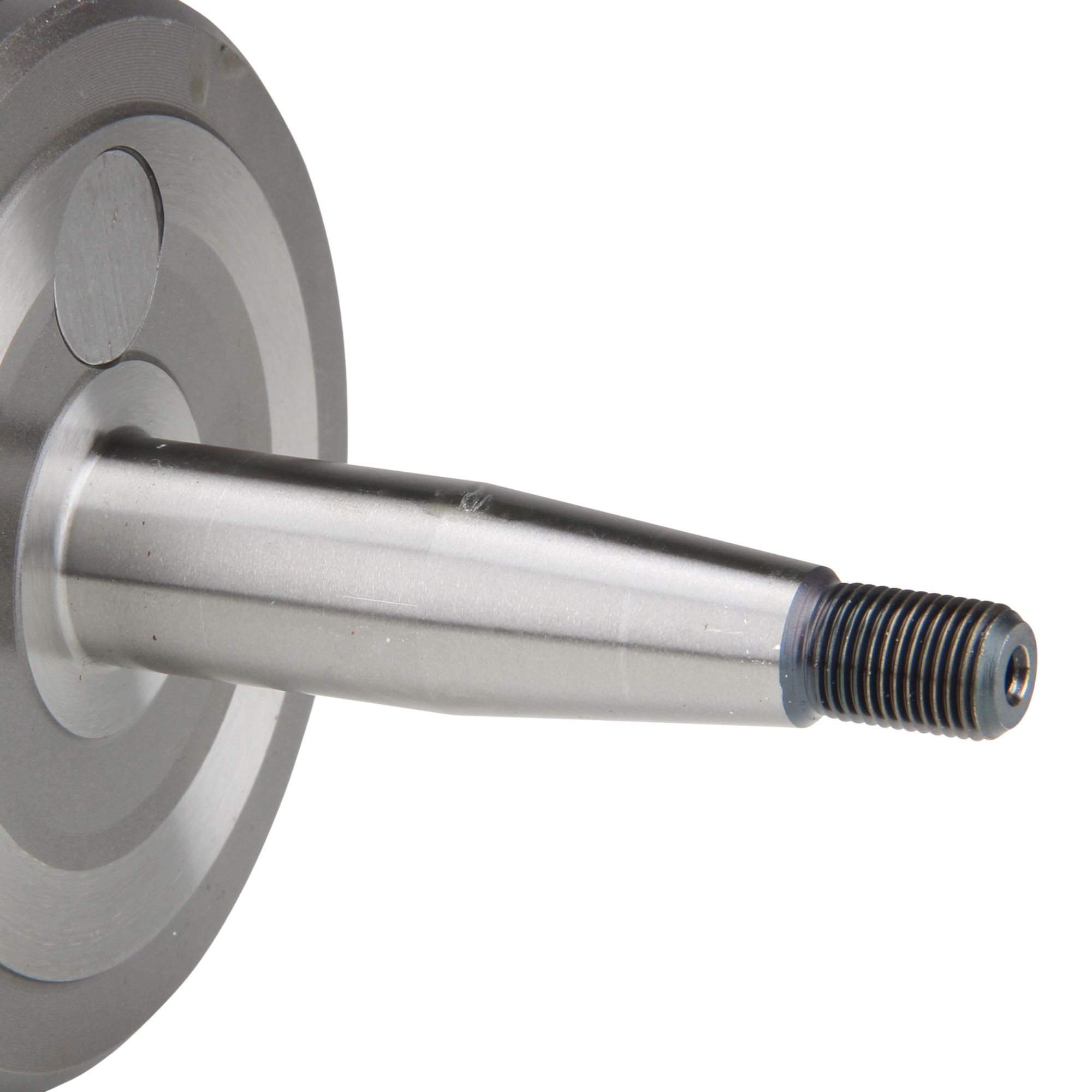

| Dimension A (shaft diameter on alternator side): | 17 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 56.4 mm |
| Dimension I (thread on alternator side): | M10 x 1 left-hand thread |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 191762 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | not specified |
| Material: | Cast iron |
| Type: | Standard |
