Piston 39mm 50cc Tol. BC (38,96mm) for Zündapp C KS RS 50 Type 441 515 517 530 561
£52.09 *
Content:
1 piece
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Last article - Buy now
- Item no: 126033
- EAN: 4060861114311
- Manufacturer: Meteor Piston
- Manufacturer no.: 126033
Piston 39mm 50cc Tol. BC (38,96mm) for Zündapp C KS RS 50 Type 441 515 517 530 561 more
Product information about Piston 39mm 50cc Tol. BC (38,96mm) for Zündapp C KS RS 50 Type 441 515 517 530 561
Piston 39mm 50cc Tol. BC (38,96mm) for Zündapp C KS RS 50 Type 441 515 517 530 561

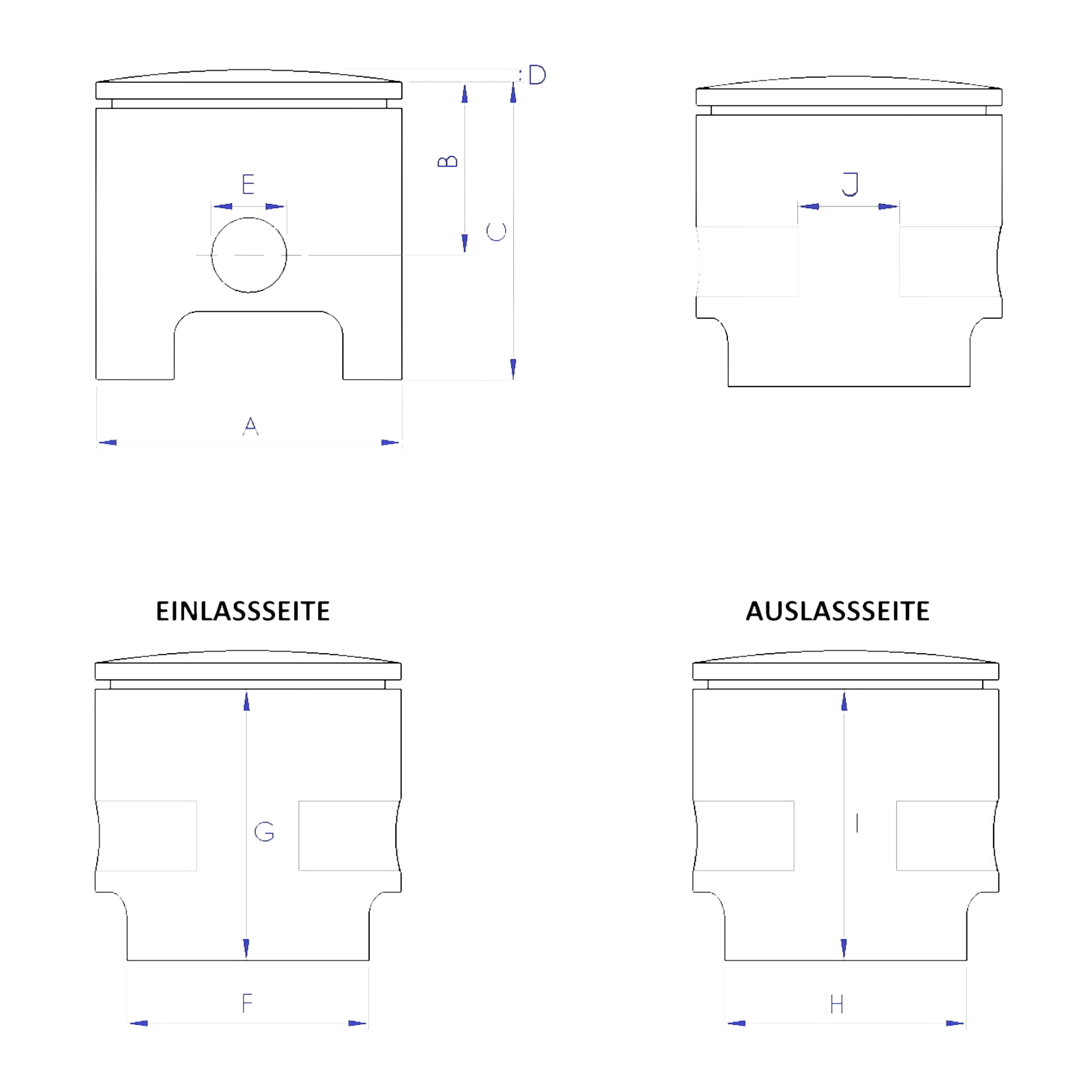

Properties
| Product type: | Piston set |
| Dimension B (compression height): | 26 mm |
| Dimension F (piston skirt width inlet side): | 31.5 mm |
| Dimension I (piston skirt length outlet side): | 47 mm |
| Piston ring dimension: | 39 x 2.0 mm |
| Tuning & Styling Part: | No |
| Piston ring profile: | L-ring |
| Vintage part: | Yes |
| Cylinder bores: | 39 mm |
| Dimension C (piston height): | 50 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Dimension C + D (total height): | 51.5 mm |
| Dimension G (piston skirt length inlet side): | 47 mm |
| OE/OEM reference number(s): | 284-02.775, 284-02.713, 284-02.706, 284-02.701, 284-02.747, Meteor PC0933BC (piston), Meteor AN2B1210SET (piston clips), Meteor F0390020017531H0I (piston ring), Meteor SP120315080HI (piston pin) |
| GTIN: | 4060861114311 |
| Dimension A (piston diameter): | 38.96 mm |
| Bolt diameter: | 12 mm |
| Dimension D (curvature): | 1.5 mm |
| Dimension H (piston skirt width outlet side): | 31.5 mm |
| Scope of delivery: | Piston pin, Piston, Piston ring, Piston clips |
| Bolt length: | 31.5 mm |
| Piston ring width: | 1.75 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Tolerance size: | BC (38.96mm) |
| Piston ring shape: | B (groove for center locking pin) |
| Color: | Silver |
| Piston diameter: | 39 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | PC0933BC |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Weight: | 0.075 kg |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
