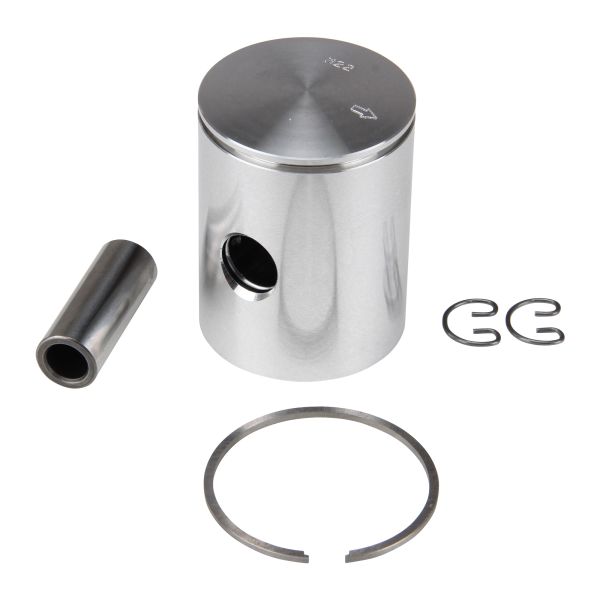

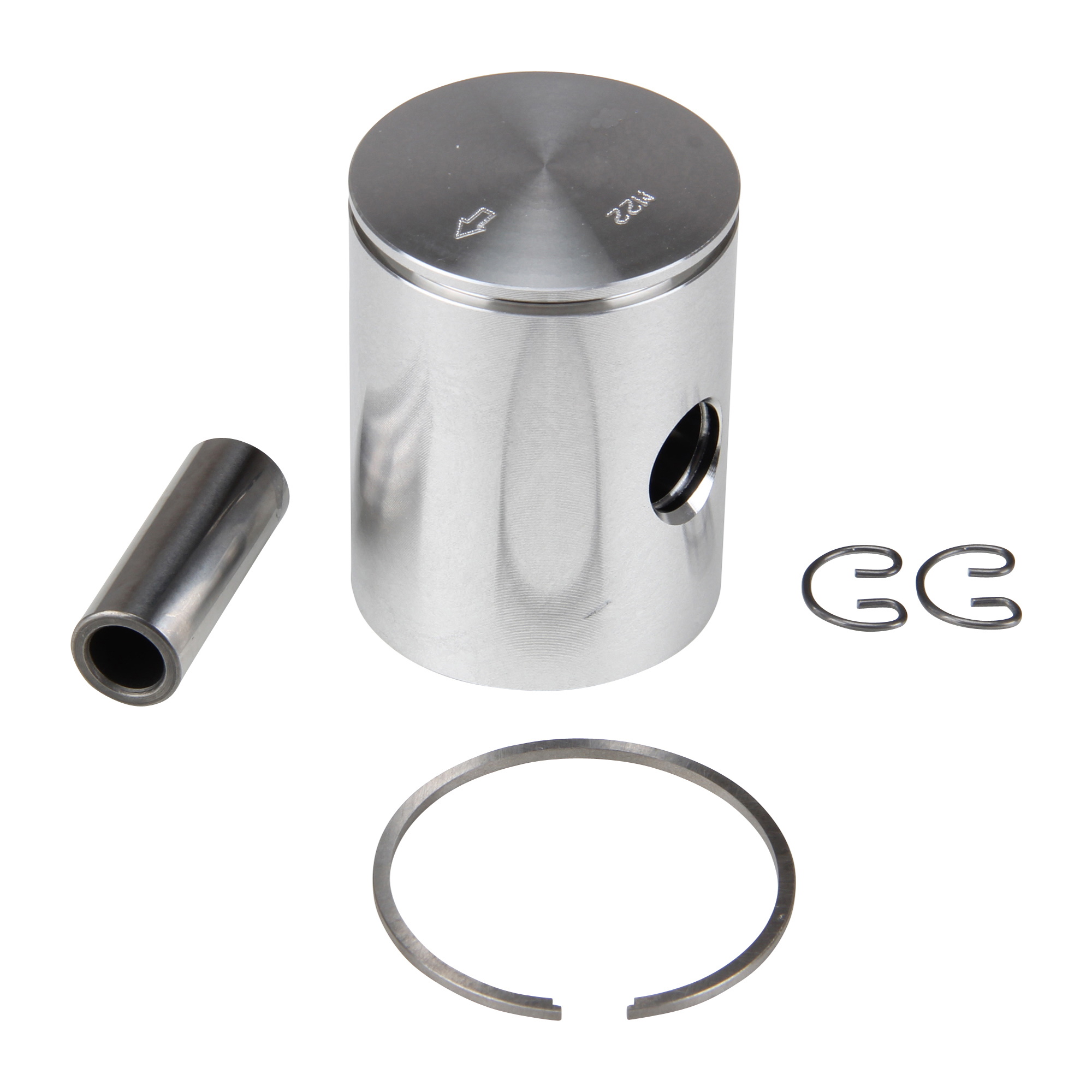

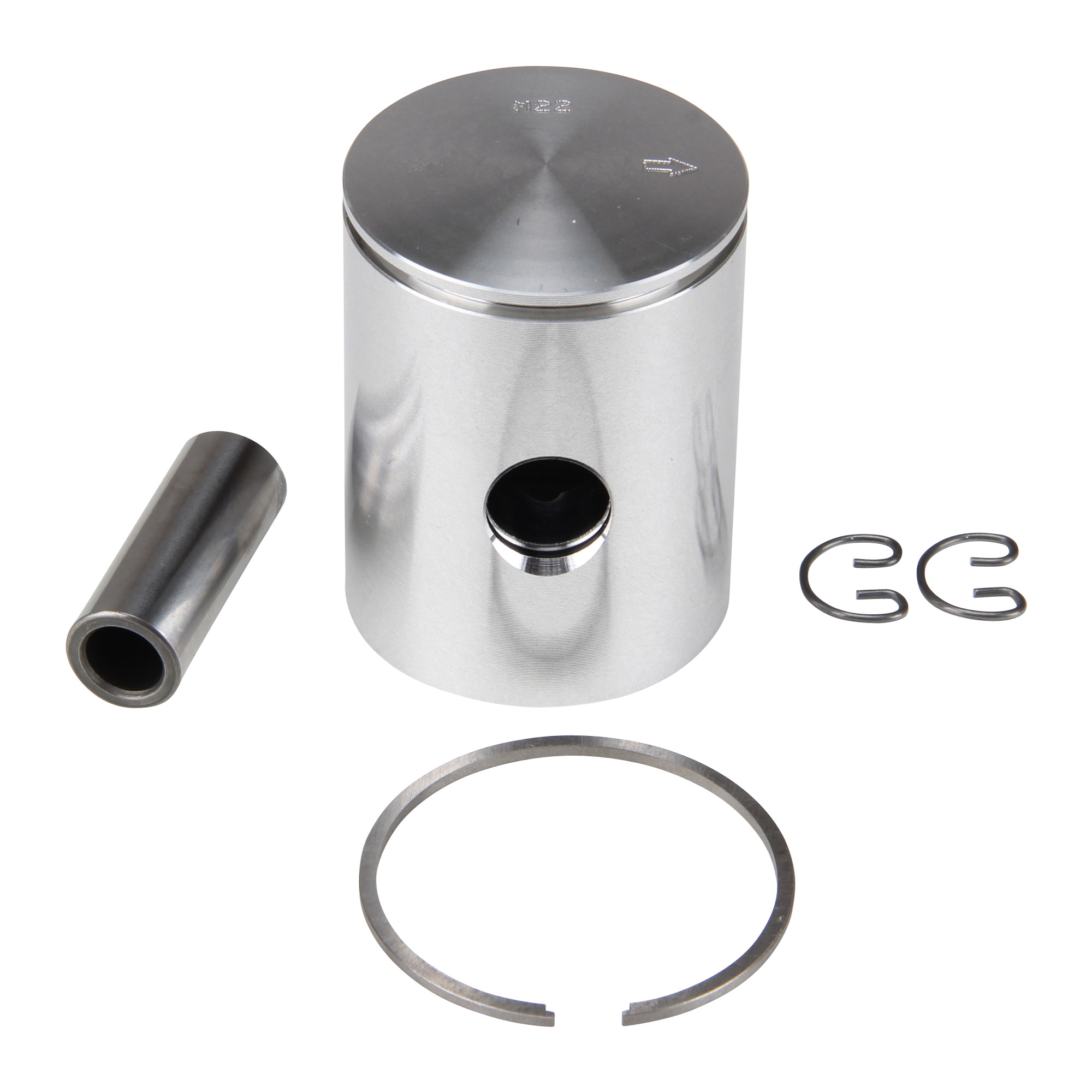

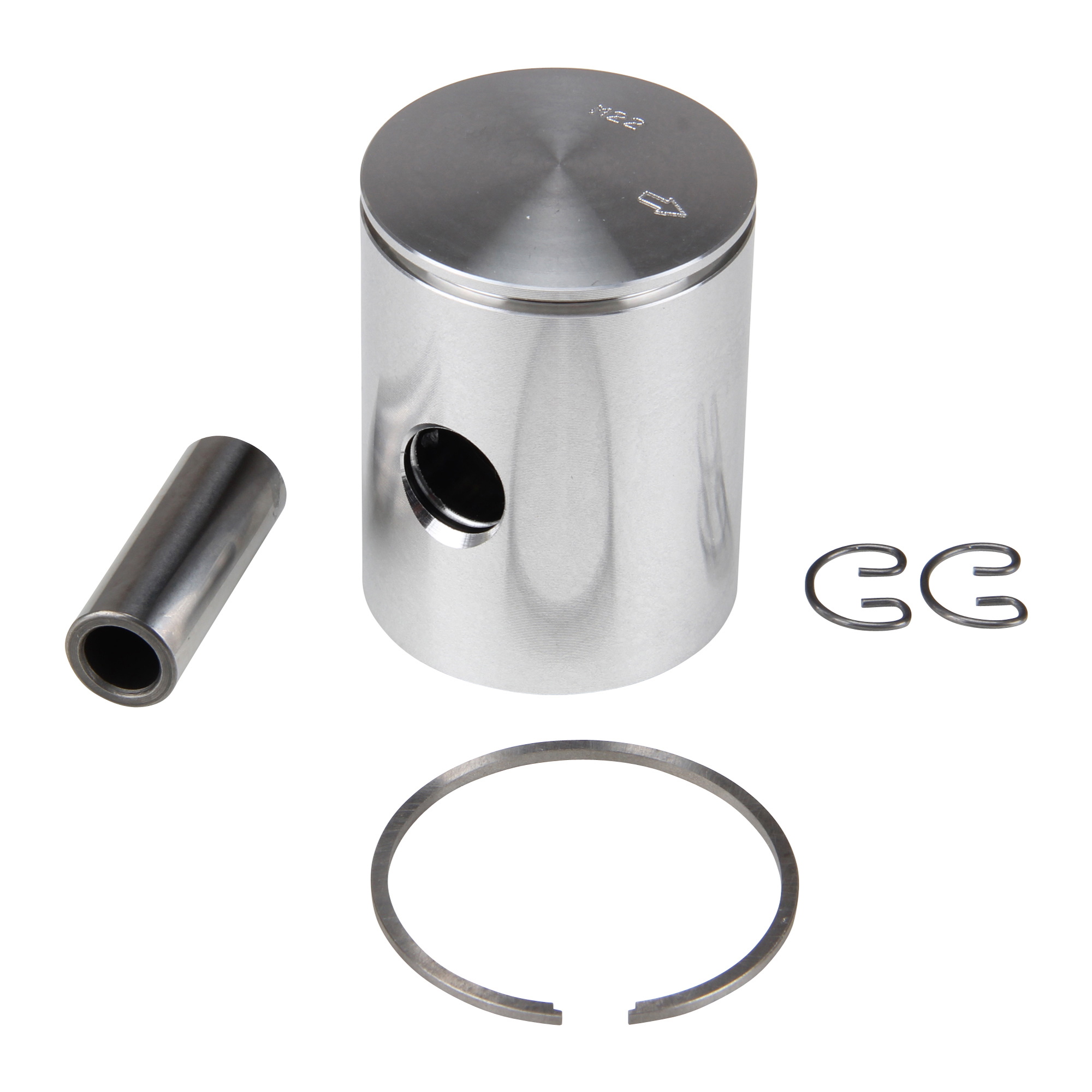

Piston 39mm 50cc Tol. FG (38,975mm) for Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Type 434 446 448 460 442 517 529 561
Bewerten
£49.29 *
Content:
1 piece
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 100183
- EAN: 4060861114427
- Manufacturer: Meteor Piston
- Manufacturer no.: 100183
- Height: 50 cm
- Width: 50 cm
Piston 39mm 50cc Tol. FG (38,975mm) for Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Type 434 446 448... more
Product information about Piston 39mm 50cc Tol. FG (38,975mm) for Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Type 434 446 448 460 442 517 529 561
Piston 39mm 50cc Tol. FG (38,975mm) for Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Type 434 446 448 460 442 517 529 561
Customers also searched for this product under:
Further links to "Piston 39mm 50cc Tol. FG (38,975mm) for Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Type 434 446 448 460 442 517 529 561"
Properties more
Tolerance size: | FG (38.975mm) |
Dimension C (piston height): | 50 mm |
Piston ring width: | 1.65 mm |
Piston ring dimension: | 39 x 1.5 mm |
Dimension D (curvature): | 1.5 mm |
Dimension E (piston pin diameter): | 12 mm |
Dimension G (piston skirt length inlet side): | 47 mm |
Dimension I (piston skirt length outlet side): | 47 mm |
Dimension J (max. needle bearing width): | 15.5 mm |
Dimension C + D (total height): | 51.5 mm |
OE/OEM reference number(s): | 248-02.703, 278-02.729, 278-02.757, Meteor AN2B1210SET (piston clips), Meteor F0390015016530H0I (piston ring), Meteor PC0774FG (piston), Meteor SP120315080HI (piston pin) |
Bolt length: | 31.5 mm |
Dimension B (compression height): | 26 mm |
Dimension A (piston diameter): | 38.975 mm |
GTIN: | 4060861114427 |
Scope of delivery: | Piston, Piston clips, Piston pin, Piston ring |
Tuning & Styling Part: | No |
Vintage part: | Yes |
Cylinder bores: | 39 mm |
Piston ring shape: | B (groove for center locking pin) |
Piston ring profile: | Rectangular ring |
Bolt diameter: | 12 mm |
Color: | Silver |
Piston diameter: | 39 mm |
Engine type: | 2-stroke |
Scope of delivery: | 1x piston set |
Manufacturer number: | PC0774FG |
Country and region of manufacture: | Italy |
Product type: | Piston set |
Type of motorcycle: | Moped & Mokick |
Offer package: | Yes |
Description of the package content: | Piston + piston ring + piston pin + piston clips |
Manufacturer warranty: | 2 years |
Weight: | 0.087 kg |
Material: | Aluminum alloy |
suitable for: | 50 cc |
Meteor Piston is known for over 60 years for high quality piston sets, pistons and piston rings... more
"Meteor Piston"
Meteor Piston is known for over 60 years for high quality piston sets, pistons and piston rings in OEM quality. In the 50's Kolebn for Vespa scooters and Lambretta scooters were manufactured with aluminum coating. Meanwhile Meteor Piston offers its products not only for scooters but also for Maxi, Quad and ATV. As a special feature, all small parts such as piston rings, circlips or piston pins are included with the piston sets.
