Cylinder set + head 70ccm 45mm (4 ÜS) for Zündapp Supertherm KS 50 517 530 / GTS 50 529 / CS Hai 50 448
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Last article - Buy now
Further variants / accessories
- Item no: 85207.00
- EAN: 4060861167454
- Manufacturer: Parmakit
- Manufacturer no.: 85207.00
- Weight: 3 kg
- Height: 180 cm
- Width: 210 cm
| Comparison number: | Cylinder head 85206.04, Gasket set 85206.03, Parmakit 85207.00, Piston 85306.02, Piston ring 31303.16 |
| Displacement: | 70 ccm |
| Inlet stud spacing: | 45 mm |
| Inlet stud bolt thread: | M6 |
| Manifold connection type: | Clamp/plug |
| Cylinder special feature: | Nikasil-coated piston track |
| Cylinder dimensions (LxWxH): | 160 x 200 x 90 mm |
| Cylinder stud distance: | 45 x 45 mm |
| Cylinder stud bore: | 8 mm |
| Number of overflows: | 4 |

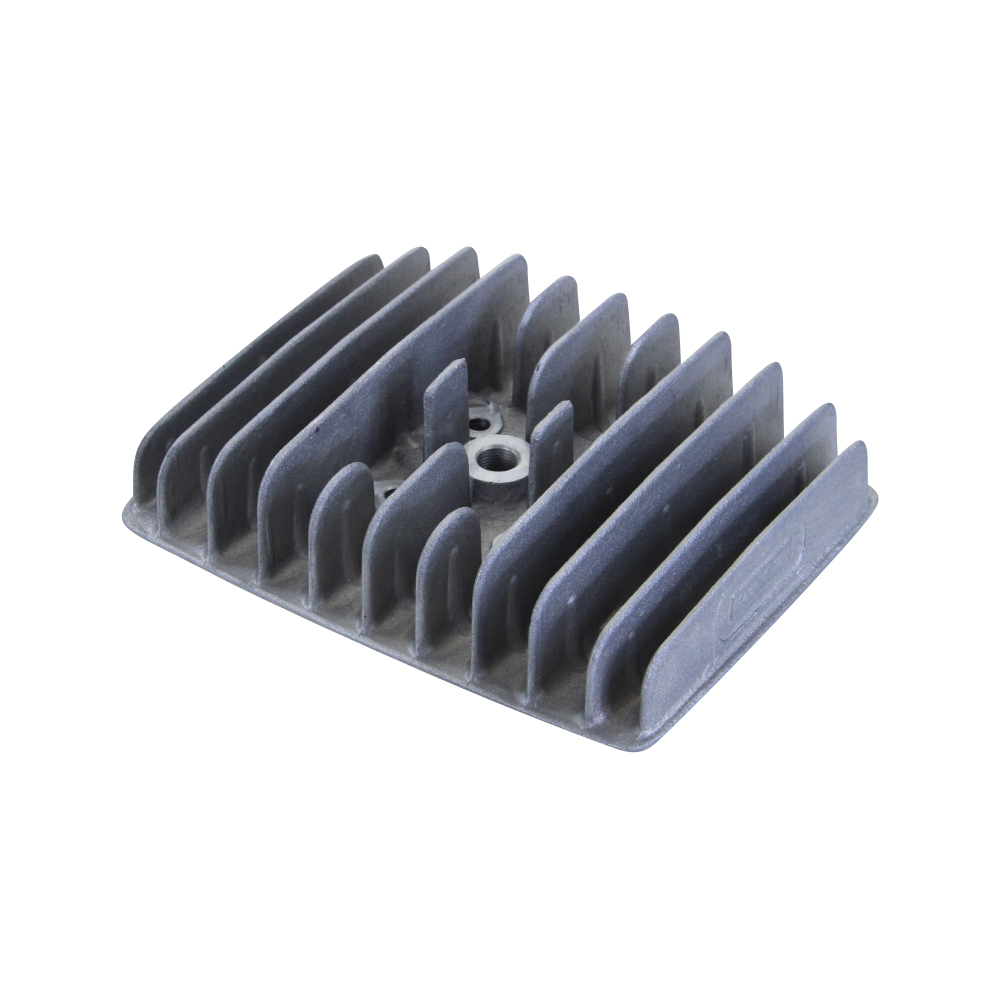

| Cylinder head dimensions (LxWxH): | 160 x 200 x 60 mm |

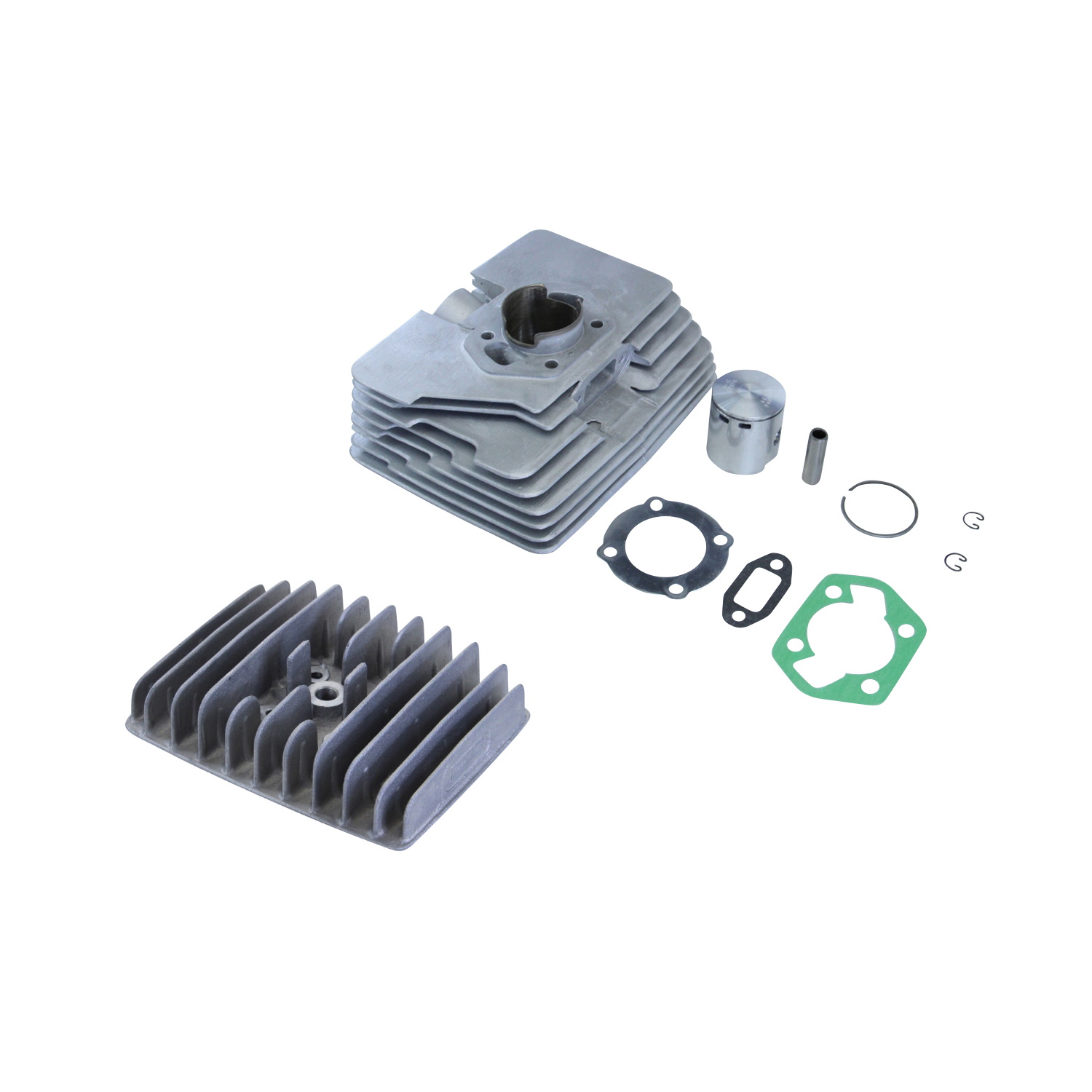

| Scope of delivery: | Cylinder, Cylinder head, Gasket set, Piston, Piston rings |
| Cylinder head stud bolt spacing: | 45 x 45 mm |
| Cylinder head stud diameter: | 8 mm |
| Diffuser internal dimension: | 29 mm |
| Piston special feature: | With four 4 mm piston window bores / chrome-plated piston ring |
| GTIN: | 4060861167454 |
| Inlet inside dimension: | 17 x 30 mm, square |
| Outlet Outer dimension: | 36 mm |
| Piston ring profile: | Rectangular ring |
| Surface finish: | Matt |
| Vintage part: | Yes |
| Tuning & Styling Part: | Yes |
| Piston pin diameter: | 12 mm |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| Color: | Grey |
| Spark plug thread: | M14 x 1.25 |
| Number of piston rings: | 1 |
| Features: | Corrosion resistant, Durable |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 85207.00 |
| Country and region of manufacture: | Italy |
| Product type: | Cylinder set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder head + cylinder + piston + gasket set |
| Manufacturer warranty: | 2 years |
| Weight: | 3.70 kg |
| Material: | Aluminum |
| Type: | Tuning |
| suitable for: | Zündapp Supertherm |
PARMAKIT - The motorcycle tuning company presents itself broadly positioned: On the one hand, it sees itself as a specialized supplier to the industry and a reliable parts supplier for moped riders. On the other hand, Parmakit is of course also involved in the tuning sector and offers a range of innovative special parts: from high-quality aluminum cylinder kits to variable ignition units. The experience values for this often come directly from the race track and the Parmakit factory drivers. In the meantime, more than 5,000 products of the company from Parma are on the market. At Parmakit is self-designed and from CNC milling to Nikasil coating manufactured by the employees themselves in two production and factory halls. Convince yourself of the Parmakit quality and order today your high-quality spare parts in the ZS2Radteile Onlineshop always at the best price!
