Cylinder set + head 50ccm 39mm (4 ÜS) for Zündapp Supertherm KS 50 517 530 / GTS 50 529 / CS Hai 50 448
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
Further variants / accessories
- Item no: 85204.00
- EAN: 4060861167461
- Manufacturer: Parmakit
- Manufacturer no.: 85204.00
- Weight: 3 kg
- Height: 180 cm
- Width: 200 cm
| Comparison number: | Cylinder head 85205.04, Gasket set 85205.03, Parmakit 85204.00, Piston 85206.02, Piston ring 27110.16 |

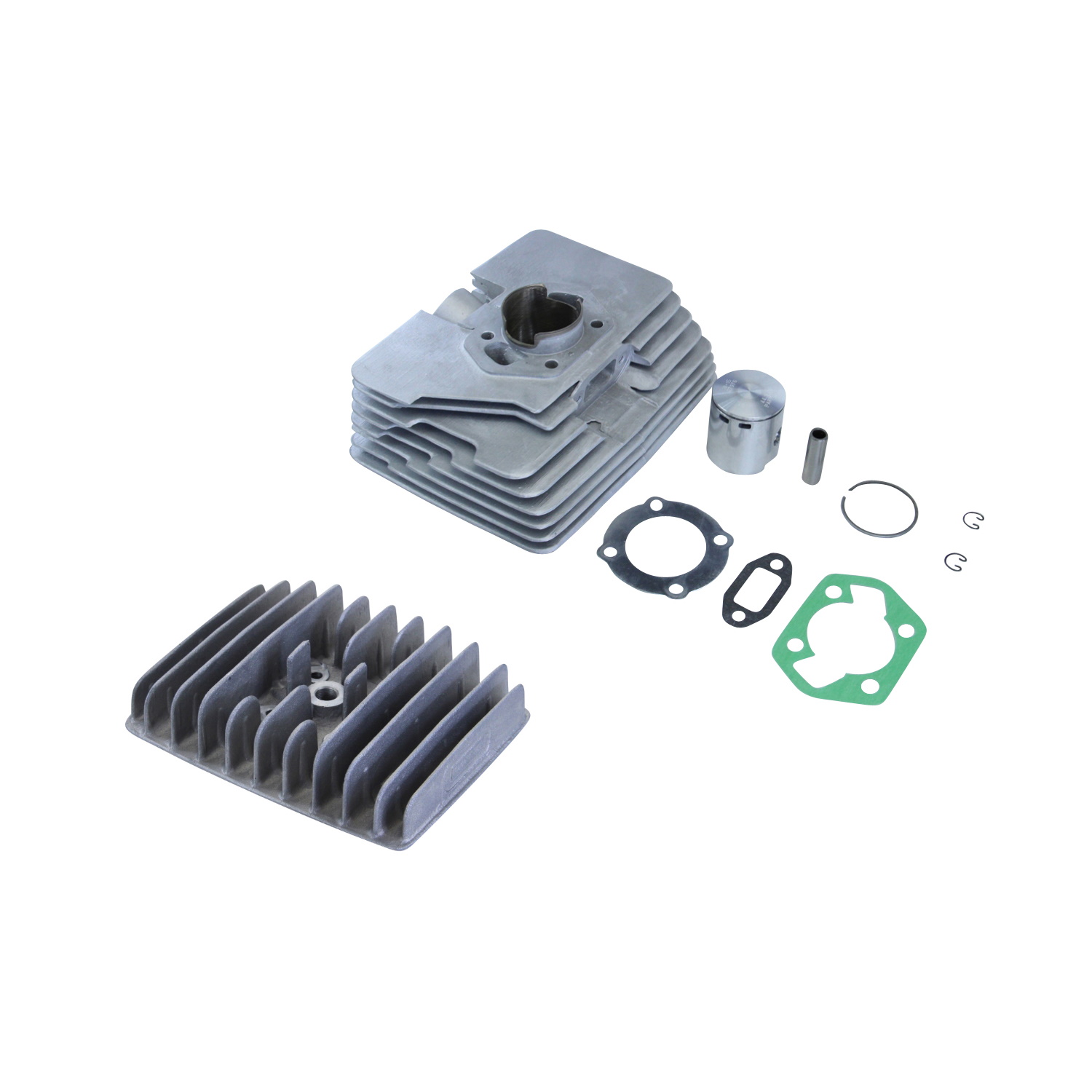

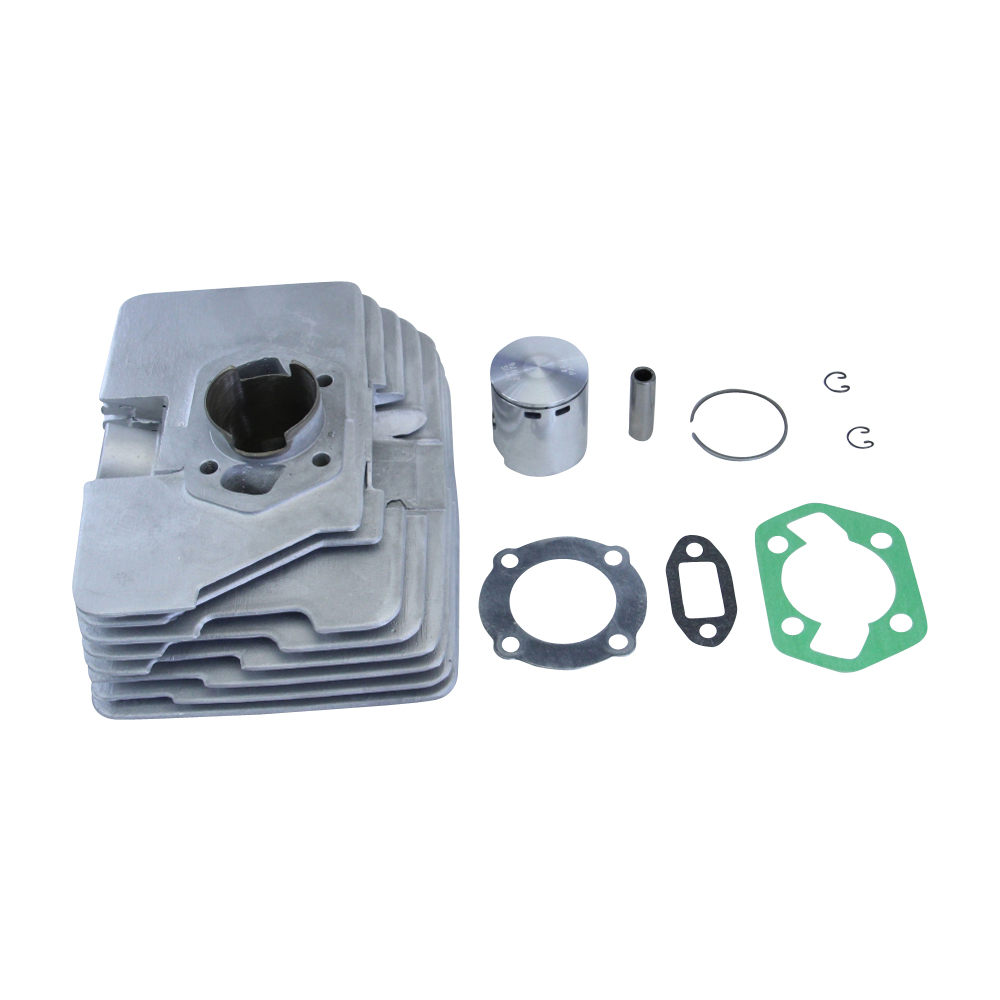

| Scope of delivery: | Cylinder, Cylinder head, Gasket set, Piston, Piston rings |
| Manifold connection type: | Clamp/plug |
| Inlet stud bolt thread: | M6 |
| Inlet stud spacing: | 45 mm |
| Inlet inside dimension: | 17 x 30 mm, square |
| Outlet Outer dimension: | 36 mm |
| Cylinder stud distance: | 45 x 45 mm |
| Piston ring profile: | Rectangular ring |
| Displacement: | 50 cc |
| Cylinder stud bore: | 8 mm |
| Number of overflows: | 4 |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| Cylinder dimensions (LxWxH): | 160 x 200 x 90 mm |

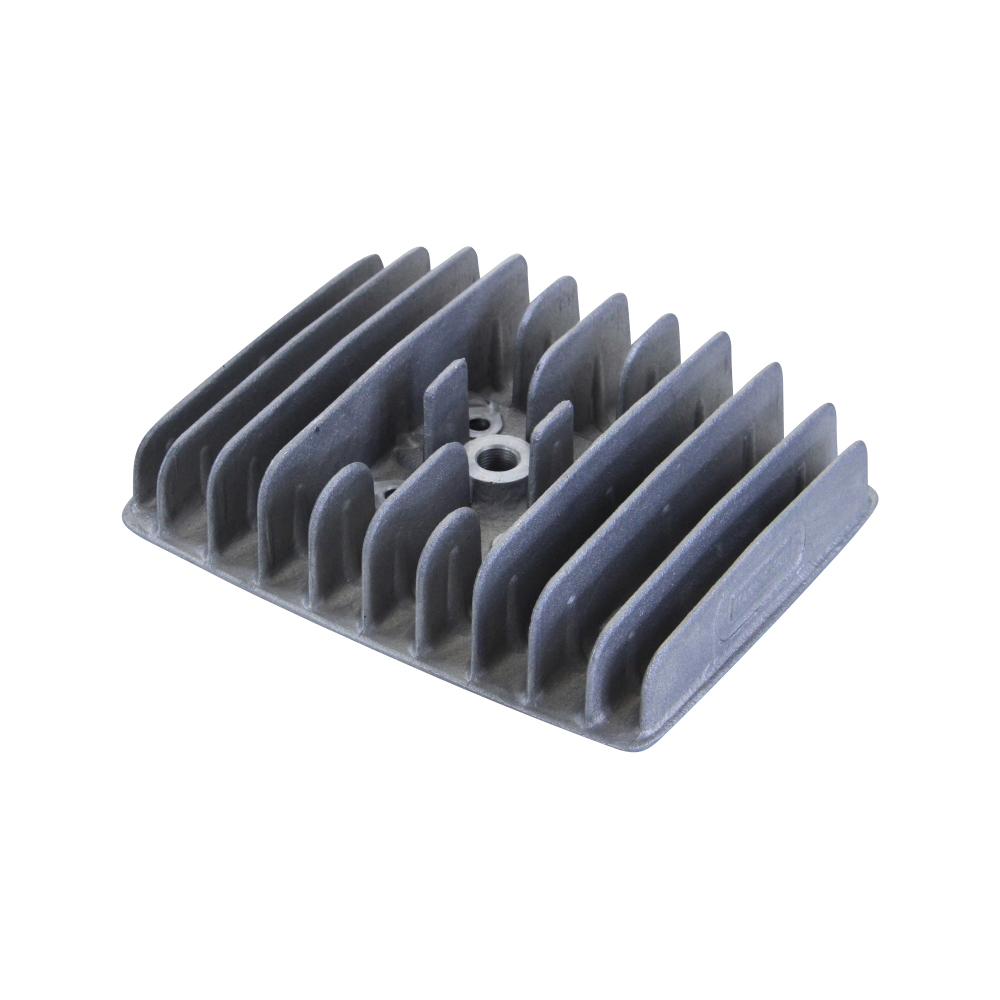

| Cylinder head dimensions (LxWxH): | 160 x 200 x 60 mm |
| Cylinder head stud bolt spacing: | 45 x 45 mm |
| Cylinder head stud diameter: | 8 mm |
| Piston pin diameter: | 12 mm |
| Tuning & Styling Part: | Yes |
| Vintage part: | Yes |
| Surface finish: | Matt |
| Diffuser internal dimension: | 29 mm |
| Piston special feature: | With four 4 mm piston window bores / chrome-plated piston ring |
| GTIN: | 4060861167461 |
| Cylinder special feature: | Nikasil-coated piston track |
| Color: | Grey |
| Spark plug thread: | M14 x 1.25 |
| Number of piston rings: | 1 |
| Features: | Corrosion resistant, Durable |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 85204.00 |
| Country and region of manufacture: | Italy |
| Product type: | Cylinder set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder head + cylinder + piston + gasket set |
| Manufacturer warranty: | 2 years |
| Weight: | 3.60 kg |
| Material: | Aluminum |
| Type: | Tuning |
| suitable for: | Zündapp Supertherm |
PARMAKIT - The motorcycle tuning company presents itself broadly positioned: On the one hand, it sees itself as a specialized supplier to the industry and a reliable parts supplier for moped riders. On the other hand, Parmakit is of course also involved in the tuning sector and offers a range of innovative special parts: from high-quality aluminum cylinder kits to variable ignition units. The experience values for this often come directly from the race track and the Parmakit factory drivers. In the meantime, more than 5,000 products of the company from Parma are on the market. At Parmakit is self-designed and from CNC milling to Nikasil coating manufactured by the employees themselves in two production and factory halls. Convince yourself of the Parmakit quality and order today your high-quality spare parts in the ZS2Radteile Onlineshop always at the best price!
