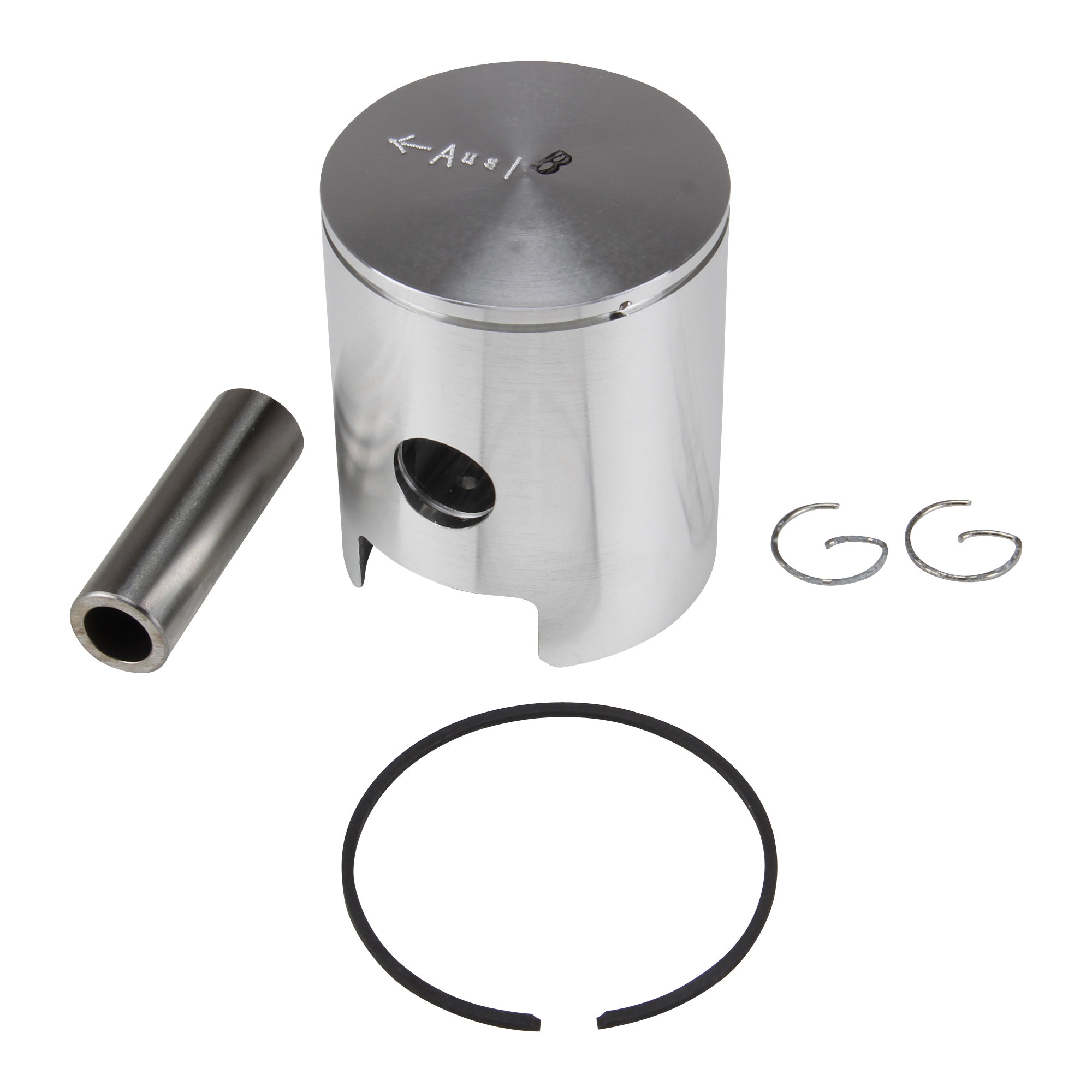

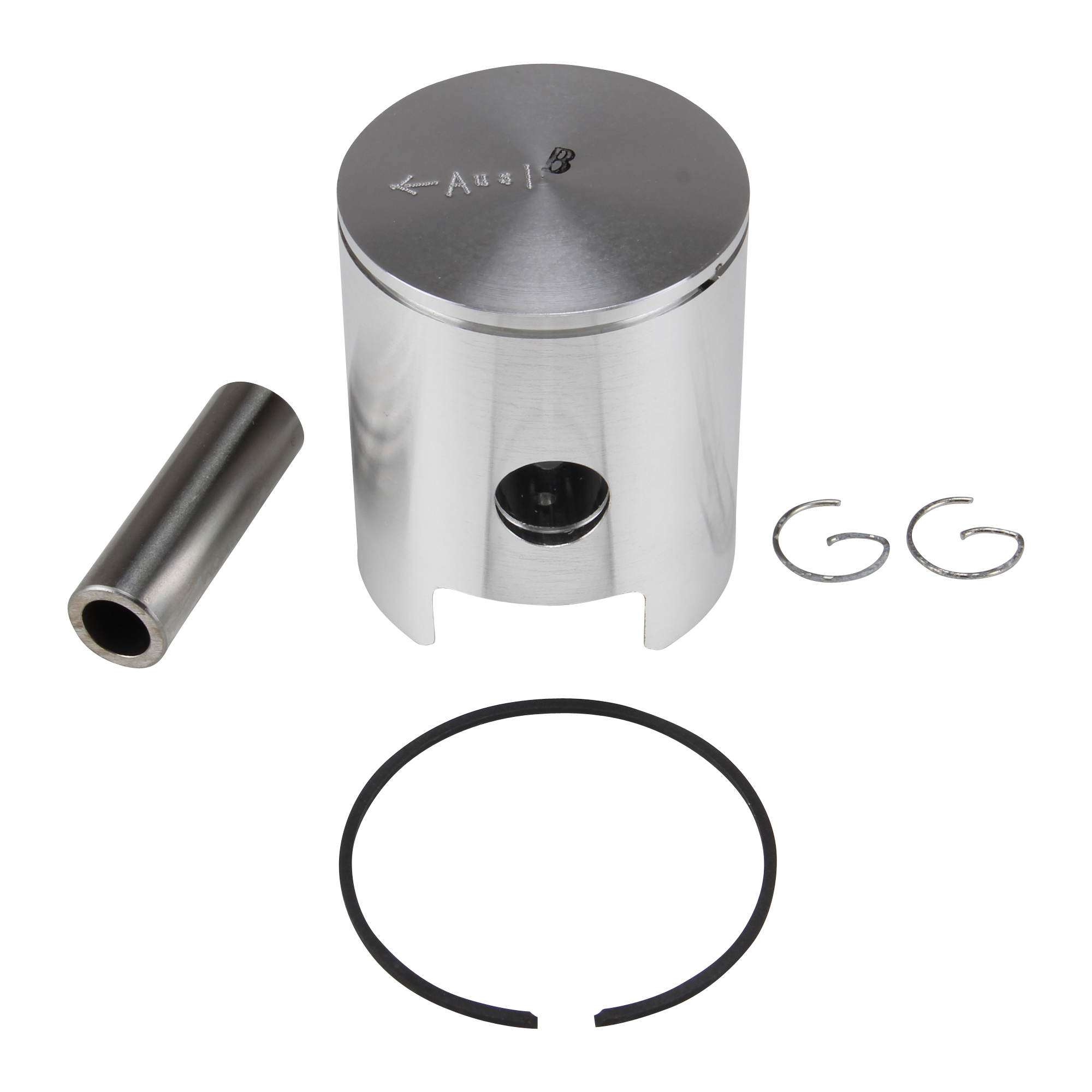

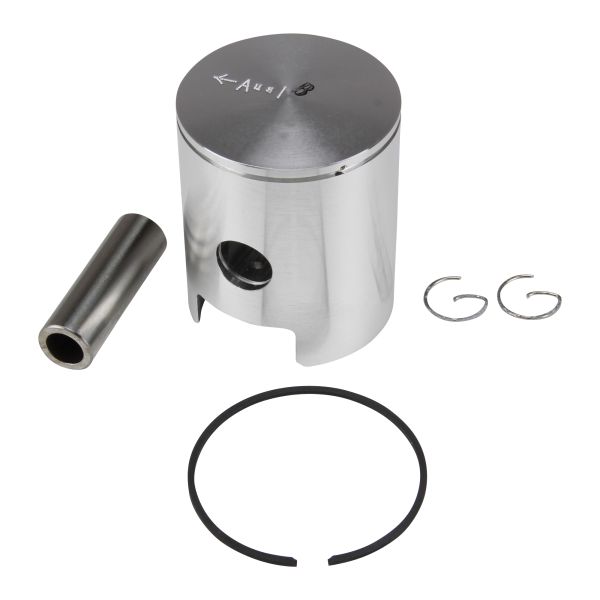

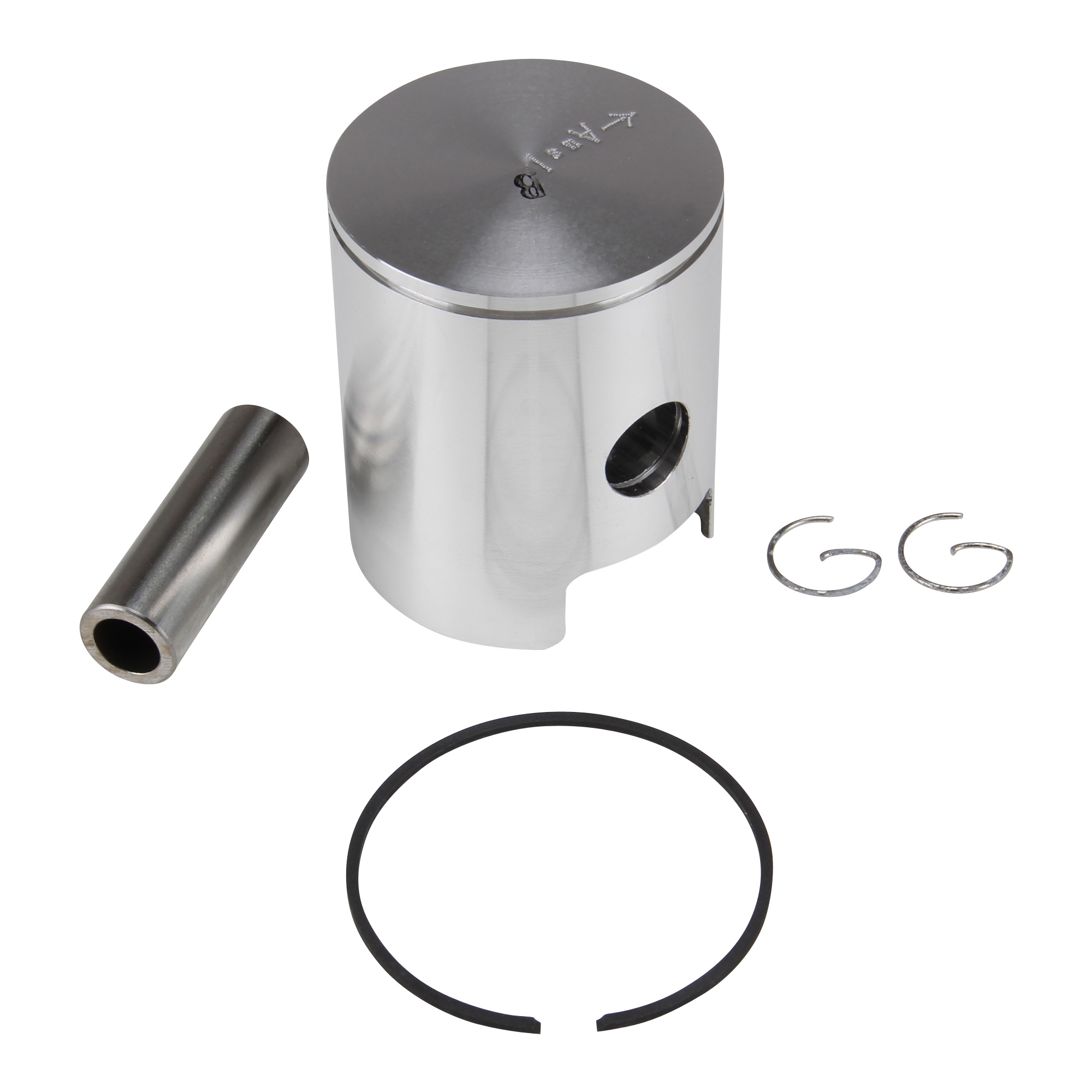

Piston set 54mm 125ccm for Zündapp KS 125 Sport type 521-01
- Item no: 285-02.713
- EAN: 4060861114557
- Manufacturer: Citomerx
- Manufacturer no.: 100198
- Height: 60 cm
- Width: 60 cm
KS 125 Sport Type 521-01L0 KS 125 Sport Type 521-01L5 more
Product information about Piston set 54mm 125ccm for Zündapp KS 125 Sport type 521-01
KS 125 Sport Type 521-01L0 KS 125 Sport Type 521-01L5
Customers also searched for this product under:
Further links to "Piston set 54mm 125ccm for Zündapp KS 125 Sport type 521-01"
Properties more
| Dimension H (piston skirt width outlet side): | 43 mm |
| Dimension E (piston pin diameter): | 15 mm |
| OE/OEM reference number(s): | 285-02.713, 285-02.729, 285-02.743 |
| GTIN: | 4060861114557 |
| Bolt diameter: | 15 mm |
| Bolt length: | 46 mm |
| Piston ring dimension: | 54 x 1.5 mm |
| Dimension A (piston diameter): | 53.96 mm |
| Piston ring shape: | C (groove for locking pin on the edge) |
| Dimension B (compression height): | 32 mm |
| Dimension D (curvature): | 1.5 mm |
| Dimension C (piston height): | 64 mm |
| Dimension C + D (total height): | 65.5 mm |
| Piston ring profile: | Rectangular ring |
| Cylinder bores: | 54 mm |
| Scope of delivery: | Piston, Piston clips, Piston pin, Piston ring |
| Piston ring width: | 1.75 mm |
| Dimension G (piston skirt length inlet side): | 60 mm |
| Dimension I (piston skirt length outlet side): | 60 mm |
| Vintage part: | Yes |
| Tuning & Styling Part: | No |
| Dimension J (max. needle bearing width): | 20 mm |
| Tolerance size: | B (53.96 mm) |
| Dimension F (piston skirt width inlet side): | 47.5 mm |
| Color: | Silver |
| Piston diameter: | 54 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 100198 |
| Country and region of manufacture: | China |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Weight: | 0.170 kg |
| Material: | Aluminum alloy |
| suitable for: | 125 cc |
"Fast goods", is the translation of Citomerx and this is also the motto of the company from... more
"Citomerx"
"Fast goods", is the translation of Citomerx and this is also the motto of the company from Bavaria, which offers numerous spare parts for two- and four-stroke scooters. Speed is the declared goal for both the vehicles and the delivery of the goods, as well as a reasonable price-performance ratio for the standard, racing or high-end products. The range includes almost everything that the scooter rider needs: from exhaust systems and batteries to cylinder kits. An additional plus point is the know-how of the Citomerx crew, acquired over years of experience.
