Piston set 45mm 70cc for Zündapp Mini/Superterm GTS KS C CS ZD ZS ZX 446 448 460 517 529
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Last article - Buy now
- Item no: 85306.02
- EAN: 8056590227909
- Manufacturer: Parmakit
- Manufacturer no.: 85306.02
- Height: 55 cm
- Width: 55 cm

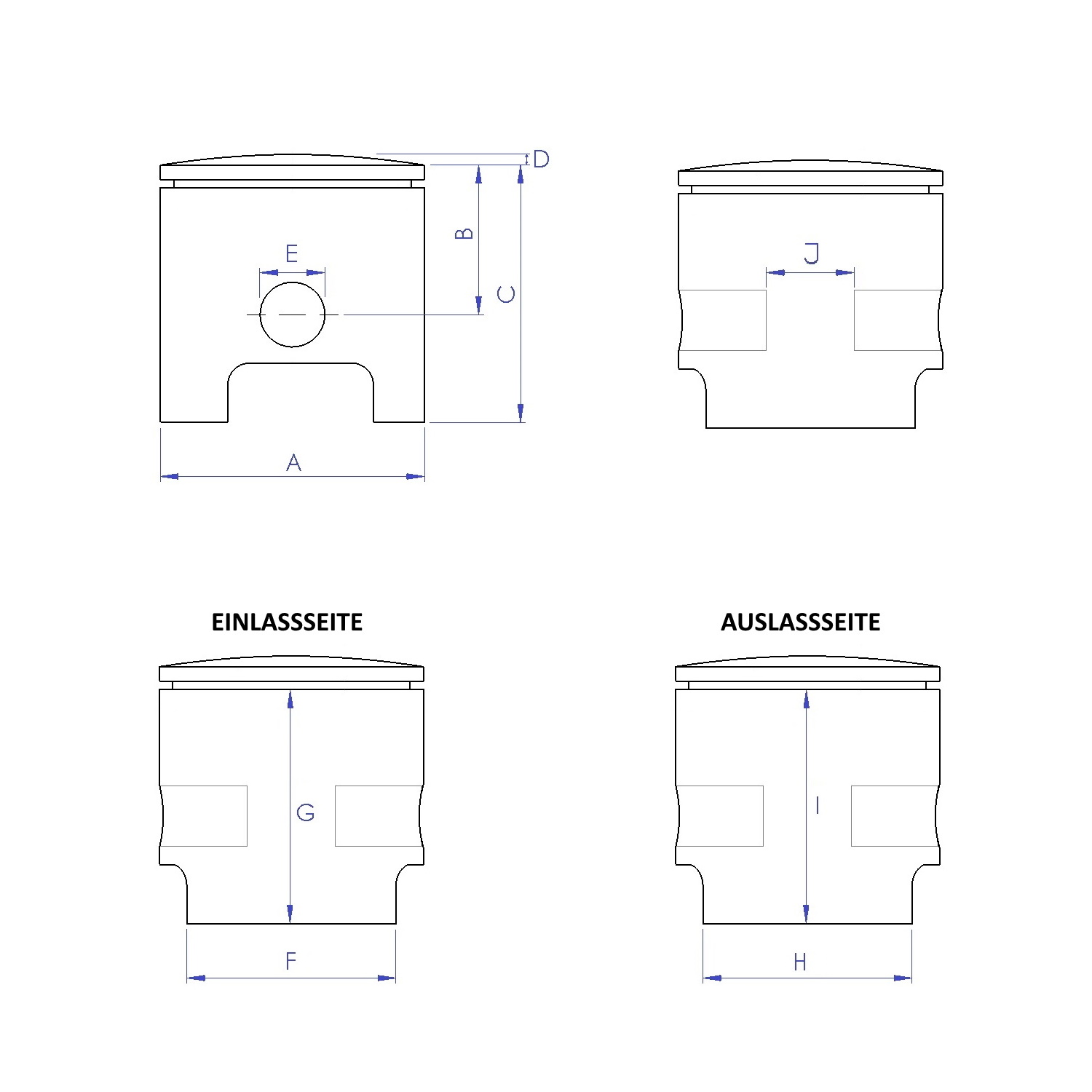

| Dimension H (piston skirt width outlet side): | 39.3 mm |
| Dimension C + D (total height): | 49.5 mm |
| Cylinder bores: | 45 mm |
| Piston ring dimension: | 45 x 1.5 mm |
| Dimension B (compression height): | 26 mm |
| Bolt length: | 38 mm |
| Piston ring width: | 1.9 mm |
| Dimension C (piston height): | 48 mm |
| Dimension G (piston skirt length inlet side): | 44.5 mm |
| Dimension D (curvature): | 1.5 mm |
| Dimension I (piston skirt length outlet side): | 44.5 mm |
| Dimension A (piston diameter): | 45 mm |
| GTIN: | 4060861114533 |
| OE/OEM reference number(s): | Parmakit 85306.02 |
| Note: | With two 3x7mm piston window bores / piston ring chrome-plated. |
| Dimension F (piston skirt width inlet side): | 37 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Dimension E (piston pin diameter): | 12 mm |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| Bolt diameter: | 12 mm |
| Vintage part: | Yes |
| Tuning & Styling Part: | Yes |
| Piston ring shape: | B (groove for center locking pin) |
| Scope of delivery: | Piston, Piston clips, Piston pin, Piston ring |
| Piston ring profile: | Rectangular ring |
| Color: | Silver |
| Piston diameter: | 45 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 85306.02 |
| Country and region of manufacture: | Italy |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Weight: | 0.110 kg |
| Material: | Aluminum alloy |
| suitable for: | 70 ccm |
PARMAKIT - The motorcycle tuning company presents itself broadly positioned: On the one hand, it sees itself as a specialized supplier to the industry and a reliable parts supplier for moped riders. On the other hand, Parmakit is of course also involved in the tuning sector and offers a range of innovative special parts: from high-quality aluminum cylinder kits to variable ignition units. The experience values for this often come directly from the race track and the Parmakit factory drivers. In the meantime, more than 5,000 products of the company from Parma are on the market. At Parmakit is self-designed and from CNC milling to Nikasil coating manufactured by the employees themselves in two production and factory halls. Convince yourself of the Parmakit quality and order today your high-quality spare parts in the ZS2Radteile Onlineshop always at the best price!
