Preview: Kolben Set 39mm Tol. DE 50ccm für Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 Typ 444 446 447 460 (PC1011DE)

Kolben Set 39mm Tol. DE 50ccm für Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 Typ 444 446 447 460 (PC1011DE)

Piston set 39mm Tol. DE 50ccm for Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 type 444 446 447 460

Bewerten

£39.42 *

Content: 1 piece

Prices plus VAT plus shipping costs

IN STOCK - Delivery time 1-3 working days

Last article - Buy now

Further variants / accessories

Kolben Set 39mm Tol. AB 50ccm für Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 Typ 444 446 447 460

Kolben Set 39mm Tol. CD 50ccm für Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 Typ 444 446 447 460

Kolben Set 39mm Tol. BC 50ccm für Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 Typ 444 446 447 460

Kolben Set 39mm Tol. DE 50ccm für Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 Typ 444 446 447 460

Kolben Set 39mm Tol. EF 50ccm für Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 Typ 444 446 447 460

Kolben Set 39mm Tol. FG 50ccm für Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 Typ 444 446 447 460

Kolben Set 39mm Tol. GH 50ccm für Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 Typ 444 446 447 460

Item no: PC1011DE
EAN: 4060861114472
Manufacturer: Meteor Piston
Manufacturer no.: PC1011DE
Height: 50 cm
Width: 50 cm

ZD 30 Type 446-200 ZD 30 Type 446-201 ZD 10 Type 446-210 ZD 10 Type 446-211 ZA 25 Type 460-020 ZA... more

Close menu

ZD 30 Type 446-200 ZD 30 Type 446-201 ZD 10 Type 446-210 ZD 10 Type 446-211 ZA 25 Type 460-020 ZA 25 Type 460-021 A 25 Type 460-024 ZA 40 Type 460-030 ZA 40 Type 460-031 ZA 40 Type 460-033 Automatic Type 444-01L6 (up to engine no. 331297) Automatic Type 444-02L0 (up to engine no. 331297) Automatic Type 444-02L5 (up to engine no. 331297) Automatic Type 444- 04L0 (up to engine no. 331297) Automatic type 444-04L5 (up to engine no. 331297) Automatic type 444-31L0 (up to engine no. 331297) Automatic type 444-31L5 (up to engine no. 331297) Automatic type 444-01L0 ( up to engine no. 331297) Automatic type 444-01L1 (up to engine no. 331297) Automatic type 444-01L7 (up to engine no. 331297) Automatic type 444-01L6 (up to engine no. 331298) Automatic type 444-02L0 (up to engine No. 331298) Automatic type 444-02L5 (up to engine no. 331298) Automatic type 444-04L0 (up to engine no. 331298) Automatic type 444-04L5 (up to engine no.331298) Automatic type 444-31L0 (up to engine no. 331298) Automatic type 444-31L5 (up to engine no. 331298) Automatic type 444-01L0 (up to engine no. 331298) Automatic type 444-01L1 (up to engine no. 331298) Automatic type 444-01L7 (up to engine no. 331298) ZR 20 type 447-020 ZR 10 type 447-110 ZR 30 type 447-100

Customers also searched for this product under:

Further links to "Piston set 39mm Tol. DE 50ccm for Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 type 444 446 447 460"

Properties more

zurück

Tolerance size:	DE (38,960-38,970mm)
Dimension B (compression height):	23 mm
OE/OEM reference number(s):	249-02.709, 250-02.711, Meteor AN2B1210SET (piston clips), Meteor F0390015016515H0I (piston ring), Meteor PC1011DE (piston), Meteor SP120315080HI (piston pin)
Bolt length:	31.5 mm
Piston ring shape:	C (groove for locking pin on the edge)
Note:	249-02.709 (original with 39x2 piston ring)
Dimension C (piston height):	46.5 mm
Dimension E (piston pin diameter):	12 mm
Dimension C + D (total height):	48 mm
Dimension G (piston skirt length inlet side):	43 mm
Dimension I (piston skirt length outlet side):	43 mm
Dimension F (piston skirt width inlet side):	35 mm
Dimension H (piston skirt width outlet side):	30.5 mm
Dimension A (piston diameter):	38.960 - 38.970 mm
GTIN:	4060861114472
Dimension J (max. needle bearing width):	15.5 mm
Dimension D (curvature):	1.5 mm
Piston ring dimension:	39 x 1.5 mm

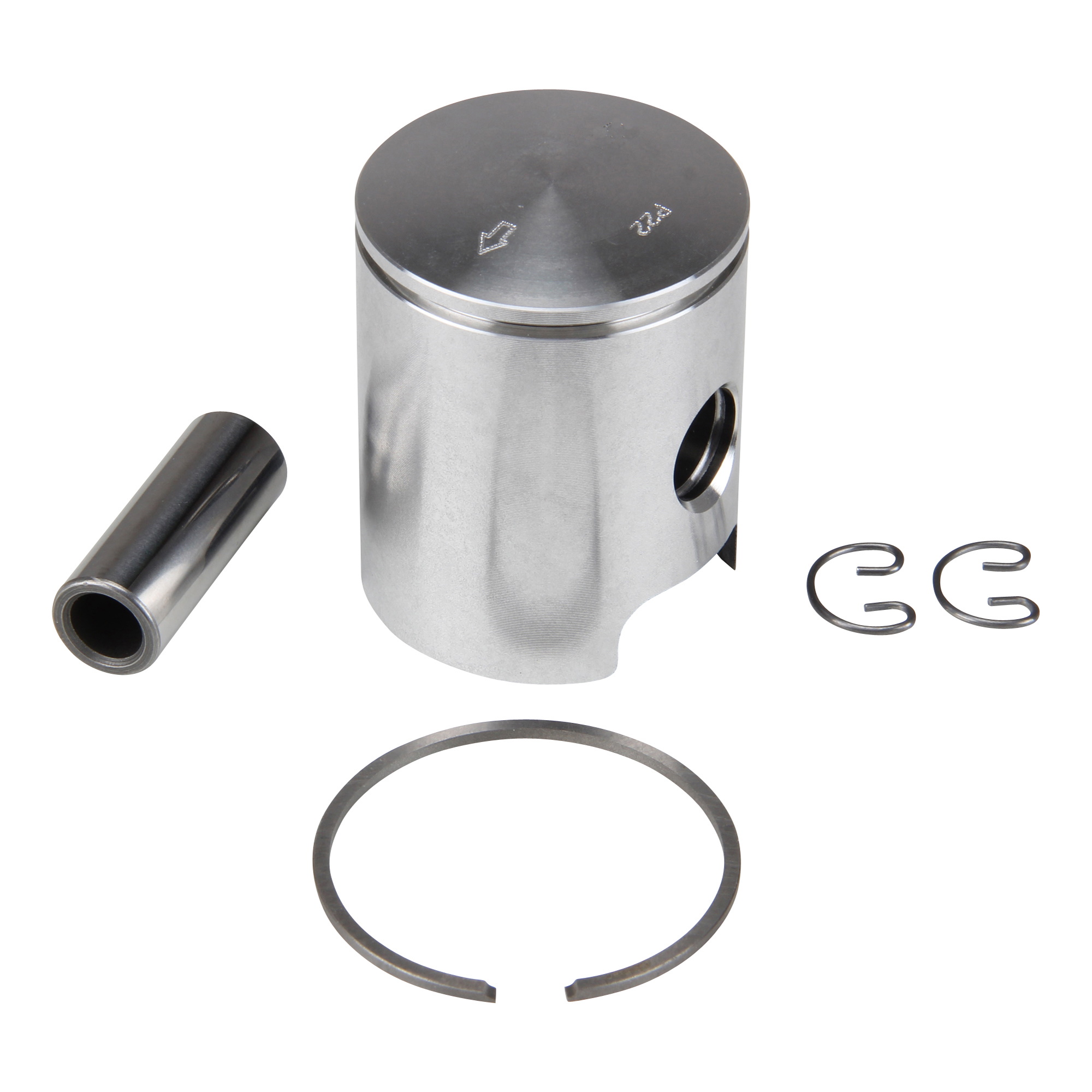

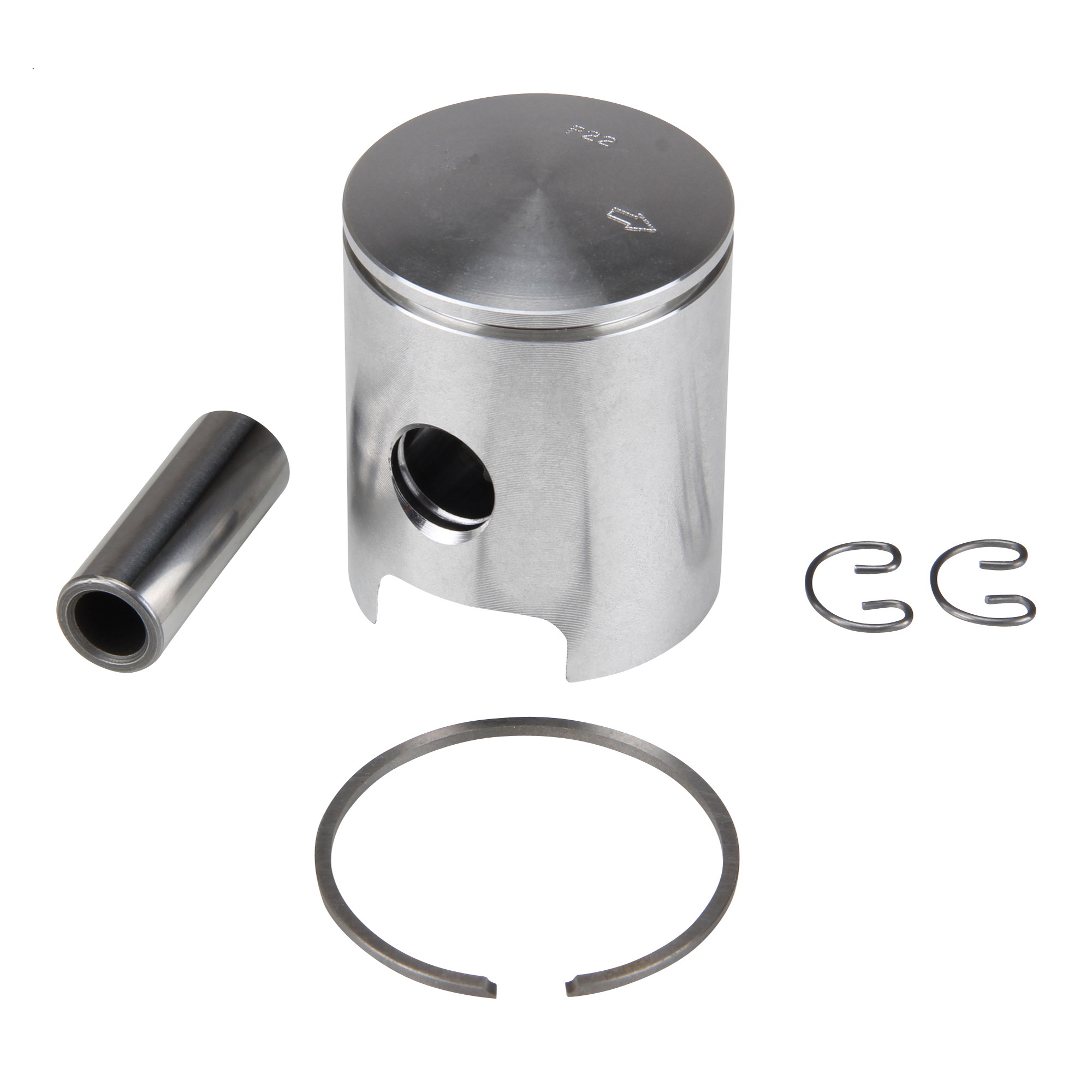

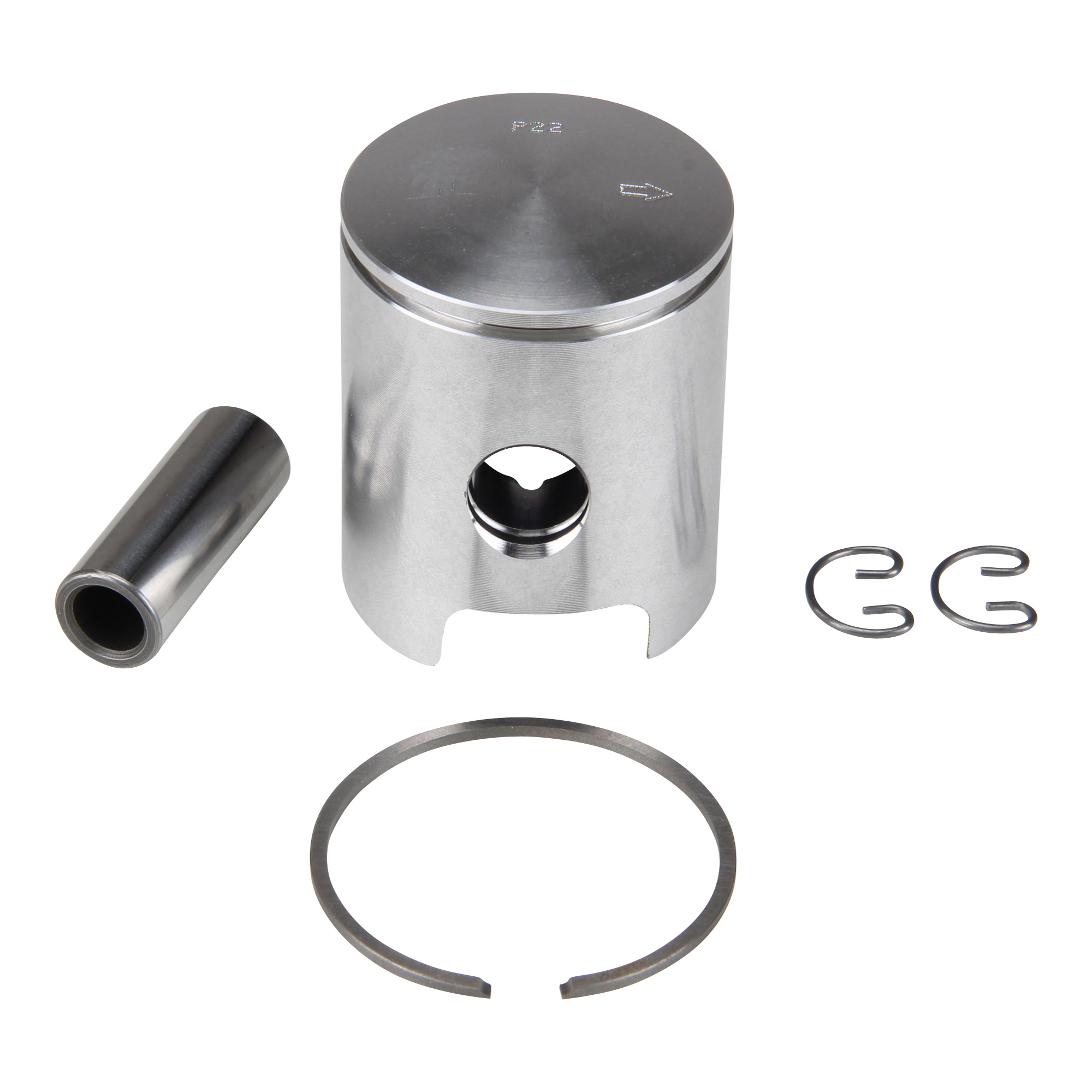

Scope of delivery:	Piston, Piston clips, Piston pin, Piston ring
Tuning & Styling Part:	No
Vintage part:	Yes
Cylinder bores:	39 mm
Bolt diameter:	12 mm
Piston ring profile:	Rectangular ring
Piston ring width:	1.65 mm
Color:	Silver
Piston diameter:	39 mm
Engine type:	2-stroke
Scope of delivery:	1x piston set
Manufacturer number:	PC1011EN
Country and region of manufacture:	Italy
Product type:	Piston set
Type of motorcycle:	Moped & Mokick
Offer package:	Yes
Description of the package content:	Piston + piston ring + piston pin + piston clips
Manufacturer warranty:	2 years
Weight:	0.075 kg
Material:	Aluminum alloy
suitable for:	50 cc

Meteor Piston is known for over 60 years for high quality piston sets, pistons and piston rings... more

schliessen

"Meteor Piston"

Meteor Piston is known for over 60 years for high quality piston sets, pistons and piston rings in OEM quality. In the 50's Kolebn for Vespa scooters and Lambretta scooters were manufactured with aluminum coating. Meanwhile Meteor Piston offers its products not only for scooters but also for Maxi, Quad and ATV. As a special feature, all small parts such as piston rings, circlips or piston pins are included with the piston sets.
