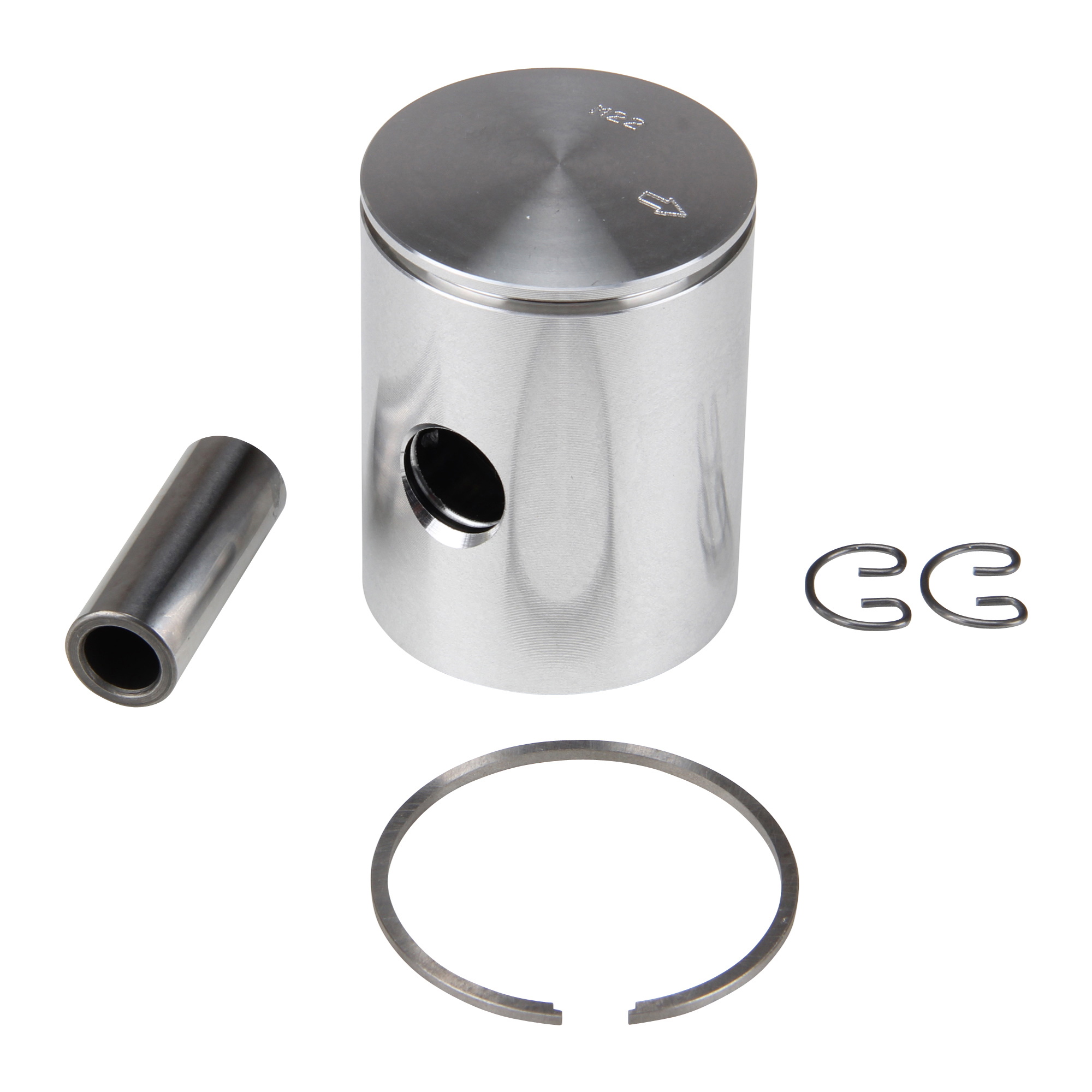

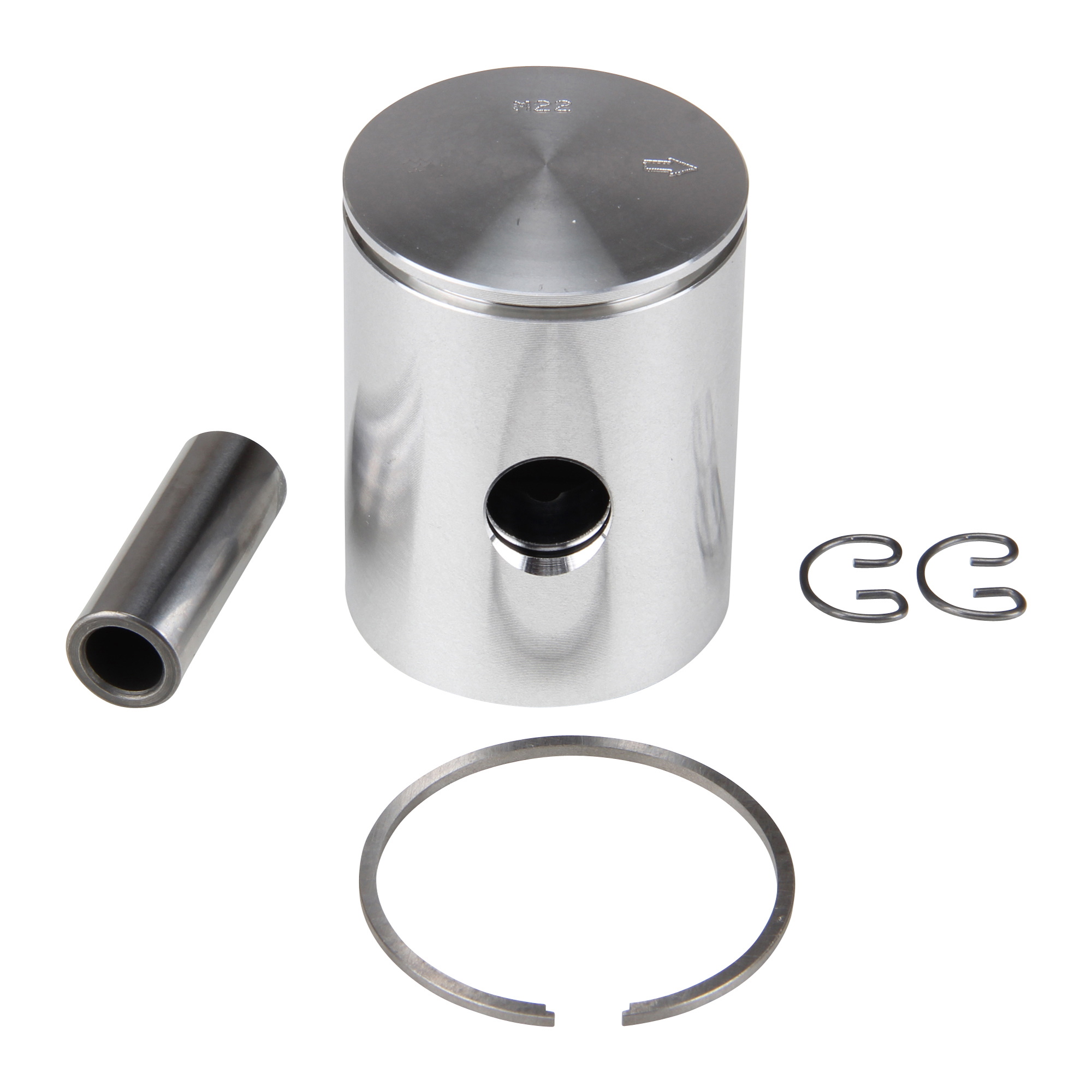

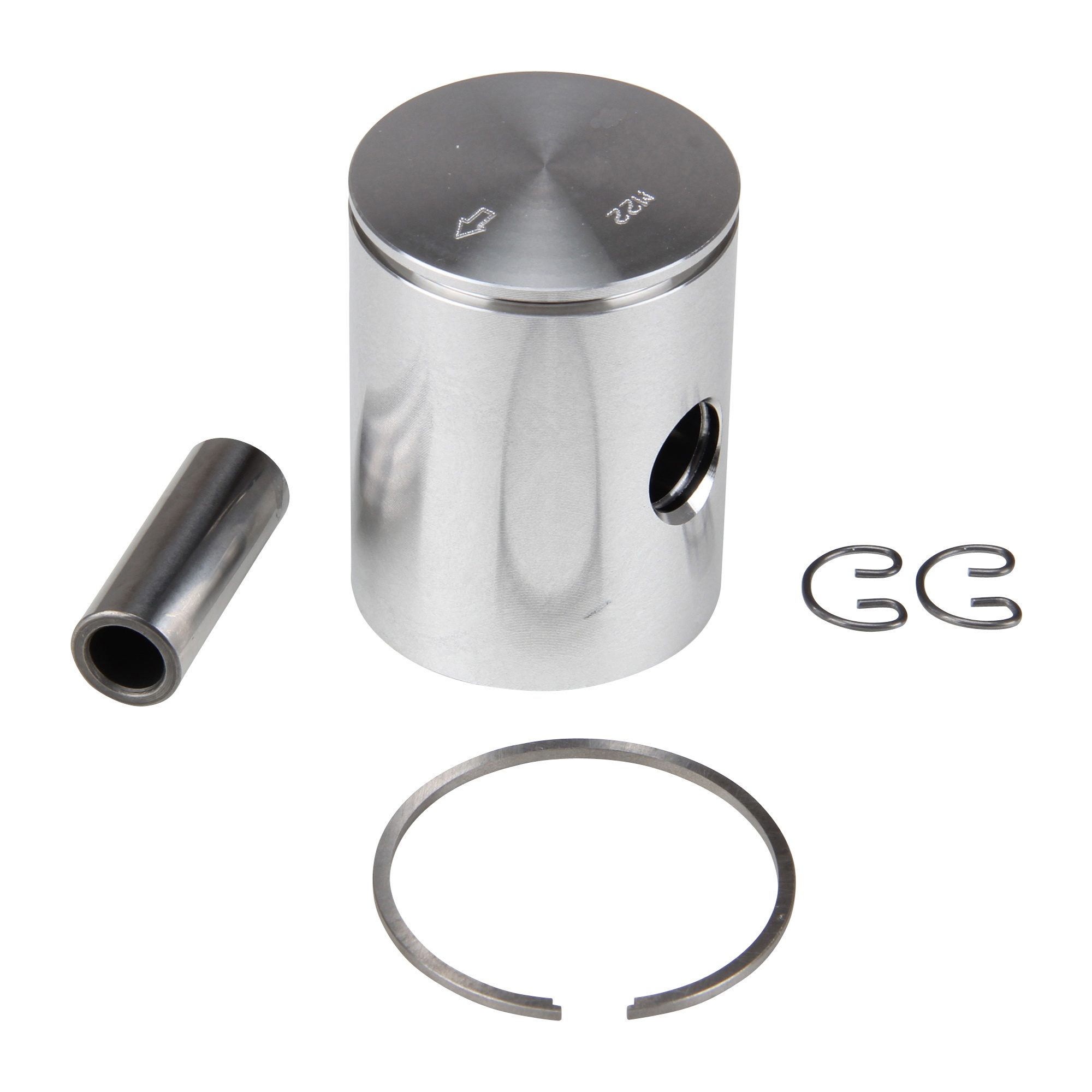

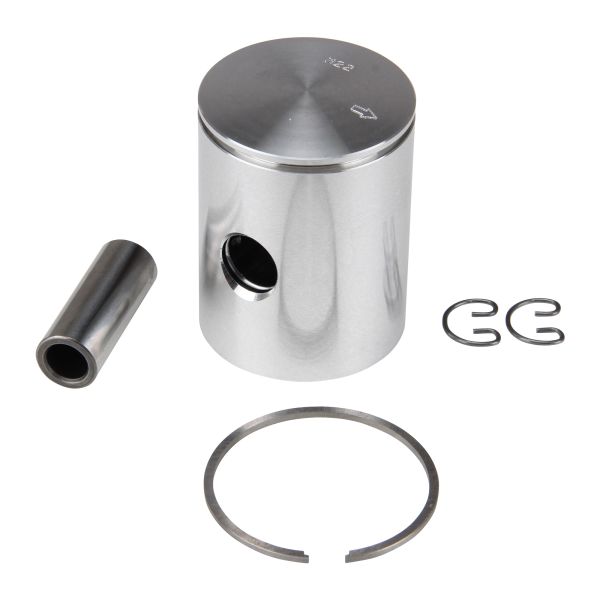

Piston set 38.980mm Tol. GH 50ccm for Zündapp ZD CS Hai CX ZX ZL C GTS KS RM Type 434 446 448 460 442 517 529 561
£36.65 *
Content:
1 piece
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Last article - Buy now
Further variants / accessories
Kolben Set 38,955mm Tol. BC 50ccm für Zündapp ZD CS Hai CX ZX ZL C GTS...
![Kolben Set 38,955mm Tol. BC 50ccm für Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Typ 434 446 448 460 442 517 529 561]()
Kolben Set 38,950mm Tol. AB 50ccm für Zündapp ZD CS Hai CX ZX ZL C GTS...
![Kolben Set 38,950mm Tol. AB 50ccm für Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Typ 434 446 448 460 442 517 529 561]()
Kolben Set 38,965mm Tol. DE 50ccm für Zündapp ZD CS Hai CX ZX ZL C GTS...
![Kolben Set 38,965mm Tol. DE 50ccm für Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Typ 434 446 448 460 442 517 529 561]()
Kolben Set 38,970mm Tol. EF 50ccm für Zündapp ZD CS Hai CX ZX ZL C GTS...
![Kolben Set 38,970mm Tol. EF 50ccm für Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Typ 434 446 448 460 442 517 529 561]()
Kolben Set 38,975mm Tol. FG 50ccm für Zündapp ZD CS Hai CX ZX ZL C GTS...
![Kolben Set 38,975mm Tol. FG 50ccm für Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Typ 434 446 448 460 442 517 529 561]()
Kolben Set 38,960mm Tol. CD 50ccm für Zündapp ZD CS Hai CX ZX ZL C GTS...
![Kolben Set 38,960mm Tol. CD 50ccm für Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Typ 434 446 448 460 442 517 529 561]()
Kolben Set 38,980mm Tol. GH 50ccm für Zündapp ZD CS Hai CX ZX ZL C GTS...
![Kolben Set 38,980mm Tol. GH 50ccm für Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Typ 434 446 448 460 442 517 529 561]()
- Item no: PC0774GH
- EAN: 4060861114434
- Manufacturer: Meteor Piston
- Manufacturer no.: PC0774GH
- Height: 50 cm
- Width: 50 cm
ZD 40 type 446-300 ZD 20 type 446-400 ZD 25 type 446-420 ZD 50 type 446-422 CS 50 type 448-010 CS... more
Product information about Piston set 38.980mm Tol. GH 50ccm for Zündapp ZD CS Hai CX ZX ZL C GTS KS RM Type 434 446 448 460 442 517 529 561
ZD 40 type 446-300 ZD 20 type 446-400 ZD 25 type 446-420 ZD 50 type 446-422 CS 50 type 448-010 CS 50 type 448-011 CS 50 type 448-013 Hai 50 type 448-110 Hai 50 Type 448-111 CS 25 Type 448-140 CS 25 Type 448-141 Hai 25 Type 448-150 CX 25 Type 448-151 Sprinter Type 448-051 Hai 50 Type 448-160 ZX 25 Type 460-010 ZX 25 Type 460- 013 Engine type 278-01L3 (from engine no. 3730133) C 50 Sport type 517-21L0 Engine type 278-25L0 (from engine no.3730133) C 50 Sport Type 529-010 GTS 50 Type 529-020 GTS 50 Type 529-022 GTS 50 Type 529-023 GTS 50 Type 529-024 GTS 50 Type 529-026 GTS 50 Type 529-028 GTS 50 Type 529- 029 GTS 50 Type 540-120 KS 50 Type 540-121 CS 50 Type 540-190 R 50 Type 561-051 R 50 Type 561-052 Star 1 Type 462-020 Star 2 Type 462-021 Engine Type 276 M 25 Mountaineer Type 434-02L1 (from engine no. 3111703) M 50 Bergsteiger type 434-01L0 (from engine no. 3111703) M 25 Bergsteiger BASF type 434-16L0 (from engine no. 3111703) C 50 Super type 441-01L0 (from engine no . 3730133) C 50 Super type 441-01L1 (from engine no.3730133) Automatic type 442-01L0 Automatic type 442-11L0 Automatic type 442-12L0 Automatic type 442-16L0 Automatic type 442-16L1 Automatic type 442-17L0 Automatic type 442-17L1 ZD 20 Type 446-450 C 50 Sport type 517-21L0 C 50 Sport Type 517-21LA GTS 50 Type 517-39L0 GTS 50 Type 517-40L0 GTS 50 Type 517-40L5 C 50 Type 517-05LA GTS 50 Type 517-35LA GTS 50 Type 517-35LC GTS 50 Type 517-35LE Super Sport type 517-35LB Super Sport type 517-35LD Super Sport type 517-35LF GTS Super type 517-35L5 C 50 Super type 517-05L9 engine type 266-50L1 (from engine no. 3730133) C 50 Super type 517-23L3 engine Type 266-70L1 (from engine no. 3730133) C 50 Sport Type 517-23L1 Engine type 266-70L1 (from engine no.3730133) CS 50 type 529-030 CS 50 type 529-032 CS 50 type 529-034 GTS 50 type 529-050 GTS 50 type 529-052 GTS 50 type 529-054 GTS 50 type 529-056 KS 50 type 529-051 KS 50 type 529-053 KS 50 type 529-055 KS 50 type 529-057 CS 50 type 517-05C GTS 50 type 517-35G KS 50 type 517-35H CS 50 type 529-03L0 GTS 50 type 529-05L0 KS 50 Type 529-05L1 R 50 Type 561-003 Engine Type 267-020 (from engine no. 8018080)
Customers also searched for this product under:
Further links to "Piston set 38.980mm Tol. GH 50ccm for Zündapp ZD CS Hai CX ZX ZL C GTS KS RM Type 434 446 448 460 442 517 529 561"
Properties more
| Tolerance size: | GH (38.980mm) |
| Dimension C (piston height): | 50 mm |
| Piston ring width: | 1.65 mm |
| Piston ring dimension: | 39 x 1.5 mm |
| Dimension D (curvature): | 1.5 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Dimension G (piston skirt length inlet side): | 47 mm |
| Dimension I (piston skirt length outlet side): | 47 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Dimension C + D (total height): | 51.5 mm |
| OE/OEM reference number(s): | 248-02.703, 278-02.729, 278-02.757, Meteor AN2B1210SET (piston clips), Meteor F0390015016530H0I (piston ring), Meteor PC0774GH (piston), Meteor SP120315080HI (piston pin) |
| Bolt length: | 31.5 mm |
| Dimension B (compression height): | 26 mm |
| GTIN: | 4060861114434 |
| Dimension A (piston diameter): | 38,980 mm |
| Scope of delivery: | Piston, Piston clips, Piston pin, Piston ring |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Cylinder bores: | 39 mm |
| Piston ring shape: | B (groove for center locking pin) |
| Piston ring profile: | Rectangular ring |
| Bolt diameter: | 12 mm |
| Color: | Silver |
| Piston diameter: | 39 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | PC0774GH |
| Country and region of manufacture: | Italy |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Weight: | 0.087 kg |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
Meteor Piston is known for over 60 years for high quality piston sets, pistons and piston rings... more
"Meteor Piston"
Meteor Piston is known for over 60 years for high quality piston sets, pistons and piston rings in OEM quality. In the 50's Kolebn for Vespa scooters and Lambretta scooters were manufactured with aluminum coating. Meanwhile Meteor Piston offers its products not only for scooters but also for Maxi, Quad and ATV. As a special feature, all small parts such as piston rings, circlips or piston pins are included with the piston sets.
