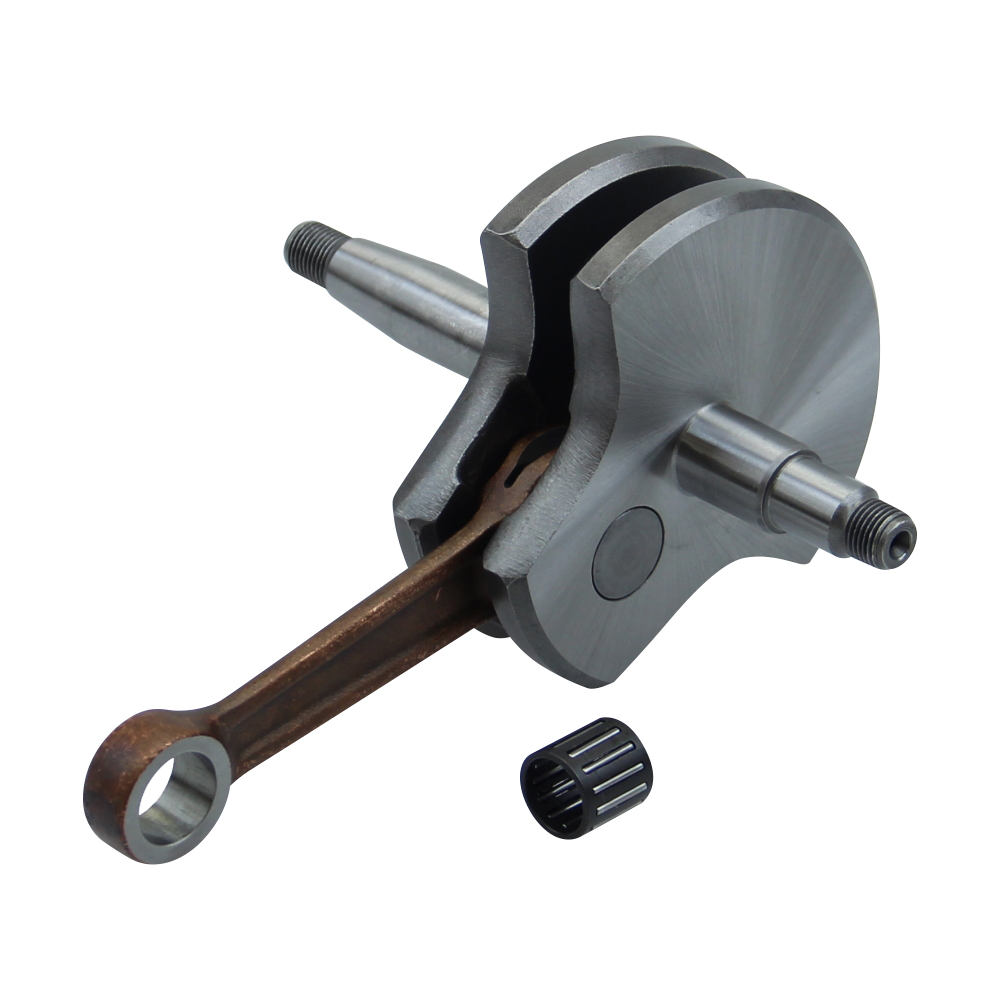

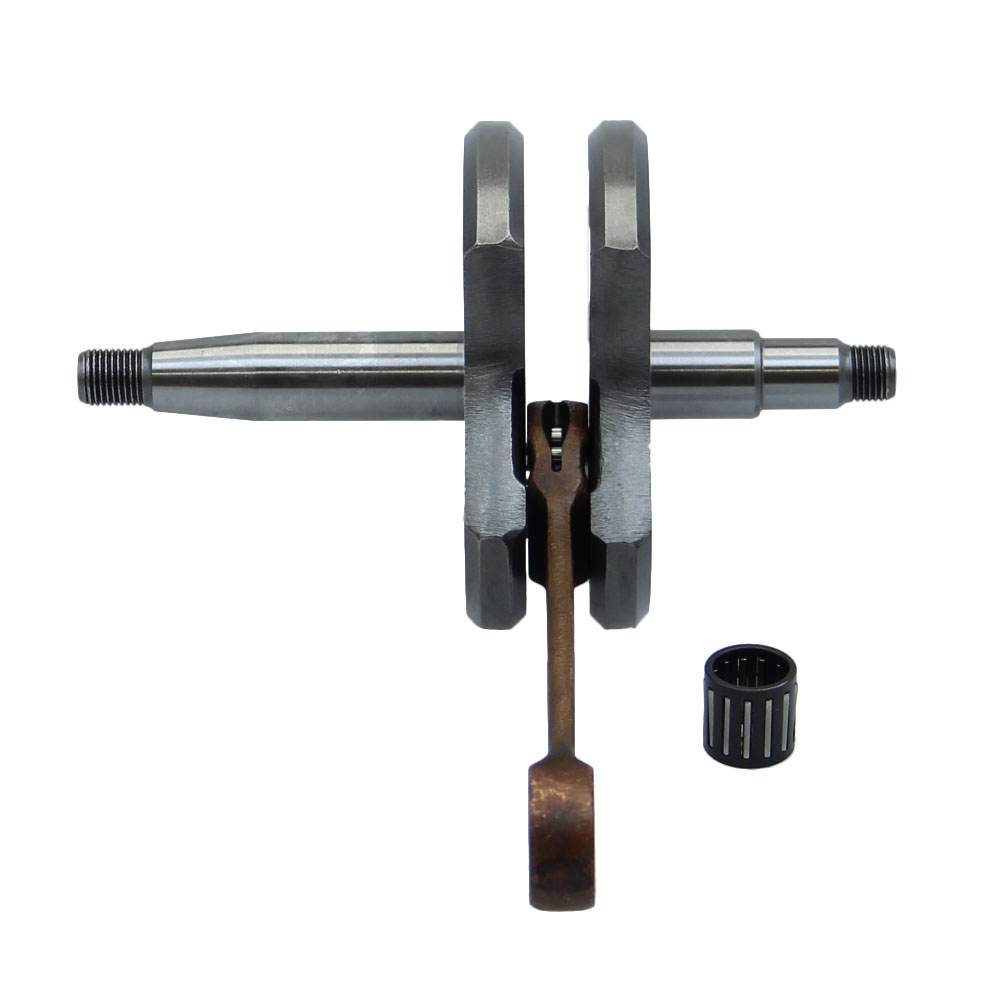

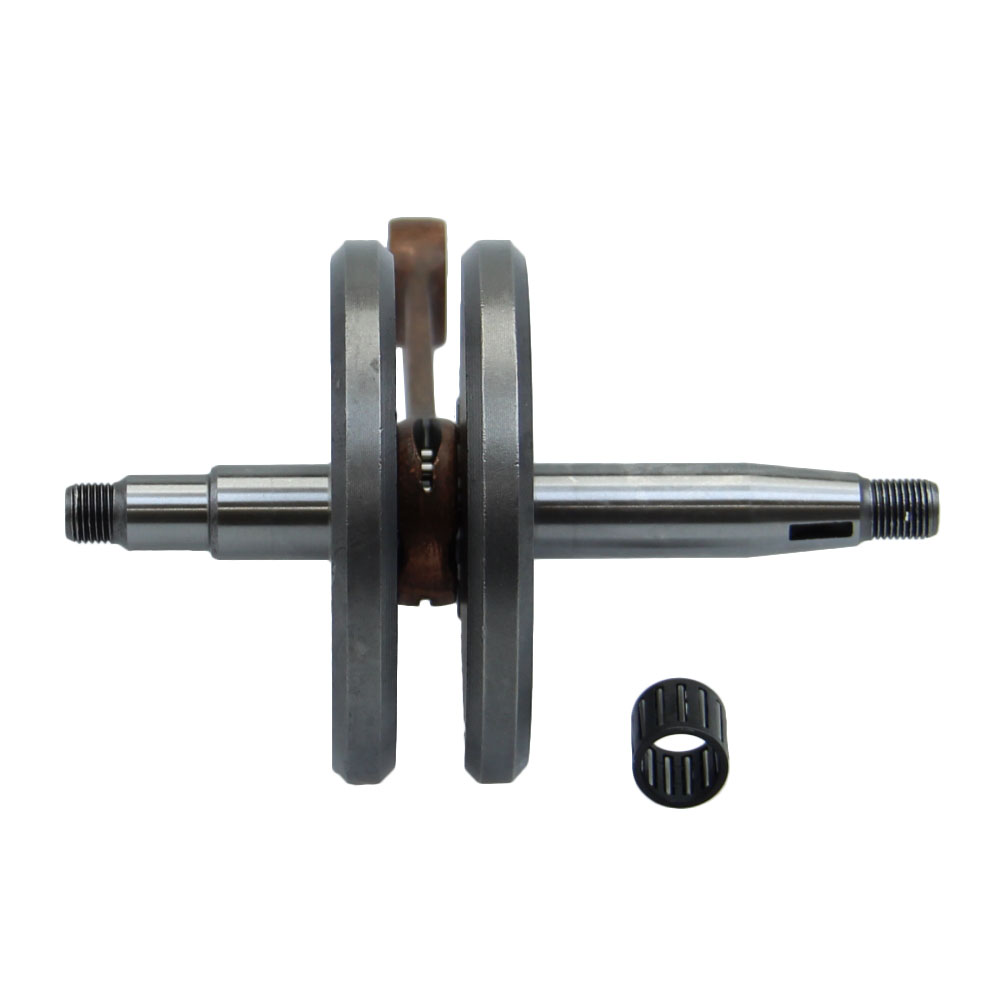

Crankshaft ORIGINAL (E15 bearing 15mm) for Sachs 50/2 50/3 engine

£91.87 *
Content: 1 piece

Prices plus VAT plus shipping costs

IN STOCK - Delivery time 1-3 working days

Only a few left!

3 Jahre Verschleiß-Plus-Garantie für Artikel 0286139400
Jetzt 3 Jahre zusätzliche Garantie sichern.   » Details
£3.86*
  • 187916
  • 4060861042096
  • Citomerx
  • 187916
Sachs 50/2 MA Sachs 50/2 MA NL Sachs 50/2 MA SF Sachs 50/2 MA X Sachs 50/2 MB Sachs 50/2 S Sachs... more
Product information about Crankshaft ORIGINAL (E15 bearing 15mm) for Sachs 50/2 50/3 engine

Sachs 50/2 MA
Sachs 50/2 MA NL
Sachs 50/2 MA SF
Sachs 50/2 MA X
Sachs 50/2 MB
Sachs 50/2 S
Sachs 50/2 DK
Sachs 50/2 C
Sachs 50/2 D
Sachs 50/2 D NL
Sachs 50/ 2 MAK
Sachs 50/2 MAK SF
Sachs 50/2 K
Sachs 50/2 K S
Sachs 50/2 K DK
Sachs 50/2 MLA< br />Sachs 50/2 MLA
Sachs 50/3 MA SF
Sachs 50/3 MA X
Sachs 50/3 MB
Sachs 50/3 MK
Sachs 50/3 MK X
Sachs 50/3 MAK
Sachs 50/3 MAK SF
Sachs 50/3 MKA
Sachs 50/3 MKA I
Sachs 50/3 L
Sachs 50/3 LS
Sachs 50/3 H

Properties
Product type: Crankshaft

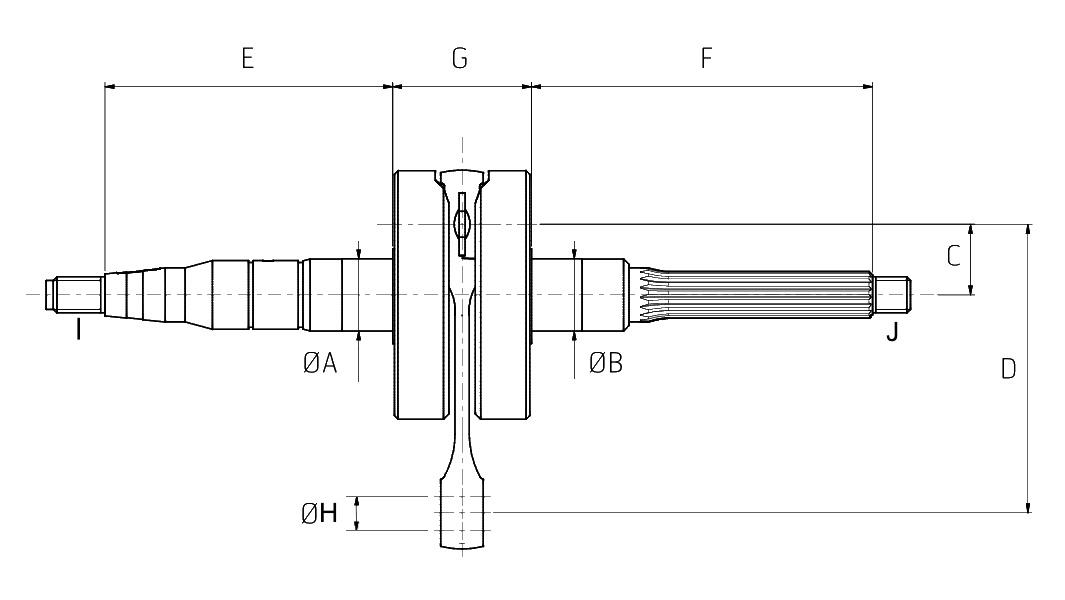

Dimension B (shaft diameter on coupling side): 15 mm
Crankshaft type: Half cheek crankshaft
Dimension F (length of crankshaft stub on clutch side): 32.5 mm
Tuning & Styling Part: No
Vintage part: Yes
Dimensions needle bearing piston pin: 12x15x15 mm
Dimension C (stroke pin offset = half stroke): 21 mm
Dimension J (thread on coupling side): M10 x 1 right-hand thread
Crankshaft stroke: 42 mm
Dimension G (width of crank webs): 30.1 mm
Surface finish: Matt
matching piston pin: 12 mm
OE/OEM reference number(s): 0286139400, 0286 139 400
GTIN: 4060861042096
Dimension D (connecting rod length): 85 mm
Dimension H (top diameter of connecting rod eye): 15 mm
Dimension A (shaft diameter on alternator side): 15 mm
Scope of delivery: Crankshaft + needle bearing
Dimension E (length of crankshaft stub on alternator side): 52 mm
Dimension I (thread on alternator side): M10 x 1 right-hand thread
Color: Grey
Scope of delivery: 1x crankshaft
Manufacturer number: 187916
Country and region of manufacture: China
Type of motorcycle: Moped & Mokick
Offer package: Yes
Description of the package content: Crankshaft incl. needle bearing
Manufacturer warranty: 2 years
Weight: not specified
Material: Cast iron
Type: Standard
