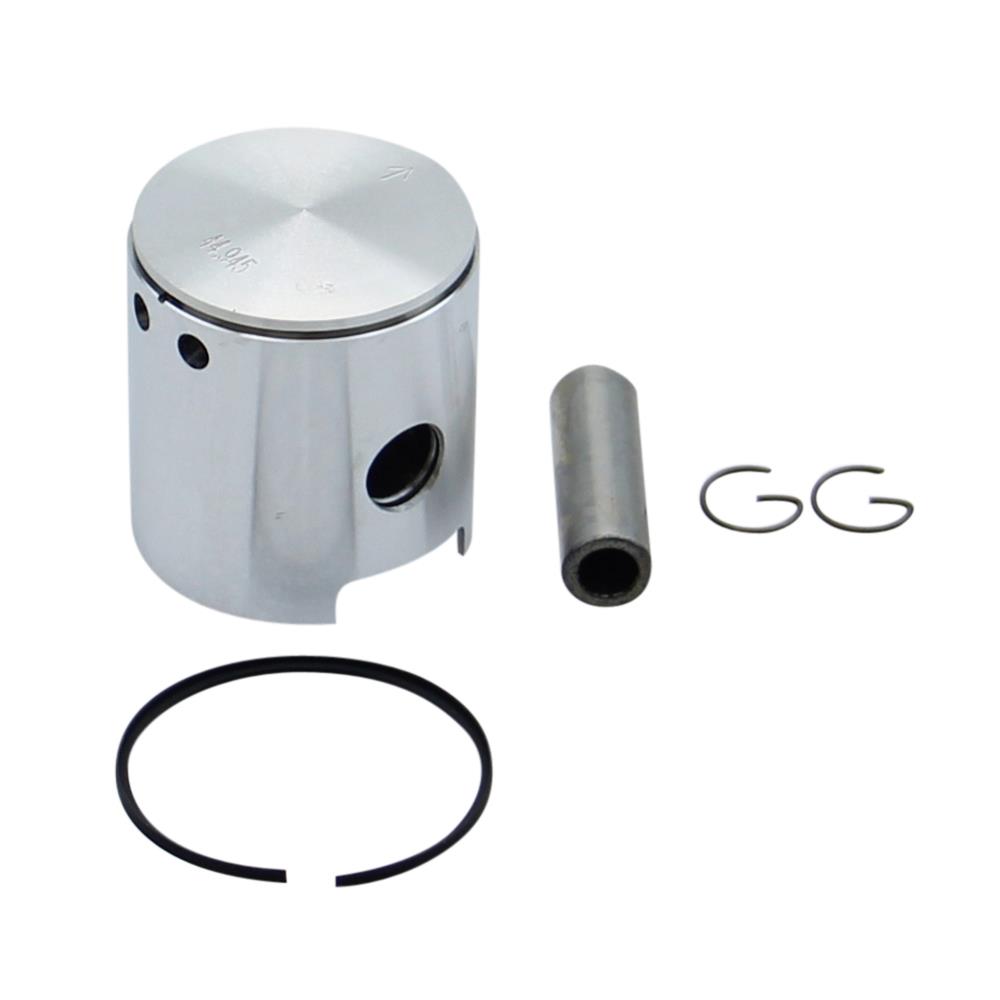

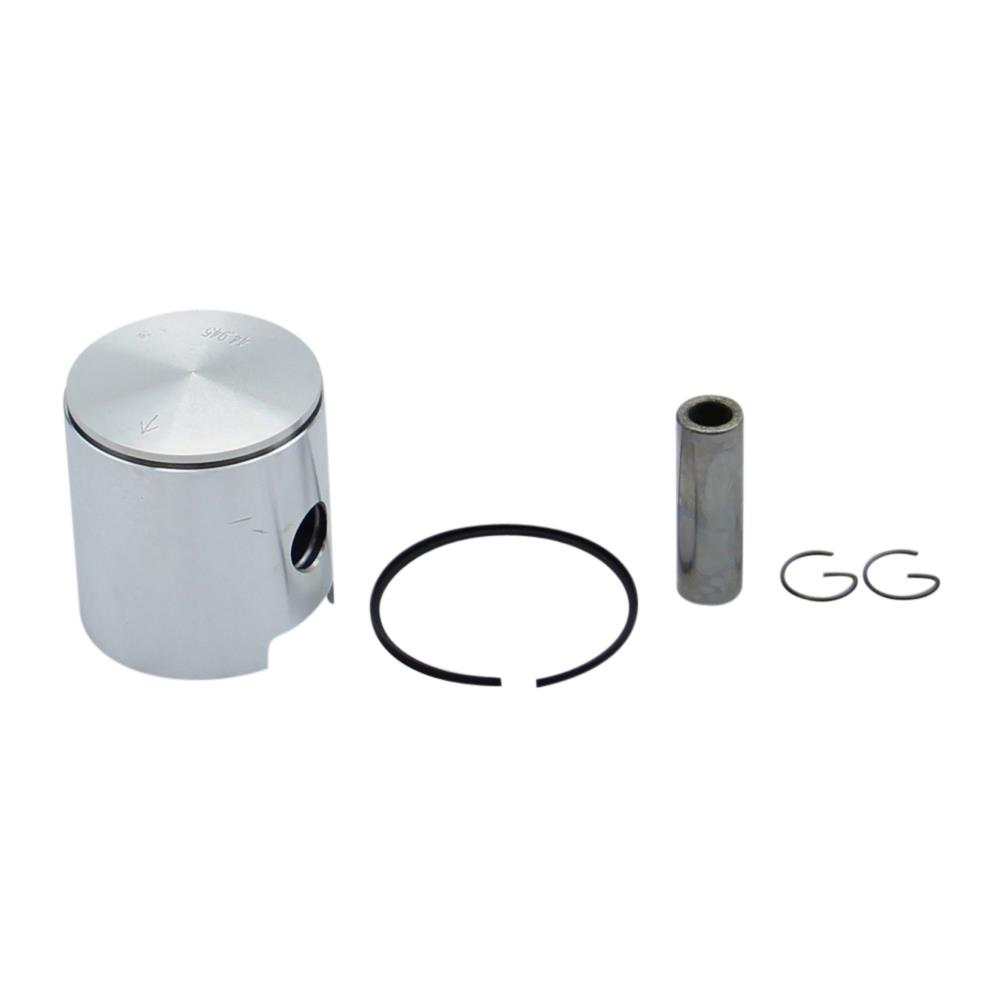

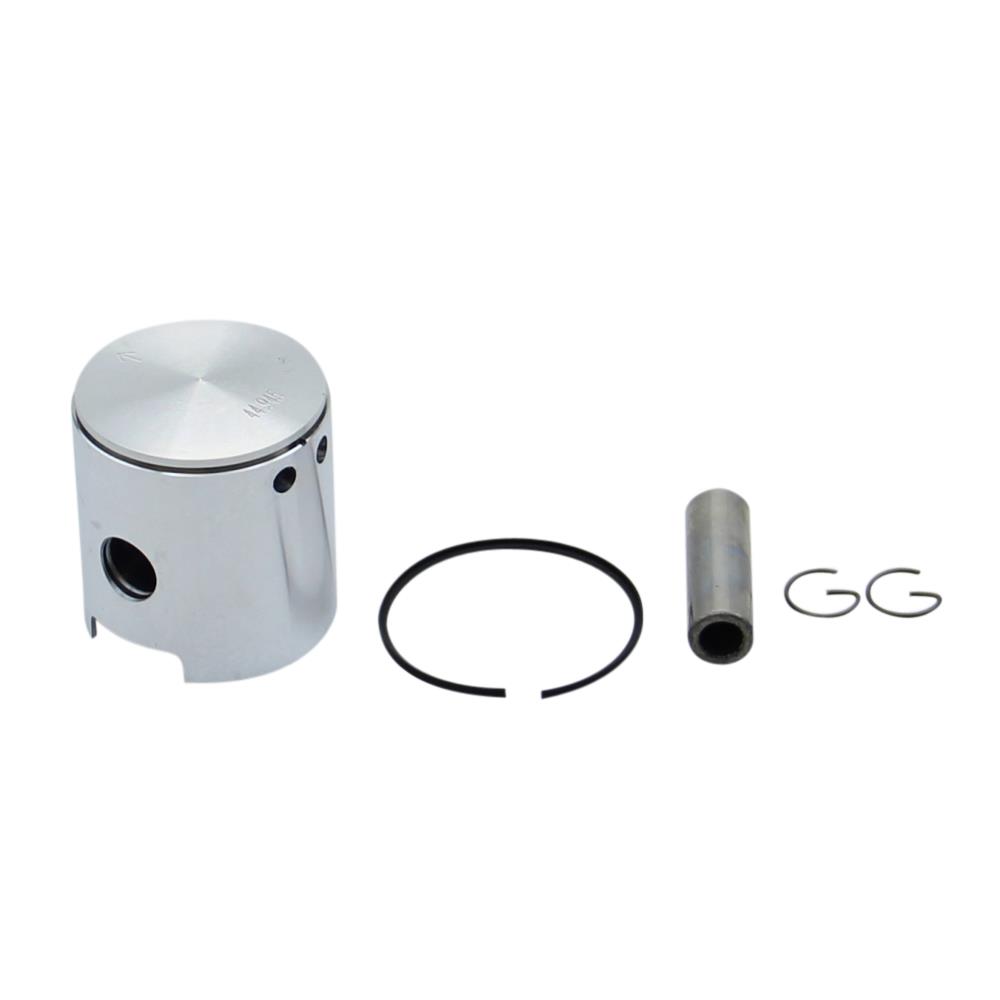

Piston set 44.945mm Tol. A 70ccm for Zündapp ZD CS Hai CX ZX ZL C GTS KS RM Type 434 446 448 460 442 517 529 561

Bewerten

£19.68 *

Content: 1 piece

Prices plus VAT plus shipping costs

Delivery time on request

Further variants / accessories

Kolben Set 44,950mm Tol. B 70ccm für Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Typ 434 446 448 460 442 517 529 561

Kolben Set 44,945mm Tol. A 70ccm für Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Typ 434 446 448 460 442 517 529 561

Kolben Set 44,960mm Tol. D 70ccm für Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Typ 434 446 448 460 442 517 529 561

Kolben Set 44,955mm Tol. C 70ccm für Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Typ 434 446 448 460 442 517 529 561

Kolben Set 45mm 70ccm für Zündapp ZD CS Hai CX ZX ZL C GTS KS R M Typ 434 446 448 460 442 517 529 561

Item no: 187365
EAN: 4060861036422
Manufacturer: Citomerx
Manufacturer no.: 187365
Height: 55 cm
Width: 65 cm

ZD 40 type 446-300 ZD 20 type 446-400 ZD 25 type 446-420 ZD 50 type 446-422 CS 50 type 448-010 CS... more

Close menu

ZD 40 type 446-300 ZD 20 type 446-400 ZD 25 type 446-420 ZD 50 type 446-422 CS 50 type 448-010 CS 50 type 448-011 CS 50 type 448-013 Hai 50 type 448-110 Hai 50 Type 448-111 CS 25 Type 448-140 CS 25 Type 448-141 Hai 25 Type 448-150 CX 25 Type 448-151 Sprinter Type 448-051 Hai 50 Type 448-160 ZX 25 Type 460-010 ZX 25 Type 460- 013 Engine type 278-01L3 (from engine no. 3730133) C 50 Sport type 517-21L0 Engine type 278-25L0 (from engine no.3730133) C 50 Sport Type 529-010 GTS 50 Type 529-020 GTS 50 Type 529-022 GTS 50 Type 529-023 GTS 50 Type 529-024 GTS 50 Type 529-026 GTS 50 Type 529-028 GTS 50 Type 529- 029 GTS 50 Type 540-120 KS 50 Type 540-121 CS 50 Type 540-190 R 50 Type 561-051 R 50 Type 561-052 Star 1 Type 462-020 Star 2 Type 462-021 Engine Type 276 M 25 Mountaineer Type 434-02L1 (from engine no. 3111703) M 50 Bergsteiger type 434-01L0 (from engine no. 3111703) M 25 Bergsteiger BASF type 434-16L0 (from engine no. 3111703) C 50 Super type 441-01L0 (from engine no . 3730133) C 50 Super type 441-01L1 (from engine no.3730133) Automatic type 442-01L0 Automatic type 442-11L0 Automatic type 442-12L0 Automatic type 442-16L0 Automatic type 442-16L1 Automatic type 442-17L0 Automatic type 442-17L1 ZD 20 Type 446-450 C 50 Sport type 517-21L0 C 50 Sport Type 517-21LA GTS 50 Type 517-39L0 GTS 50 Type 517-40L0 GTS 50 Type 517-40L5 C 50 Type 517-05LA GTS 50 Type 517-35LA GTS 50 Type 517-35LC GTS 50 Type 517-35LE Super Sport type 517-35LB Super Sport type 517-35LD Super Sport type 517-35LF GTS Super type 517-35L5 C 50 Super type 517-05L9 engine type 266-50L1 (from engine no. 3730133) C 50 Super type 517-23L3 engine Type 266-70L1 (from engine no. 3730133) C 50 Sport Type 517-23L1 Engine type 266-70L1 (from engine no.3730133) CS 50 type 529-030 CS 50 type 529-032 CS 50 type 529-034 GTS 50 type 529-050 GTS 50 type 529-052 GTS 50 type 529-054 GTS 50 type 529-056 KS 50 type 529-051 KS 50 type 529-053 KS 50 type 529-055 KS 50 type 529-057 CS 50 type 517-05C GTS 50 type 517-35G KS 50 type 517-35H CS 50 type 529-03L0 GTS 50 type 529-05L0 KS 50 Type 529-05L1 R 50 Type 561-003 Engine Type 267-020 (from engine no. 8018080)

Customers also searched for this product under:

Further links to "Piston set 44.945mm Tol. A 70ccm for Zündapp ZD CS Hai CX ZX ZL C GTS KS RM Type 434 446 448 460 442 517 529 561"

Properties more

zurück

Tolerance size:	A (44.945mm)
Dimension C + D (total height):	49.5 mm
Piston ring profile:	L-ring
Piston ring width:	1.8 mm
Cylinder bores:	45 mm
Dimension B (compression height):	26 mm
Bolt length:	38 mm
Dimension C (piston height):	48 mm
Note:	With two 5 mm piston window bores!
Dimension D (curvature):	1.5 mm
Piston ring dimension:	45 x 2.0 mm
Dimension G (piston skirt length inlet side):	45 mm
Dimension I (piston skirt length outlet side):	45 mm
Dimension F (piston skirt width inlet side):	40.5 mm
Dimension H (piston skirt width outlet side):	38 mm
GTIN:	4060861036422
Dimension A (piston diameter):	44.945 mm
Dimension E (piston pin diameter):	12 mm
Dimension J (max. needle bearing width):	15.5 mm
ATTENTION!:	TUNING: Not permitted in the area of the StVZO!
Bolt diameter:	12 mm
Vintage part:	Yes
Tuning & Styling Part:	Yes
Piston ring shape:	B (groove for center locking pin)
Scope of delivery:	Piston, Piston clips, Piston pin, Piston ring
Color:	Silver
Piston diameter:	45 mm
Engine type:	2-stroke
Scope of delivery:	1x piston set
Manufacturer number:	187365
Country and region of manufacture:	Sweden
Product type:	Piston set
Type of motorcycle:	Moped & Mokick
Offer package:	Yes
Description of the package content:	Piston + piston ring + piston pin + piston clips
Manufacturer warranty:	2 years
Weight:	0.1 kg
Material:	Aluminum alloy
suitable for:	70 ccm
