Oversized piston set 39mm 50cc for Hercules 221 Lastboy MP 2 3 4 R50 MK4 MK 50
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
Further variants / accessories
- Item no: 185319
- EAN: 4060861015946
- Manufacturer: Citomerx
- Manufacturer no.: 185319
Hercules 221 MF (1965-)
Hercules 219 A (1964-)
Hercules 221 S (1961-1962)
Hercules 221 S (1963-1964)
Hercules 221 T (1964-)
Hercules 221 TS (1964-)
Hercules LASTBOY (1965-)
Hercules LASTBOY (1965-)
Hercules MK 4 (1966-1970)< br />Hercules MK 50 (1966-1968)
Hercules MK 50 (1965-1966)
Hercules MK 50 (1967-1970)
Hercules MK 50/1 (1966-1970)< br />Hercules MP 2 (1971-1977)
Hercules MP 3 (1971-)
Hercules MP 4 Duo - Type 632 (1972-1978)
Hercules MP 4 Duo - Type 632 ( 1976-1978)
Hercules Optima 50 MP 4 (1982-2002)
Hercules R 50 (1975-1979)
Hercules R 50 (1964-1979)
Hercules R 50 ( 1965-1974)
| Piston ring (bottom) Dimension: | 39 x 2.0 mm |
| Bolt length: | 32 mm |
| Piston ring (top) Width: | 1.65 mm |

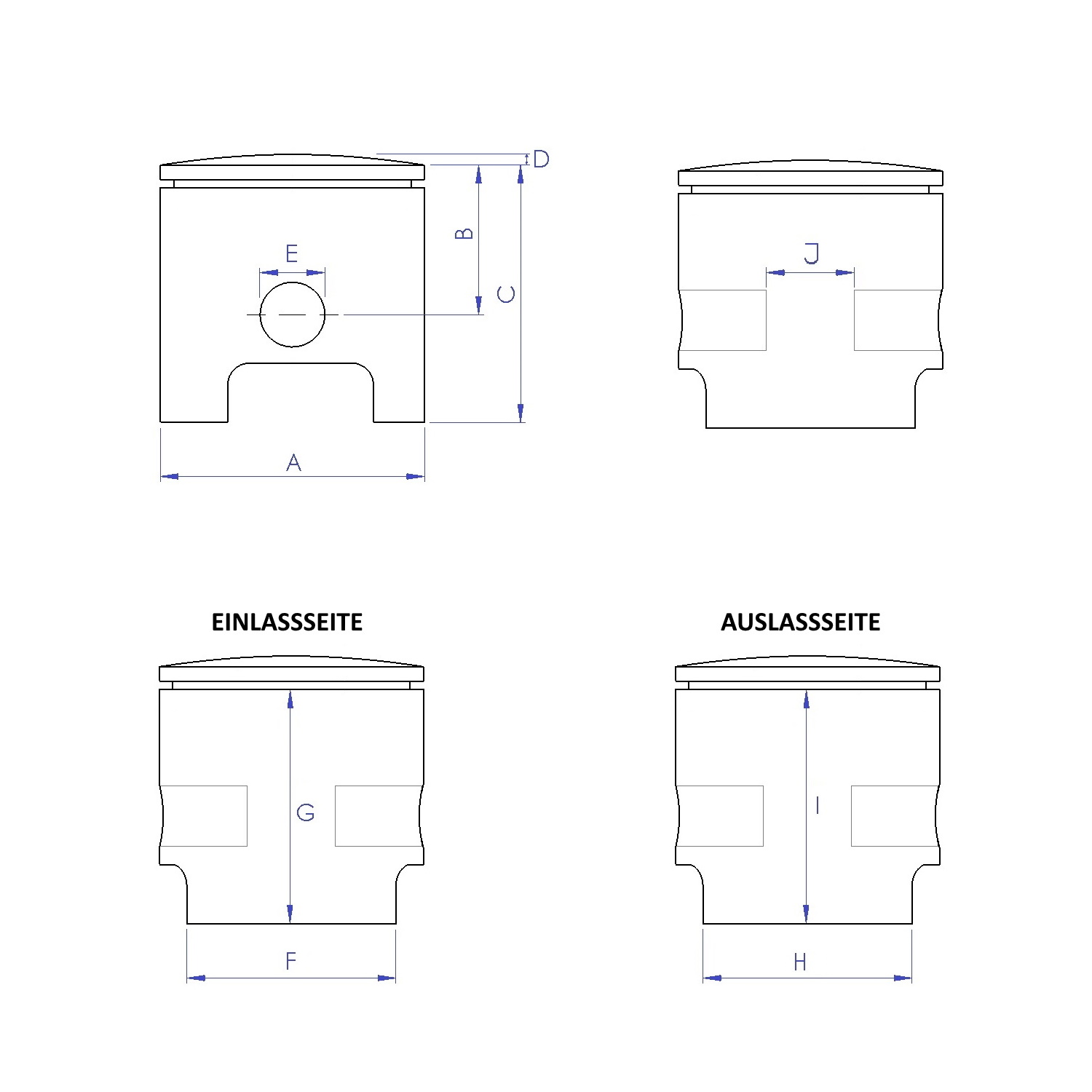

| Dimension C (piston height): | 49 mm |
| Piston ring (bottom) Profile: | Rectangular ring |
| Piston ring (bottom) Shape: | C (groove for locking pin on the edge) |
| Piston ring (top) Profile: | Rectangular ring |
| Piston ring (top) Shape: | C (groove for locking pin on the edge) |
| Dimension J (max. needle bearing width): | 16 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Dimension C + D (total height): | 53 mm |
| Dimension D (curvature): | 4 mm |
| Dimension G (piston skirt length inlet side): | 39.3 mm |

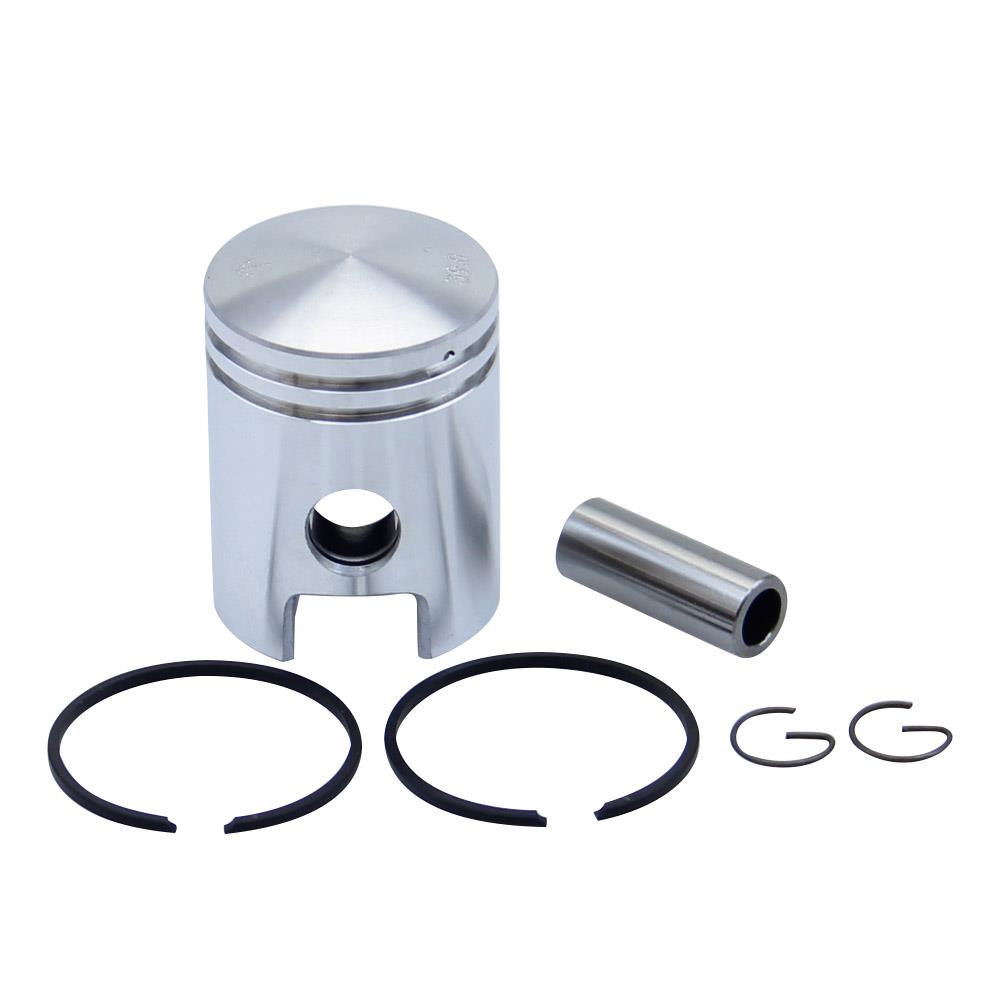

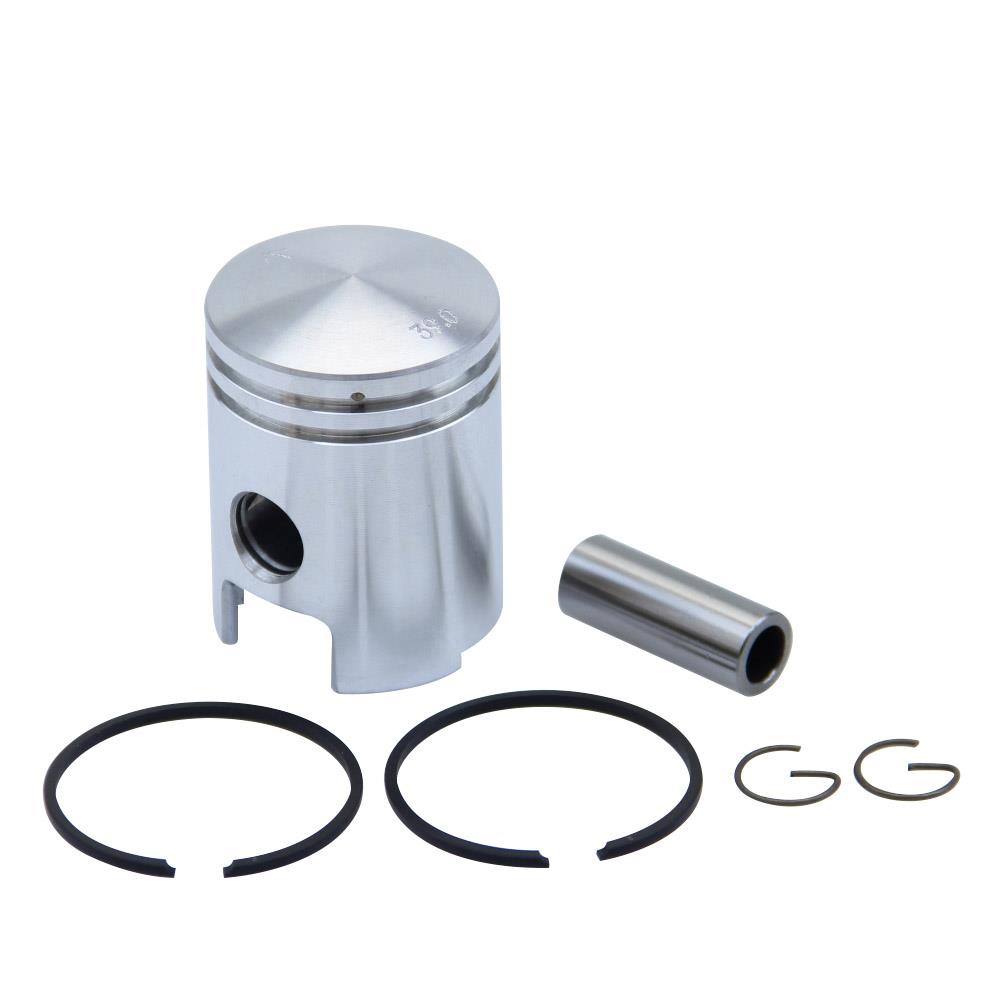

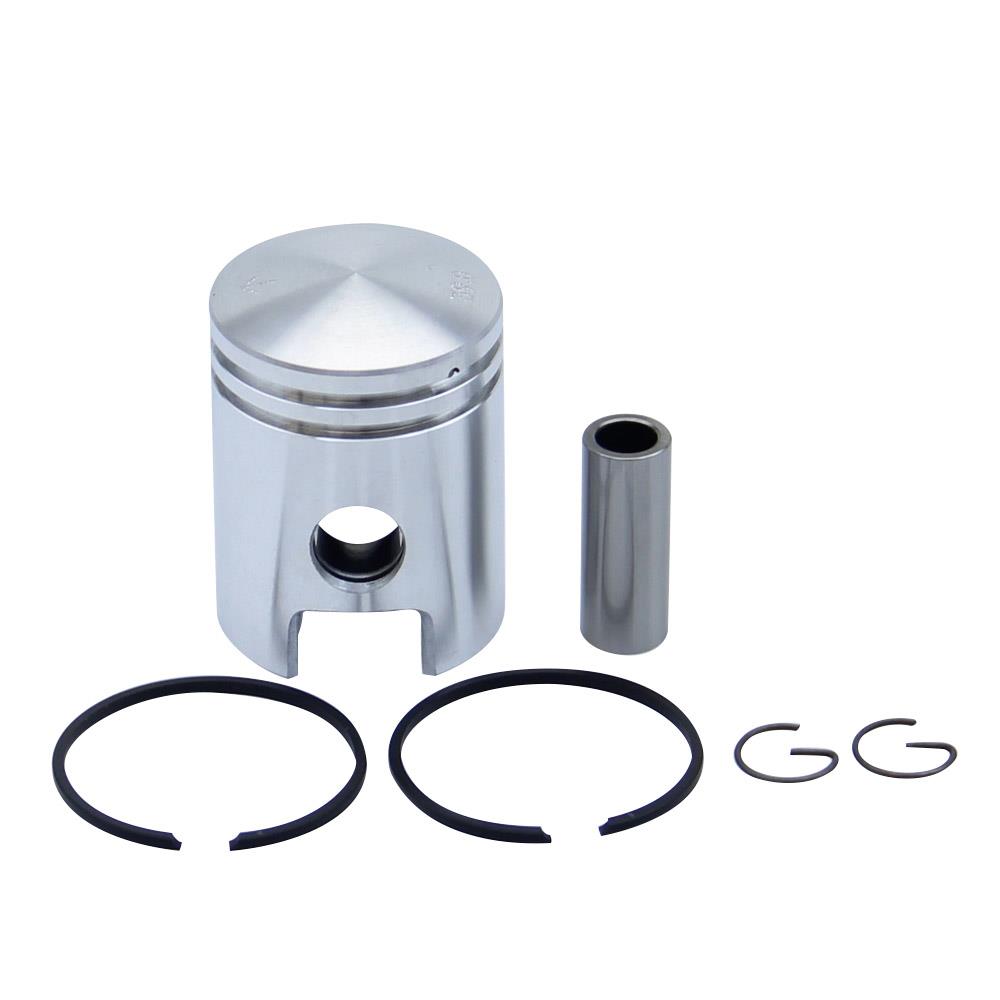

| Scope of delivery: | Piston, Piston clips, Piston pin, Piston rings |
| Bolt diameter: | 12 mm |
| Dimension B (compression height): | 28 mm |
| Cylinder bores: | 39 mm |
| Dimension I (piston skirt length outlet side): | 39.3 mm |
| Dimension F (piston skirt width inlet side): | 33.4 mm |
| Vintage part: | Yes |
| Tuning & Styling Part: | No |
| Dimension H (piston skirt width outlet side): | 33.4 mm |
| GTIN: | 4060861015946 |
| Dimension A (piston diameter): | 39.00 mm |
| Piston ring (top) Dimension: | 39 x 2.0 mm |
| Piston ring (bottom) Width: | 1.65 mm |
| Color: | Silver |
| Piston diameter: | 39 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 185319 |
| Country and region of manufacture: | China |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston rings + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
