Piston set 41mm 60ccm for Hercules R 50 S
£18.10 *
Content:
1 piece
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 185285
- EAN: 4060861015601
- Manufacturer: Citomerx
- Manufacturer no.: 185285
Hercules R 50 S 1961-1974 more
Product information about Piston set 41mm 60ccm for Hercules R 50 S
Hercules R 50 S 1961-1974
Customers also searched for this product under:
Further links to "Piston set 41mm 60ccm for Hercules R 50 S"
Properties more
| Tuning & Styling Part: | Yes, Yes |
| Cylinder bores: | 41 mm |

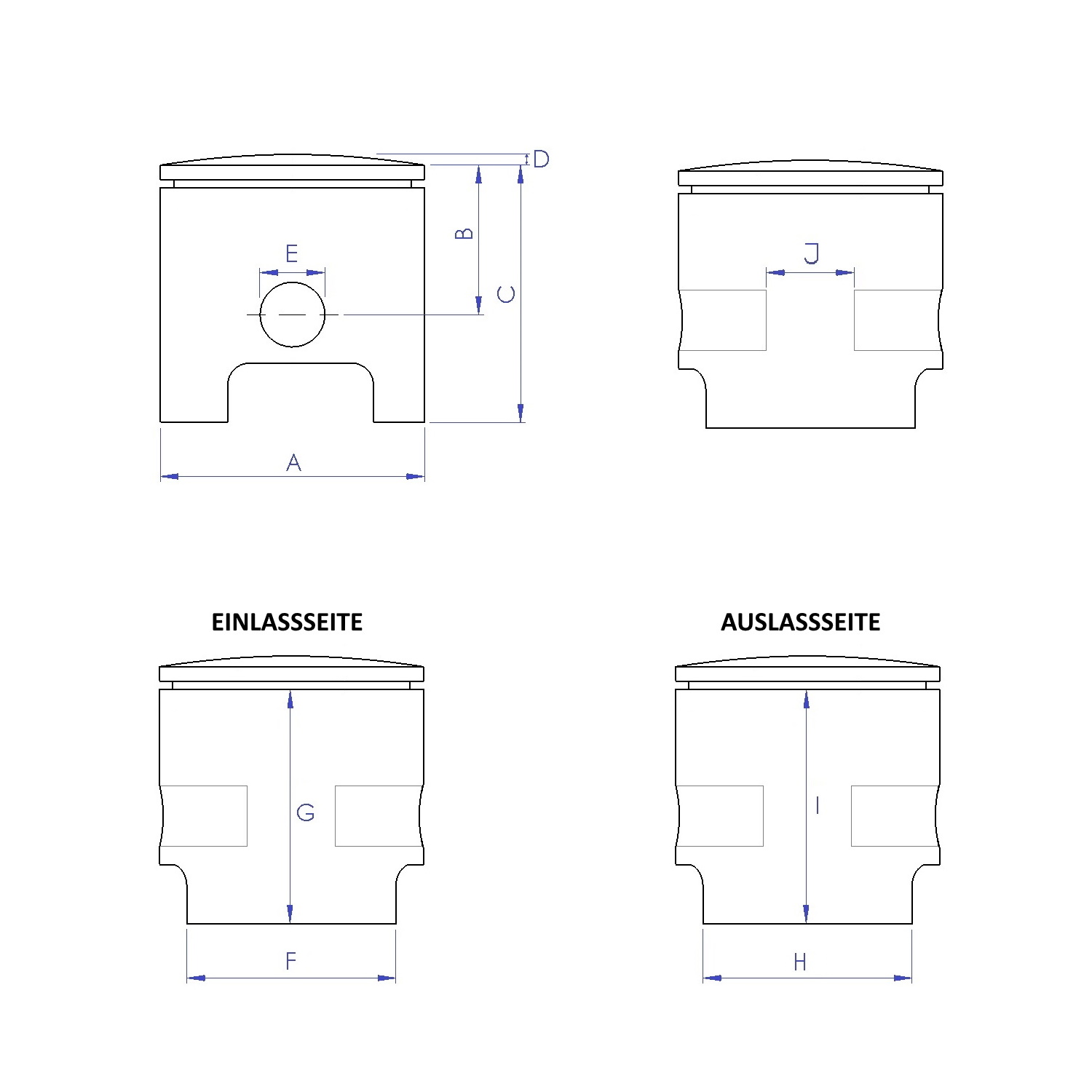

| Dimension F (piston skirt width inlet side): | 34 mm |
| Dimension B (compression height): | 28 mm |
| Dimension D (curvature): | 3 mm |
| Dimension J (max. needle bearing width): | 15 mm |
| Dimension C + D (total height): | 53 mm |
| Piston ring (bottom) Width: | 1.60 mm |
| GTIN: | 4060861015601 |
| Bolt length: | 34 mm |
| Piston ring (top) Profile: | Rectangular ring |
| Dimension A (piston diameter): | 41.00 mm |
| Dimension G (piston skirt length inlet side): | 34 mm |
| Dimension I (piston skirt length outlet side): | 28 mm |
| Piston ring (top) Width: | 1.60 mm |
| Piston ring (top) Dimension: | 41 x 2.0 mm |
| Piston ring (bottom) Dimension: | 41 x 2.0 mm |
| Dimension H (piston skirt width outlet side): | 39.7 mm |
| Vintage part: | Yes, Yes |
| Piston ring (bottom) Profile: | Rectangular ring |
| Piston ring (bottom) Shape: | C (groove for locking pin on the edge) |
| Piston ring (top) Shape: | C (groove for locking pin on the edge) |
| Bolt diameter: | 12 mm |
| Scope of delivery: | Piston, Piston clips, Piston pin, Piston rings |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| Dimension C (piston height): | 50 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Color: | Silver |
| Piston diameter: | 41 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 185285 |
| Country and region of manufacture: | China |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes, Yes |

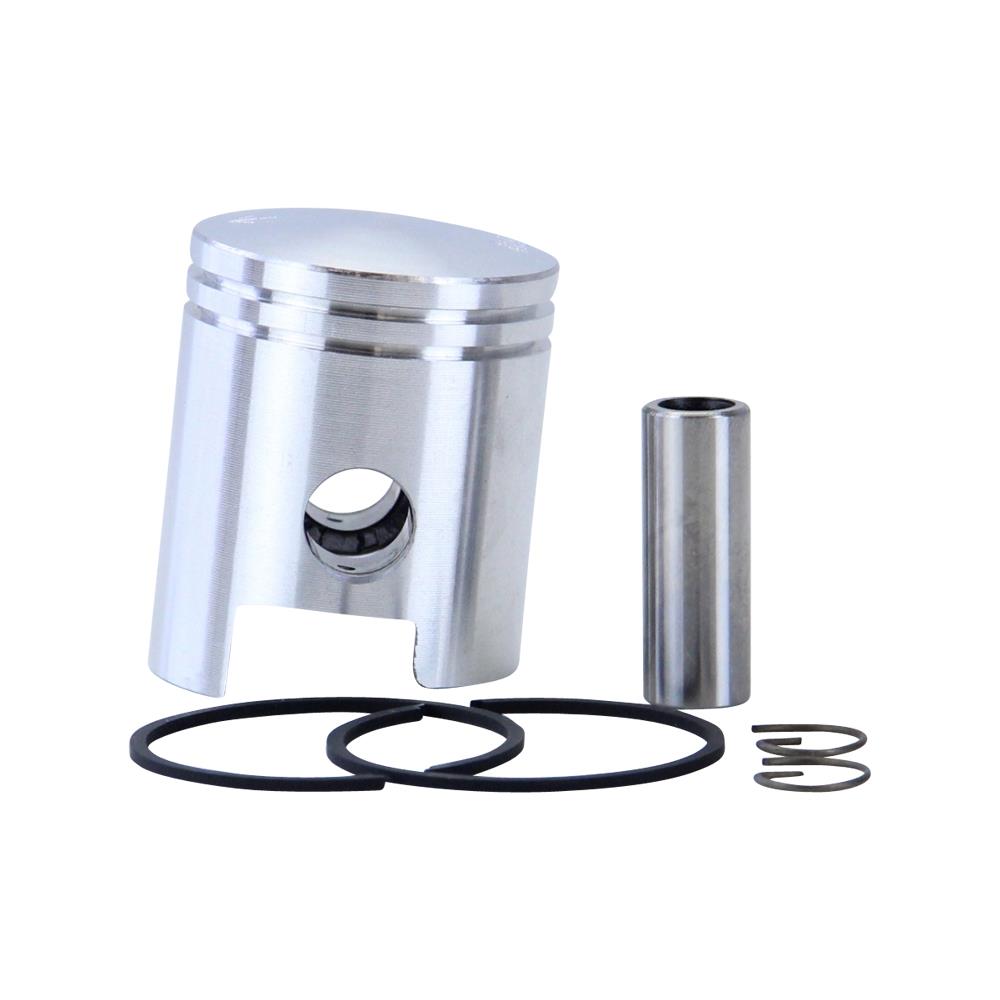

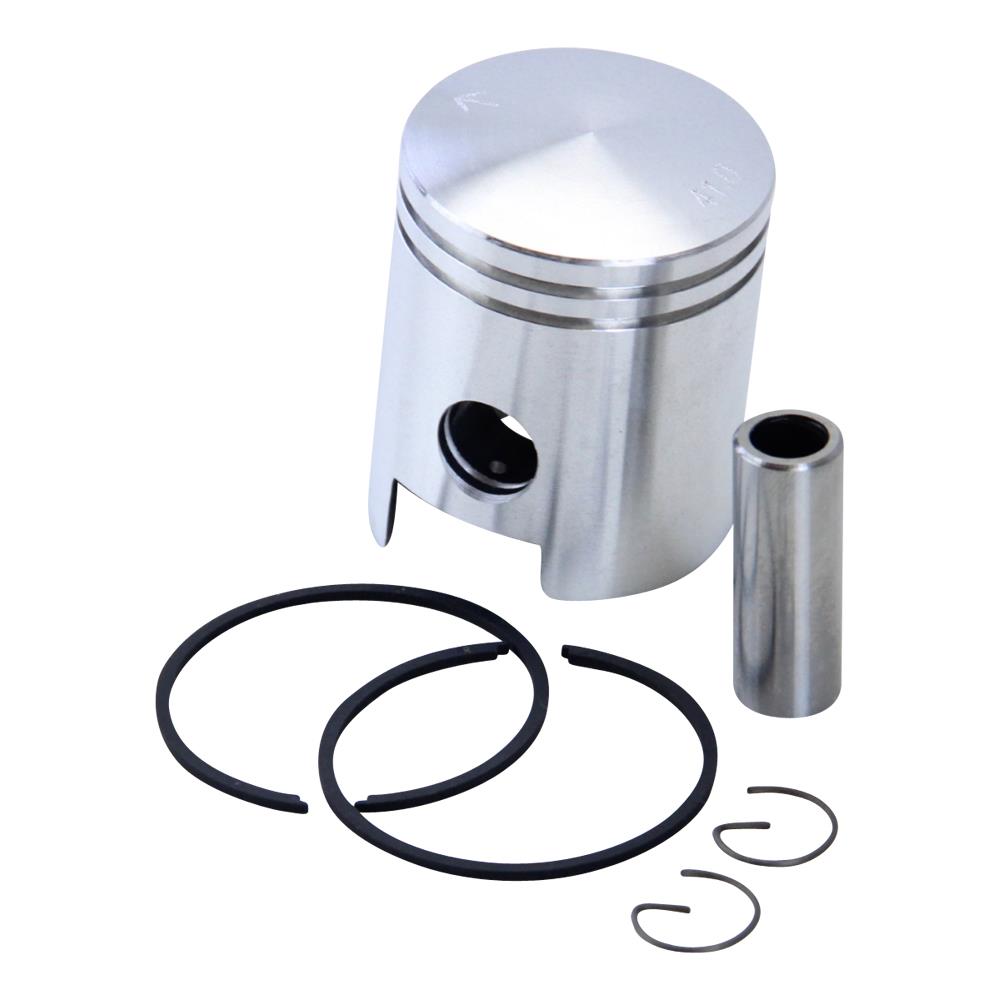

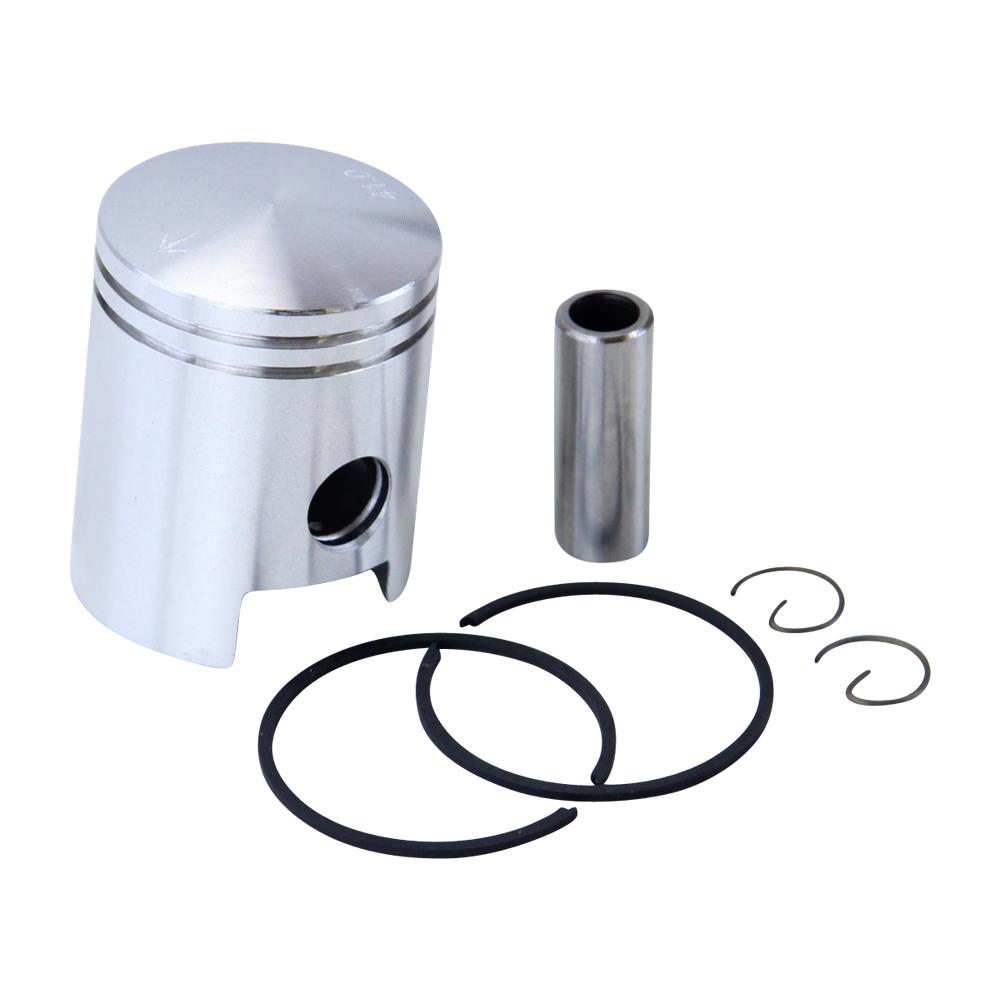

| Description of the package content: | Piston + piston rings + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 60 ccm |
