Piston set 38.955mm Tol. C 50ccm for Zündapp CS Hai ZX X ZL ZS 25 / C GTS R 50 type 448 460 517 529 540 561

Rate

£18.01 *

Content: 1 piece

Prices plus VAT plus shipping costs

Unfortunately, this item is already sold out due to high demand.

Further variants / accessories

Kolben Set 38,945mm Tol. A 50ccm für Zündapp CS Hai ZX X ZL ZS 25 / C GTS R 50 Typ 448 460 517 529 540 561

Kolben Set 38,950mm Tol. B 50ccm für Zündapp CS Hai ZX X ZL ZS 25 / C GTS R 50 Typ 448 460 517 529 540 561

Kolben Set 38,955mm Tol. C 50ccm für Zündapp CS Hai ZX X ZL ZS 25 / C GTS R 50 Typ 448 460 517 529 540 561

Kolben Set 38,960mm Tol. D 50ccm für Zündapp CS Hai ZX X ZL ZS 25 / C GTS R 50 Typ 448 460 517 529 540 561

Kolben Set 38,965mm Tol. E 50ccm für Zündapp CS Hai ZX X ZL ZS 25 / C GTS R 50 Typ 448 460 517 529 540 561

Kolben Set 38,970mm Tol. F 50ccm für Zündapp CS Hai ZX X ZL ZS 25 / C GTS R 50 Typ 448 460 517 529 540 561

Item no: 278-02.729-C
EAN: 4060861015526
Manufacturer: Citomerx
Manufacturer no.: 185277

ZD 40 type 446-300 ZD 20 type 446-400 ZD 25 type 446-420 ZD 50 type 446-422 CS 50 type 448-010 CS... more

Close menu

ZD 40 type 446-300 ZD 20 type 446-400 ZD 25 type 446-420 ZD 50 type 446-422 CS 50 type 448-010 CS 50 type 448-011 CS 50 type 448-013 Hai 50 type 448-110 Hai 50 Type 448-111 CS 25 Type 448-140 CS 25 Type 448-141 Hai 25 Type 448-150 CX 25 Type 448-151 Sprinter Type 448-051 Hai 50 Type 448-160 ZX 25 Type 460-010 ZX 25 Type 460- 013 Engine type 278-01L3 (from engine no. 3730133) C 50 Sport type 517-21L0 Engine type 278-25L0 (from engine no. 3730133) C 50 Sport type 529-010 GTS 50 type 529-020 GTS 50 type 529-022 GTS 50 type 529-023 GTS 50 type 529-024 GTS 50 type 529-026 GTS 50 type 529-028 GTS 50 type 529-029 GTS 50 type 540-120 KS 50 type 540-121 CS 50 type 540-190 R 50 Type 561-051 R 50 Type 561-052

Product type:	Piston set
Dimension B (compression height):	26.5 mm
Dimension I (piston skirt length outlet side):	47 mm
Piston ring dimension:	39 x 1.5 mm
Tuning & Styling Part:	No
Piston ring profile:	Rectangular ring
Vintage part:	Yes
Cylinder bores:	39 mm
Dimension C (piston height):	50.5 mm
Dimension J (max. needle bearing width):	15.5 mm
Dimension C + D (total height):	52 mm
Dimension G (piston skirt length inlet side):	47 mm
OE/OEM reference number(s):	278-02.757, 278-02.729, 248-02.703
GTIN:	4060861015526
Dimension A (piston diameter):	38.955 mm
Bolt diameter:	12 mm
Dimension D (curvature):	1.5 mm

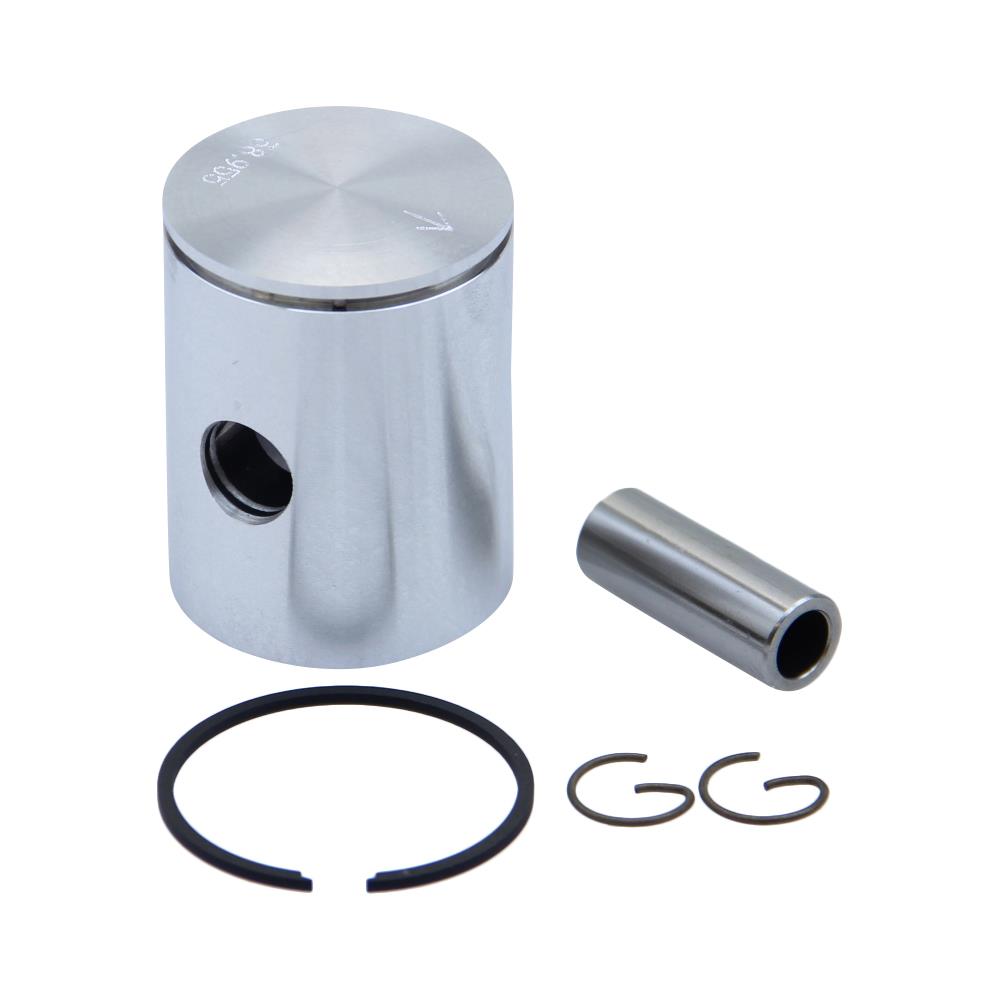

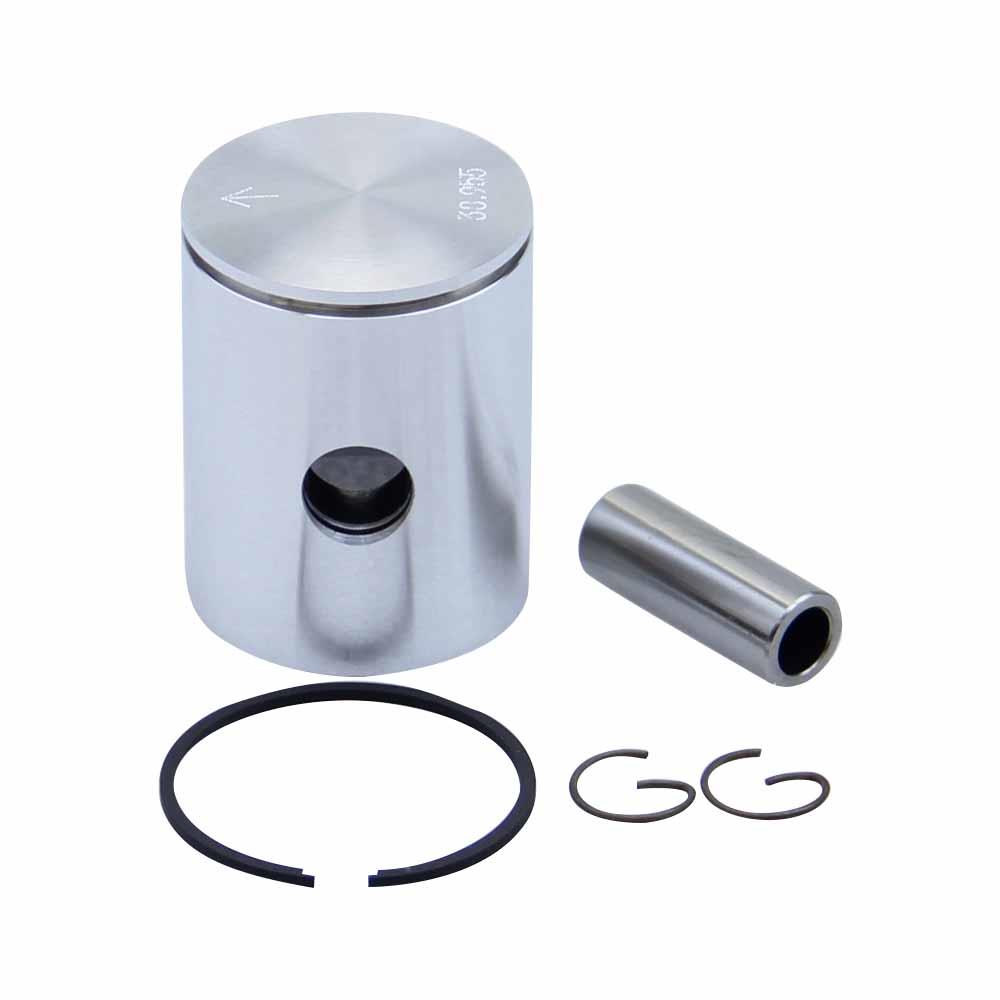

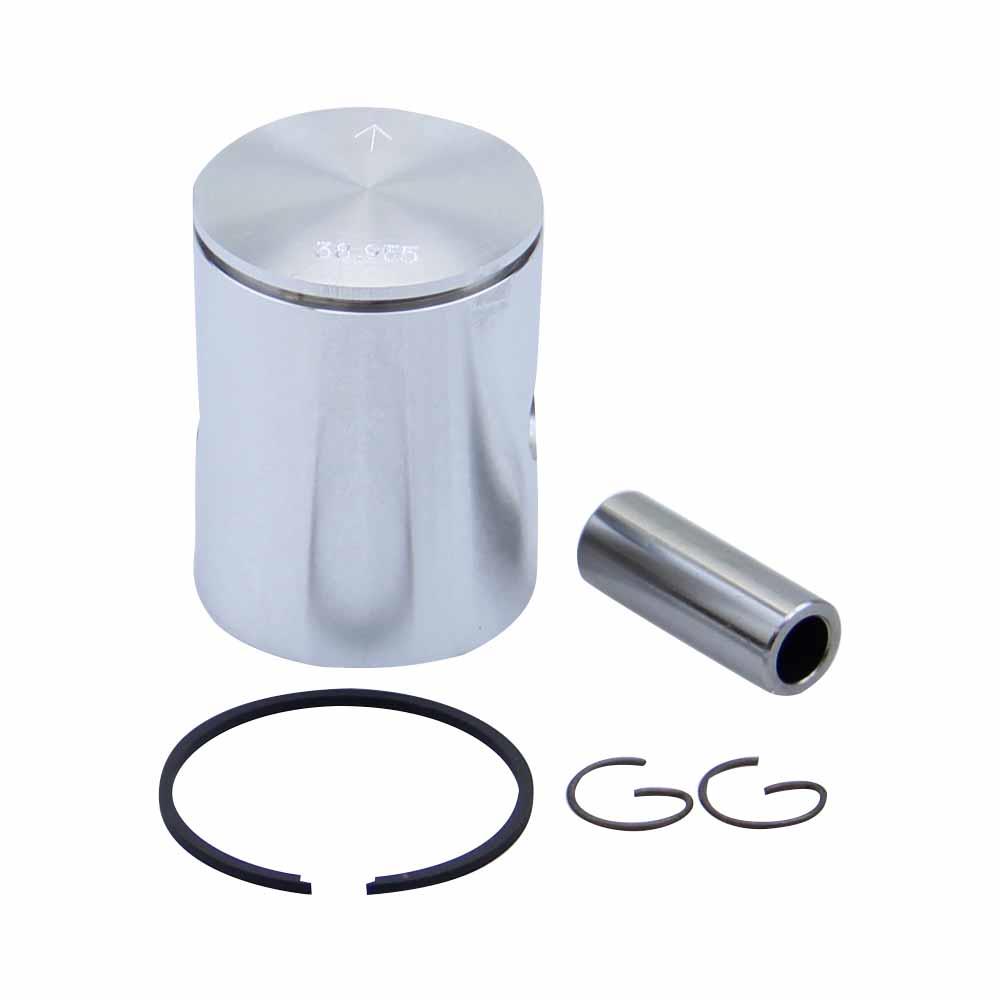

Scope of delivery:	Piston ring, Piston clips, Piston pin, Piston
Bolt length:	31 mm
Piston ring width:	1.65 mm
Dimension E (piston pin diameter):	12 mm
Tolerance size:	C (38.955mm)
Piston ring shape:	B (groove for center locking pin)
Color:	Silver
Piston diameter:	39 mm
Engine type:	2-stroke
Scope of delivery:	1x piston set
Manufacturer number:	185277
Country and region of manufacture:	Sweden
Type of motorcycle:	Moped & Mokick
Offer package:	Yes
Description of the package content:	Piston + piston ring + piston pin + piston clips
Manufacturer warranty:	2 years
Weight:	0.085 kg
Material:	Aluminum alloy
suitable for:	50 cc
