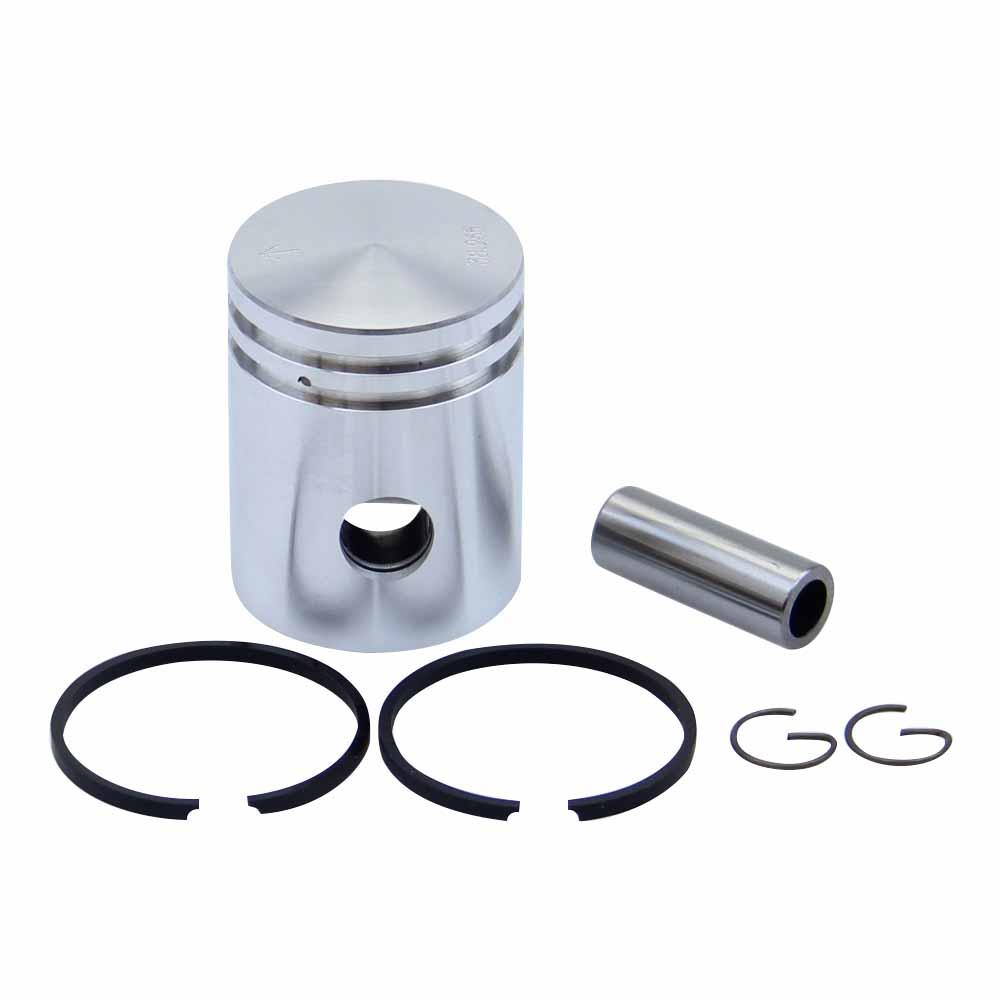

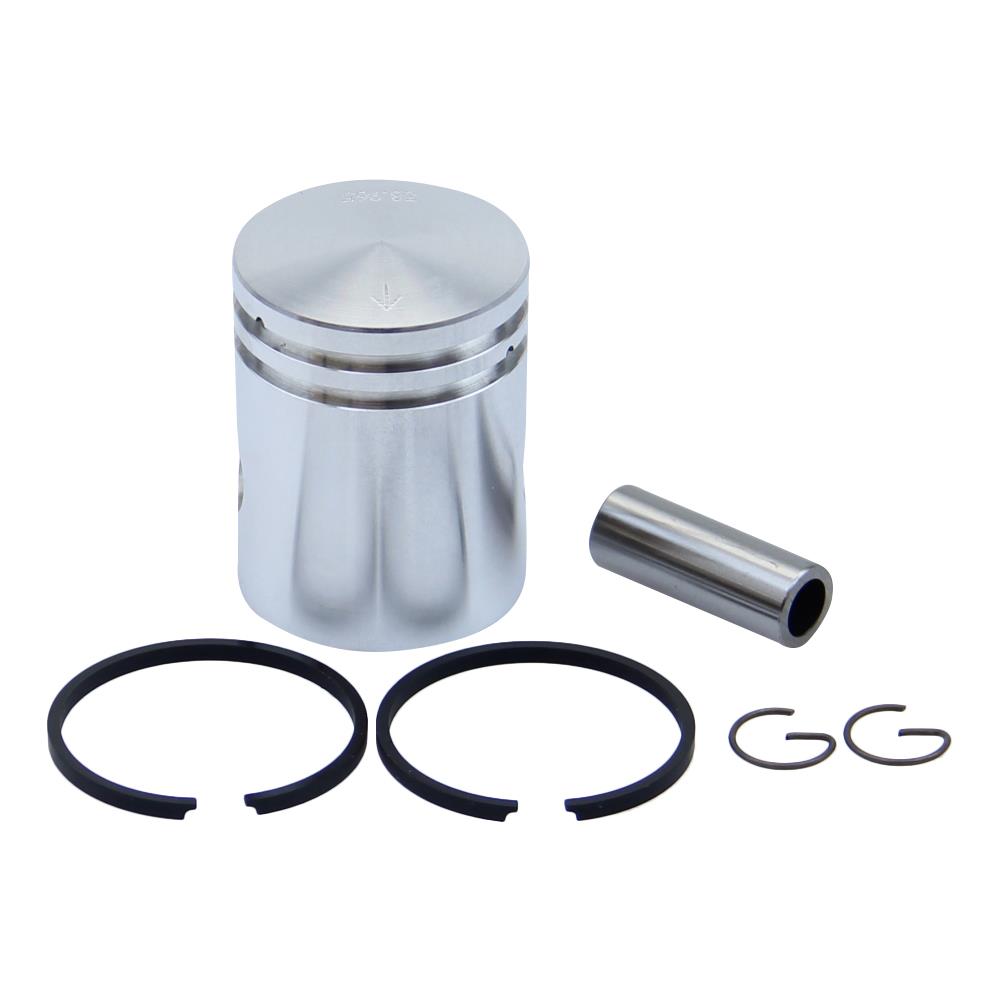

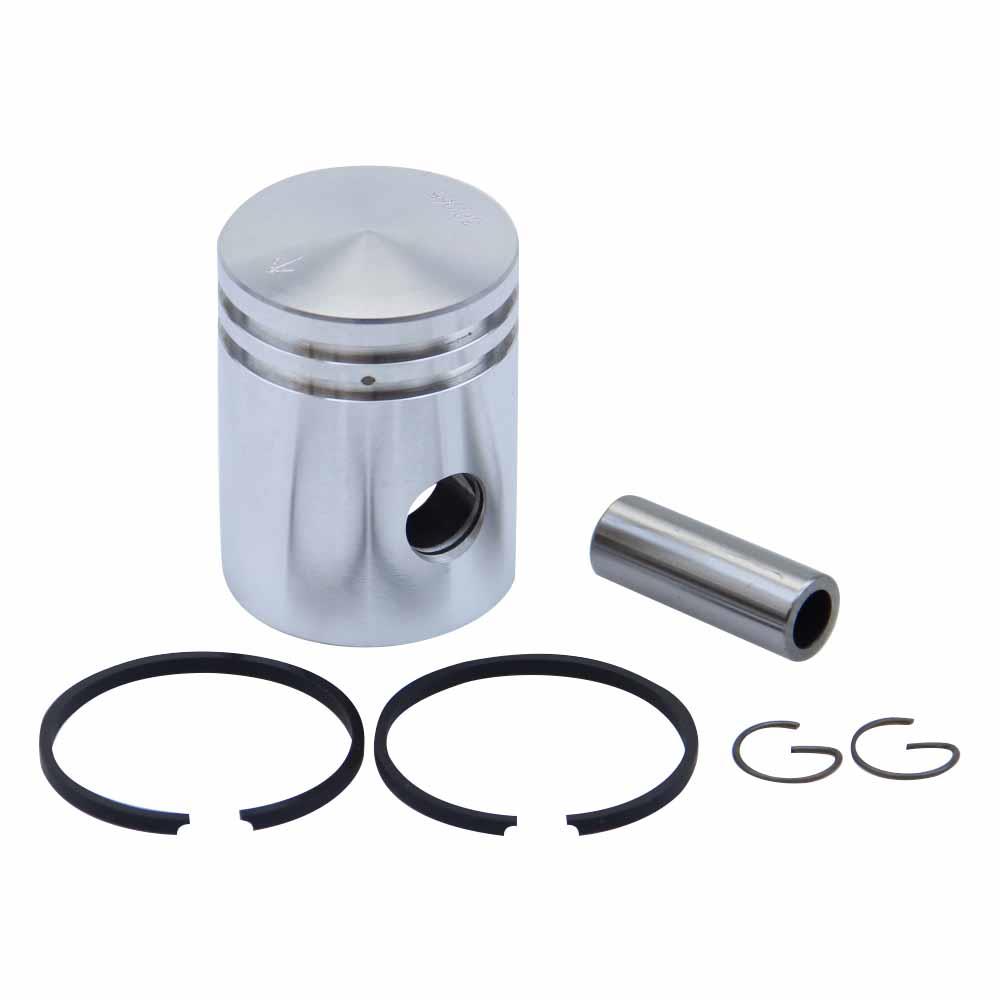

Piston set 38.965mm Tol. E 50ccm for Zündapp Sport Super Combinette Falconette type 423 425 428 433 435 510 515 517

Bewerten

£18.26 *

Content: 1 piece

Prices plus VAT plus shipping costs

Delivery time on request

Further variants / accessories

Kolben Set 38,945mm Tol. A 50ccm für Zündapp Sport Super Combinette Falconette Typ 423 425 428 433 435 510 515 517

Kolben Set 38,950mm Tol. B 50ccm für Zündapp Sport Super Combinette Falconette Typ 423 425 428 433 435 510 515 517

Kolben Set 38,955mm Tol. C 50ccm für Zündapp Sport Super Combinette Falconette Typ 423 425 428 433 435 510 515 517

Kolben Set 38,960mm Tol. D 50ccm für Zündapp Sport Super Combinette Falconette Typ 423 425 428 433 435 510 515 517

Kolben Set 38,965mm Tol. E 50ccm für Zündapp Sport Super Combinette Falconette Typ 423 425 428 433 435 510 515 517

Item no: 265-02.700-E
EAN: 4060861015465
Manufacturer: Citomerx
Manufacturer no.: 185271
Height: 53 cm
Width: 53 cm

Combimot Type 266 Combinette S Type 423 Falconette Type 425 Combinette Type 428 Super Combinette... more

Close menu

Combimot Type 266 Combinette S Type 423 Falconette Type 425 Combinette Type 428 Super Combinette Type 433 Falconette Type 435 Engine Type 267-06 Falconette Type 435 Engine Type 267-00 Falconette Type 435 Engine Type 267-07 Falconette Type 435 Engine Type 267-20 Falconette Type 435 Engine Type 267-24 Super Combinette Type 510-101 Super Combinette Type 515-006 Sport Combinette Type 515-041 Sport Combinette Type 517-02L1 Engine Type 278-01L0 (up to engine no. 3702367) C 50 Sport Type 517-02L5 Engine Type 278-01L0 (up to Engine No. 3702367) C 50 Super Type 517-05L9 Engine Type 266-50L1 (up to Engine No. 3730132) Super Combinette Type 517-05L2 Engine Type 266-50L1 Super Combinette Type 517-08L0 Engine Type 266-52L0 Super Combinette Type 517-10L0 Engine Type 278-03L0

Customers also searched for this product under:

Further links to "Piston set 38.965mm Tol. E 50ccm for Zündapp Sport Super Combinette Falconette type 423 425 428 433 435 510 515 517"

Properties more

zurück

Tolerance size:	E (38.965mm)
Piston ring (top) Shape:	C (groove for locking pin on the edge)
OE/OEM reference number(s):	265-02.700, 265-02.710
Dimension B (compression height):	32 mm
Dimension C (piston height):	50 mm
Dimension C + D (total height):	51.5 mm
Dimension G (piston skirt length inlet side):	38 mm
Dimension I (piston skirt length outlet side):	38 mm
Piston ring (top) Width:	1.7 mm
Piston ring (top) Dimension:	39 x 2.5 mm
Dimension E (piston pin diameter):	12 mm
Piston ring (top) Profile:	Rectangular ring
Piston ring (bottom) Width:	1.7 mm
Piston ring (bottom) Shape:	C (groove for locking pin on the edge)
Piston ring (bottom) Dimension:	39 x 2.5 mm
Piston ring (bottom) Profile:	Rectangular ring
Dimension A (piston diameter):	38.965 mm
GTIN:	4060861015465
Dimension J (max. needle bearing width):	15.5 mm
Dimension D (curvature):	1.5 mm
Bolt diameter:	12 mm
Tuning & Styling Part:	No
Vintage part:	Yes
Scope of delivery:	Piston, Piston clips, Piston pin, Piston rings
Cylinder bores:	39 mm
Bolt length:	32 mm
Color:	Silver
Piston diameter:	39 mm
Engine type:	2-stroke
Scope of delivery:	1x piston set
Manufacturer number:	185271
Country and region of manufacture:	Sweden
Product type:	Piston set
Type of motorcycle:	Moped & Mokick
Offer package:	Yes
Description of the package content:	Piston + piston rings + piston pin + piston clips
Manufacturer warranty:	2 years
Weight:	0.091 kg
Material:	Aluminum alloy
suitable for:	50 cc
