Inspection set Hercules Prima 2 4 gasket air filter 16mm spark plug NGK B6HS carburetor gaskets Sachs 504/1 505/1
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Further variants / accessories
- Item no: 166421
- EAN: 4251048896285
- Manufacturer: Citomerx
- Manufacturer no.: 166421
Quality brand Hercules! And if something breaks anyway, we have the right spare part!
The Hercules works belonged to the Nuremberg motorcycle industry in the 1920s. The company founded by Carl Marschütz grew quickly and established itself in the market. Since the company was founded, third-party motors have been installed in the production of light motorcycles up to 200 ccm³. The main focus here was on the Fichtel & Sachs engines built in Schweinfurt.
With this set, the inspection of your Sachs 504 or 505 automatic engine is no problem. It contains all spare parts that should be replaced regularly to prevent major repairs or, in the worst case, damage to the engine. On the one hand, the fuel and air supply is completely renewed. The set includes two new carburettor gaskets, a new fuel filter, a one meter fuel hose and a new air filter. On the other hand, the spark plug and the spark plug connector can be replaced. Furthermore, this inspection set contains a new clutch cover gasket, a new oil control screw and the right automatic transmission oil for your engine. The included brake cleaner is used to clean the engine from the outside.
The right spare part is just a click away!
Technical specifications:
- Fuel hose 5mm
- Universal plastic fuel filter
- Oil control screw: M14x1
- Clutch cover gasket: paper
- Spark plug connector: "Classic" // suppressed with 5 kOhm
- Spark plug connector: 90° angled // Color black-silver
- Spark plug: Type NGK B6HS // wrench size SW21
- Spark plug: thread M14 // electrode gap 0.7mm
- Air filter insert passage: 16mm
- Brake cleaner 500ml
- Transmission oil ATF-A 250ml
- Carburetor cover and float chamber gasket for Bing type 85/10/, 85/12/ and 85/13/

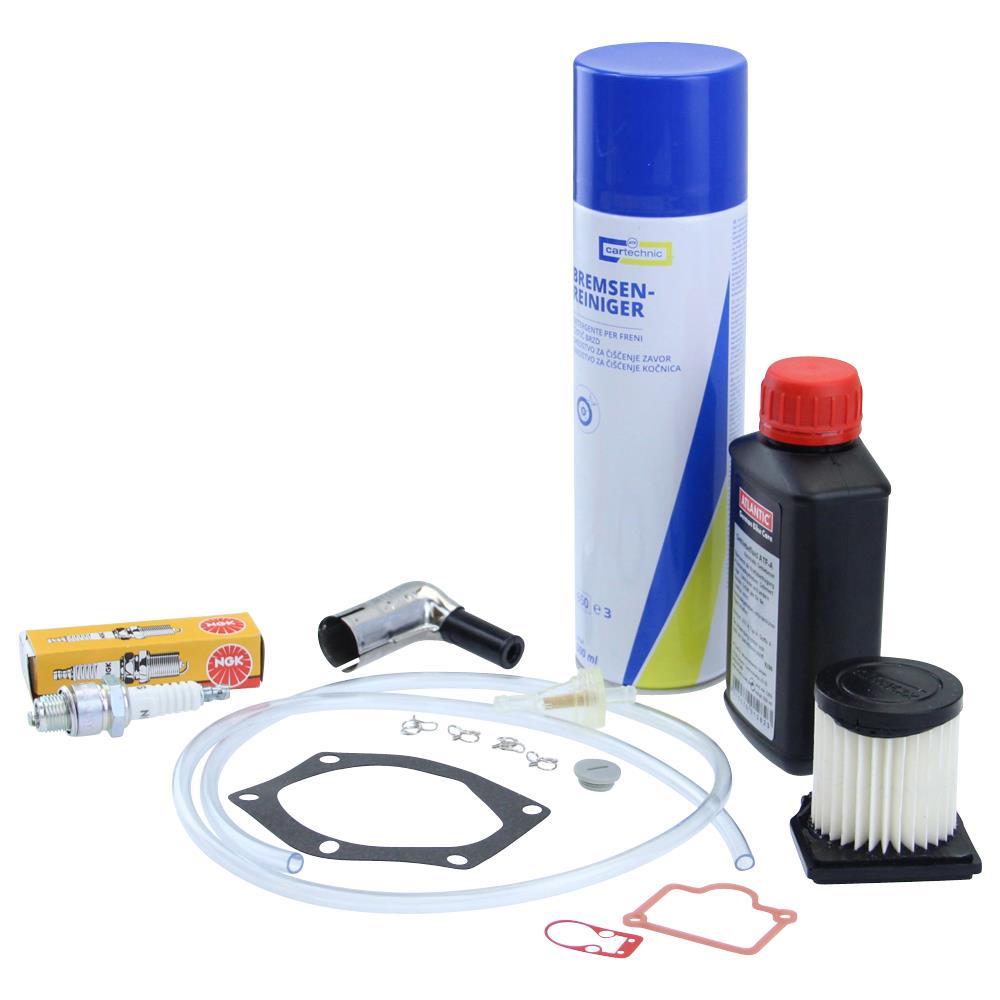

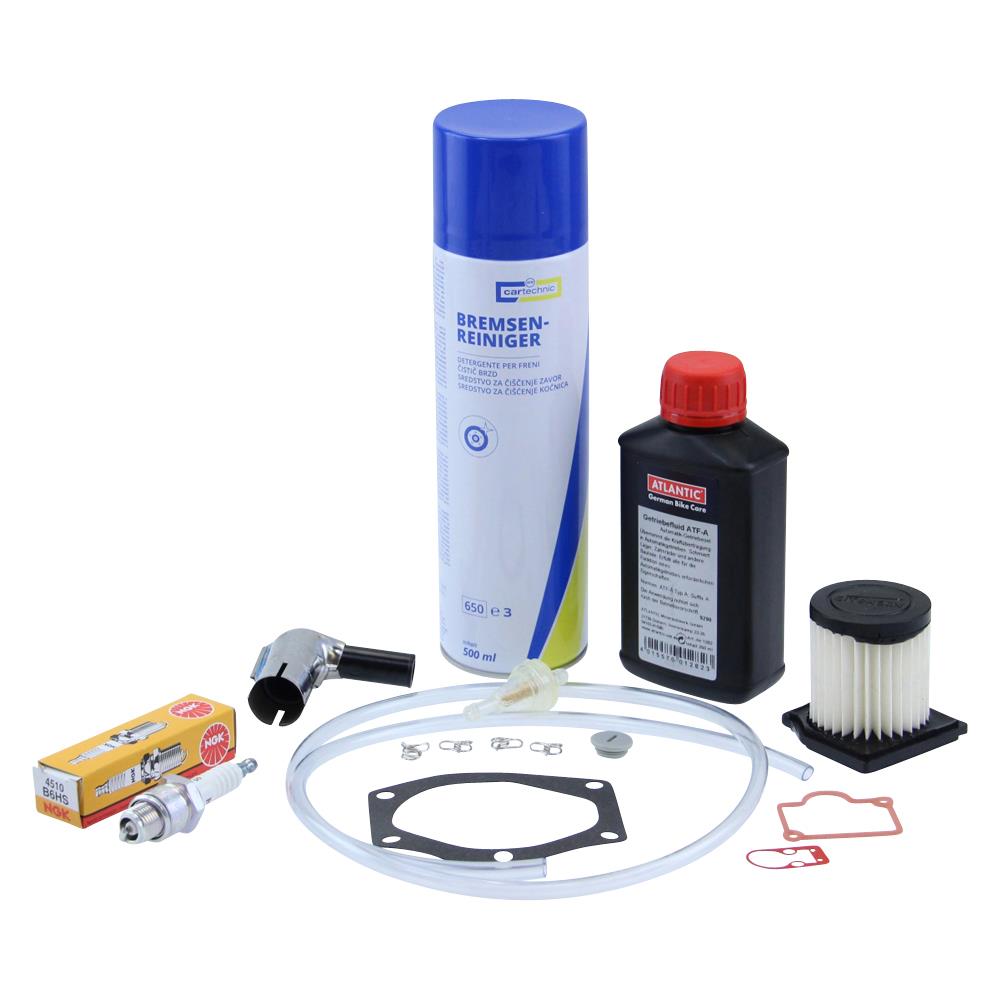

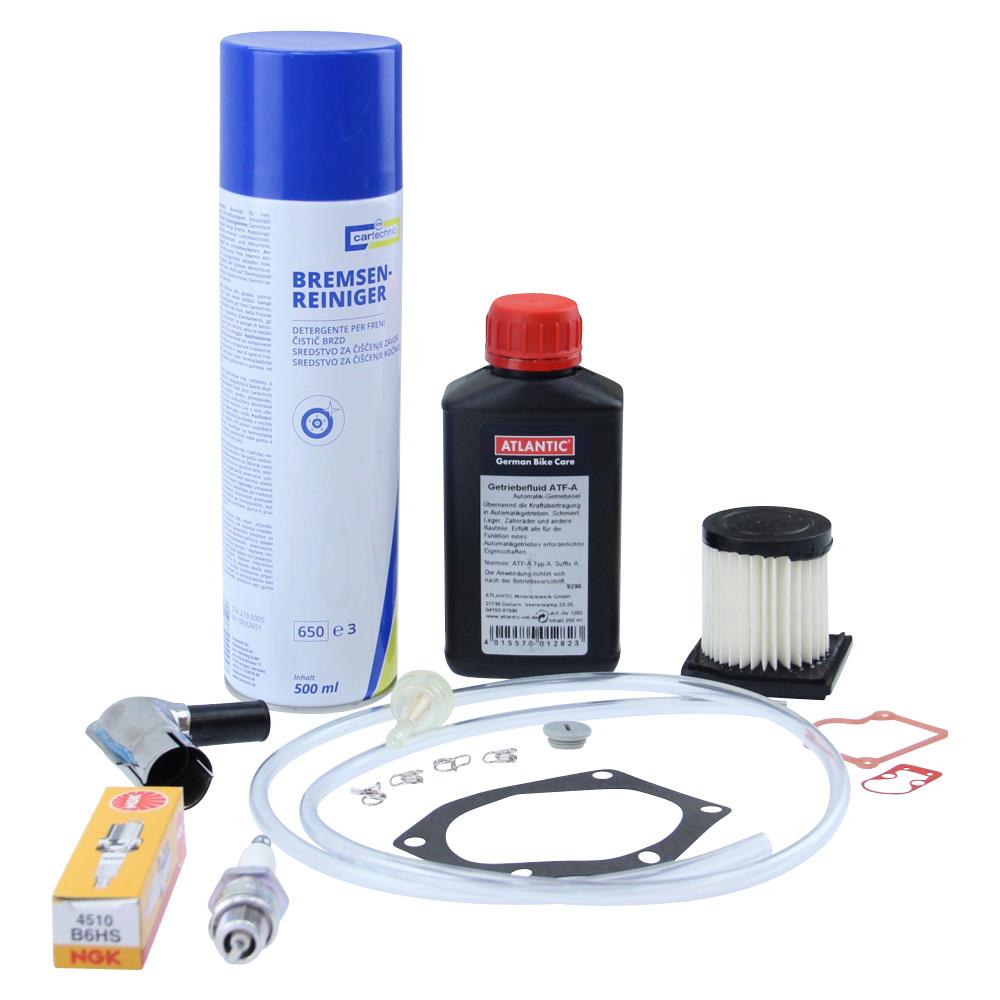

Scope of delivery:
- 1x fuel hose
- 1x fuel filter
- 4x hose clamps
- 1x oil screw
- 1x clutch cover gasket
- 1x spark plug cap "classic"
- 1x spark plug NGK B6HS
- 1x air filter insert 16mm
- 1x brake cleaner
- 1x gear oil ATF-A 250ml
- 1x float chamber seal
- 1x carburetor cover gasket
