Parmakit piston set 40mm Tol. A 50ccm (Kobo 14mm) SHORT HUB for Hercules K50 RLC Ultra LC Sachs 50/6A 50SW
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 64400.02A
- EAN: 4251048885579
- Manufacturer: Parmakit
- Manufacturer no.: 64400.02A
Hercules K 50 R LC (1977-1978)
Hercules K 50 R LC (1979-1980)
Hercules K 50 Ultra LC (1977)
Hercules K 50 Ultra LC (1978 -1979)
Hercules K 50 Ultra II LC (1979-1980)
Hercules K 50 Ultra III LC (1980)
Hercules Ultra 50 LC (1981)
Hercules Ultra 50 LC (1982-1983)
Hercules Ultra RS 50 LC (1982-1983)
Sachs 50/6 A GS
Sachs 50SW
| Product type: | Piston set |

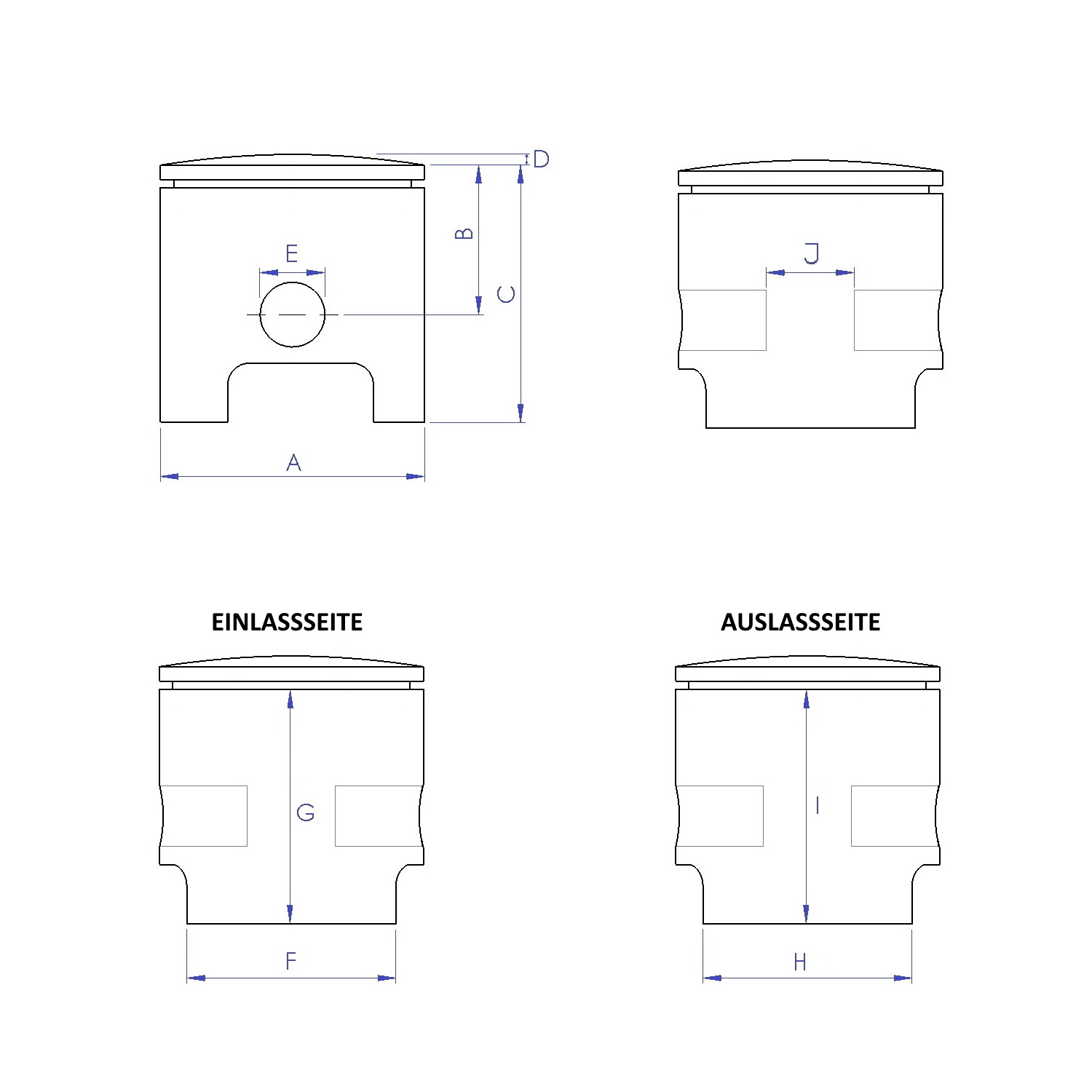

| Dimension B (compression height): | 28 mm |
| Dimension F (piston skirt width inlet side): | 34.5 mm |
| Dimension I (piston skirt length outlet side): | 45.5 mm |
| Piston ring dimension: | 40 x 1.5 mm |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Rectangle |
| Vintage part: | Yes |
| Cylinder bores: | 40 mm |
| Dimension C (piston height): | 49 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Dimension C + D (total height): | 51 mm |
| Dimension G (piston skirt length inlet side): | 45.5 mm |
| OE/OEM reference number(s): | Parmakit 64400.02A |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4251048885579 |
| Dimension A (piston diameter): | 39.xx mm |
| Bolt diameter: | 12 mm |
| Dimension D (curvature): | 2 mm |
| Note: | With two 5 mm piston window bores! |
| Dimension H (piston skirt width outlet side): | 32.5 mm |

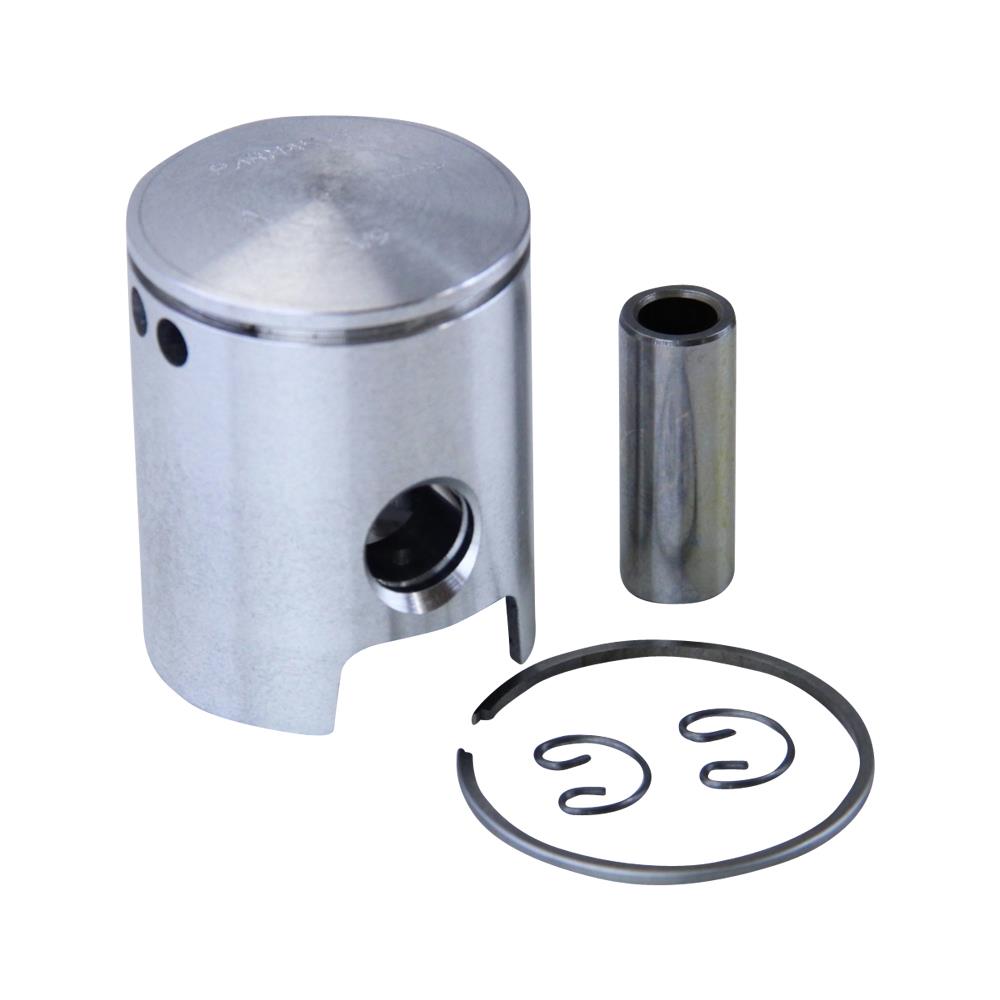

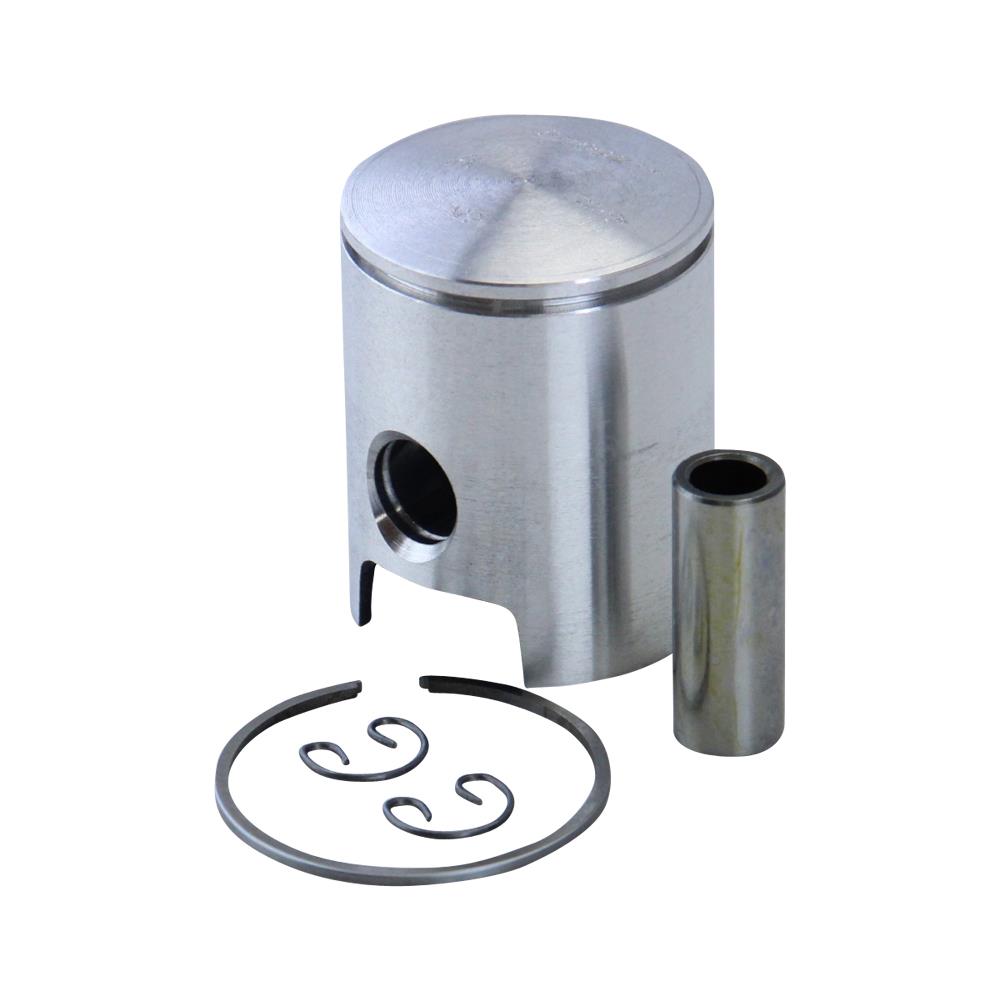

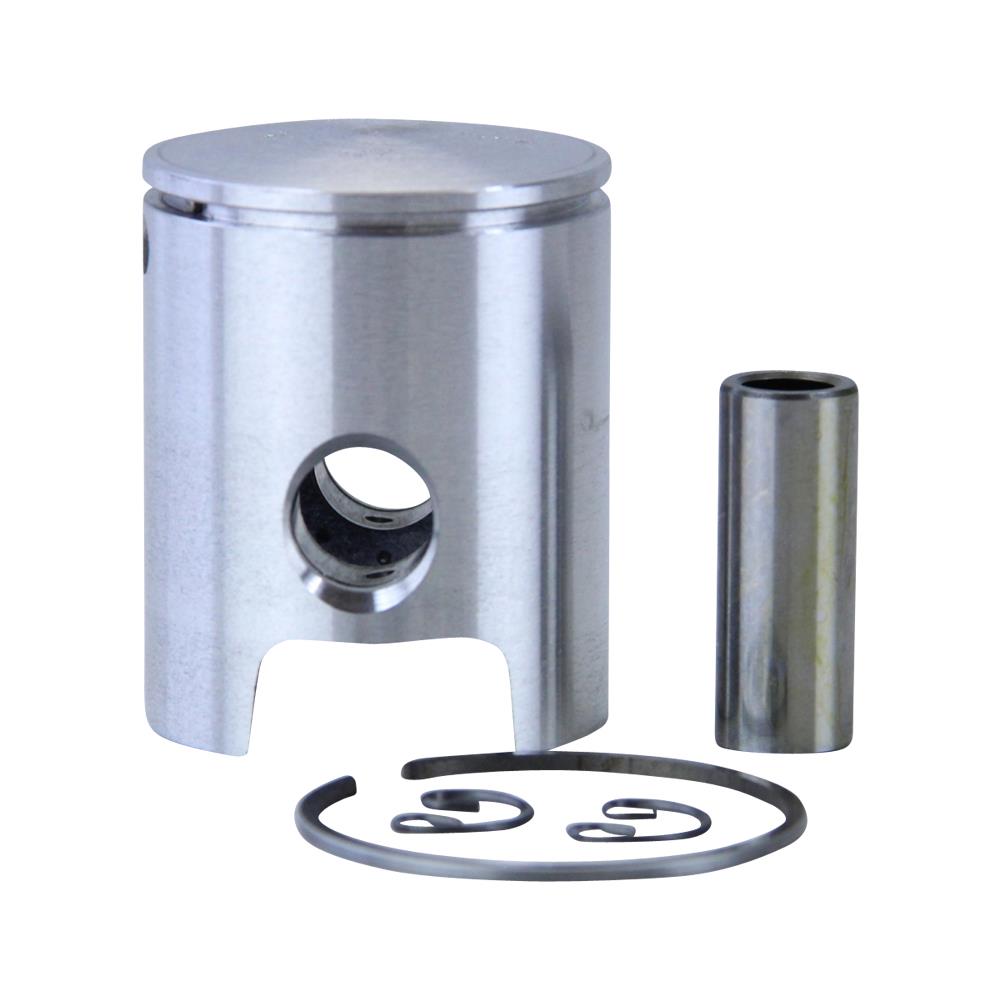

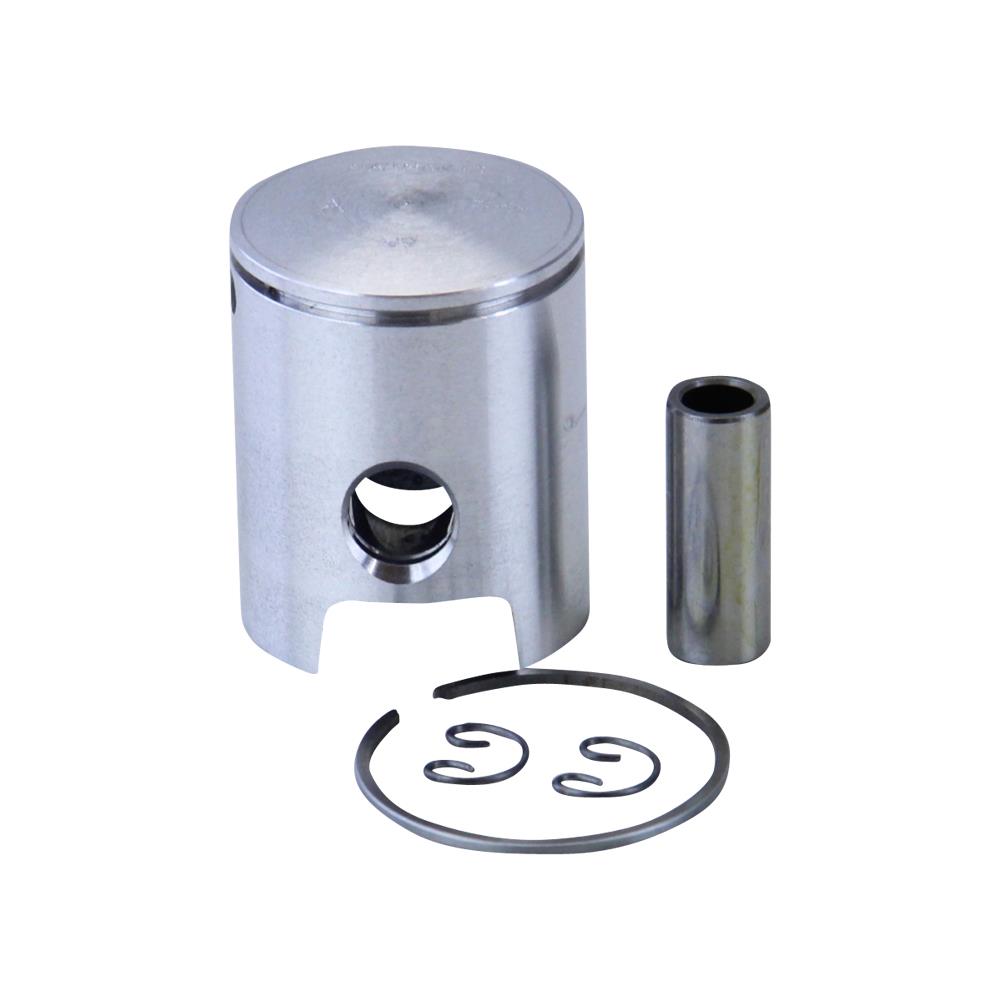

| Scope of delivery: | Piston ring, Piston pin, Piston, Piston clips |
| Bolt length: | 31.5 mm |
| Piston ring width: | 1.65 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Tolerance size: | A |
| Piston ring shape: | B (groove for center locking pin) |
| Color: | Silver |
| Piston diameter: | 40 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 64400.02A |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
