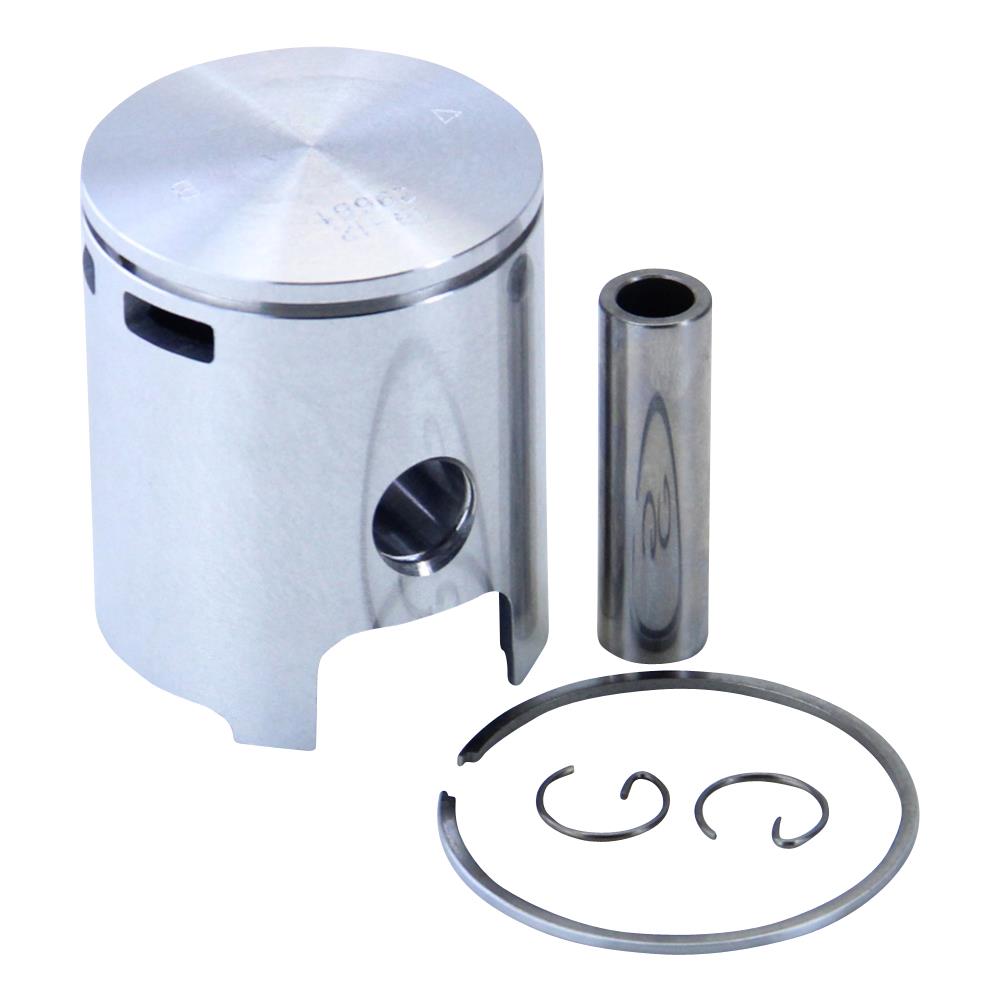

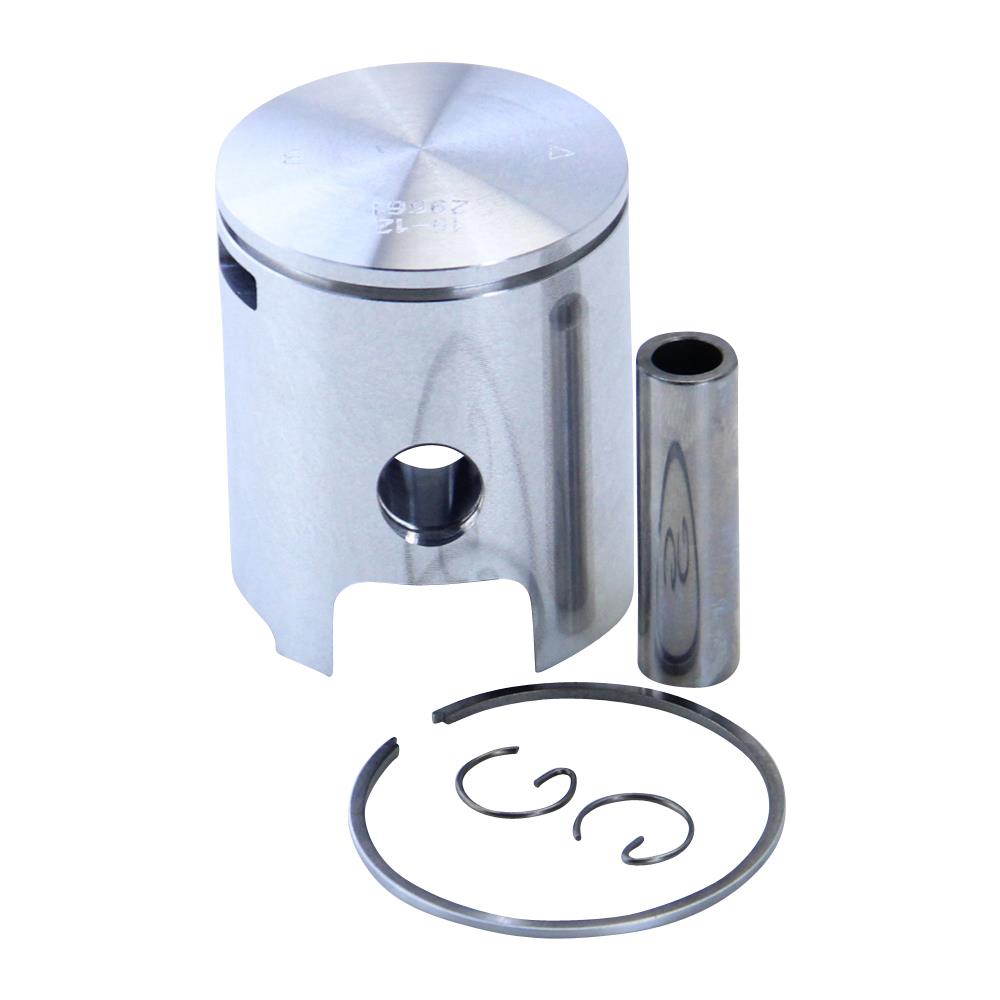

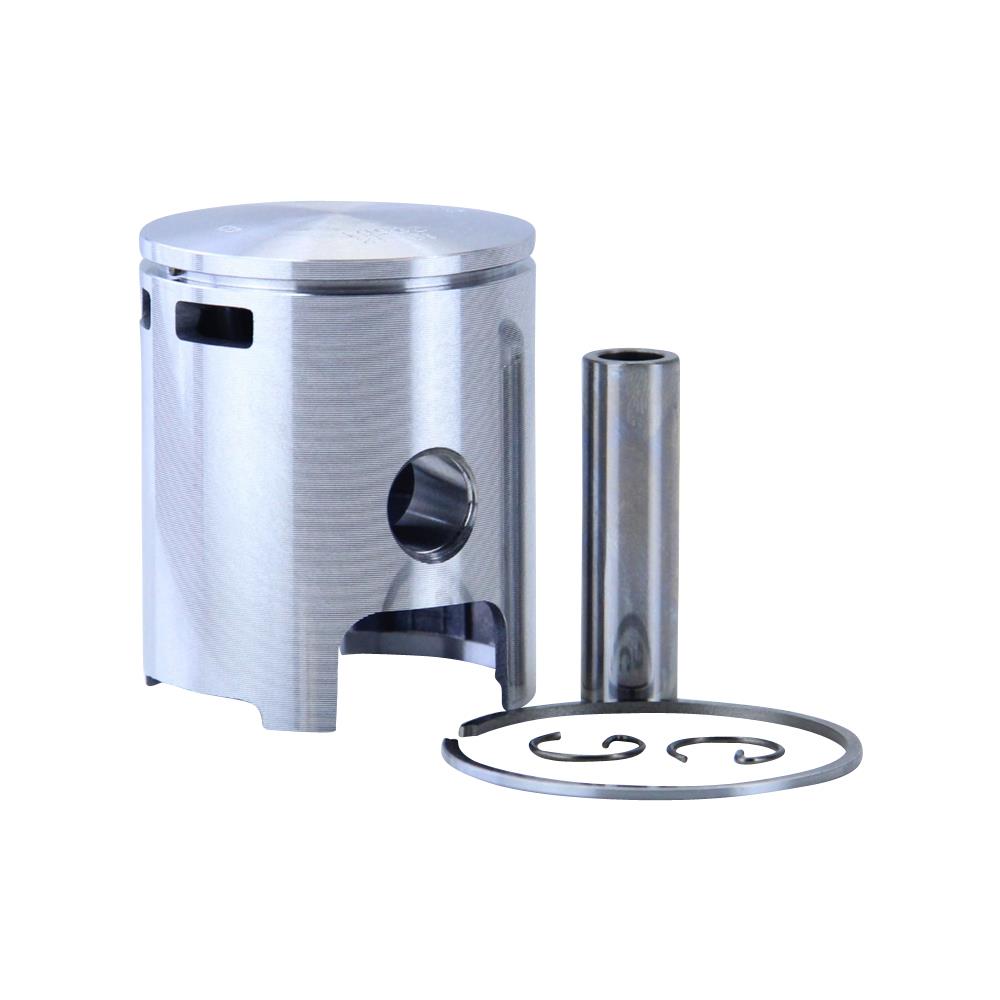

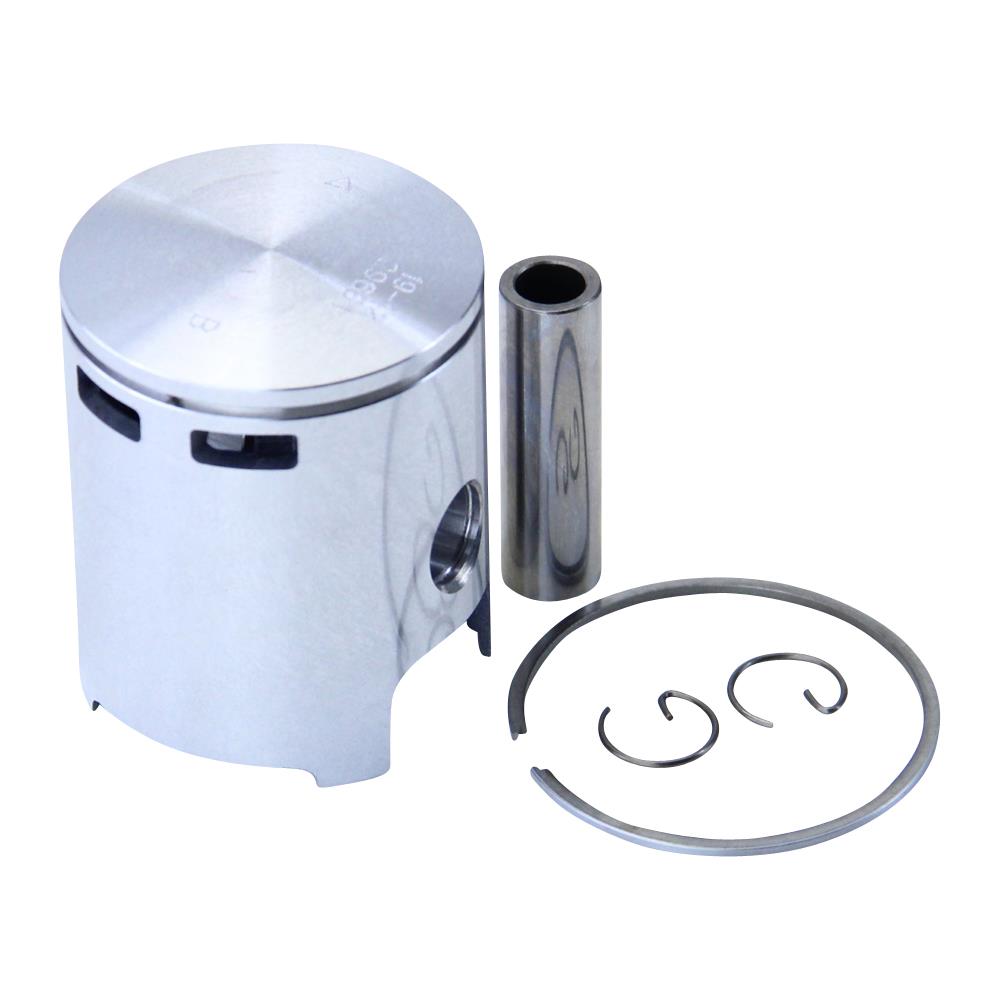

Athena piston set 48mm Tol. B 80ccm for Hercules Prima M 2 3 4 5 Optima Jogging Hobbyrider / Sachs 504 505

£45.19 *
Content: 1 piece

Prices plus VAT plus shipping costs

IN STOCK - Delivery time 1-3 working days

Only a few left!

3 Jahre Verschleiß-Plus-Garantie für Artikel 073602
Jetzt 3 Jahre zusätzliche Garantie sichern.   » Details
£1.90*
  • 073602.B
  • 4251048883902
  • Athena
  • 073602.B / S4C04800005B
Product information about Athena piston set 48mm Tol. B 80ccm for Hercules Prima M 2 3 4 5 Optima Jogging Hobbyrider / Sachs 504 505
Properties
Product type: Piston set
Dimension B (compression height): 30 mm
Dimension F (piston skirt width inlet side): 41.7 mm
Dimension I (piston skirt length outlet side): 53 mm
Piston ring dimension: 48 x 1.5 mm
Tuning & Styling Part: Yes
Piston ring profile: Rectangular ring
Vintage part: Yes
Cylinder bores: 48 mm
Dimension C (piston height): 57 mm
Dimension J (max. needle bearing width): 15.5 mm
Dimension C + D (total height): 58.5 mm
Dimension G (piston skirt length inlet side): 49.3 mm
OE/OEM reference number(s): [Athena 073602.B", "Athena S4C04800005B"]
ATTENTION!: TUNING: Not permitted in the area of the StVZO!
GTIN: 4251048883902
Dimension A (piston diameter): 47.96 mm
Bolt diameter: 12 mm
Dimension D (curvature): 1.5 mm
Note: Piston ring chrome-plated / With two 4.5x11mm piston window bores
Dimension H (piston skirt width outlet side): 42 mm
Scope of delivery: Piston ring, Piston pin, Piston, Piston clips
Bolt length: 42 mm
Piston ring width: 2.00 mm
Dimension E (piston pin diameter): 12 mm
Tolerance size: B (47.96mm)
Piston ring shape: B (groove for center locking pin)
Color: Silver
Piston diameter: 48 mm
Engine type: 2-stroke
Scope of delivery: 1x piston set
Manufacturer number: 073602.B / S4C04800005B
Country and region of manufacture: Italy
Type of motorcycle: Moped & Mokick
Offer package: Yes
Description of the package content: Piston + piston ring + piston pin + piston clips
Manufacturer warranty: 2 years
Material: Aluminum alloy
suitable for: 80 ccm
