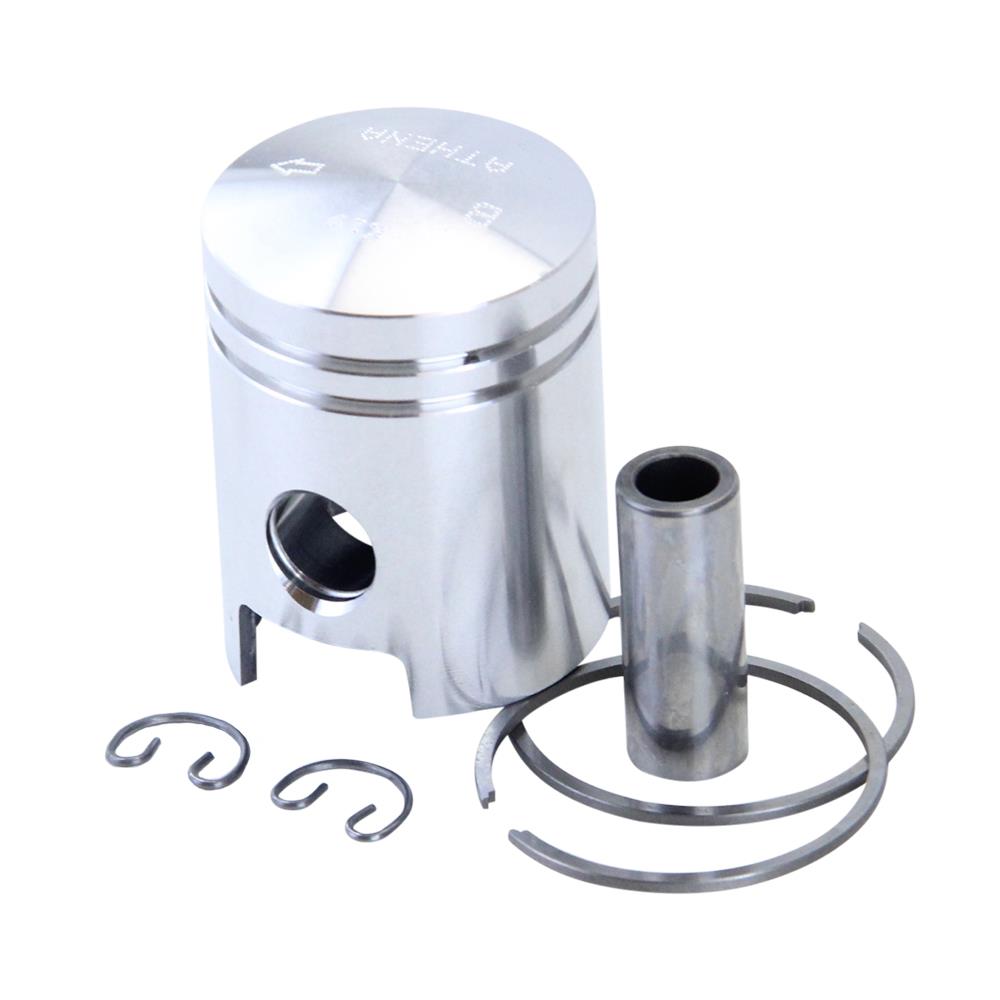

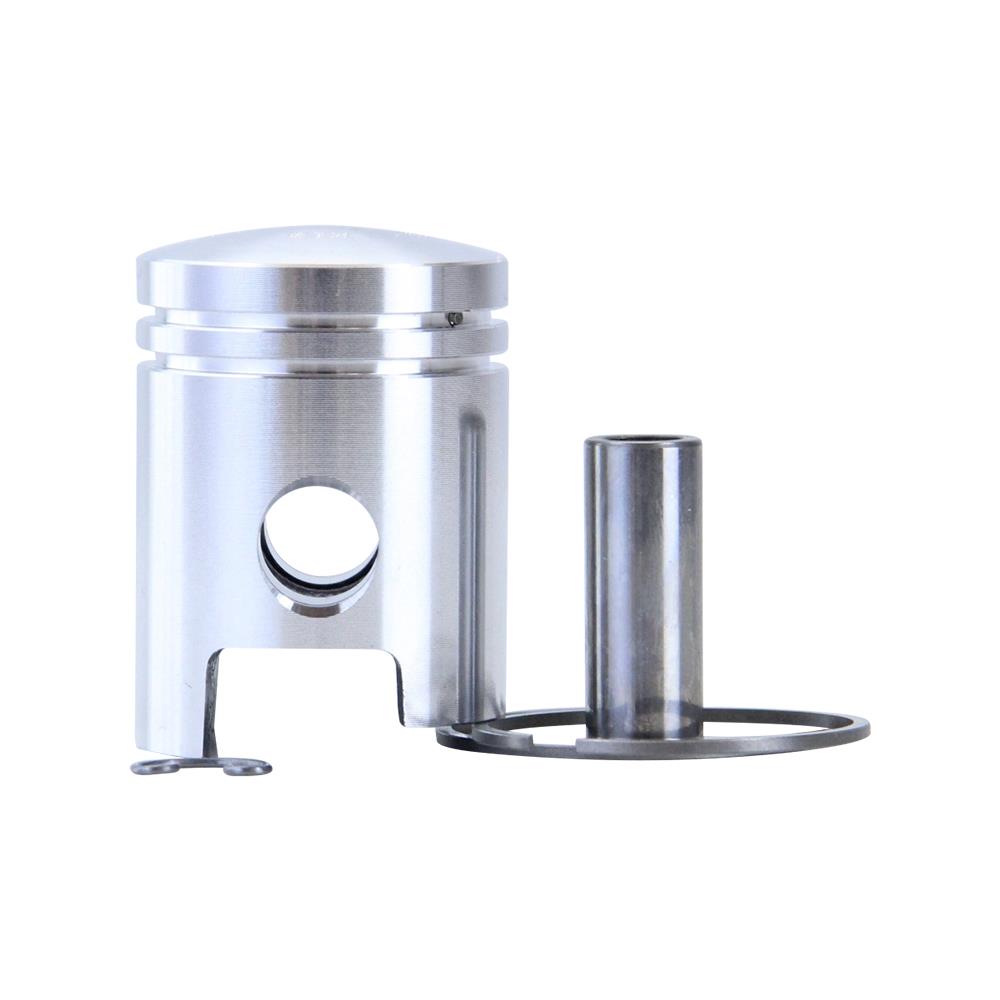

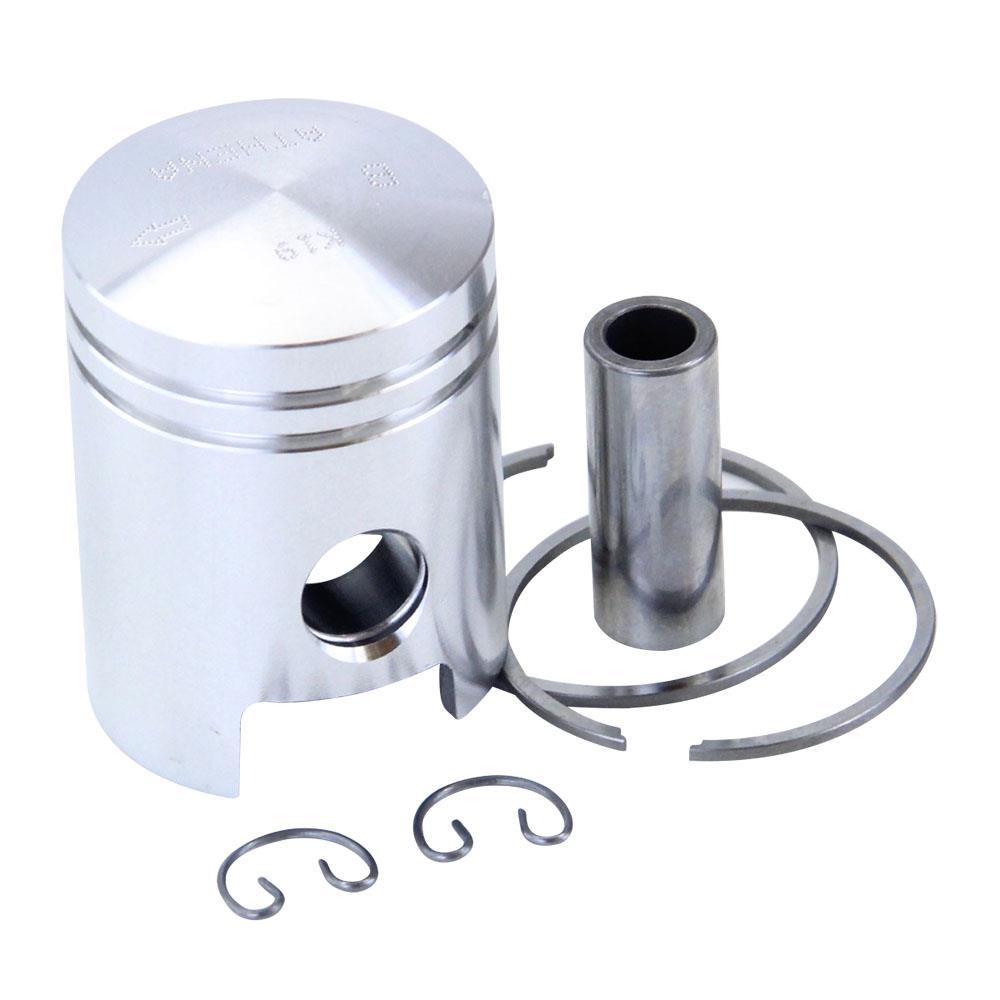

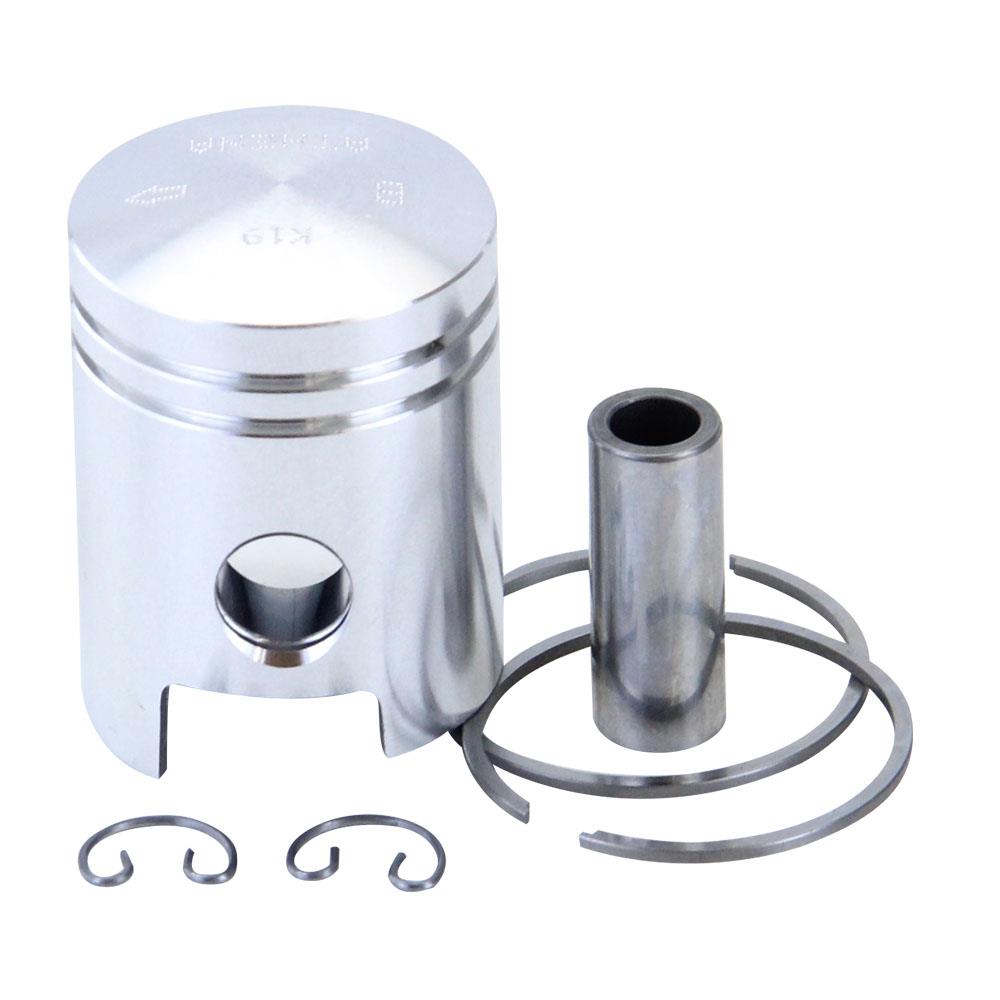

Athena piston set 38mm Tol. B 50ccm for Hercules Prima M 2 3 4 5 Optima Jogging Hobbyrider / Sachs 504 505

£41.66 *
Content: 1 piece

Prices plus VAT plus shipping costs

IN STOCK - Delivery time 1-3 working days

Only a few left!

3 Jahre Verschleiß-Plus-Garantie für Artikel 073902.B
Jetzt 3 Jahre zusätzliche Garantie sichern.   » Details
£1.75*
  • 073902.B
  • 4251048883407
  • Athena
  • 073902.B
Product information about Athena piston set 38mm Tol. B 50ccm for Hercules Prima M 2 3 4 5 Optima Jogging Hobbyrider / Sachs 504 505
Properties
Product type: Piston set
Dimension B (compression height): 28 mm
Dimension F (piston skirt width inlet side): 34 mm
Dimension I (piston skirt length outlet side): 39 mm
Tuning & Styling Part: Yes
Piston ring (top) Width: 1.65 mm
Vintage part: Yes
Piston ring (top) Shape: B (groove for center locking pin)
Cylinder bores: 38 mm
Dimension C (piston height): 50 mm
Dimension J (max. needle bearing width): 14.5 mm
Piston ring (top) Dimension: 38 x 1.5 mm
Piston ring (top) Profile: Rectangular ring
Dimension C + D (total height): 53 mm
Dimension G (piston skirt length inlet side): 35.5 mm
OE/OEM reference number(s): Athena 073902.B
Piston ring (bottom) Width: 1.65 mm
ATTENTION!: TUNING: Not permitted in the area of the StVZO!
GTIN: 4251048883407
Piston ring (bottom) Shape: B (groove for center locking pin)
Dimension A (piston diameter): 37.95 mm
Bolt diameter: 12 mm
Piston ring (bottom) Dimension: 38 x 1.5 mm
Dimension D (curvature): 3 mm
Note: Piston ring chrome-plated / With two 4.5x10mm piston window bores!
Piston ring (bottom) Profile: Rectangular ring
Dimension H (piston skirt width outlet side): 30 mm
Scope of delivery: Piston rings, Piston, Piston pin, Piston clips
Bolt length: 31 mm
Dimension E (piston pin diameter): 12 mm
Tolerance size: B (37.95mm)
Color: Silver
Piston diameter: 38 mm
Engine type: 2-stroke
Scope of delivery: 1x piston set
Manufacturer number: 073902.B
Country and region of manufacture: Italy
Type of motorcycle: Moped & Mokick
Offer package: Yes
Description of the package content: Piston + piston rings + piston pin + piston clips
Manufacturer warranty: 2 years
Material: Aluminum alloy
suitable for: 50 cc
