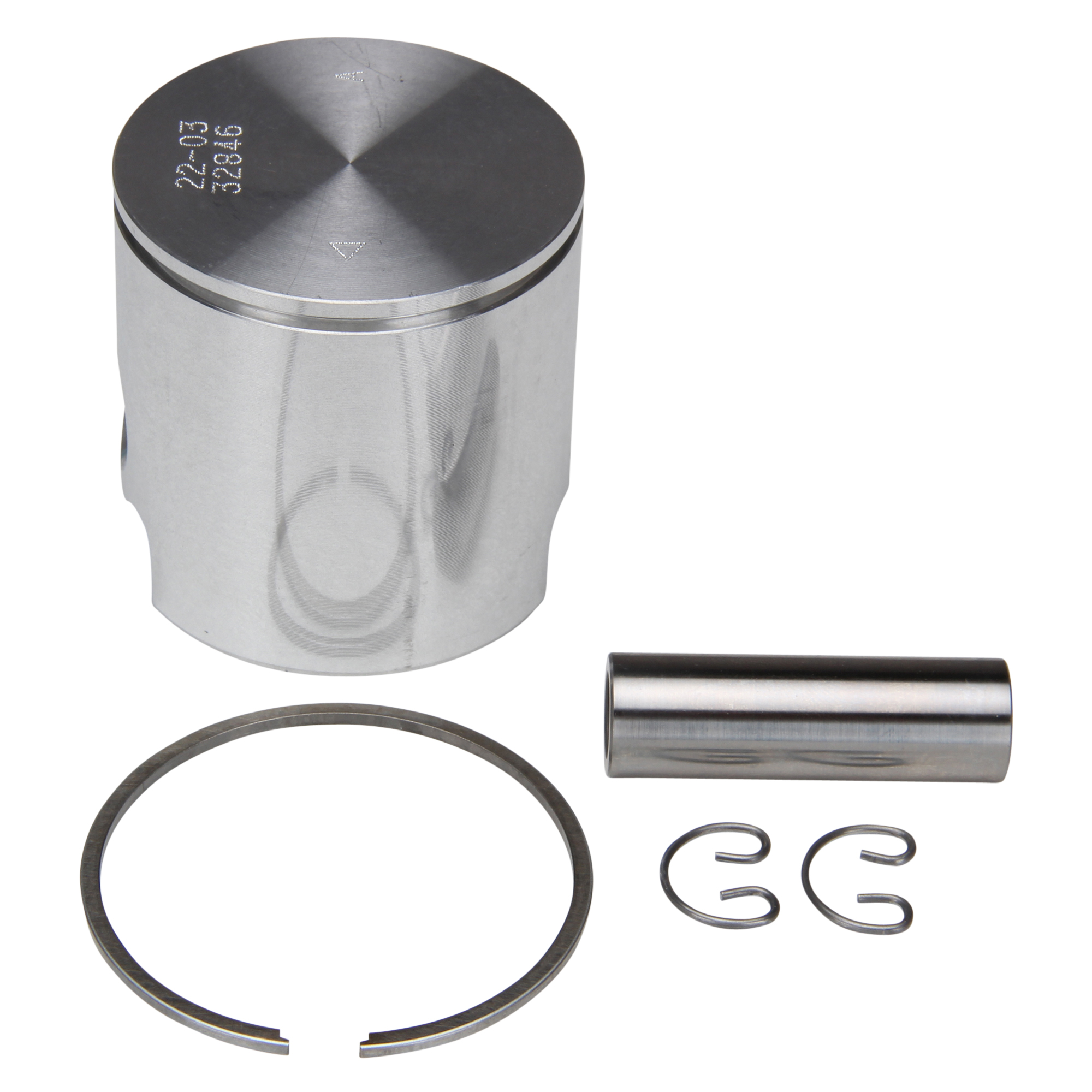

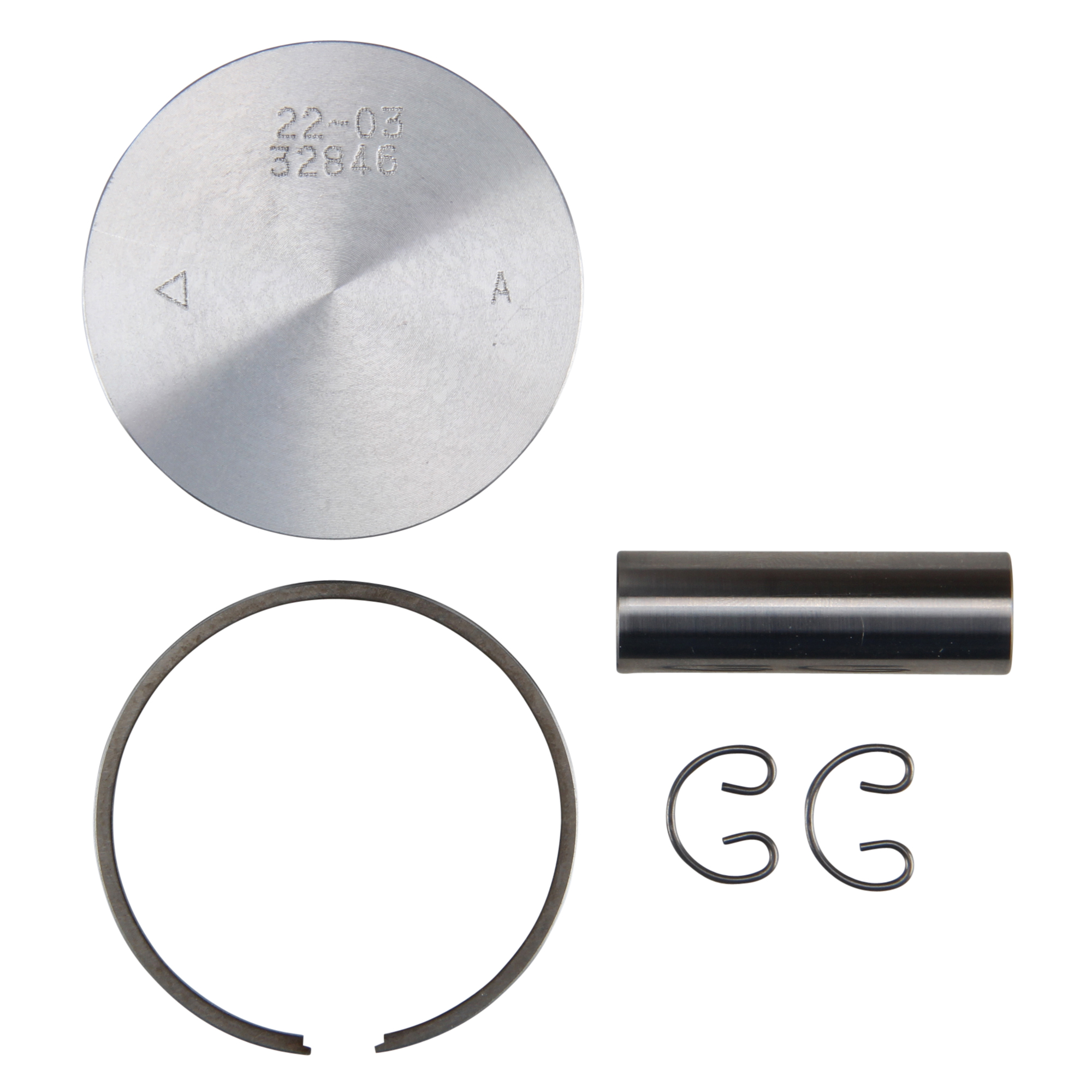

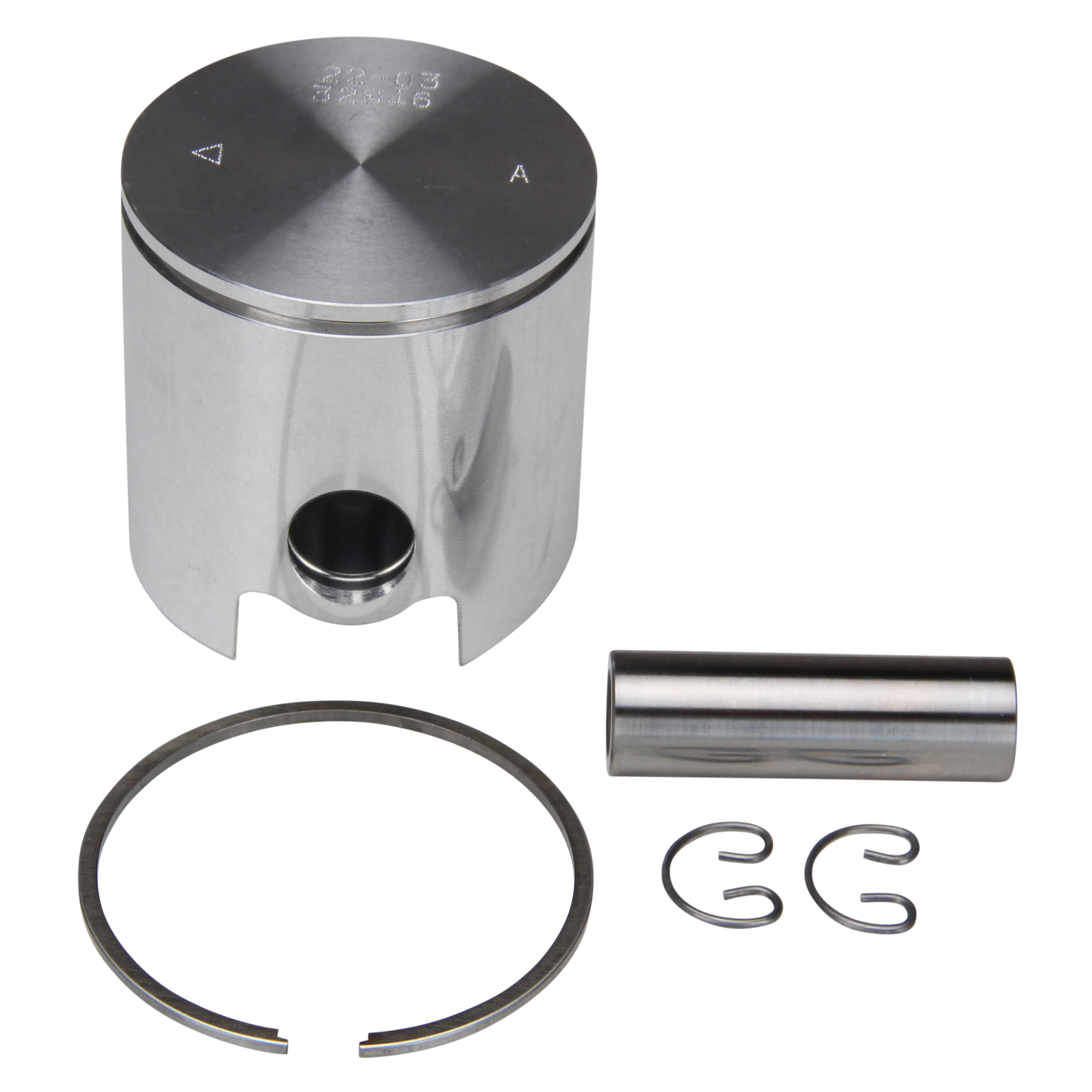

Athena piston set 45mm tol. A 70ccm for Hercules Prima M 2 3 4 5 Optima Jogging Hobbyrider / Sachs 504 505
£41.76 *
Content:
1 piece
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 074002.A
- EAN: 4251048883384
- Manufacturer: Athena
- Manufacturer no.: 074002.A / S4C04500005A
- Height: 60 cm
- Width: 60 cm
Product information about Athena piston set 45mm tol. A 70ccm for Hercules Prima M 2 3 4 5 Optima Jogging Hobbyrider / Sachs 504 505
Customers also searched for this product under:
Further links to "Athena piston set 45mm tol. A 70ccm for Hercules Prima M 2 3 4 5 Optima Jogging Hobbyrider / Sachs 504 505"
Properties more
| Dimension H (piston skirt width outlet side): | 39 mm |
| GTIN: | 4251048883384 |
| Bolt length: | 38 mm |
| Dimension F (piston skirt width inlet side): | 39 mm |
| Dimension A (piston diameter): | 44.95 mm |
| Tolerance size: | A (44.95mm) |
| Dimension B (compression height): | 28 mm |
| Dimension J (max. needle bearing width): | 16 mm |
| OE/OEM reference number(s): | Athena 074002.A, Athena S4C04500005A |
| Cylinder bores: | 45 mm |
| Piston ring width: | 1.85 mm |
| Dimension C (piston height): | 45.5 mm |
| Dimension C + D (total height): | 45.5 mm |
| Dimension D (curvature): | 0 mm |
| Dimension G (piston skirt length inlet side): | 39 mm |
| Dimension I (piston skirt length outlet side): | 41.5 mm |
| Piston ring dimension: | 45 x 1.5 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Scope of delivery: | Piston, Piston clips, Piston pin, Piston ring |
| Bolt diameter: | 12 mm |
| Vintage part: | Yes |
| Tuning & Styling Part: | Yes |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| Piston ring shape: | B (groove for center locking pin) |
| Piston ring profile: | Rectangular ring |
| Note: | Chrome-plated piston ring! (for Nikasil cylinders) |
| Color: | Silver |
| Piston diameter: | 45 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 074002.A / S4C04500005A |
| Country and region of manufacture: | Italy |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 70 ccm |
In recent years, Athena has created its Aftermarket Division, which operates exclusively in the... more
"Athena"
In recent years, Athena has created its Aftermarket Division, which operates exclusively in the motorcycle sector, producing gaskets, thermal units and spare parts for every make and model in the world. Athena is the market leader in the production of gasket sets for the repair of mopeds, motorcycles, jet skis, outboard motors and Harley Davidson, offering the most comprehensive range in the world. In addition to gaskets, Athena also offers oil seals and original fork seals, bearings and AP Racing brake pads.
