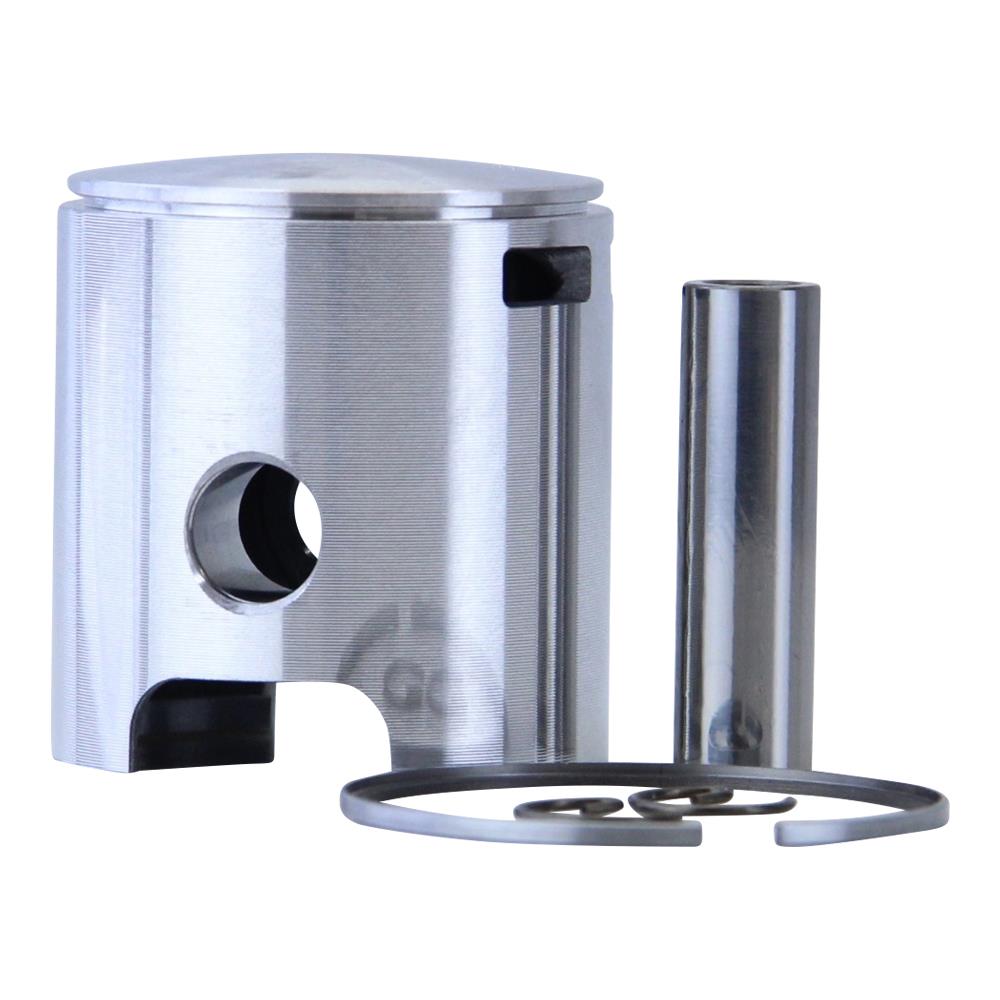

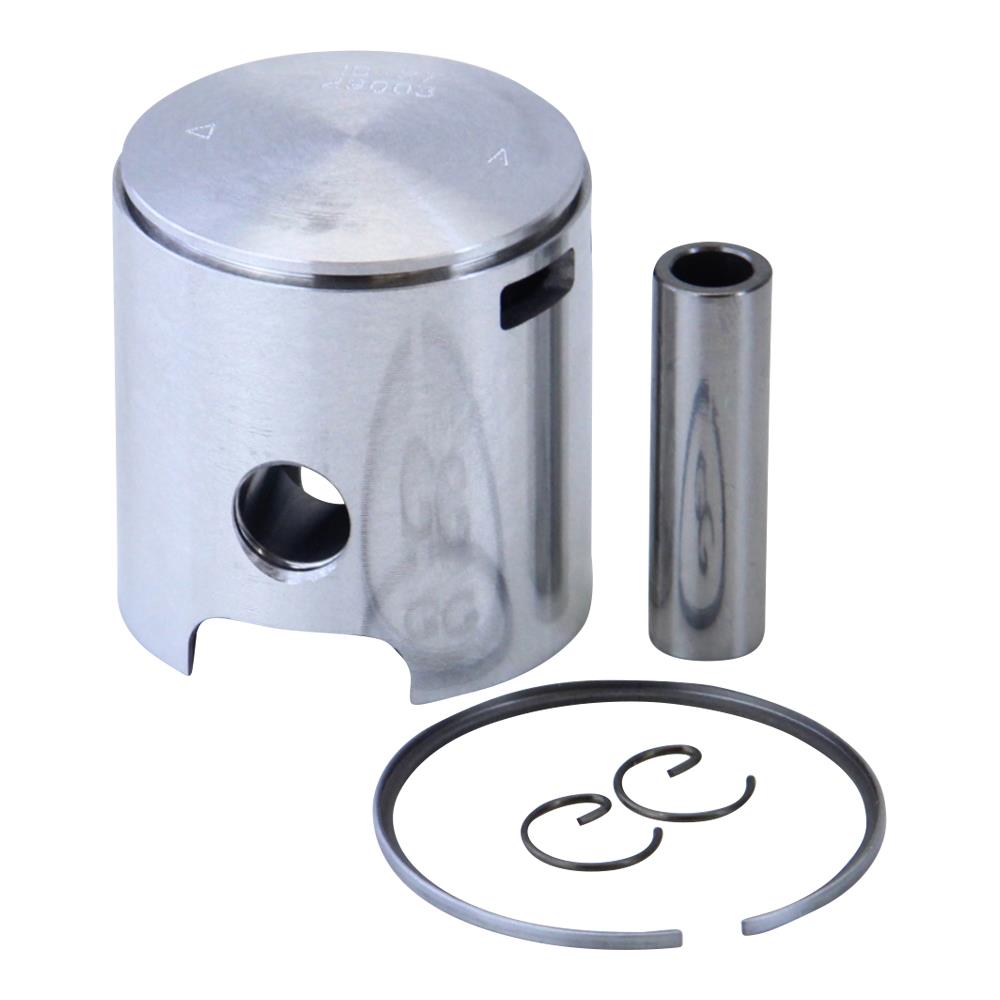

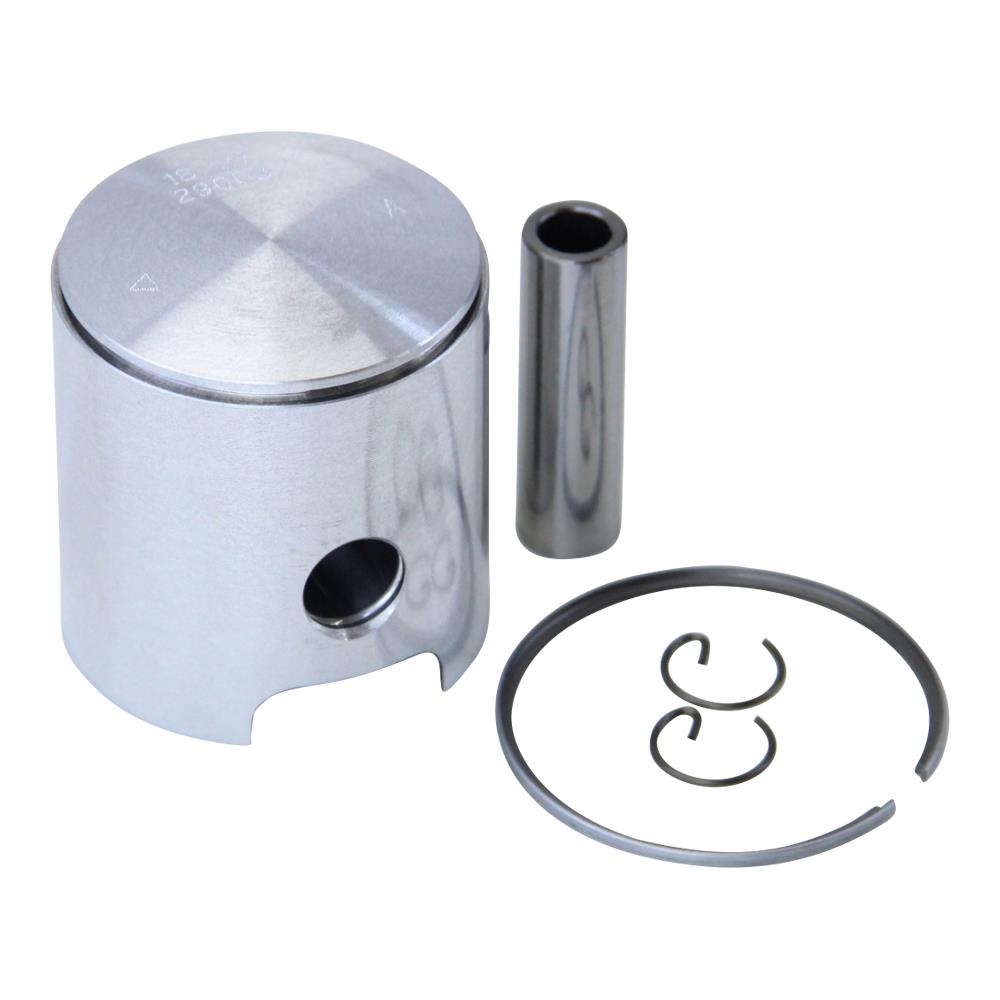

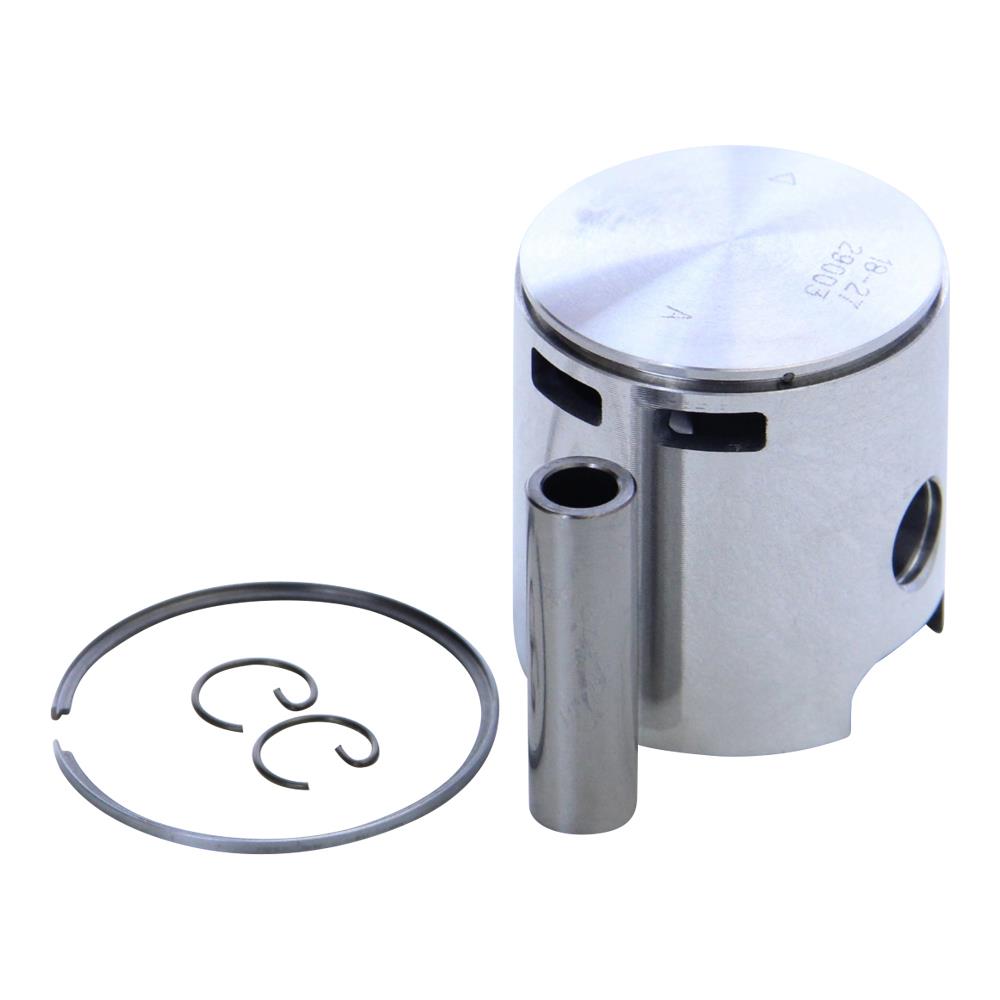

Athena piston set 48mm Tol. B 80ccm (Kobo 12mm) LONG HUB for Hercules GT K MK SB Supra Sachs 50S 501 506 50/5
Prices plus VAT plus shipping costs
Delivery time on request
- Item no: 020502.B
- EAN: 4251048882691
- Manufacturer: Athena
- Manufacturer no.: 020502.B / S4C04800003B
- Height: 60 cm
- Width: 60 cm
Hercules K 50 RS (1968-1970)
Hercules K 50 Sport (1968-1969)
Hercules K 50 Super Sport (1968-1970)
Hercules K 50 (1961-1962 )
Hercules K 50 (1963-1964)
Hercules K 50 (1964-1965)
Hercules K 50 (1968-1970)
Hercules K 50 RX (1969-1970)
Hercules K 50 SX (1969-1970)
Hercules K 50 Sprint (1970)
Hercules K 50 Sprint (1969-1970)
Hercules K 50 Sprint (1971-1972)
Hercules K 50 Sprint (1973-1974)
Hercules K 50 Sprint (1975-1977)
Hercules RT 159 Jet (1973)
Hercules SB 1 Sport Bike (1972-1975 )
Hercules SB 5 Sport Bike (1975-1979)
Hercules K 50 RE (1973-1974)
Hercules K 50 RL (09/1976-1977)
Hercules K 50 RL (1974-08/1976)
Hercules K 50 RL (1978-1980)
Hercules K 50 RX (1971-1972)
Hercules K 50 SE (1973-1974)
Hercules K 50 SL (09/1976-)
Hercules K 50 SL (1974-08/1976)
Hercules K 50 SX (1971-1972)
Hercules K 50 Sprint (1977-1980)
Hercules K 50 Ultra AC (09/1976-1979)
Hercules K 50 Ultra II AC (1979-1980)
Hercules RT 159 (1973)
Hercules MK 1 S (1977-1979)
Hercules MK 1 S (1980-1984)
Hercules MK 1 (1970-1976)
Hercules MK 2 S (09/1976- 1979)
Hercules MK 2 S (1980-1984)
Hercules MK 2 (1970-08/1976)
Hercules MK 3 M (1973-1974)
Hercules MK 3 X (1970-1972)
Hercules MK 4 M (1973-1974)
Hercules MK 4 X (1970-1972)
Hercules MK 4 (1966-1970)
Hercules MK 50 Super 4 (1966-1968)
Hercules MK 50/1 (1966-1970)
Hercules SB 2 Sport Bike (1972-1975)
Hercules SB 3 Sport Bike (1975-1984)< br />Hercules Supra 4 Enduro (1979-1980)
Hercules Supra 4 GP (1979-1980)
Hercules Prima GT (1985-1995)
Hercules Prima GX (1982- 1985)
Hercules Prima PRESTO (1981-1984)
Hercules Prima PRONTO (1981-1984)
Hercules Supra 4 Enduro (1981-1985)
Hercules Supra 4 GP (1981-1985) 1983)
Hercules KX-5 without fairing (1984-1995)
Hercules KX-5 fairing (1984-1995)
Hercules XE-5 Enduro (1984-1989)
Sachs 50S
Sachs 50SA
Sachs 501
Sachs 506
Sachs 50/5 AKF
| Dimension H (piston skirt width outlet side): | 42 mm |
| OE/OEM reference number(s): | Athena 020502.B, Athena S4C04800003B |
| Piston ring profile: | L-ring |
| Cylinder bores: | 48 mm |
| Piston ring width: | 2.00 mm |
| Piston ring dimension: | 48 x 2.0 mm |
| Dimension B (compression height): | 28 mm |
| Dimension D (curvature): | 2 mm |
| GTIN: | 4251048882691 |
| Dimension C + D (total height): | 52 mm |
| Bolt length: | 42 mm |
| Dimension A (piston diameter): | 47.93 mm |
| Dimension G (piston skirt length inlet side): | 47.5 mm |
| Dimension I (piston skirt length outlet side): | 47.5 mm |
| Dimension J (max. needle bearing width): | 16.5 mm |
| Tolerance size: | B (47.93mm) |
| Dimension F (piston skirt width inlet side): | 42 mm |
| Dimension C (piston height): | 50 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Scope of delivery: | Piston, Piston clips, Piston pin, Piston ring |
| Vintage part: | Yes |
| Piston ring shape: | B (groove for center locking pin) |
| Note: | Chrome-plated piston ring! (for Nikasil cylinders) |
| Tuning & Styling Part: | Yes |
| Bolt diameter: | 12 mm |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| Color: | Silver |
| Piston diameter: | 48 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 020502.B / S4C04800003B |
| Country and region of manufacture: | Italy |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 80 ccm |
In recent years, Athena has created its Aftermarket Division, which operates exclusively in the motorcycle sector, producing gaskets, thermal units and spare parts for every make and model in the world. Athena is the market leader in the production of gasket sets for the repair of mopeds, motorcycles, jet skis, outboard motors and Harley Davidson, offering the most comprehensive range in the world. In addition to gaskets, Athena also offers oil seals and original fork seals, bearings and AP Racing brake pads.
