Oversize piston 38.3mm 50cc for Hercules K50 Sprint Ultra MK SB / Sachs 501 50/4 EKF 50S cast cylinder
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 713776
- EAN: 4251048882332
- Manufacturer: Citomerx
- Manufacturer no.: 713776
- Height: 45 cm
- Width: 45 cm
Hercules K 50 RS (1968-1970)
Hercules K 50 Sport (1968-1969)
Hercules K 50 Super Sport (1968-1970)
Hercules K 50 (1963-1964 )
Hercules K 50 (1964-1965)
Hercules K 50 (1968-1970)
Hercules K 50 RE (1973-1974)
Hercules K 50 RL (09/1976 -1977)
Hercules K 50 RL (1974-08/1976)
Hercules K 50 RL (1978-1980)
Hercules K 50 RX (1969-1970)
Hercules K 50 RX (1971-1972)
Hercules K 50 SE (1973-1974)
Hercules K 50 SL (09/1976-)
Hercules K 50 SL (1974-08/1976)< br />Hercules K 50 SX (1969-1970)
Hercules K 50 SX (1971-1972)
Hercules K 50 Sprint (1970)
Hercules K 50 Sprint (1969-1970)< br />Hercules K 50 Sprint (1971-1972)
Hercules K 50 Sprint (1973-1974)
Hercules K 50 Sprint (1975-1977)
Hercules K 50 Sprint (1977-1980 )
Hercules K 50 Ultra AC (09/1976-1979)
Hercules K 50 Ultra II AC (1979-1980)
Hercules MK 1 S (1977-1979)
Hercules MK 1 S (1980-1984)
Hercules MK 1 (1970-1976)
Hercules MK 2 S (09/1976-1979)
Hercules MK 2 S (1980-1984)
Hercules MK 2 (1970-08/1976)
Hercules MK 3 M (1973-1974)
Hercules MK 3 X (1970-1972)
Hercules MK 4 M (1973-1974 )
Hercules MK 4 br />Hercules SB 2 Sport Bike (1972-1975)
Hercules SB 3 Sport Bike (1975-1984)
Hercules SB 5 Sport Bike (1975-1979)
Hercules Supra 4 Chopper ( 1978-1979)
Hercules Supra 4 (1978-1979)
Sachs 501/3 BKF
Sachs 501/4 BKF
Sachs 501/3 BF
Sachs 501/4 BF
Sachs 50/4 EKF
Sachs 50S gray cast iron cylinder
| Dimension H (piston skirt width outlet side): | 25.2 mm |
| Dimension G (piston skirt length inlet side): | 37.3 mm |
| Bolt length: | 30 mm |
| Dimension C + D (total height): | 51 mm |
| Dimension D (curvature): | 2 mm |
| Piston ring (top) Shape: | B (groove for center locking pin) |
| Dimension J (max. needle bearing width): | 14.5 mm |
| Piston ring (bottom) Shape: | B (groove for center locking pin) |
| Dimension I (piston skirt length outlet side): | 40 mm |
| GTIN: | 4251048882332 |
| Dimension E (piston pin diameter): | 14 mm |
| Cylinder bores: | 38.3 mm |
| Dimension A (piston diameter): | 38.3 mm |
| Piston ring (top) Width: | 1.55 mm |
| Piston ring (top) Dimension: | 38.3 x 1.5 mm |
| Piston ring (bottom) Width: | 1.55 mm |
| Piston ring (bottom) Dimension: | 38.3 x 1.5 mm |
| Dimension F (piston skirt width inlet side): | 31.8 mm |
| Dimension B (compression height): | 28 mm |
| Dimension C (piston height): | 49 mm |
| Piston ring (bottom) Profile: | Rectangular ring |

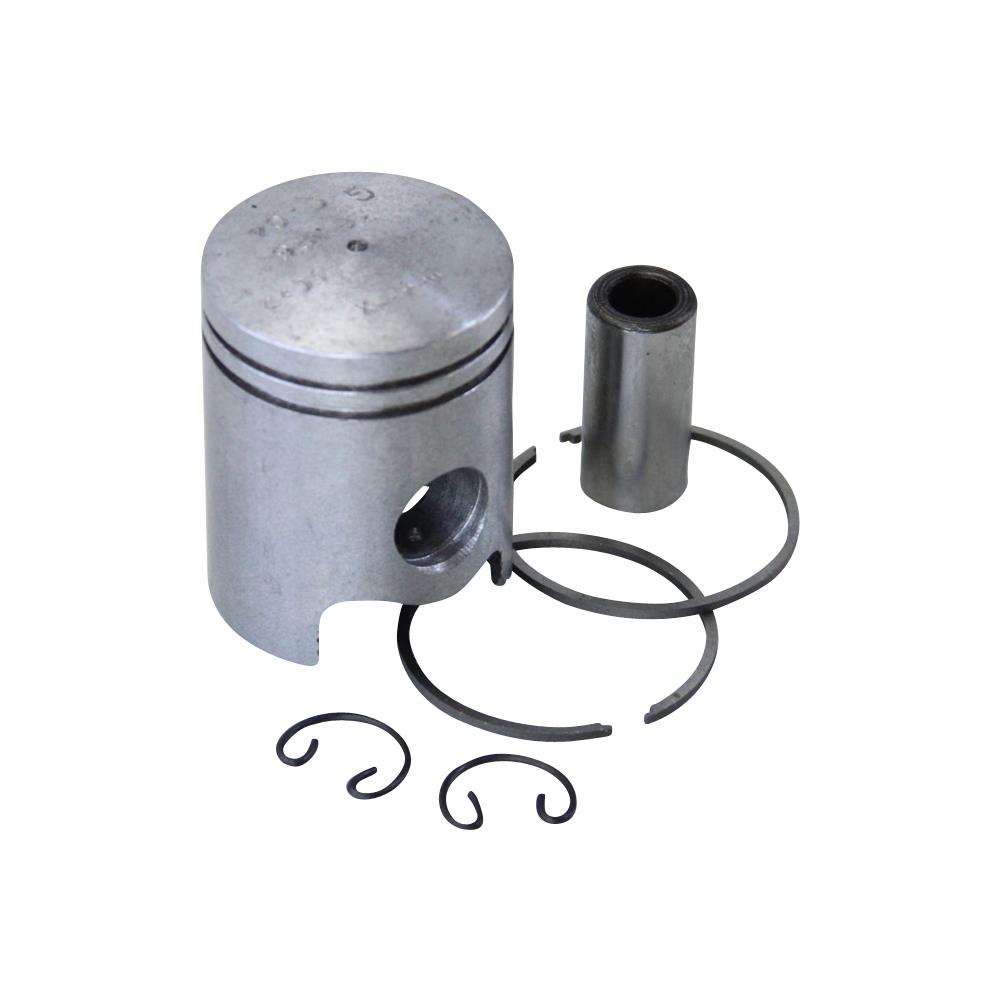

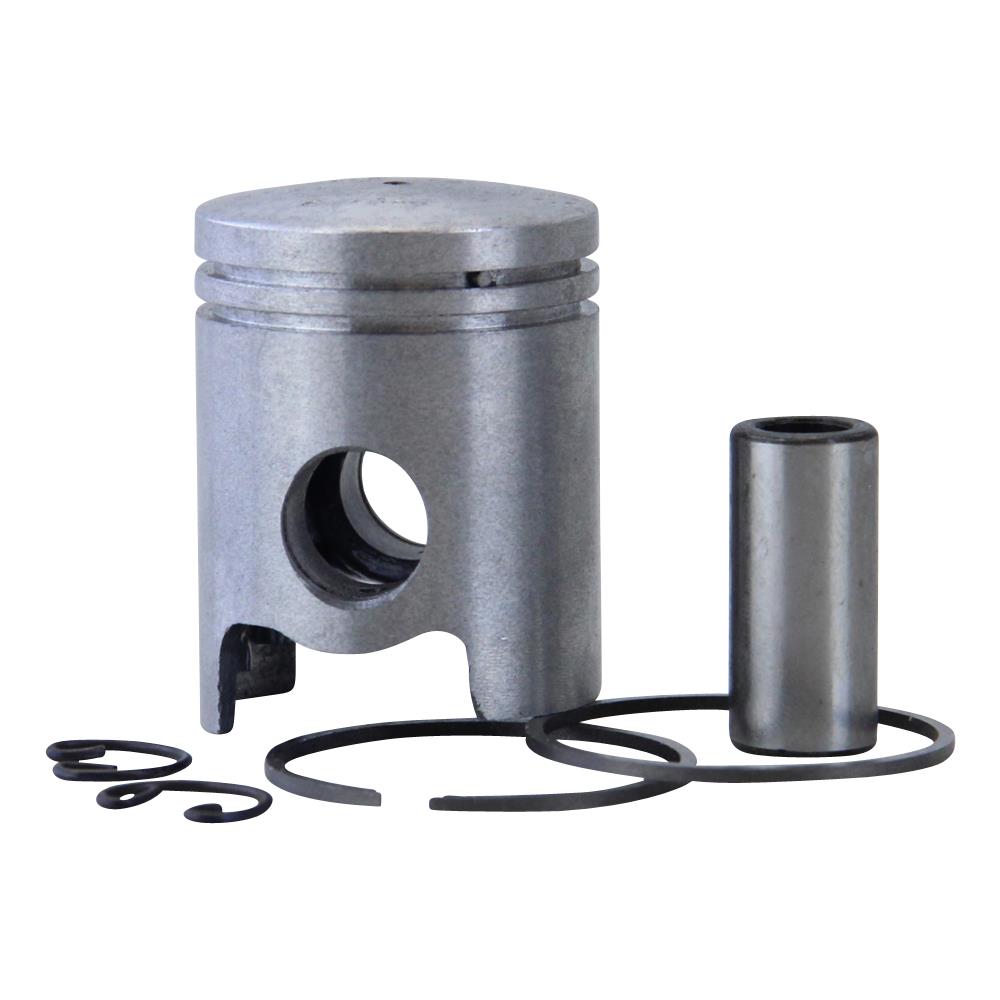

| Scope of delivery: | Piston, Piston clips, Piston pin, Piston rings |
| Piston ring (top) Profile: | Rectangular ring |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Bolt diameter: | 14 mm |
| Color: | Silver |
| Piston diameter: | 38.3 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 713776 |
| Country and region of manufacture: | Italy |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston rings + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
