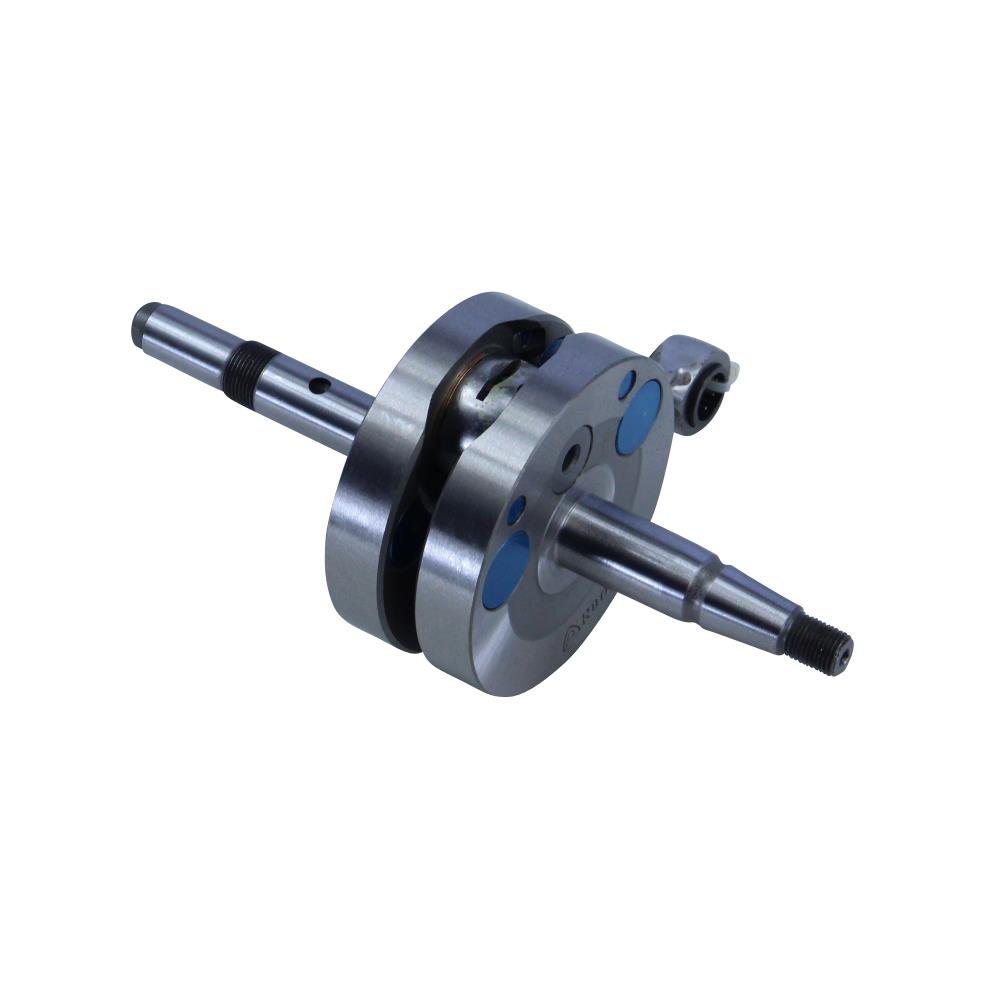

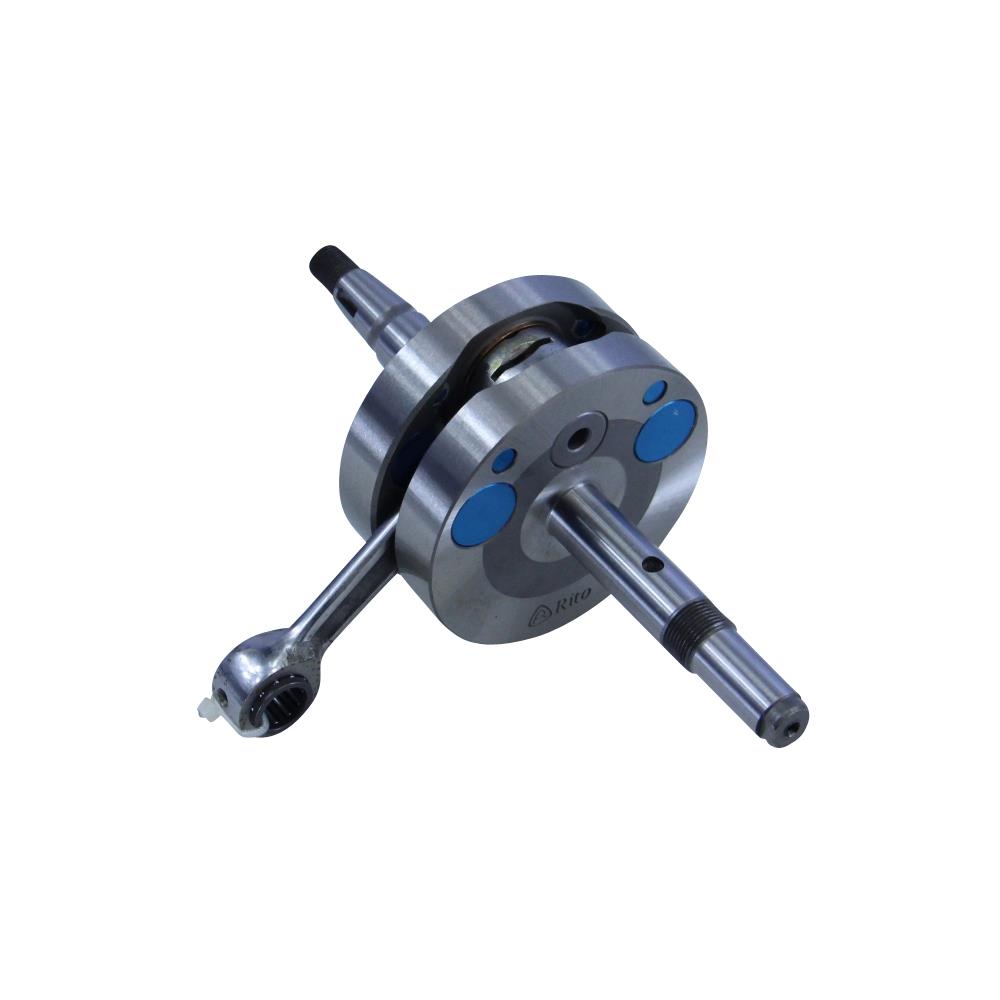

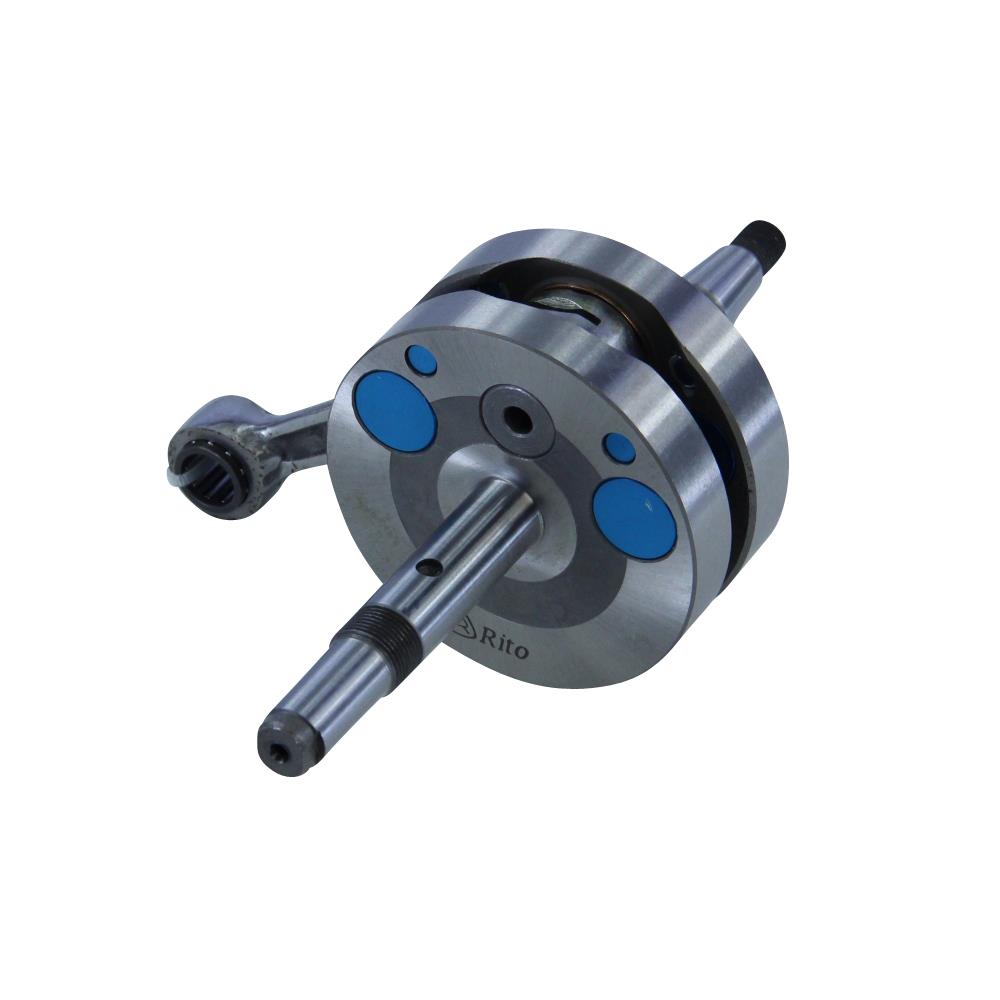

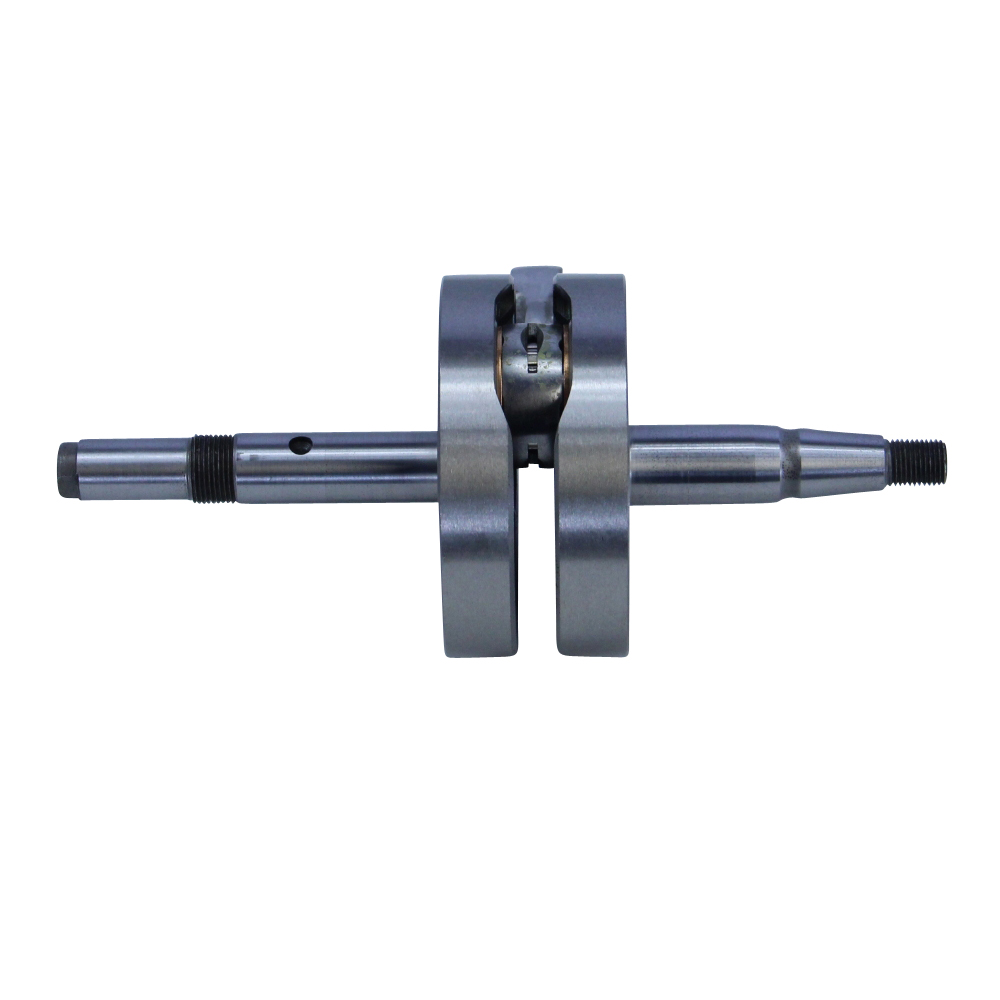

RITO crankshaft RACING 19000RPM (91mm connecting rod) (44mm stroke) for Zündapp 3/4 gear
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Last article - Buy now
Further variants / accessories
- Item no: 09.195.17.1.015
- EAN: 4251048865229
- Manufacturer: RITO
- Manufacturer no.: 09.195.17.1.015
C 50 Super Type 441-01L0 (from engine no. 3730133)
C 50 Super Type 441-01L1 (from engine no. 3730133)
C 50 Super Type 441-05L2 (from engine no . 3730133)
C 50 Super type 441-05L3 (from engine no. 3730133)
C 50 Super type 441-05L4 (from engine no. 3730133)
C 50 Super type 441-05L5 (from engine no. 3730133)
ZD 40 type 446-300
ZD 20 type 446-400
ZD 25 type 446-420
ZD 50 type 446-422
ZD 20 type 446-450
CS 50 type 448-010
CS 50 type 448-011
CS 50 type 448-013
Hai 50 type 448-110
Hai 50 type 448-111
CS 25 type 448-140
CS 25 type 448-141
Hai 25 type 448-150
CX 25 type 448-151
Sprinter Type 448-051
Hai 50 Type 448-160
C 50 Sport Type 517-21L0
C 50 Sport Type 517-21LA
GTS 50 Type 517-39L0
GTS 50 Type 517-40L0
GTS 50 Type 517-40L5
C 50 Type 517-05LA
GTS 50 Type 517-35LA
GTS 50 Type 517-35LC
GTS 50 Type 517-35LE
Super Sport Type 517-35LB
Super Sport Type 517-35LD
Super Sport Type 517-35LF
C 50 Sport Type 529-010< br />GTS 50 type 529-020
GTS 50 type 529-022
GTS 50 type 529-023
GTS 50 type 529-024
GTS 50 type 529-026< br />CS 50 type 529-030
CS 50 type 529-032
CS 50 type 529-034
GTS 50 type 529-050
GTS 50 type 529-052< br />GTS 50 type 529-054
GTS 50 type 529-056
KS 50 type 529-051
KS 50 type 529-053
KS 50 type 529-055< br />KS 50 type 529-057
CS 50 type 517-05C
GTS 50 type 517-35G
KS 50 type 517-35H
CS 50 type 529-03L0< br />GTS 50 type 529-05L0
KS 50 type 529-05L1
ZX 25 type 460-010
ZX 25 type 460-013
X 25 type 460 -014
ZL 25 type 460-040
ZL 25 type 460-041
ZS 25 type 460-050
ZS 25 type 460-051
ZE 40 type 460 -090
ZE 40 type 460-091
GTS Super type 517-35L5
C 50 Sport type 517-02L8 engine type 278-01L3 (from engine no. 3730133)
C 50 Sport type 517-21L0 engine type 278-25L0 (from engine no. 3730133)
C 50 Super type 517-05L9 engine type 266-50L1 (from engine no. 3730133)
C 50 Super type 517 -23L3 engine type 266-70L1 (from engine no. 3730133)
C 50 Sport type 517-23L1 engine type 266-70L1 (from engine no. 3730133)
GTS 50 type 540-120
KS 50 type 540-121
CS 50 type 540-190
R 50 type 561-051
R 50 type 561-052
R 50 type 561-003 engine type 267 -020 (from engine no. 8018080)
RS 50 type 561-004 engine type 276-010 (from engine no. 8510659)
RS 50 Super type 561-06L0 engine type 276-44L0 (from engine No. 8510659)
| Product type: | Crankshaft |

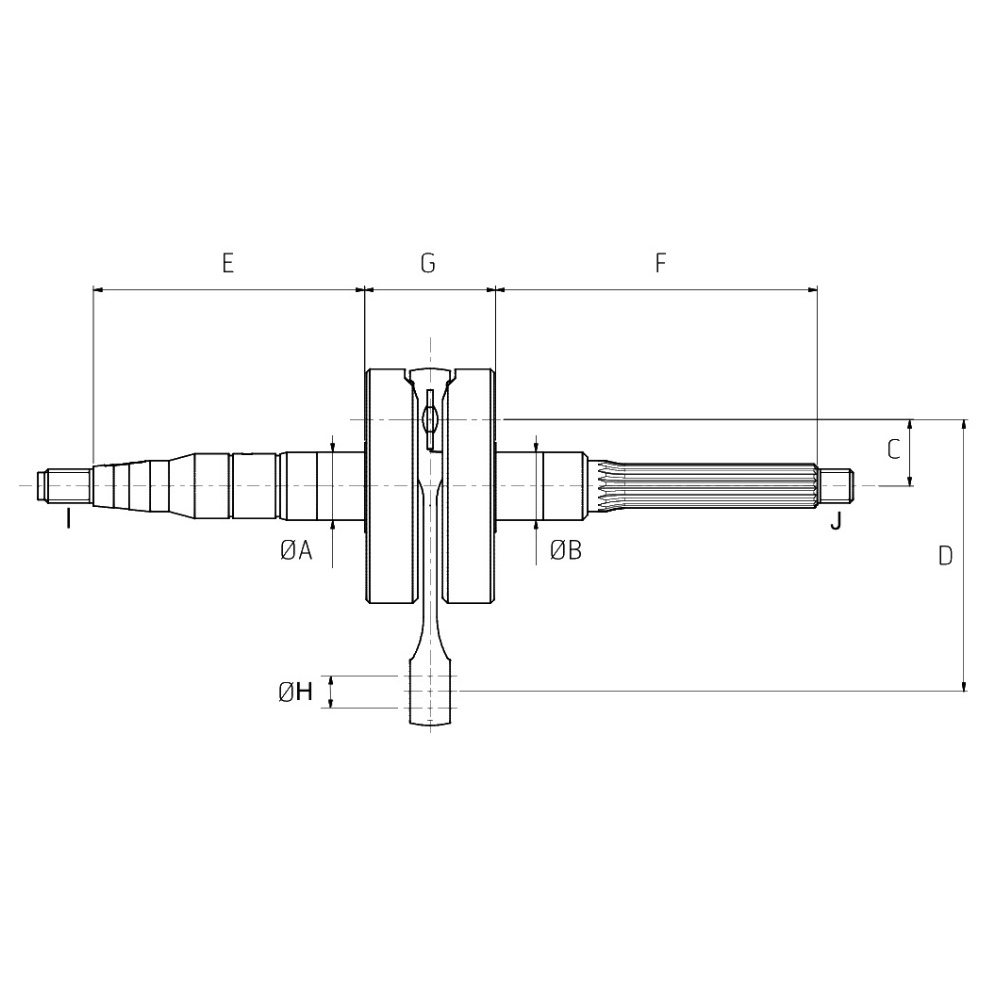

| Dimension B (shaft diameter on coupling side): | 15 mm |
| Feature: | 91 mm connecting rod / 19,000 rpm / 44 mm stroke |
| Crankshaft type: | Full cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 80 mm |
| Tuning & Styling Part: | Yes |
| Vintage part: | Yes |
| Dimensions needle bearing piston pin: | 12x16x16 mm |
| Dimension C (stroke pin offset = half stroke): | 22 mm |
| Dimension J (thread on coupling side): | M15 x 1 right-hand thread |
| Crankshaft stroke: | 44 mm |
| Dimension G (width of crank webs): | 38.8 mm |
| Surface finish: | Polished |
| matching piston pin: | 12 mm |
| OE/OEM reference number(s): | RITO 09.195.17.1.015 |
| GTIN: | 4251048865229 |
| Dimension D (connecting rod length): | 91 mm |
| Dimension H (top diameter of connecting rod eye): | 16 mm |
| Dimension A (shaft diameter on alternator side): | 17 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 53.5 mm |
| Dimension I (thread on alternator side): | M10 x 1 right-hand thread |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 09.195.17.1.015 |
| Country and region of manufacture: | Portugal |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | 1,300 kg |
| Material: | Cast iron |
| Type: | Racing |
