Kolben 50ccm, Bohrung 39mm, Toleranz A, L-Ring, niedriger Bolzen für Zündapp (733097)

Piston set 38.945mm Tol. A 50ccm (low bolt) for Zündapp M 25 50 Bergsteiger 434 / C 50 Super Sport 441 517

Rate

£21.15 * £23.27 * 9.11% saved

Content: 1 piece

Prices plus VAT plus shipping costs

Unfortunately, this item is already sold out due to high demand.

Further variants / accessories

Kolben Set 38,955mm Tol. B 50ccm (niedriger Bolzen) für Zündapp M 25 50 Bergsteiger 434 / C 50 Super Sport 441 517

Kolben Set 38,945mm Tol. A 50ccm (niedriger Bolzen) für Zündapp M 25 50 Bergsteiger 434 / C 50 Super Sport 441 517

Kolben Set 38,965mm Tol. C 50ccm (niedriger Bolzen) für Zündapp M 25 50 Bergsteiger 434 / C 50 Super Sport 441 517

Kolben Set 38,975mm Tol. D 50ccm (niedriger Bolzen) für Zündapp M 25 50 Bergsteiger 434 / C 50 Super Sport 441 517

Item no: 278-02.710-A
EAN: 4251048863485
Manufacturer: Citomerx
Manufacturer no.: 733097

M 25 Bergsteiger type 434-02L1 (up to engine no. 3111702) M 50 Bergsteiger type 434-01L0 (up to... more

Close menu

M 25 Bergsteiger type 434-02L1 (up to engine no. 3111702) M 50 Bergsteiger type 434-01L0 (up to engine no. 3111702) M 25 Bergsteiger BASF type 434-16L0 (up to engine no. 3111702) C 50 Super type 441-01L0 (up to engine no. 3730132) C 50 Super type 441-01L1 (up to engine no. 3730132) C 50 Sport type 517-02L8 engine type 278-01L3 (engine no. 3702368-3730132) C 50 Sport type 517-21L0 engine type 278-25L0 (up to engine no. 3730132) C 50 Super type 517-23L3 engine type 266-70L1 (up to engine no. 3730132) C 50 Sport type 517-23L1 engine type 266-70L1 (up to engine no. 3730132) R 50 Type 561-003 Engine Type 267-020 (up to engine no. 8018079)

Product type:	Piston set
Dimension B (compression height):	32.5 mm
Dimension F (piston skirt width inlet side):	33 mm
Dimension I (piston skirt length outlet side):	48 mm
Piston ring dimension:	39 x 2.0 mm
Tuning & Styling Part:	No
Piston ring profile:	L-ring
Vintage part:	Yes
Cylinder bores:	39 mm
Dimension C (piston height):	50 mm
Dimension J (max. needle bearing width):	15.5 mm
Dimension C + D (total height):	51.5 mm
Dimension G (piston skirt length inlet side):	48 mm
OE/OEM reference number(s):	278-02.710
ATTENTION!:	Suitable for crankshafts with 85mm connecting rods!
GTIN:	4251048863485
Dimension A (piston diameter):	38.945 mm
Bolt diameter:	12 mm
Dimension D (curvature):	1.5 mm
Dimension H (piston skirt width outlet side):	32.5 mm

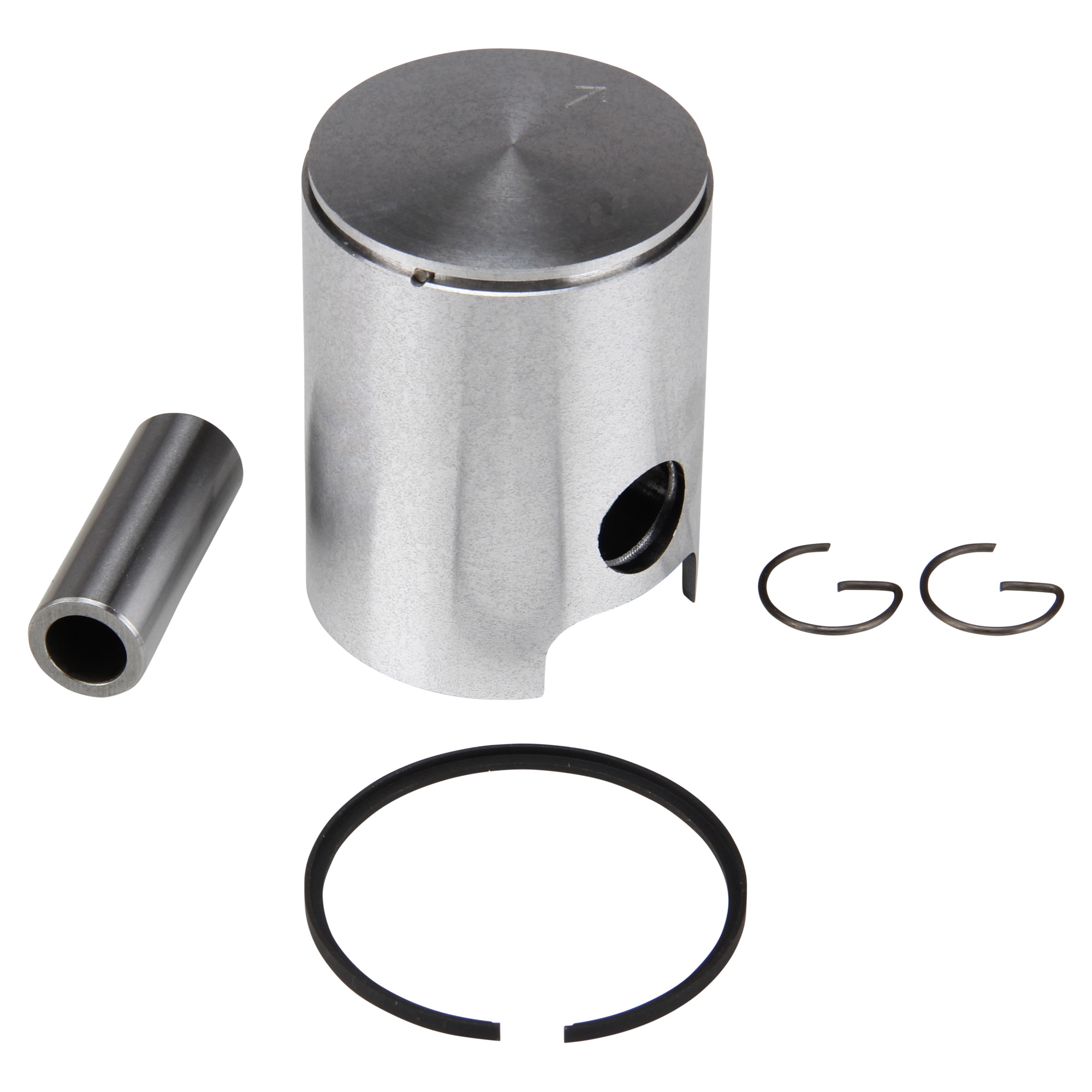

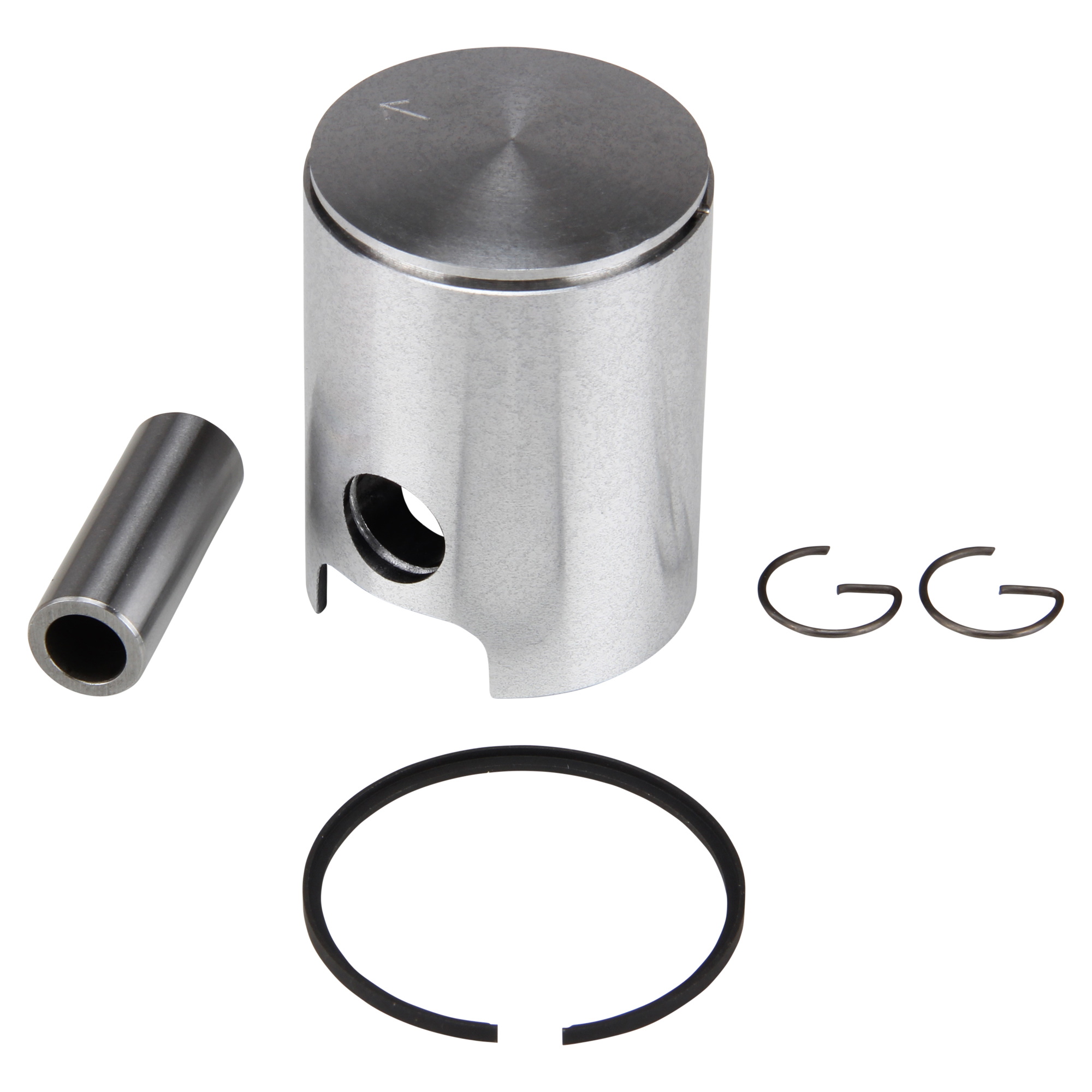

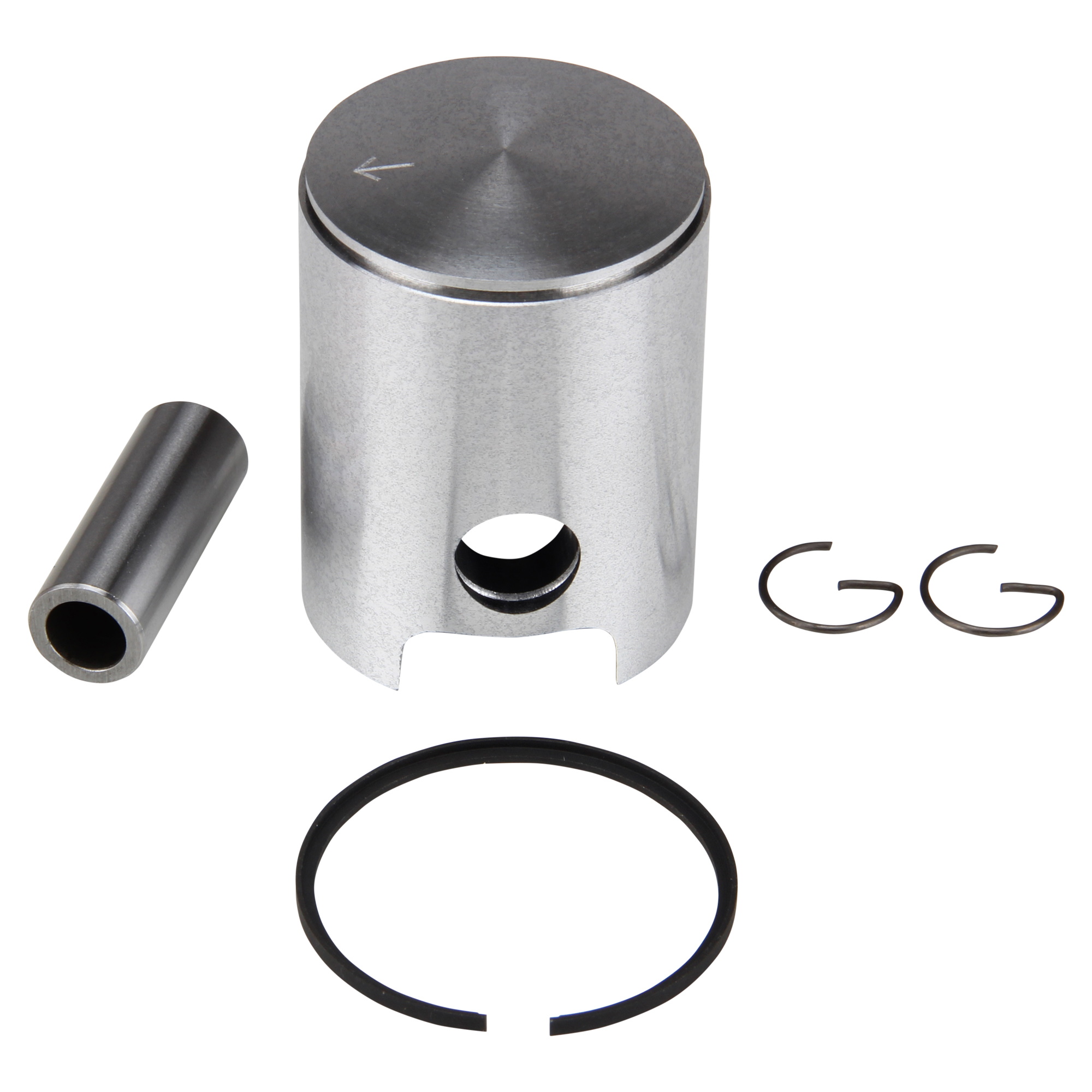

Scope of delivery:	Piston ring, Piston clips, Piston, Piston pin
Bolt length:	32 mm
Piston ring width:	1.8 mm
Dimension E (piston pin diameter):	12 mm
Tolerance size:	A (38.945mm)
Piston ring shape:	B (groove for center locking pin)
Color:	Silver
Piston diameter:	39 mm
Engine type:	2-stroke
Scope of delivery:	1x piston set
Manufacturer number:	733097
Country and region of manufacture:	China
Type of motorcycle:	Moped & Mokick
Offer package:	Yes
Description of the package content:	Piston + piston ring + piston pin + piston clips
Manufacturer warranty:	2 years
Weight:	0.080 kg
Material:	Aluminum alloy
suitable for:	50 cc
