Kolben 50ccm, Bohrung 39mm, Toleranz B, L-Ring, niedriger Bolzen für Zündapp (733095)

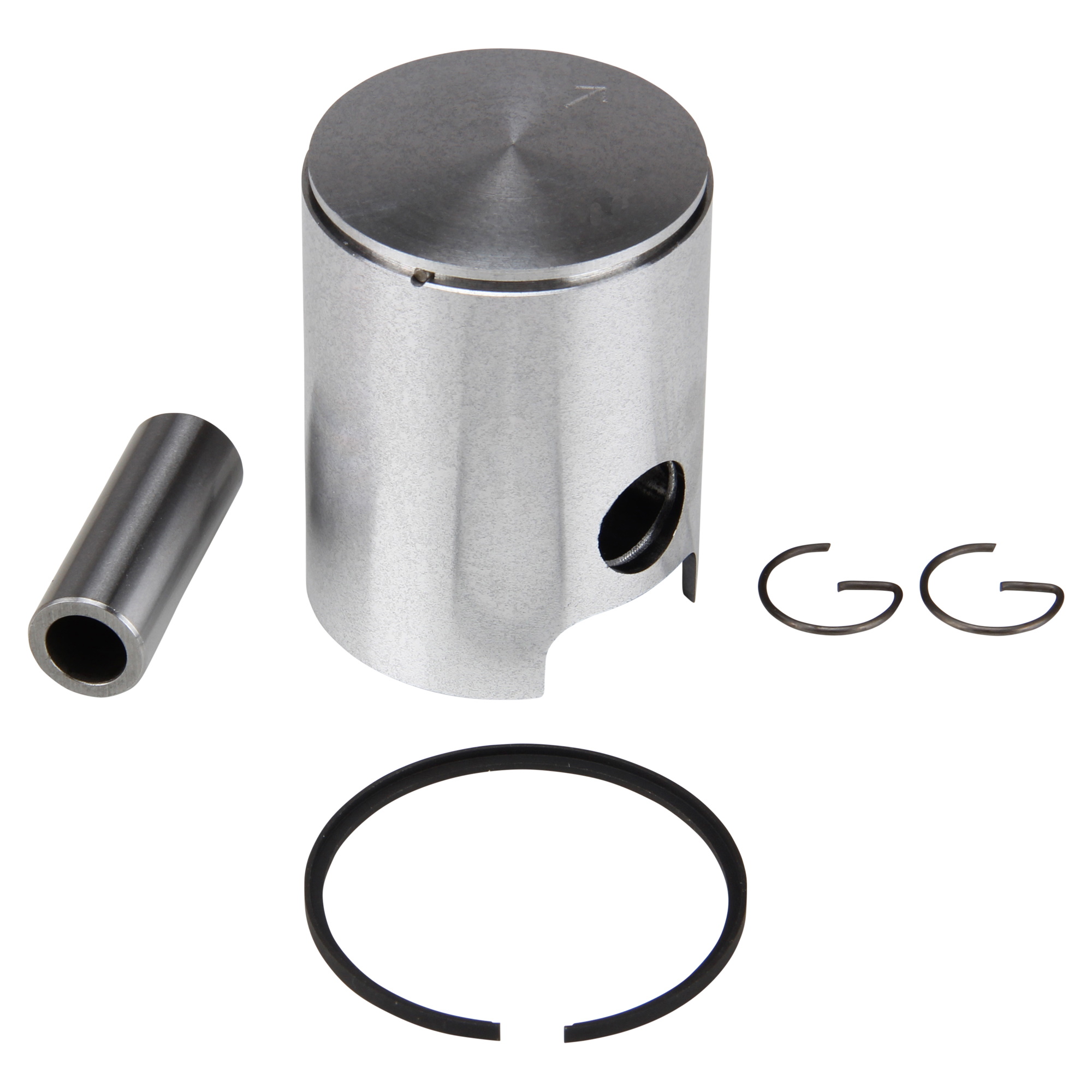

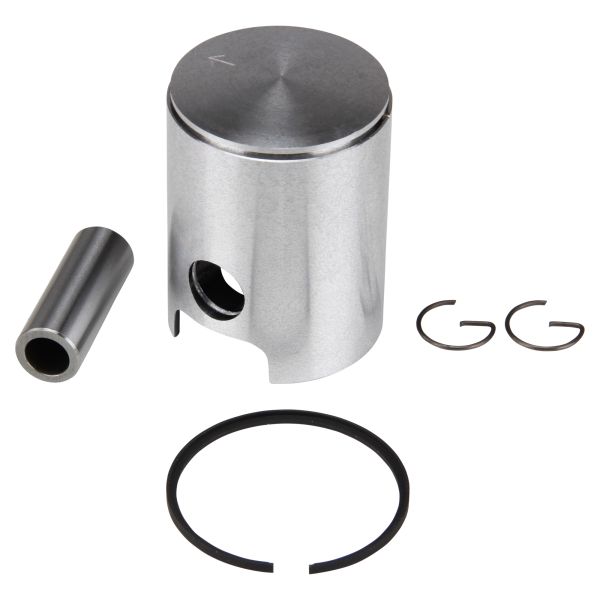

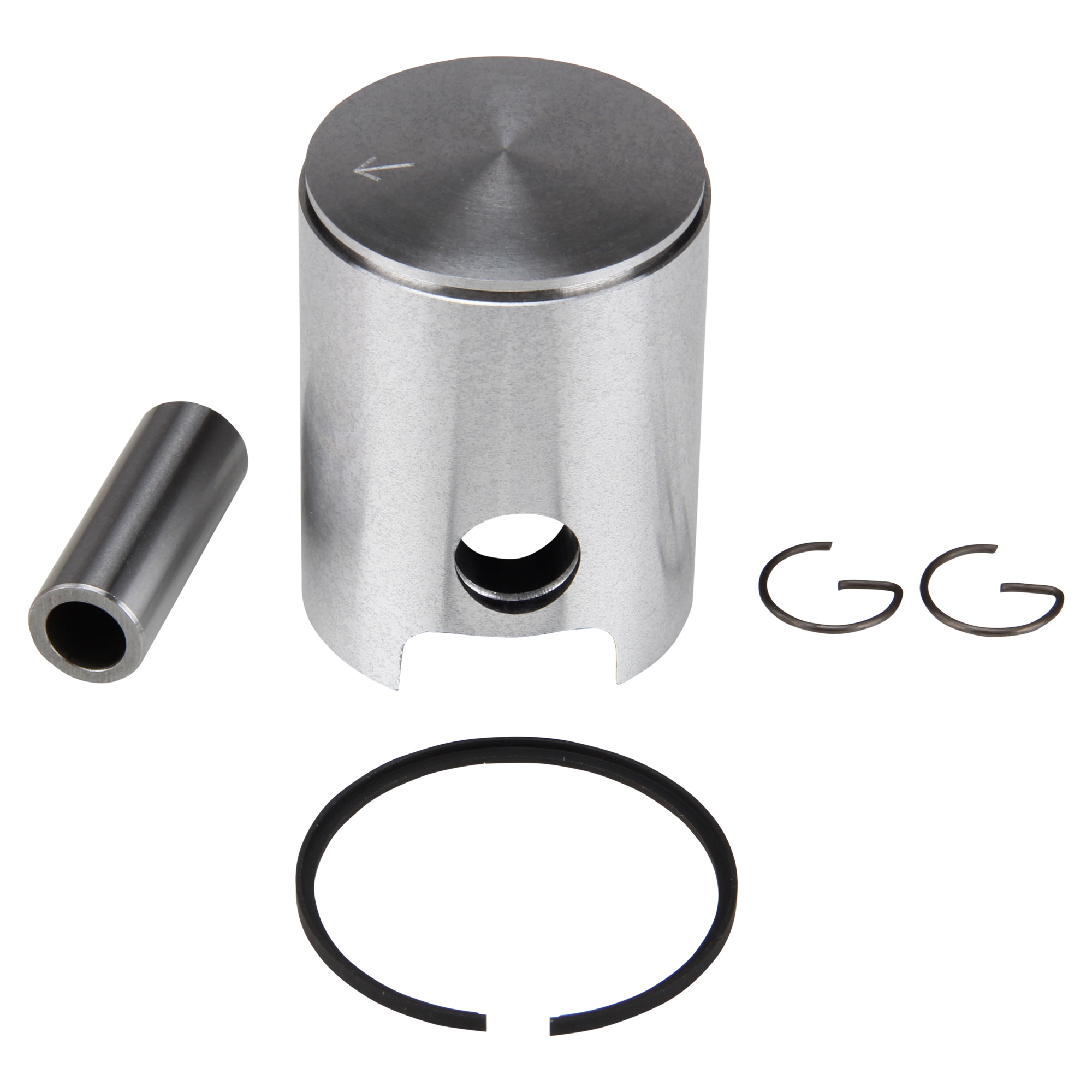

Piston set 38.955mm Tol. B 50ccm (low bolt) for Zündapp M 25 50 Bergsteiger 434 / C 50 Super Sport 441 517

Bewerten

£20.89 *

Content: 1 piece

Prices plus VAT plus shipping costs

Delivery time on request

Further variants / accessories

Kolben Set 38,955mm Tol. B 50ccm (niedriger Bolzen) für Zündapp M 25 50 Bergsteiger 434 / C 50 Super Sport 441 517

Kolben Set 38,945mm Tol. A 50ccm (niedriger Bolzen) für Zündapp M 25 50 Bergsteiger 434 / C 50 Super Sport 441 517

Kolben Set 38,965mm Tol. C 50ccm (niedriger Bolzen) für Zündapp M 25 50 Bergsteiger 434 / C 50 Super Sport 441 517

Kolben Set 38,975mm Tol. D 50ccm (niedriger Bolzen) für Zündapp M 25 50 Bergsteiger 434 / C 50 Super Sport 441 517

Item no: 278-02.710-B
EAN: 4251048863478
Manufacturer: Citomerx
Manufacturer no.: 733095

M 25 Bergsteiger type 434-02L1 (up to engine no. 3111702) M 50 Bergsteiger type 434-01L0 (up to... more

Close menu

M 25 Bergsteiger type 434-02L1 (up to engine no. 3111702) M 50 Bergsteiger type 434-01L0 (up to engine no. 3111702) M 25 Bergsteiger BASF type 434-16L0 (up to engine no. 3111702) C 50 Super type 441-01L0 (up to engine no. 3730132) C 50 Super type 441-01L1 (up to engine no. 3730132) C 50 Sport type 517-02L8 engine type 278-01L3 (engine no. 3702368-3730132) C 50 Sport type 517-21L0 engine type 278-25L0 (up to engine no. 3730132) C 50 Super type 517-23L3 engine type 266-70L1 (up to engine no. 3730132) C 50 Sport type 517-23L1 engine type 266-70L1 (up to engine no. 3730132) R 50 Type 561-003 Engine Type 267-020 (up to engine no. 8018079)

Customers also searched for this product under:

Further links to "Piston set 38.955mm Tol. B 50ccm (low bolt) for Zündapp M 25 50 Bergsteiger 434 / C 50 Super Sport 441 517"

Properties more

zurück

Tolerance size:	B (38.955mm)
Scope of delivery:	Piston, Piston clips, Piston pin, Piston ring
Dimension C + D (total height):	51.5 mm
Dimension C (piston height):	50 mm
Dimension J (max. needle bearing width):	15.5 mm
Dimension E (piston pin diameter):	12 mm
Dimension D (curvature):	1.5 mm
ATTENTION!:	Suitable for crankshafts with 85mm connecting rods!
Piston ring profile:	L-ring
Piston ring width:	1.8 mm
Piston ring dimension:	39 x 2.0 mm
Piston ring shape:	B (groove for center locking pin)
Bolt length:	32 mm
OE/OEM reference number(s):	278-02.710
Bolt diameter:	12 mm
Cylinder bores:	39 mm
Dimension B (compression height):	32.5 mm
Dimension G (piston skirt length inlet side):	48 mm
Vintage part:	Yes
Tuning & Styling Part:	No
Dimension I (piston skirt length outlet side):	48 mm
Dimension F (piston skirt width inlet side):	33 mm
Dimension H (piston skirt width outlet side):	32.5 mm
GTIN:	4251048863478
Dimension A (piston diameter):	38.955 mm
Color:	Silver
Piston diameter:	39 mm
Engine type:	2-stroke
Scope of delivery:	1x piston set
Manufacturer number:	733095
Country and region of manufacture:	China
Product type:	Piston set
Type of motorcycle:	Moped & Mokick
Offer package:	Yes
Description of the package content:	Piston + piston ring + piston pin + piston clips
Manufacturer warranty:	2 years
Weight:	0.080 kg
Material:	Aluminum alloy
suitable for:	50 cc
