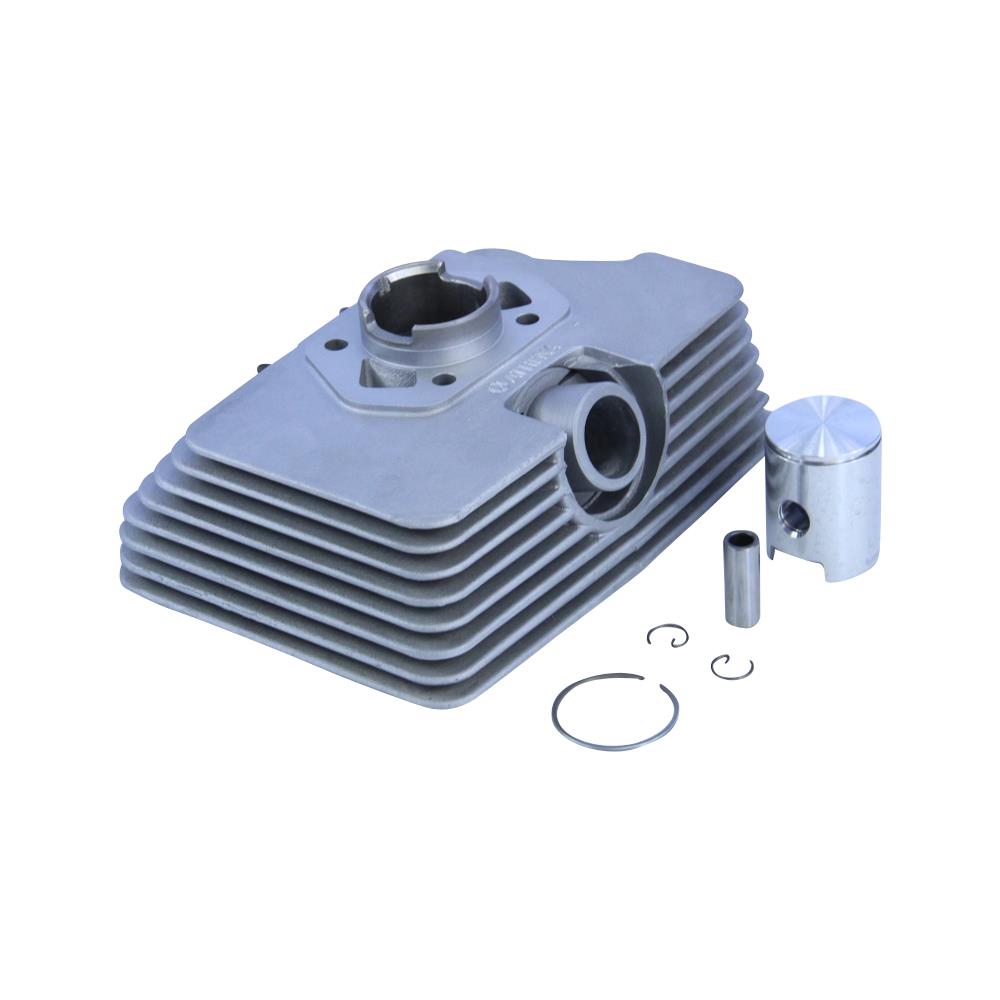

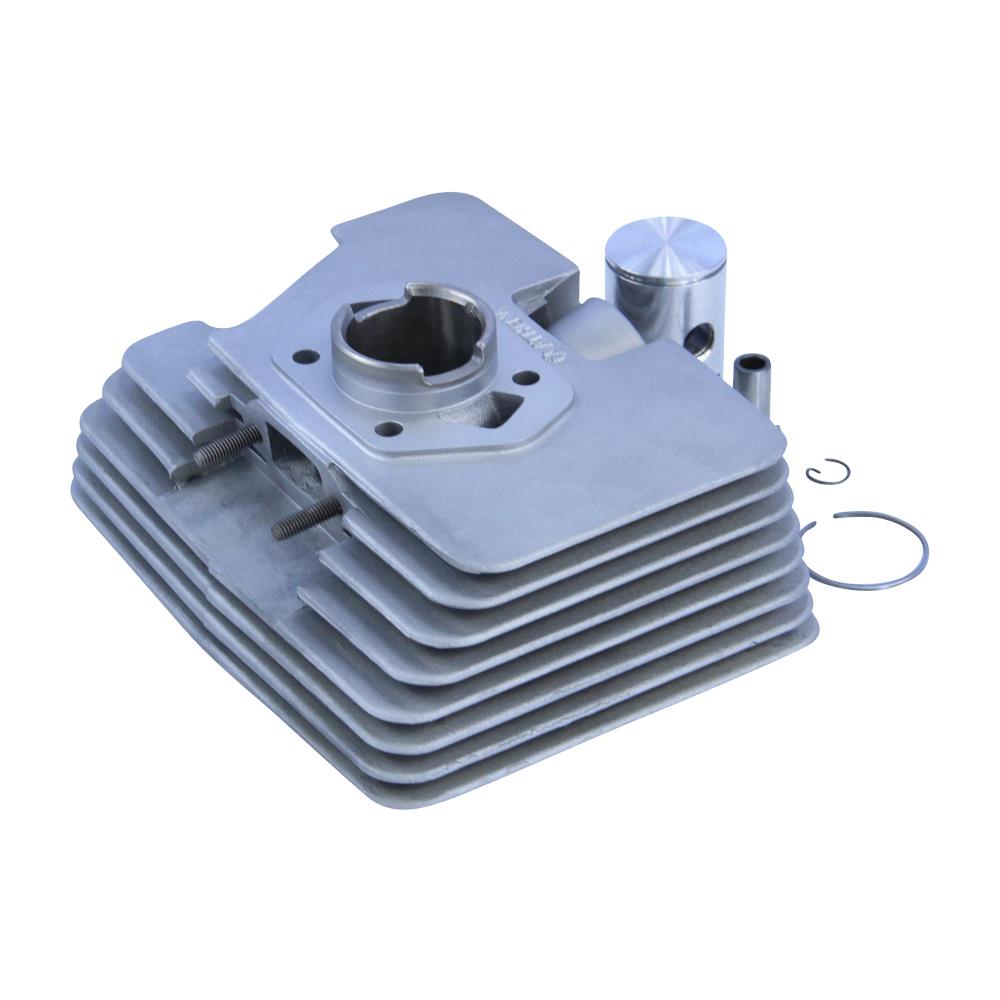

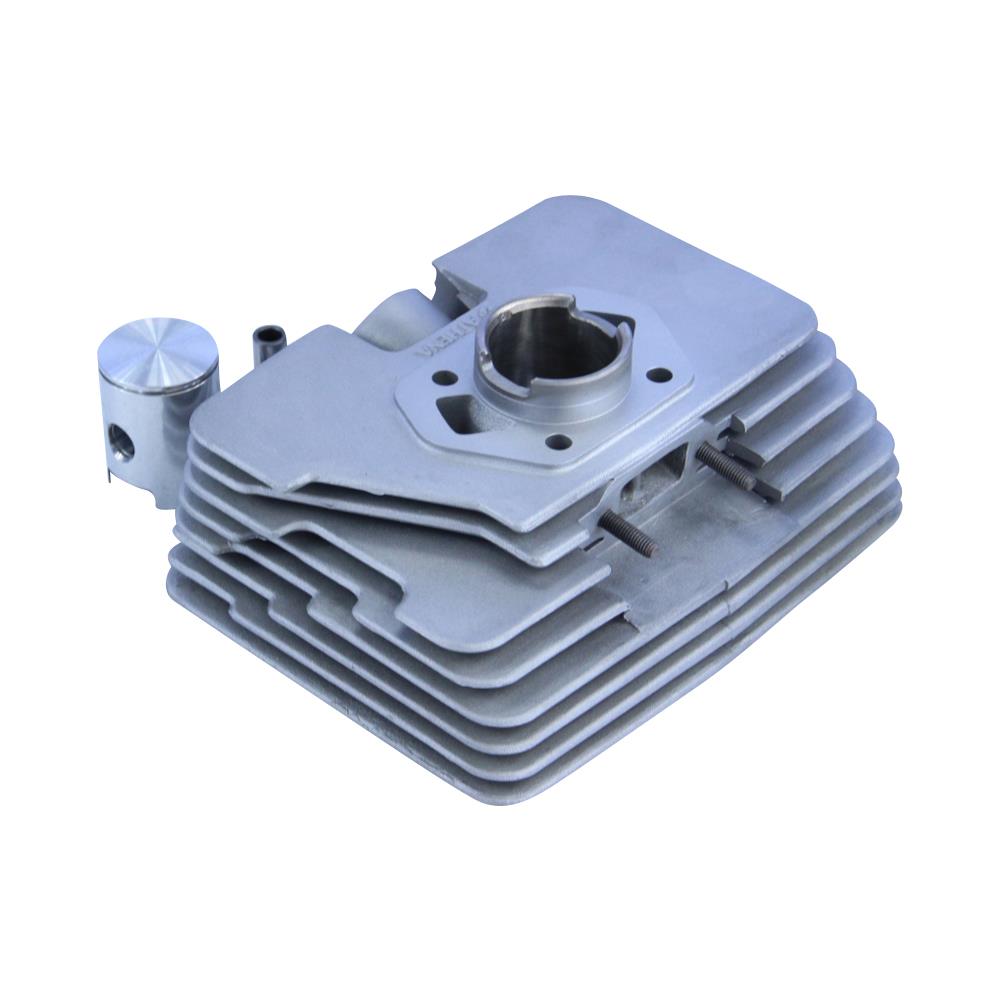

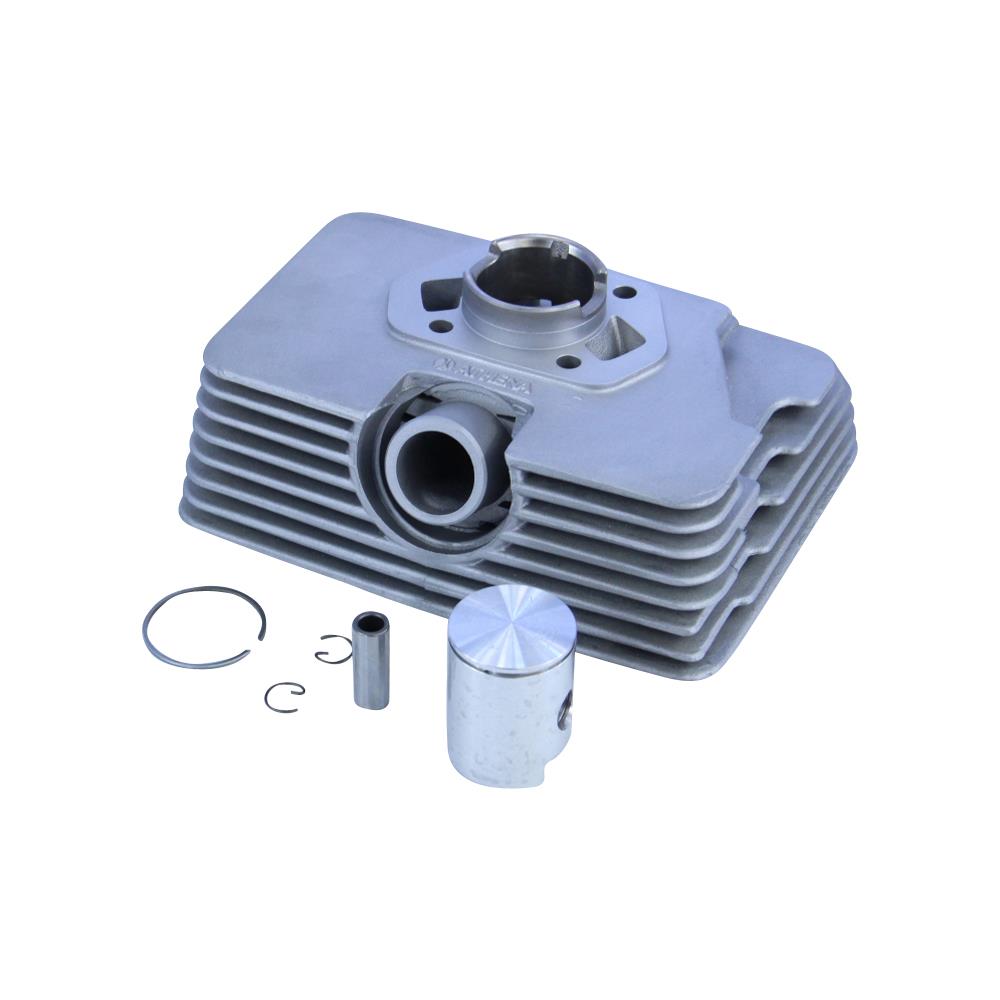

Cylinder set 50ccm 39mm (2 ÜS) for Zündapp Supertherm KS 50 type 517 530 / GTS 50 type 529 / CS Hai 50 type 448
£173.80 *
Content:
1 piece
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
Further variants / accessories
Zylinder Set 50ccm 39mm (2 ÜS) für Zündapp Supertherm KS 50 Typ 517 530...
![Zylinder Set 50ccm 39mm (2 ÜS) für Zündapp Supertherm KS 50 Typ 517 530 / GTS 50 Typ 529 / CS Hai 50 Typ 448]()
- Item no: 003300
- EAN: 8052204292110
- Manufacturer: Athena
- Manufacturer no.: 003300
KS 50 type 517 and 530 GTS 50 type 529 5 Speed CS 50 HAI 50 type 448 more
Product information about Cylinder set 50ccm 39mm (2 ÜS) for Zündapp Supertherm KS 50 type 517 530 / GTS 50 type 529 / CS Hai 50 type 448
KS 50 type 517 and 530
GTS 50 type 529 5 Speed
CS 50 HAI 50 type 448
Properties
| Product type: | Cylinder set |
| Piston pin diameter: | 12 mm |
| Displacement: | 50 cc |
| Can the original cylinder head be used?: | Yes |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Rectangular ring |
| Vintage part: | Yes |
| Piston special feature: | With two 3.5x7mm piston window bores / piston ring chrome-plated. |
| Surface finish: | Matt |
| Cylinder special feature: | Nikasil-coated piston track |
| Inlet inside dimension: | 17 x 30 mm, square |
| Outlet Outer dimension: | 36 mm |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 8052204292110 |
| Inlet stud spacing: | 45 mm |
| Inlet stud bolt thread: | M6 |
| Diffuser internal dimension: | 27 mm |
| Cylinder dimensions (LxWxH): | 160 x 200 x 90 mm |
| Scope of delivery: | Cylinder, Piston rings, Piston, Gasket set |
| Cylinder stud distance: | 45 x 45 mm |
| Number of overflows: | 2 |
| Comparison number: | Athena 003300 |
| Cylinder stud bore: | 8 mm |
| Manifold connection type: | Clamp/plug |
| Color: | Grey |
| Number of piston rings: | 1 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 003300 |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder + piston + gasket set |
| Manufacturer warranty: | 2 years |
| Weight: | 2.70 kg |
| Material: | Aluminum |
| Type: | Tuning |
| suitable for: | Zündapp Supertherm |
