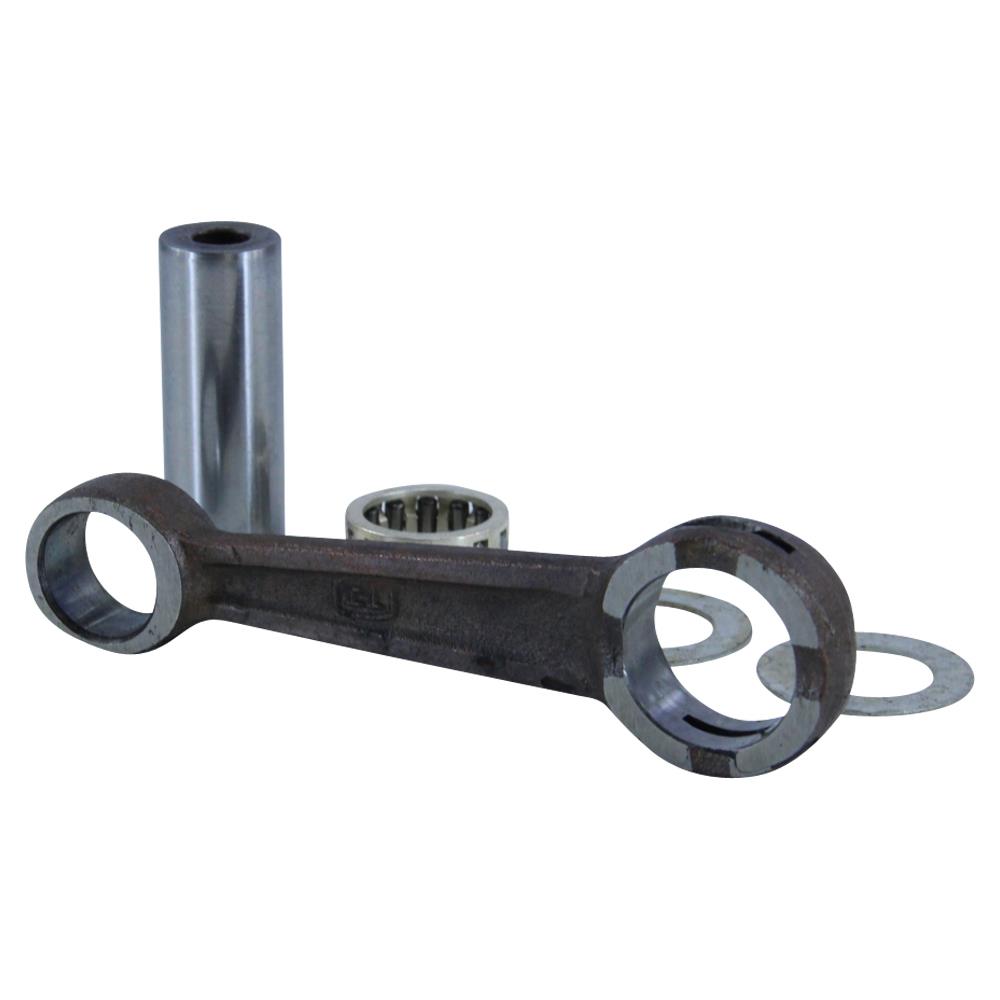

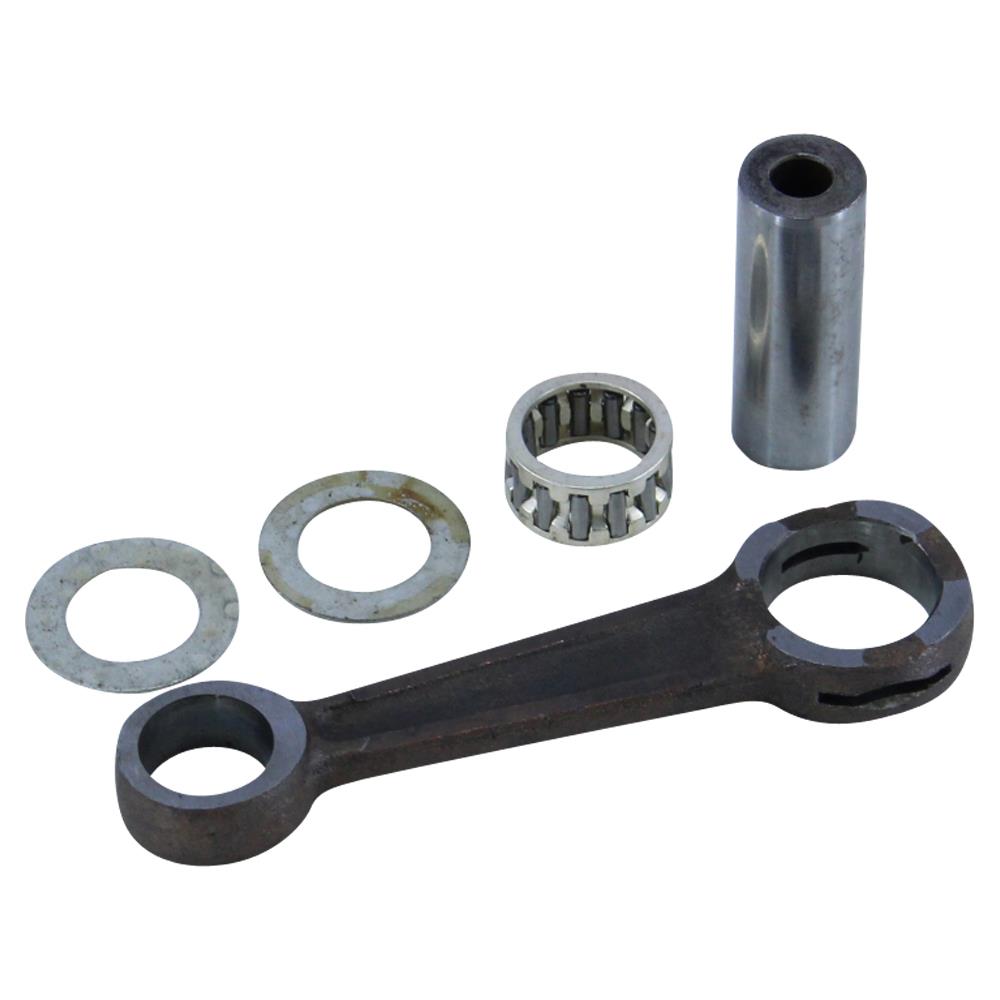

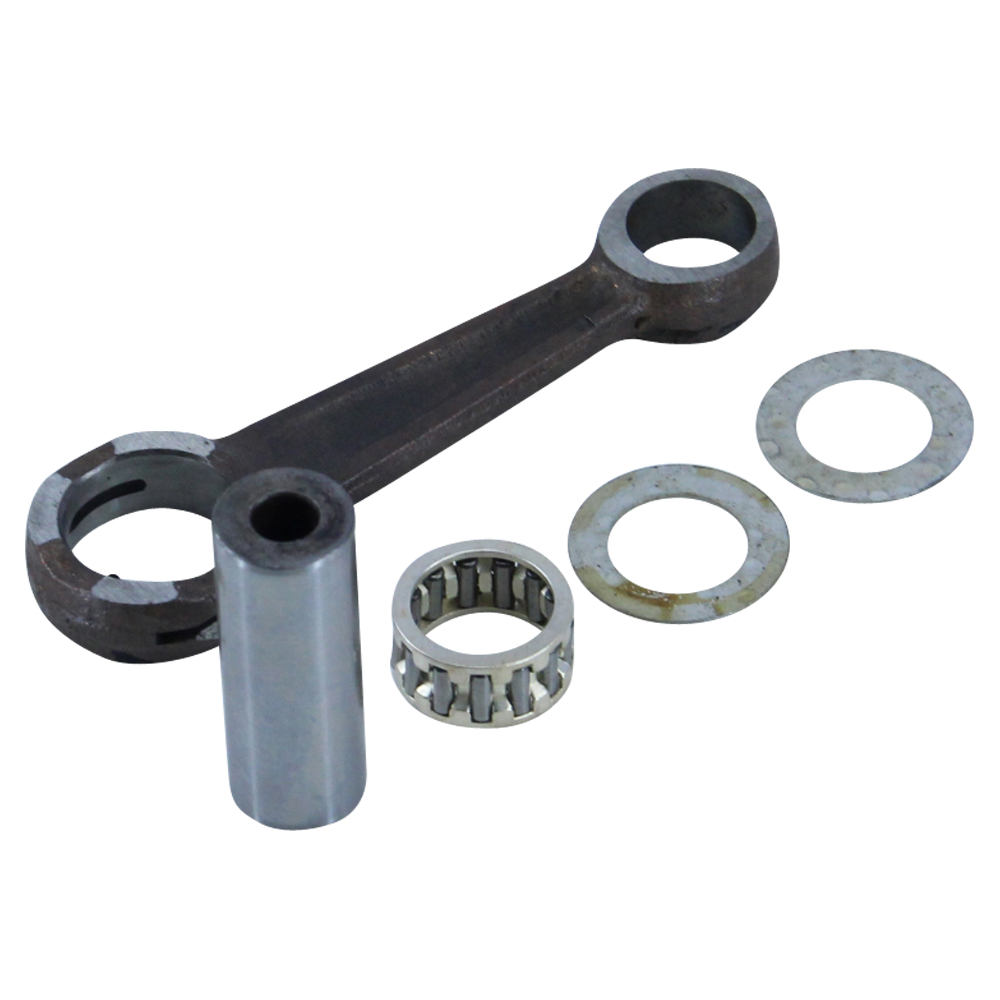

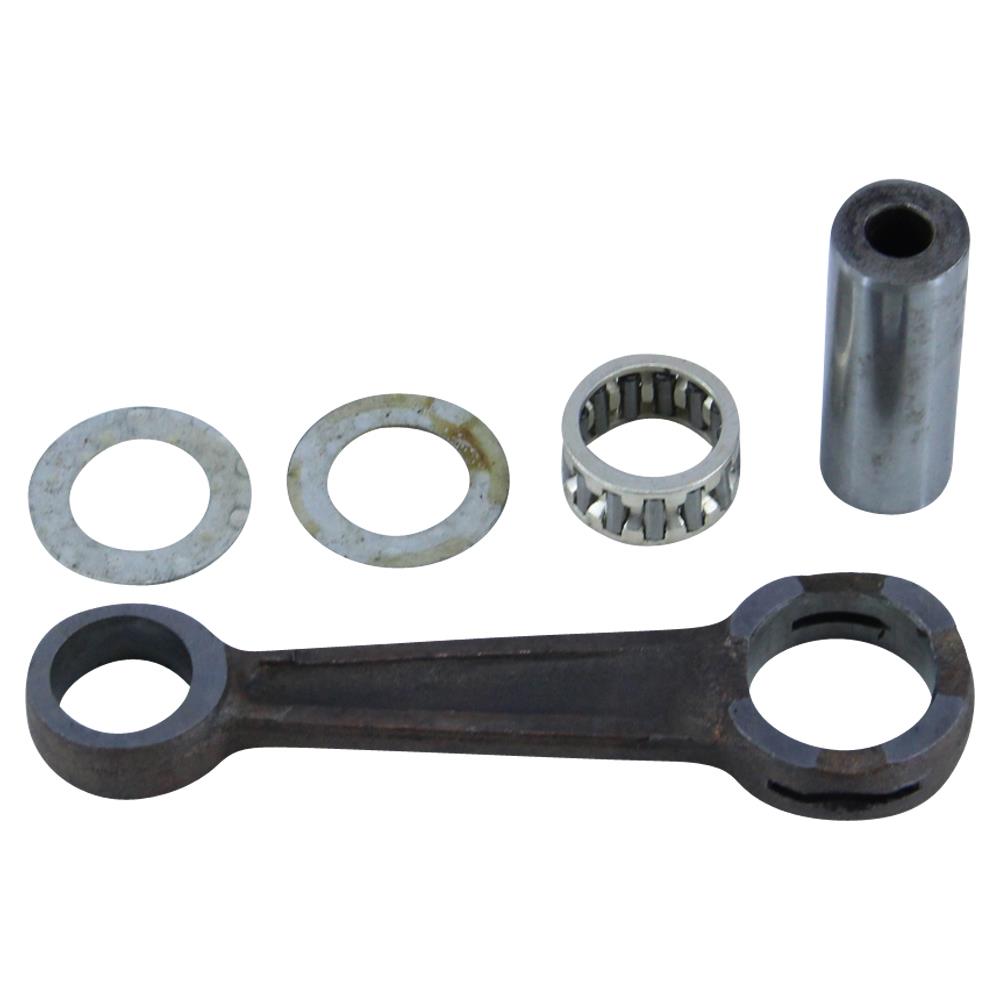

Citomerx connecting rod repair kit ORIGINAL for Zündapp KS K SX 80 type 530 537 540
Prices plus VAT plus shipping costs
Unfortunately, this item is already sold out due to high demand.
- Item no: 722890
- EAN: 4251048862358
- Manufacturer: Citomerx
- Manufacturer no.: 722890
KS 80 WK type 530-050 (up to engine no. 9925610)
KS 80 Touring type 530-070 (up to engine no. 9925610)
KS 80 WK type 530-050 ( from engine no. 9925611)
KS 80 Touring type 530-070 (from engine no. 9925611)
KS 80 Super type 537-010 (up to engine no. 1015760)
KS 80 Super Type 537-010 (from engine no. 1015761)
K 80 Type 540-010
K 80 Type 540-011
SX 80 Type 540-150
K 80 WK Type 540-200
| Product type: | Connecting rod |

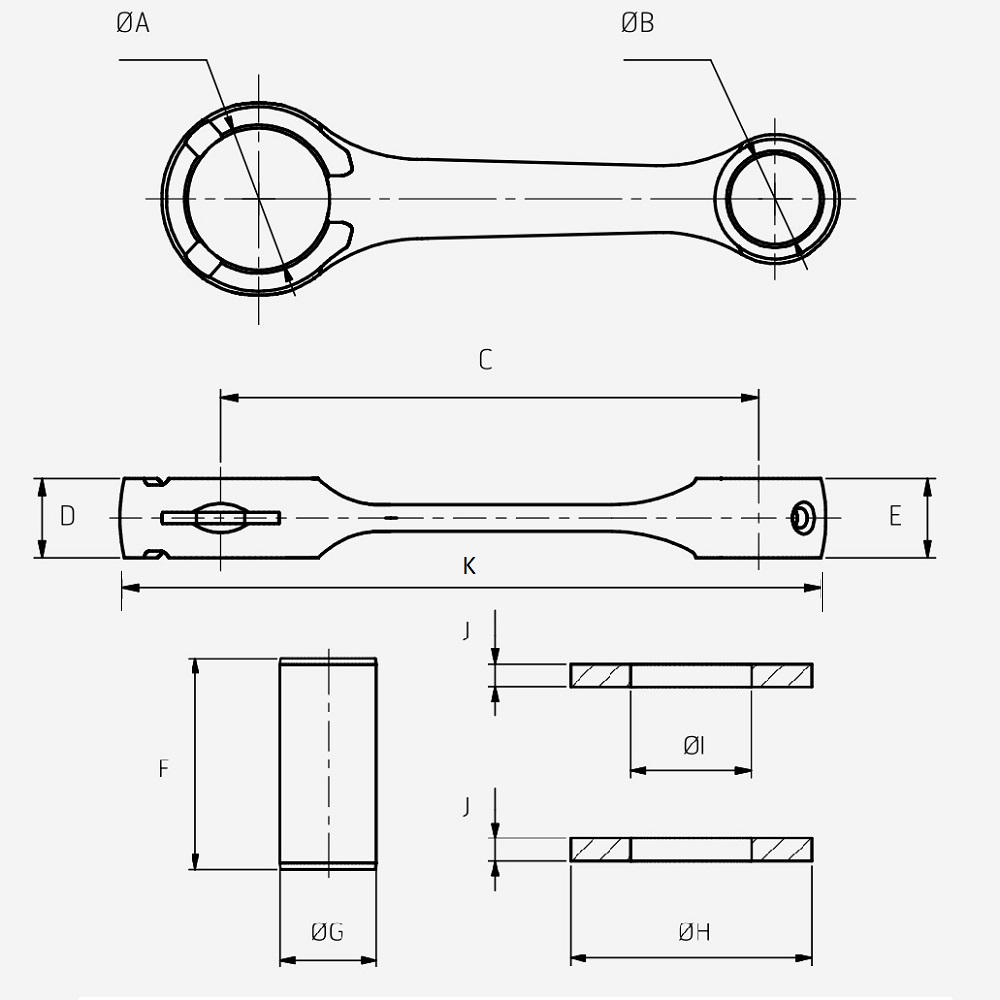

| Dimension I (inner diameter of shims): | 18.1 mm |
| Dimension F (length of lifting pin): | 47.9 mm |
| Feature: | 91 mm connecting rod |
| Needle roller bearing pin dimensions: | 18x24x11.8 mm |
| Tuning & Styling Part: | No |
| Dimension J (thickness of shims): | 1 mm |
| Vintage part: | Yes |
| Surface finish: | Matt |
| Dimension C (connecting rod length): | 91 mm |
| Dimension G (diameter of lifting pin): | 18 mm |
| Dimension K (total length of connecting rod): | 120 mm |
| GTIN: | 4251048862358 |
| Dimension A (diameter of connecting rod eye at bottom): | 24 mm |
| Dimension D (width of connecting rod at bottom): | 11.8 mm |
| Dimension H (outer diameter of shims): | 30 mm |
| Scope of delivery: | Bolt, Needle roller bearing, Connecting rod |
| Dimension E (top width of connecting rod): | 11.8 mm |
| Dimension B (top diameter of connecting rod eye): | 18 mm |
| Color: | Grey |
| Scope of delivery: | 1x connecting rod repair kit |
| Manufacturer number: | 722890 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Connecting rod incl. needle bearing, crank pin, washers |
| Manufacturer warranty: | 2 years |
| Weight: | 0.190 kg |
| Material: | Cast iron |
| Type: | Original |
