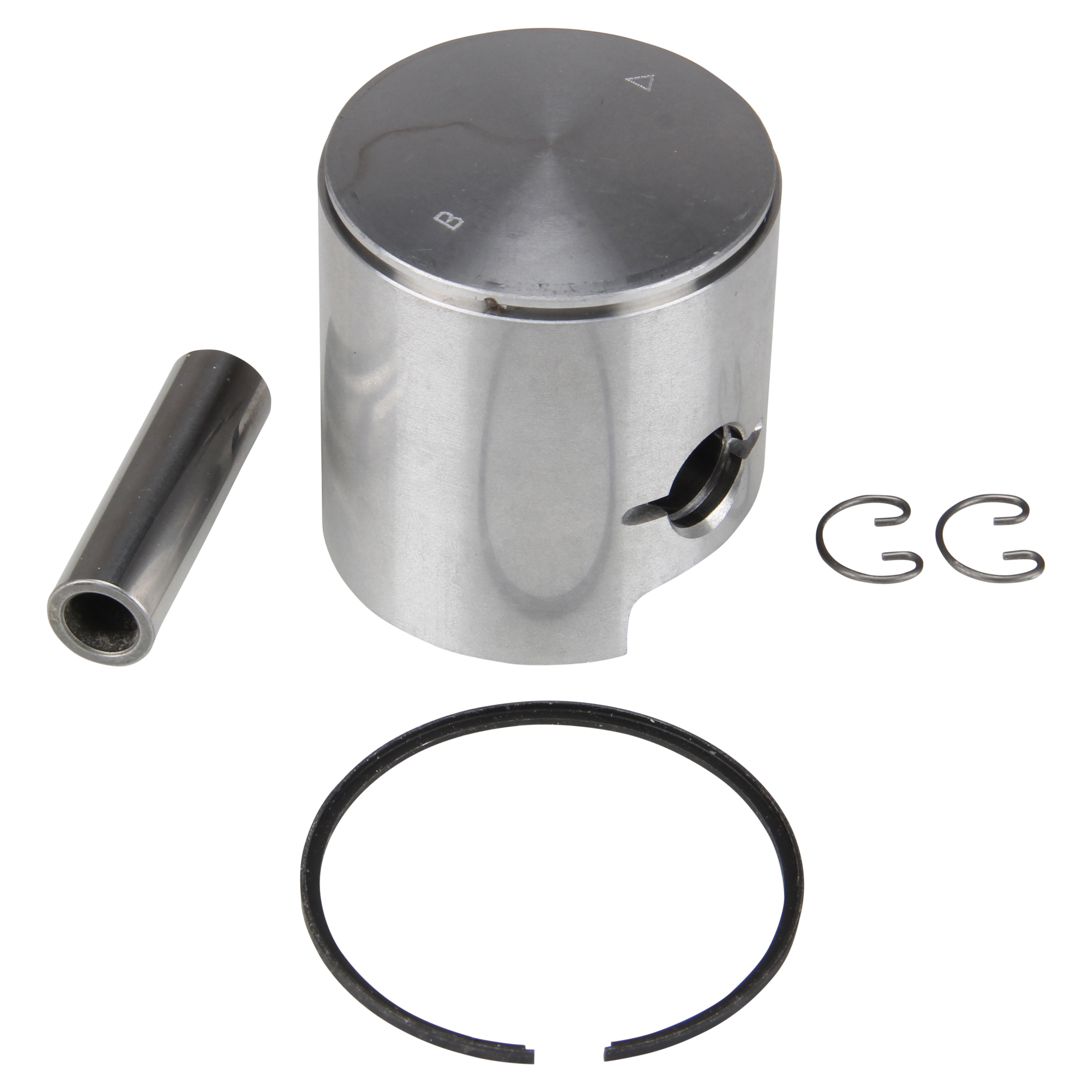

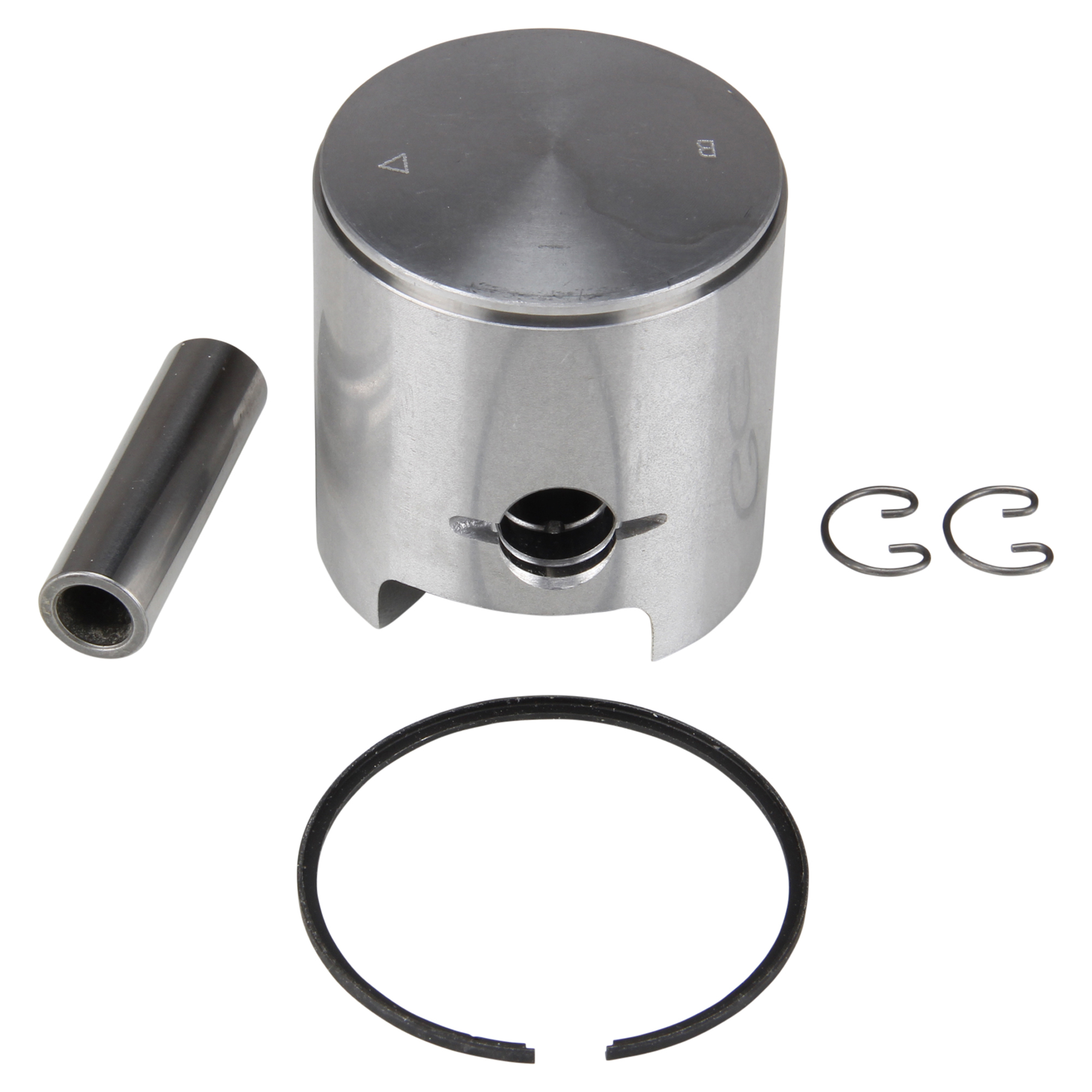

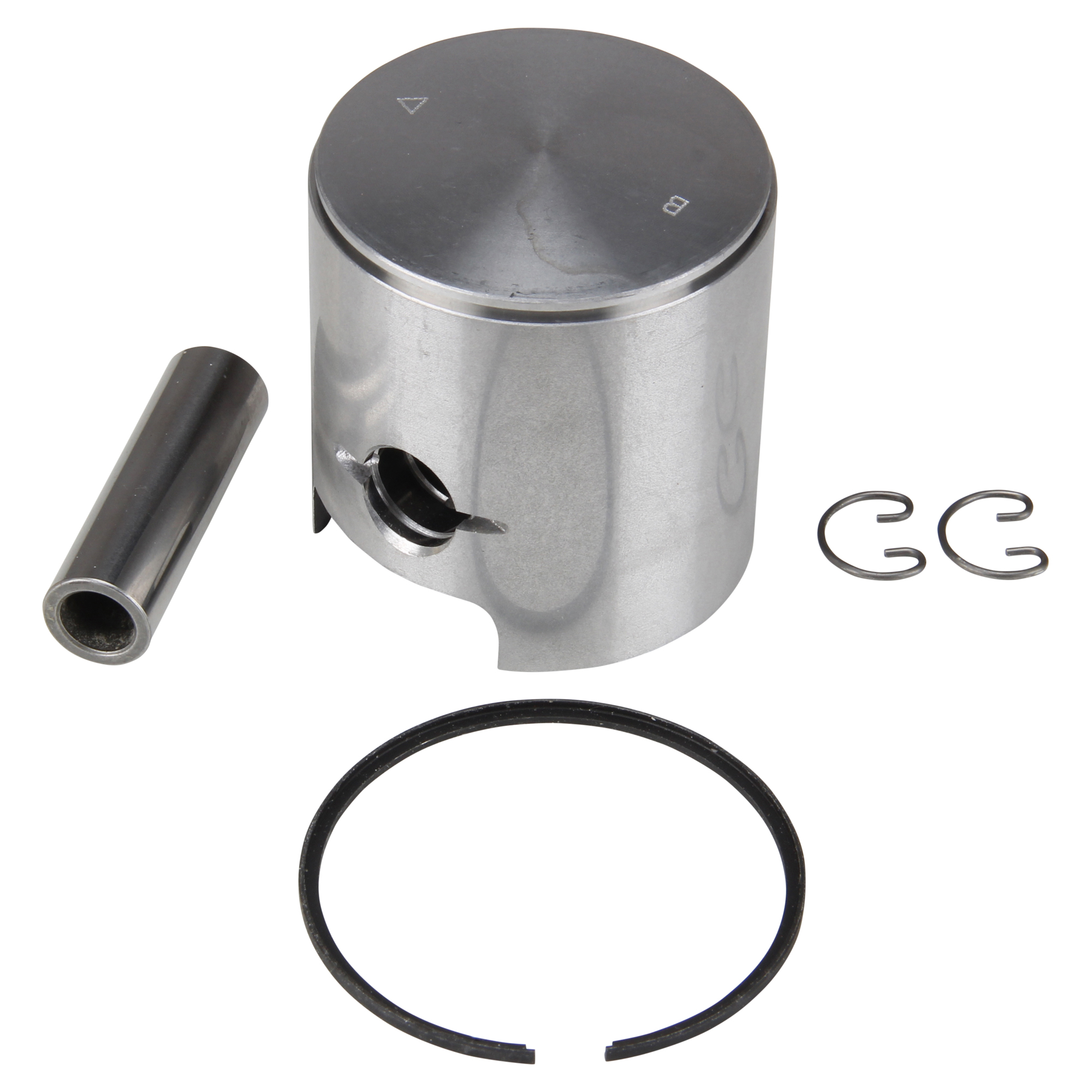

Piston set 47.945mm Tol. B 75ccm for Zündapp Mini/Superterm GTS KS C CS ZD ZS ZX 446 448 460 517 529
£88.34 *
£130.06 *
32.08% saved
Content:
1 piece
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Last article - Buy now
- Item no: 204.0601B
- EAN: 4251048861696
- Manufacturer: Citomerx
- Manufacturer no.: 204.0601B
Piston set 38.965mm Tol. DE 50cc for Zündapp ZD CS Hai CX ZX ZL C GTS KS RM Type 434 446 448 460... more
Product information about Piston set 47.945mm Tol. B 75ccm for Zündapp Mini/Superterm GTS KS C CS ZD ZS ZX 446 448 460 517 529
Piston set 38.965mm Tol. DE 50cc for Zündapp ZD CS Hai CX ZX ZL C GTS KS RM Type 434 446 448 460 442 517 529 561
Properties
| Product type: | Piston set |

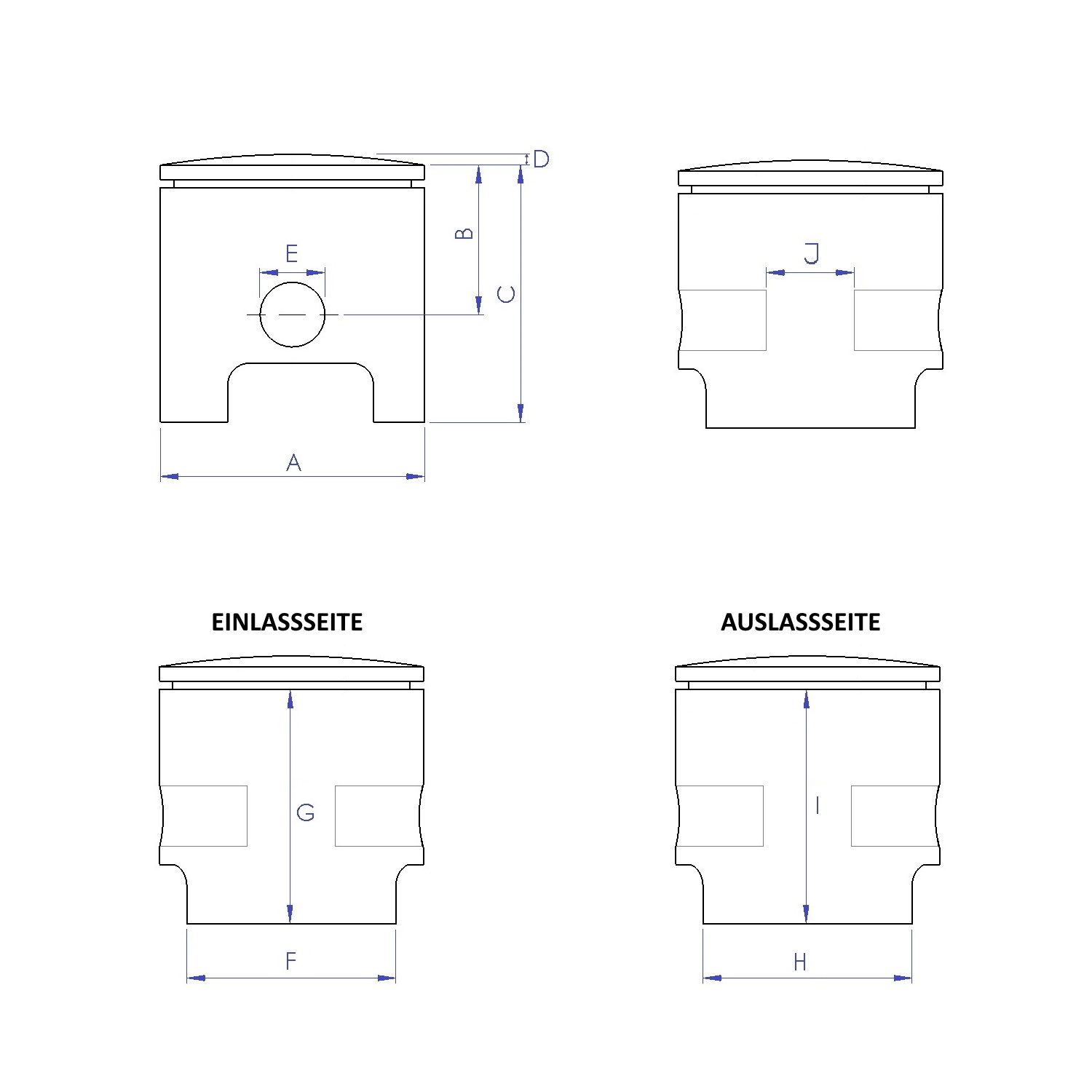

| Dimension B (compression height): | 29 mm |
| Dimension F (piston skirt width inlet side): | 43.5 mm |
| Dimension I (piston skirt length outlet side): | 47 mm |
| Piston ring dimension: | 48 x 2.0 mm |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | L-ring |
| Vintage part: | Yes |
| Cylinder bores: | 48 mm |
| Dimension C (piston height): | 49 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Dimension C + D (total height): | 50.5 mm |
| Dimension G (piston skirt length inlet side): | 47 mm |
| OE/OEM reference number(s): | Polini 204.0601/B |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4251048861696 |
| Dimension A (piston diameter): | 47.945 mm |
| Bolt diameter: | 12 mm |
| Dimension D (curvature): | 1.5 mm |
| Dimension H (piston skirt width outlet side): | 32 mm |
| Scope of delivery: | Piston clips, Piston pin, Piston, Piston ring |
| Bolt length: | 40 mm |
| Piston ring width: | 2.00 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Tolerance size: | B (47.945mm) |
| Piston ring shape: | B (groove for center locking pin) |
| Color: | Silver |
| Piston diameter: | 48 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 204.0601/B |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Weight: | 0.116 kg |
| Material: | Aluminum alloy |
| suitable for: | 75 ccm |
