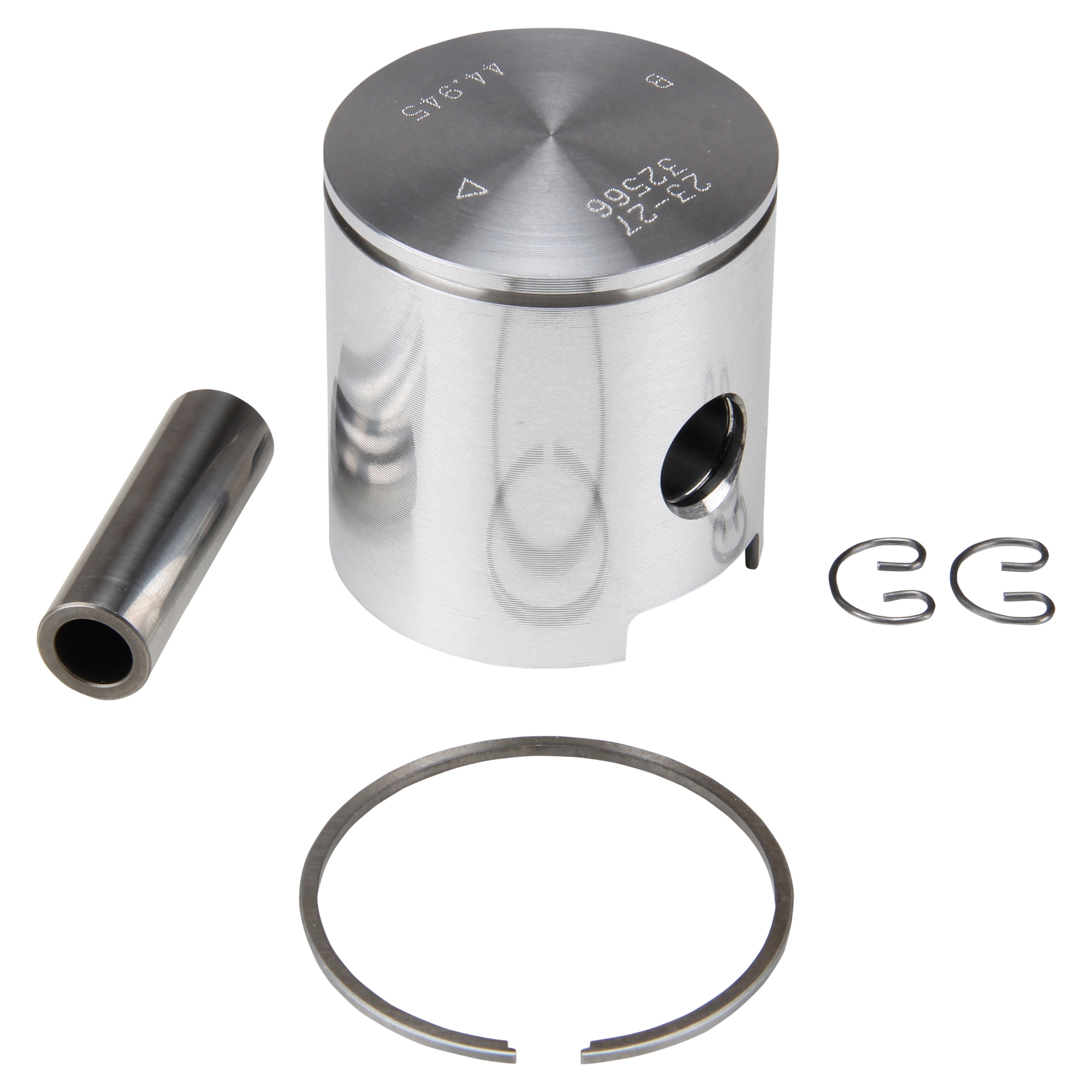

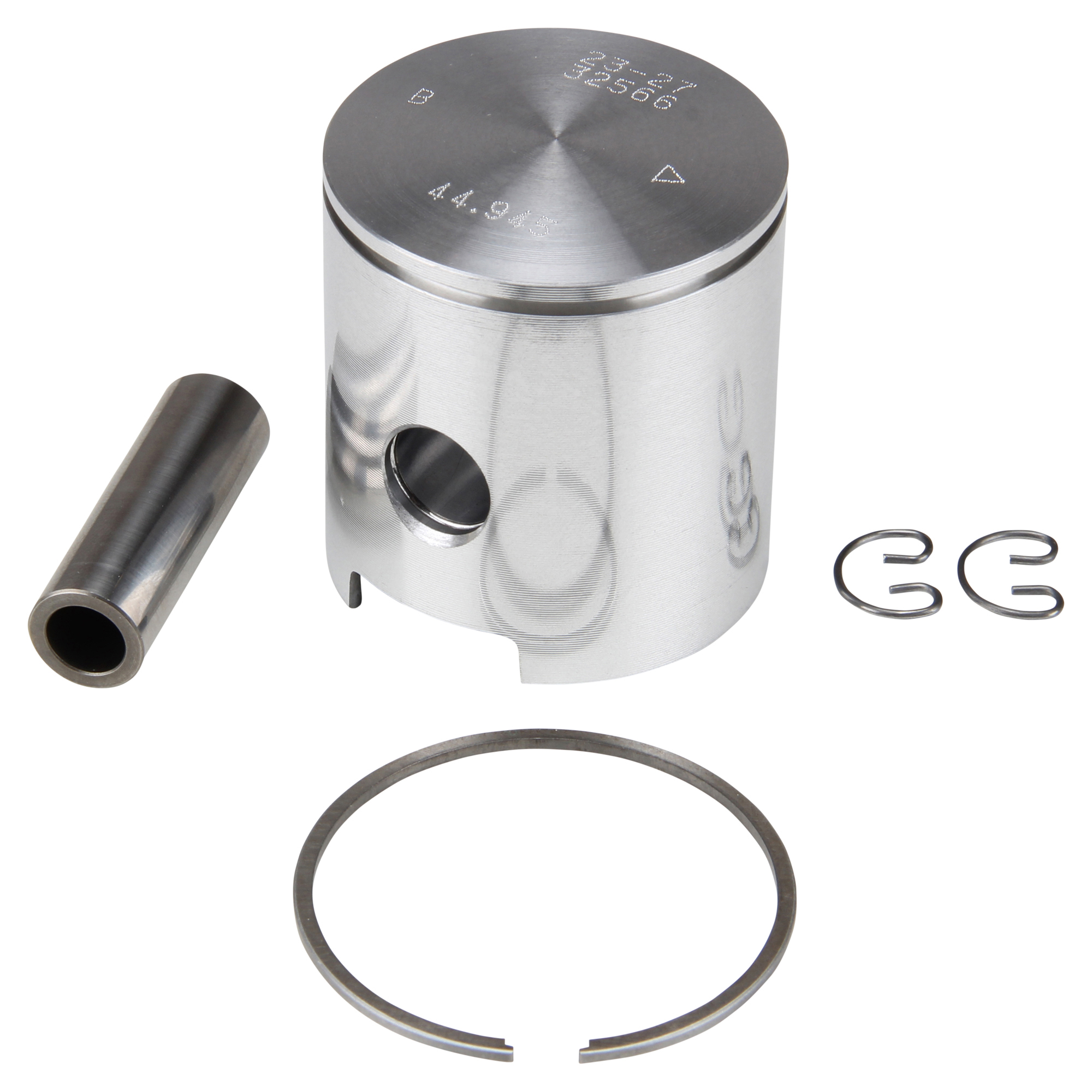

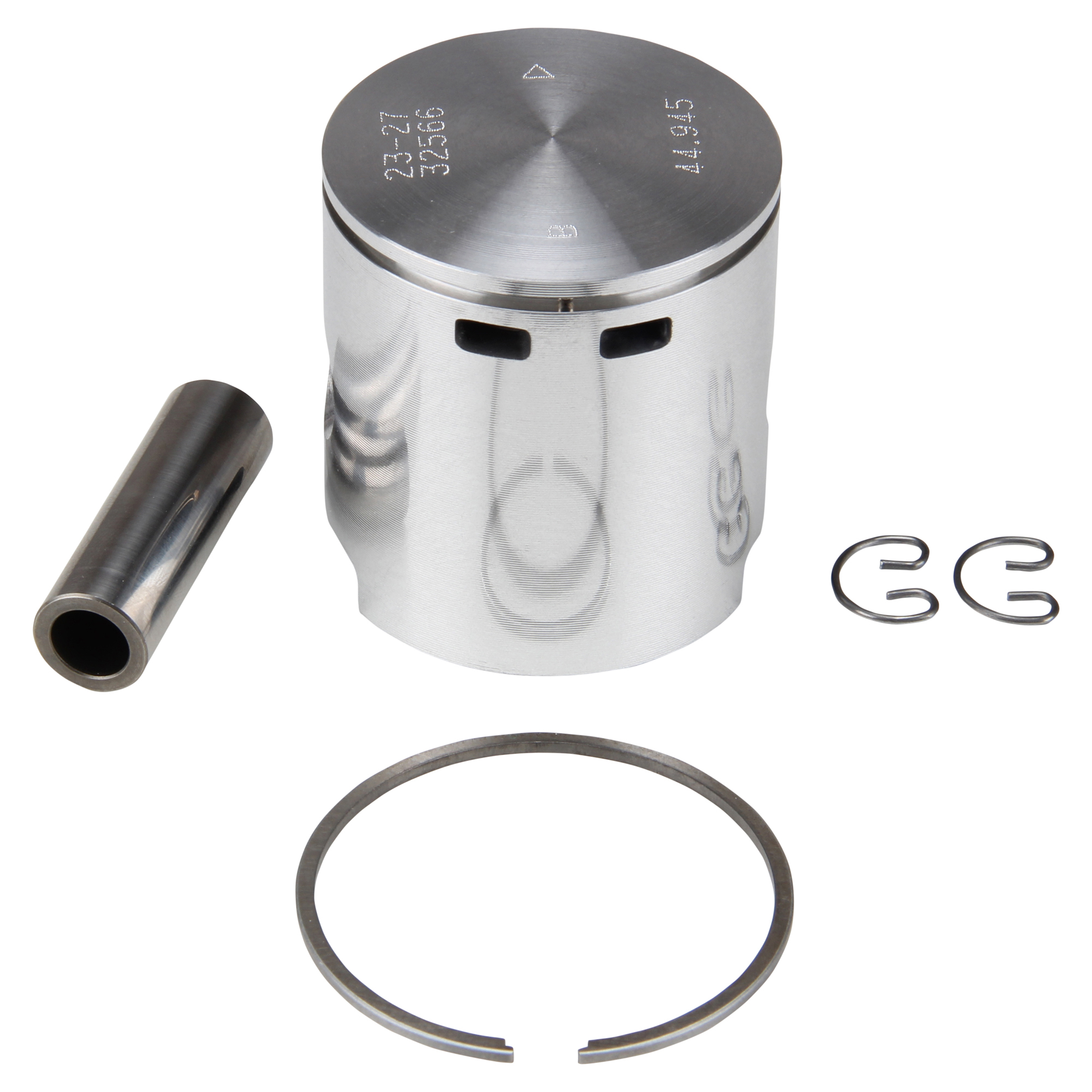

Piston set 44.95mm Tol. B 70ccm for Zündapp Mini/Superterm GTS KS C CS ZD ZS ZX 446 448 460 517 529
£36.88 *
Content:
1 piece
Prices plus VAT plus shipping costs
Delivery time on request
Further variants / accessories
Kolben Set 44,94mm Tol. A 70ccm für Zündapp Mini/Supertherm GTS KS C CS...
![Kolben Set 44,94mm Tol. A 70ccm für Zündapp Mini/Supertherm GTS KS C CS ZD ZS ZX 446 448 460 517 529]()
Kolben Set 44,95mm Tol. B 70ccm für Zündapp Mini/Supertherm GTS KS C CS...
![Kolben Set 44,95mm Tol. B 70ccm für Zündapp Mini/Supertherm GTS KS C CS ZD ZS ZX 446 448 460 517 529]()
Kolben Set 44,96mm Tol. C 70ccm für Zündapp Mini/Supertherm GTS KS C CS...
![Kolben Set 44,96mm Tol. C 70ccm für Zündapp Mini/Supertherm GTS KS C CS ZD ZS ZX 446 448 460 517 529]()
Kolben Set 44,97mm Tol. D 70ccm für Zündapp Mini/Supertherm GTS KS C CS...
![Kolben Set 44,97mm Tol. D 70ccm für Zündapp Mini/Supertherm GTS KS C CS ZD ZS ZX 446 448 460 517 529]()
- Item no: 003102.B
- EAN: 4251048859877
- Manufacturer: Athena
- Manufacturer no.: 003102.B
Piston set 38.97mm Tol. DE 50ccm for Zündapp C KS RS 50 type 441 515 517 530 561 more
Product information about Piston set 44.95mm Tol. B 70ccm for Zündapp Mini/Superterm GTS KS C CS ZD ZS ZX 446 448 460 517 529
Piston set 38.97mm Tol. DE 50ccm for Zündapp C KS RS 50 type 441 515 517 530 561
Customers also searched for this product under:
Further links to "Piston set 44.95mm Tol. B 70ccm for Zündapp Mini/Superterm GTS KS C CS ZD ZS ZX 446 448 460 517 529"
Properties more

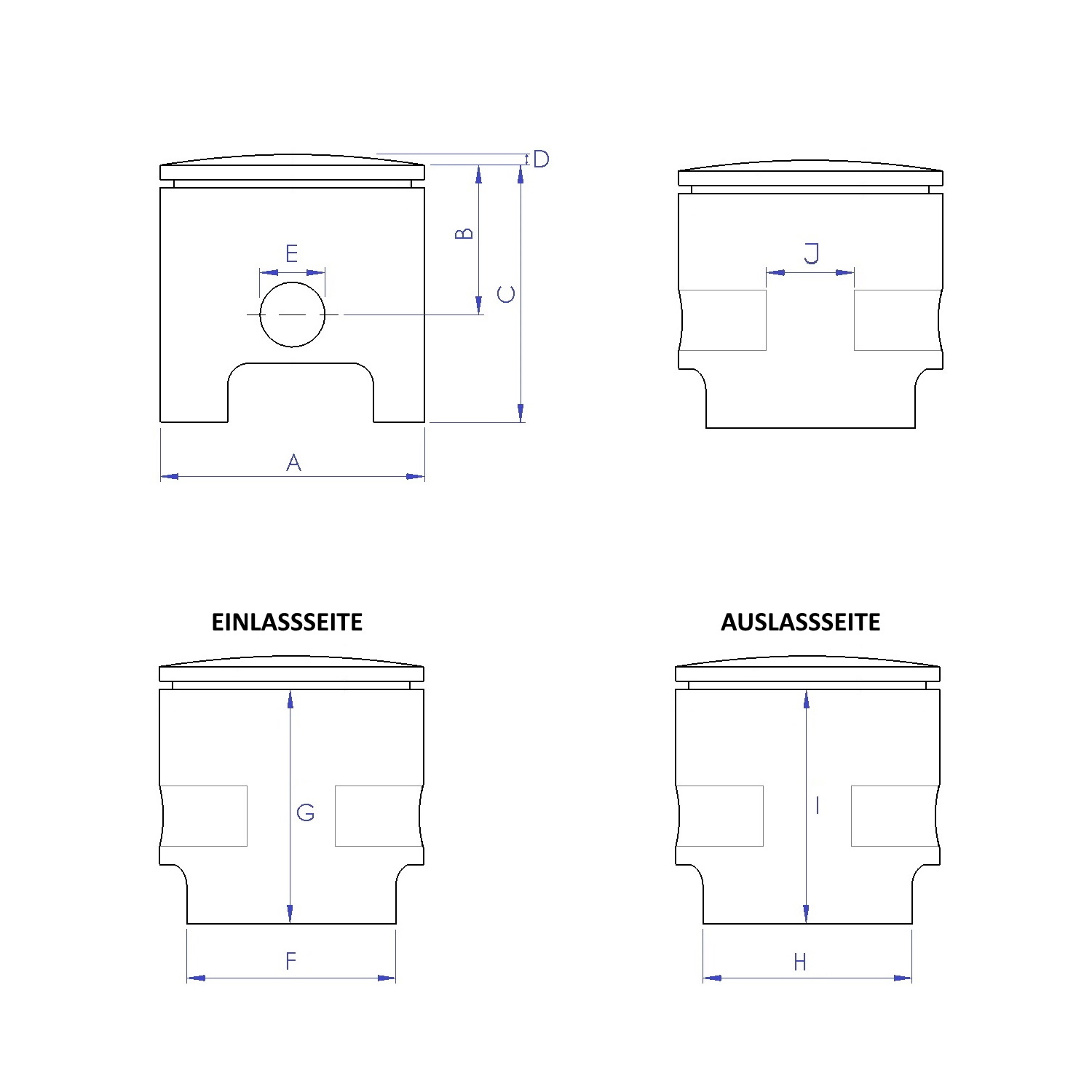

| Tolerance size: | B (44.95mm) |
| Dimension C + D (total height): | 49.5 mm |
| Cylinder bores: | 45 mm |
| Piston ring dimension: | 45 x 1.5 mm |
| Dimension B (compression height): | 26 mm |
| Note: | With two 3.5x7mm piston window bores / piston ring chrome-plated. |
| Bolt length: | 38 mm |
| Piston ring width: | 1.9 mm |
| Dimension C (piston height): | 48 mm |
| Dimension G (piston skirt length inlet side): | 44.5 mm |
| Dimension D (curvature): | 1.5 mm |
| Dimension I (piston skirt length outlet side): | 44.5 mm |
| Dimension F (piston skirt width inlet side): | 39 mm |
| Dimension H (piston skirt width outlet side): | 41 mm |
| GTIN: | 4251048859877 |
| OE/OEM reference number(s): | Athena 003102.B, Athena S4C04500004B |
| Dimension A (piston diameter): | 44.95 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Scope of delivery: | Piston, Piston clips, Piston pin, Piston ring |
| Vintage part: | Yes |
| Tuning & Styling Part: | Yes |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| Piston ring shape: | B (groove for center locking pin) |
| Piston ring profile: | Rectangular ring |
| Bolt diameter: | 12 mm |
| Color: | Silver |
| Piston diameter: | 45 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | S4C04500004B |
| Country and region of manufacture: | Italy |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Weight: | 0.102 kg |
| Material: | Aluminum alloy |
| suitable for: | 70 ccm |
