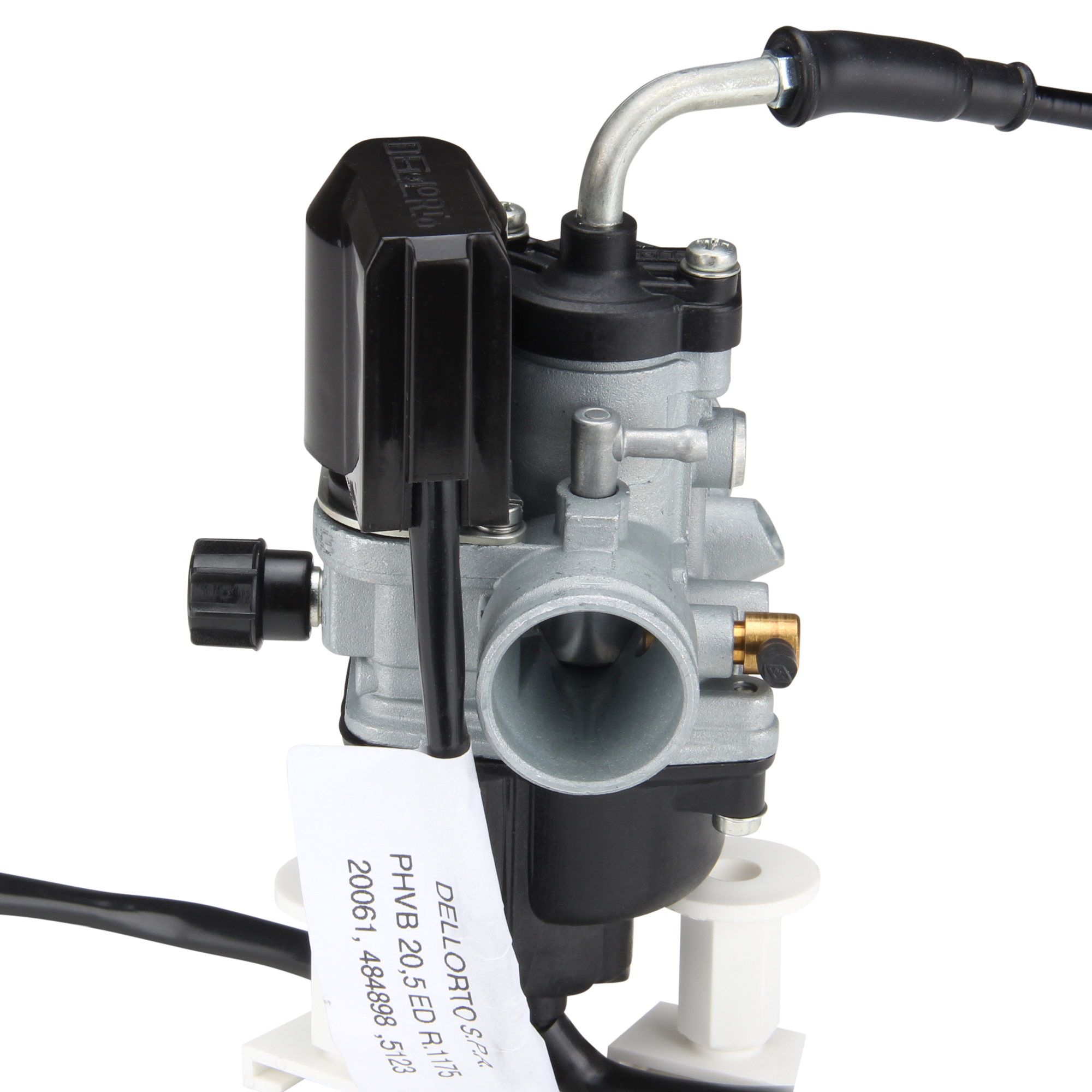

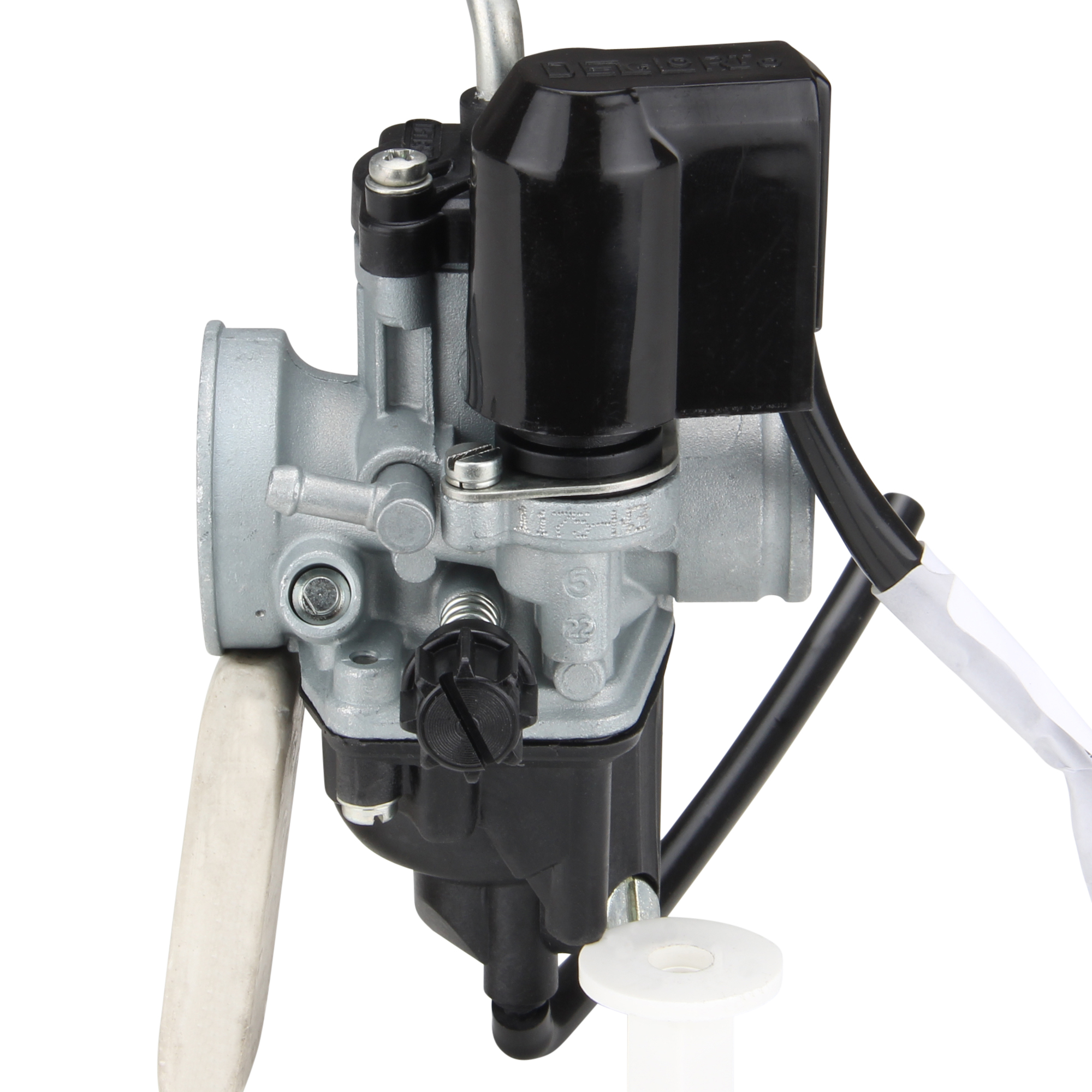

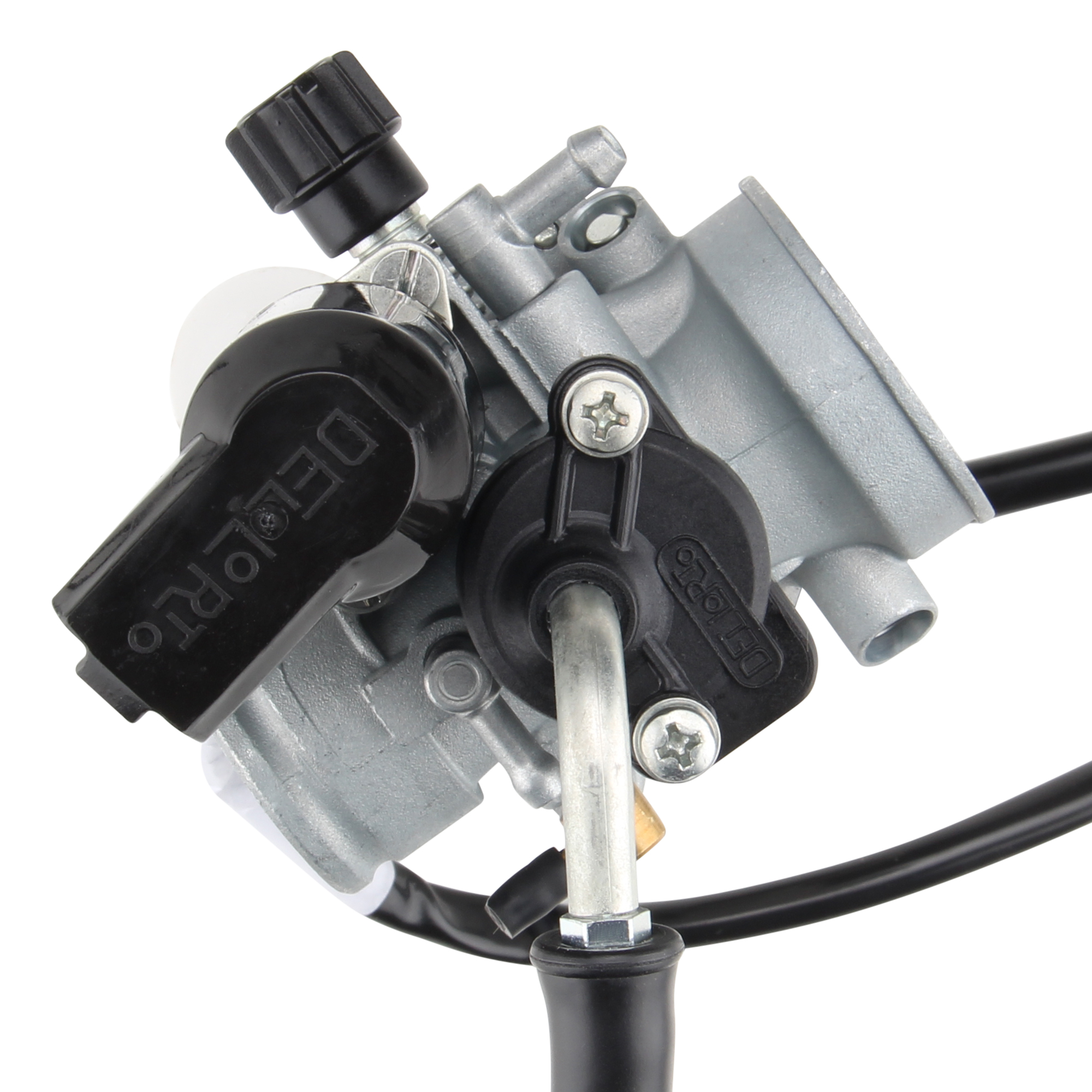

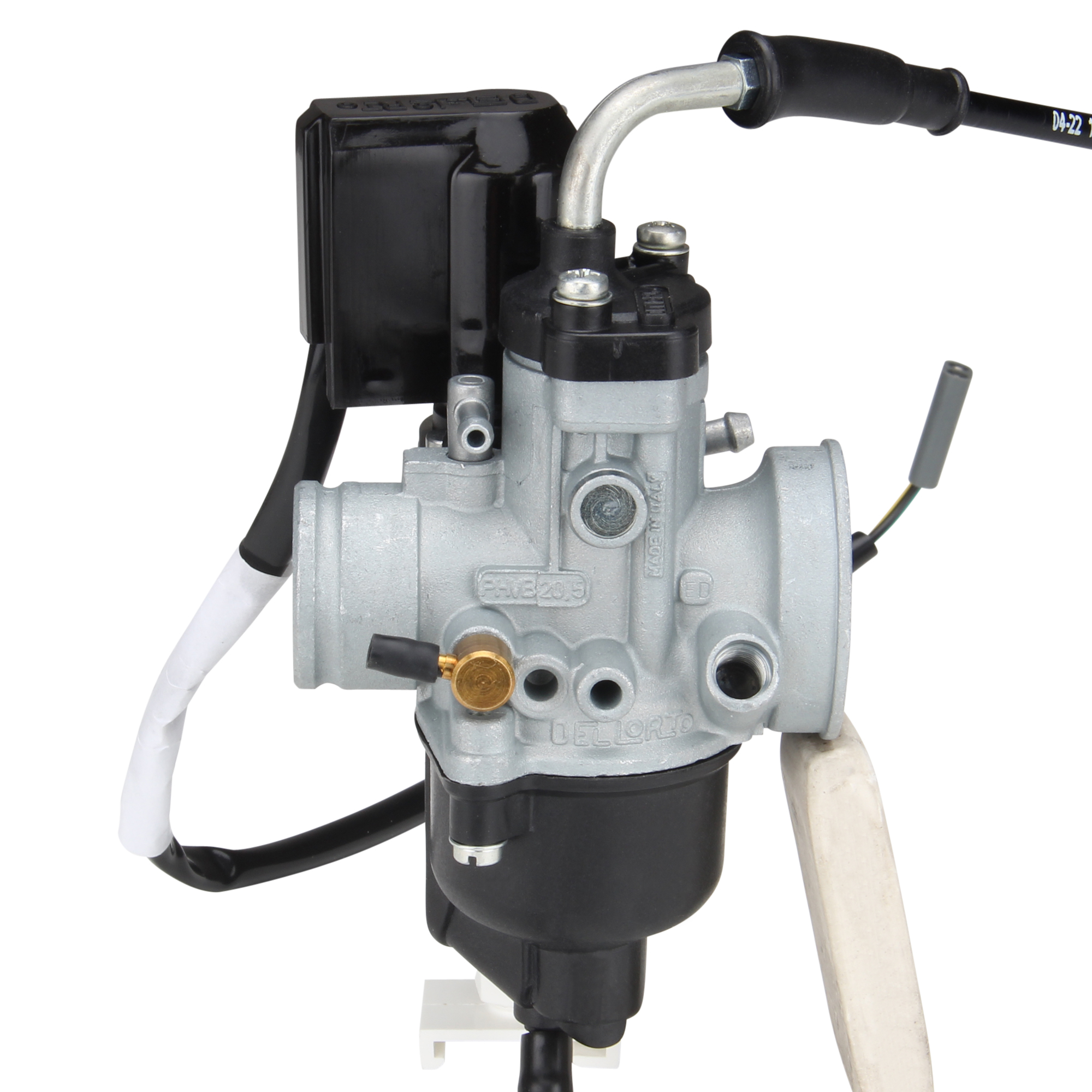

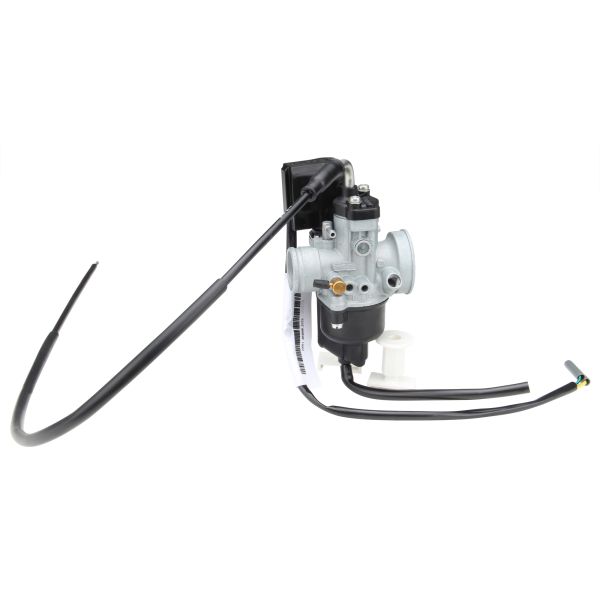

DellOrto carburetor 01177 PHVB 20.5 ED round slide for Piaggio Skipper LX 2T, Skipper SKR 2T
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 999901177
- EAN: 4251048832412
- Manufacturer: Dellorto
- Manufacturer no.: 01177
“La Dolce Vita” for your two-wheeler.
With Dell'Orto carburetors and spare parts, we offer you precision and perfection from Italy.
Aprilia, Piaggio, Moto Guzzi, Ducati, Benelli, Laverda and MV Agusta, as well as other manufacturers such as BMW, Honda, Husqvarna, Husaberg, KTM, Peugeot and Yamaha have been relying on Dell'Orto's consistently high-quality and innovative carburetors since 1933. The major scooter engine manufacturers Minarelli and Morini also value the know-how and premium quality of the Italian carburetor specialist Dell'Orto.
With an original Dell'Orto carburetor, you get quality at the highest level.
The basic function of the carburetor is modified or supplemented by several additional features. For example, the cold and hot start behavior, the enrichment and acceleration phase or even the mixture drop after closing the throttle can be changed by influencing the air or fuel supply.
The PHVA and PHVB carburetors are the most common models in the 50cc class. Almost every Piaggio engine is equipped with them. With the classic design and a wide range of equipment options, such as various throttle cable and choke variants, these models are extremely variable.
Technical data:
Type PHVB Var. E with 20.5 mm passage, separate lubrication
- Adjustment screws on the right

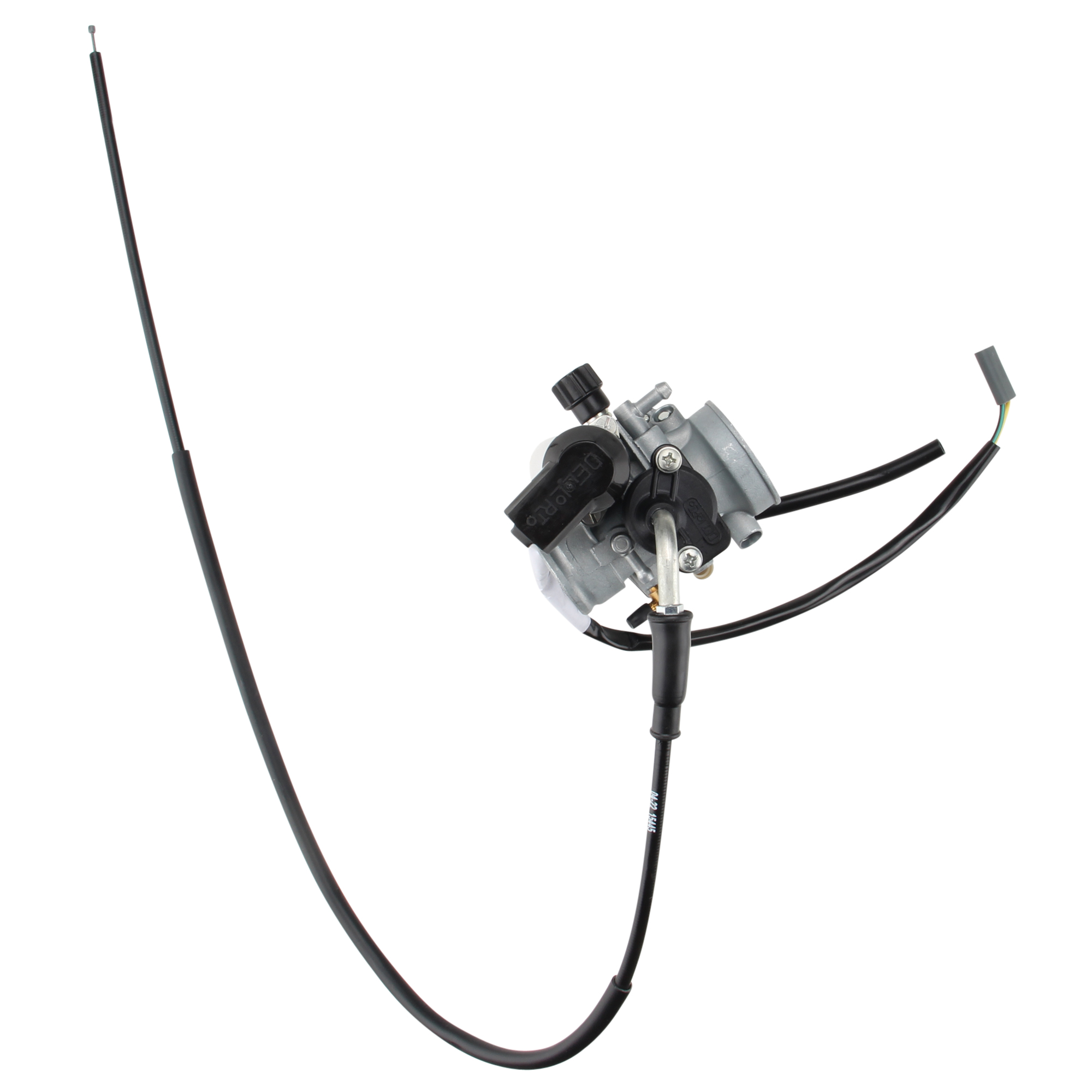

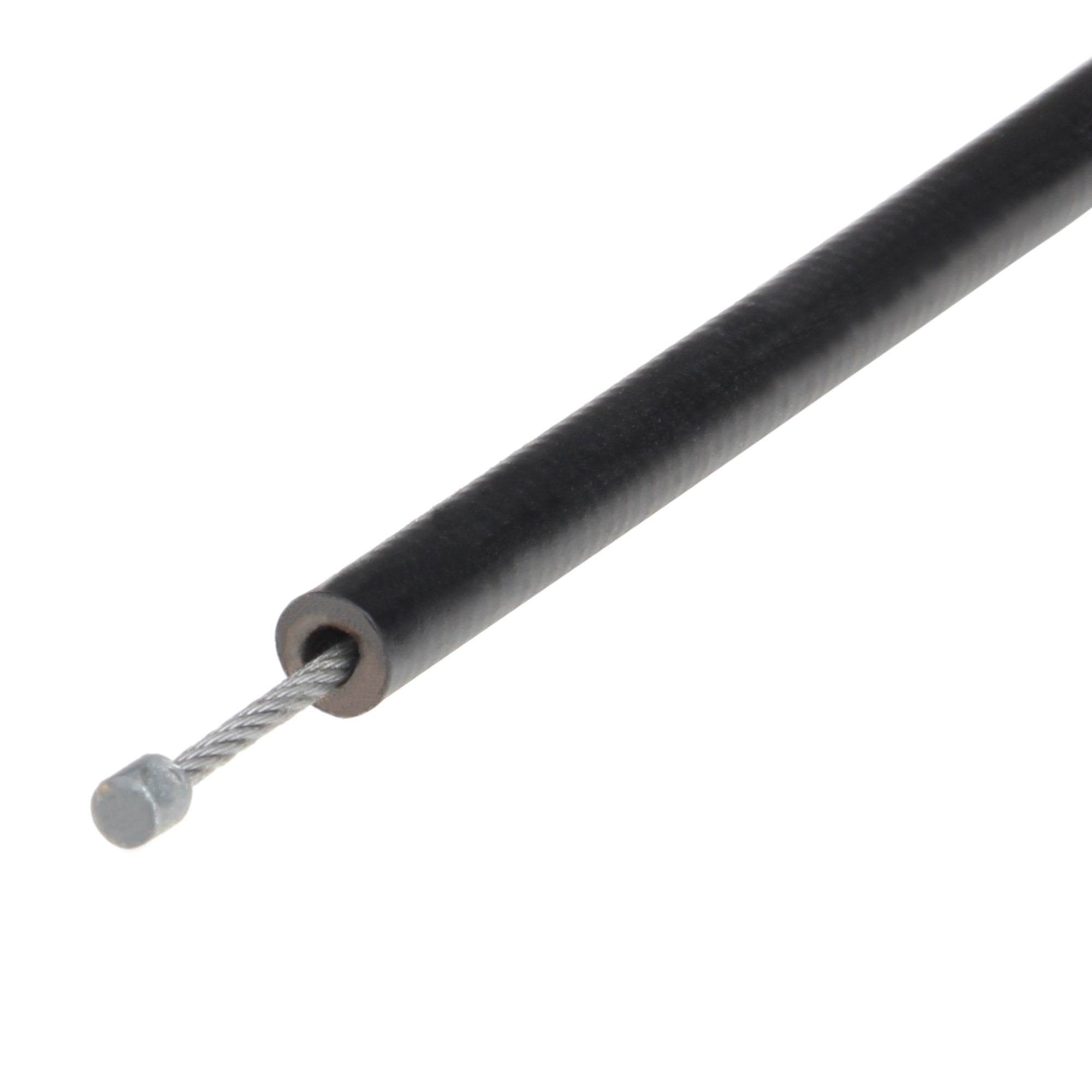

- Angled throttle cable
- Rubber connection

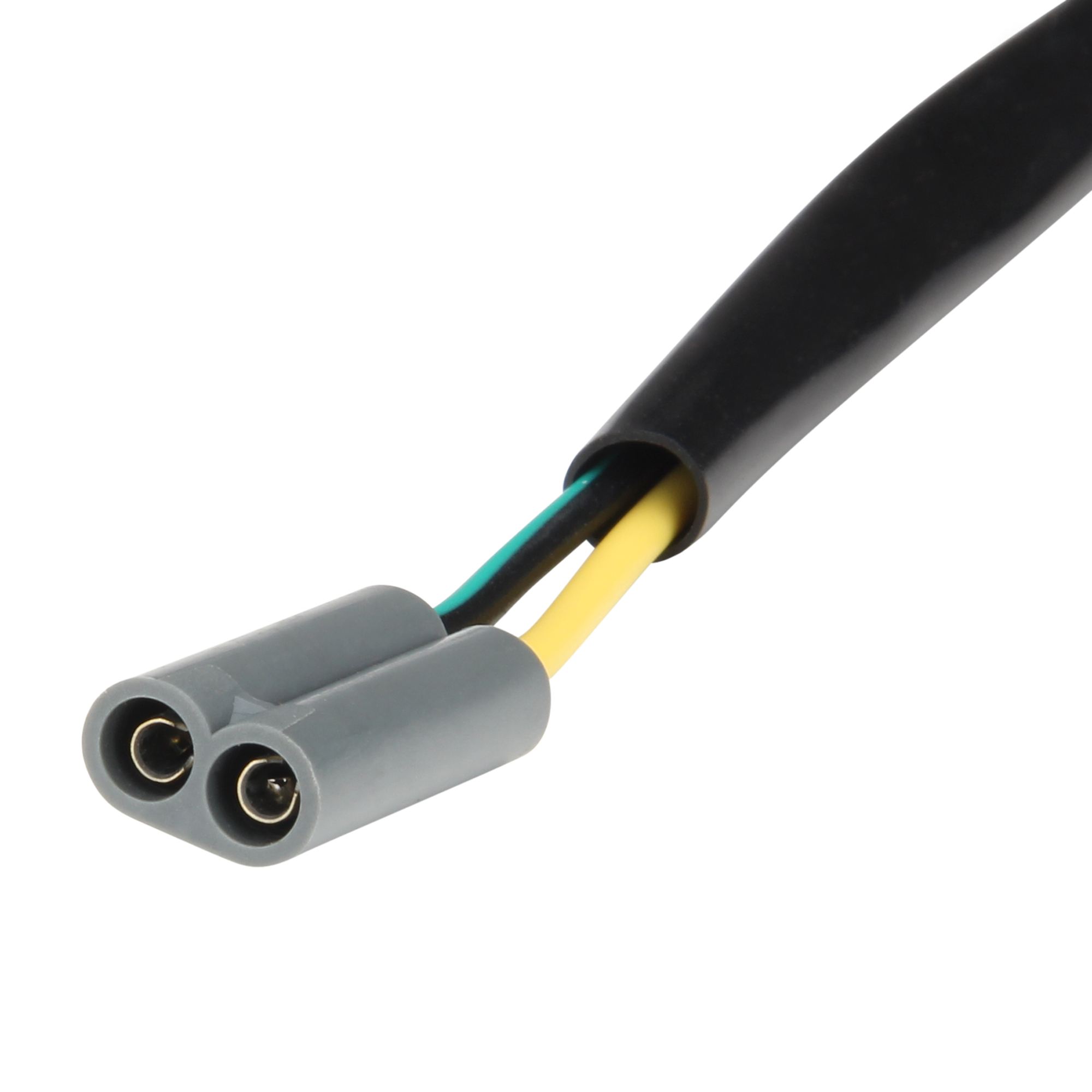

- Electric choke
Equipped with
- throttle slide 14371-40
- Carburetor needle M 15377-6
- Main atomizer GH 15378-212
- Main jet 6413-82
- Idle jet 15500-50
- Float 13700-01, 3,5gr
Suitable for the following models:
This carburetor is used exactly in this configuration (jets, atomizer, connections, etc.) in the following models:
- Piaggio Skipper, LX, LXT, BJ 1999, 125 ccm, 1 cyl. - 2-stroke
- Piaggio Skipper, LX, LXT, BJ 1999, 150 ccm, 1 cyl. - 2-stroke
Of course, the carburetor can also be used in other models. The air intake, the engine connection and the connection for the throttle cable and the choke may have to be adapted, and carburetors for 2-stroke and 4-stroke engines should not be mixed. It is also important to check whether the carburetor is prepared for mixed or separate lubrication and whether any vacuum connections are required to control a fuel tap or an oil pump.
| Comparison number: | Dellorto 01177 |
| Carburetor side: | D |
| OE/OEM reference number(s): | Dellorto 01177 |
| Vintage part: | No |
| Tuning & Styling Part: | No |
| Universal compatibility: | No |
| Carburetor variant: | E |
| Scope of delivery: | Carburetor complete |
| Culvert: | 20.5 mm |
| Features: | E-Choke |
| Scope of delivery: | 1x Carburetor Dellorto PHVB 20,5 ED Type 01177 |
| Manufacturer number: | 01177 |
| Country and region of manufacture: | Italy |
| Product type: | Carburetor |
| Type of motorcycle: | Scooter |
| Units quantity: | 1 |
| Manufacturer warranty: | 2 years |
| Material: | Metal |
| Type: | PHVB |
