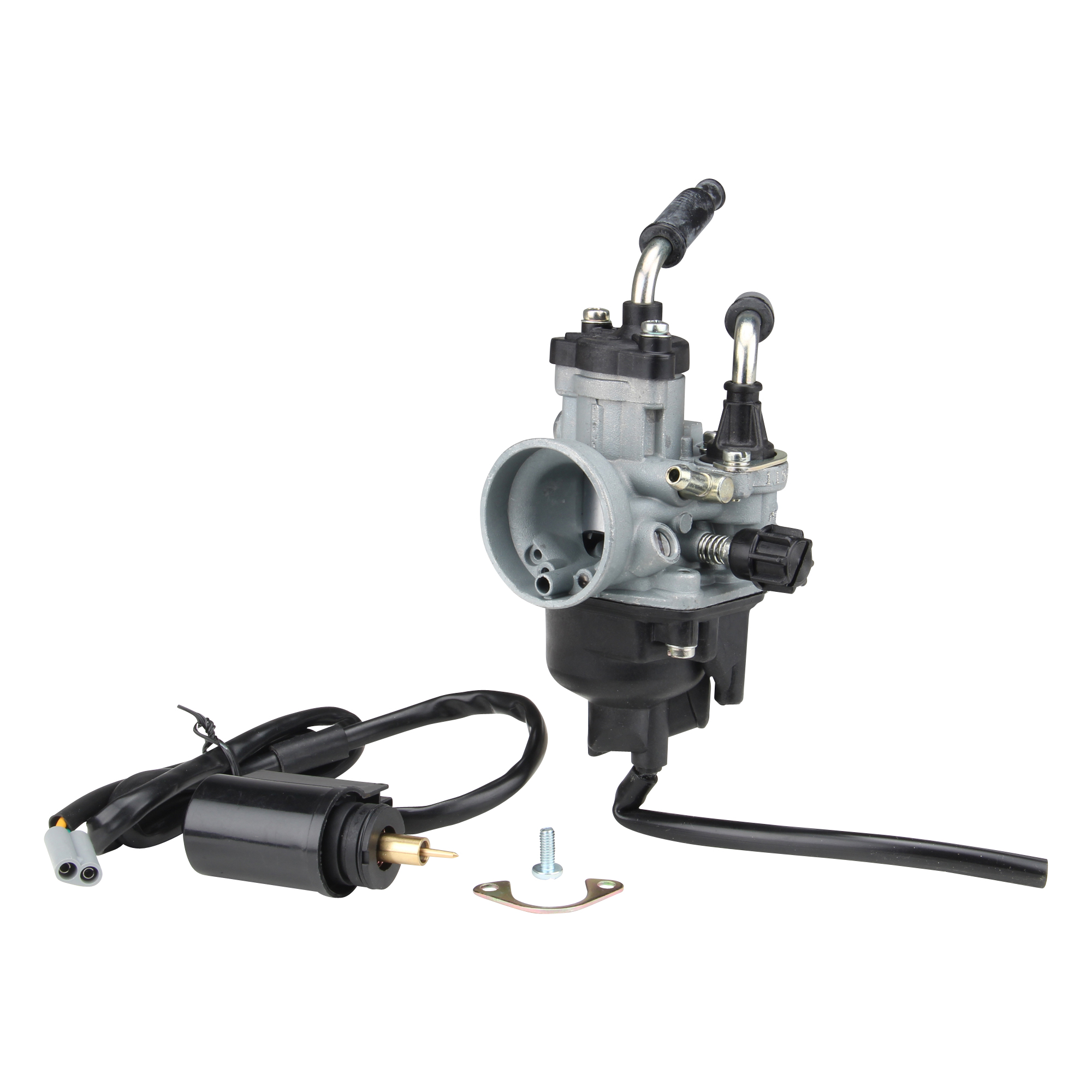

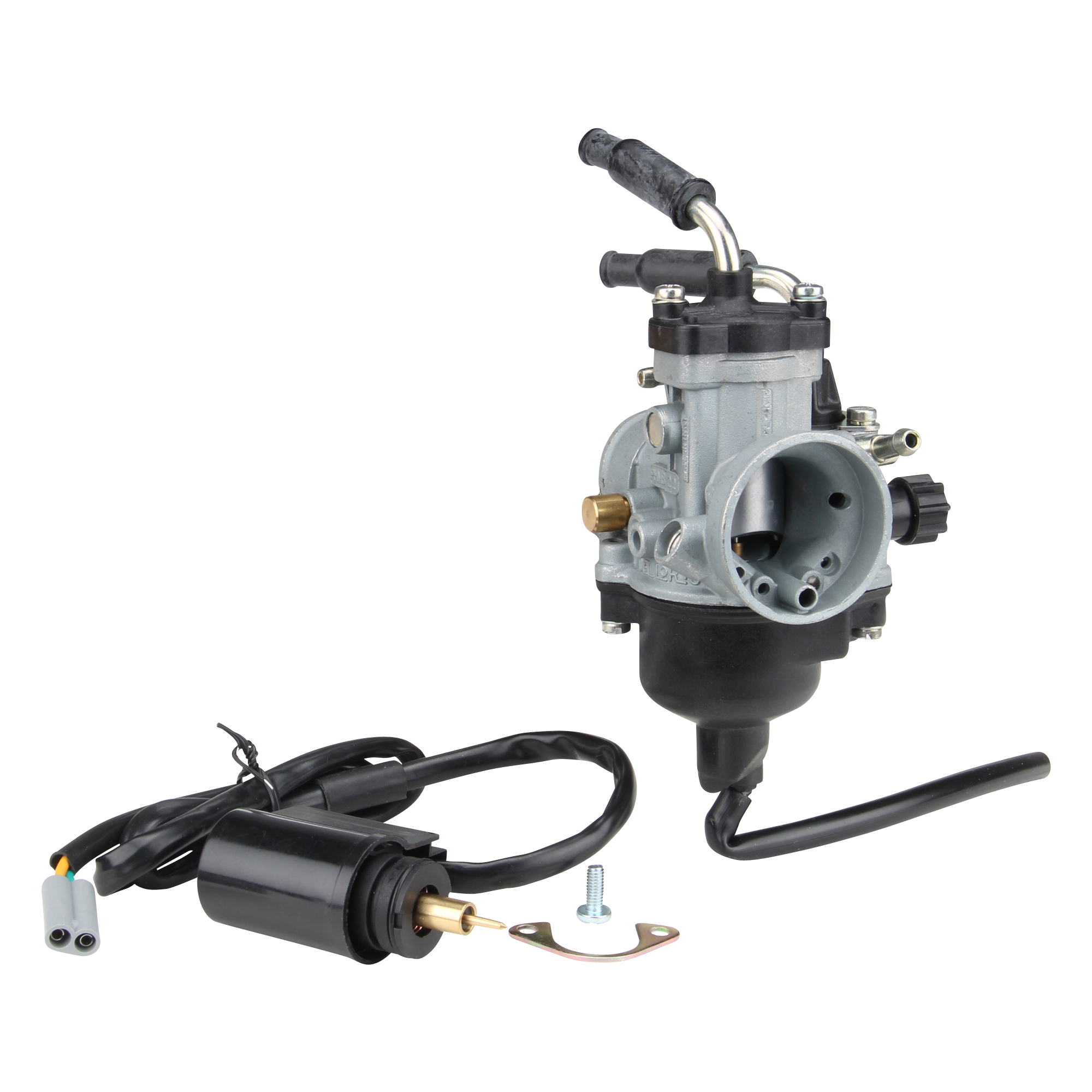

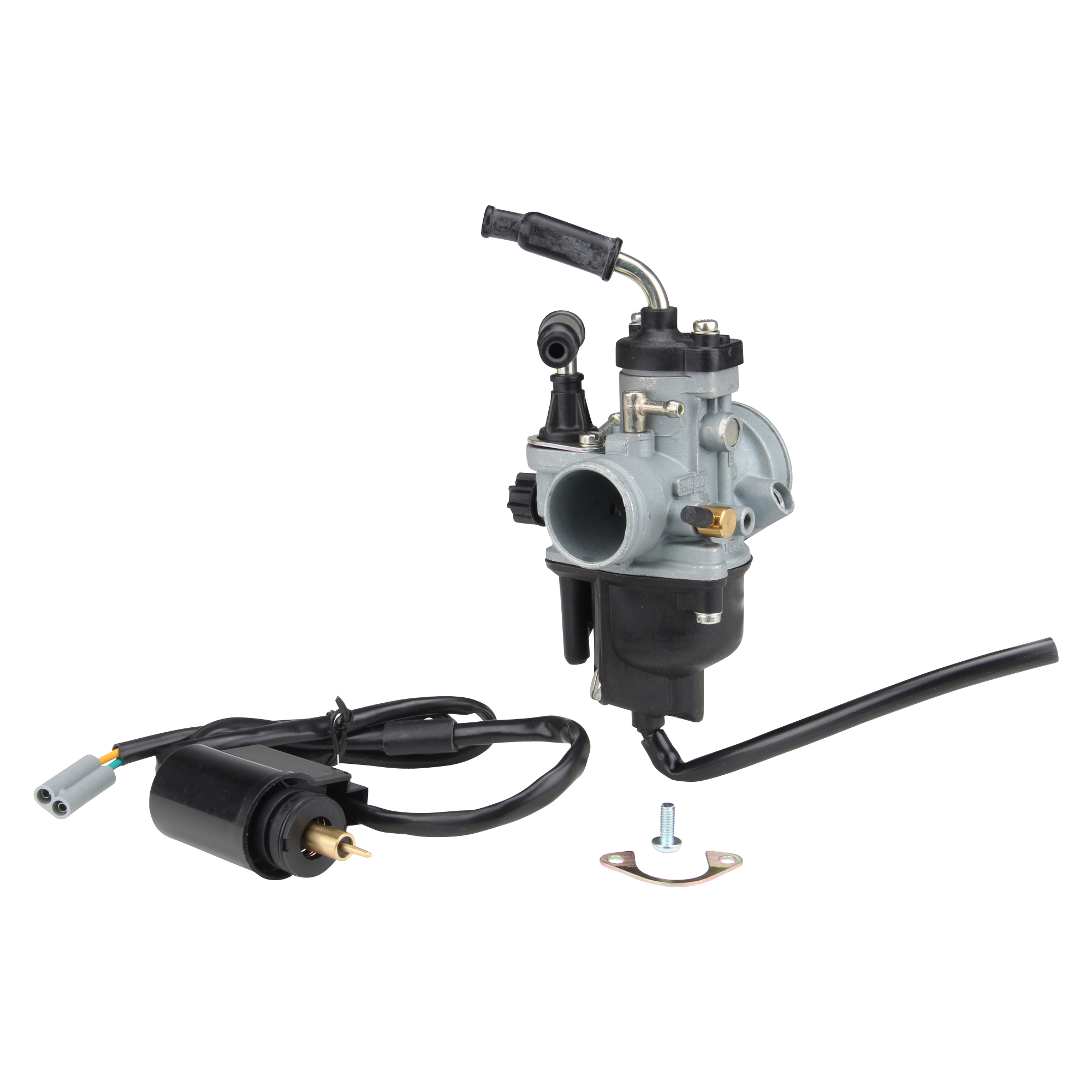

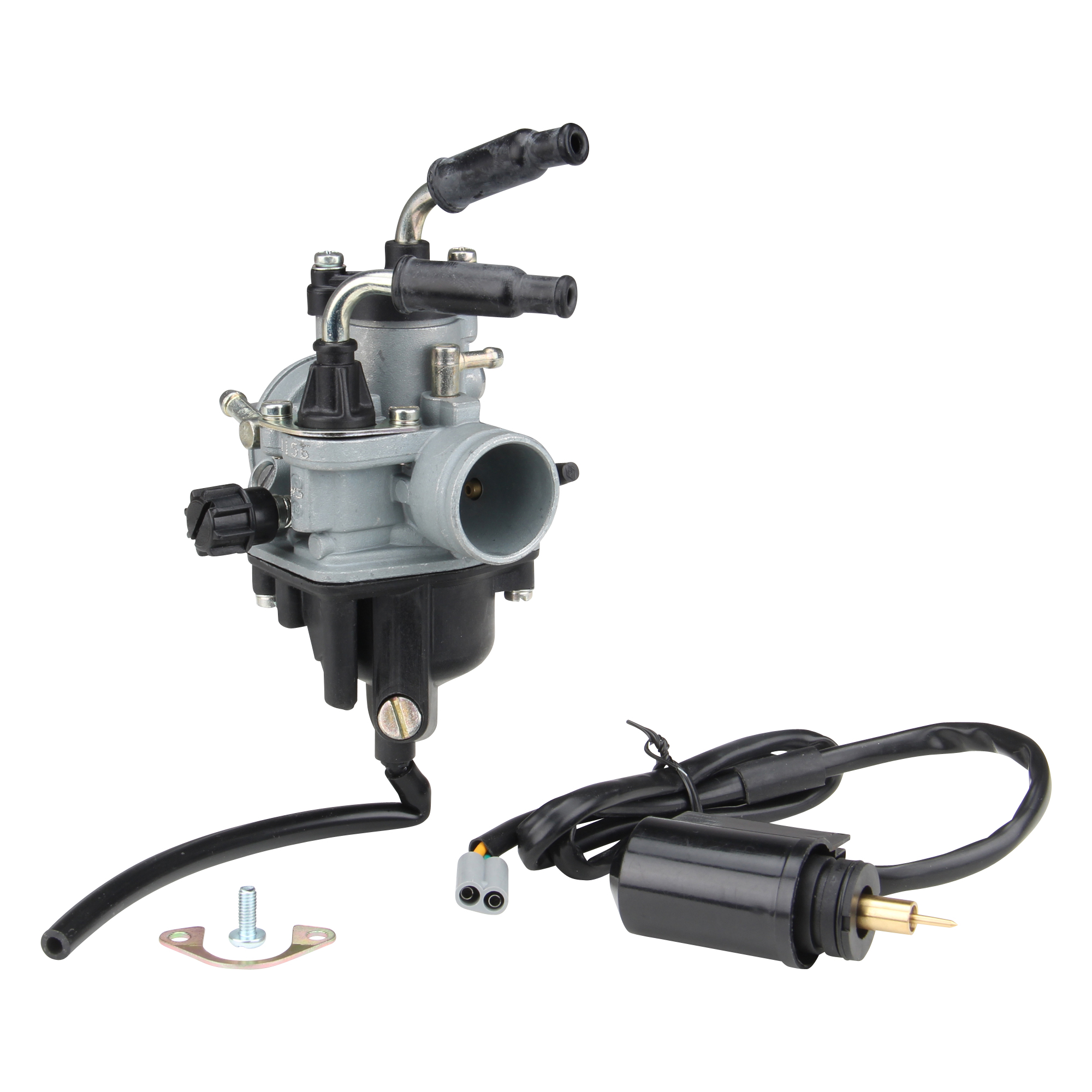

Dell Orto carburetor 01153, type PHVB 22 CD, adjustment right, 2-stroke
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 999901153
- EAN: 4251048832351
- Manufacturer: Dellorto
- Manufacturer no.: 999901153
- Weight: 0.1 kg
Is the engine jerking or has no power? Time to overhaul the carburetor! Or better yet, a new carburetor. Preferably from Dell'Orto, the carburetor specialist.
With carburetors and spare parts from Dell'Orto, you get first-class quality from one of the world's largest manufacturers of carburetors for motorcycles, mopeds, mopeds and scooters. Dell'Orto has been supplying Italian motorcycle manufacturers such as Aprilia, Piaggio, Moto Guzzi, Ducati, Benelli, Laverda and MV Agusta as well as other manufacturers such as BMW, Honda, Husqvarna, Husaberg, KTM, Peugeot and Yamaha with high-quality, innovative carburetors since 1933. The major scooter engine manufacturers Minarelli and Morini also rely on the expertise and premium quality of the Italian carburetor specialist Dell'Orto.
Always on the right track with a new Dell'Orto carburetor.
The basic function of the carburetor is modified or supplemented by several additional features. For example, the cold and hot start behavior, the enrichment and acceleration phase or even the mixture drop after closing the throttle are changed by influencing the air or fuel supply.
The PHVA and PHVB carburetors are the most common models in the 50cc class. Almost every Piaggio engine is equipped with them. With the classic design and a wide range of equipment options, such as various throttle cable and choke variants, these models are extremely variable.
Technical data:
Type PHVB Var. C with 22 mm passage, separate lubrication
- for 2-stroke engines

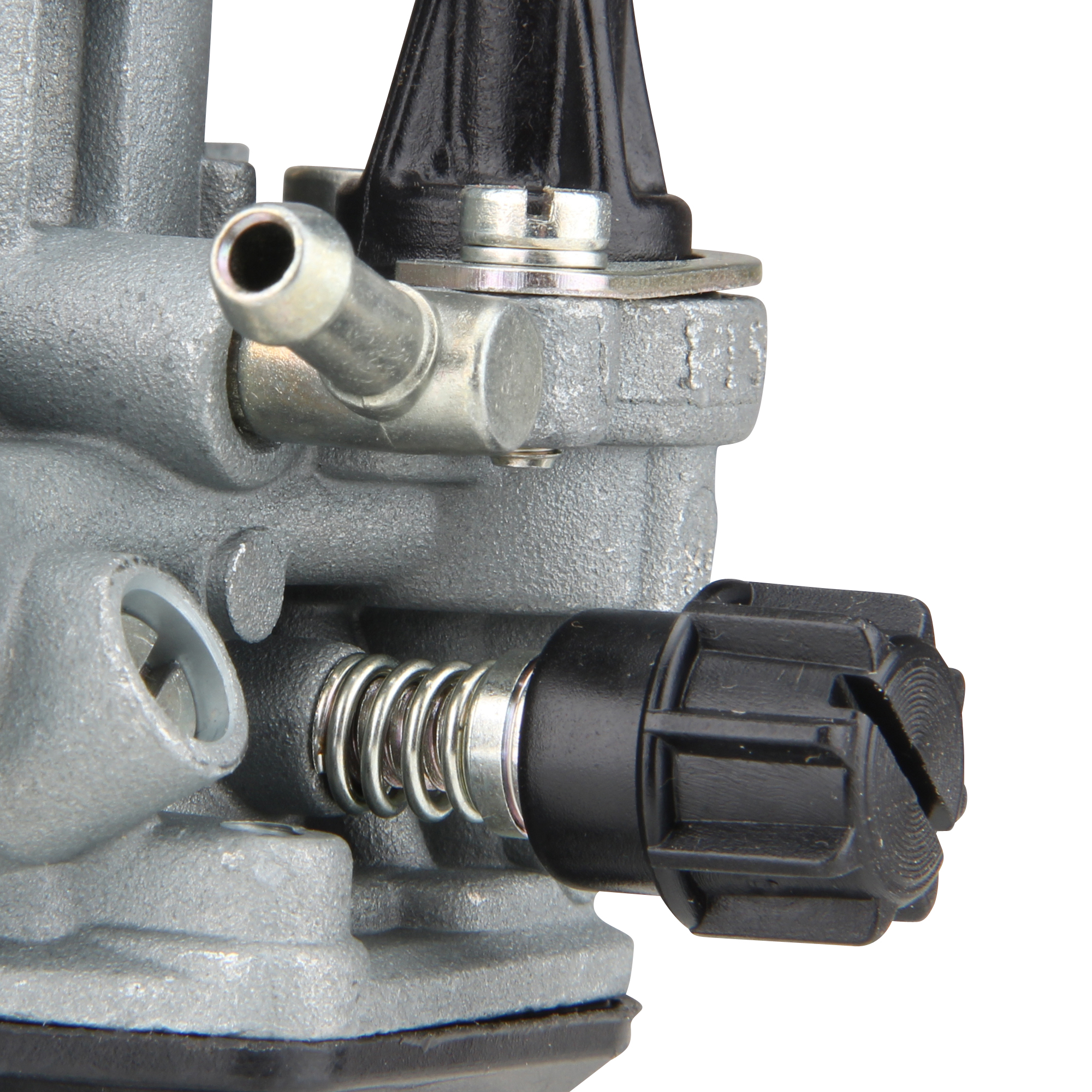

- Adjusting screws on the right
- Rubber flange connection Ø29mm

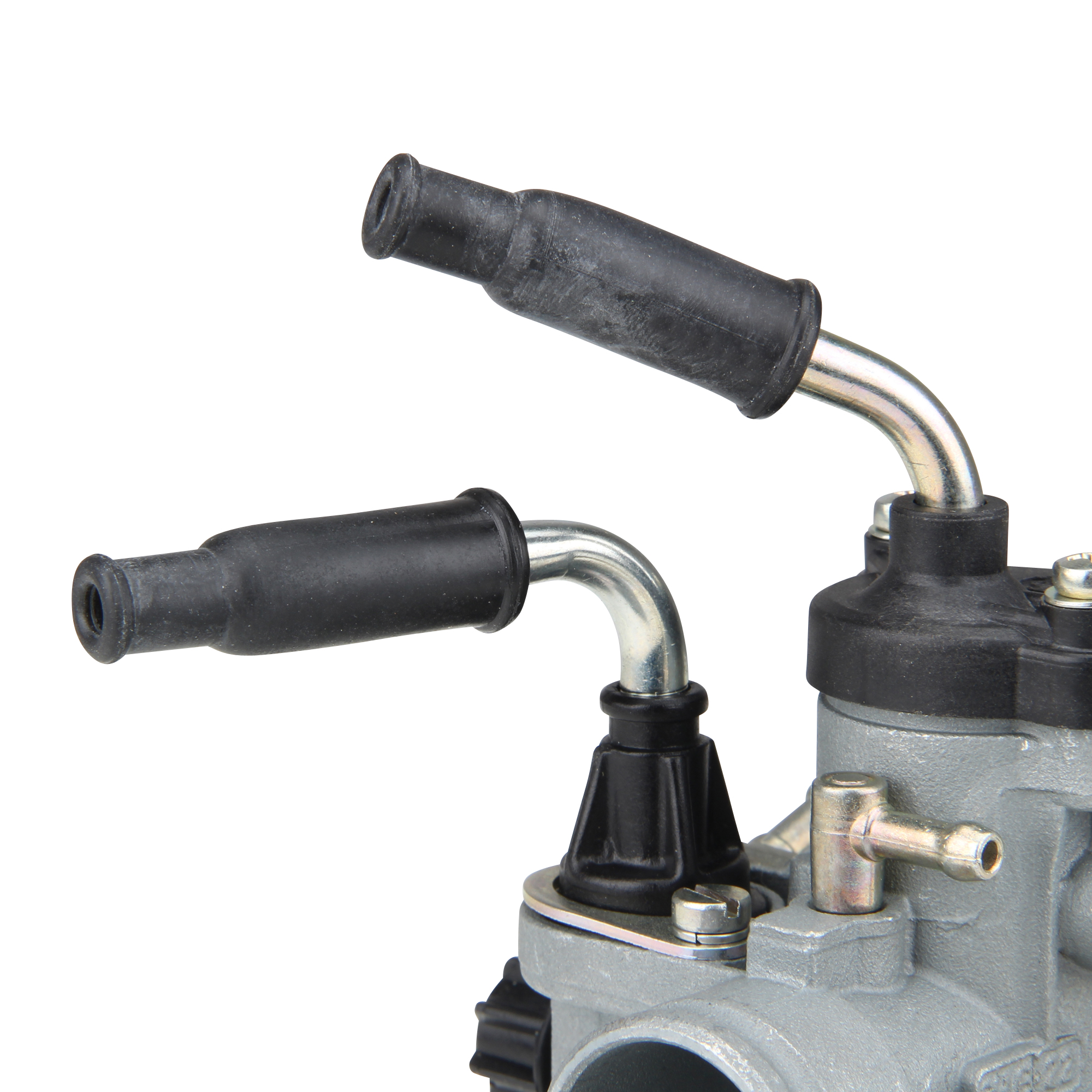

- Angled throttle cable
- Electric choke
equipped with
- throttle slide 14371-40
- Carburetor needle M 15377-06
- Main atomizer GH 15378-212
- Main jet 6413-95
- Idle jet 15500-45
- Float 13700-01, 3,5gr
| Sheet metal: | Locking plate |
| Groove for mounting plate Ø: | 16.95 mm |
| Screw: | Flat screw M4x10 8.8 DIN 85 |
| Carburetor: | Type PHVB 22CD 01156 |
| OE/OEM reference number(s): | Dellorto 13780-78, Dellorto 14144-78, Dellorto 53078-78, Piaggio 430758, Piaggio 479093 |
| Needle length: | 9.1 mm |
| Connecting cable Plug: | 2 pole Piaggio (double circuit) |
| GTIN: | 4260250318409 |
| Choke piston Ø: | 7 mm |
| Choke piston length: | 12 mm |
| Connection flange Ø: | 20 mm |
| Connection cable length: | approx. 60 cm |
| Needle Ø: | 1.95 mm |
| Choke piston shape: | with needle point |
| Color: | Black |
| Features: | E-Choke |
| Scope of delivery: | 1x E-Choke |
| Manufacturer number: | 160453 |
| Country and region of manufacture: | China |
| Installation position: | Above |
| Product type: | Automatic choke |
| Type of motorcycle: | Scooter |
| Manufacturer warranty: | 2 years |
At Dellorto you will find a first-class selection of high-quality carburetors, injection systems and electronic control units for your two-wheeler. Dellorto products convince with a high level of professionalism and know-how on a national and international level. You too can choose a reliable and powerful carburetor from Dellorto which is installed in many scooters, mopeds or motorcycles.
