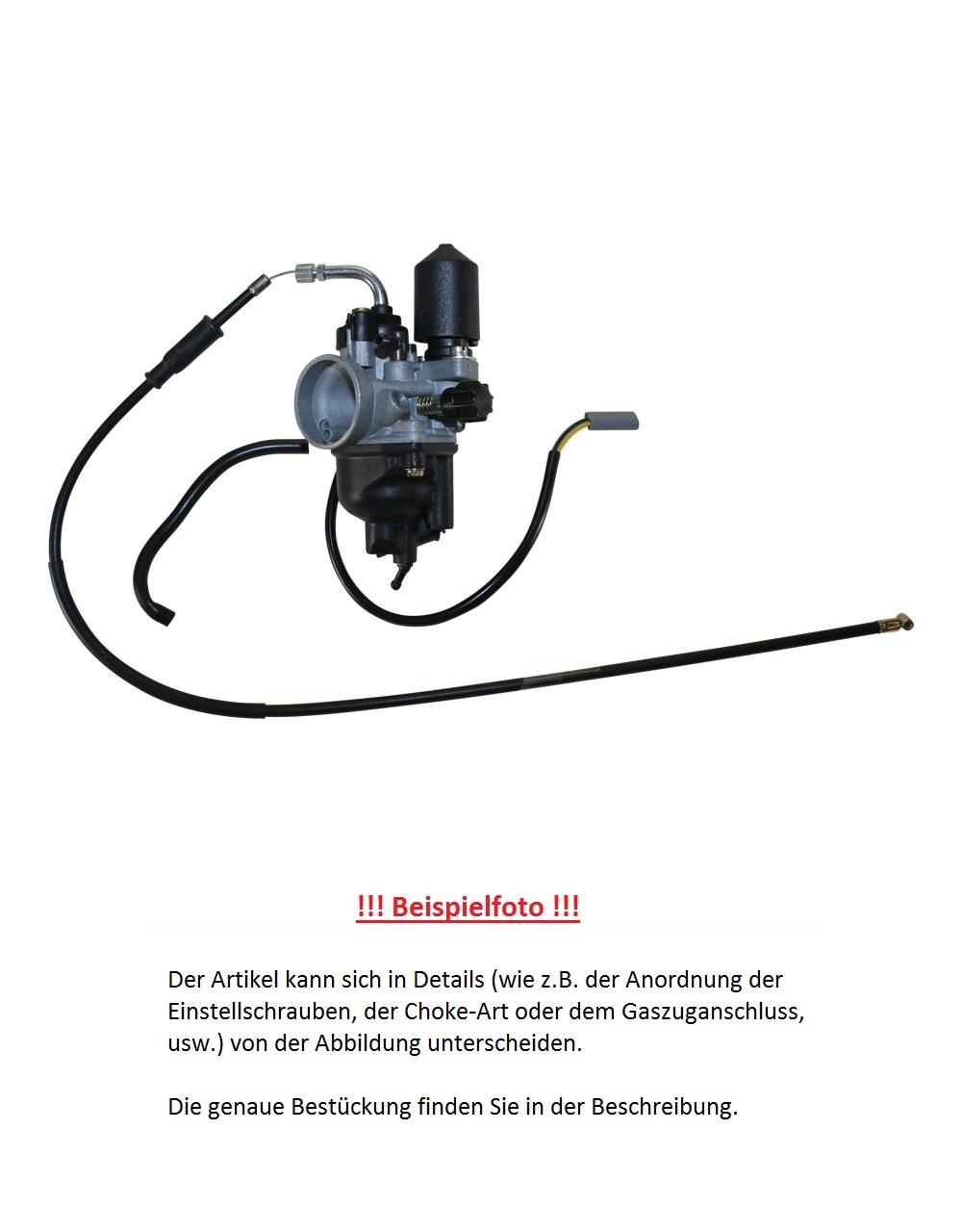

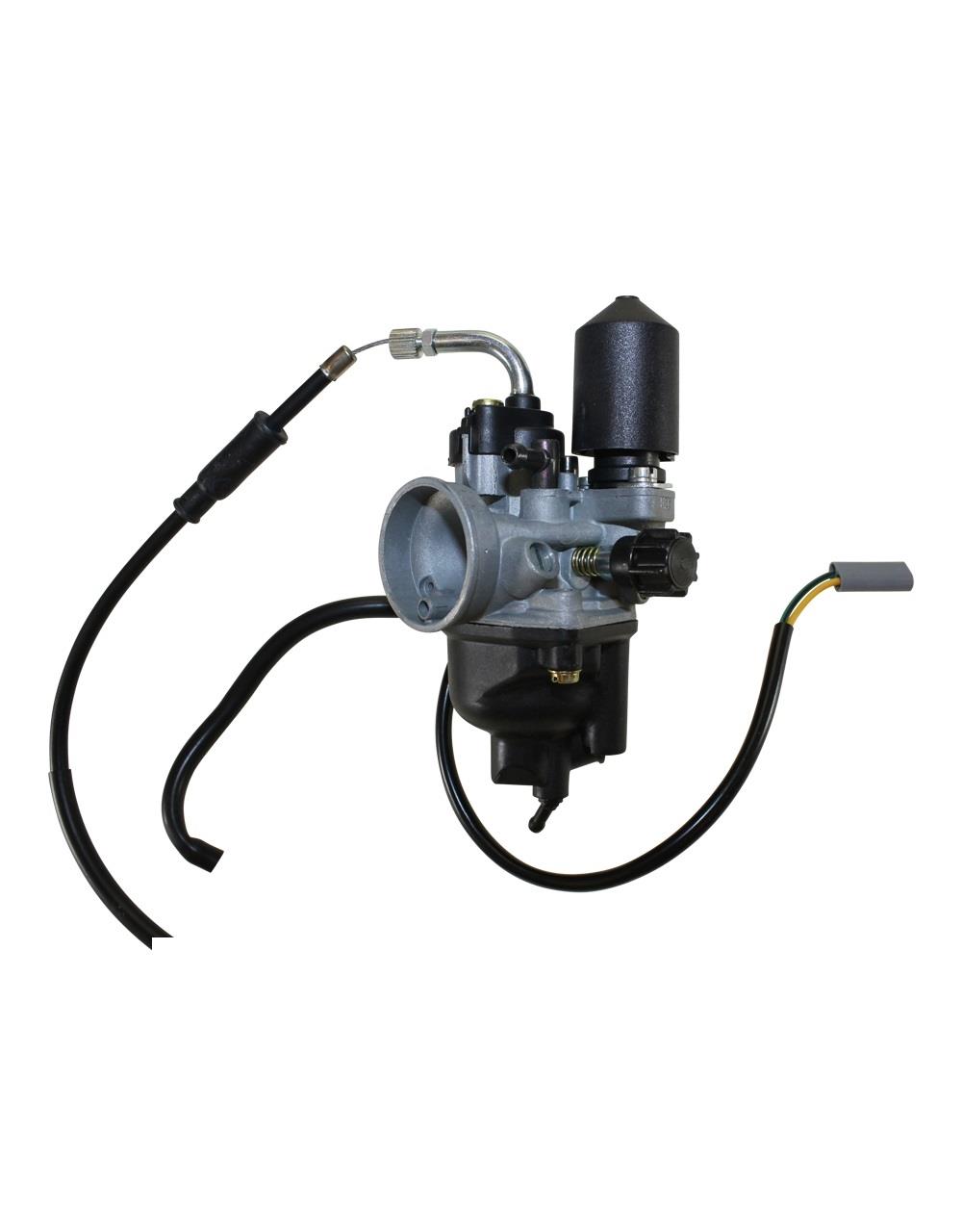

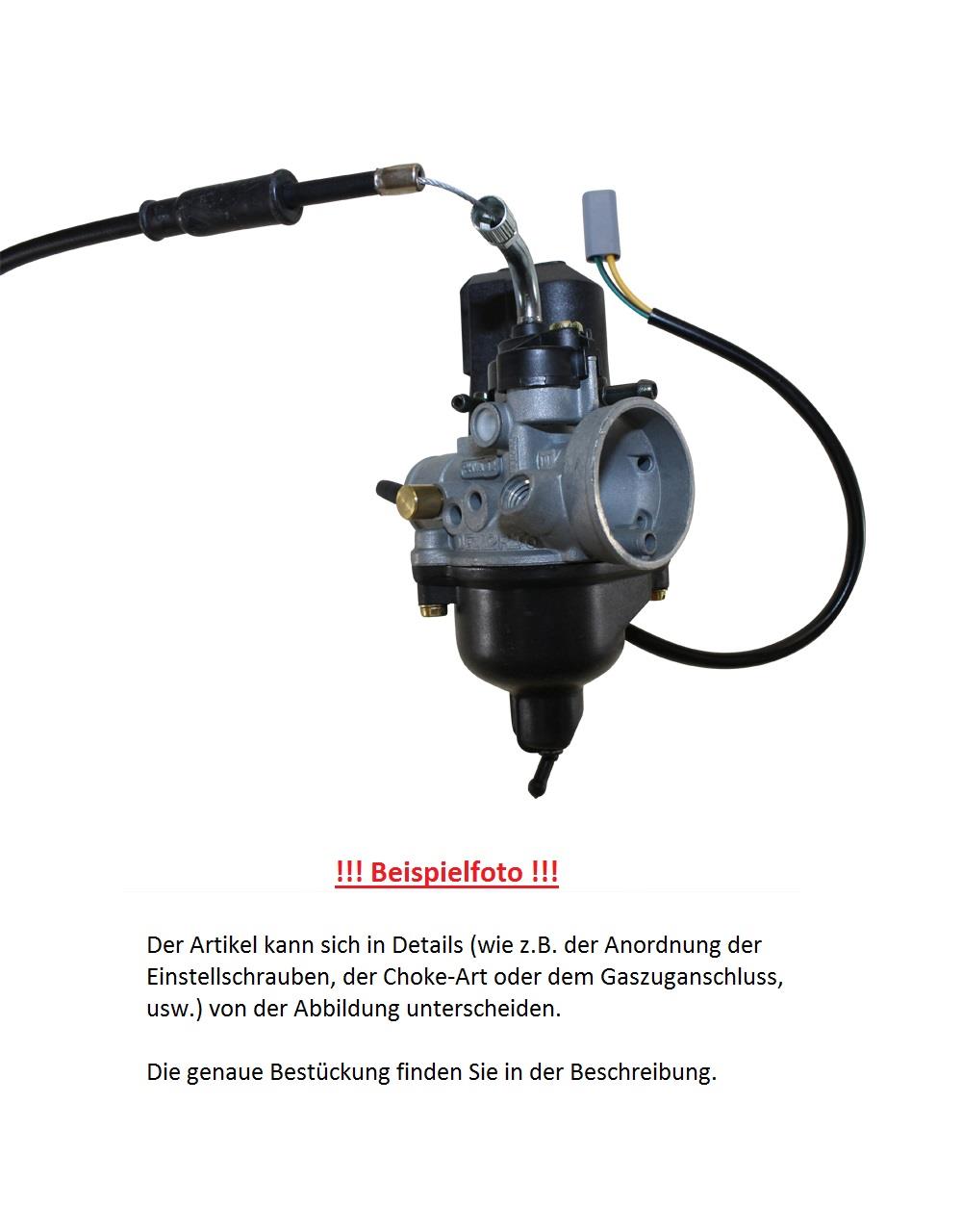

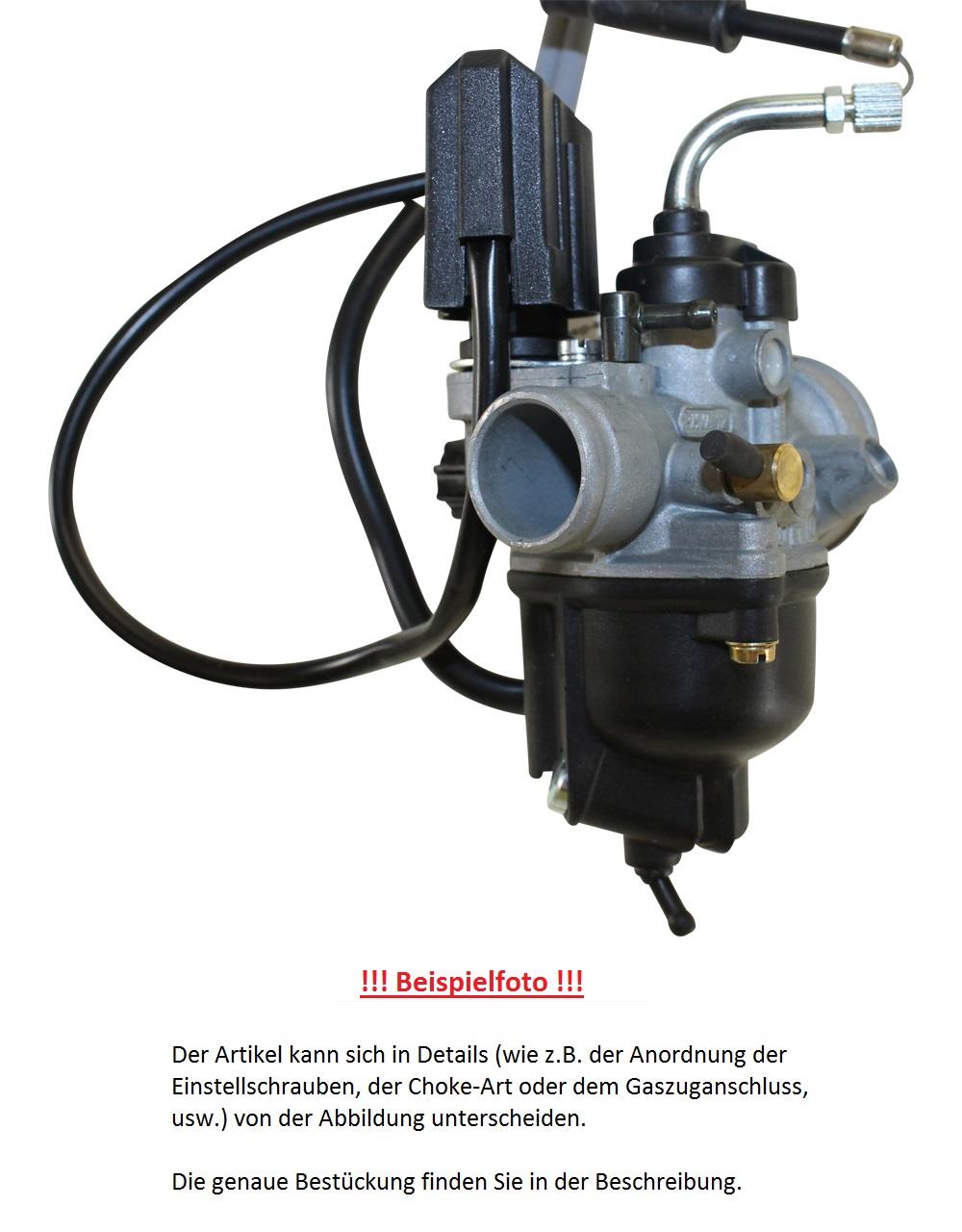

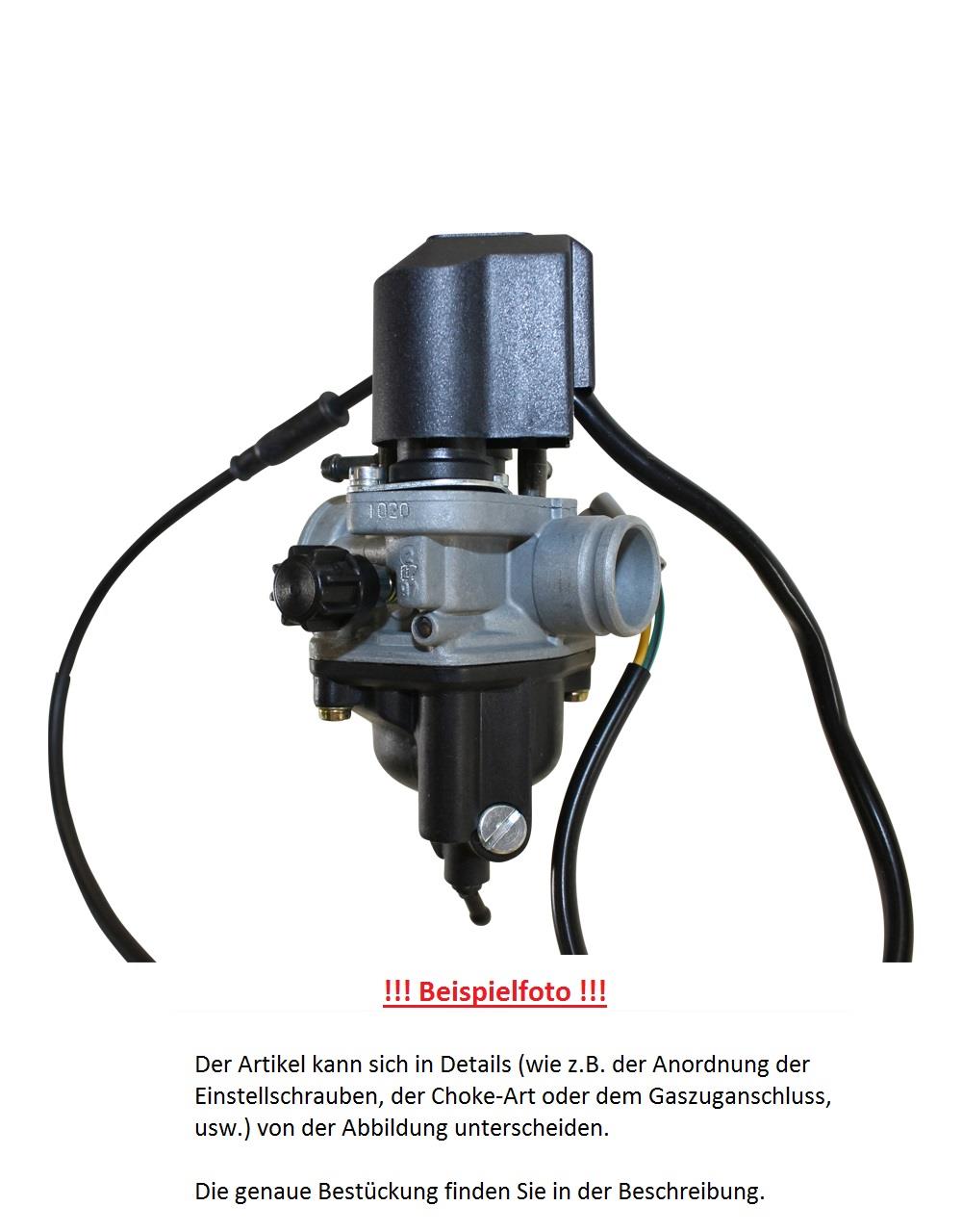

Carburettor Dell Orto PHVA 17.5 TS for Derbi GPR 01473

£56.35 *
Content: 1 piece

Prices plus VAT plus shipping costs

IN STOCK - Delivery time 1-3 working days

Only a few left!

3 Jahre Verschleiß-Plus-Garantie für Artikel 999901473
Jetzt 3 Jahre zusätzliche Garantie sichern.   » Details
£2.37*
  • 999901473
  • 4251048831521
  • Dellorto
  • 999901473
  • 0.387 kg
The engine jerks or has no power? Time to overhaul the carburetor! Or better yet, a new... more
Product information about Carburettor Dell Orto PHVA 17.5 TS for Derbi GPR 01473

The engine jerks or has no power? Time to overhaul the carburetor! Or better yet, a new carburettor. Best from Dell'Orto, the specialist for carburetors.
With carburetors and spare parts from Dell'Orto you receive first-class quality from one of the world's largest manufacturers of carburetors for motorcycles, mopeds, mopeds and scooters. Since 1933, Dell'Orto has been supplying Italian motorcycle manufacturers such as Aprilia, Piaggio, Moto Guzzi, Ducati, Benelli, Laverda and MV Agusta, but also other manufacturers such as BMW, Honda, Husqvarna, Husaberg, KTM, Peugeot and Yamaha with always high-quality products and innovative carburettors. The major manufacturers of scooter engines Minarelli and Morini also rely on the know-how and premium quality of the Italian carburettor specialist Dell'Orto.

Tailored to your vehicle, we offer you a carburettor from the original equipment manufacturer Dell'Orto.

The basic function of the carburettor is changed or supplemented by several additional devices. The cold and hot start behavior, the enrichment and acceleration phase or even the mixture drop after the throttle is closed are changed by influencing the air or fuel supply.

The PHVA and PHVB carburettors are the most common models in the 50cc class. Almost every Piaggio engine is equipped with it. With the classic design and a variety of equipment options, such as various throttle cable and choke variants, these models are extremely variable.

Technical data:

Type PHVA Var. T with 17.5 mm passage, separate lubrication
- Adjusting screws on the left
- Angled throttle cable
- Cable choke
equipped with
- Gas slide 15362-40
- Carburettor needle A 16250-15
- Main atomizer FA 13690-212
- Main jet 6413-96
- Idle jet 11600-34
- Starter nozzle 13815-50
- Float 13700-01, 3.5gr


Compatible with following models:

This carburetor is used in exactly this configuration (jets, atomizers, connections, etc.) in the following models:

- Derbi GPR (South America), year of manufacture 1998, 50 cc, 1 cyl. - 2-stroke

Of course, the carburettor can also be used in other models. For this purpose, the air intake, the engine connection, as well as the connection for the throttle cable and the choke may need to be adjusted. Carburettors for 2 and 4-stroke engines should not be mixed together. It is also important to pay attention to whether the carburettor is prepared for mixed or separate lubrication and whether vacuum connections may be required to control a fuel tap or an oil pump.
