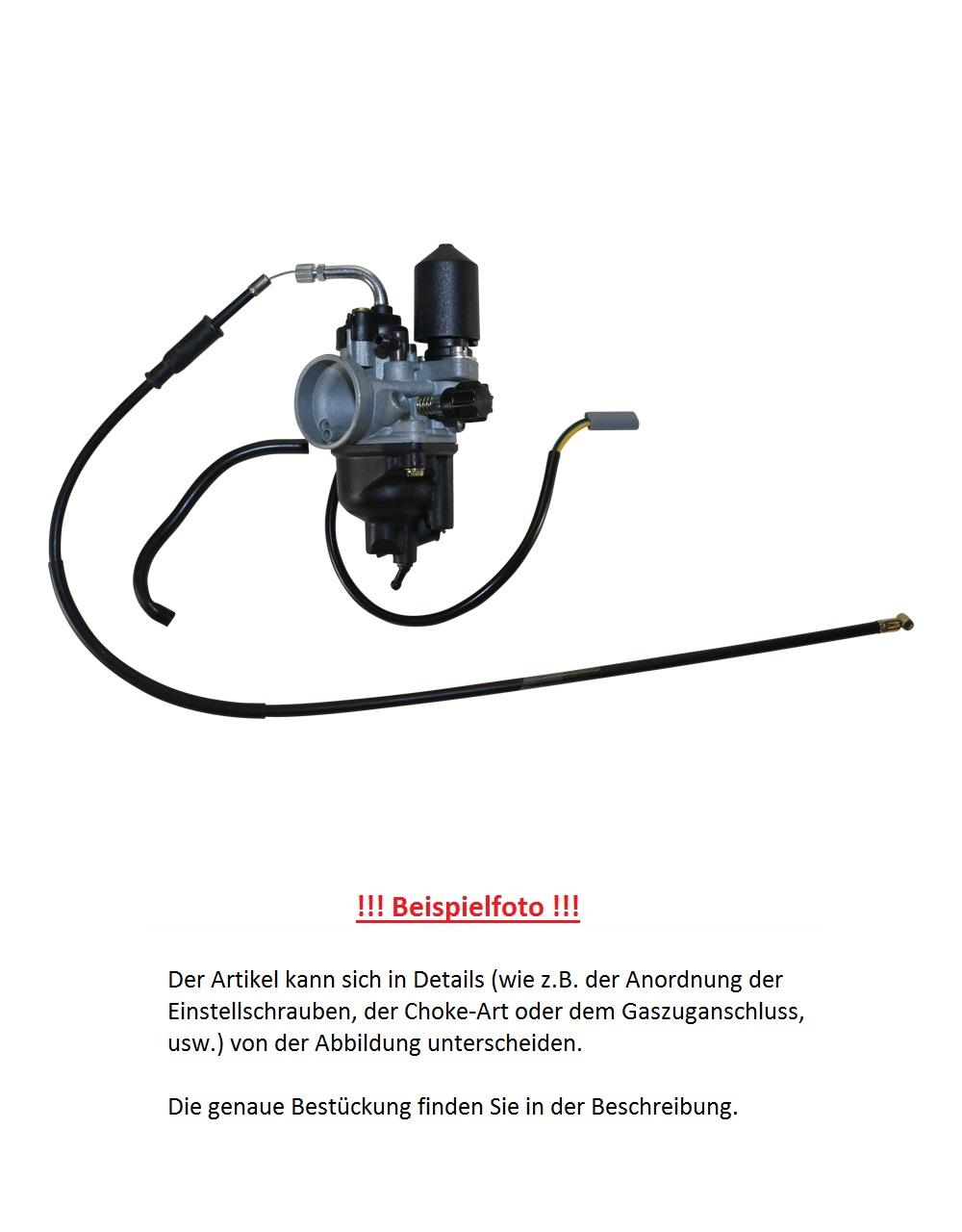

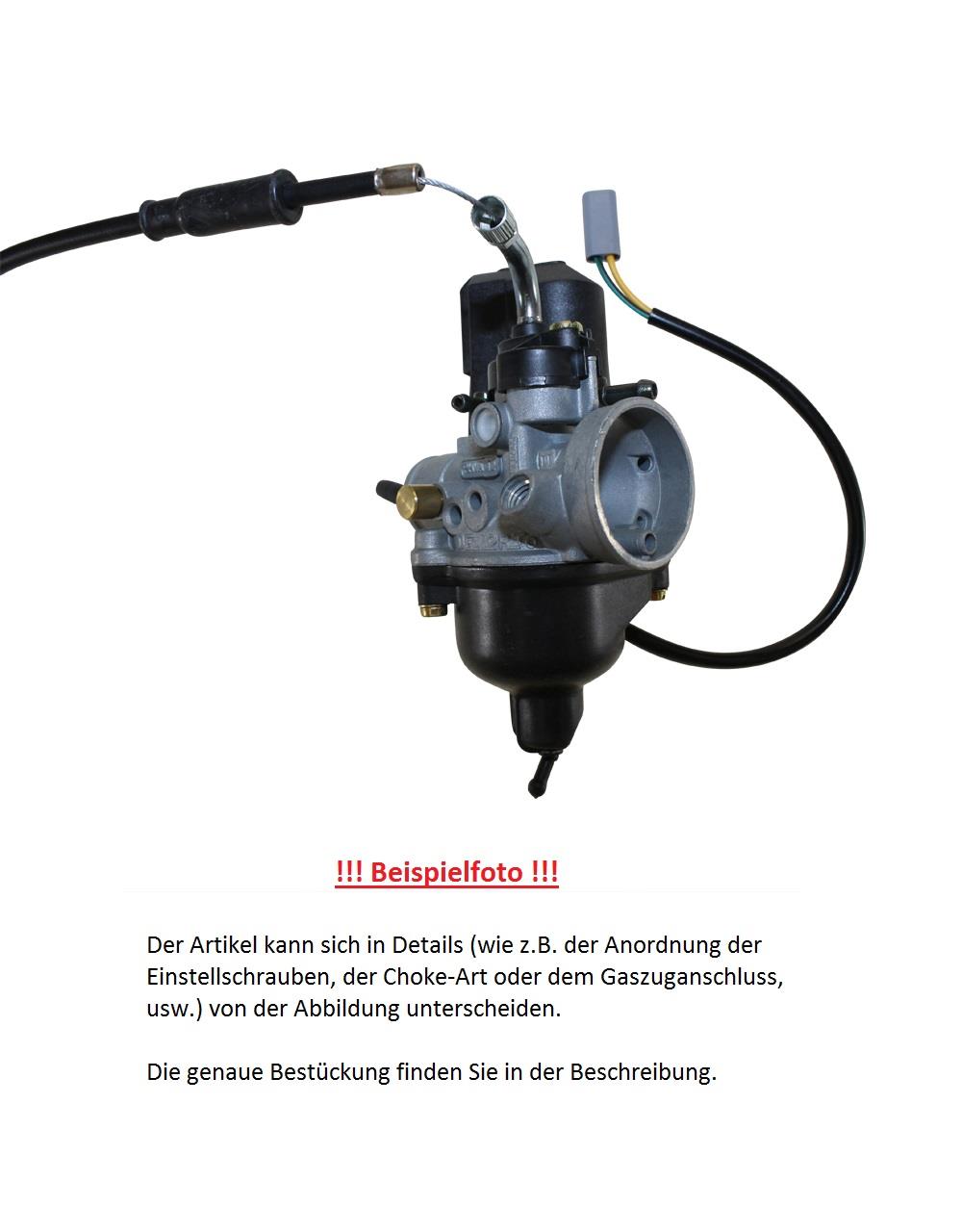

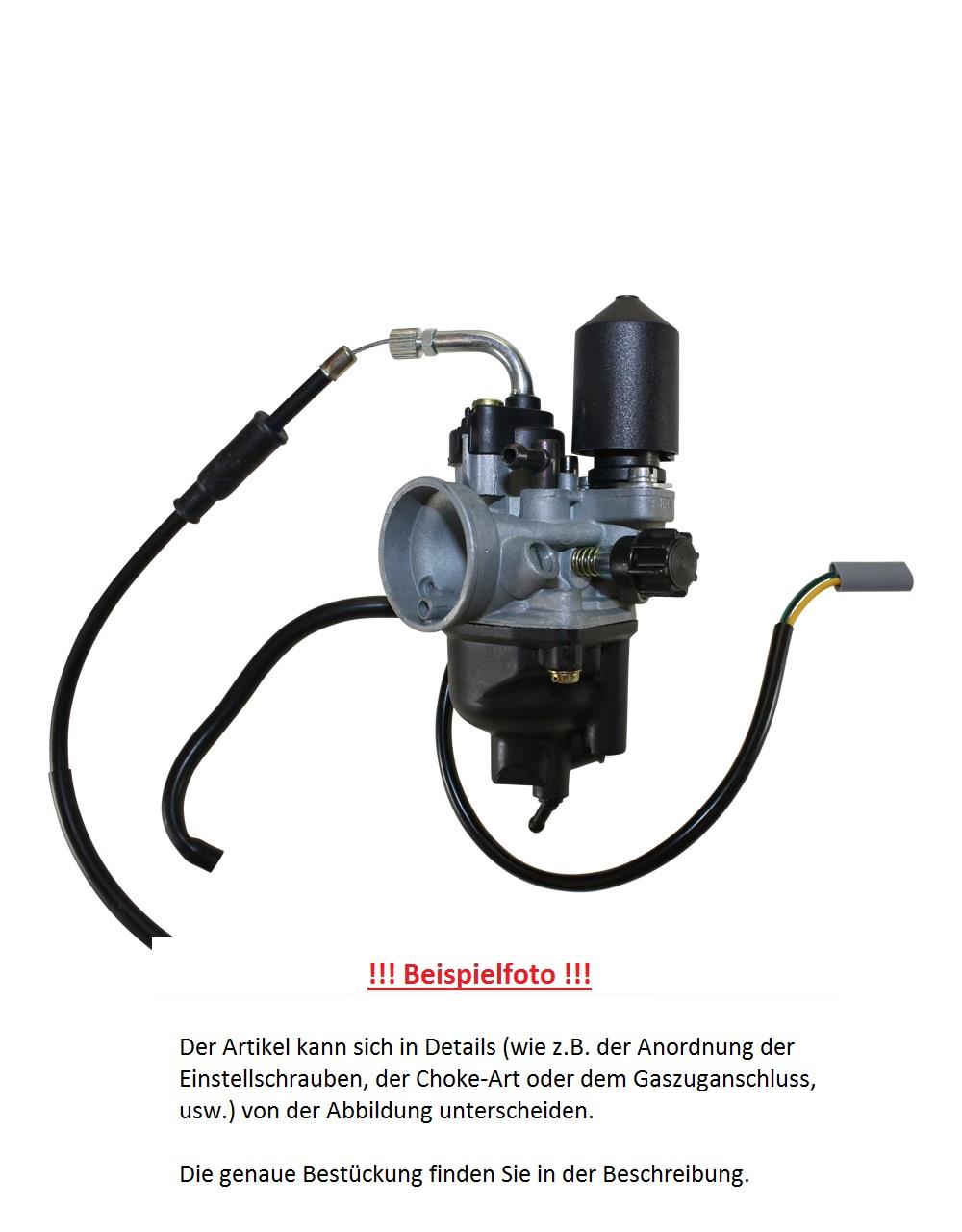

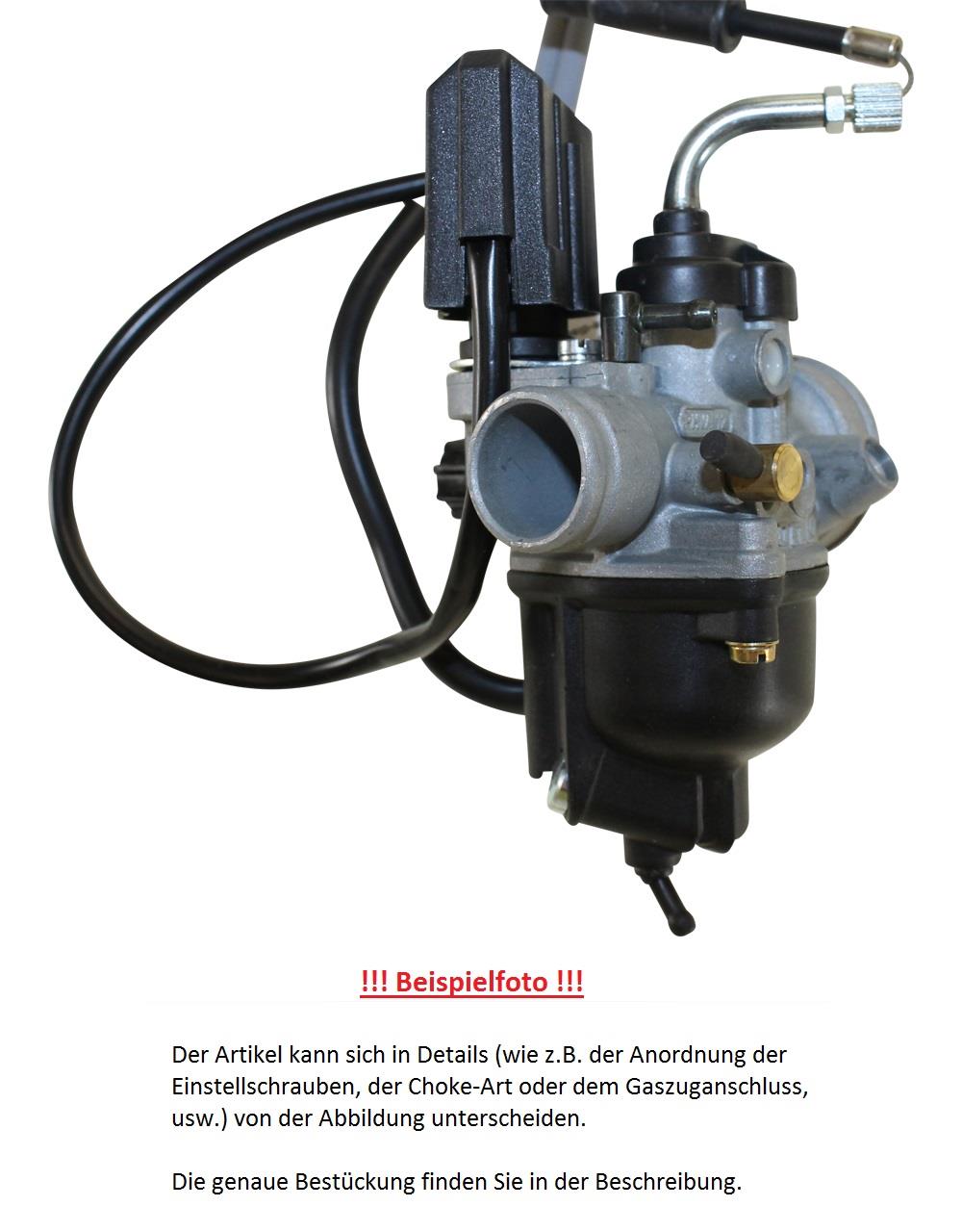

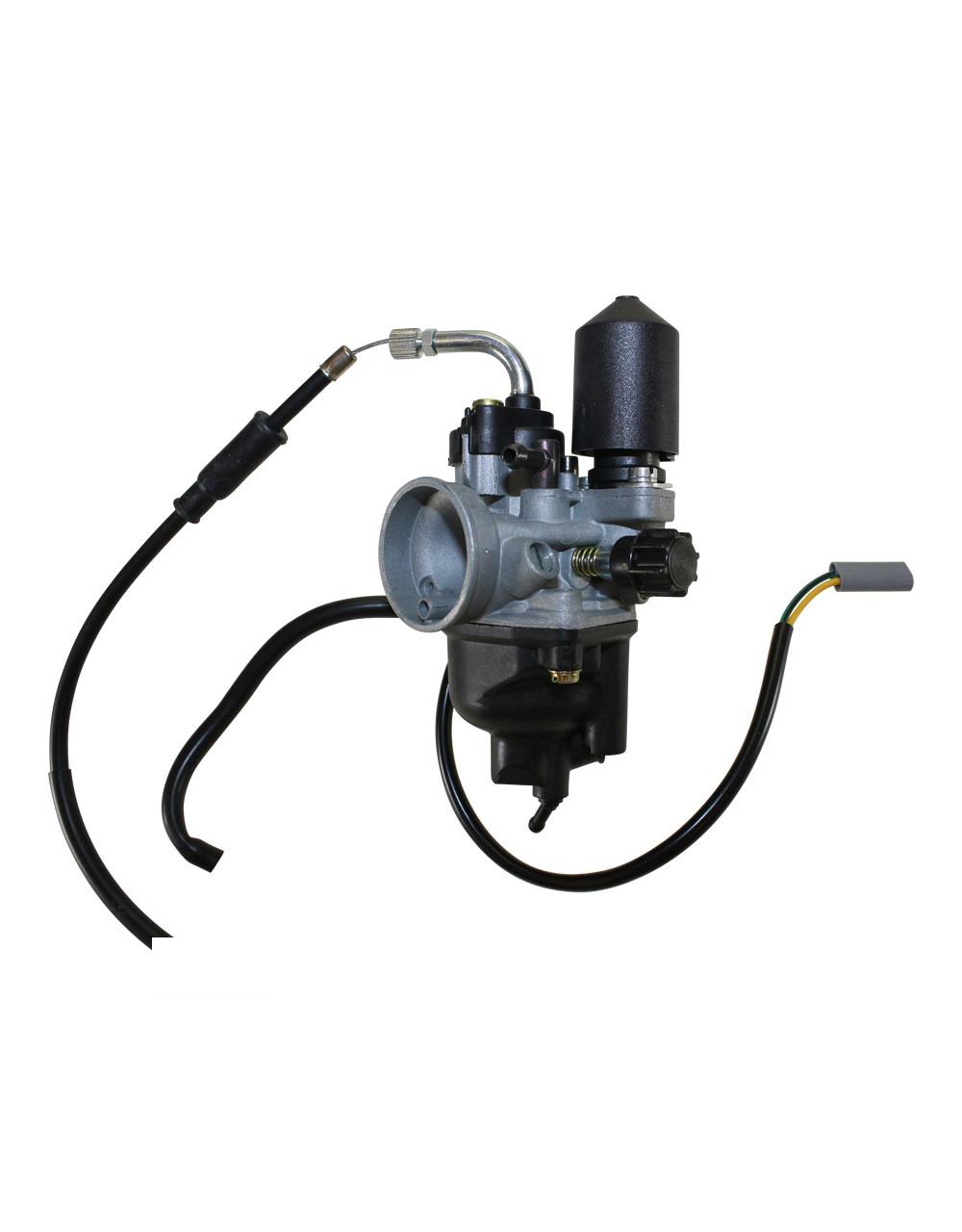

Carburetor Dell Orto PHVA 12 hp for Benelli 491 (LC) Sport, Racing, Superbike (Germany) BJ 1999 01
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 999901493
- EAN: 4251048833099
- Manufacturer: Dellorto
- Manufacturer no.: 999901493
- Weight: 0.1 kg
“La Dolce Vita” for your two-wheeler.
With Dell'Orto carburetors and spare parts, we offer you precision and perfection from Italy.
Aprilia, Piaggio, Moto Guzzi, Ducati, Benelli, Laverda and MV Agusta, as well as other manufacturers such as BMW, Honda, Husqvarna, Husaberg, KTM, Peugeot and Yamaha have been relying on Dell'Orto's consistently high-quality and innovative carburetors since 1933. The major scooter engine manufacturers Minarelli and Morini also value the know-how and premium quality of the Italian carburetor specialist Dell'Orto.
With an original Dell'Orto carburetor, you get quality at the highest level.
The carburetor's main task is to mix the fuel supplied by the tank with air in the optimum ratio for combustion in the engine so that it can be ignited in the cylinder and burned completely. And this in the quantity required for the engine speed.
The PHVA and PHVB carburetors are the most common models in the 50cc class. Almost every Piaggio engine is equipped with them. With the classic design and a wide range of equipment options, such as various throttle cable and choke variants, these models are extremely variable.
Technical data:
Type PHVA Var. P with 12 mm passage, separate lubrication
- Left-hand adjustment screws
- Angled throttle cable
- Electric choke
equipped with
- Throttle slide 15249-40
- Carburetor needle A 13680-20
- Main atomizer GA 14671-211
- Main jet 6413-63
- Idle jet 11600-34
- Starter jet 15280-48
- Float 13700-01, 3,5gr
Suitable for the following models:
This carburetor is used exactly in this configuration (jets, atomizer, connections, etc.) in the following models:
- Benelli 491 (LC) (Germany), year of manufacture 1999, 50 cc, 1 cyl. - 2-stroke, engine 13 MA
Of course, the carburetor can also be used in other models. The air intake, the engine connection and the connection for the throttle cable and the choke may have to be adapted, and carburetors for 2 and 4-stroke engines should not be mixed. It is also important to check whether the carburetor is prepared for mixed or separate lubrication and whether any vacuum connections are required to control a fuel tap or an oil pump.
| Carburetor: | Type PHVA 12 PS 01493 |
| Connection cable length: | approx. 55 cm |
| Screw: | Flat head slot M4 x10 8.8 DIN 85 |
| GTIN: | 4260250310335 |
| Groove for mounting plate Ø: | 16.95 mm |
| Needle length: | 8.5 mm |
| Choke piston length: | 11.6 mm |
| Connecting cable Plug: | 2 pole China / Minarelli (square) |
| Choke piston shape: | with needle point |
| Needle Ø: | 1.95 mm |
| Choke piston Ø: | 7 mm |
| Connection flange Ø: | 19.75 mm |
| Color: | Black |
| Mounting: | Locking plate |
| Reference number(s) OEM: | Dellorto 53081-78 |
| Features: | E-Choke |
| Scope of delivery: | 1x E-Choke |
| Manufacturer number: | 999901493 |
| Country and region of manufacture: | China |
| Installation position: | Above |
| Product type: | Automatic choke, carburetor locking plate screw |
| Reference number(s) OE: | Piaggio 82567R |
| Type of motorcycle: | Scooter |
| Manufacturer warranty: | 2 years |
At Dellorto you will find a first-class selection of high-quality carburetors, injection systems and electronic control units for your two-wheeler. Dellorto products convince with a high level of professionalism and know-how on a national and international level. You too can choose a reliable and powerful carburetor from Dellorto which is installed in many scooters, mopeds or motorcycles.
