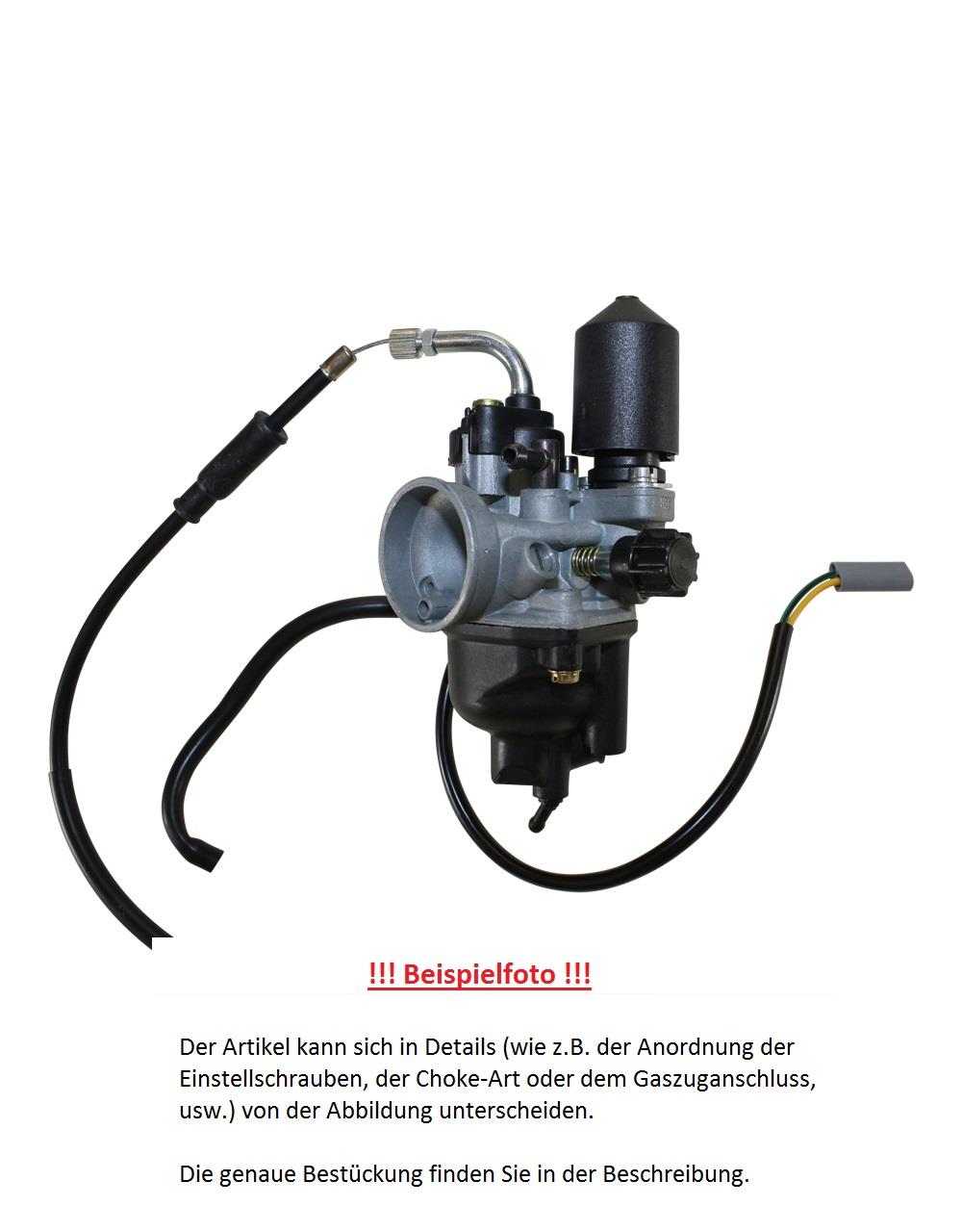

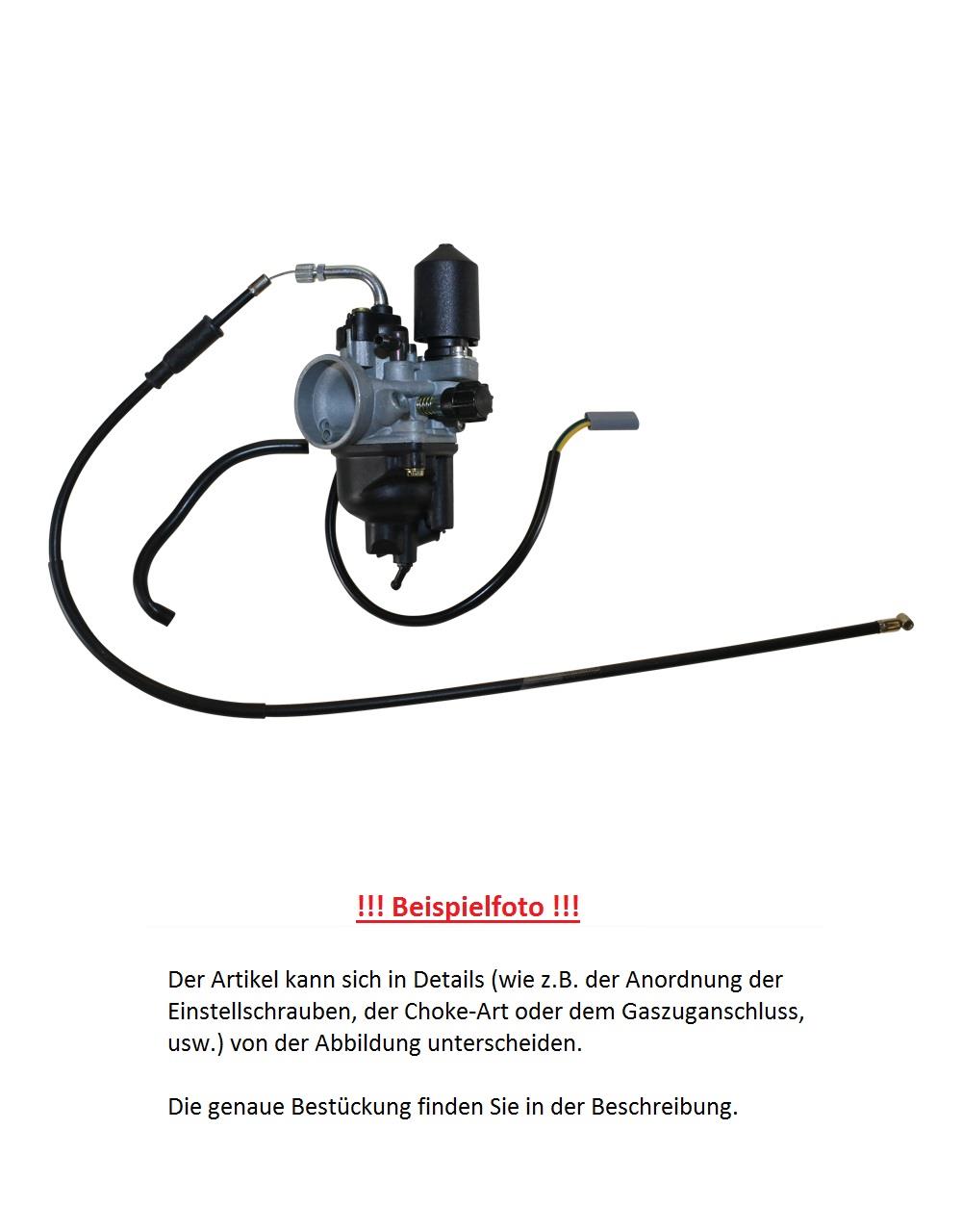

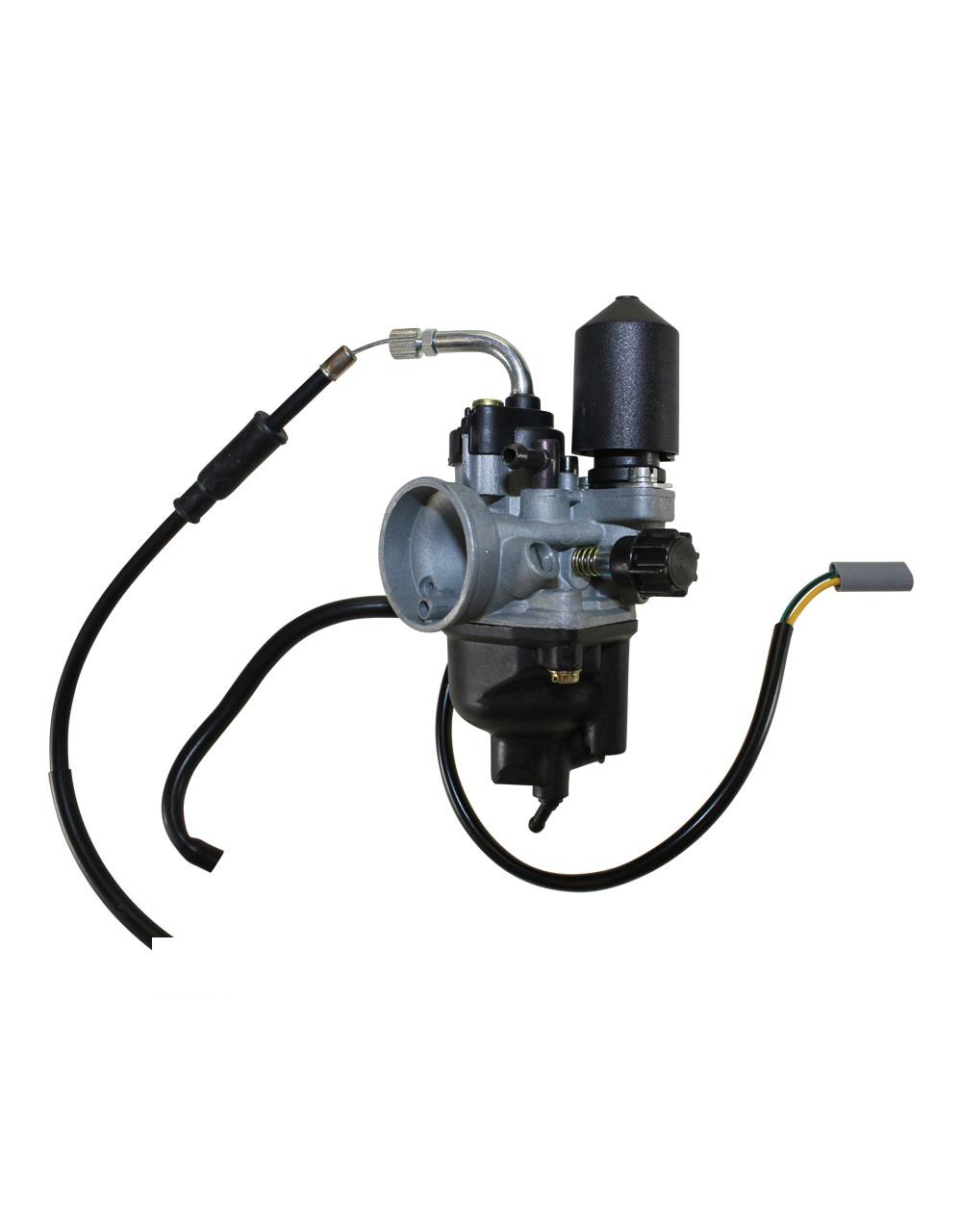

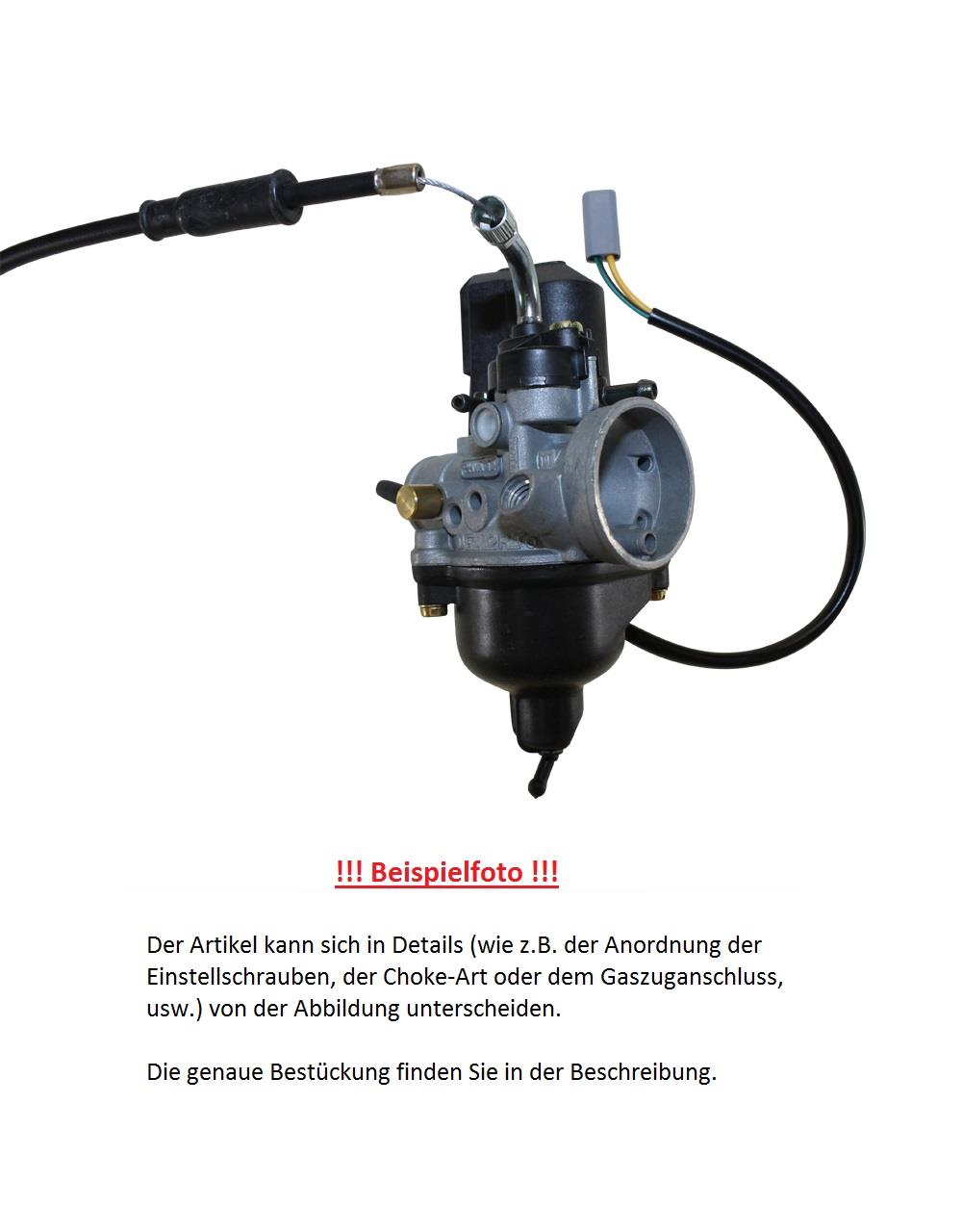

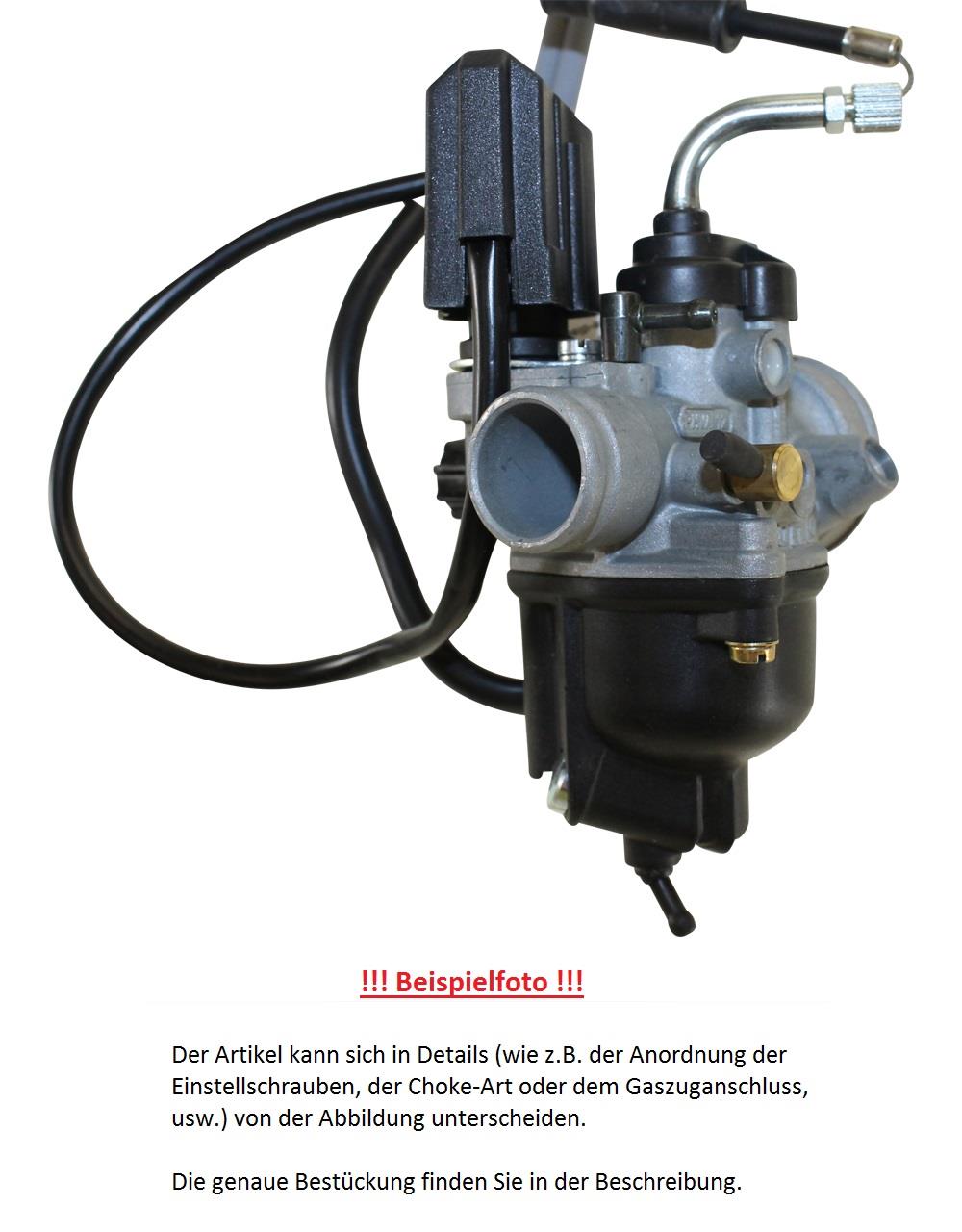

Carburetor Dell Orto PHVA 12 HP for Malaguti CR1 Crosser, F10 Jetline, F15 DD/DT LC Firefox (Germany)

If the engine runs unevenly, this could be a sign of a faulty carburetor. Dell'Orto, the carburetor specialist from Italy, offers the right spare parts and complete carburetors of the highest quality.
Dell'Orto is one of the world's largest manufacturers of carburetors for motorcycles, mopeds, mopeds and scooters. Dell'Orto has been supplying Italian motorcycle manufacturers such as Aprilia, Piaggio, Moto Guzzi, Ducati, Benelli, Laverda and MV Agusta as well as other manufacturers such as BMW, Honda, Husqvarna, Husaberg, KTM, Peugeot and Yamaha with high-quality, innovative carburetors since 1933. The major scooter engine manufacturers Minarelli and Morini also rely on the expertise and premium quality of the Italian carburetor specialist Dell'Orto.

A new carburetor from the original equipment manufacturer Dell'Orto, precisely matched to your vehicle.

The carburetor's main task is to mix the fuel supplied by the tank with air in the optimum ratio for combustion in the engine so that it can be ignited in the cylinder and burned completely. And this in the quantity required for the engine speed.

The PHVA and PHVB carburetors are the most common models in the 50cc class. Almost every Piaggio engine is equipped with them. With the classic design and a wide range of equipment options, such as various throttle cable and choke variants, these models are extremely variable.

Technical data:

Type PHVA Var. P with 12 mm passage, separate lubrication
- Left-hand adjustment screws
- Angled throttle cable
- Electric choke
equipped with
- Throttle slide 15249-40
- Carburetor needle A 13680-12
- Main atomizer GA 14671-209
- Main jet: 6413-70
- Idle jet 11600-36
- Starter jet 15280-48
- Float 13700-01, 3,5gr

Suitable for the following models:

This carburetor is used exactly in this configuration (jets, atomizer, connections, etc.) in the following models:

- Malaguti scooter (Germany), year of manufacture 1997, 50 cc, 1 cyl. - 2-stroke, engine 23 MY/CY

Of course, the carburetor can also be used in other models. The air intake, the engine connection and the connection for the throttle cable and the choke may have to be adapted, and carburetors for 2 and 4-stroke engines should not be mixed. It is also important to check whether the carburetor is prepared for mixed or separate lubrication and whether any vacuum connections are required to control a fuel tap or an oil pump.
