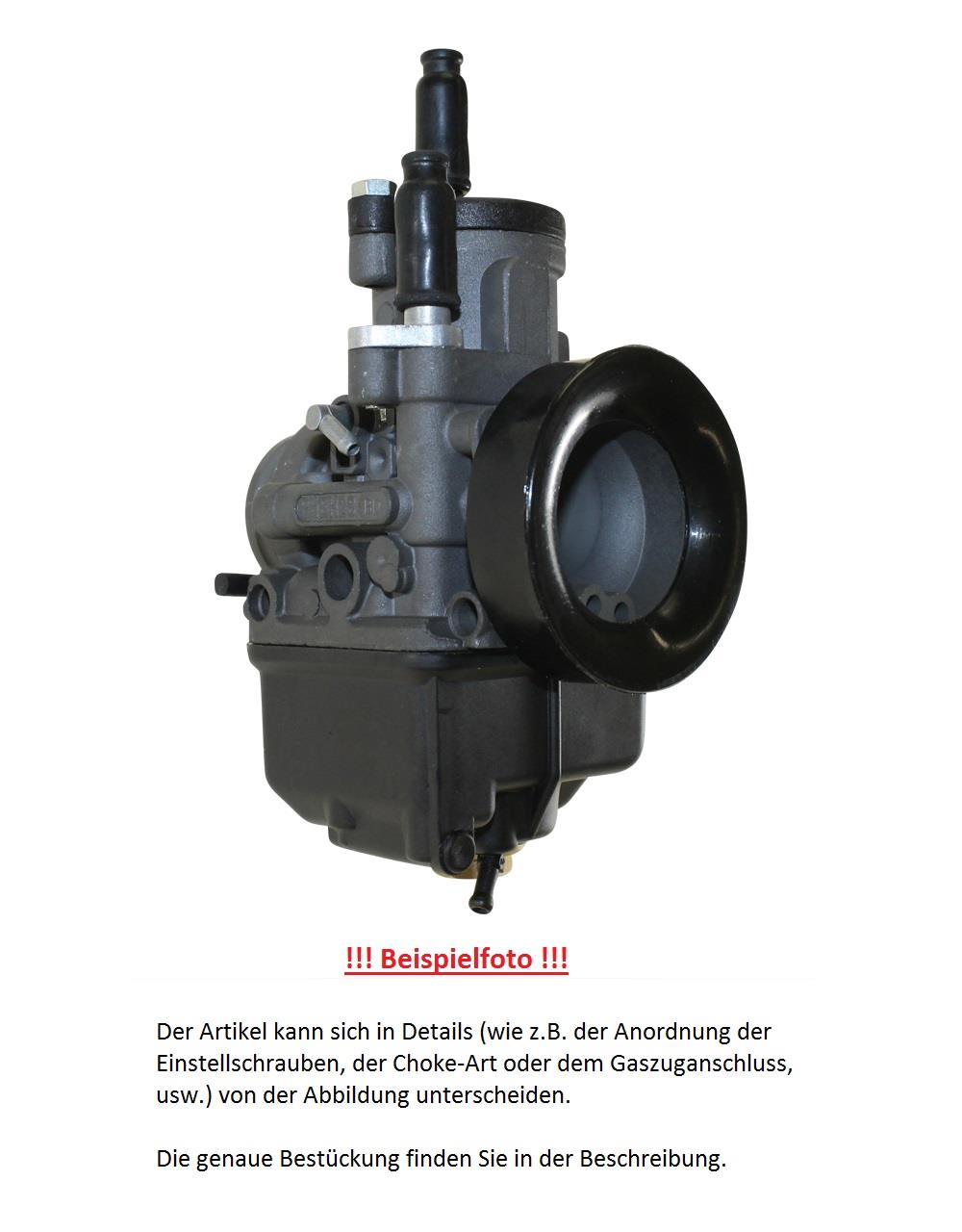

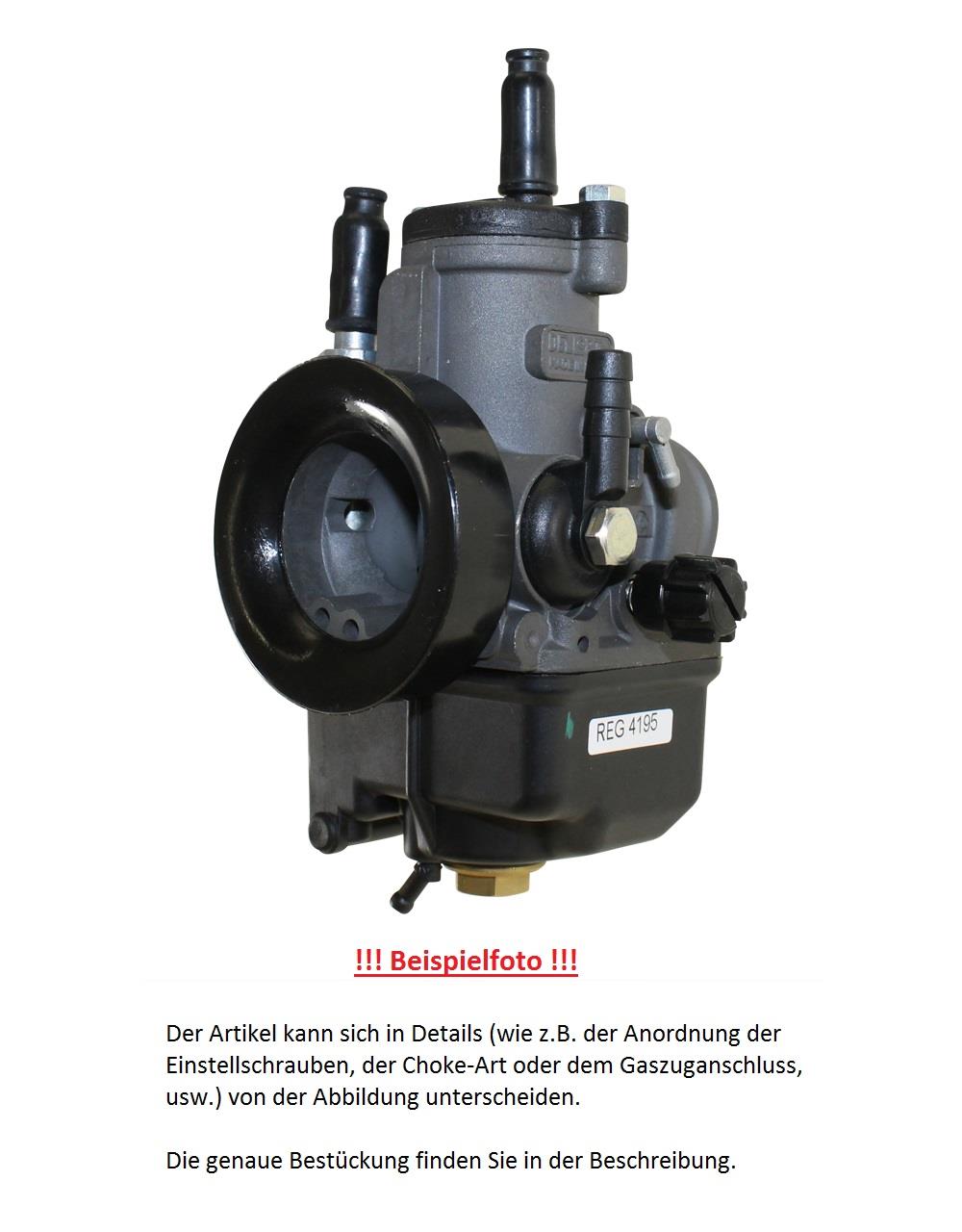

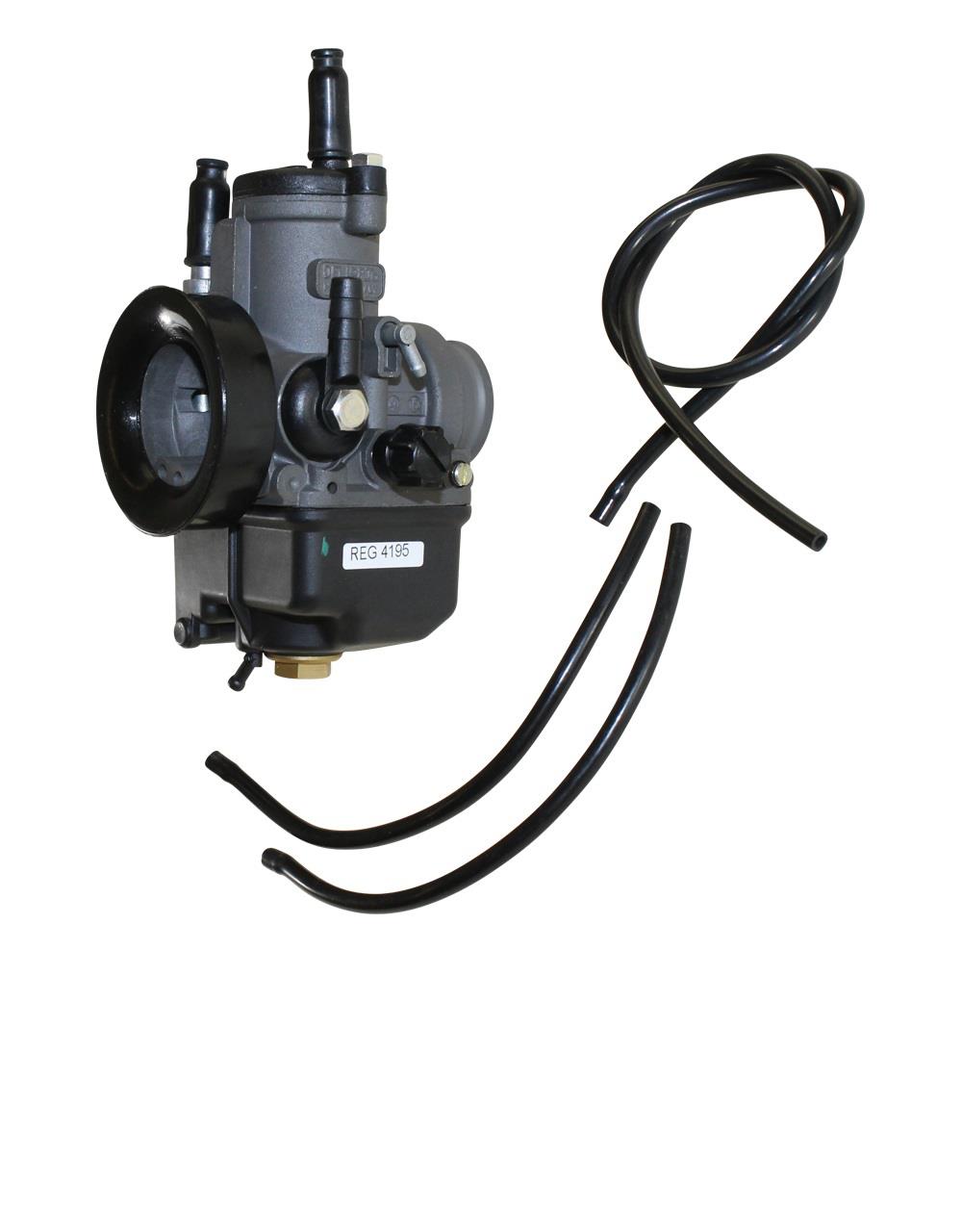

DellOrto carburetor 03478 PHBH 30 BS Round slide valve

“La Dolce Vita” for your two-wheeler.
With Dell'Orto carburetors and spare parts, we offer you precision and perfection from Italy.
Aprilia, Piaggio, Moto Guzzi, Ducati, Benelli, Laverda and MV Agusta, as well as other manufacturers such as BMW, Honda, Husqvarna, Husaberg, KTM, Peugeot and Yamaha have been relying on Dell'Orto's consistently high-quality and innovative carburetors since 1933. The major scooter engine manufacturers Minarelli and Morini also value the know-how and premium quality of the Italian carburetor specialist Dell'Orto.

Tailored precisely to your vehicle, we offer you a carburetor from the original equipment manufacturer Dell'Orto.

In principle, the various carburetors can be freely interchanged. The size of the passage essentially determines the quantity of the fuel-air mixture and must be selected according to the corresponding engine capacity. The engine and air-side connections can usually be adapted using adapters.

The carburetors of the PHB series are among the most common models in the 50-125cc class. PHB carburetors are used on the majority of mopeds, mopeds and scooters. They are the standard for Minarelli engines.

Technical data:
Type PHBH Var. B with 30 mm passage, separate lubrication:
- for 2-stroke engines
- Left-hand adjusting screws
- Flange connection rubber Ø36mm
- Cable choke
- Throttle cable straight

Further technical data:
- Sport version
- Ø 30 mm
- 90x84 mm
- H 171 mm
- Engine connection: 36mm
- Air filter connection: 42mm
- Main nozzle 130
- Secondary nozzle 55
- Mixing tube T268
- Needle X41
- Choke nozzle 75

equipped with:
- throttle slide 9374-50
- Carburetor needle X 9477-41
- Main atomizer T 7972-268
- Main jet 6413-130
- Idle jet 1486-55
- Starter jet 11890-75
- Needle valve 9436-225
- Float 9010-02, 6,5gr
