Cylinder complete set Piaggio AC 50cc for Aprilia, Derbi, Gilera, Italjet, TPH, ZIP, Sfera, NSL
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Further variants / accessories
- Item no: 165236
- EAN: 4251048825711
- Manufacturer: Citomerx
- Manufacturer no.: 165236
Cylinder Defective?
DESCRIPTION:
The cylinders of an internal combustion engine, together with the piston and the cylinder head, form the working and combustion chamber.
Depending on the engine design, they either have direct contact with the cooling water, metallic contact with the engine block or they are cast firmly into the engine block. The choice of material ensures that good heat transfer can take place to the engine block or to the cooling water.
Here you will find a solid and robust 50cc grey cast iron cylinder in ECO quality. The cylinder set can be used with a clear conscience as a replacement cylinder for the original and comes with a top price/performance ratio - of course with StVZO approval.
We pre-assemble the piston rings to save you time and effort.
Citomerx stands for good quality at very good prices. Like all products from our own brand Citomerx, this one is also characterised by high durability and precision manufacturing.
Quality that convinces!
TECHNICAL DATA:

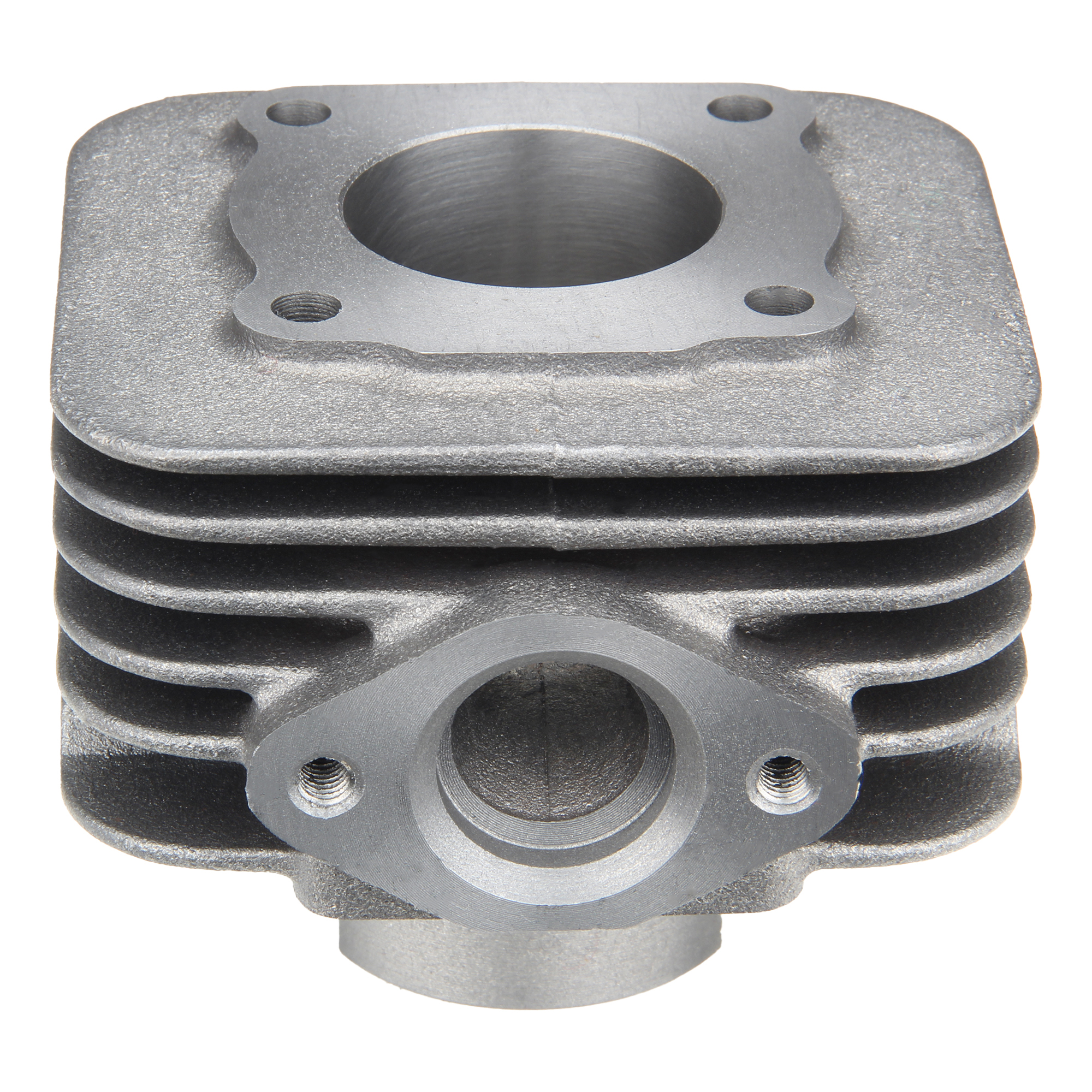

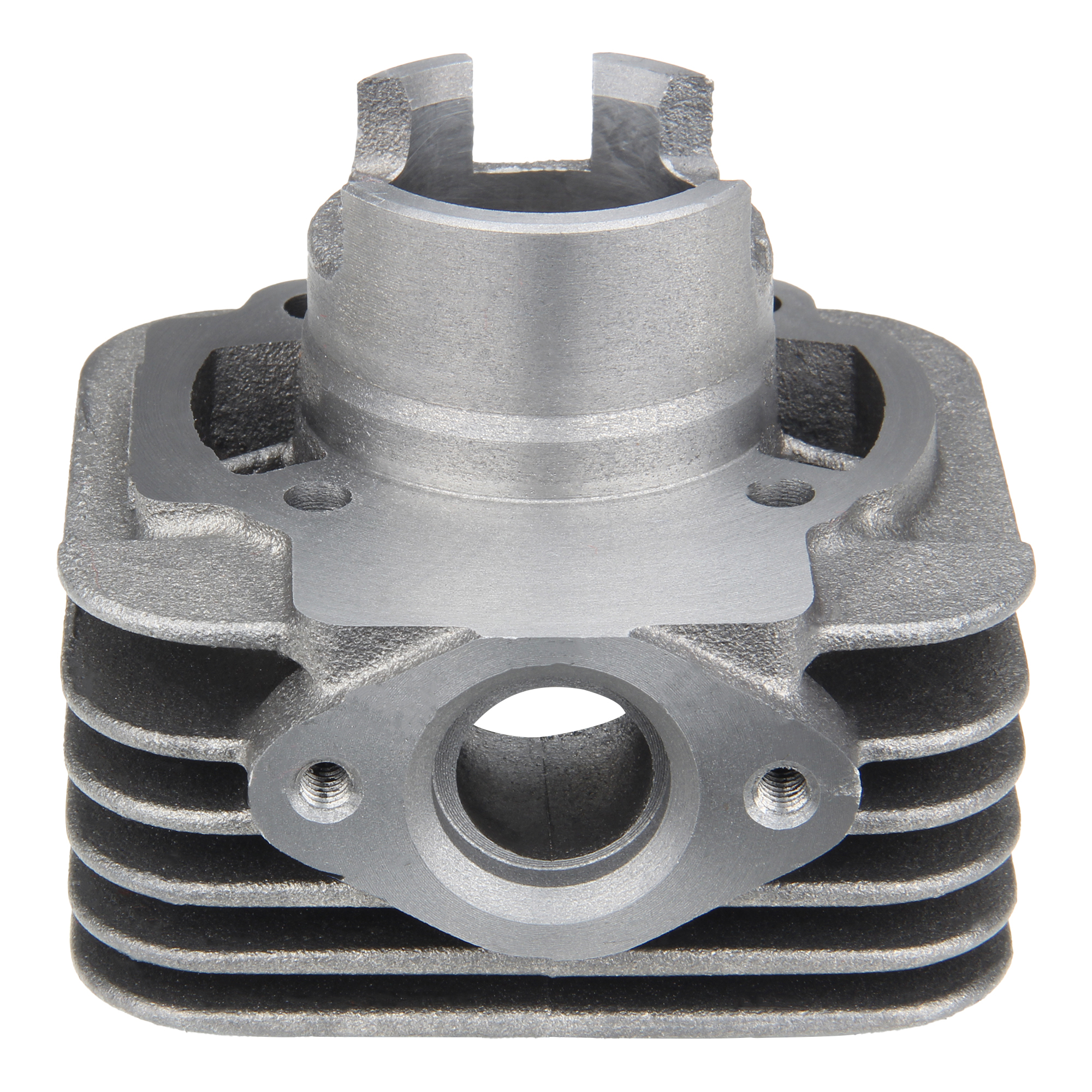

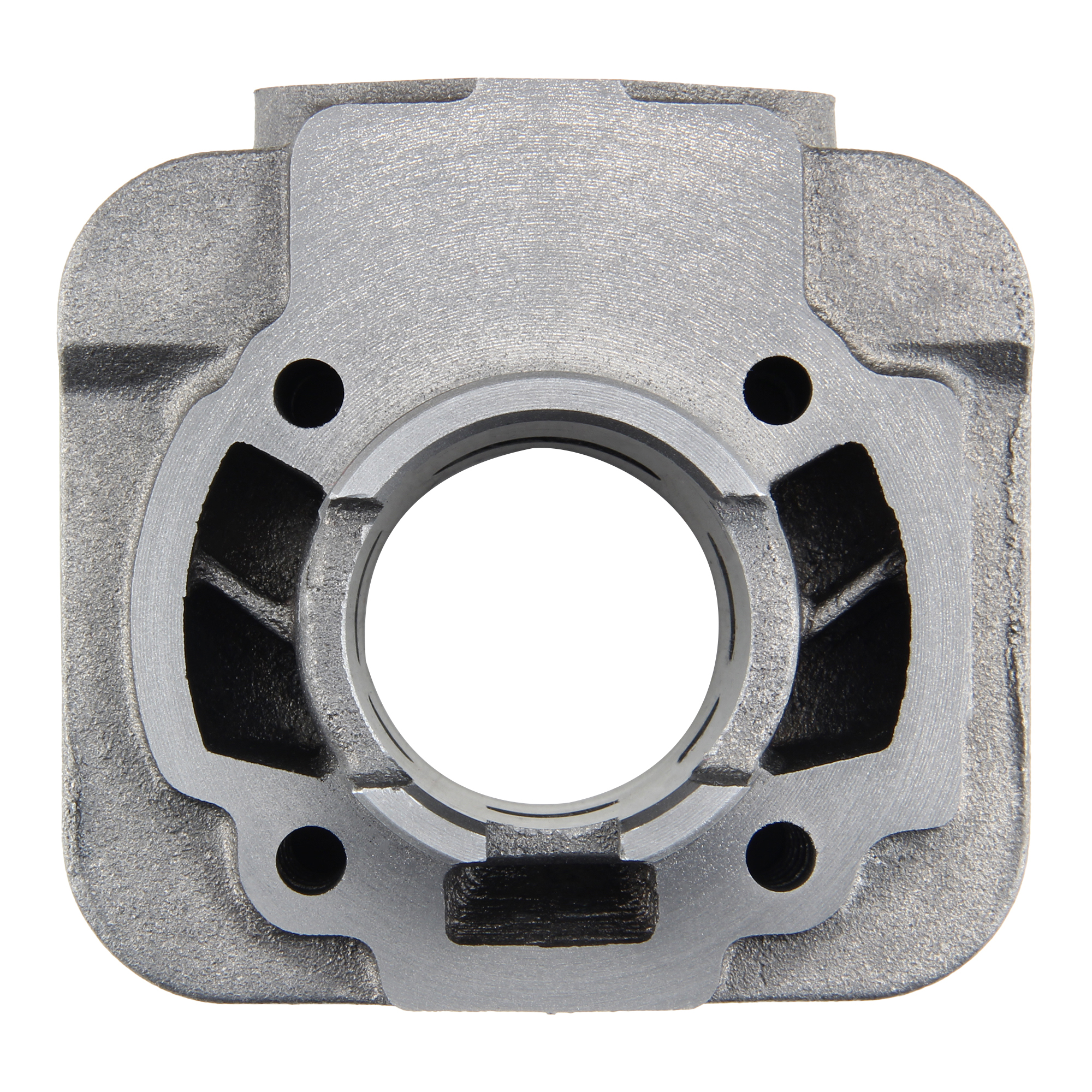

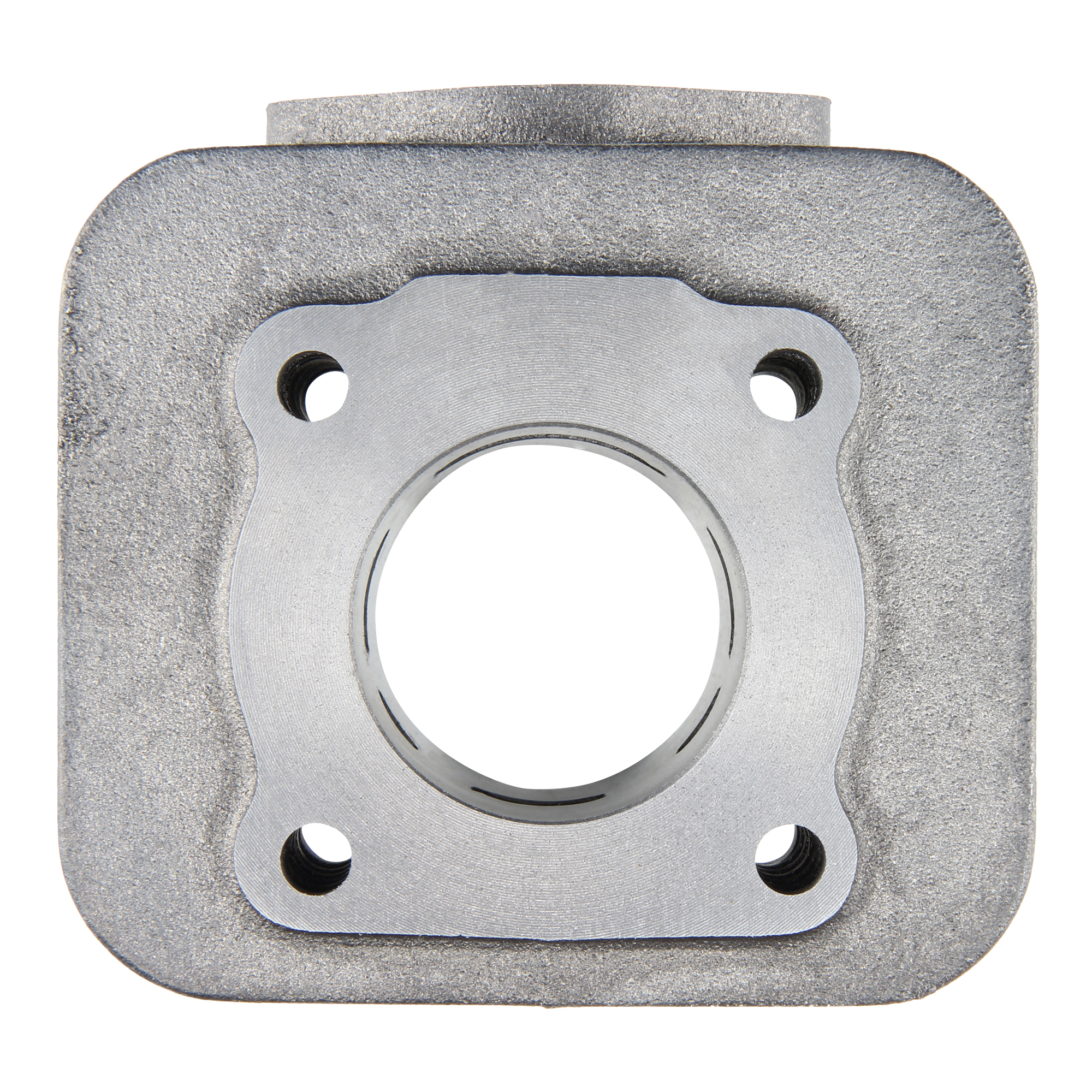

Cylinder
- 50ccm cylinder
- Material: grey cast iron
- for AC Piaggio engines

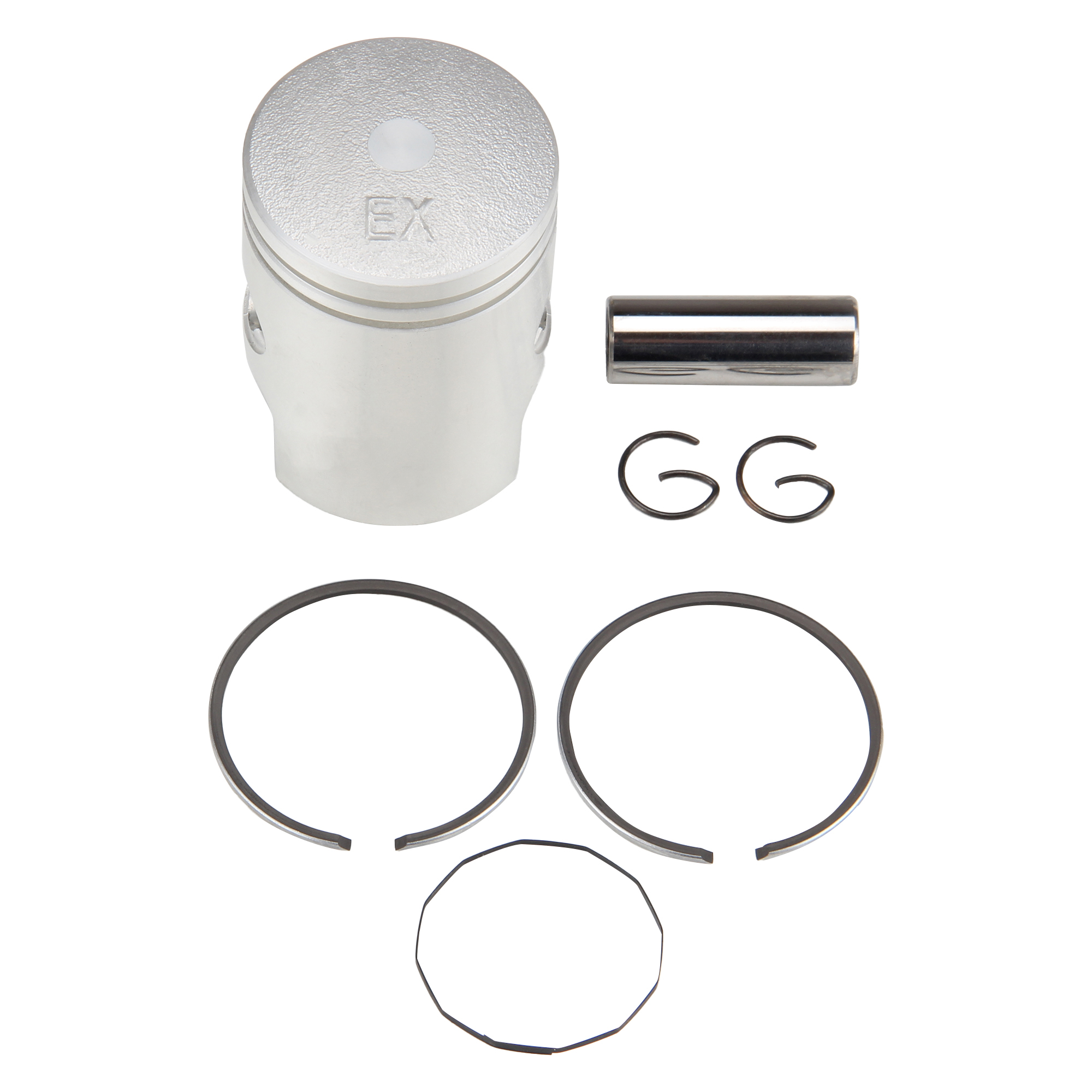

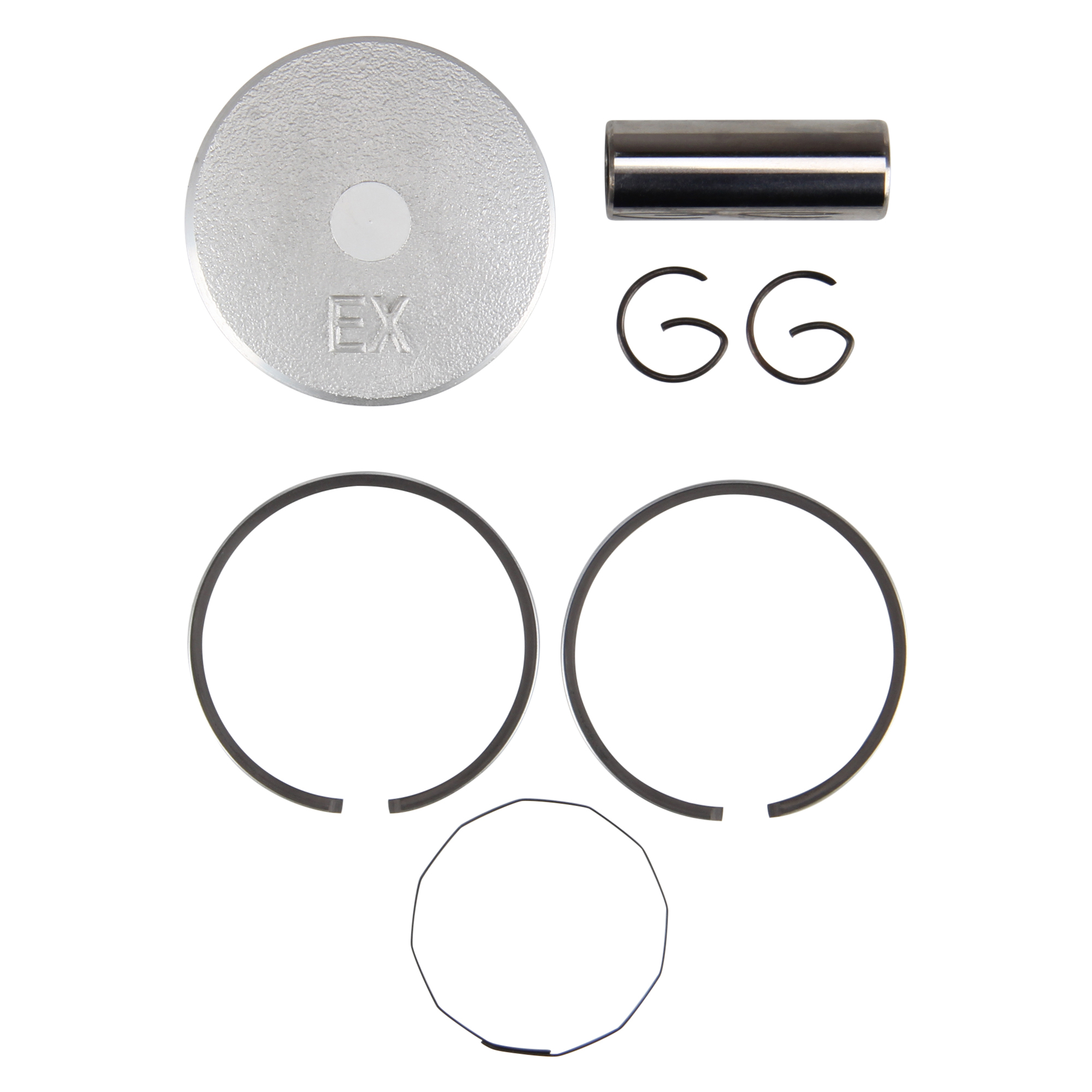

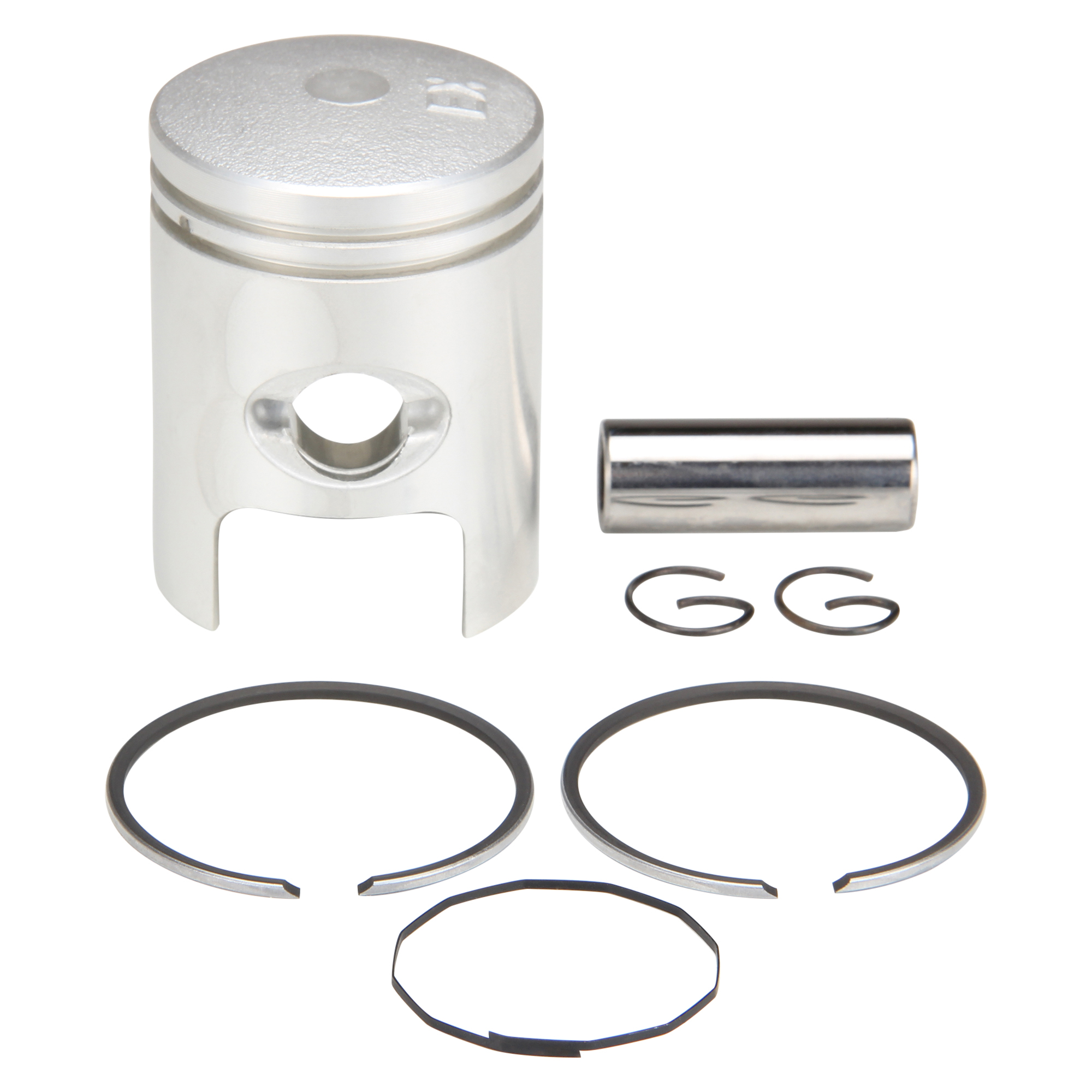

Piston
- 50cc piston
- for 40mm cylinder bore
- 12mm piston pin
- for Piaggio engines

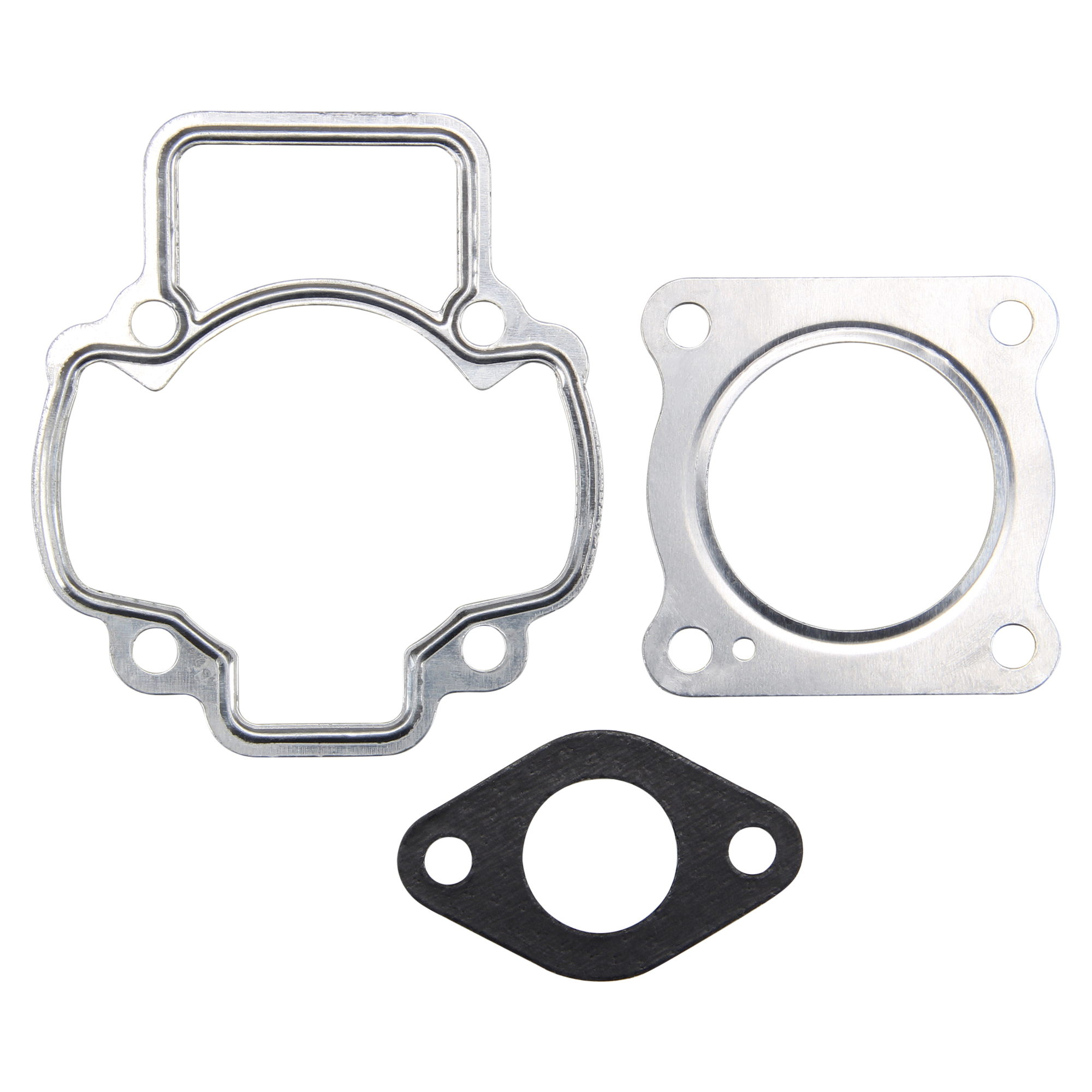

Gasket set
- Cylinder gasket set for 50cc AC Piaggio engines

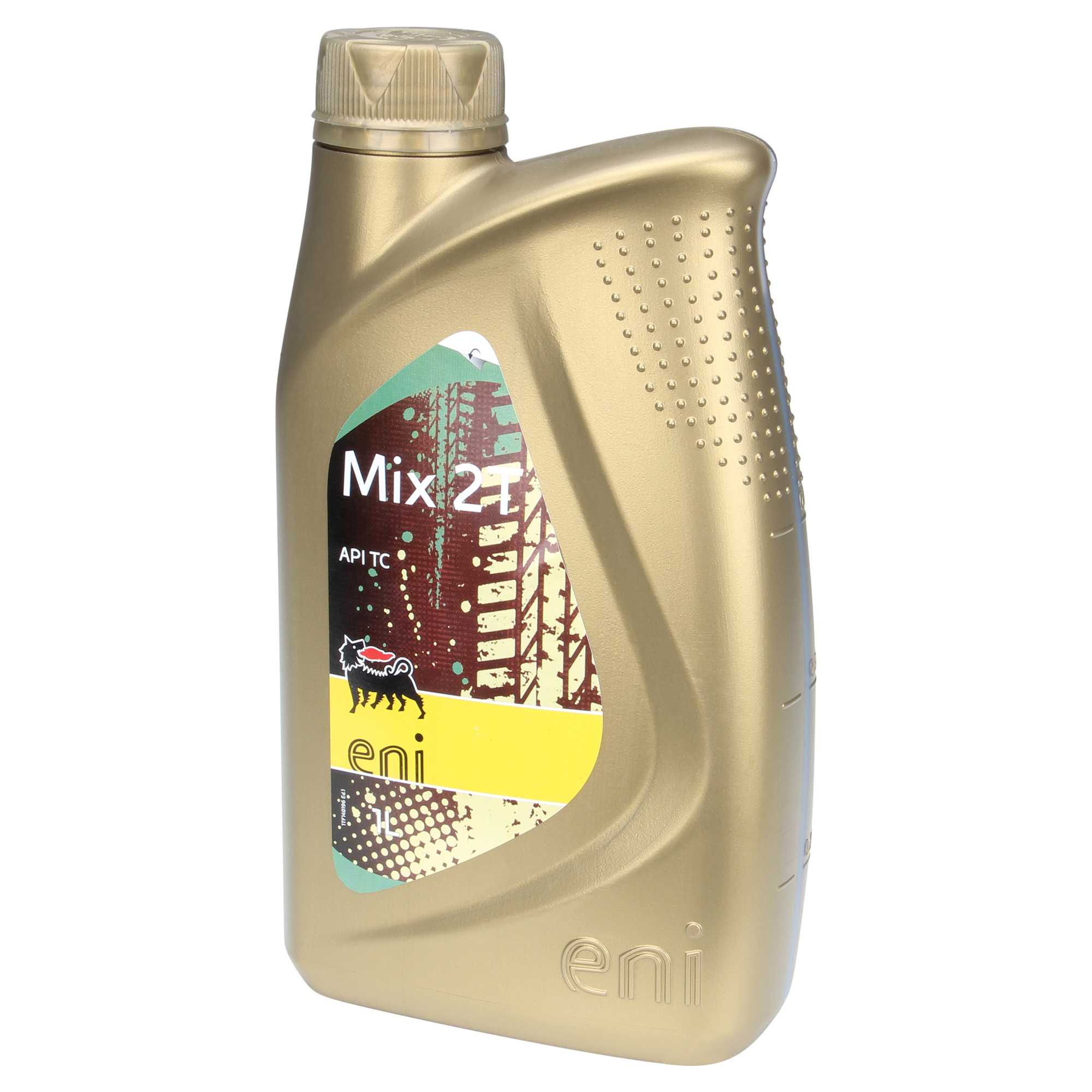

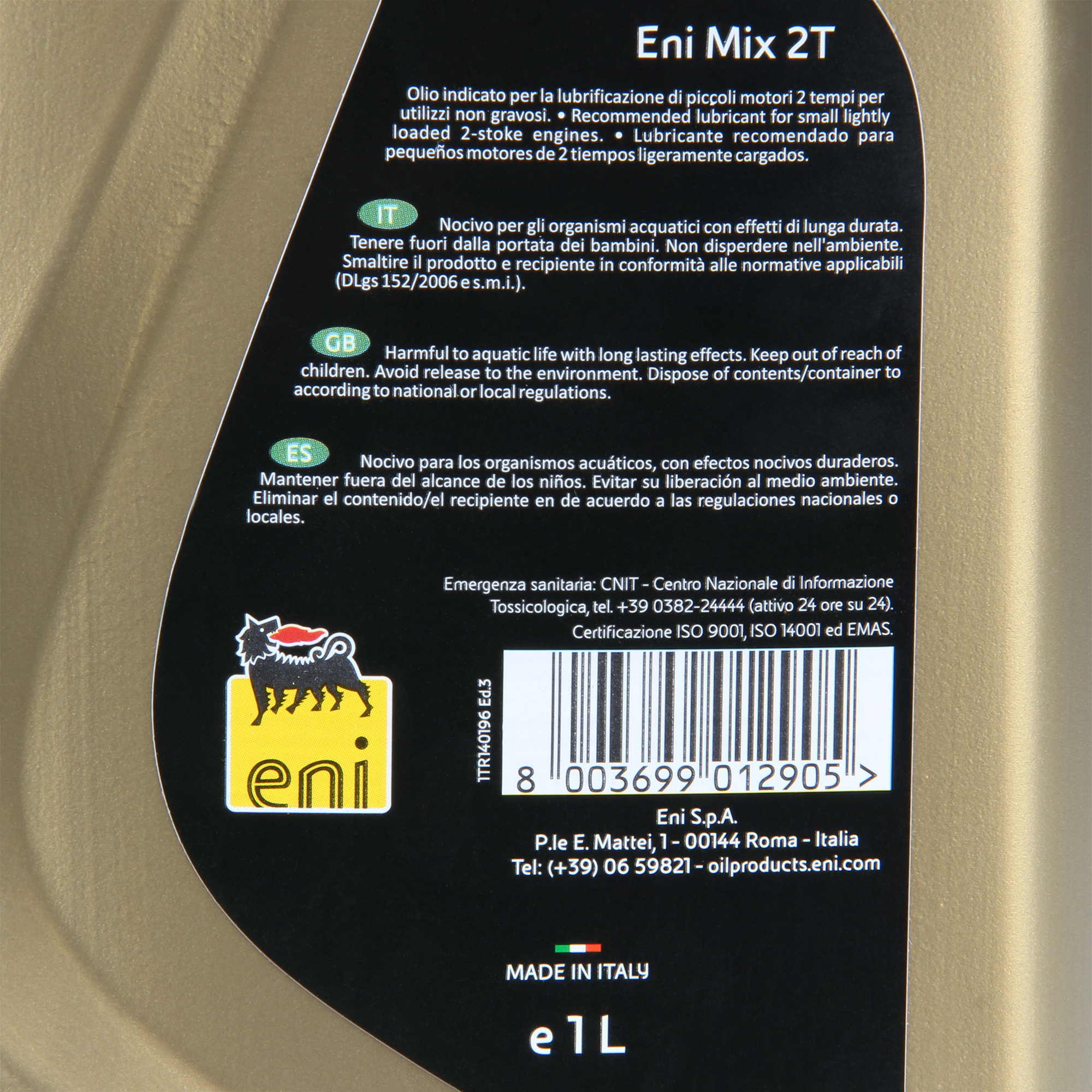

Engine oil
- Semi-synthetic self-mixing motorbike oil
- For separate and mixed lubrication
- Lasting protection against corrosion and wear as well as coking residues during the combustion process
- Strong cleaning effect
- Particularly low smoke combustion
- Low smoke
- Specially developed for use in motorbikes, scooters and mopeds. But also suitable for lawn mowers and chainsaws
- High speed resistant
- Specifications and approvals: JASO FC., ISO EGD., API TC.

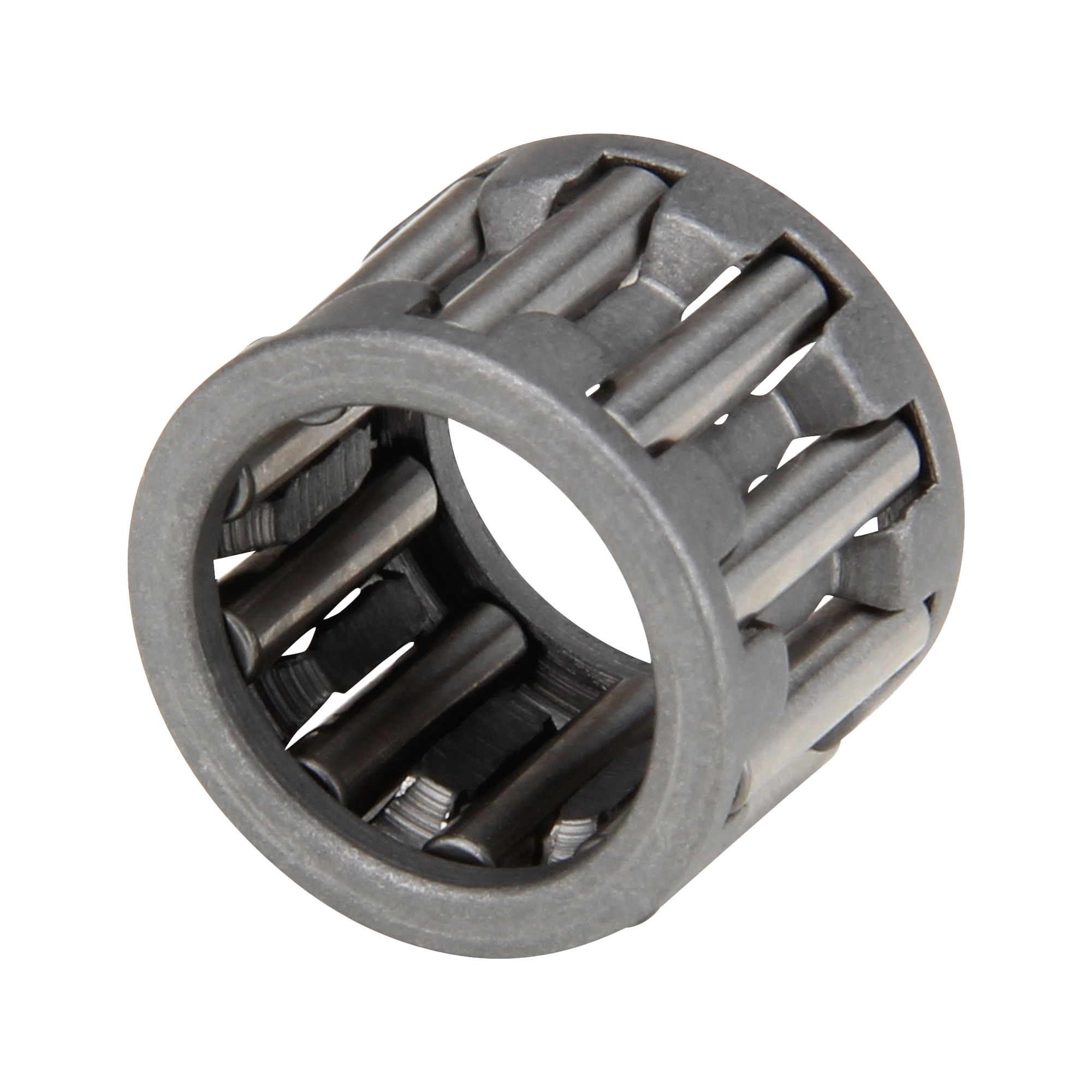

Piston pin bearing
- for original as well as racing engines
- Inner diameter: 12mm
- Outside diameter: 17mm
- width: 13mm
- for 12mm piston pin

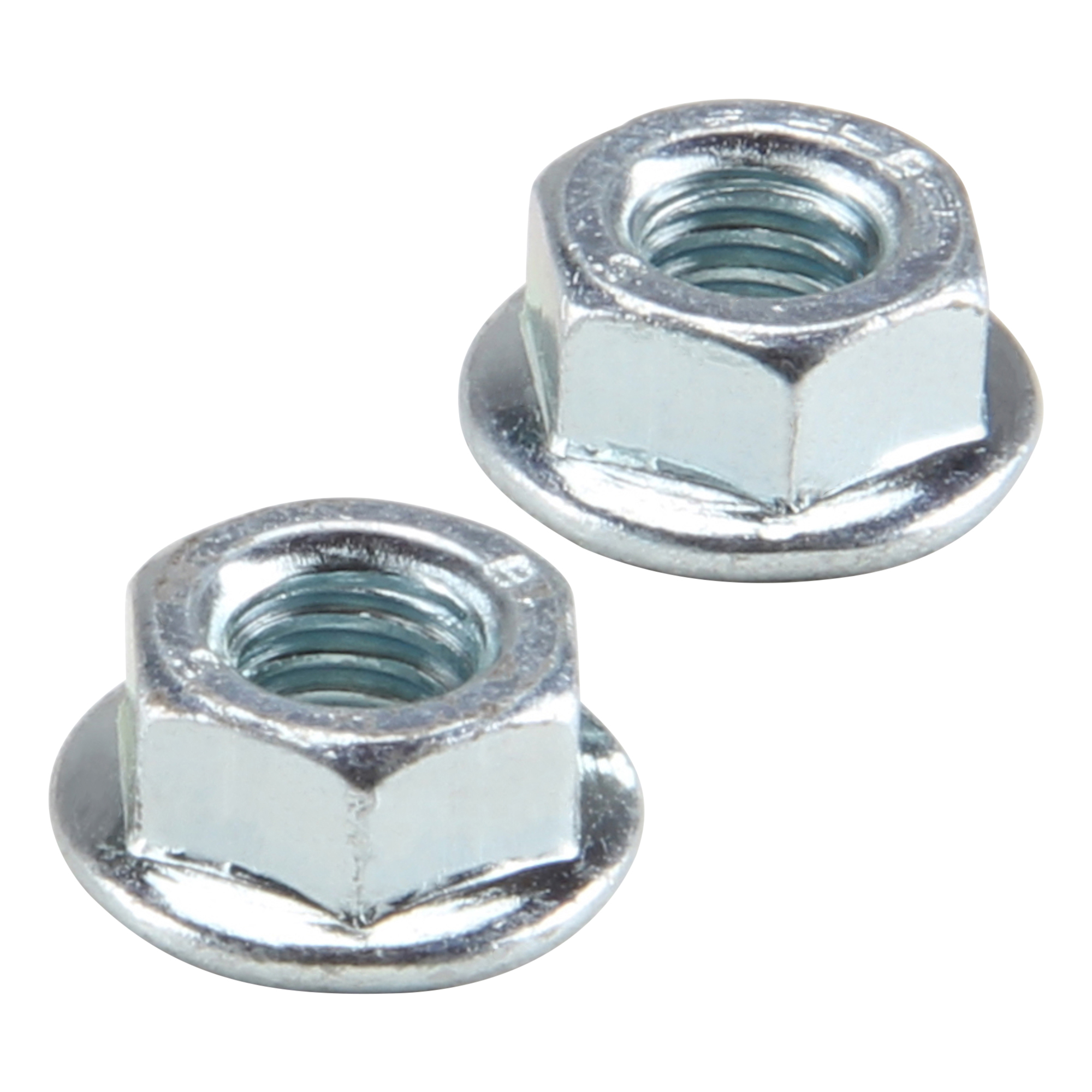

Manifold nut
- Nut M6 x 1 for exhaust flange Gilera models

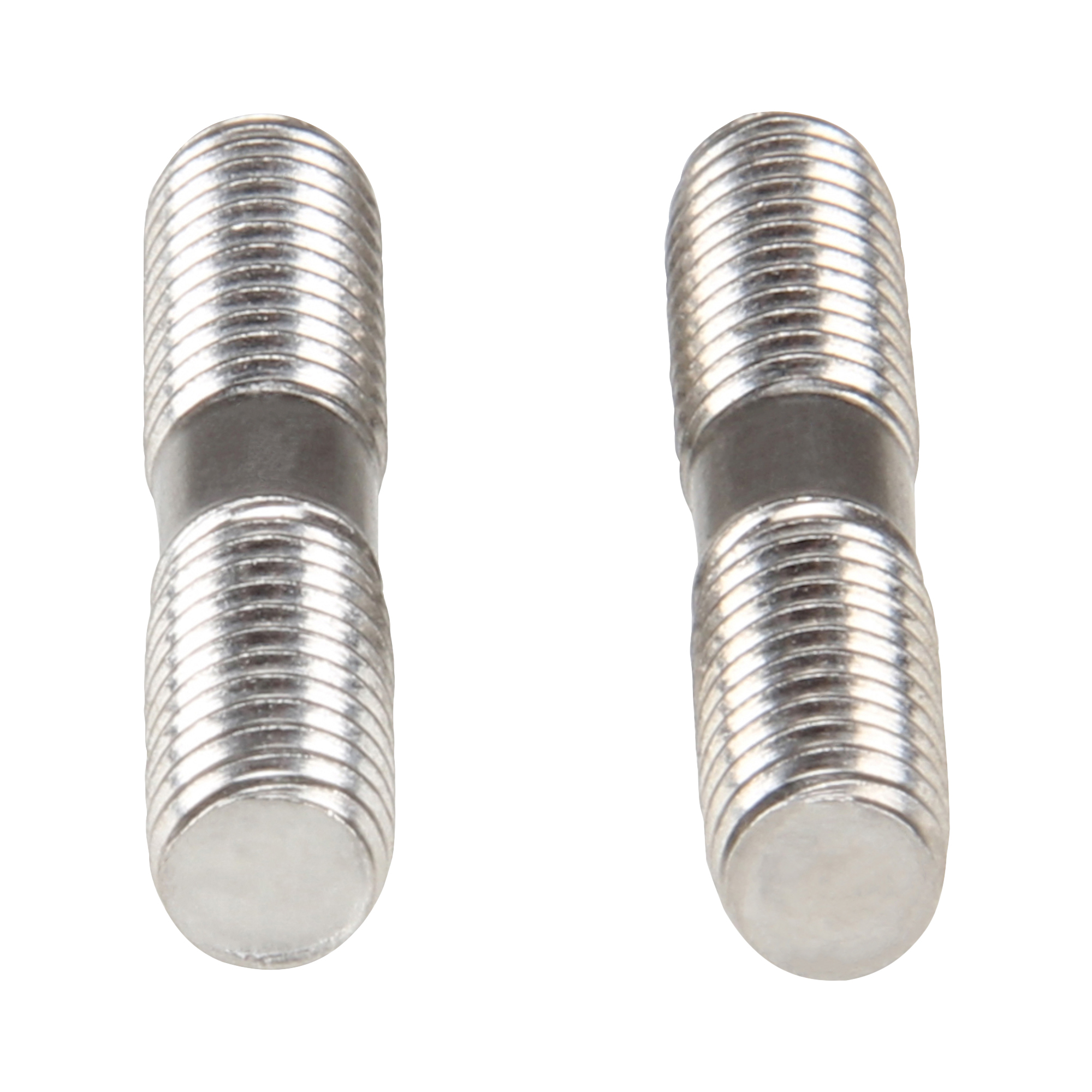

Manifold bolt
- Thread size: M6
- Length: 26mm

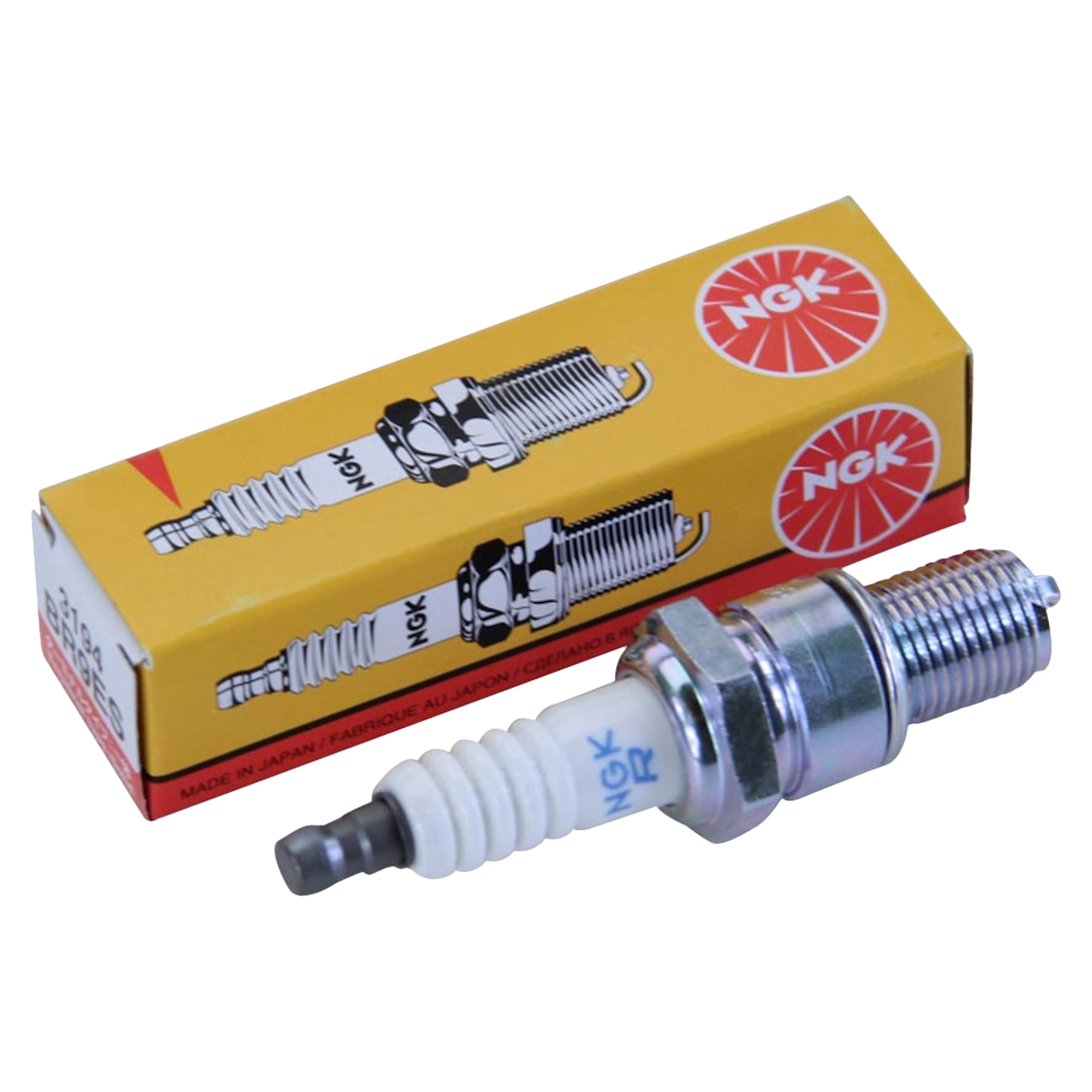

Spark plug
- Heat value 8
- Thread size: M14
- Width across flats: 21mm
- Original number: 5422 (Type BR8ES)

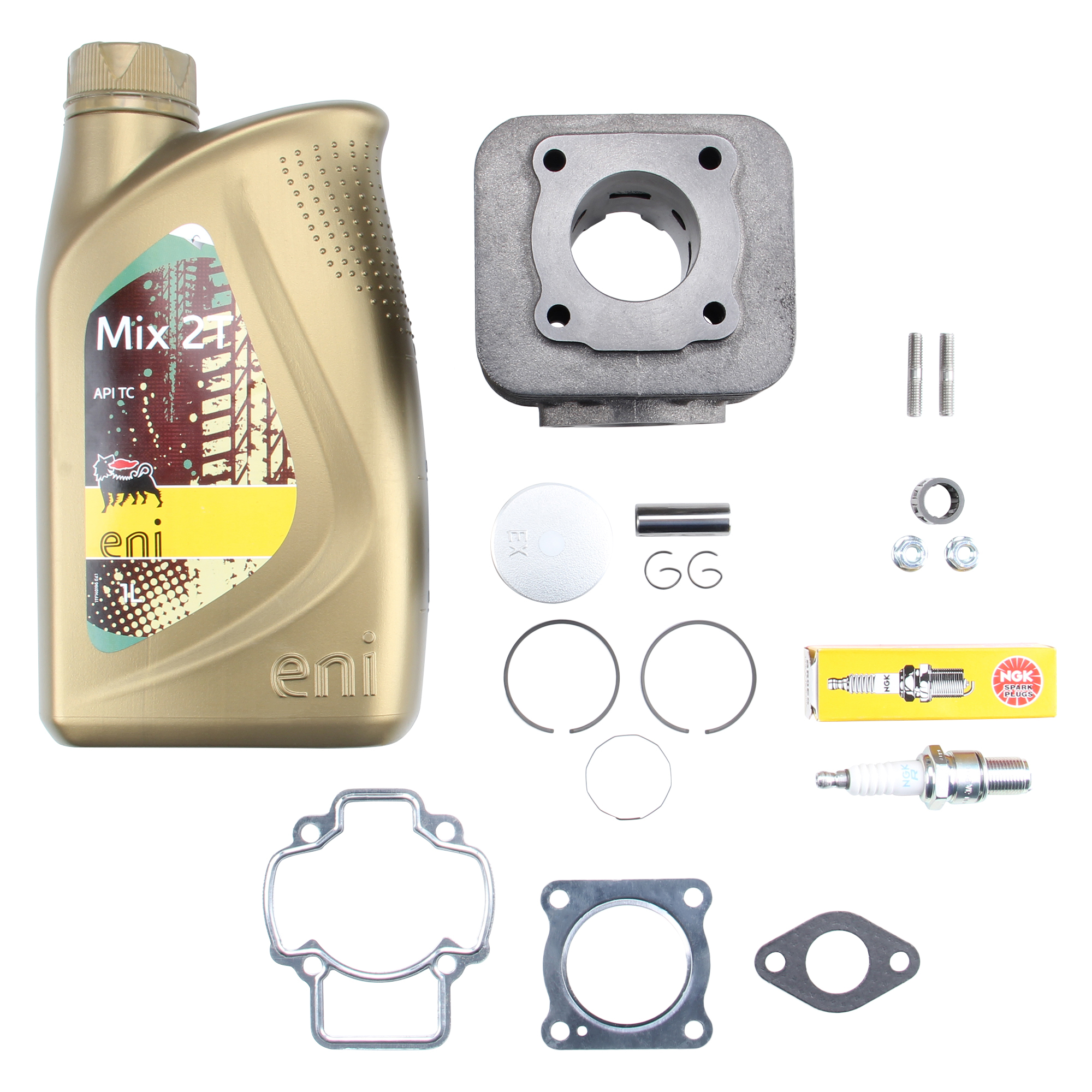

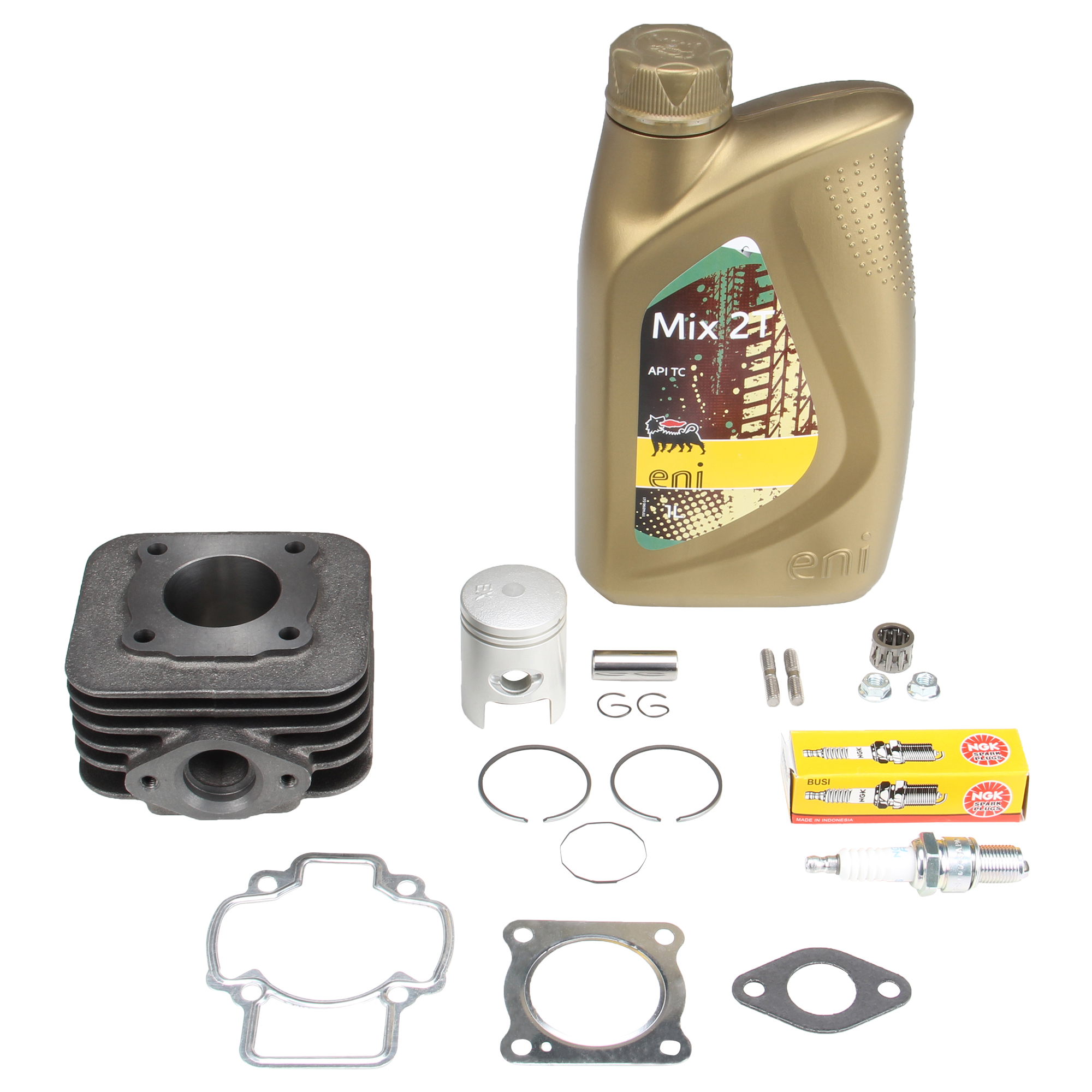

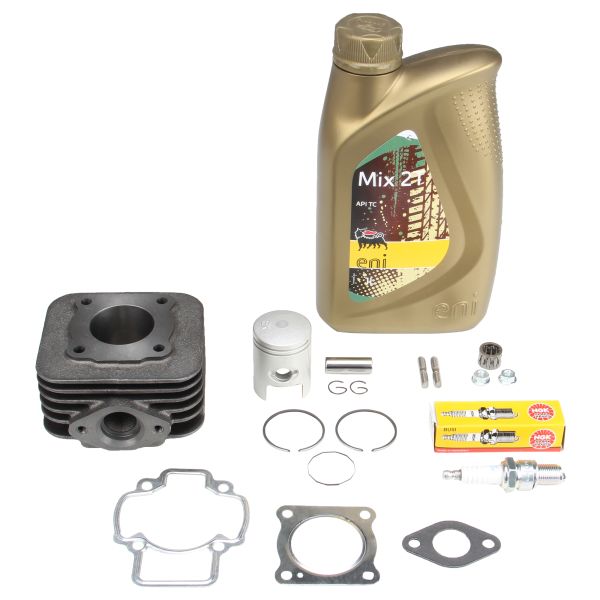

SCOPE OF DELIVERY:
✔ 1x cylinder
1x piston (incl. piston rings, piston pin, clips)
1x gasket set
1x Engine oil
1x Piston pin bearing
✔ 2x manifold nut
✔ 2x manifold bolt
1x spark plug
| Product type: | Cylinder set |
| Piston pin diameter: | 12 mm |
| Displacement: | 50 cc |
| Can the original cylinder head be used?: | Yes |
| Tuning & Styling Part: | No |
| Piston ring profile: | Halbtrapez-Ring |
| Vintage part: | No |
| Surface finish: | Matt |
| GTIN: | 4251048825711 |
| Diffuser internal dimension: | 20 mm |
| Cylinder dimensions (LxWxH): | 100 x 100 x 85 mm |
| Outlet Stud distance: | 46 mm |
| Scope of delivery: | Zündkerze NGK BR9ES, 2x Stehbolzen M6x26, Kolben Set, Nadellager 12x17x13, Cylinder, 2x Krümmermutter M6, Gasket set, Öl Agip Mix 2T |
| Outlet stud bolt thread: | M6 |
| Cylinder stud distance: | 48 x 48 mm |
| Number of overflows: | 3 |
| Cylinder stud bore: | 7 mm |
| Manifold connection type: | Flange |
| Color: | Grey |
| Number of piston rings: | 2 |
| Features: | Corrosion resistant, Durable |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 165236 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Scooter |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Zylinderset Nadellager Zündkerze Stehbolzen Öl |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| Type: | Standard |
| suitable for: | Piaggio AC luftgekühlt |
