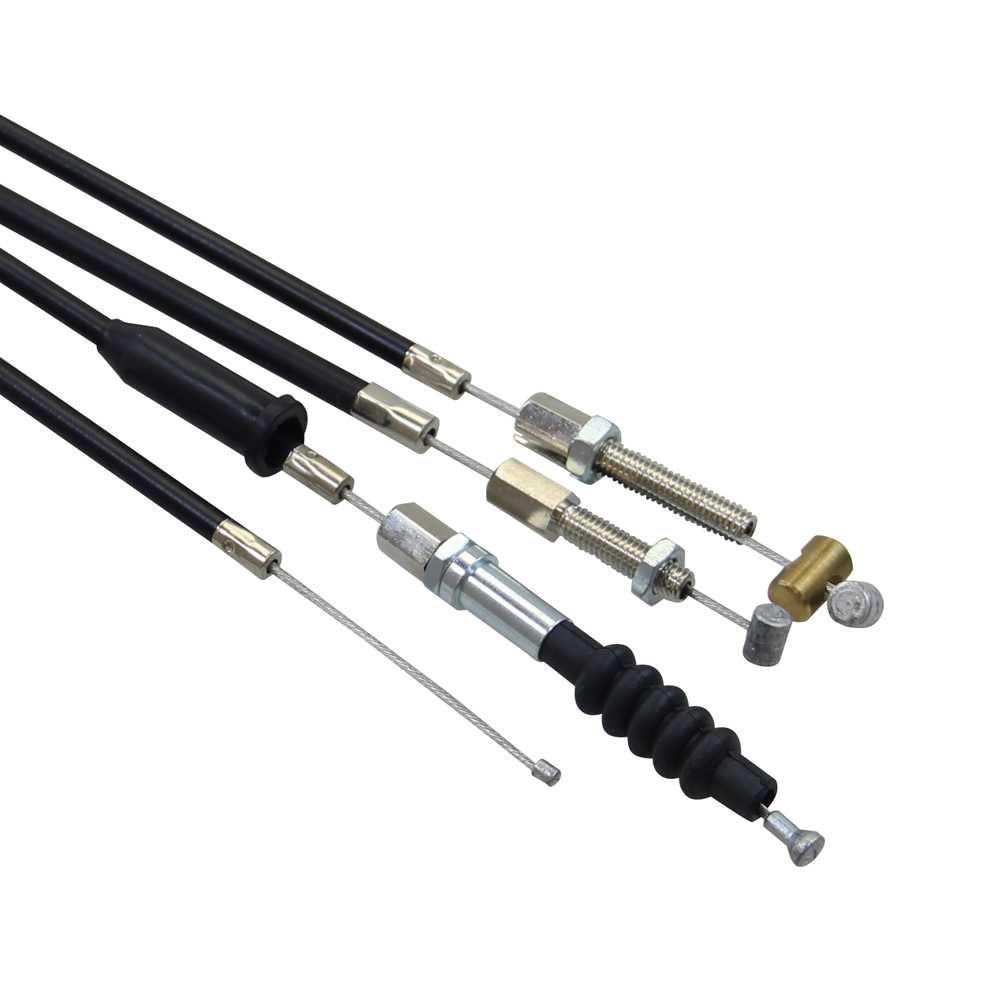

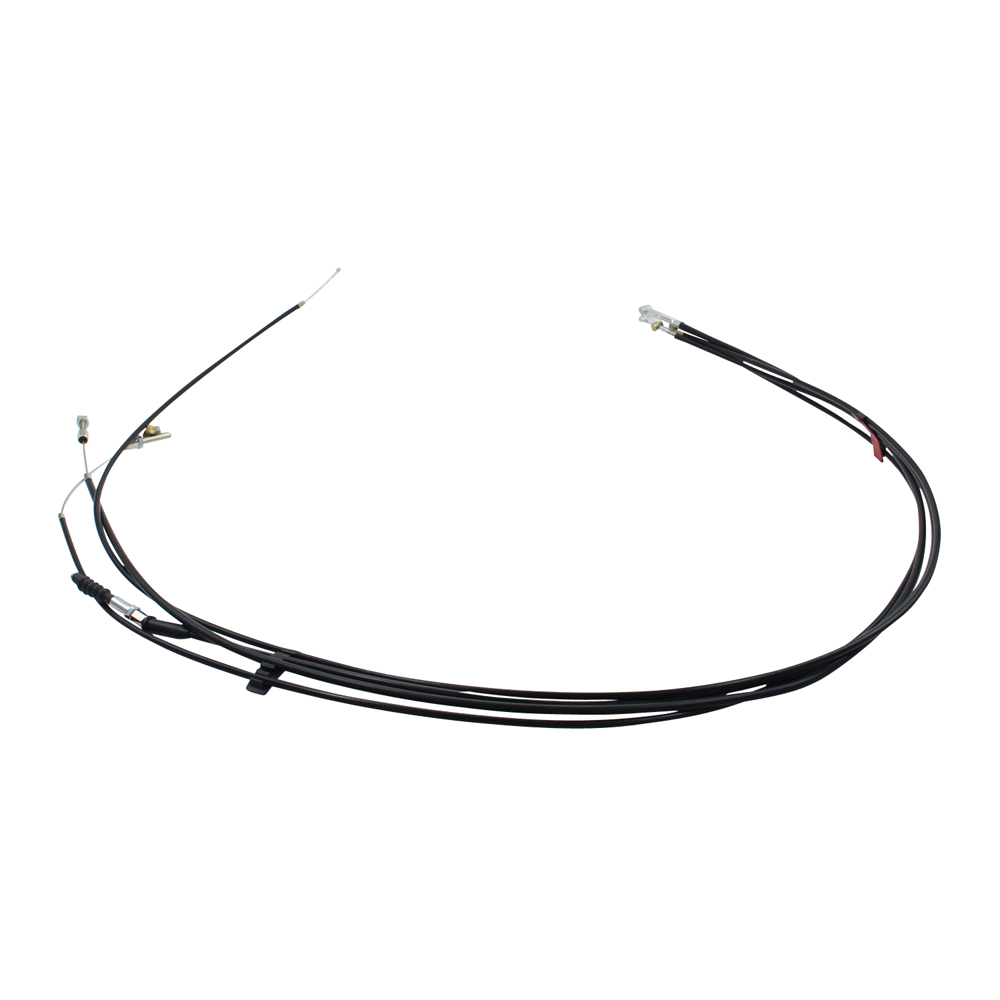

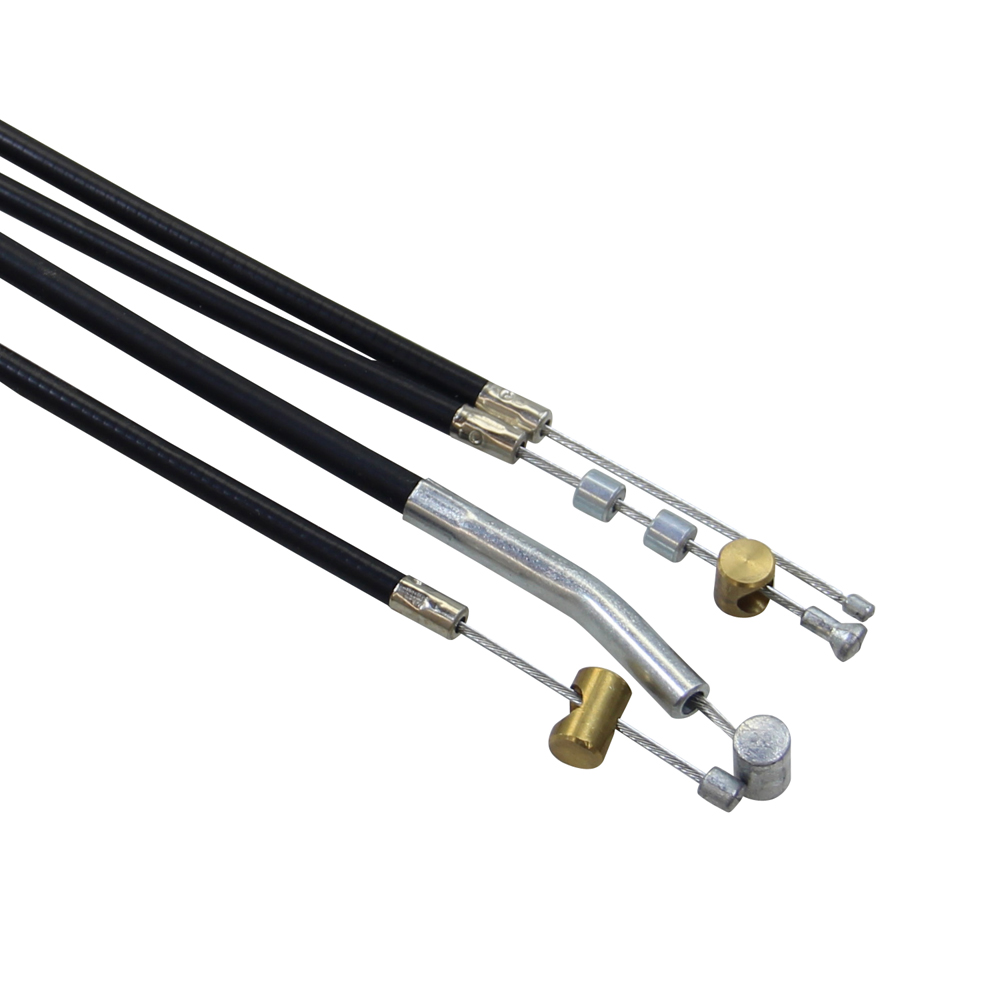

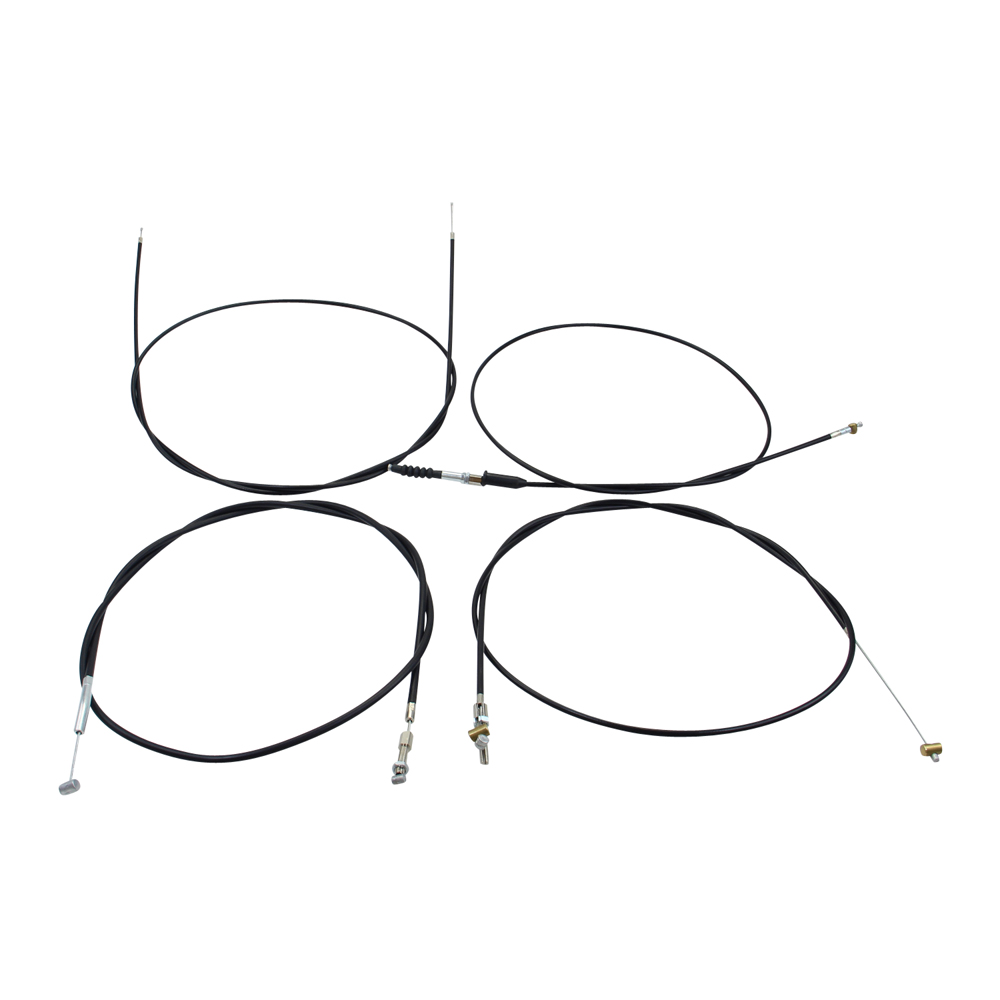

Black Bowden cables for Zundapp RS 50 type 561-004 (to part of FG n° ...
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Further variants / accessories
- Item no: 168513
- EAN: 4060861188718
- Manufacturer: Citomerx
- Manufacturer no.: 168513
Zündapp Original-/Vergleichsnummer:
561-17.603 (Gaszug)
561-17.601 (Bremszug)
561-17.618 (Kupplungszug)
561-17.657 (Schaltzug)
TECHNISCHE DATEN:
- Farbe: Schwarz
- Material Hülle: PVC
- Material Seil: Stahl
- Hinweis: Bitte Aufnahmen und Länge vergleichen!
GASZUG
- Länge Hülle: 1660 mm
- Länge Seil: 1725 mm
- Durchmesser Hülle: 5 mm
- Durchmesser Seil: 1,5 mm
- Aufnahme 1: Birnennippel Ø3 x 4,5 mm
- Aufnahme 2: Birnennippel Ø3 x 4,5 mm
- Bowdenzug Öler: Nein
BREMSZUG
- Länge Hülle: 1070 mm
- Länge Seil: 1195 mm
- Durchmesser Hülle: 4,8 mm
- Durchmesser Seil: 1,5 mm
- Aufnahme 1: Tonnennippel Ø8 x 9 mm
- Aufnahme 2: Birnennippel Ø5,5 x 9 mm
- Bowdenzugspanner: 1x M6-Gewinde
- Besonderheit: mit Gummitülle für Bowdenzugspanner
- Bowdenzug Öler: Nein
KUPPLUNGSZUG
- Länge Hülle: 1390 mm
- Länge Seil: 1500 mm
- Durchmesser Hülle: 5,8 mm
- Durchmesser Seil: 1,5 mm
- Aufnahme 1: Tonnennippel Ø6 x 8,5 mm
- Aufnahme 2: Tonnennippel Ø8 x 11,7 mm
- Bowdenzugspanner: 1x M6-Gewinde
- Besonderheit: mit Umlenkung (motorseitig)
- Bowdenzug Öler: Nein
SCHALTZUG
- Länge Hülle: 1310 mm
- Länge Seil: 1470 mm
- Durchmesser Hülle: 4,9 mm
- Durchmesser Seil: 1,5 mm
- Aufnahme 1: Tonnennippel Ø8 x 12 mm
- Aufnahme 2: Tonnennippel Ø8 x 12 mm
- Bowdenzugspanner: 1x M6-Gewinde
- Besonderheit: mit 2x Haltenippel Ø7x7 mm / Ø4,5x5 mm
- Bowdenzug Öler: Nein
LIEFERUMFANG:
1x Bowdenzug Satz
Zündapp RS 50 Typ 561-004 (ab FG-Nr. 7003306)
| Clutch cable diameter cover: | 5.8 mm |
| Clutch cable length cover: | 1390 mm |
| Brake cable Bowden cable tensioner: | 1x M6 thread |
| Clutch cable Bowden cable tensioner: | 1x M6 thread |
| Throttle cable mount 1: | Pear nipple Ø3 x 4.5 mm |
| Shift cable mount 2: | Barrel nipple Ø8 x 12 mm |
| Shifter cable diameter cover: | 4.9 mm |
| Brake cable length Cover: | 1070 mm |
| Throttle cable length cover: | 1660 mm |
| Clutch cable Special feature: | with deflection (motor side) |
| Clutch cable length Cable (total length): | 1500 mm |
| Shift cable diameter Cable: | 1.5 mm |
| OE/OEM reference number(s): | 561-17.601 (brake cable), 561-17.603 (throttle cable), 561-17.618 (clutch cable), 561-17.657 (shift cable) |
| Shift cable mount 1: | Barrel nipple Ø8 x 12 mm |
| Shift cable length Cable (total length): | 1470 mm |
| Restriction vehicle: | from FG no. 7003306 |
| Brake cable mount 1: | Barrel nipple Ø8 x 9 mm |
| Brake cable mount 2: | Pear nipple Ø5.5 x 9 mm |
| Throttle cable diameter rope: | 1.5 mm |
| Shift cable Bowden cable tensioner: | 1x M6 thread |
| Brake cable length Cable (total length): | 1195 mm |
| Brake cable diameter cover: | 4.8 mm |
| Shift cable length cover: | 1310 mm |
| Shift cable special feature: | with 2x retaining nipple Ø7x7 mm / Ø4.5x5 mm |
| Clutch cable mount 2: | Barrel nipple Ø8 x 11.7 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Universal compatibility: | No |
| Clutch cable mount 1: | Barrel nipple Ø6 x 8.5 mm |
| Brake cable Bowden cable oiler: | No |
| Brake cable diameter Cable: | 1.5 mm |
| Shift cable Bowden cable oiler: | No |
| Throttle cable Bowden cable oiler: | No |
| Note: | Please compare recordings and length! |
| Clutch cable Bowden cable oiler: | No |
| Clutch cable rope diameter: | 1.5 mm |
| Throttle cable length Cable (total length): | 1725 mm |
| Throttle cable diameter cover: | 5 mm |
| Cover material: | PVC |
| Rope material: | Steel |
| Throttle cable mount 2: | Pear nipple Ø3 x 4.5 mm |
| Brake cable Special feature: | with rubber grommet for Bowden cable tensioner |
| Color: | Black |
| Scope of delivery: | 1x Bowden cable set |
| Manufacturer number: | 168513 |
| Country and region of manufacture: | China |
| Brand compatibility: | Zündapp |
| Product type: | Bowden cable set |
| Type of motorcycle: | Scooter |
| Offer package: | Yes |
| Description of the package content: | Throttle / brake / clutch / shift cable |
| Manufacturer warranty: | 2 years |
