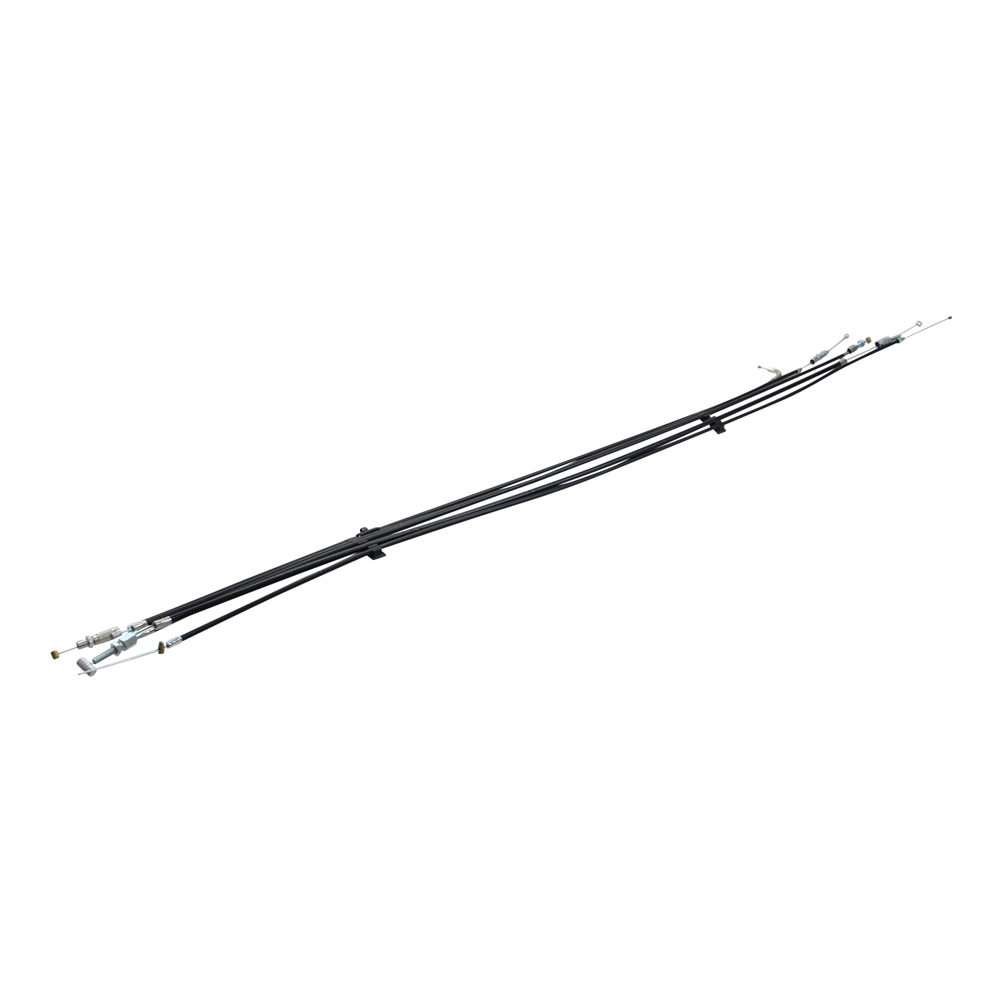

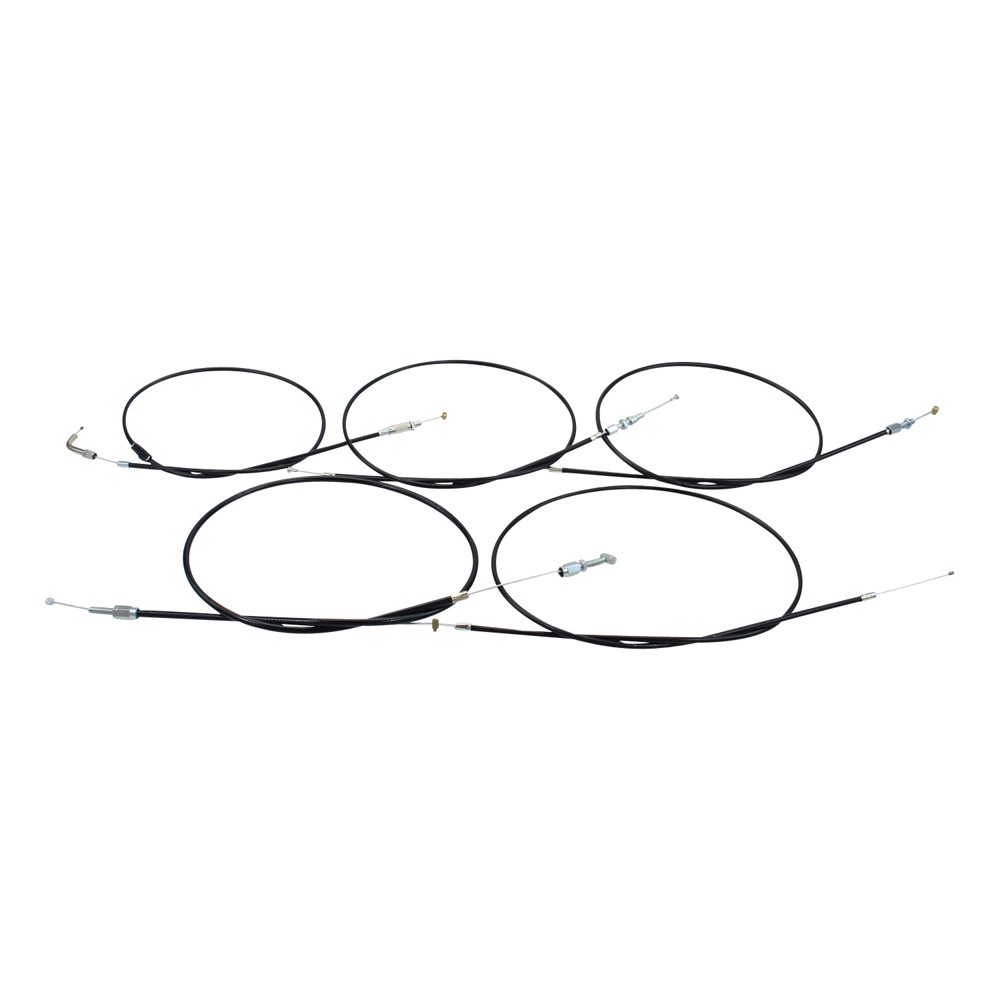

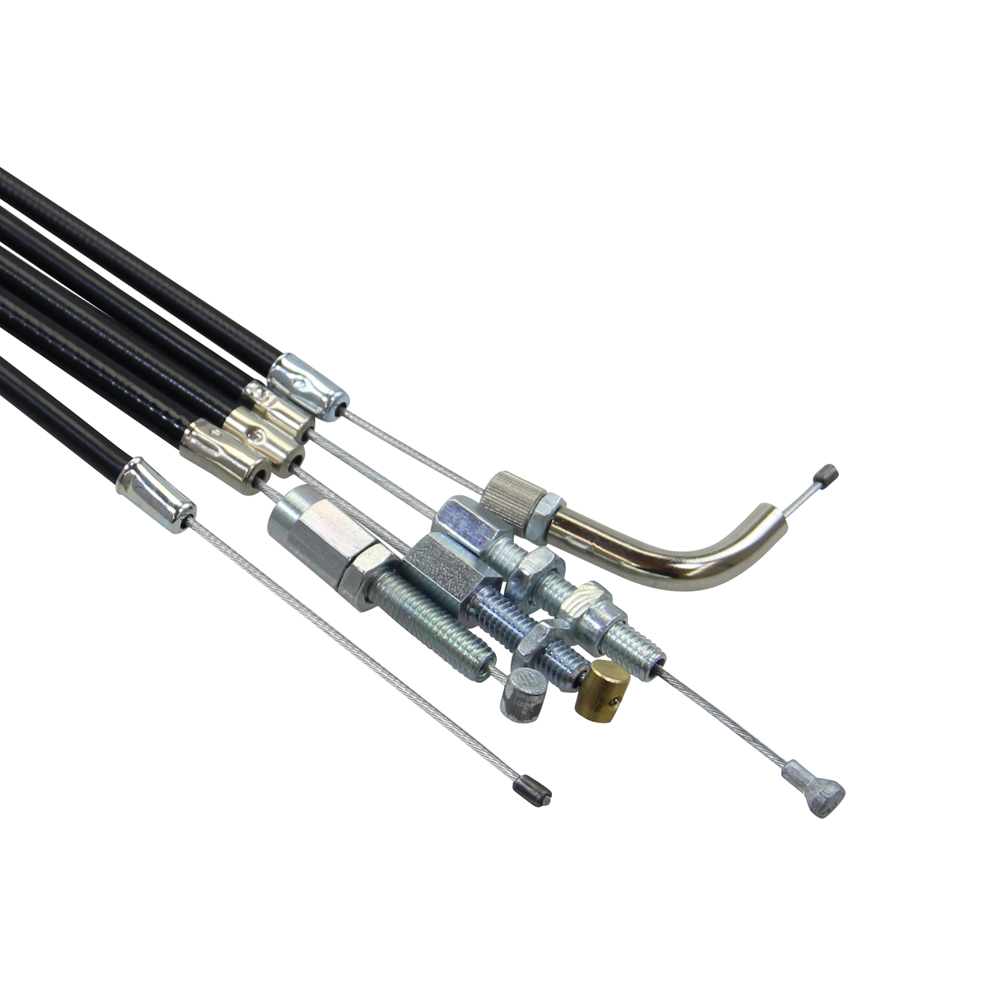

Bowdenzug Set schwarz für Zündapp ZD 30 446-20 (ab 9744037) / ZD 30 446-201 / ZD 10 446-210 (ab 9744037) / ZD 10 446-211
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 168433
- EAN: 4060861187858
- Manufacturer: Citomerx
- Manufacturer no.: 168433
Zündapp Original-/Vergleichsnummer:
250-04.604 (Gaszug)
446-17.645 (Bremszug)
446-17.613 (Kupplungszug)
446-17.616 (Schaltzug)
446-17.611 (Dekozug)
TECHNISCHE DATEN:
- Farbe: Schwarz
- Material Hülle: PVC
- Material Seil: Stahl
- Hinweis: Bitte Aufnahmen und Länge vergleichen!
GASZUG
- Länge Hülle: 770 mm
- Länge Seil: 920 mm
- Durchmesser Hülle: 4,8 mm
- Durchmesser Seil: 1,3 mm
- Aufnahme 1: Tonnennippel Ø5,2x7 mm
- Aufnahme 2: Birnennippel Ø3x3,5 mm
BREMSZUG
- Länge Hülle: 860 mm
- Länge Seil: 985 mm
- Durchmesser Hülle: 4,8 mm
- Durchmesser Seil: 1,5 mm
- Aufnahme 1: Birnennippel Ø5,8x9 mm
- Aufnahme 2: Birnennippel Ø5,8x9 mm
KUPPLUNGSZUG
- Länge Hülle: 930 mm
- Länge Seil: 1000 mm
- Durchmesser Hülle: 5,3 mm
- Durchmesser Seil: 1,5 mm
- Aufnahme 1: Birnennippel Ø6x8 mm
- Aufnahme 2: Tonnennippel Ø6x7,5 mm
SCHALTZUG
- Länge Hülle: 900 mm
- Länge Seil: 1100 mm
- Durchmesser Hülle: 5,9 mm
- Durchmesser Seil: 1,5 mm
- Aufnahme 1: Tonnennippel Ø6x6 mm
- Aufnahme 2: Tonnennippel Ø7,8x14,5 mm
DEKOMPRESSIONSZUG
- Länge Hülle: 1000 mm
- Länge Seil: 2000 mm
- Durchmesser Hülle: 5 mm
- Durchmesser Seil: 1,5 mm
- Aufnahme 1: Birnennippel Ø3,2x5,2 mm
- Aufnahme 2: Tonnennippel Ø5x7 mm
LIEFERUMFANG:
1x Bowdenzug Satz
Zündapp ZD 30 Typ 446-200 (ab FG-Nr. 9744037) Mikuni 13mm / 120mm Trommel
Zündapp ZD 30 Typ 446-201
Zündapp ZD 10 Typ 446-210 (ab FG-Nr. 9744037) MIKUNI 13mm / 120mm Trommel
Zündapp ZD 10 Typ 446-211
| Shift cable length Cable (total length): | 1100 mm |
| Clutch cable mount 2: | Barrel nipple Ø6 x 7.5 mm |
| Decompression pull diameter rope: | 1.5 mm |
| Decompression pull length envelope: | 1000 mm |
| Decompression pull length rope (total length): | 2000 mm |
| Restriction vehicle: | 446-20 from FG-No. 9744037 / 446-21 from FG-No. 9744037 |
| Throttle cable mount 1: | Barrel nipple Ø5.2 x 7 mm |
| Throttle cable mount 2: | Pear nipple Ø3 x 3.5 mm |
| Throttle cable Special feature: | with diverter pipe (carburetor side) |
| Throttle cable Bowden cable oiler: | Yes |
| Throttle cable Bowden cable tensioner: | 1x M6 thread & 1x M5 thread |
| Throttle cable diameter rope: | 1.3 mm |
| Throttle cable length Cable (total length): | 920 mm |
| Clutch cable mount 1: | Pear nipple Ø6 x 8 mm |
| Clutch cable Bowden cable tensioner: | 1x M6 thread |
| Decompression cable Bowden cable oiler: | No |
| Clutch cable diameter cover: | 5.3 mm |
| Clutch cable length cover: | 930 mm |
| Clutch cable length Cable (total length): | 1000 mm |
| OE/OEM reference number(s): | 250-04.604 (throttle cable), 446-17,611 (decompression train), 446-17,645 (brake cable), 446-17.613 (clutch cable), 446-17.616 (shift cable) |
| Shift cable mount 2: | Barrel nipple Ø7.8 x 14.5 mm |
| Shift cable Bowden cable tensioner: | 2x M6 thread |
| Shifter cable diameter cover: | 5.9 mm |
| Shift cable length cover: | 900 mm |
| Decompression hoist diameter envelope: | 5 mm |
| Decompression train recording 2: | Barrel nipple Ø5 x 7 mm |
| Decompression train recording 1: | Pear nipple Ø3.2 x 5.2 mm |
| Vintage part: | Yes |
| Note: | Please compare recordings and length! |
| Clutch cable Bowden cable oiler: | No |
| Clutch cable rope diameter: | 1.5 mm |
| Brake cable diameter cover: | 4.8 mm |
| Brake cable Bowden cable oiler: | No |
| Universal compatibility: | No |
| Cover material: | PVC |
| Rope material: | Steel |
| Shift cable mount 1: | Barrel nipple Ø6 x 6 mm |
| Brake cable diameter Cable: | 1.5 mm |
| Shift cable Bowden cable oiler: | No |
| Shift cable diameter Cable: | 1.5 mm |
| Brake cable length Cover: | 860 mm |
| Throttle cable length cover: | 770 mm |
| Tuning & Styling Part: | No |
| Brake cable mount 1: | Pear nipple Ø5.8 x 9 mm |
| Brake cable mount 2: | Pear nipple Ø5.8 x 9 mm |
| Brake cable Bowden cable tensioner: | 1x M6 thread |
| Brake cable length Cable (total length): | 985 mm |
| Throttle cable diameter cover: | 4.8 mm |
| Color: | Black |
| Scope of delivery: | 1x Bowden cable set |
| Manufacturer number: | 168433 |
| Country and region of manufacture: | China |
| Brand compatibility: | Zündapp |
| Product type: | Bowden cable set |
| Type of motorcycle: | Road motorcycle |
| Offer package: | Yes |
| Description of the package content: | Throttle / brake / clutch / gearshift / deco cable |
| Manufacturer warranty: | 2 years |
