Starter choke air flap start slider + air cable Bowden cable air filter Hercules Prima M 2 3 4 5 HR Sachs 504 505
- Item no: 167708
- EAN: 4060861137457
- Manufacturer: Citomerx
- Manufacturer no.: 167708
You can find the right Hercules spare parts here!
In the 1920s, Nuremberg was the center of the two-wheeler industry. This included the Hercules velocipede factory, better known as Hercules Werke. The company mainly manufactured bicycles from 1886 to 1928. It was only in the following years that production was switched to mopeds, mopeds and mopeds up to 200 cc. Installed
Here you will find a starter slide or air flap incl. spring for the air filter box of your Hercules vehicle or Sachs engine. The slider is located in the filter box and is operated by a cable. The slider reduces the air supply when the engine is started so that the air-fuel mixture becomes richer.
Get your new replacement or tuning part now!
Hercules original/comparison number:
- 0225 009 000 (start slide)
- 0239 138 000 (spring)
- P 00 927 170 80 04 000 (starter cable)
TECHNICAL DATA:
Flap/slider:
- Color: black
- Material: weather-resistant, hard-wearing plastic
- Length (flap): 29 mm
- Width (flap): 13 mm
- Total width: 25 mm
- Thickness: 15 mm
Spring:
- Length: 25 mm
- Diameter: 5 mm
Starter cable:
- Total length: approx. 1100 mm
- Length from nipple to stop: 935 mm

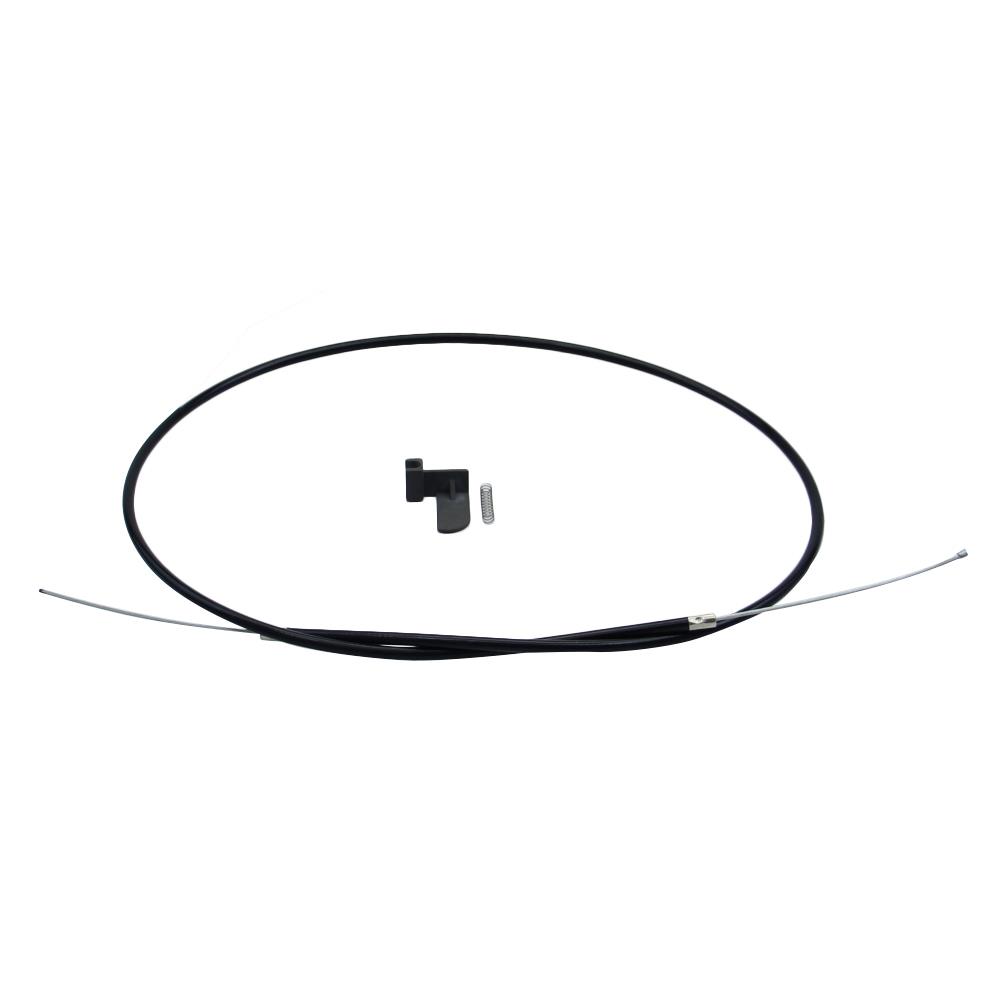

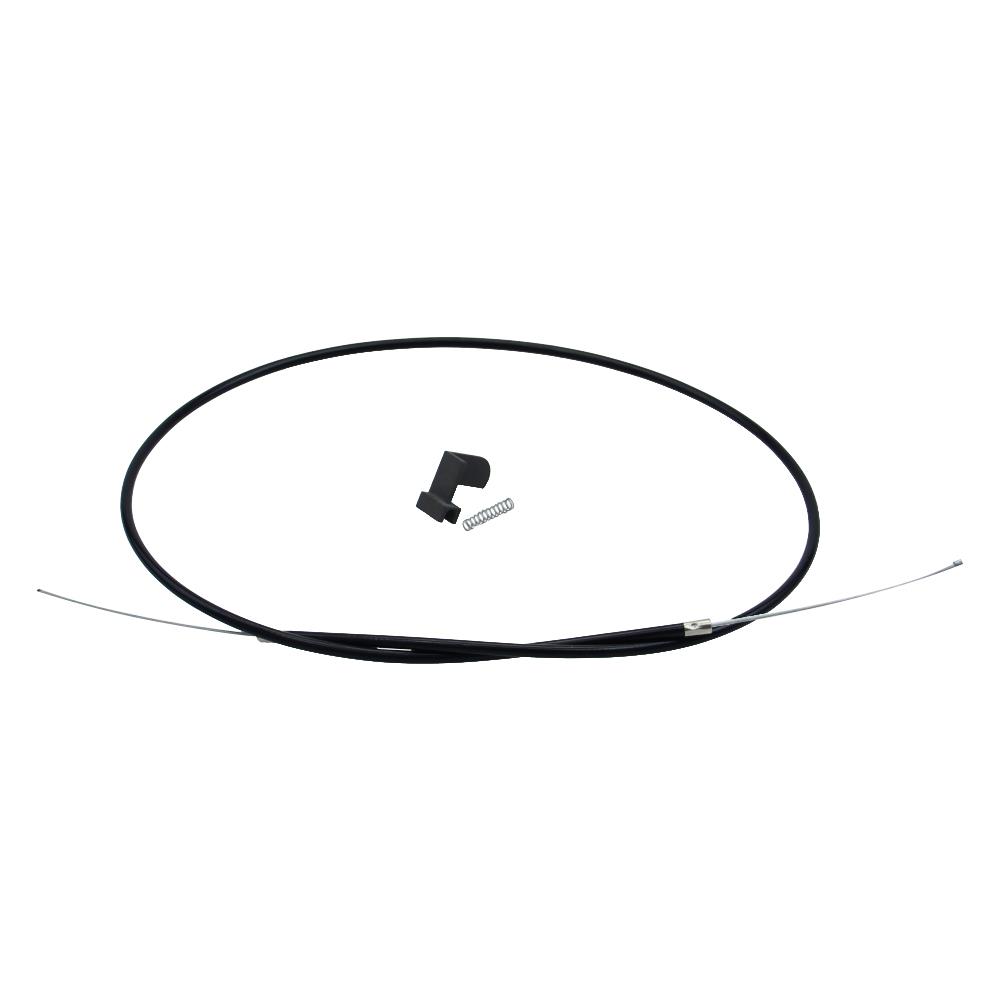

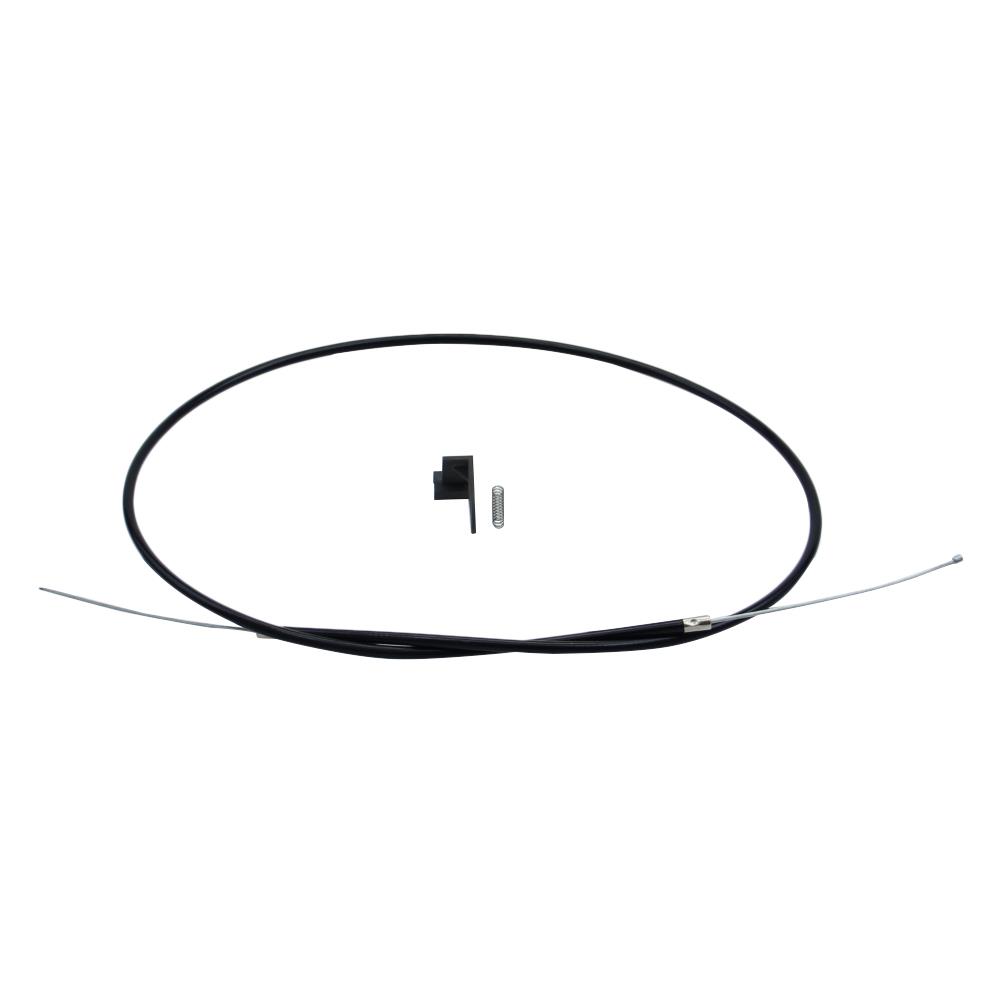

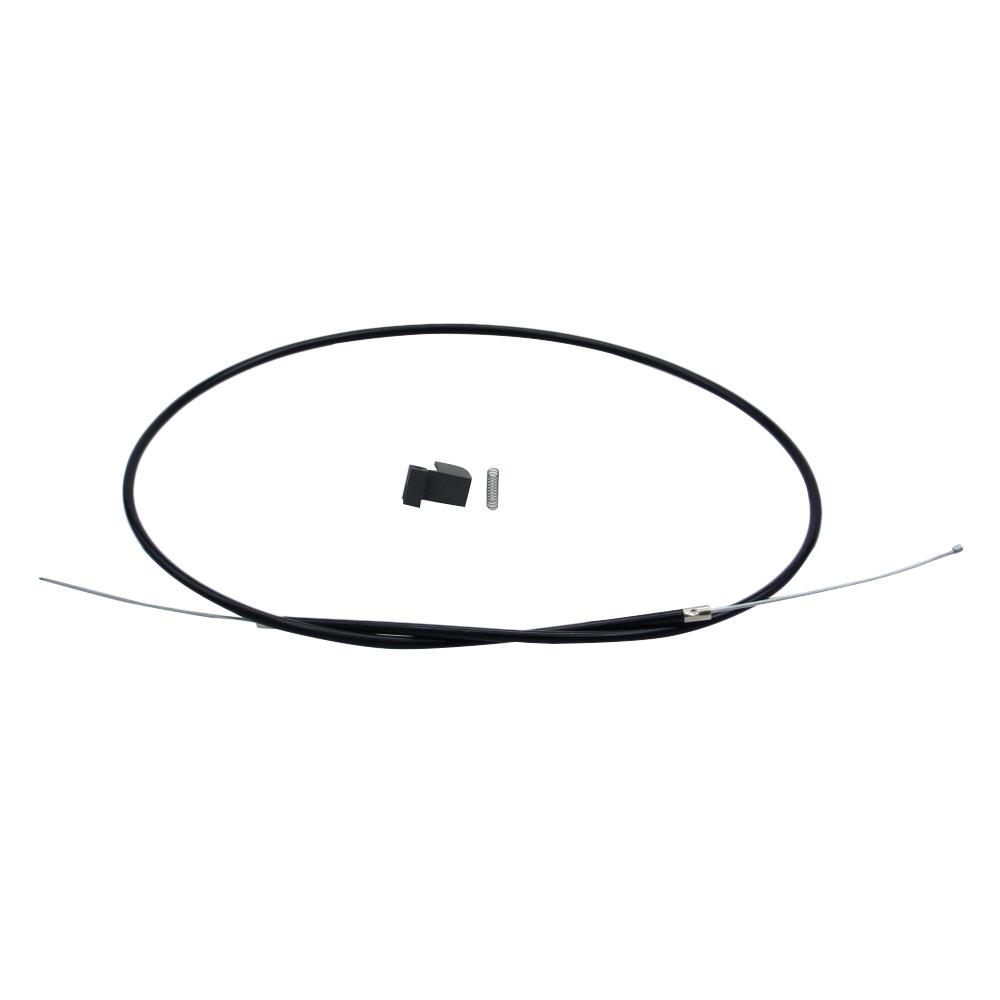

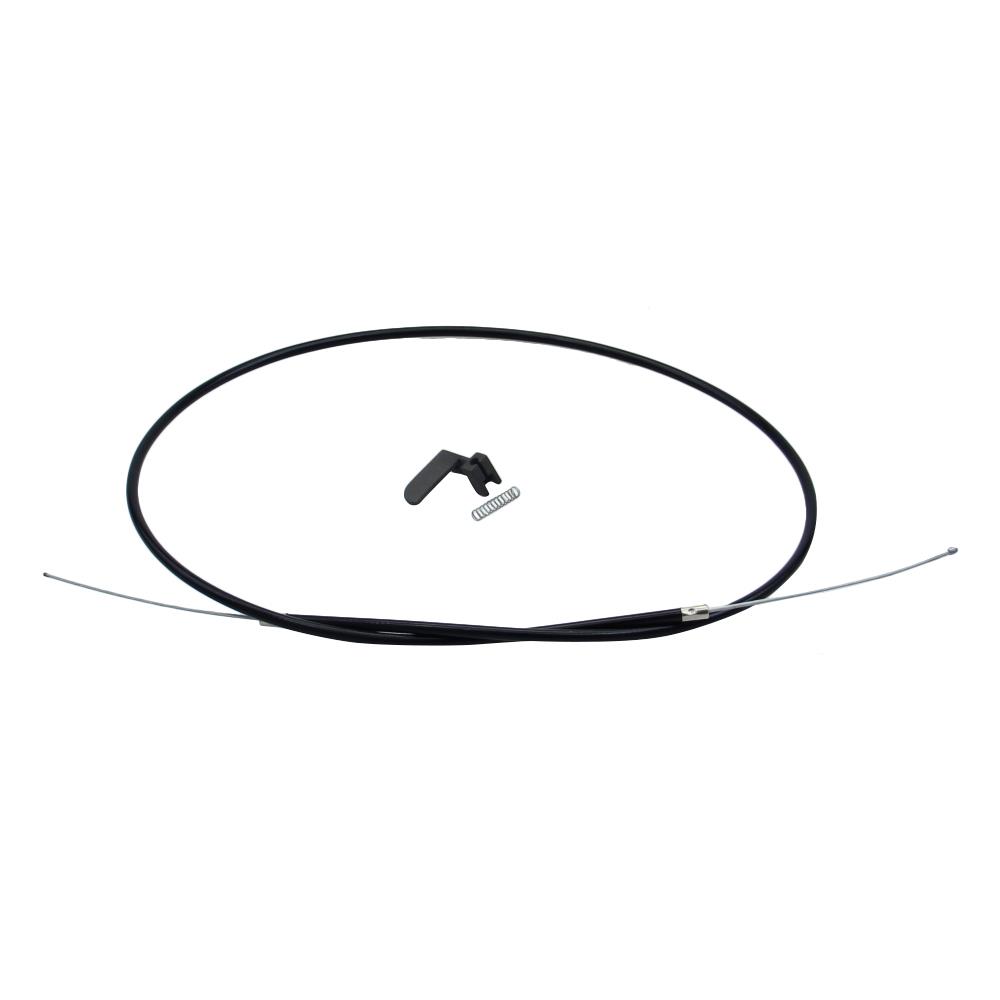

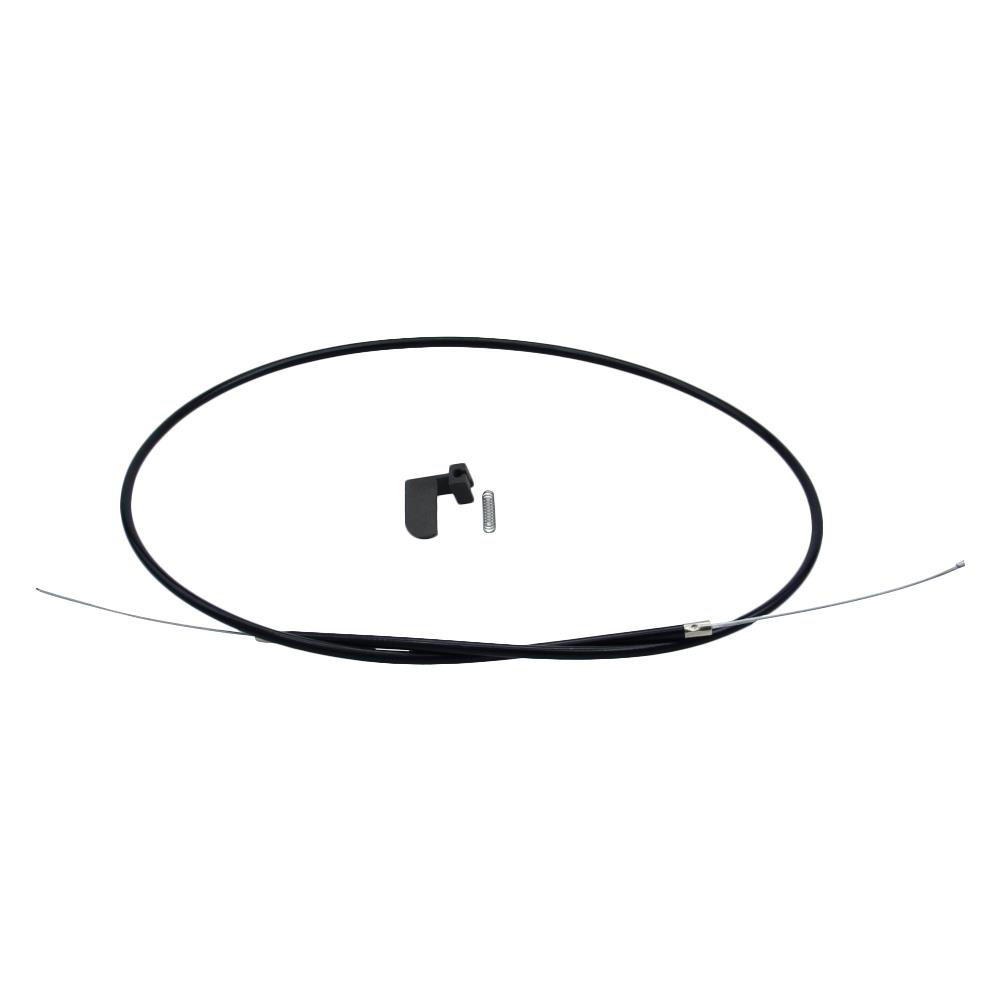

SCOPE OF DELIVERY:
- 1x starter slide
- 1x spring
- 1x starter cable
| Starterzug Länge von Nippel zu Anschlag: | 935 mm |
| Spring diameter: | 5 mm |
| Starterzug Gesamtlänge: | ca. 1100 mm |
| Länge (Klappe): | 29 mm |
| Dicke (Klappe): | 15 mm |
| Breite gesamt (Klappe): | 25 mm |
| Breite (Klappe): | 13 mm |
| Besonderheit Klappe: | strapazierfähig, witterungsbeständig |
| Spring length: | 25 mm |
| Color: | Black |
| Scope of delivery: | 1x Feder, 1x starter cable, 1x Startschieber |
| Manufacturer number: | 167708 |
| Product type: | Starterschieber + Luftfzug |
| Reference number(s) OE: | 0225 009 000 (Startschieber), 0239 138 000 (Feder), P 00 927 170 80 04 000 (Starterzug) |
| Manufacturer warranty: | 2 years |
| Material: | Plastic |
