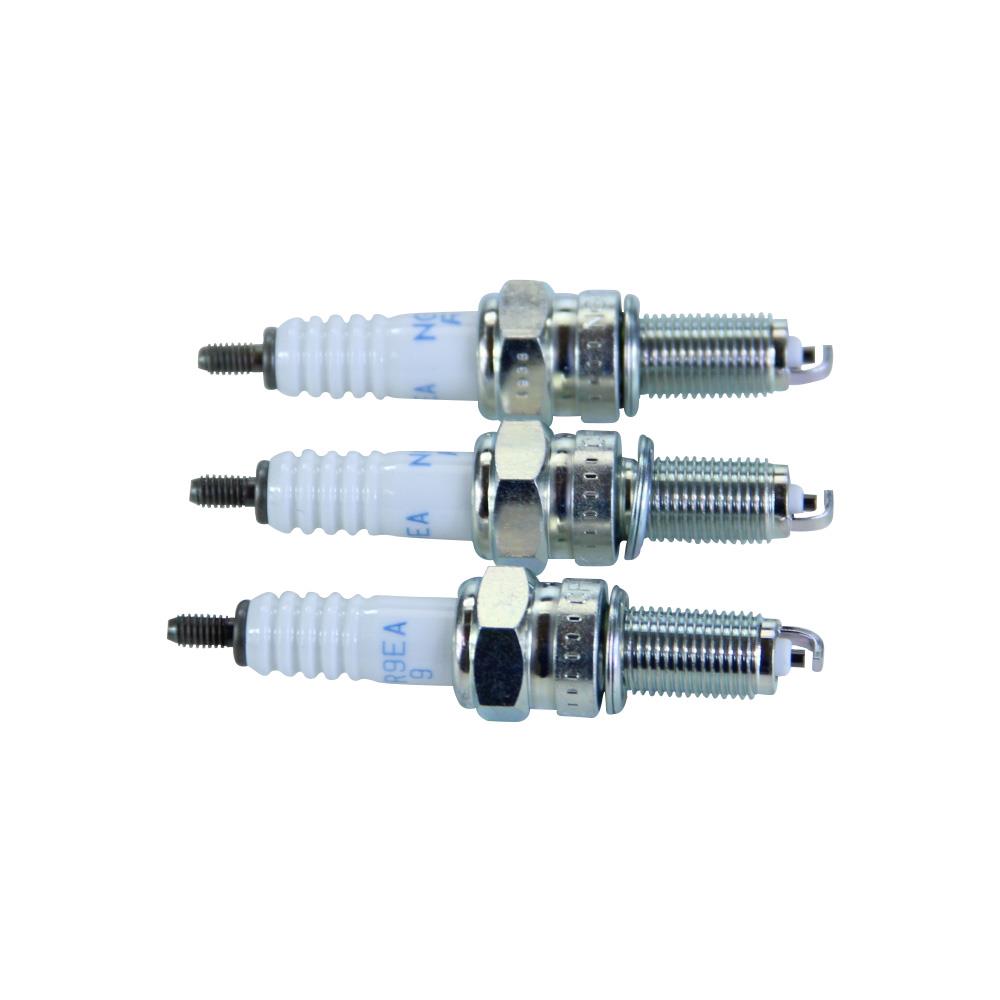

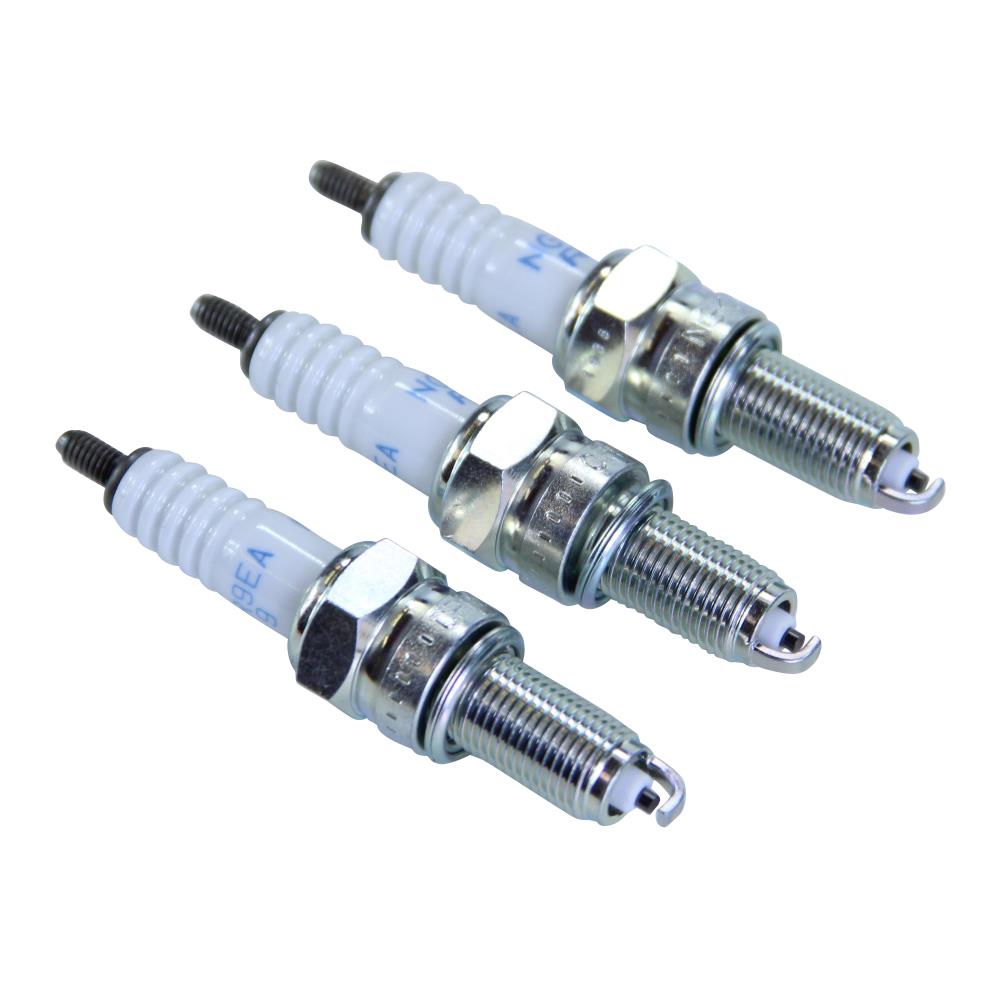

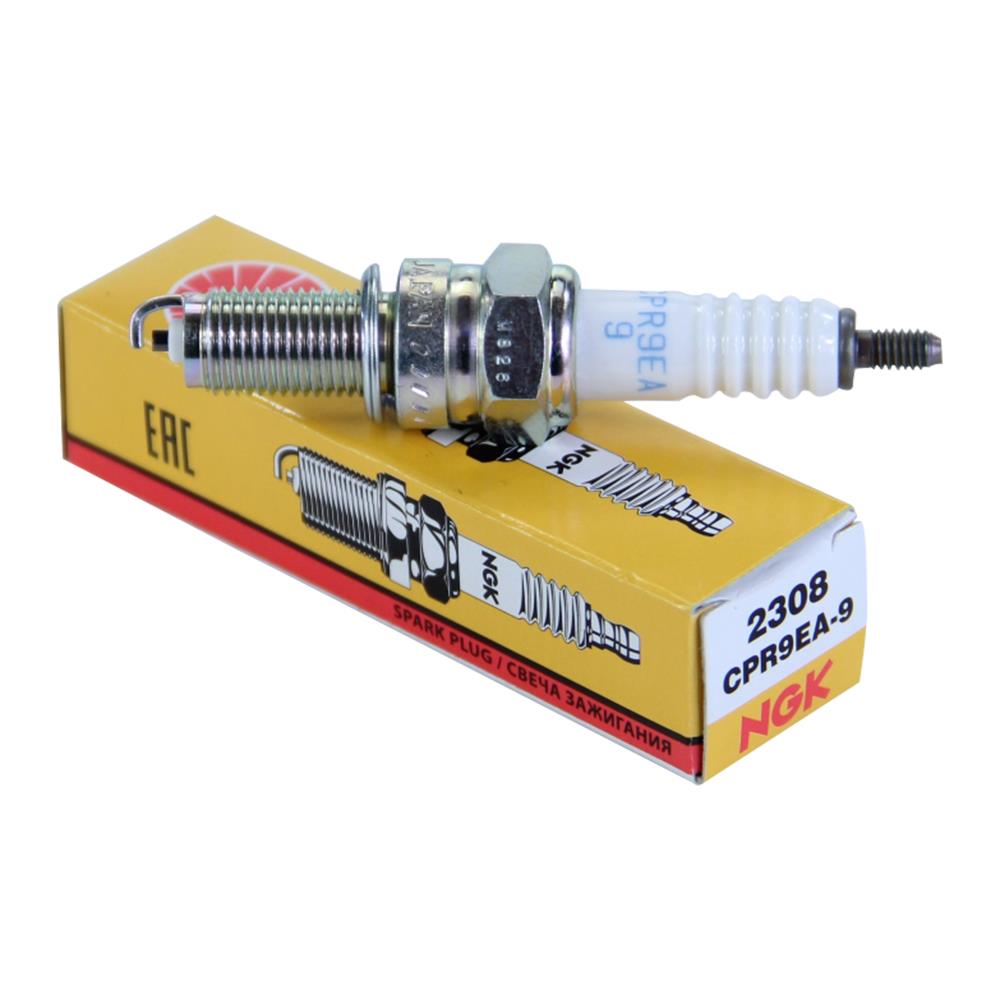

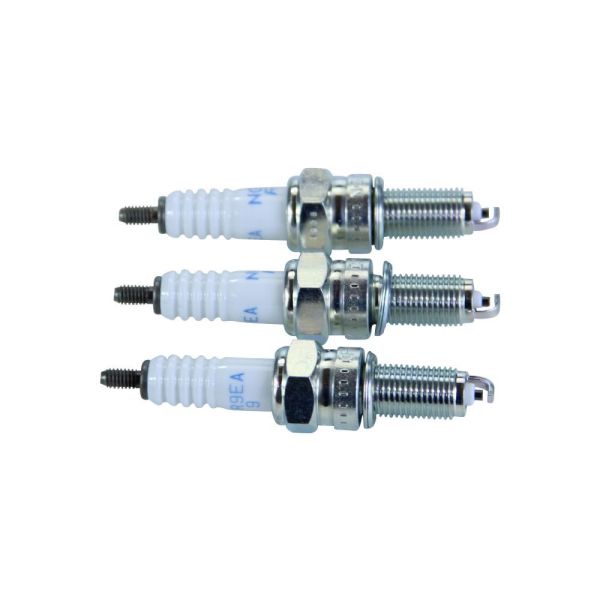

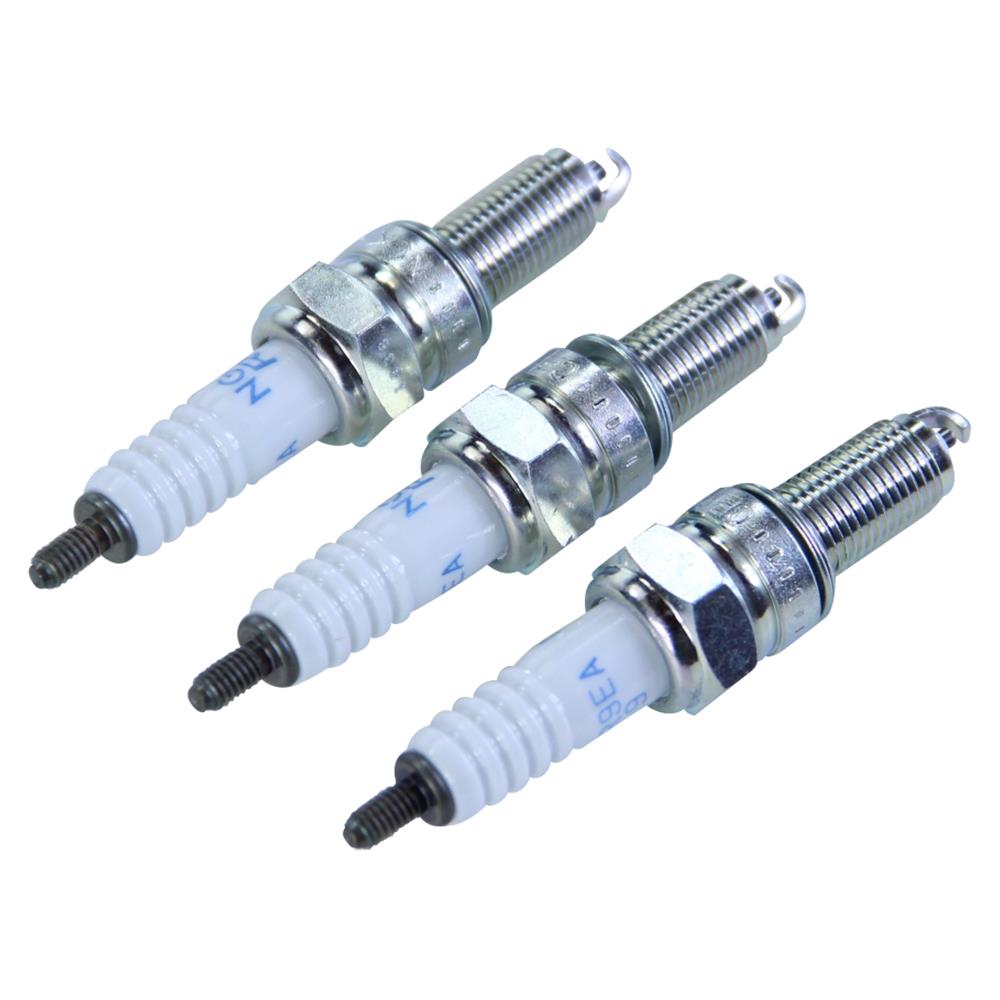

Spark plug NGK CPR9EA-9, 2308, 3 pieces
£14.85 *
Content:
3 piece
(£4.95 *
/ 1 piece)
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Further variants / accessories
Zündkerze NGK CPR9EA-9, 2308
![Zündkerze NGK CPR9EA-9, 2308]()
Zündkerze NGK CPR9EA-9, 2308, 2 Stück
![Zündkerze NGK CPR9EA-9, 2308, 2 Stück]()
Zündkerze NGK CPR9EA-9, 2308, 3 Stück
![Zündkerze NGK CPR9EA-9, 2308, 3 Stück]()
Zündkerze NGK CPR9EA-9, 2308, 4 Stück
![Zündkerze NGK CPR9EA-9, 2308, 4 Stück]()
- Item no: 1606553
- EAN: 4251048879097
- Manufacturer: NGK
- Manufacturer no.: 1606553
Stop stuttering and give fire.
DESCRIPTION:
The ignition voltage generated by the ignition... more
Product information about Spark plug NGK CPR9EA-9, 2308, 3 pieces
Stop stuttering and give fire.
DESCRIPTION:
The ignition voltage generated by the ignition coil and ignition breaker is transferred to the spark plugs via the spark plug leads. There the ignition spark generated by the ignition voltage jumps over between another ceramic insulated center electrode and a ground electrode fixed to the fastening thread and thus starts the combustion process.
NGK SPARK PLUG is a leading global supplier to the automotive industry and manufacturer of technical ceramics. The company specialises in ignition and sensor technology. NGK SPARK PLUG is today represented on all continents by 41 Group Companies, 24 production facilities and 5 Technical Centers.
This spark plug reliably ignites very lean fuel-air mixtures, as the plug extends a little further into the combustion chamber.
A longer spark or a larger spark surface as well as the open spark gap in contrast to a conventional spark plug have a considerable influence on the ignition process and can improve the combustion.
Order ignition components at ZS2Radteile online at low cost! Tested quality & top prices. Order spark plugs now and get started!
TECHNICAL DATA:
- TYPE CPR9EA-9
- Manufacturer No. 2308
- interference suppressed 5 kOhm
- Width across flats SW16 (16.0 mm)
- Thread M10 (10.0 mm)
- Thread length 19 mm
- Electrode distance 0.9 mm
- Contact ignition cable M4- thread
- Spark plugs with advanced insulator tip
- special increased electrode distance
SCOPE OF DELIVERY:
✔ 3x spark plug CPR9EA-9 from NGK
COMPARABLE WITH:
Champion P-RG4HCC
Denso IU27/IU27A, U27EPR9, U27ESR-N
Honda 31926-KRM-841
MBK 9079Q-3050100
Yamaha 94700-00871
DESCRIPTION:
The ignition voltage generated by the ignition coil and ignition breaker is transferred to the spark plugs via the spark plug leads. There the ignition spark generated by the ignition voltage jumps over between another ceramic insulated center electrode and a ground electrode fixed to the fastening thread and thus starts the combustion process.
NGK SPARK PLUG is a leading global supplier to the automotive industry and manufacturer of technical ceramics. The company specialises in ignition and sensor technology. NGK SPARK PLUG is today represented on all continents by 41 Group Companies, 24 production facilities and 5 Technical Centers.
This spark plug reliably ignites very lean fuel-air mixtures, as the plug extends a little further into the combustion chamber.
A longer spark or a larger spark surface as well as the open spark gap in contrast to a conventional spark plug have a considerable influence on the ignition process and can improve the combustion.
Order ignition components at ZS2Radteile online at low cost! Tested quality & top prices. Order spark plugs now and get started!
TECHNICAL DATA:
- TYPE CPR9EA-9
- Manufacturer No. 2308
- interference suppressed 5 kOhm
- Width across flats SW16 (16.0 mm)
- Thread M10 (10.0 mm)
- Thread length 19 mm
- Electrode distance 0.9 mm
- Contact ignition cable M4- thread
- Spark plugs with advanced insulator tip
- special increased electrode distance
SCOPE OF DELIVERY:
✔ 3x spark plug CPR9EA-9 from NGK
COMPARABLE WITH:
Champion P-RG4HCC
Denso IU27/IU27A, U27EPR9, U27ESR-N
Honda 31926-KRM-841
MBK 9079Q-3050100
Yamaha 94700-00871
Properties
| Product type: | Spark plug |
| Sealing: | Flat tight fit |
| Number of earth electrodes: | 1 |
| suppressed?: | Yes, 5 kOhm |
| Tuning & Styling Part: | No |
| Thread diameter: | 10 mm |
| Electrode gap: | 0.9 mm |
| Vintage part: | No |
| Spark plug type: | CPR9EA-9 |
| Universal compatibility: | Yes |
| Quantity per pack: | 3 |
| Spark position: | 3.0 mm |
| Contact ignition cable: | Connection version M4 |
| GTIN: | 4251048879097 |
| Features: | special increased electrode gap, advanced insulator tip |
| Scope of delivery: | 3x spark plug NGK CPR9EA-9 |
| Manufacturer number: | 1606553 |
| Country and region of manufacture: | Japan |
| Reference number(s) OE: | so U27EPR9 Denso U27ESR-N Honda 31926, Champion P-RG4HCC Denso IU27/IU27A Den, -KRM-841 MBK 9079Q-3050100 Yam, aha 94700-00871 |
| Type of motorcycle: | Motorcycle, Moped & Mokick, Scooter, Quad ATV & Trike |
| Units quantity: | 1 |
| Manufacturer warranty: | 2 years |
| Thread length: | 19.0 mm |
| Thread dimensions: | M10 x 1 |
| Width across flats: | 16 mm (SW16) |
| Material: | Nickel |
