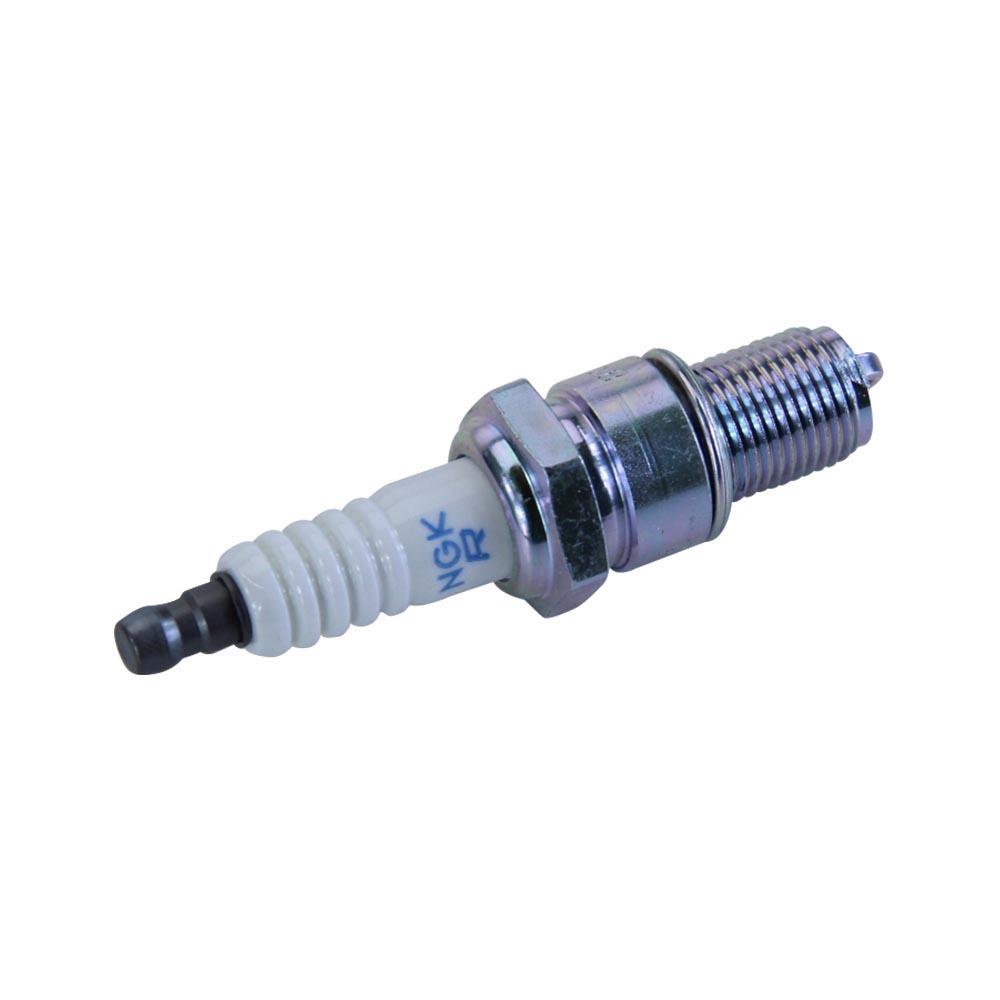

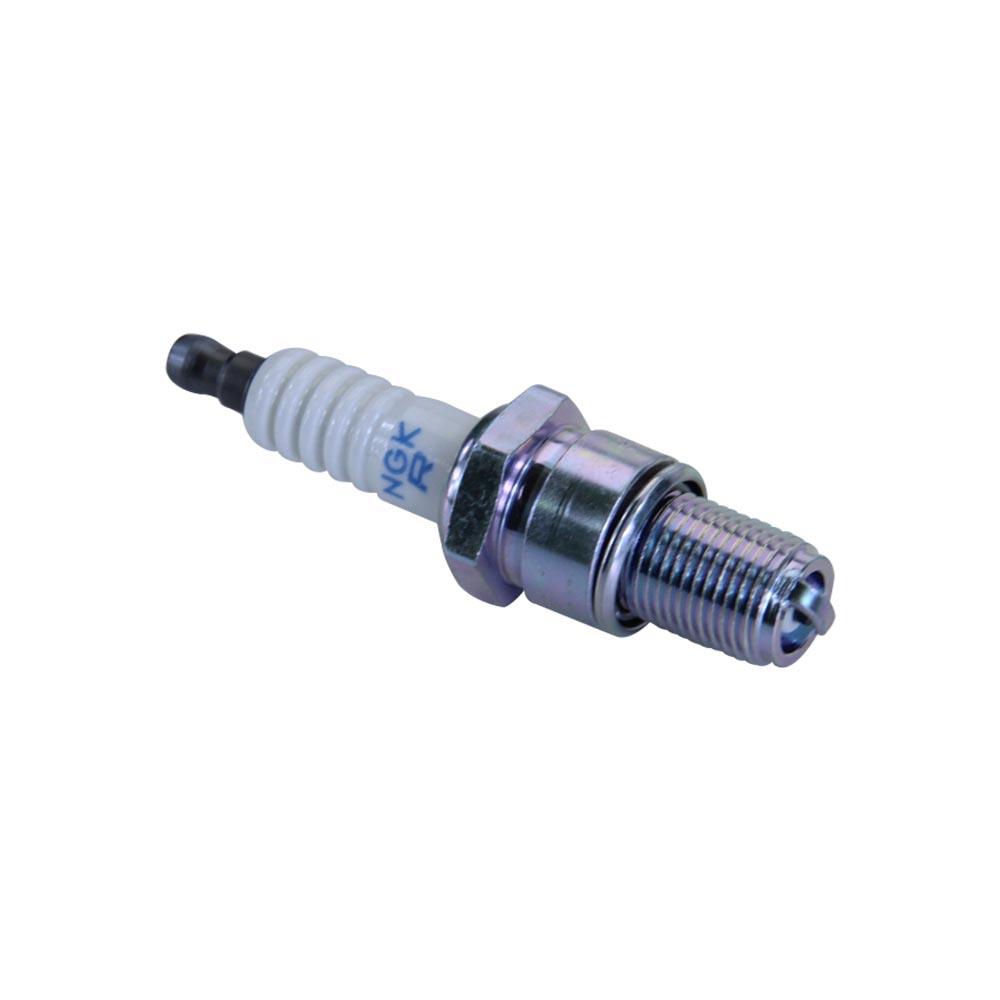

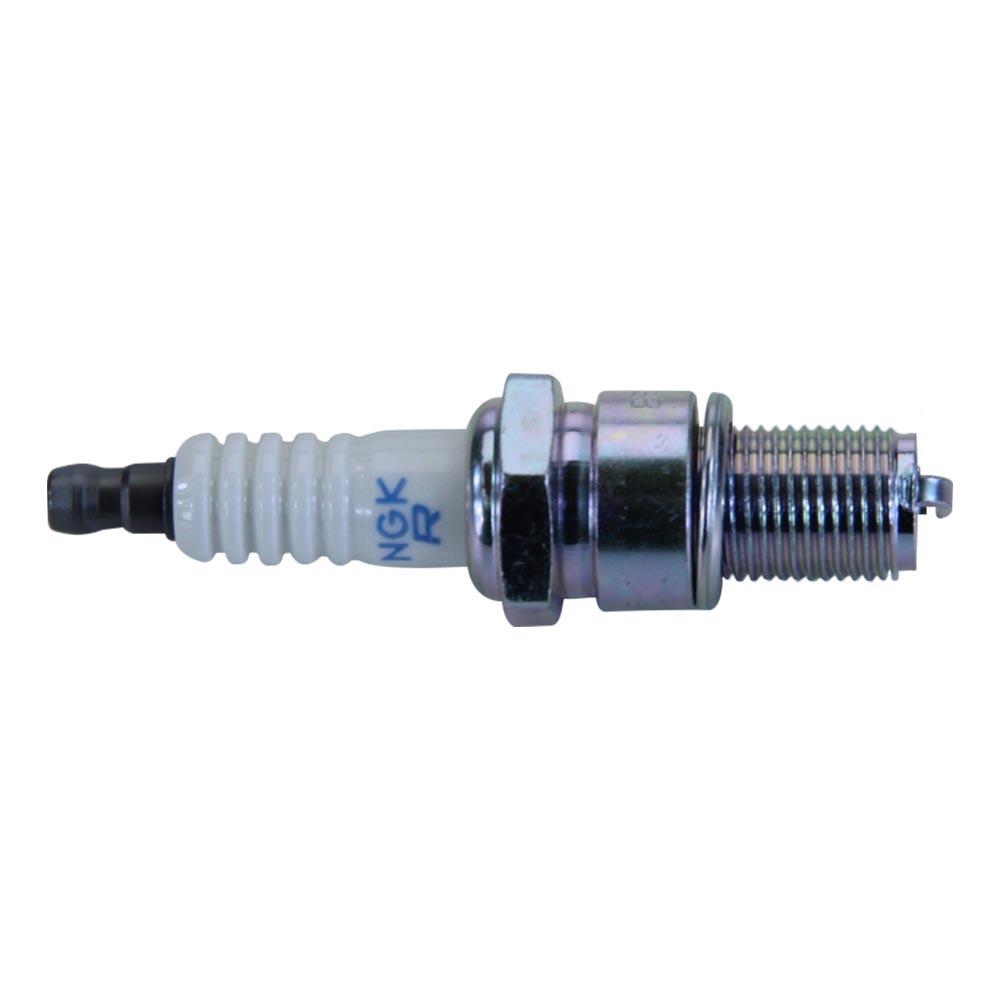

Spark plug NGK BR9ES, 5722

3, 2, 1, ignition!

DESCRIPTION:
The spark plug produces a spark to ignite the mixture. This spark is produced on one or more earth electrodes, which are located on the thread of the spark plug. Inside is the necessary counterpart - the centre electrode. Both are separated from each other by the white ceramic insulator. The spark must jump from the earth electrode to the centre electrode in order to generate sufficient heat for ignition.
NGK SPARK PLUG stands for highest quality, not only in Germany and Europe. After its foundation in 1936, the manufacturer has gradually established itself all over the world. Through outstanding commitment in the areas of quality,
technology, research and development, the company is today the world's number one supplier of spark plugs. So it is no coincidence that the spark plugs are also used in the motor sport segment, such as Formula 1. Here the perfect function of the spark plug is always relied upon.
The spark plugs are uniquely designed to guarantee the best possible performance. There is a wide range of different thermal characteristics for high thermal load.
Always order spark plugs at ZS2Radteile at a favourable price! Top quality & top selection - Now access ignition and maintenance parts.

TECHNICAL DATA:
- TYPE BR9ES
- manufacturer no. 5722
- interference suppressed 5 kOhm
- Width across flats SW21 (20,8 mm)
- Thread M14 (14.0 mm)
- Thread length 19 mm
- electrode distance 0.8 mm
- Contact ignition cable M4 thread with screw-on SAE nut

COMPARABLE WITH:
AC Delco R41CXL, R41XL, R42XL, S40XLR, S41XLR
Accel 141, 142, ACCR9ES
Aprilia 8206915, AP8206915
Autolite 3702, 3703, 4062, 4063, XS4062
Beru 14Z-3CU, Z38
Bosch 0242255502, W2CC, W3CC, W4CC, WR3CC, WR3CP
Bosch pcs 7529, 7530
Brisk LR12C
Champion 818, 8902, N2C, NR2C, OE091, OE091/T10, QN2, QN2C, RN2, RN2C
Champion pcs 805, 818
Denso 4045, 5317, 5714, 6069, IW01-27, IW27, W27ESR, W27ESR-U, W27ESR/W27ESR-U, W27ESRU
Denso pcs 4045
Evinrude MCBR9ES
Fuji 065-01402-50
General Motors 5613388, 5613493, 5614068
Honda 98076-57720, 98079-59816, 98079-59847, 98079-59876
Iskra FE100RS
Italjet 94029
Johnson MCBR9ES
Kawasaki 920701109, 920701157, E92070-1053, E92070-1109, E920701109, E920701157, J4520W27ESRU
MBK 9079Q-0416400
Mercruiser 33-809679, 33-809679B, 33-818, 33-818S
Mercury 809679, 809679B
Motorcraft AG071
Motorcraft pcs 68
NGK pcs 3194, 5722
Piaggio AP8206915
PSA Peugeot Citroën 7540.50, 75405
Splitfire SF406C
Suzuki 09482-00098, 09482-00127, 09482-00233-111, 09482-00349
Tacti V91104045
Toyota 90098-27935
Yamaha 90793-22037, 94700-00261, 94701 00188, 94701-00188, 9470100188, 94702 00188, 94702-00188, 9470200188, 94703-00188

SCOPE OF SUPPLY:

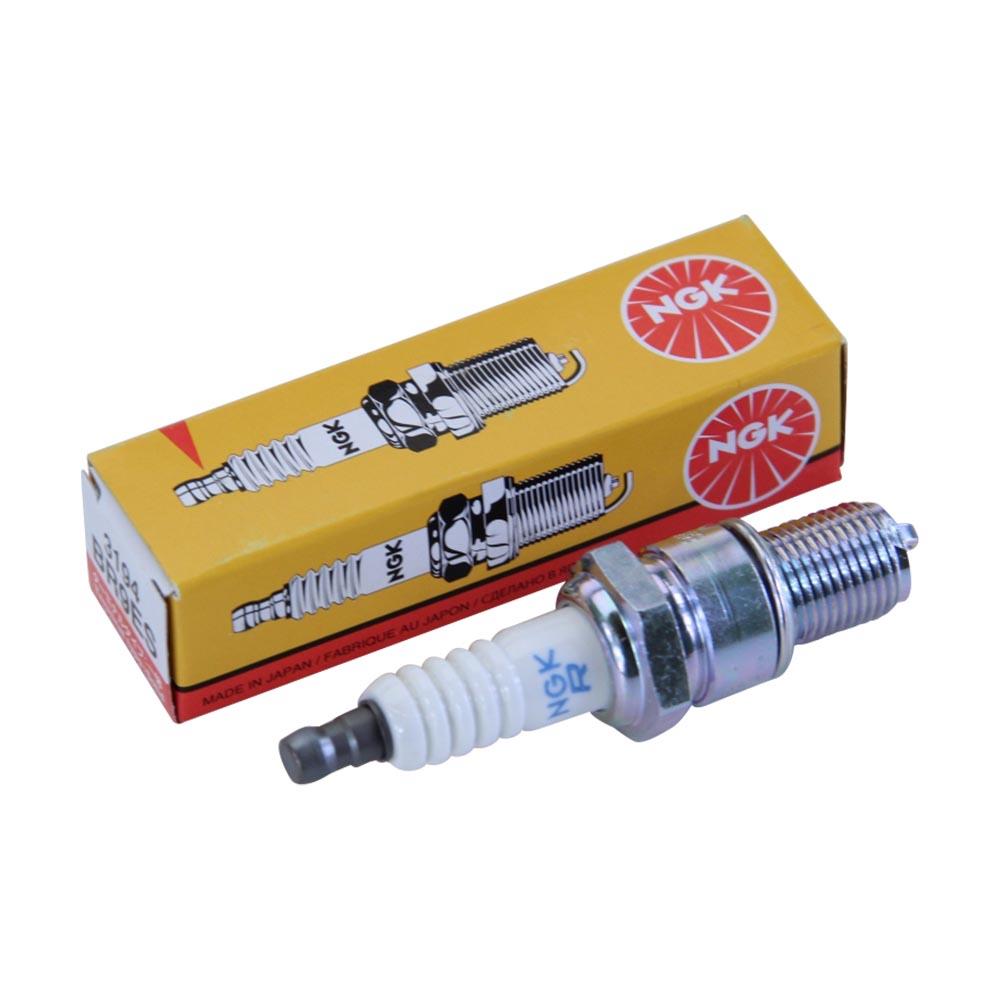

✔ Spark plug NGK BR9ES
