Spark plug NGK CR7HS, 7223
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Further variants / accessories
- Item no: 160665
- EAN: 0087295172230
- Manufacturer: NGK
- Manufacturer no.: 7223

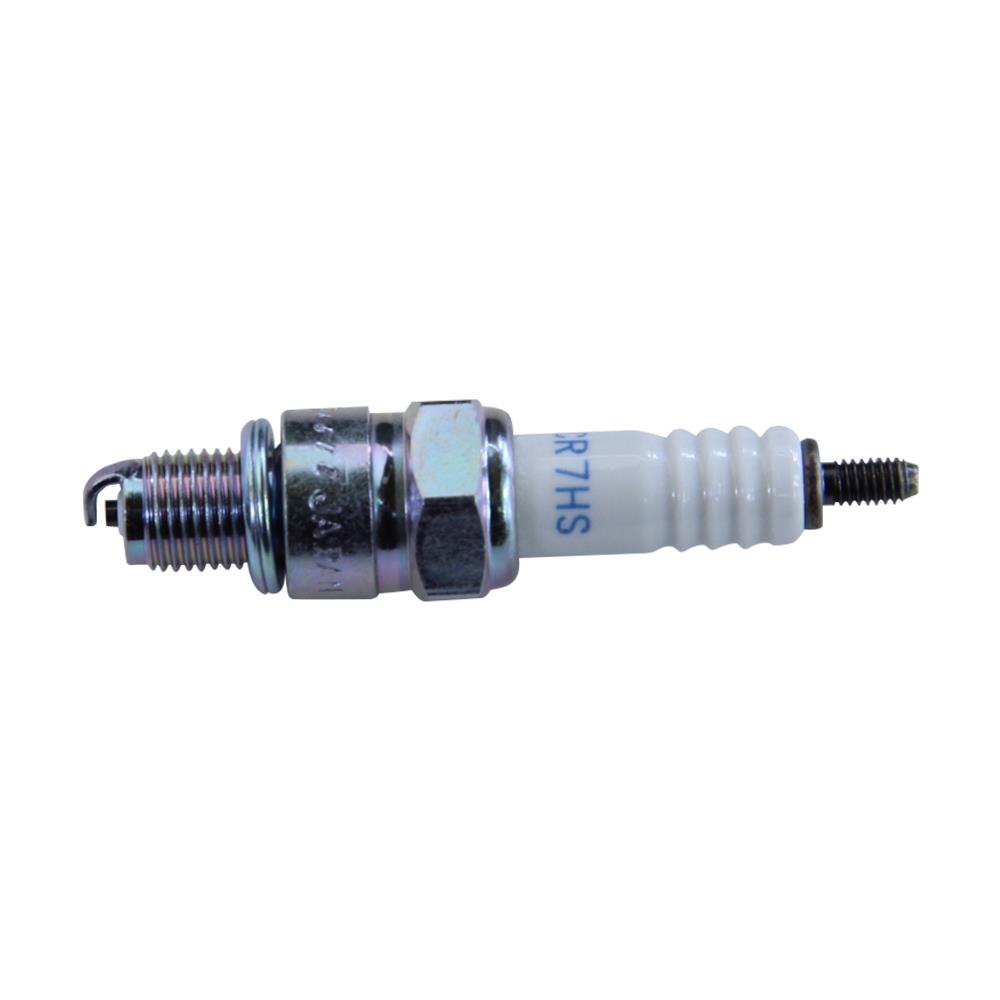

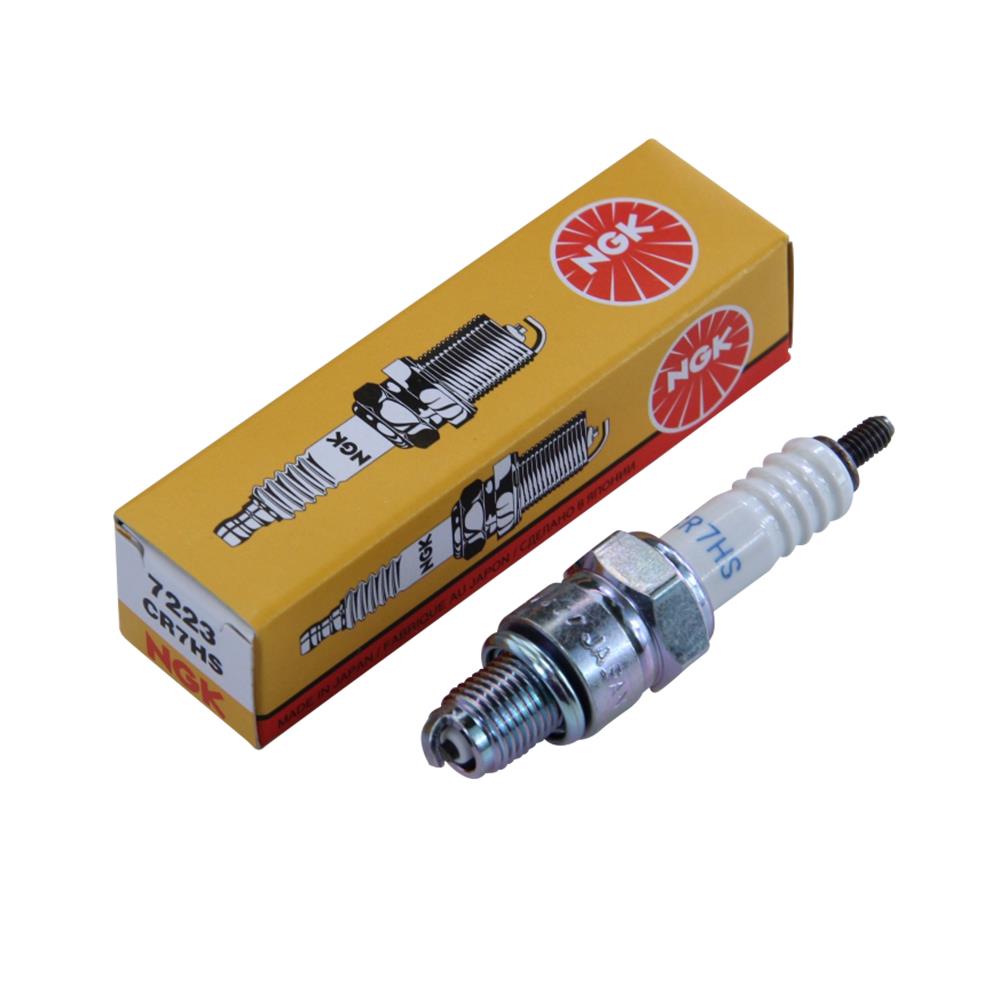

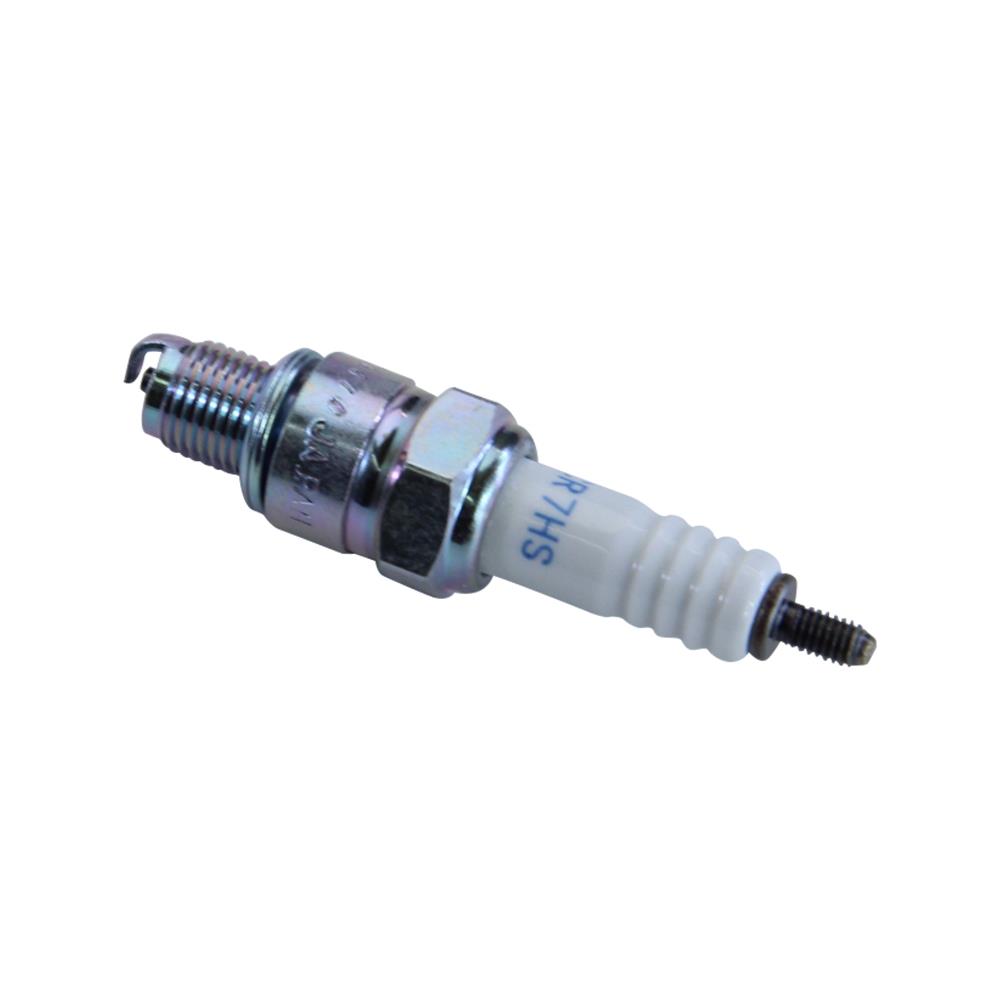

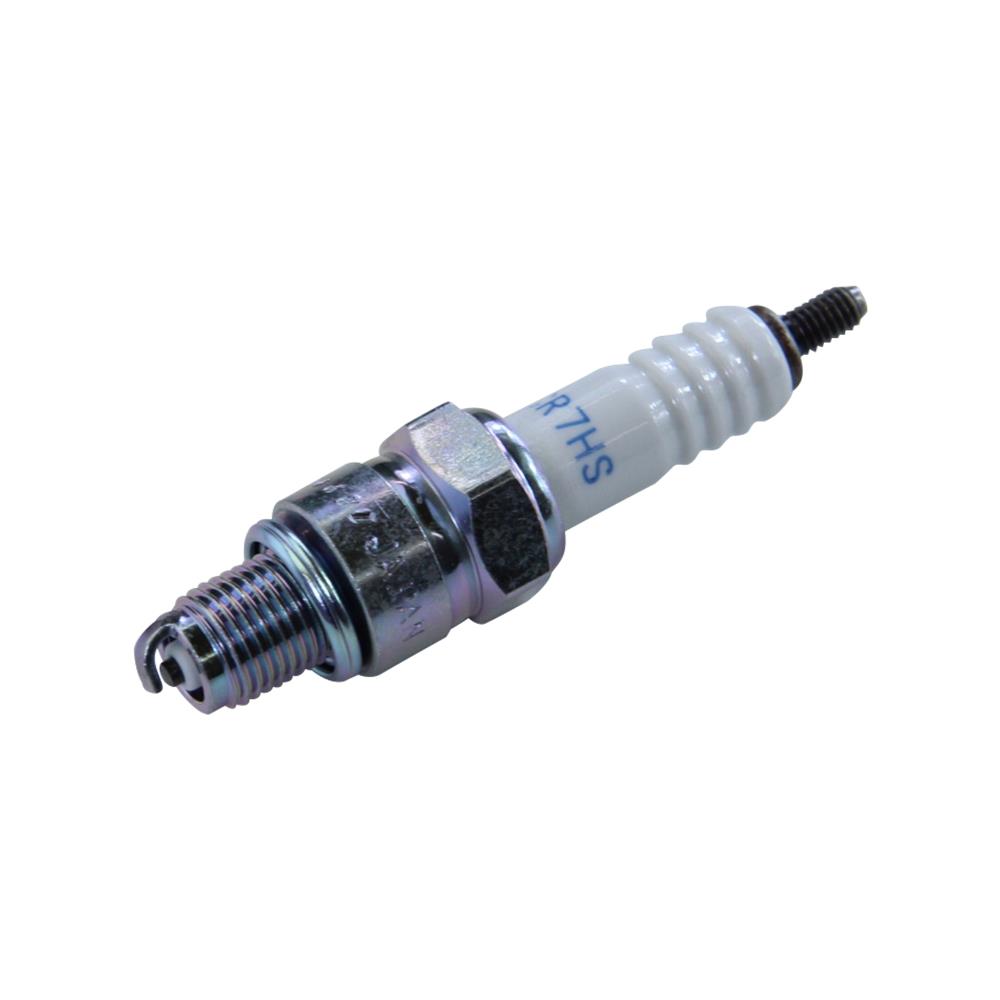

NGK Spark Plug CR7HS
DESCRIPTION:
The ignition voltage generated by the ignition coil and ignition interrupter is transmitted to the spark plugs via the spark plug cables. There, the spark generated by the ignition voltage jumps between another ceramic insulated centre electrode and a ground electrode fixed to the fixing thread, thus starting the combustion process.
NGK SPARK PLUG is a leading global supplier to the automotive industry and manufacturer of technical ceramics. The company specialises in the field of ignition and sensor technology. Today NGK SPARK PLUG is represented on all continents with 41 group companies, 24 production sites and 5 technical centres. The spark plugs are uniquely designed to guarantee the best possible performance. There is a wide range of different thermal ratings for high thermal load.
TECHNICAL DATA:
- Type: CR7HS
- Colour: silver, white
- Manufacturer No. 7223
- interference suppressed 5 kOhm
- Width across flats: SW16
- Thread: M10
- Thread length: 12.7 mm
- Electrode gap: 0.7 mm
- Contact ignition cable M4- thread
SCOPE OF DELIVERY:
Spark plug CR7HS
| Product type: | Spark plug |
| Sealing: | Flat tight fit |
| Number of earth electrodes: | 1 |
| suppressed?: | Yes, 5 kOhm |
| Tuning & Styling Part: | No |
| Thread diameter: | 10 mm |
| Electrode gap: | 0.7 mm |
| Vintage part: | No |
| Spark plug type: | CR7HS |
| Universal compatibility: | Yes |
| Quantity per pack: | 1 |
| Spark position: | 1.5 mm |
| Contact ignition cable: | Connection version M4 |
| GTIN: | 0087295172230 |
| Reference number(s) OEM: | CR7HS |
| Scope of delivery: | 1x spark plug NGK CR7HS |
| Manufacturer number: | 7223 |
| Country and region of manufacture: | Japan |
| Reference number(s) OE: | Motors 5613467 Honda 98056-57716, NGK stk 7223, UR3AS Brisk NAR14YC Brisk NAR14YS, U22FSR-U U22FSRL U22FSRU stk 4006 General, Denso 4008 5383 IUF22 U22FS-U U22FSR-L, Champion P-RZ7HC P-Z9HC RZ8 Z9Y pcs 808, Bosch 0242055500 0242060506 UR2AC UR3AC |
| Type of motorcycle: | Quad ATV & Trike, Moped & Mokick, Scooter, Motorcycle |
| Units quantity: | 1 |
| Manufacturer warranty: | 2 years |
| Thread length: | 12.7 mm |
| Thread dimensions: | M10 x 1 |
| Width across flats: | 16 mm (SW16) |
| Material: | Nickel |
Niterra NGK SPARK PLUG EUROPE GmbH
Harkortstraße 41
40880 Ratingen DEU
Web page https://www.ngk.de/home/
Email: info@ngkntk.de
NGK spark plugs are already factory installed in 90% of all motorcycles from Japan. High-quality spark plugs have a positive effect on the consumption, the starting willingness and power development of your engine. Each manufacturer has determined the optimal spark plugs for the various vehicles in long tests, so you should always follow the factory specifications in your manual when choosing a new spark plug. Also from NGK are high quality spark plug connectors available which are suitable for most two-wheelers. At ZS2Radteile you can order NGK spark plugs and spark plug connectors in top quality and at a fair price for your motorcycle, scooter or moped quickly and easily.
